Transforming a space doesn’t always have to break the bank. My latest home improvement triumph, a stunning plywood plank ceiling, is a testament to achieving a high-end look on a budget. I am absolutely thrilled with how my studio ceiling turned out, and the best part? It cost a mere fraction of what traditional options would have. Initially, I envisioned covering my studio ceilings with beautiful pine tongue and groove planks, a style I adore and have implemented throughout the main level of my house. However, with pine tongue and groove planks costing around $2.25 per square foot, outfitting my studio would have easily reached an estimated $3000 – a sum I simply wasn’t prepared to spend on this particular project.
Determined to achieve the desired aesthetic without the hefty price tag, I set out to find a more cost-effective solution. My research and ingenuity led me to an alternative that, with a little extra effort on my part, delivered the same sophisticated V-groove plank look for significantly less. The final material cost for my entire studio ceiling project came in at an astonishing 37 cents per square foot, totaling less than $400! This budget-friendly DIY project proves that creativity and determination can yield remarkable results. This post is proudly sponsored by Zircon Corporation, whose indispensable tools played a key role in the success of this installation.
Watch the video: Plywood Faux Plank Ceiling
Crafting a Beautiful V-Groove Plywood Plank Ceiling on a Budget
The journey to my dream studio ceiling began with careful material selection. My secret weapon for this budget-friendly transformation was 1/4-inch plywood underlayment. While 1/4-inch cabinet grade plywood can run about $29 per sheet in my region, the underlayment version is a steal at just $11 per sheet. I’ve used this specific type of underlayment many times before for cabinet backs because it boasts one remarkably smooth, attractive side. Had I not planned to paint everything white, I’m certain I would have highlighted its inherent beauty much sooner. This choice allowed for significant cost savings without compromising the final aesthetic.

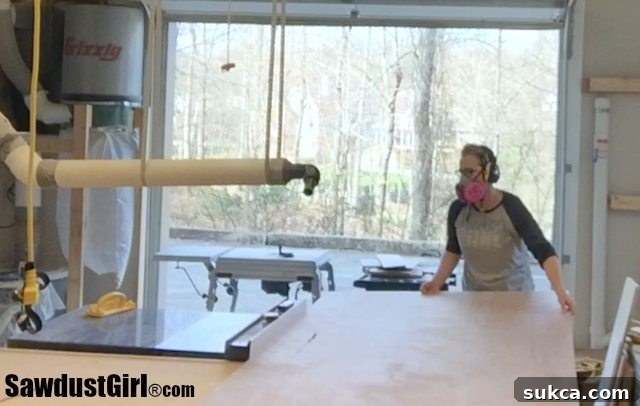

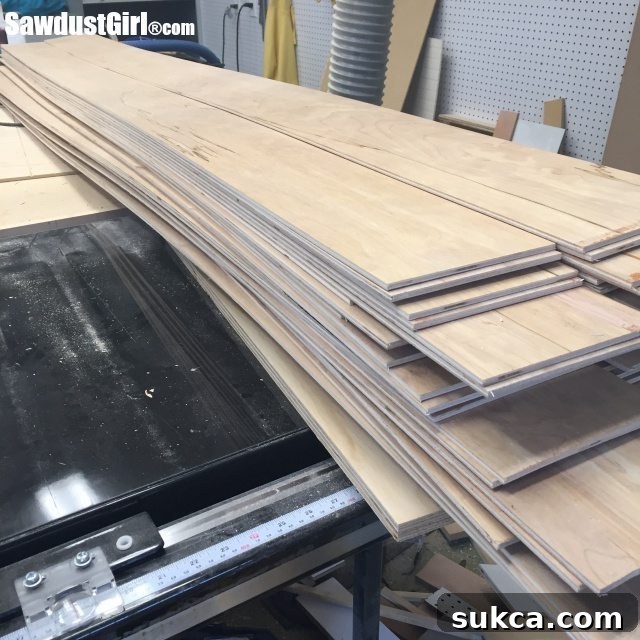

Once I had my plywood sheets, the next crucial step was transforming them into uniform planks. I purchased standard 4×8 foot sheets of the 1/4-inch plywood underlayment and carefully ripped them down into strips just under 6 inches wide. Each 4×8 sheet yielded a total of eight individual planks, making the most of every piece of material. This process, while repetitive, was straightforward and laid the foundation for the distinctive V-groove appearance.

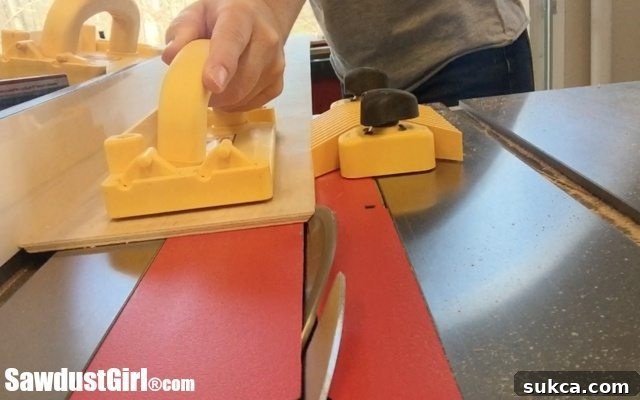

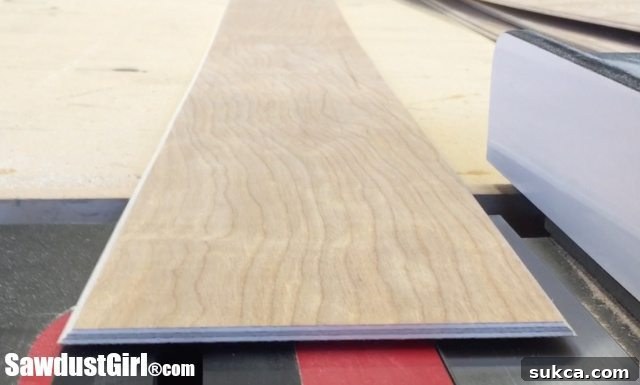

After all the strips were cut to width, the magic of the V-groove began. I adjusted my table saw blade to a precise 45-degree angle. Then, I ran each strip through the saw twice, beveling both sides of every plank. This step is critical, as these opposing bevels are what come together to form the characteristic V-shape when the planks are installed side-by-side. A key detail to remember during this process is to always keep the “good side” of the plywood facing down while beveling. This ensures a clean, smooth edge on the visible surface. For safety and precision, I relied on my MicroJig GRR-Ripper to push the planks through the saw, keeping my hands a safe distance from the spinning blade. This tool is an absolute must-have for repetitive cutting tasks like this, greatly enhancing both safety and accuracy.
Once beveled and flipped right-side up, each plank took on its final form, ready for installation. The entire process – from ripping a 4×8 foot sheet into eight strips to beveling both sides of each plank – took me approximately 15 minutes per sheet. This efficient workflow allowed me to prepare a substantial number of planks relatively quickly, ensuring I had plenty of material ready before starting the installation phase. It’s a satisfying transformation, seeing a plain sheet of plywood become a stack of elegant, V-groove-ready planks.
Locating Joists: The Foundation of a Secure Ceiling Installation

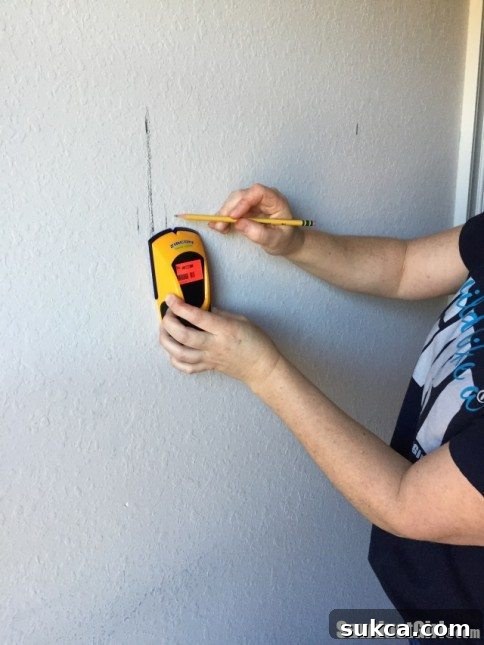

A successful ceiling installation hinges on securely attaching the planks to the structural ceiling joists. Since I planned to install my plywood plank ceiling perpendicular to the joists, precisely locating these supports was paramount. While some might resort to the traditional “knock and listen” method or the less efficient “drill a bunch of holes until you hit something” approach, I strongly advocate for the use of a reliable stud finder. For this crucial task, my Zircon stud finder proved invaluable. It’s by far the best I’ve ever used, and I’m incredibly grateful to have Zircon sponsoring this post, as their tools genuinely simplify complex DIY tasks.

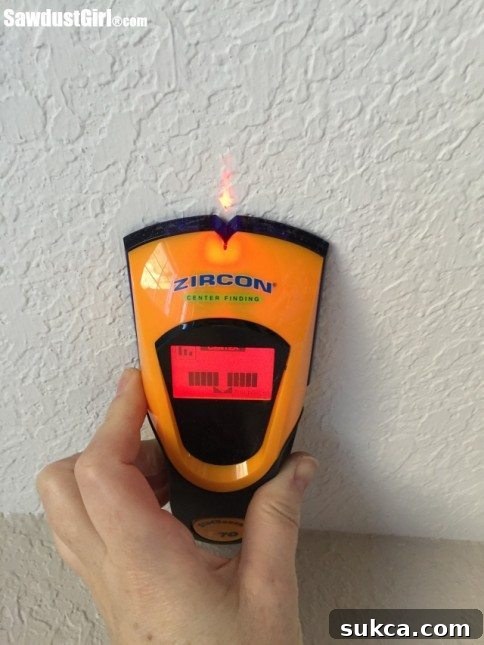

What sets this particular Zircon stud finder apart is its advanced precision. As you glide it across the ceiling, it not only indicates the exact center of the joists but also displays the location of each edge. This level of detail eliminates any guesswork, ensuring you know precisely where to nail or screw to securely hit the wood behind the drywall or plaster. This accuracy is a game-changer, saving immense time and preventing unnecessary holes or weak attachments, which are critical for an overhead installation.

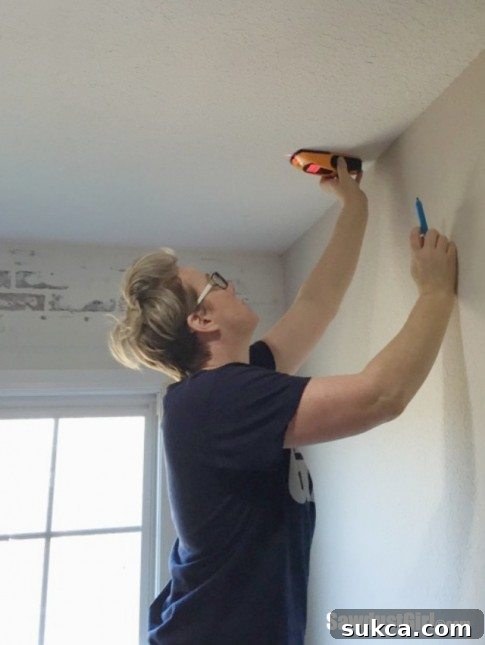

Marking the joist locations on my textured ceiling presented a minor challenge. Pencils, with their fine tips, tend to break easily or produce faint lines on such bumpy surfaces. To combat this, I opted for a soft-tip marker. The marker delivered clear, visible lines that were easy to follow during installation, ensuring that every nail found its intended target – the solid wood of the ceiling joist.
My studio features three distinct ceiling sections, meaning I had a considerable amount of stud finding to do. To ensure comprehensive coverage, I marked the joist locations on both sides of the flat ceiling portions and at the top and bottom of the slanted ceiling sections. This thorough mapping was crucial for a consistent and secure installation across the entire varied surface.
Installation: The Reality of a Two-Person Job

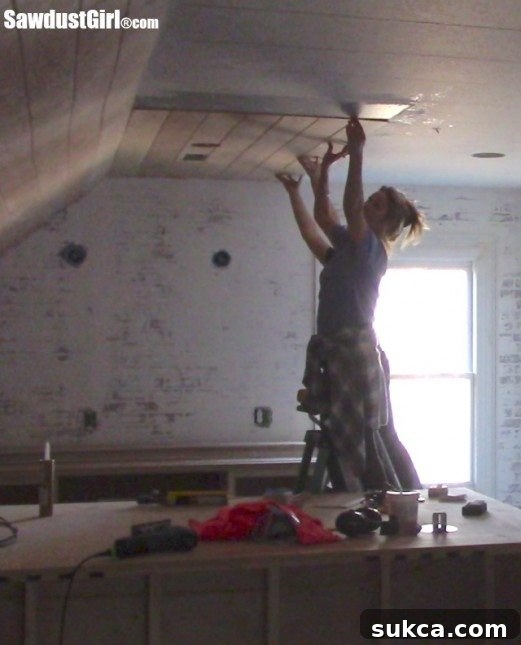

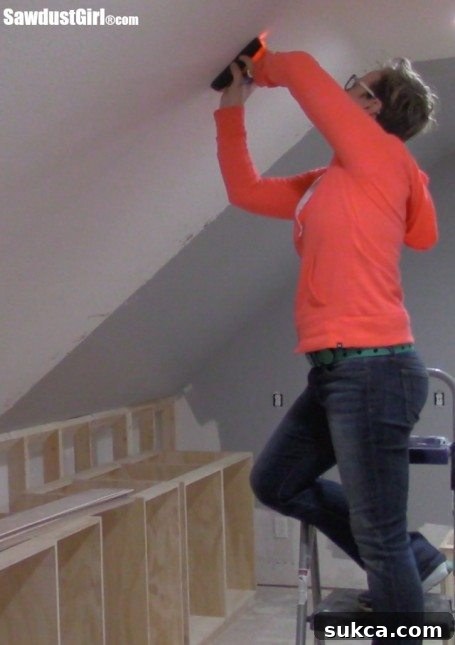

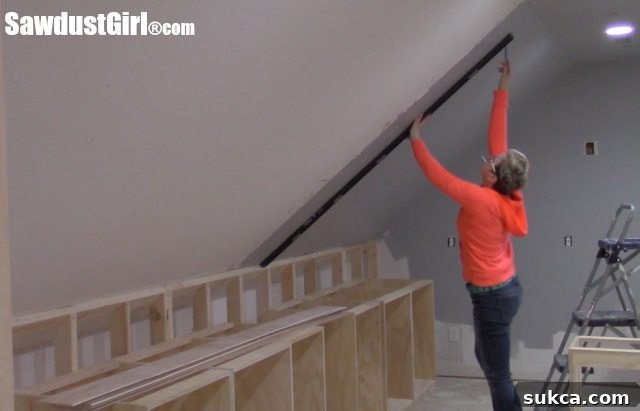

With the joists meticulously marked, I was eager to begin installing the planks. My impatience often gets the better of me, and I prefer to tackle projects solo unless absolutely necessary. For the slanted ceiling sections, I used a level as a straight edge to draw precise lines connecting my top and bottom joist marks. This gave me clear guides for aligning the planks. Feeling ambitious, I commenced installing the plywood plank ceiling entirely by myself. I was incredibly excited to see my vision materialize and to confirm that the physical result matched the image I had so clearly in my mind.

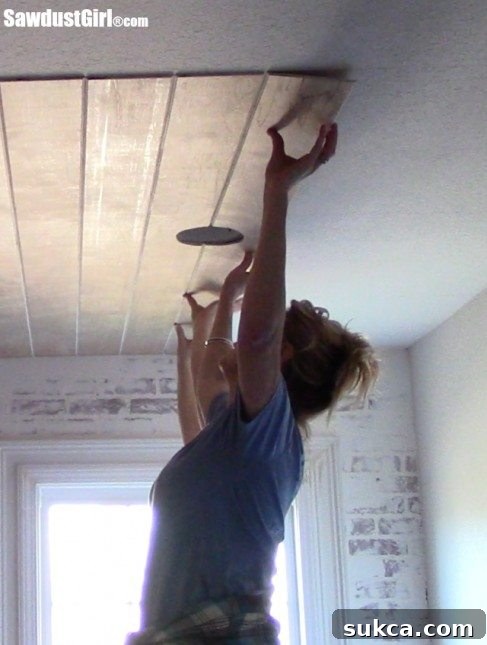

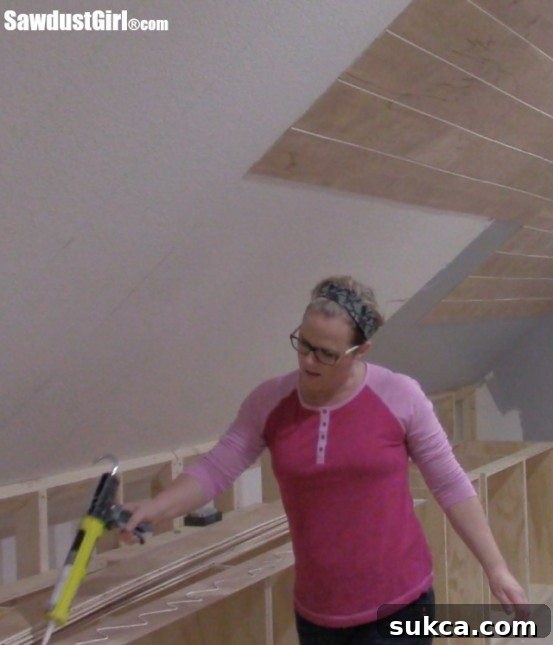

My initial solo efforts involved applying construction adhesive and then nailing the planks directly into the marked joists. While I managed to get some planks up, it quickly became apparent that this was not a one-person job. The 8-foot-long planks, though lightweight, were unwieldy to manage overhead, especially while simultaneously applying adhesive, aligning them perfectly, and securing them with nails. I spent nearly three hours struggling with a very small section of the ceiling, making slow and frustrating progress.
The experience of trying to hold an 8-foot plank level, press it firmly against the adhesive, and then accurately shoot nails into the joists, all while balancing on a ladder, was exhausting and inefficient. It was during this struggle that I had a critical realization: I absolutely needed assistance. This project, despite my eagerness, undeniably called for a second set of hands.

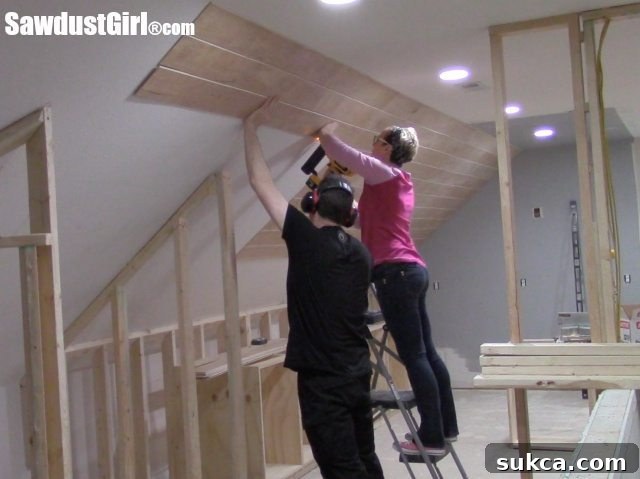

The moment my husband, Wes, arrived home from work and lent a hand, the pace of the project accelerated dramatically. In just half an hour, we installed more than double the amount of planks I had managed on my own in three hours. This stark difference underscored the fact that installing 8-foot ceiling planks is, without question, a two-person job. The efficiency gained from having one person hold and align the plank while the other secures it is simply unmatched.

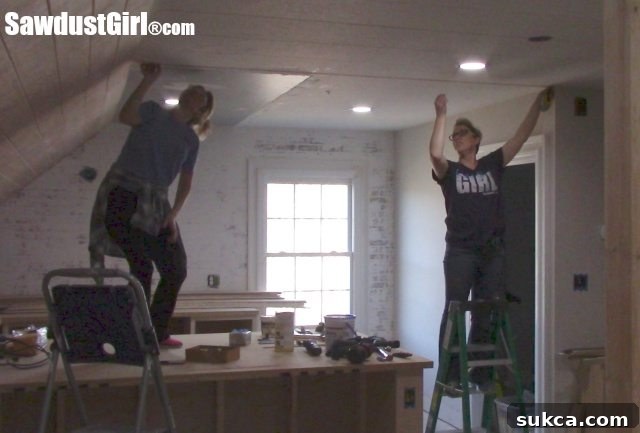

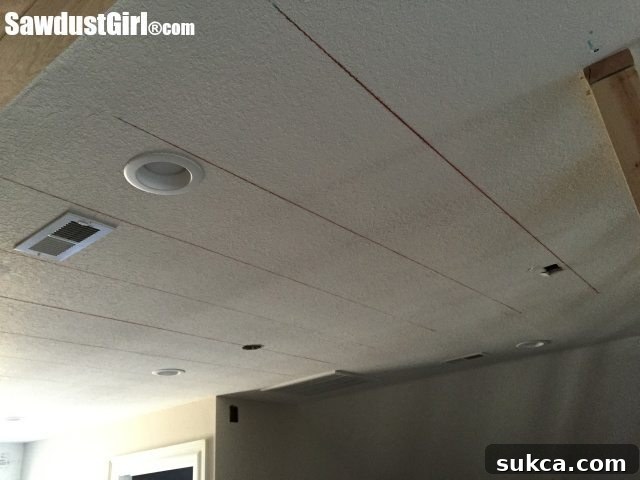

To finish the remainder of the ceiling, my daughter Penny stepped in to help. With two people, snapping a chalk line across the entire ceiling became the easiest and most accurate method for marking the joist locations. One person holds the chalk line at one end of the marked joist, the other person pulls it taut and snaps it, creating a perfectly straight, continuous line. This quick and effective technique ensured that every plank was nailed securely into the underlying structure.
These distinct chalk lines served as our infallible guide, indicating precisely where to shoot nails into each plank. With the preparation complete and a team working together, we flew through the application of glue and nailing up the planks. Each plywood plank was simply butted up against the next. The pre-cut bevels on both planks elegantly combined to form a clean, continuous V-groove, mimicking the appearance of much more expensive tongue and groove lumber.
Precision Cuts and Finishing Touches for a Seamless Look

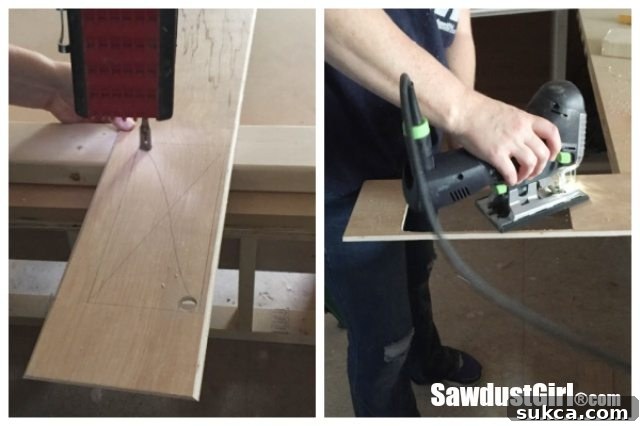

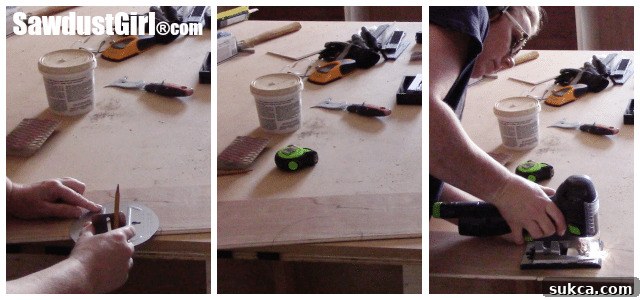

Installing a plank ceiling isn’t just about nailing up straight pieces; it also involves making precise cuts for light fixtures, vents, and other ceiling elements. I utilized a jigsaw for these cutouts, carefully tracing the outlines for vents and, for the recessed lighting cans, using the handy template that came with the fixtures. This ensured that each hole was cut to the exact size and shape required, resulting in a neat and professional finish around all ceiling penetrations.
Using the recessed can template was crucial for achieving consistently sized and positioned holes, which is vital for a clean, integrated lighting scheme. This small but important step makes a significant difference in the overall polished appearance of the ceiling.
For this project, I opted not to stagger my planks. Instead, I installed them in continuous 8-foot-wide sections. This decision meant that there would be visible seams where these sections met, but I had a plan for them: these seams would be covered after priming and caulking, using decorative trim. While many people on my Instagram and Facebook accounts expressed their admiration for the raw, bare plywood plank ceiling, a look that certainly has its charm and can be left as is, my personal vision for the studio involved a brighter, more expansive feel. With ceilings only 8 feet tall at their highest point, I always intended to paint them white to visually increase their height and make the room feel more open, larger, and brighter. This strategic use of white paint is a classic trick for enhancing smaller or lower spaces.
Achieving a Flawless Finish: Sanding, Priming, and Painting

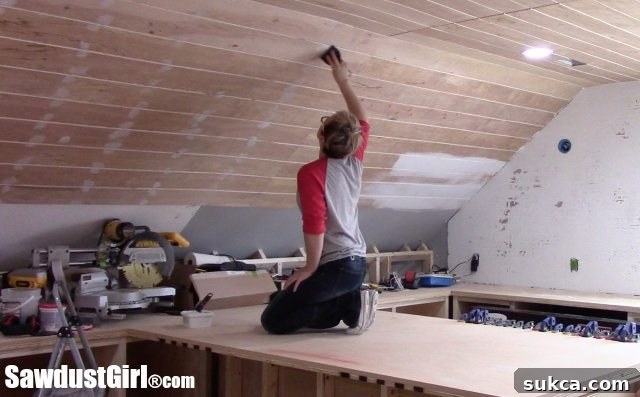

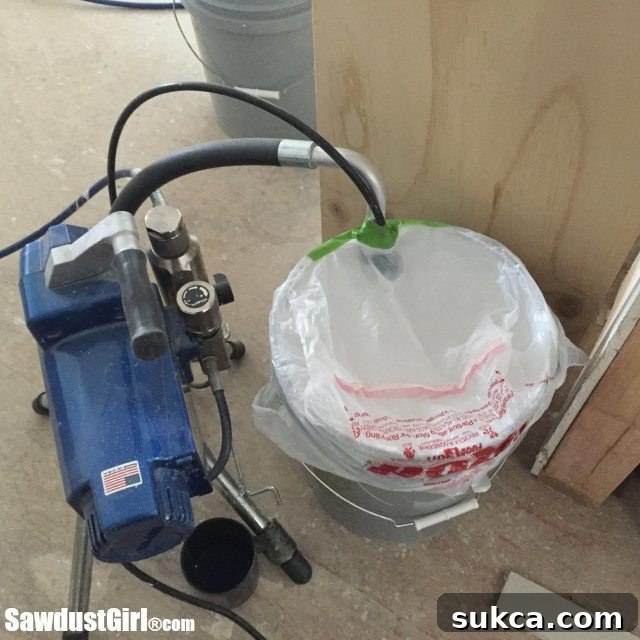

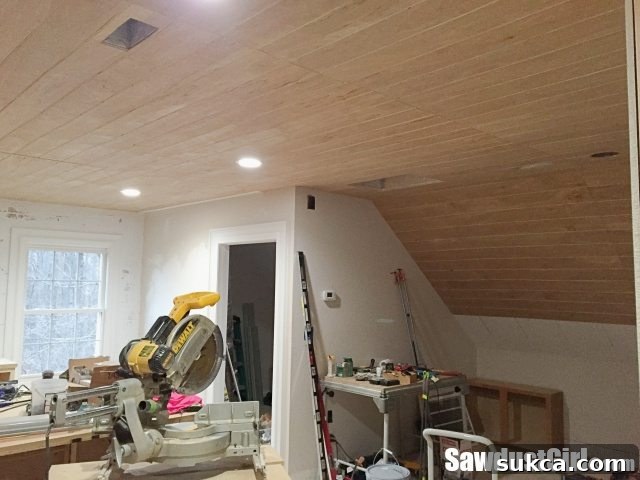

Before any paint touched the plywood, a thorough preparation phase was essential for a truly professional finish. This involved carefully filling all the nail holes with wood filler and then sanding them smooth. Following that, I applied a coat of primer. For both the primer and the subsequent paint coats, I relied on my trusty airless sprayer. Using a 515 black tip in the orange nozzle that came with the sprayer, I achieved an incredibly smooth and even application, which is particularly beneficial for large ceiling surfaces.

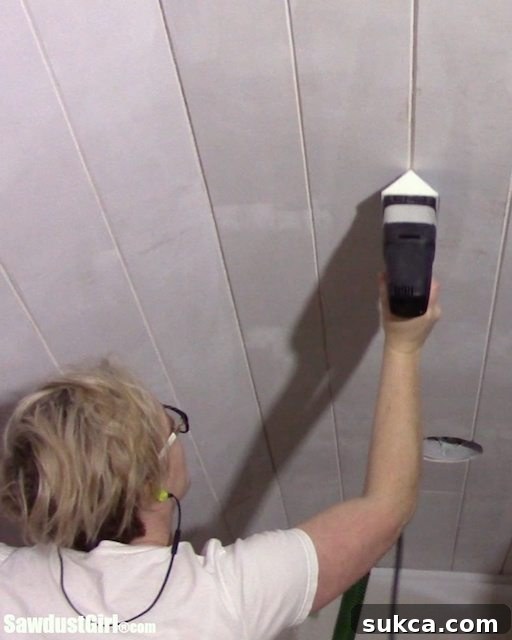

After the primer had dried, the next labor-intensive step was sanding all the V-grooves. The cut plywood edges were quite rough, and while I initially attempted to sand them by hand with a sanding sponge, it quickly became clear that this was an arduous and slow process. Even with Penny’s help, we weren’t making much headway. Recognizing the need for a more efficient solution, I promptly ordered a Festool Linear Sander from Amazon. Within two days, this specialized tool arrived, and I was sanding like a pro, quickly and effortlessly smoothing out all the V-grooves to perfection.

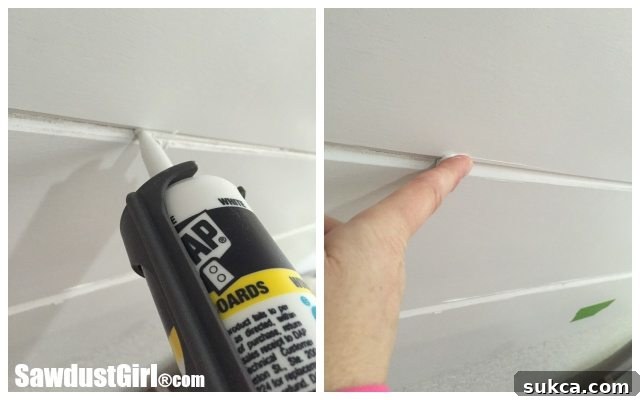

Once the sanding was complete, Penny and I moved on to the meticulous task of caulking the V-grooves. This stage was intense; we caulked until our fingers were literally aching! Whatever roughness the sander couldn’t completely eliminate, the caulk effectively concealed, creating a seamless and smooth appearance. The technique involved squeezing a generous bead of caulk into the groove and then smoothing it with a wet finger. Immediately following that, we used a damp sponge to wipe away any excess, leaving a perfectly filled and smooth groove. This process was repeated for every single V-groove, resulting in a beautifully finished surface.

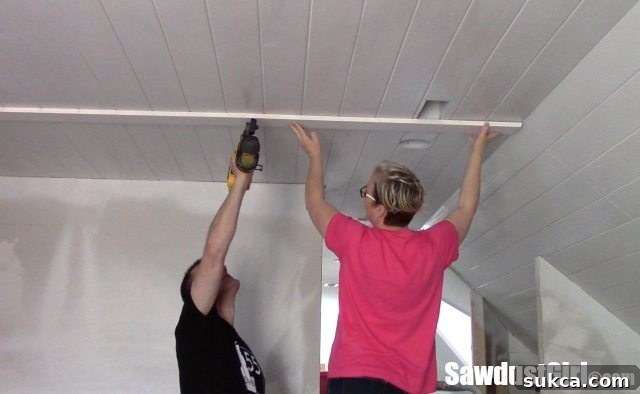

After the caulk had thoroughly dried, I applied the final coat of paint, transforming the entire ceiling into a pristine white canvas. Next, Wes helped me install the boards that would cover the seams where the 8-foot plank sections met. I selected primed pine 1×5 boards for this purpose. While I would have loved to incorporate chunky beams for a more dramatic look, the low ceilings in my studio made the more understated 1x’s a much more suitable and proportionate choice. These trim pieces served to hide the joins and add a refined, architectural detail to the ceiling. Finally, with another coat of paint applied to integrate these new trim pieces seamlessly, the ceiling was officially complete!

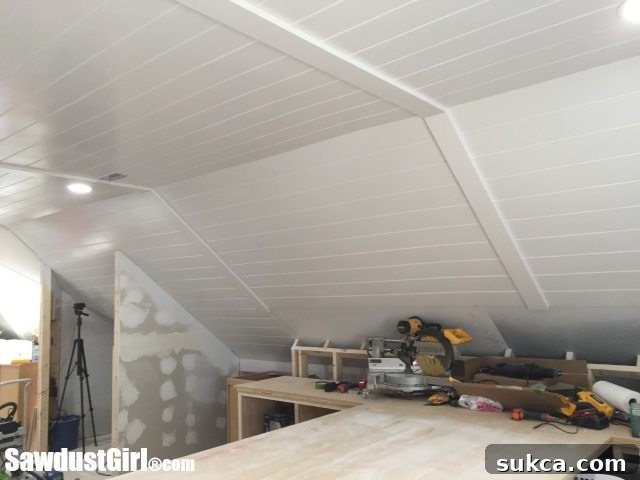

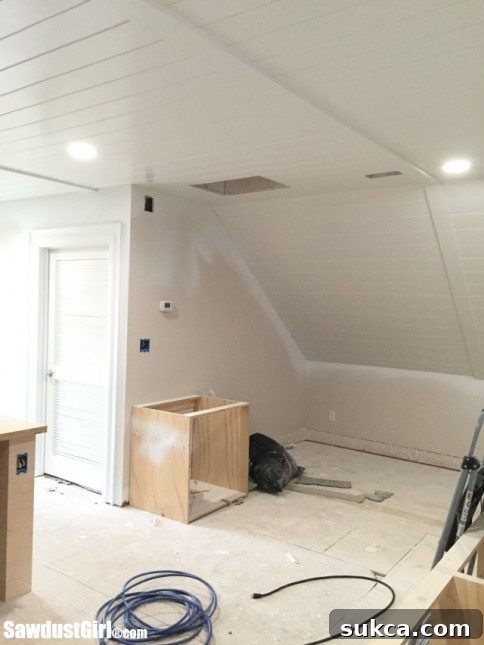

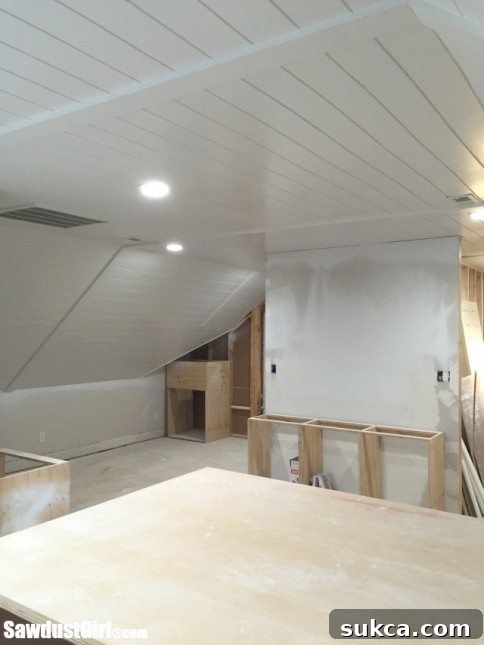

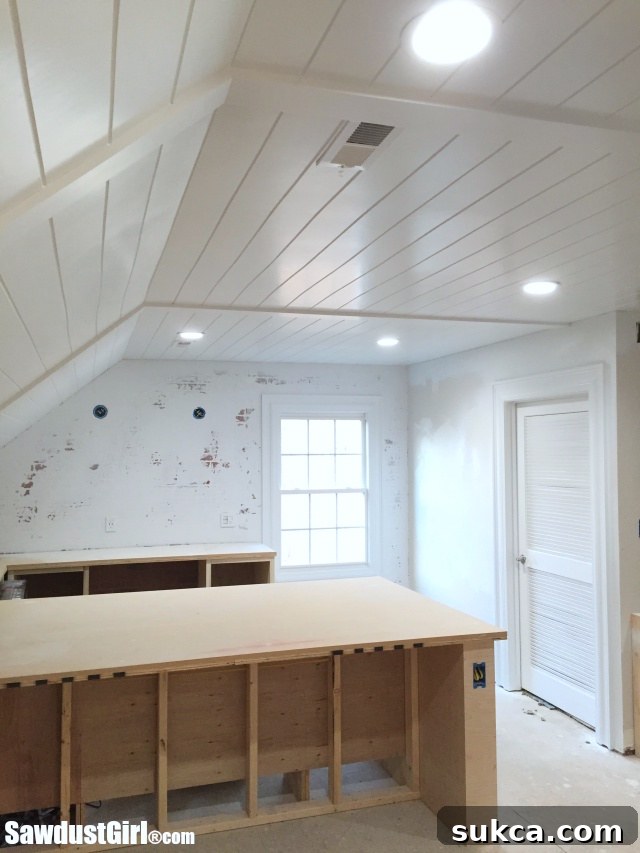

Done, done, and finally done! The satisfaction of seeing this project through from a budget-conscious idea to a stunning reality is immense.

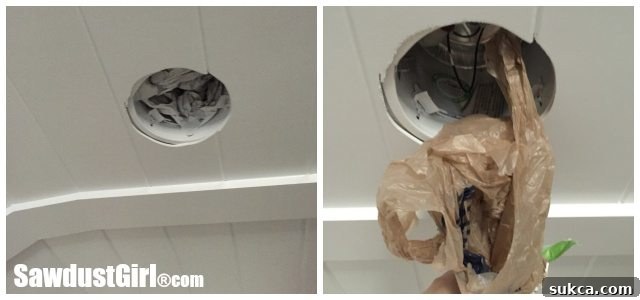

For those wondering about protecting light sockets during the painting process, here’s a simple yet effective tip: I wadded up plastic grocery bags, gently pushed them into the recessed light cans, and secured them in place with painter’s tape. This prevented any paint overspray from reaching the electrical components, ensuring a clean and safe finish.

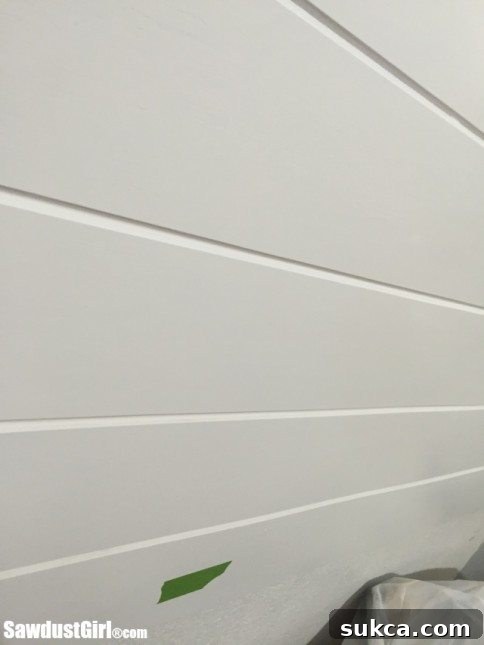

Here’s a close-up look at the V-grooves after all the preparation and painting. The resemblance to my 1×6 pine tongue and groove ceilings elsewhere in the house is striking – almost identical, yet achieved at a mere fraction of the cost. This DIY plywood plank ceiling truly offers an incredible aesthetic value without the premium price tag.
I couldn’t be more pleased with how this entire project turned out. The fact that I spent less than $400 on materials alone puts me over the moon. Even when factoring in the additional investments in tools for this project – a $400 Festool Linear Sander and an $80 laser level – I am still well over $2000 under the estimated cost of a traditional pine tongue and groove ceiling. This significant saving is fantastic, as it frees up funds for the many other projects I still have planned for my home. Every day brings new excitement as I continue to transform my space, one DIY project at a time.
A huge thank you to Zircon Corporation for their partnership and for providing the essential tools that contributed greatly to the success of this project.
