Seamless Tongue and Groove Wall Transformation

Transforming a room with the rustic charm or modern sophistication of a plank wall is a project many homeowners dream of undertaking. Whether it’s adding warmth to a living room, character to a bedroom, or a touch of farmhouse chic to a hallway, a well-installed plank wall can dramatically elevate your home’s aesthetic. While there are various types of plank installations, such as popular plywood V-Groove plank walls or a plywood plank ceiling, this comprehensive guide focuses specifically on the classic and durable tongue and groove plank wall. Often mistaken for shiplap, tongue and groove offers a distinct, seamless finish perfect for a variety of styles.

I’ve personally installed numerous plank walls and ceilings, and the questions always pour in. This article is designed to answer all your queries, providing you with a detailed, step-by-step walkthrough to successfully install your own tongue and groove plank wall. We’ll cover everything from selecting the right wood and essential tools to the precise installation techniques and crucial finishing touches that ensure a beautiful, lasting result. Get ready to add architectural interest and unique personality to your space with this rewarding DIY project.

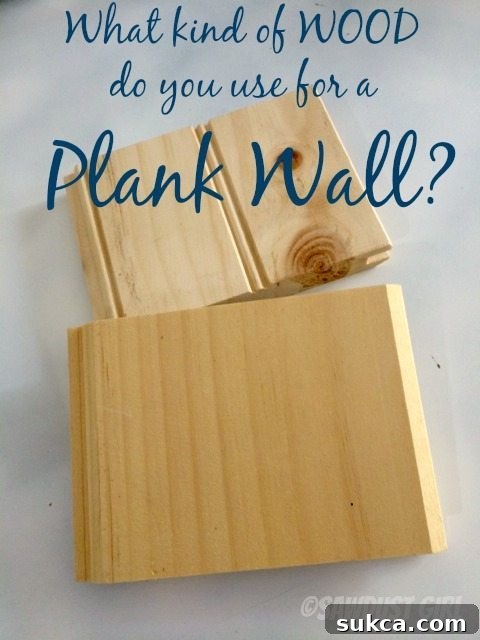

Choosing the Perfect Wood for Your Tongue and Groove Plank Wall

The foundation of any successful plank wall project lies in selecting the right material. While many might colloquially refer to any wood planking as “shiplap,” it’s important to understand the distinctions. For a tongue and groove plank wall, you’ll specifically be looking for products often labeled as “Wood Plank,” “Planking,” or more precisely, “1×6 or 1×8 (or other dimensions), pine, tongue and groove, V-groove/Beaded planks.” These are distinctly different from traditional shiplap, offering a tight, interlocking fit that creates a continuous surface.

Here’s a breakdown of what to look for when choosing your wood planks:

Dimensions and Thickness: These planks typically come in various widths (e.g., 1×6, 1×8), meaning they are approximately 3/4 inch thick. For instance, a “1×6” plank will actually measure about 3/4 inch thick by 5 1/2 inches wide. This consistent thickness is crucial for a smooth, flush installation across your wall.
Tongue and Groove Joinery: This is the defining feature. Each plank has a “tongue” on one edge and a corresponding “groove” on the opposite edge. This interlocking system allows the planks to fit together snugly, creating perfectly tight seams that hide fasteners and provide structural integrity, much like hardwood flooring.
V-Groove or Beaded Profile: The visible seam where two planks meet can have different profiles.
- V-Groove: This profile features chamfered (angled) edges on the ends of the planks where the tongue and groove connect. When joined, these angles form a distinct “V” shape, adding depth and shadow lines to the wall. This is a very popular choice for its classic, refined appearance.
- Beaded: Alternatively, some planks have a rounded or “beaded” profile at the seams, creating a more decorative, subtle ridge. This offers a slightly softer, more traditional look.
The choice between V-groove and beaded comes down to personal aesthetic preference and the overall style you want to achieve in your room.
Wood Species and Quality: Knotty Pine is a common and affordable choice, offering a rustic appeal. If you plan on painting, carefully inspect the planks for straightness, minimizing knots, and blemishes. Straighter planks will simplify installation and result in a more professional finish. Knots, especially sappy ones, can bleed through paint over time, so fewer knots are generally preferred for a painted finish. Consider allowing the wood to acclimate to your home’s humidity for several days before installation to prevent excessive expansion or contraction post-installation.

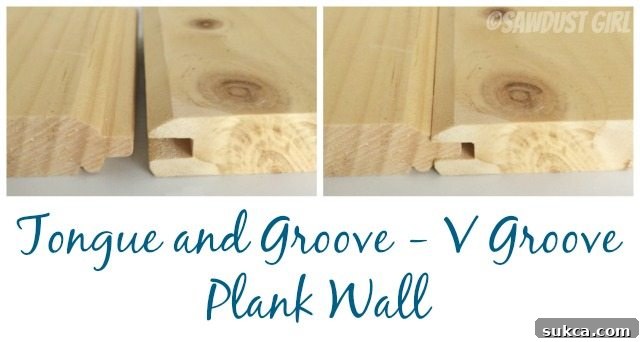

V-Groove Plank Side

The V-groove profile adds a subtle yet impactful architectural detail to your plank wall. The angled edges create a clean, consistent shadow line between each plank, enhancing the linear design and providing a sophisticated finish. This style is incredibly versatile, fitting seamlessly into both traditional and contemporary interiors.

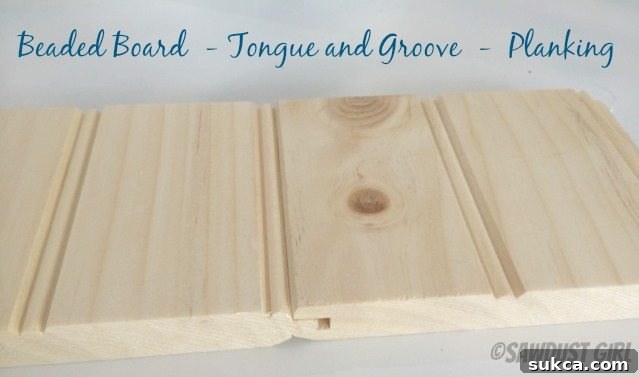

Beaded Plank Side

For a softer, more ornate look, the beaded plank side is an excellent option. The gentle curve or “bead” at each seam introduces a decorative element that can complement a more classic, cottage, or period-style decor. This profile adds texture and visual interest without being overly dramatic.

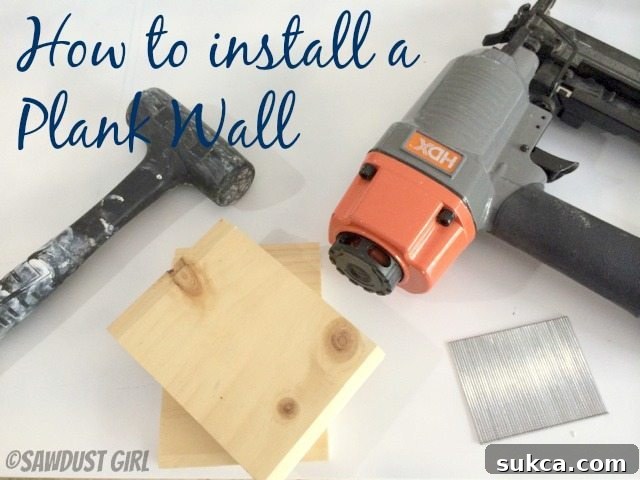

Essential Tools and Supplies for Installation

Before you begin, gathering all the necessary tools and supplies will ensure a smooth and efficient installation process. Having everything readily available will prevent interruptions and help maintain momentum.

Nail Gun: A 16-gauge finish nailer is highly recommended for this project. Its power is sufficient to securely fasten the planks, while the smaller nails leave less noticeable holes than a framing nailer.
Nails: Use 2 1/2-inch finish nails. These provide ample length to penetrate the plank and firmly anchor into the wall studs, ensuring stability.
Rubber Mallet: Essential for gently tapping planks into place, ensuring a tight fit without damaging the wood or the tongue and groove joint.
Sacrificial Plank Piece: A small scrap piece of plank with the groove intact is invaluable. Use it as a tapping block against the tongue of the plank you’re installing to protect the delicate tongue from direct mallet strikes.
Stud Finder: Crucial for accurately locating wall studs, which are the only secure anchoring points for your planks.
Level or Chalk Line: A long level (4-6 feet) or a chalk line is indispensable for marking your studs and ensuring your first row of planks is perfectly level or parallel to the floor, depending on your preference.
Miter Saw: For making precise, clean crosscuts to size your planks.
Jigsaw or Oscillating Multi-tool: Useful for making intricate cuts around outlets, switches, and other obstacles.
Tape Measure and Pencil: For accurate measurements and markings.
Safety Glasses and Gloves: Always prioritize safety when working with power tools and wood.
Utility Knife and Pry Bar: For removing existing trim or making minor adjustments.

How to Install a Tongue and Groove Plank Wall: Step-by-Step

With your materials selected and tools ready, it’s time to begin the installation. Careful preparation and adherence to these steps will ensure a professional-looking finish.

1. Prepare Your Space and Acclimate Wood

Room Preparation: Clear the room of furniture and remove any existing baseboards, crown molding, or trim that will interfere with your planks. Clean the walls thoroughly.
Acclimation: Allow your wood planks to sit in the room where they will be installed for at least 48-72 hours (or longer, as recommended by the manufacturer). This allows the wood to adjust to the ambient temperature and humidity, minimizing expansion and contraction after installation.

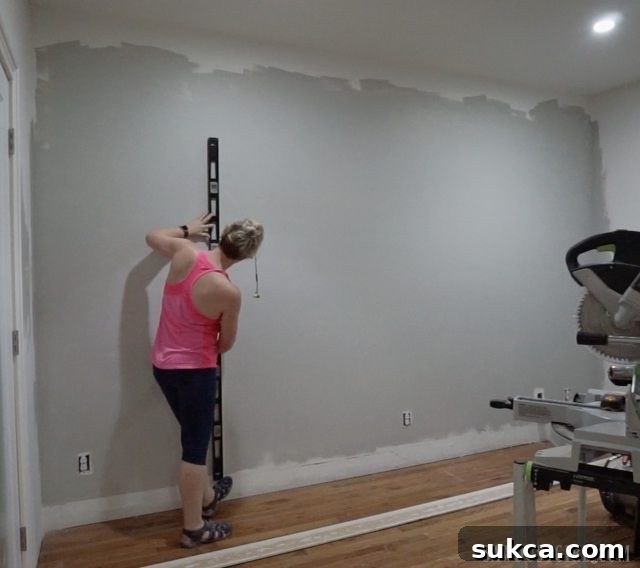

2. Mark Your Studs

This is a critical first step for a secure installation. Your planks must be nailed into the wall studs, not just the drywall.

Locate Studs: Use a reliable stud finder to locate the studs along the entire length of the wall where you’ll be installing planks. Start by finding the studs near the top and bottom of the wall. If a stud finder isn’t available, gently tap or drill small pilot holes until you find solid wood.
Mark Lines: Once located, use a chalk line or a long straight edge (like a level or another plank) and a pencil to draw a continuous vertical line down each stud from floor to ceiling. These lines will serve as your guides for nailing, ensuring every nail hits a stud.

3. Account for Expansion Gaps

Wood is a natural material that expands and contracts with changes in temperature and humidity. Failing to allow for this movement can lead to buckling or warping of your beautiful plank wall.

Bottom Gap: Do not install your first row of planks directly on the floor. To create a necessary “movement space,” lay a spare plank or several 1/4-inch spacers flat on the floor along the wall. Rest your first row of planks on top of these spacers as you nail them. This gap will eventually be covered by your baseboard trim.
Side Gaps: Similarly, leave a small 1/8 to 1/4-inch gap along any adjacent walls, doorframes, or built-in cabinets. These gaps will be hidden by corner trim or caulk.

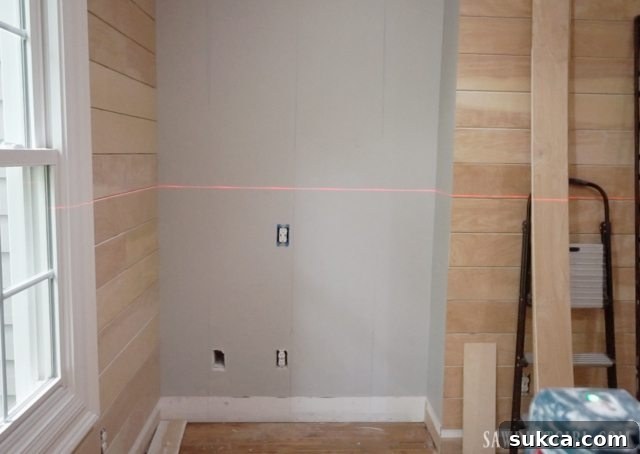

4. Level or Parallel: Making the First Row Decision

You have a choice for your first row: install it perfectly level, or install it parallel to your floor. Each approach has implications:

Level Installation: If your floor is uneven, installing your planks strictly level will result in a consistent horizontal line across the wall. However, once your baseboard (which typically follows the floor’s contour) is installed, you might notice a wedge-shaped gap between the baseboard and the first plank. For some, this discrepancy can be visually jarring.
Parallel Installation: Installing the first row parallel to your floor ensures that the baseboard will sit flush against the planks. The potential drawback is that if your floor (and thus your first row) isn’t perfectly level, the plank lines might appear slightly angled when viewed across the room, especially in rooms with very noticeable floor slopes.

This is a personal preference. Many DIYers opt to follow the floor, as baseboards often conceal minor inconsistencies more effectively than attempting to level against an uneven floor. If you choose to go level, use a long spirit level or a laser level to guide your first row.

5. Install Your First Row (Tongue Up)

Orientation: Always install planks with the tongue facing upwards. This allows you to “blind nail” through the tongue, hiding most of your fasteners.

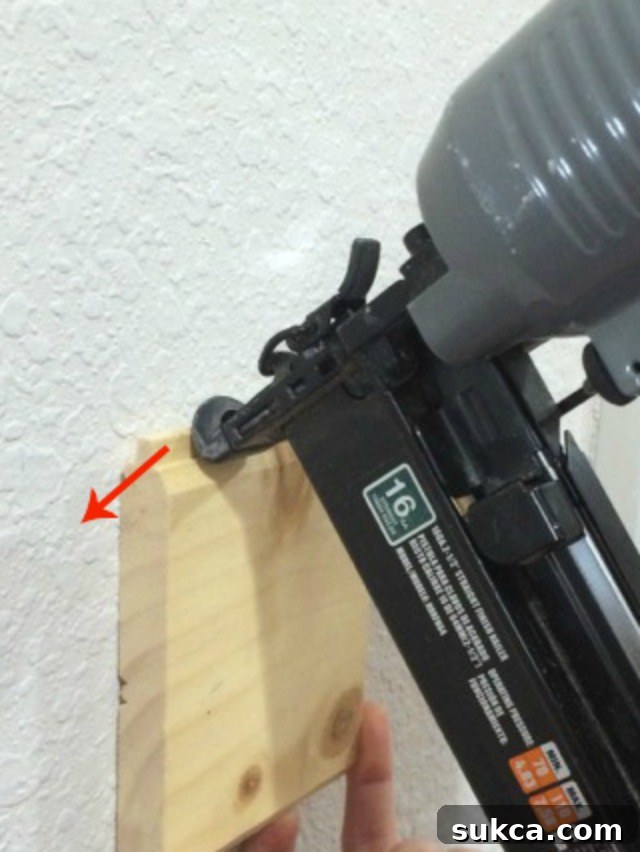

Nailing: Starting with your bottom row, place the plank on your spacers. Use your nail gun to drive nails at an angle directly through the tongue of the plank and into each marked stud. The nail should go through the top edge of the tongue, where it will be completely hidden by the groove of the next plank.
Face Nailing (Limited): The only places you might need to nail through the face of the plank are on the very first bottom row (where the nails will be covered by baseboard) and possibly the very top row near the ceiling (where crown molding or a ceiling trim can cover them). For all other planks, blind nailing through the tongue is the preferred method to avoid visible nail holes.

6. Installing Subsequent Rows

Interlocking Planks: Take your next plank and align its groove with the tongue of the installed plank below it. Gently angle the new plank down and tap it into place using your rubber mallet and sacrificial plank piece. Ensure a tight, seamless fit along the entire length.
Stagger Joints: To create a visually appealing and structurally sound wall, stagger the end joints of your planks from row to row, similar to how hardwood floors are laid. Avoid having all end joints line up in a single vertical line.
Blind Nailing: Once each plank is tightly seated, secure it by blind nailing through its upward-facing tongue into each stud, just as you did with the first row. After the initial row, the bottom of each plank is held by the tongue-and-groove joint, so you only need to nail through the top tongue.
Working Around Obstacles: For outlets, switches, windows, or doors, carefully measure and cut your planks using a jigsaw or oscillating multi-tool. Always ensure cuts are clean and precise.

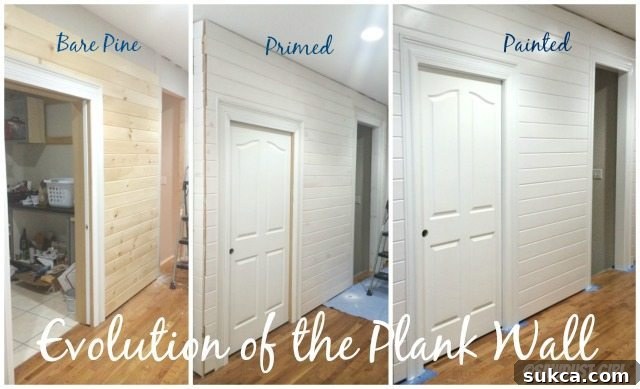

The Art of Finishing Your Plank Wall

Once all your planks are securely installed, the finishing touches are what truly transform the raw wood into a stunning feature of your home. This process typically involves priming, sanding, filling, and painting.

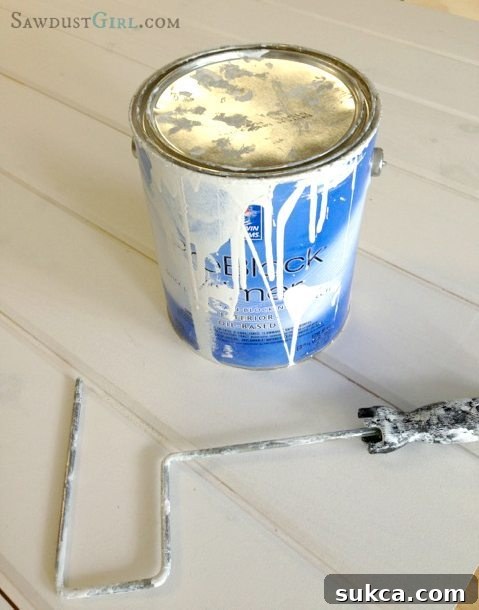

Priming for Longevity

If you’re planning to paint your plank wall, proper priming is paramount, especially when working with knotty pine. Unprimed knots, especially those with sap, will eventually bleed through your topcoat, creating unsightly yellow or brown stains.

Stain-Blocking Primer: Always use a high-quality stain-blocking primer. Shellac-based primers are highly effective for sealing in sap and preventing bleed-through.
Pre-Priming Advantage: While you can prime after installation, many find it significantly easier and more efficient to prime the planks *before* they go on the wall. Laying them out flat allows for easy rolling, which is much faster than brushing between each V-groove after installation. If pre-priming, protect your floors or work area well, as primers (especially shellac) can be thin and messy.
Paint Type: After priming, choose a durable paint finish suitable for walls. Semi-gloss or satin finishes are popular for plank walls as they are easy to clean and reflect light beautifully.

Sanding for Smoothness

After priming, a light sanding is often necessary to achieve a perfectly smooth finish.

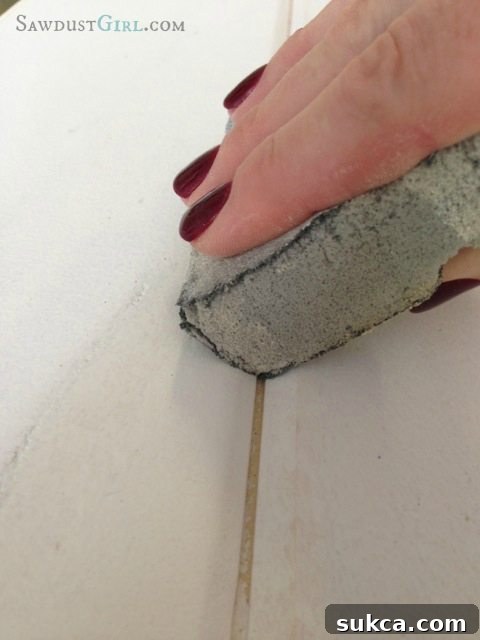

Fine-Grit Sanding: Use a fine-grit sanding sponge or sandpaper (e.g., 220 grit) to lightly sand down the primed planks. Pay special attention to the V-grooves, which can sometimes be rougher than the flat surfaces.
Purpose: Sanding smooths out any raised wood grain that might occur after priming and helps the topcoat adhere better, resulting in a glass-like finish. It doesn’t require much pressure—just a gentle pass.

Filling Imperfections

Even with careful installation and blind nailing, you’ll likely encounter minor imperfections that need addressing.

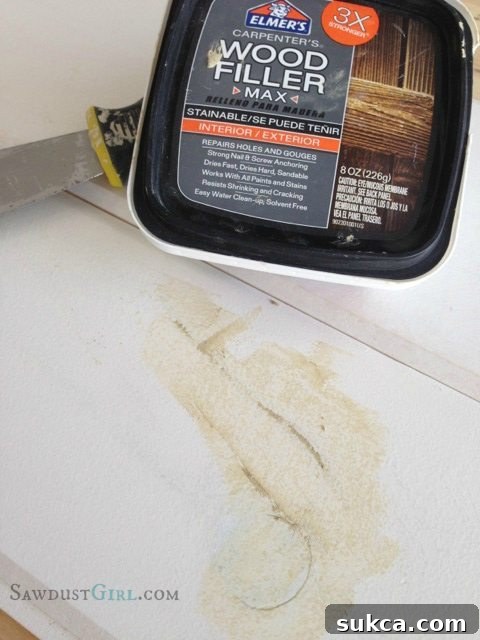

Nail Holes and Knots: Use a good quality wood filler to fill any visible nail holes (especially if you face-nailed the top or bottom rows) and any larger knots or cracks that weren’t fully sealed by the primer.
Timing: It’s often most efficient to wait until the planks are installed to fill these spots, as you can address everything at once.
Re-Prime Filled Areas: After the wood filler dries and is lightly sanded smooth, dab a bit of primer over these spots to ensure consistent paint adhesion and prevent any future bleed-through.

Painting Your Plank Wall

After all the prep work, painting is the final and most visually rewarding step. Apply your chosen paint color evenly, ensuring good coverage, especially within the V-grooves. Several thin coats are always better than one thick coat for a durable and flawless finish.

Caulking Considerations: A Critical Decision

This is where understanding your material truly matters.

Real Wood Planks: For genuine solid wood tongue and groove plank walls, it is generally NOT a good idea to caulk the V-grooves between the planks. As real wood naturally expands and contracts throughout the year due to changes in humidity, caulking will prevent this natural movement. This can lead to the caulk cracking, peeling, or even pulling paint away from the wood. When the wood contracts, you may see thin lines of bare (or primed) wood; simply touch up these areas with paint as needed.

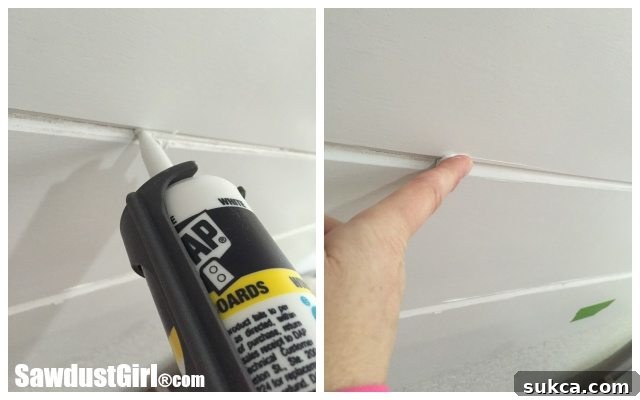

Plywood Planks: If you installed a plywood V-Groove plank wall, then you CAN caulk away! Plywood is much more dimensionally stable than solid wood and exhibits very minimal expansion and contraction. This stability is precisely why many DIYers, including myself, have started preferring plywood for plank walls when a fully seamless, caulked finish is desired.

Special Considerations for a Flawless Finish

Outlets and Light Switches

When your plank wall encounters electrical outlets or light switches, safety and proper finishing are key. The added thickness of the planks will recess these fixtures.

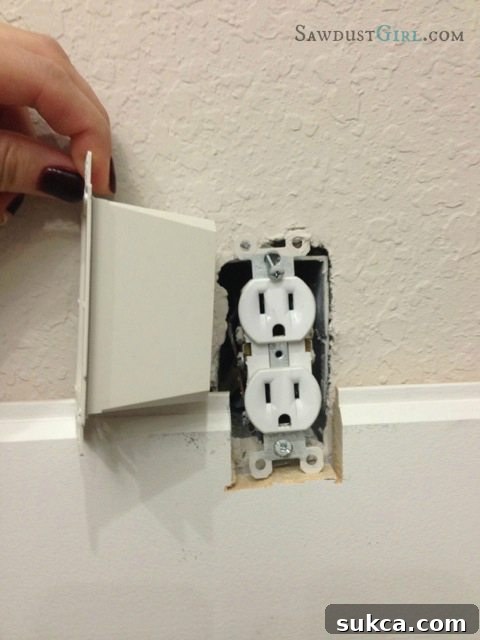

Junction Box Extenders: Always use a junction box extender (also known as outlet spacers or box extenders). These extend the receptacle box flush with the new wall surface, ensuring that the electrical components are safely enclosed and not exposed or too close to the combustible wood planks. This is a critical safety measure.
Cutting Planks: Carefully measure and cut the plank to fit precisely around the outlet box using a jigsaw or oscillating multi-tool. Ensure the cuts are snug but allow for the outlet cover to sit flat.

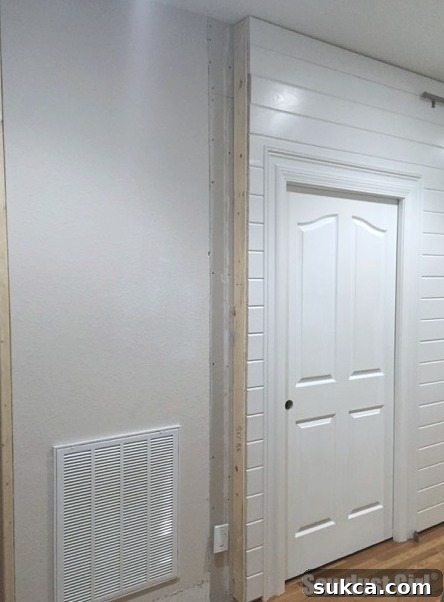

Dealing with Exposed Ends

In some installations, the ends of your planks might be exposed, such as on a wall that “bumps out” or at a room transition. Simply leaving the raw ends can look unfinished.

There are several elegant ways to cover these:

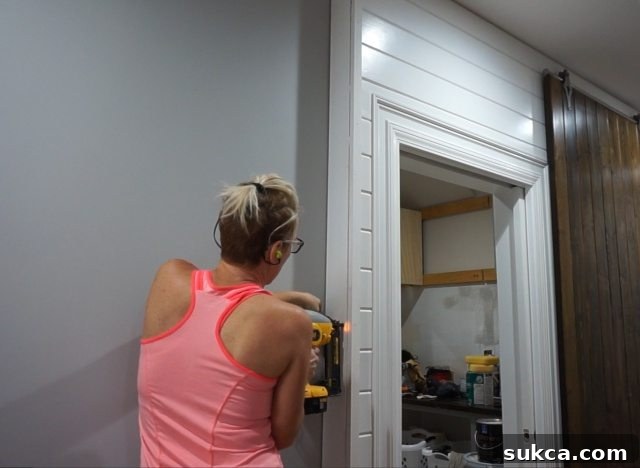

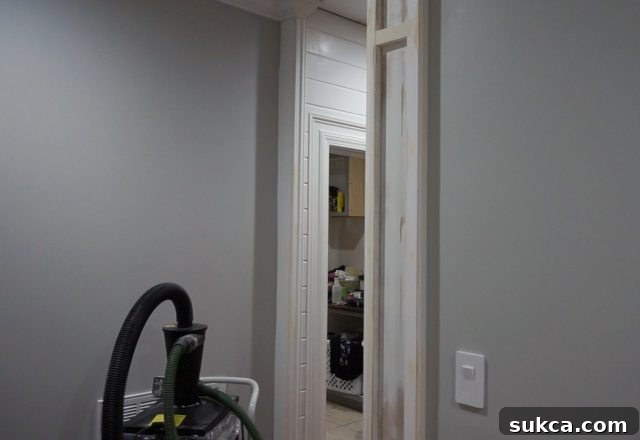

Faux Column: One creative solution is to build a faux column or box around the exposed edge, transforming a problematic area into a decorative architectural feature. This can add visual weight and sophistication to the wall. I opted for this solution to create a faux column on one of my plank walls.
Corner Trim: Simple corner trim pieces can be mitered and installed to cap off the exposed ends neatly.
Custom Trim: For a more integrated look, you can mill custom trim pieces that seamlessly blend with the plank profile.

These approaches provide a polished, intentional finish that elevates the overall appearance of your plank wall.

Embracing the Timeless Beauty of Plank Walls

Long before “shiplap” became a fleeting trend fueled by popular home renovation shows, plank walls were a cherished classic in interior design. They offer a rich history and a timeless appeal that transcends passing fads. While the nickel-spaced faux planks might eventually be replaced or covered, the enduring quality and authentic charm of a well-installed tongue and groove plank wall will continue to add character and value to any home.

Installing a tongue and groove plank wall is a rewarding DIY project that empowers you to personalize your living space. With careful planning, the right tools, and attention to detail outlined in this guide, you can create a stunning feature wall that will be admired for years to come. Whether you opt for the subtle elegance of a V-groove or the decorative touch of a beaded profile, the result is a beautiful, handcrafted backdrop that speaks volumes about your home’s unique style.

Discover more plank wall inspiration:

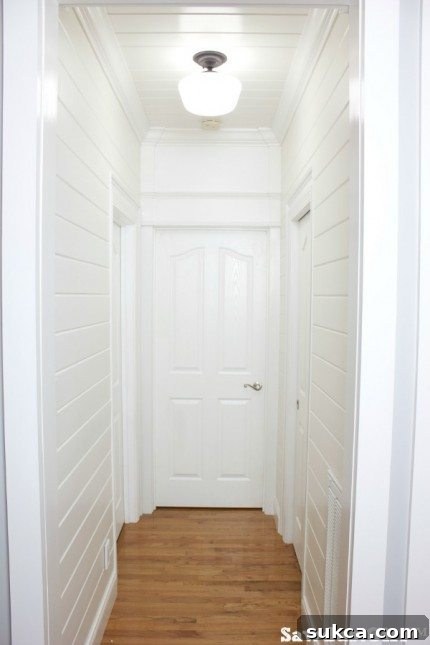

Living Room Hallway Transformation

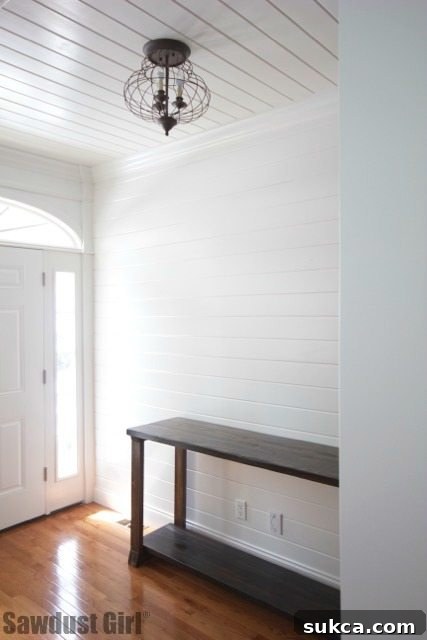

Entryway Plank Wall Project
