Crafting the Upper China Hutch: Innovative Sliding Doors and Custom Details

Following the successful construction of our sturdy china hutch base, the natural progression was to embark on building the upper cabinets. This phase of the project wasn’t just about adding storage; it was an opportunity to implement a unique and highly functional design for sliding doors. My goal was to create a system that allowed for complete, unobstructed access to an entire cabinet section at any given time, moving beyond the typical half-access offered by conventional sliding door setups. This seemingly “crazy idea” required meticulous planning and a bit of ingenuity, but the vision was clear: efficiency, accessibility, and an elegant aesthetic.

The conventional approach of two doors per cabinet often limits access to only half of the cabinet’s interior. For our custom china hutch, I envisioned a more dynamic solution: one door per cabinet, designed to slide completely over into the adjacent cabinet’s space. This innovative mechanism ensures that when one door is opened, the entire section it covers becomes fully accessible, greatly enhancing usability. This concept spent considerable time in SketchUp, undergoing various iterations until the perfect, functional plan emerged. While the initial stages of assembly might appear unconventional to an untrained eye, every detail was deliberately planned to achieve this specific functionality. This commitment to custom design is what truly defines a bespoke furniture piece.

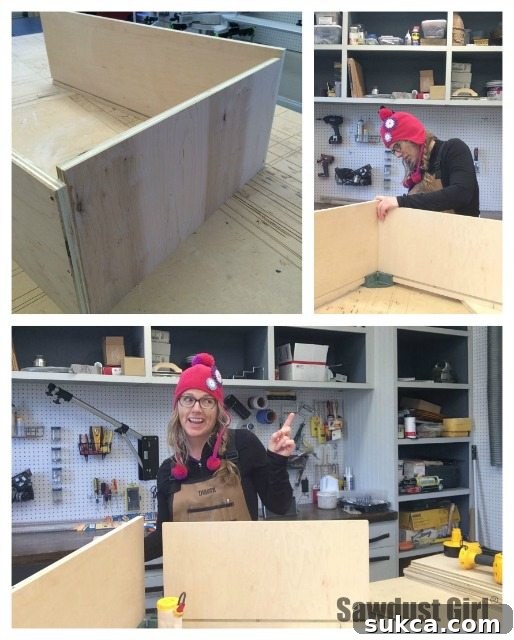

Designing and Constructing the Upper Cabinet Carcasses

The foundation of these upper cabinets involved joining two individual cabinet carcasses to achieve the desired total width for the china hutch. The precision in their construction was paramount, especially concerning the unique dimensions required for the sliding door mechanism. Specifically, the inside walls of each cabinet were intentionally crafted 3/4 inch wider than the top and bottom panels. These top and bottom panels, in turn, were 3/4 inch wider than the exterior side panels. This tiered dimensioning creates the necessary offset and clearance for the doors to slide smoothly, one in front of and one behind the other.

To ensure a cohesive and symmetrical final product, the second cabinet was constructed as an exact mirror image of the first. This mirroring meant that the two wider inside panels met perfectly in the center, while the widest outer panels formed the external boundaries of the joined unit. This thoughtful design allows for a seamless integration of the two cabinets and lays the groundwork for the unique sliding door system. Building custom cabinetry truly allows for such detailed and functional considerations, ensuring the final piece not only looks good but performs exactly as intended.

Secure Installation with French Cleats

Before proceeding with the intricate sliding door components, securely mounting the cabinets to the wall was essential. For this crucial step, I opted for French cleats. French cleats offer an incredibly strong, reliable, and easy-to-level method for hanging cabinets, particularly beneficial for heavier units like these. This system involves two interlocking pieces of wood, each with a 45-degree bevel. One cleat is securely attached to the wall studs, and the other is mounted to the back of the cabinet. When the cabinet is lifted and lowered, the two cleats interlock, creating an incredibly robust attachment that distributes the weight evenly across the wall. This not only ensures stability but also allows for minor adjustments during installation, which is a significant advantage over direct screwing.

Once the cabinets were firmly in place, the exciting phase of preparing for the innovative sliding doors began. This involved precise joinery to create the necessary tracks for the doors. I cut dados – grooves cut into the surface of a workpiece – into two rails. These rails were then meticulously secured to both the top and bottom of the newly joined cabinets. These dados serve as the essential channels along which the cabinet doors will eventually slide. Additionally, to bridge the seam where the two cabinet carcasses met and to provide a clean, finished appearance, a center style was added. This not only conceals the raw edges of the joined cabinets but also adds to the overall structural integrity and aesthetic appeal of the face frame, becoming a crucial component of the sliding door system.

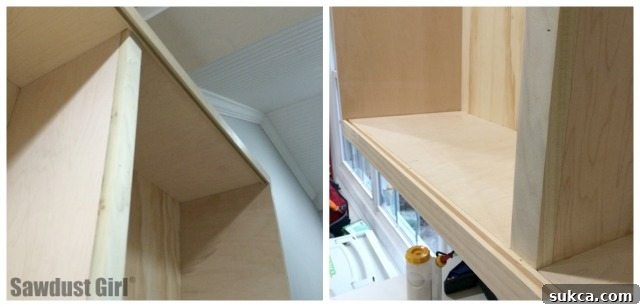

Crafting the Face Frame and Integrating Sliding Tracks

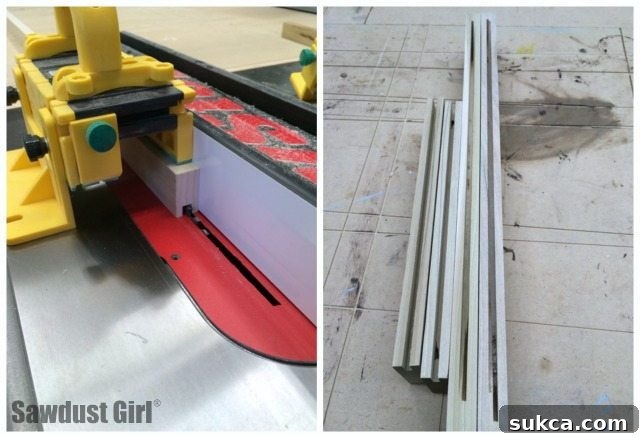

The face frame is a critical component in cabinet construction, serving both structural and aesthetic purposes. It provides rigidity to the cabinet box, creates a finished look, and is where the doors will eventually attach or, in this case, slide. For our custom china hutch, the face frame required a specialized approach to accommodate the unique sliding door mechanism. I meticulously cut additional dados into the individual components of the face frame itself. These dados were strategically positioned to align perfectly with the dados already cut into the top and bottom rails of the cabinet carcasses, ensuring a continuous and smooth track for the future doors.

Once all the dado cuts were precisely made, the individual pieces of the face frame – stiles (vertical pieces) and rails (horizontal pieces) – were assembled. This involved careful joinery, typically using pocket screws and wood glue, to create a strong and square frame. With the face frame fully assembled, it was then securely attached to the front of the cabinet carcasses. This integration means that the sliding door tracks are now seamlessly built into the cabinet’s structure, ready to guide the doors effortlessly across the entire width of the hutch. The precision at this stage is absolutely vital for the smooth operation of the doors later on.

The Essential Finishing Process: Sanding and Painting

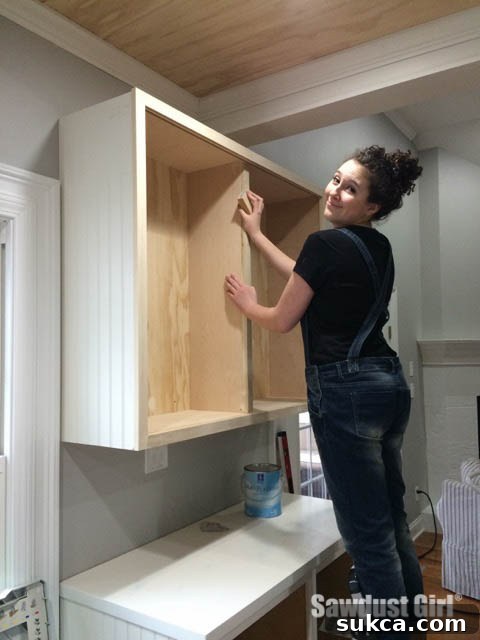

With the structural elements of the upper cabinets complete and the innovative sliding door tracks integrated, the next crucial phase involved preparing the surfaces for a flawless finish. This began with an extensive and thorough sanding process. Many DIYers underestimate the importance of sanding, but it is the cornerstone of a professional-looking finish. We started with a coarser grit sandpaper (around 100-120) to smooth out any imperfections, glue squeeze-out, or minor surface irregularities from the construction phase. This was followed by progressively finer grits (150, then 220) to achieve an exceptionally smooth surface, ensuring that the paint would adhere perfectly and result in a silky-smooth finish without any visible scratches or rough patches. Between each grit, careful cleaning to remove all dust particles is essential for optimal results.

Following the meticulous sanding, it was time for painting. This stage, while seemingly straightforward, often presents its own set of challenges and considerations. We initially painted the inside of the cabinets the same color as the exterior, aiming for a cohesive look. However, the unique lighting conditions in the room created an unexpected optical illusion, causing the interior paint to appear with an undesirable pinkish hue. This highlights how environmental factors can significantly influence perceived color. To rectify this, we repainted the interior with a whiter shade of white, carefully selected to counteract the lighting effects and achieve the clean, crisp appearance we desired. This iterative process is common in custom projects, where perfection often requires a willingness to adjust and refine until the vision is fully realized. We used high-quality, durable cabinet paint, applying multiple thin coats for a robust and beautiful finish, lightly sanding between coats for maximum smoothness and adhesion.

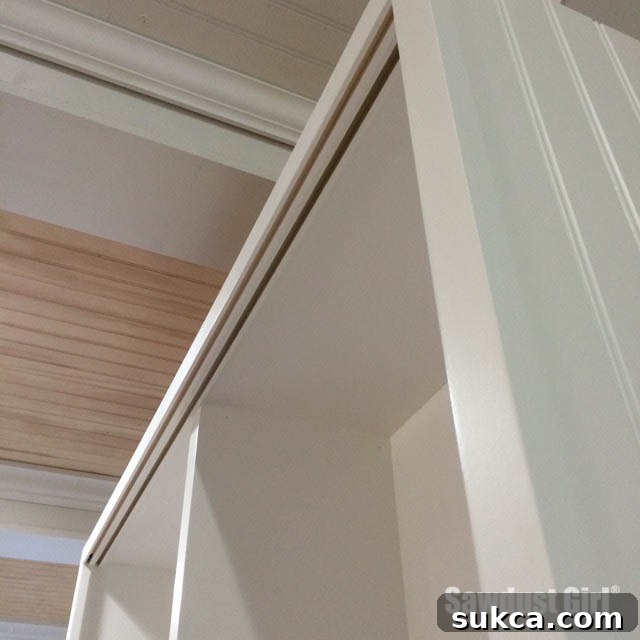

Unveiling the Full Access Sliding Door Tracks

One of the most exciting aspects of this upper china hutch is the innovative sliding door mechanism. The images clearly illustrate the carefully constructed full cabinet access tracks that are now seamlessly integrated into the top and bottom rails of the unit. These dual-channel dados are designed to allow one cabinet door to slide effortlessly in front of the other, or behind it, depending on which section needs to be accessed. This unique design liberates the storage space, offering complete, unobstructed access to the entire width of one cabinet section at a time – a significant improvement over traditional sliding door systems that often leave half of the cabinet’s contents partially obscured.

While the tracks are fully in place and ready, the actual cabinet doors are yet to be built. This will be the ultimate “does it work?” test for our innovative plan, a moment we eagerly anticipate once the weather permits outdoor work. Even without the doors, the hutch presents a beautiful, open-shelf display. However, the functional aspect of keeping dust out of our cherished dishes and glassware makes the addition of doors a necessity, not just an option. These doors will not only protect the contents but also complete the sophisticated aesthetic of the china hutch.

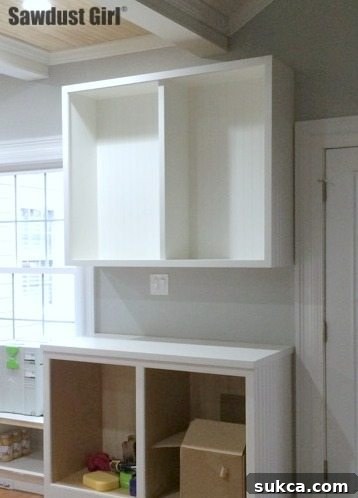

Adding Functionality and Decorative Flourishes

Beyond the sliding doors, the upper cabinets require essential internal elements and external embellishments to truly complete their function and form. First and foremost, shelves are indispensable for maximizing the storage and display potential of any china hutch. To ensure precise and adjustable shelving, I utilized my trusty homemade shelf pin drilling jig. This simple yet effective tool makes quick work of drilling perfectly aligned shelf pin holes, allowing for flexible shelf placement to accommodate items of varying heights. While the shelves are crucial for functionality, the real decorative appeal often comes from the external details.

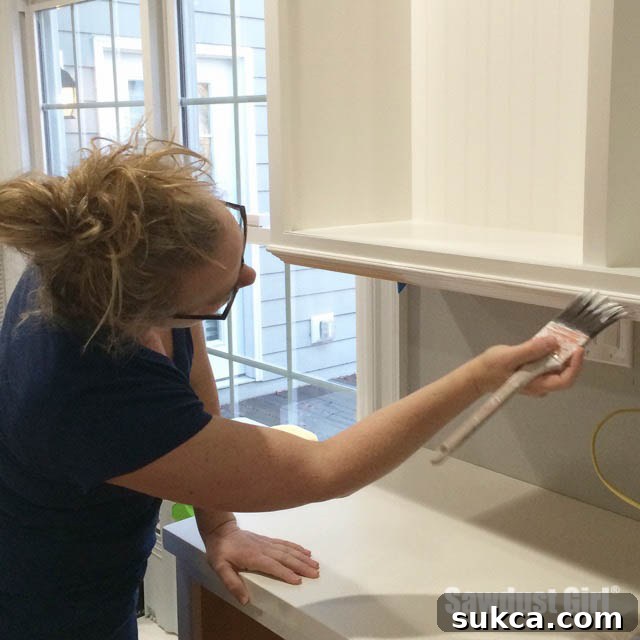

Before installing the actual doors, the plan is to add decorative corbels. Corbels are structural or decorative brackets that extend from a wall or cabinet to support a shelf, countertop, or, in this case, simply add an architectural detail that enhances the furniture’s elegance and character. Their placement will define the transitional space between the upper cabinets and the hutch base, adding visual weight and traditional charm. However, even before the corbels, a subtle but impactful detail is planned: molding along the bottom of the upper cabinets. This seemingly small addition will create a polished finish, neatly bridging the gap between the cabinet frame and the future corbels, adding another layer of sophisticated detail.

Indeed, a deep appreciation for architectural molding is a recurring theme in many of our projects. The strategic application of various types of trim and molding can elevate a piece of furniture or a built-in from functional to truly magnificent. From simple base caps to intricate crown molding, each profile adds depth, shadow lines, and a sense of custom craftsmanship that store-bought pieces often lack. For this china hutch, a generous application of molding will tie all the elements together, providing a refined, cohesive, and custom-built aesthetic that perfectly complements the innovative functionality within. The final decorative touches are what transform a collection of wood into a statement piece for the home, making the effort entirely worthwhile.
