Embarking on a bathroom renovation, especially a shower remodel, can feel like a monumental task. Yet, with the right materials and a methodical approach, even the most challenging steps become manageable. This detailed guide delves into the crucial phase of installing waterproof shower wall boards, a process that lays the foundation for a durable, beautiful, and completely watertight shower enclosure. Following the successful installation of the tile-ready shower pan, the next critical step is to erect the robust barriers that will keep water where it belongs: inside your shower.

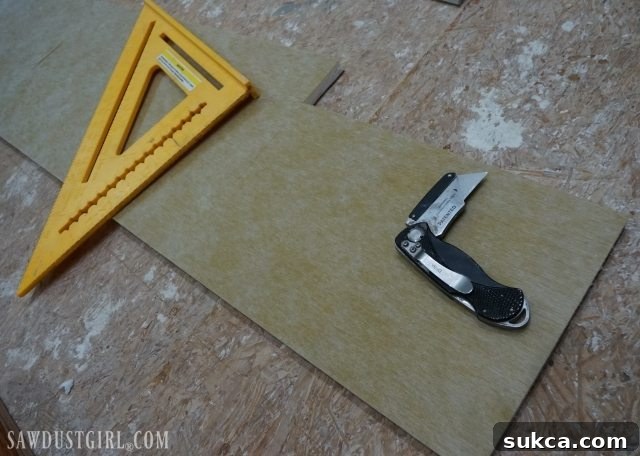

For this essential waterproofing stage, the product of choice is the HYDRO BAN Board from LATICRETE. This innovative material redefines ease of installation and superior protection compared to traditional options like cement board. Crafted with a high-density, reinforced polystyrene core, the HYDRO BAN board boasts a waterproof membrane on both sides, making it an exceptionally reliable solution for wet areas. Its lightweight nature and ease of cutting with a simple utility knife—much like drywall—significantly streamline the installation process, saving time and reducing physical strain. This inherent waterproofing and user-friendly design make it a standout choice for both professional contractors and enthusiastic DIYers seeking a durable, long-lasting shower system.
Mastering Waterproof Shower Wall Board Installation

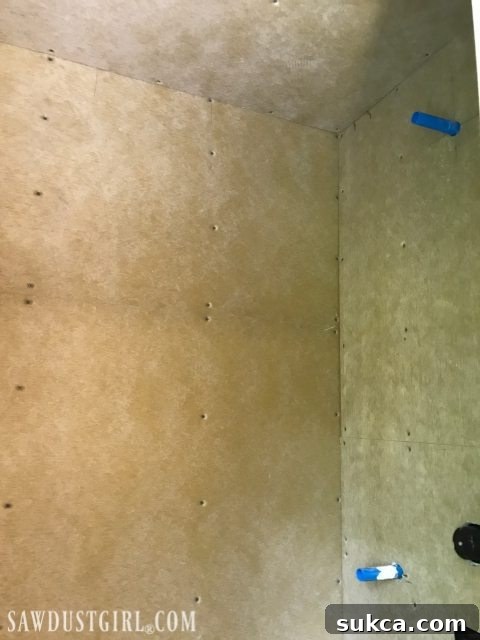

The journey to a perfectly waterproof shower begins with securing the HYDRO BAN boards firmly to the wall studs. This step is fundamental to creating a stable and rigid structure that will support the future tile work and withstand daily wear and tear. Using 1 5/8-inch screws, attach the boards at regular intervals, ensuring each screw penetrates a stud for maximum hold. Proper screw placement, typically every 6 to 8 inches along the studs and perimeter, is crucial for preventing any movement or bulging of the panels.
A critical detail during fastening is to ensure the screws are countersunk flush with the surface of the board. This prevents any protruding screw heads from interfering with the tiling process, ensuring a smooth, even surface for adhesion. However, exercise caution to avoid tearing through the board’s waterproof membrane. Over-tightening can compromise the integrity of the board, potentially creating weak points in the waterproofing system. A gentle touch, coupled with the right drill setting, will help achieve the perfect flush finish without damage.
Special Considerations for Shower Ceilings
When extending the waterproofing system to the shower ceiling, additional support measures are often necessary, especially if you plan to tile this surface. The weight of ceiling tiles can exert significant downward force, making it imperative to reinforce the HYDRO BAN boards beyond standard wall installations. To counteract this, incorporating washers with your screws provides a larger bearing surface, effectively distributing the load and preventing the screws from pulling through the board over time. While the immediate impulse might be to forge ahead, taking a moment to gather the appropriate washers can save considerable hassle and potential structural issues down the line.
In situations where washers aren’t immediately available but progress is paramount, an initial installation with a few well-placed screws can temporarily secure the ceiling boards. This allows you to continue other aspects of the project. Once washers are acquired, return to the ceiling panels and systematically add more screws, each accompanied by a washer, to create a robust and weight-bearing foundation for your ceiling tiles. This two-phase approach, while slightly unconventional, demonstrates adaptability in managing project timelines without compromising the long-term integrity of the shower structure.
Integrating Functional Elements: Shower Niches and Penetrations
Modern shower designs often incorporate practical elements like recessed niches, offering convenient storage for toiletries without intruding into the shower space. When the shower area was initially framed, provisions were made for these custom storage solutions. The beauty of HYDRO BAN pre-formed niches lies in their inherent waterproofing and thoughtful design; they are completely waterproof and feature pre-sloped walls to ensure efficient water drainage, preventing pooling and mildew growth. These versatile niches can be installed in virtually any orientation, allowing for creative freedom in optimizing storage within your unique shower layout. Experimenting with various configurations allows you to maximize storage potential, even in compact spaces.
Initially, the plan called for two double niches, but a generous supply from LATICRETE presented an opportunity to incorporate even more practical storage. The installation of these niches is straightforward, utilizing HYDRO BAN adhesive & sealant. This specialized adhesive provides a strong, waterproof bond, securing the niches precisely within their framed openings. A continuous bead of sealant around the perimeter of the niche, pressed firmly into place, ensures a watertight seal against the surrounding wall board. This careful attention to detail during niche installation is paramount for preventing any moisture intrusion into the wall cavity, safeguarding the structural integrity of your shower for years to come.
Sealing All Joints and Penetrations

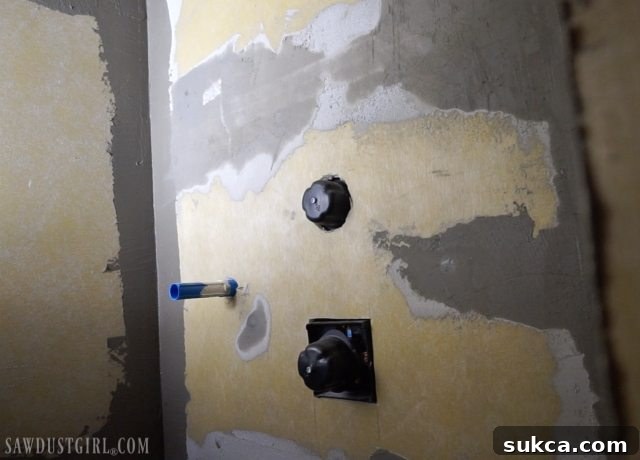

Once the waterproof shower wall boards are securely in place on both walls and ceiling, the next crucial step is to reinforce all panel joints and seal any gaps. This creates a monolithic, waterproof envelope. For this, 2-inch alkali-resistant mesh tape is applied over all seams, followed by a layer of thin-set mortar. The mesh tape provides structural integrity to the joints, preventing cracks and reinforcing the connection between panels. Gaps exceeding 1/8 inch should be meticulously filled with a polymer-fortified thin-set, which offers enhanced flexibility and adhesion, ensuring a robust seal. For smaller gaps, a simpler approach involves painting over the mesh tape directly with the HYDRO BAN liquid waterproofing membrane.
While best practices suggest tailored solutions for different gap sizes, it’s common for DIY enthusiasts to mix more thin-set than strictly necessary. In such cases, applying thin-set over all joints, regardless of size, provides an additional layer of protection and ensures no potential weak points are overlooked. This method, while sometimes exceeding minimum requirements, guarantees a comprehensive and secure seal across the entire shower enclosure, reinforcing the system’s longevity. Proper mixing of thin-set is also vital; it should have a smooth, peanut butter-like consistency to ensure good adhesion and workability.

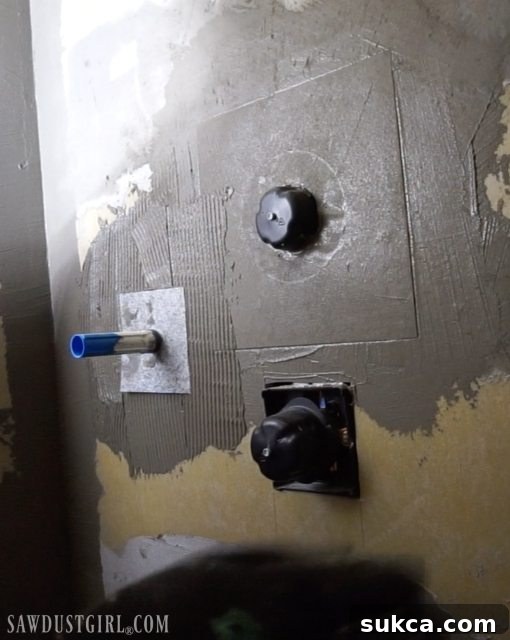

Pipe and mixing valve penetrations are critical areas that demand meticulous sealing to prevent any water leaks into the wall cavity. Special pipe and mixing valve collars are designed for this purpose. These are installed by first applying thin-set mortar around the penetration using a 1/4-inch by 3/16-inch V-notched trowel. The V-notch helps create ridges in the mortar, ensuring optimal coverage and adhesion for the collar. The appropriate collar is then slid over the pipe or mixing valve and pressed firmly into the wet adhesive. Any trapped air bubbles are carefully removed by spreading the thin-set from the inside out using a metal putty knife, ensuring a complete and watertight bond. This step is non-negotiable for a truly waterproof shower system, protecting your investment and preventing costly future repairs.
Applying the Final Layer: Liquid Waterproofing Membrane

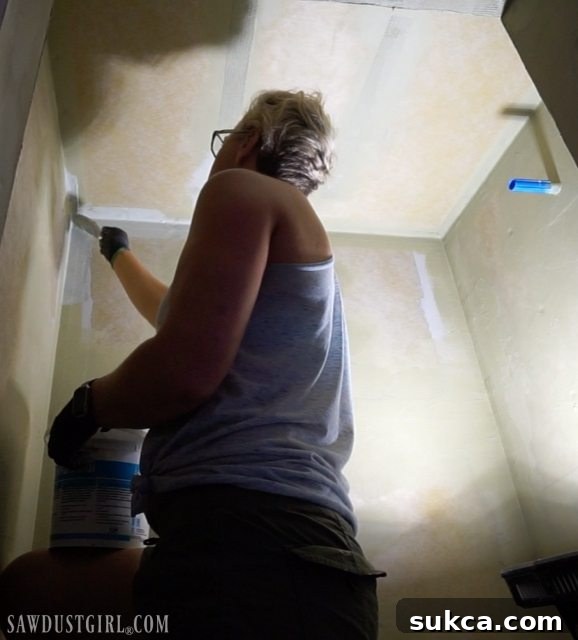

Once the thin-set mortar used for joint reinforcement and collar installation has thoroughly dried—a process that typically takes 24 to 48 hours depending on humidity and ventilation—it’s time for the ultimate waterproofing step: applying the HYDRO BAN liquid waterproofing membrane. This flexible, elastomeric membrane forms a continuous, seamless barrier over the entire shower surface. Apply two generous coats, ensuring comprehensive coverage over all screws, panel joints, corners, and any areas that might be susceptible to moisture intrusion. The first coat must be allowed to completely dry before the second coat is applied, typically within a few hours, but always follow the manufacturer’s specific guidelines for drying times.
This liquid membrane is not just about sealing; it’s about providing an additional layer of protection that accommodates slight movements in the structure without cracking. It bridges any microscopic gaps and forms a highly durable, impervious surface. Applying it with a roller or brush ensures even distribution and proper thickness. Pay particular attention to corners and changes in plane, where a slightly thicker application might be beneficial to create a robust seal. This step transforms the shower enclosure into a truly watertight box, protecting the underlying structure from any moisture damage.
Essential Pre-Tiling Checks and Final Touches

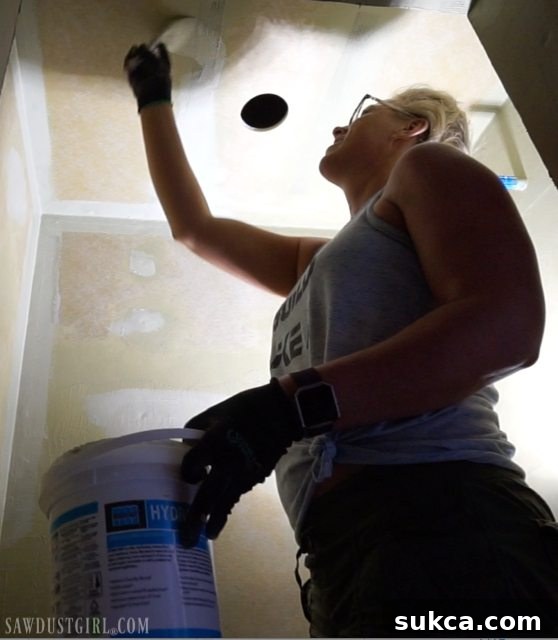

During the intensity of a renovation, it’s easy to overlook minor details that can have significant consequences. Forgetting to cut a hole for a light fixture in the shower ceiling, for instance, is a common oversight that can cause a frantic scramble later. It serves as a valuable reminder of the importance of thorough pre-planning: mark all fixture locations, including lights, fans, and showerheads, on the wall boards before installation or at the very least, before applying the liquid membrane. This ensures all penetrations are accurately accounted for and properly waterproofed, preventing last-minute cutting that could compromise the integrity of your newly installed system. Always double-check your plans against the physical installation before proceeding to the next step.

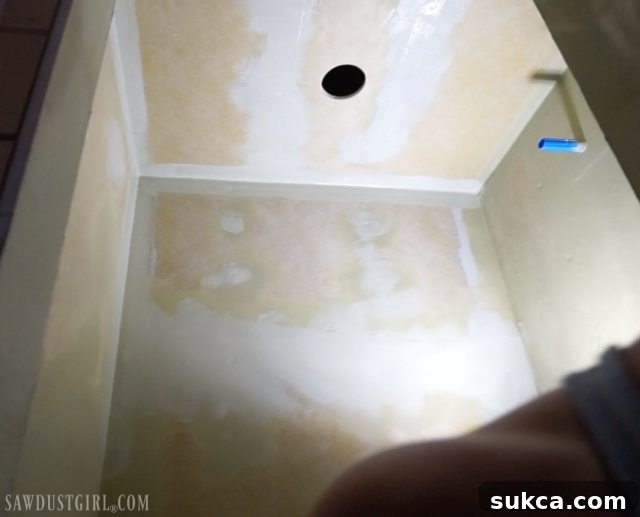

One of the practical advantages of the HYDRO BAN liquid waterproofing membrane is its color-changing property. When applied, it appears as a light grey/green color. As it dries and cures, it transforms into a darker, distinct green. This visual cue is incredibly helpful for DIYers and professionals alike, providing a clear indication of when the membrane is completely dry and ready for the next phase of tiling. There’s no guesswork involved, ensuring optimal performance and adhesion for your tiles. Waiting until the entire surface uniformly displays the darker green color guarantees that the waterproofing barrier is fully cured and ready to withstand the rigors of a tiled shower environment.

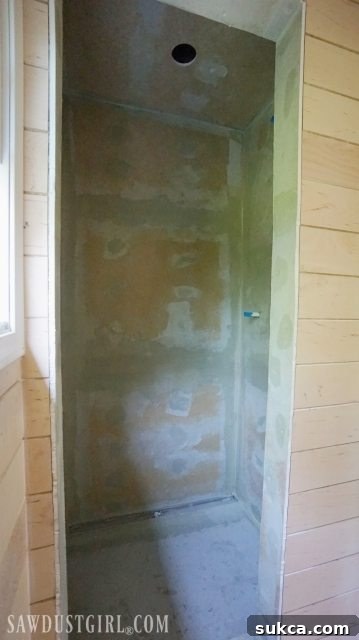

Once the liquid waterproofing membrane has fully dried and cured, your shower enclosure is officially ready for tiling! This phase, often perceived as daunting, can be surprisingly straightforward with the right preparation. The intimidation of the unknown often makes us procrastinate on such projects. However, breaking it down into manageable steps and using user-friendly products like the LATICRETE HYDRO BAN system truly makes the process a “piece of cake.” The undeniable ease of working with waterproof shower wall board, as opposed to the heavier, messier, and less inherently waterproof cement board, makes it the preferred choice for any shower renovation. Embrace the transformation, knowing that your meticulous work has created a waterproof foundation for a beautiful and enduring shower. Now, prepare to unleash your creativity with tile!
