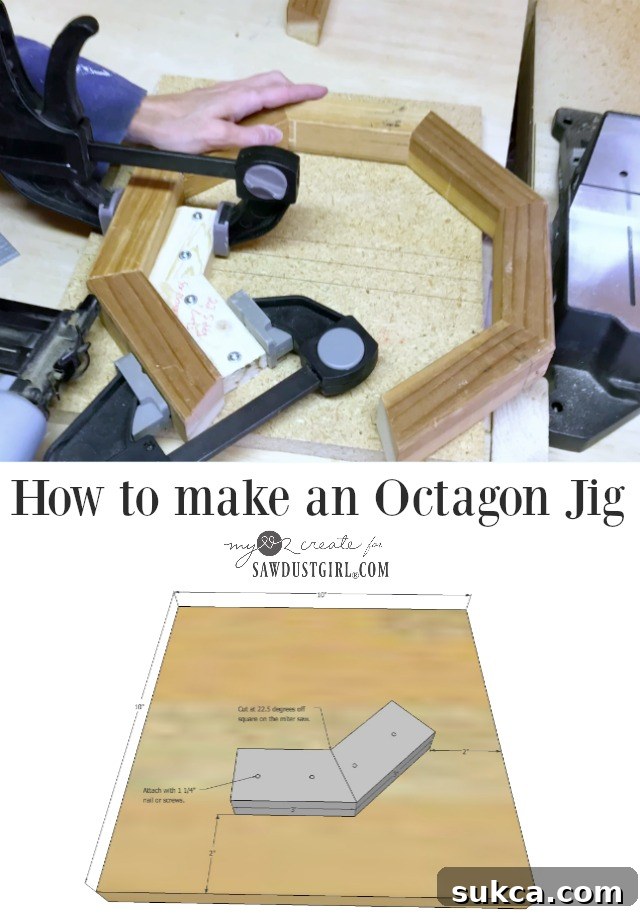

Why You Need a Precision Octagon Jig for Woodworking
You might wonder, “Do I really need a specialized jig for cutting geometric shapes?” The honest answer is that while you technically can create octagons or hexagons without one, a well-made jig offers significant advantages that will elevate your woodworking projects. I personally opted to build an octagon cutting jig for two primary reasons:
- Eliminate Guesswork and Boost Accuracy: My memory for numbers, especially precise angles, isn’t always reliable. Since I frequently tackle geometric projects, having a dedicated woodworking jig for a specific shape, with the exact cutting angle visibly inscribed, is incredibly helpful. This eliminates the need to constantly search for the correct angle online, saving valuable time and preventing costly measurement errors. A jig ensures every cut is precise, leading to perfect corners every time.
- Achieve Tighter, Stronger Joints: Beyond just cutting, a jig plays a crucial role in the assembly phase. It acts as a reliable guide, holding your pieces securely at the precise angle required for gluing and fastening. This stability is essential for achieving tight, flush, and accurate joints, which are fundamental to the structural integrity and aesthetic appeal of any geometric project. With a jig, you can build intricate shapes with greater ease and confidence, resulting in a superior finished product.
For your benefit, this tutorial is generously sprinkled with my own learning experiences and the mistakes I encountered along the way. Consider these valuable lessons, freely offered, to help you navigate your own DIY jig construction and project assembly without the same frustrations. You’re most welcome! 😉
After a bit of trial and error, I developed a highly effective system for utilizing an octagon jig to create truly impressive geometric woodworking projects. Let’s get started on building your own!

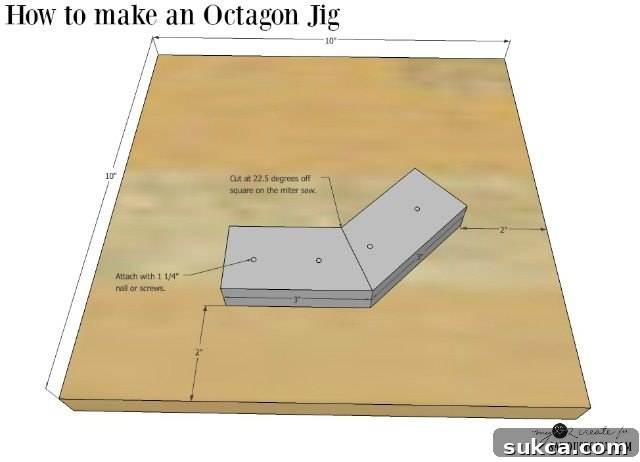

Crafting Your Own Octagon Jig: A Step-by-Step Guide
Essential Supplies for Your Octagon Jig
Gathering the right tools and materials is the first step towards a successful build. Here’s what you’ll need:
- Scrap Plywood or 3/4” Thick Wood: A piece roughly 10” to 12” square is ideal, though exact dimensions aren’t critical as long as it provides a stable base.
- Two 1×2 Wood Pieces: Each piece should be cut to 3 inches long from the long point to the end, with one end angled at 22.5 degrees off square.
- Fasteners: A nail gun with 1 1/4” finish nails, or 1 1/4” screws with a corresponding drill bit.
- Drill/Driver: For pre-drilling holes and driving screws.
- Miter Saw: Absolutely essential for precise angle cuts.
- Clamps: Bar or C-clamps will be invaluable for securing pieces during assembly.
Step 1: Precision Cuts on Your Miter Saw
The foundation of an accurate octagon jig lies in precise angle cuts. This step is critical for ensuring your future projects fit together seamlessly.

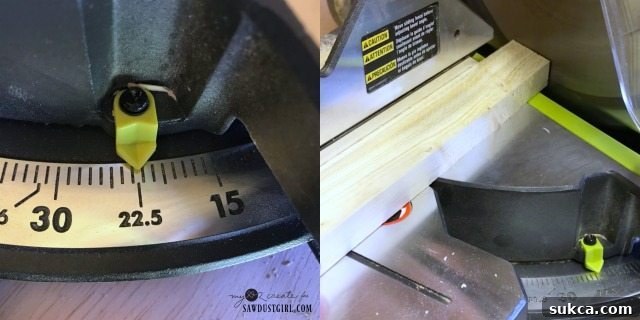

Begin by setting your miter saw blade to a precise 22.5-degree angle. This specific angle is fundamental for creating an octagon, as it represents half of the interior angle of a regular octagon (135 degrees / 2 = 67.5 degrees, or 90 – 22.5 = 67.5 degrees relative to the fence). Accuracy here directly impacts the quality of your finished octagon projects.
Next, take your two 1×2 scrap pieces and cut one end of each at this 22.5-degree angle. It’s crucial to ensure these cuts are clean and free of tear-out for the best results.

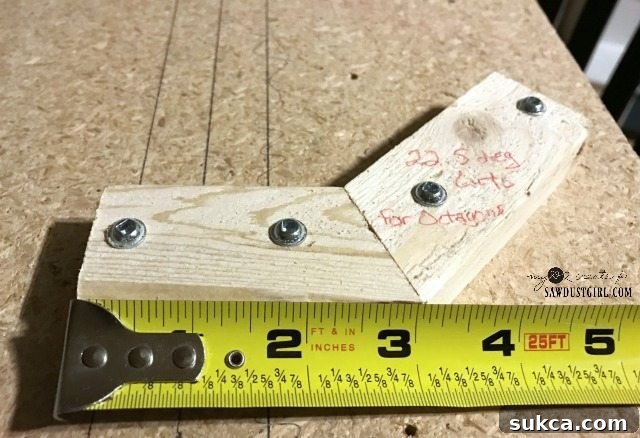

Through some experimentation, I’ve found that a length of 3 inches from the angled long point to the opposite end works exceptionally well for the jig pieces. This provides enough surface area for clamping and support without being overly bulky. If you anticipate working on very small-scale projects, you can certainly adjust this length to be shorter, but 3 inches offers a good balance for most applications.
Step 2: Assembling Your Octagon Jig Base
With your angled pieces precisely cut, it’s time to assemble them onto your scrap board, forming the core of your geometric cutting jig.
Here, you can see my scrap pieces, perfectly cut and ready for attachment. For this demonstration and future testing, I cut four pieces: two for the main jig, and two extra for immediate testing and calibration. It’s always a good idea to have spares when experimenting.

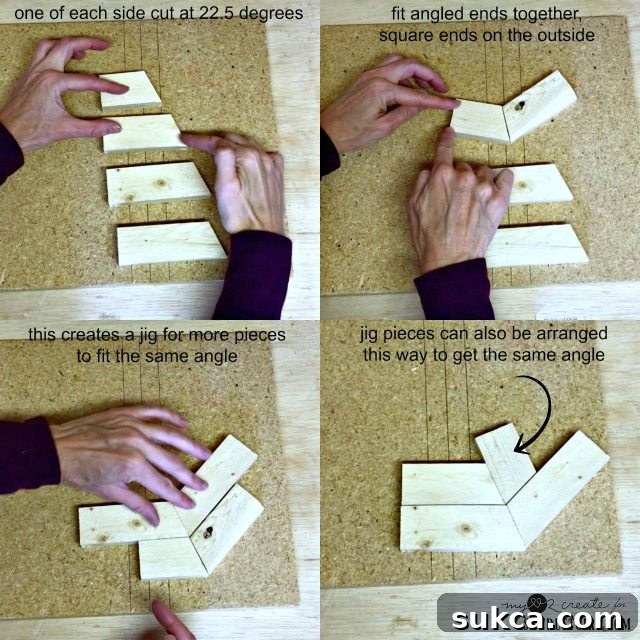

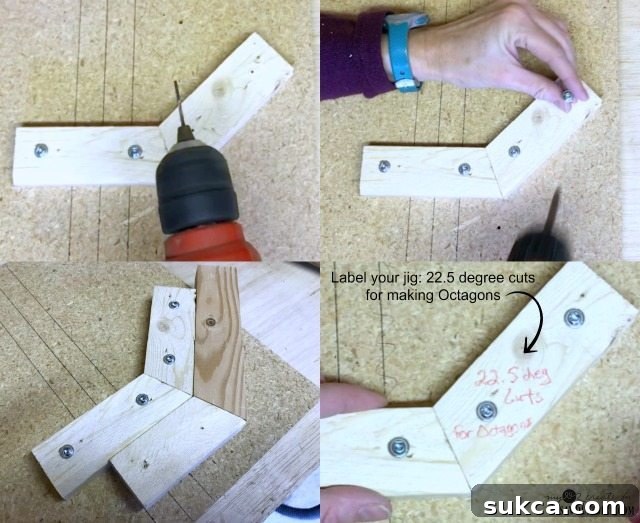

An interesting point to note is that you have two distinct options for arranging these pieces on your base board. Both configurations will ultimately yield the same 22.5-degree angle needed for your octagon cuts. The choice often comes down to personal preference or the specific clamping setup you plan to use (refer to the bottom photos in the image above for visual guidance).
Once my pieces were perfectly aligned, I initially reached for my 1 1/4” self-tapping screws to attach the first piece to the scrap board. Then, I positioned the second piece and began fastening it as well (as shown in the top right image).
*Important Note: I quickly discovered that shooting a couple of finish nails into the pieces first, just to temporarily secure them, was incredibly helpful. This prevents them from shifting as you drive in the screws, ensuring they remain precisely aligned. Alternatively, you could use clamps to hold them in place while screwing, or simply use nails exclusively and forgo screws altogether for a faster build.

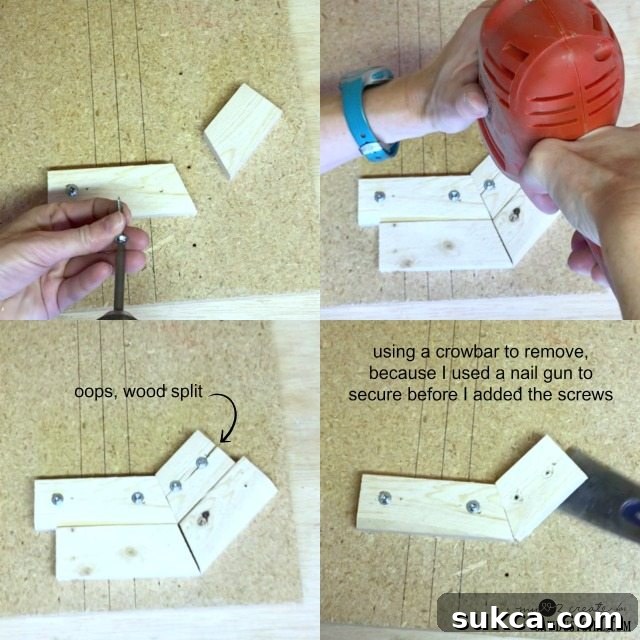

A crucial lesson learned, especially when working with less expensive wood like cheap furring strips: do not blindly trust that self-tapping screws won’t split the wood. Despite their design, soft or knotty wood can easily crack under the pressure, compromising your jig. This happened to me, and I had to remove the split piece. Since I had also used a few nails, a crowbar was necessary to carefully pry it off without further damage.
On my second attempt, armed with newfound wisdom, I diligently pre-drilled pilot holes before driving any screws. Success! No more split wood. This simple step is a game-changer for working with any wood, preventing damage and ensuring a strong, lasting connection. After securing the pieces, I took the extra step of writing directly on the octagon jig: the specific miter saw angle required (22.5 degrees) and the shape it creates (Octagon). This foresight makes it incredibly convenient – I can grab the jig and immediately start cutting project pieces without needing to remember or look up the correct angles. It’s a small detail that provides huge benefits for efficiency.
Trial and Error: Mastering Your Octagon Jig for Perfect Joints
Step 3: Using Your Octagon Jig – The Crucial Role of Clamping!
Once your DIY octagon jig is built, it’s time to put it to use! This is where the real magic happens, but also where early mistakes can occur if you’re not careful. The most important lesson I learned during this phase is the indispensable role of clamping.

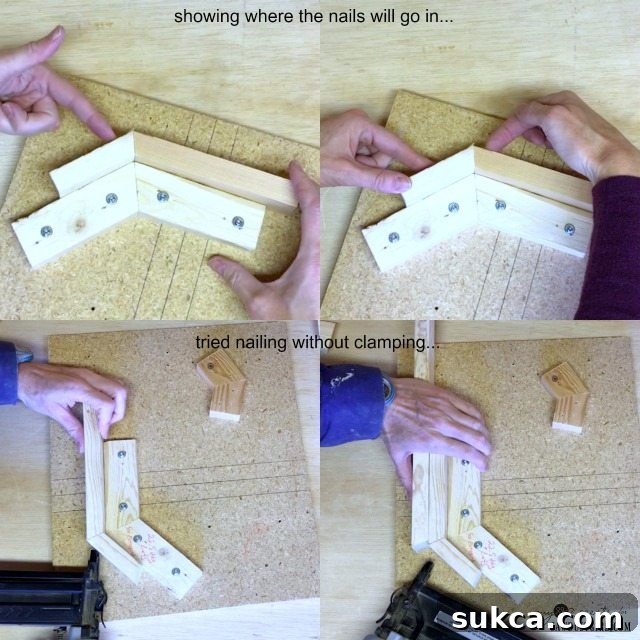

With your project pieces cut to the correct 22.5-degree angle, you can now place them into your jig. The top two photos illustrate the ideal positions for driving nails to secure the joint. Always remember to use wood glue in conjunction with finish nails for the strongest possible bond. However, in my initial excitement to use the newly built jig, my brain seemed to overlook some fundamental steps. As depicted in the bottom-left photo, I attempted to nail the boards together without adequate support, and predictably, the pieces frustratingly kept slipping out of alignment.
To remedy this, I grabbed an extra board (bottom-right photo) to secure one of the pieces, hoping this would stabilize the joint. I tried nailing again, but the results were still subpar…

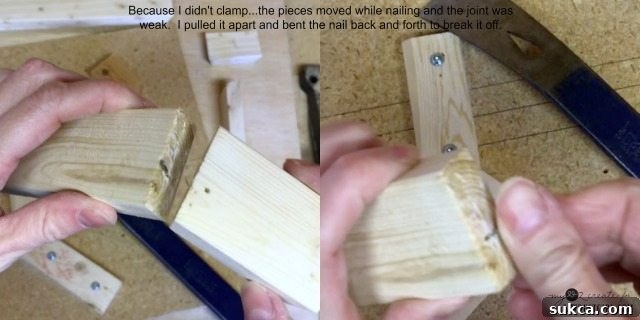

Indeed, the other piece remained unsecured, leading to a frustratingly loose joint as the nail went in. The entire joint lacked integrity, forcing me to pull it apart and deal with the broken nail. This was a definite setback!
*Handy Tip for Nail Removal: If a nail pokes through your project or needs to be removed from a failed joint, the simplest method is to grasp the exposed end with pliers and bend it back and forth repeatedly until the metal fatigues and breaks off cleanly. This avoids damaging the surrounding wood.
At this point, I admit I was a little frustrated. I had previously built a successful jig for my Hexagon Planters and didn’t recall encountering such difficulties. Why was this octagon jig proving to be more challenging?
My conclusion was that I needed to clamp at least one of my pieces firmly. “One?” I still wonder about that decision! In retrospect, why on earth did I not clamp both pieces? It seems obvious now, but in the heat of the moment, I missed it. Of course, with only one piece clamped, the other continued to slip, causing the same issues.
I chalked it up to a particularly stressful week, filled with life and kid-related challenges. Perhaps I was simply distracted and not thinking clearly. Regardless, I pressed on, determined to find a solution. I even had this brilliant idea to have a smaller, shorter jig on the opposite side of the same scrap board, just in case I needed to make tiny projects. However, this idea proved impractical; the jig on the opposite side invariably got in the way as I maneuvered around my project pieces. Another failed experiment.
It felt like nothing was going right. I decided to step away from my current project, take a much-needed break (which may or may not have involved chocolate), and return with a fresh perspective. I grabbed a new scrap 2×2 board and renewed my resolve, convinced that this process shouldn’t be so difficult.

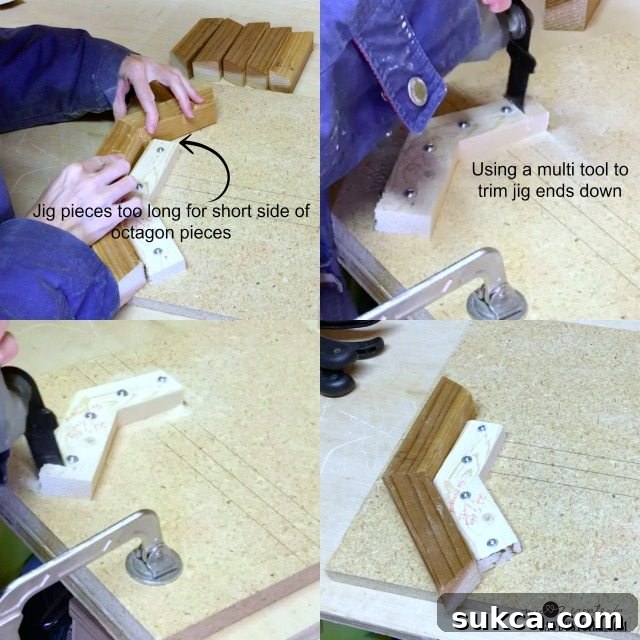

Starting from scratch, I cut my 2×2 board into eight equally sized pieces, each with the ends precisely cut at 22.5 degrees. Naturally, another hurdle appeared! It was becoming comically challenging at this point. I realized my newly cut jig pieces weren’t short enough for the small project I had in mind. Ugh! Out came my multi-tool, and I trimmed the ends down to the now-proven 3-inch length.
Ironically, as I write this, I’m realizing that I could have simply removed my original, longer octagon jig and kept my brilliant double-sided idea in place, albeit with shorter pieces. But, of course, that would have been way too easy! Ha!
So, with a crowbar, I removed my brilliant, but ultimately impractical, double-sided jig. (Did I mention I was having a challenging week?) Then, I finally adopted the SMART way to build: I clamped both sides! What a revelation! Who knew it could be so simple? *ahem*

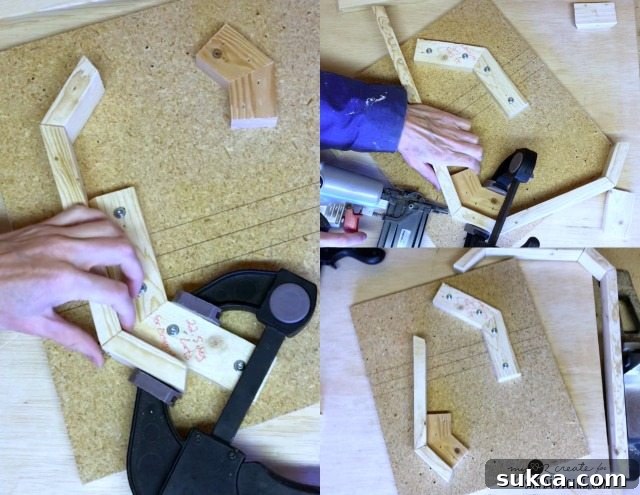

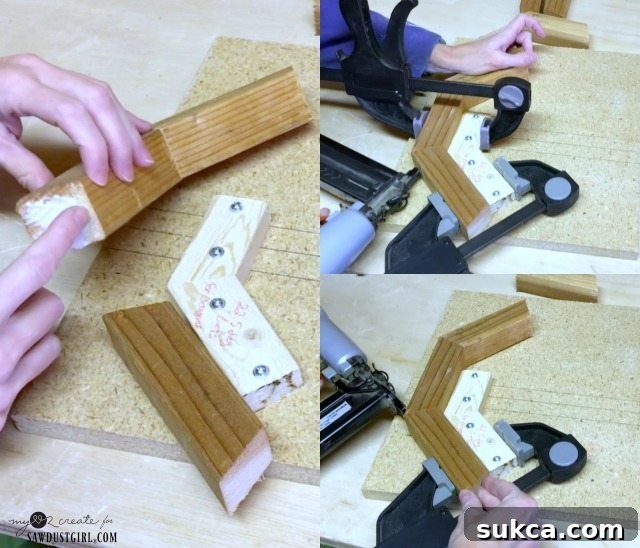

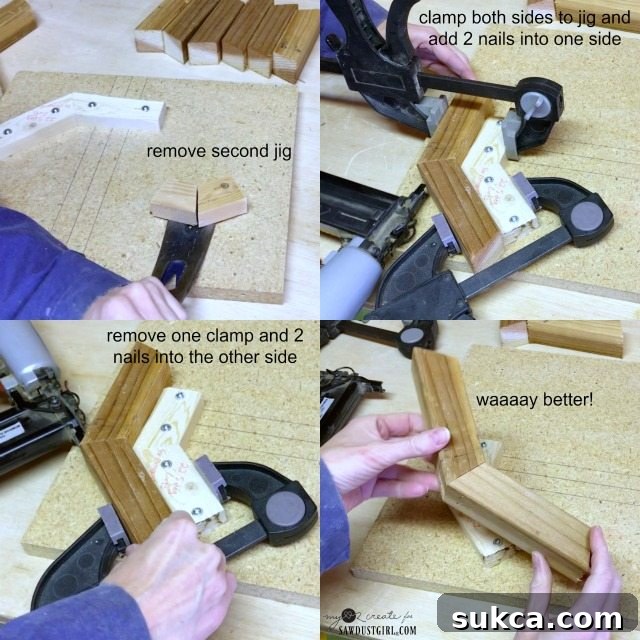

Here’s the refined, effective process I followed: First, apply wood glue to the angled ends of your project pieces. Next, align these pieces perfectly within the octagon jig. Crucially, use clamps to secure both pieces firmly in place against the jig. Once secured, drive two finish nails into one side of the joint (as shown in the top-right image). To reinforce the other side, carefully remove one clamp, then add one or two nails from that direction. This method consistently results in perfectly strong and stable joints!

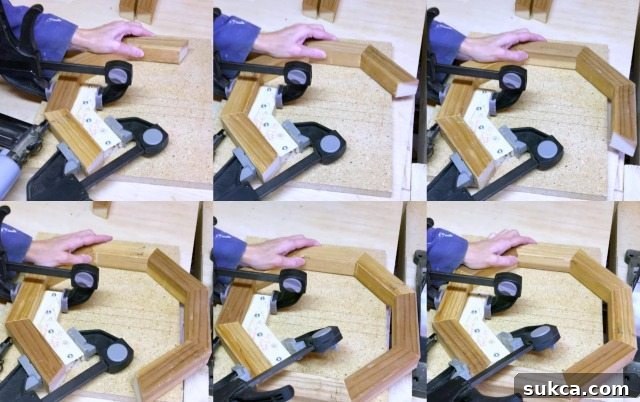

Phew! With all my ducks finally in a row, my octagon jig suddenly worked flawlessly. The secret, as it turns out, is indeed to utilize clamps generously and strategically. I then proceeded to complete my octagon shape by assembling one side at a time, meticulously following the optimized process described above.
In what felt like no time at all (after overcoming the initial hurdles), my octagon was built! Mwah ha ha ha! (That’s a slightly hysterical and maniacal laugh of triumph, just so you know.)
For you, the process will truly be quick and seamless, because you’ll cleverly bypass all the mistakes I generously made on your behalf! Right? Right.
Pro Tip: Optimize Your Miter Saw for Repeatable Cuts

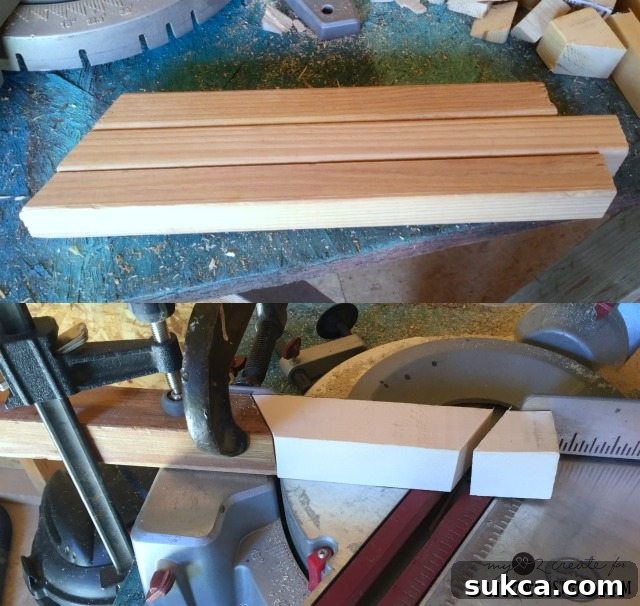

*Essential Woodworking Tip: If you’re undertaking a project that requires cutting numerous pieces to the exact same length, you can significantly enhance both efficiency and accuracy by creating a simple stop block on your miter saw. When I crafted my Hexagon Planters, this technique proved invaluable.
First, cut one end of all your scrap pieces at the required angle (as shown in the top photo). Then, take a scrap piece of wood that has been cut to the correct length and angle, and clamp it securely to your miter saw fence. This creates a fixed “stop.” Now, you can quickly and accurately cut multiple project pieces to the identical size without having to measure each one individually. This setup is incredibly effective and only takes a few minutes to prepare, saving you a considerable amount of time and ensuring consistent, professional results across all your cuts.

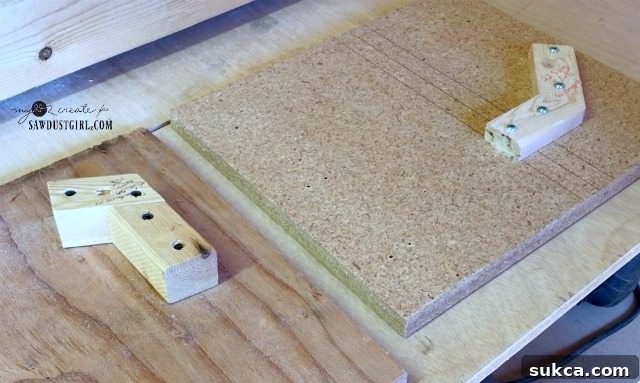

And there you have it, my friends! That’s the comprehensive guide on how to make an octagon jig. I now proudly possess two specialized jigs: one dedicated to crafting perfect octagons, and another for producing precise hexagon shapes. I’m absolutely certain these tools will see extensive use in countless future geometric woodworking projects, making intricate designs both achievable and enjoyable.
