Transforming interior spaces with the warmth and texture of wood plank walls is a timeless design choice. For those embarking on a home renovation, particularly in areas like the Jack and Jill bathroom and multiple bedrooms, achieving this coveted look efficiently and affordably is often a top priority. This comprehensive guide details a highly effective technique for installing stunning V-groove plywood plank walls, mimicking the appearance of traditional 3/4″ V-groove pine planks without the associated cost or common issues.
The Smart Choice: Why Plywood for V-Groove Plank Walls?
When considering wood plank walls, many homeowners immediately think of solid pine or other premium wood planks. While beautiful, these options can be significantly more expensive and come with their own set of challenges, particularly regarding stability. My previous experience with underlayment plywood for a studio ceiling highlighted both the cost savings and the potential pitfalls.
Comparing Materials: Underlayment vs. Purebond Birch Plywood
Initially, I opted for underlayment plywood, which offered a significant cost advantage—roughly one-fourth the price of actual pine planks. However, this affordability came at a price in terms of quality and additional labor. Underlayment often features numerous voids, a notoriously thin and sometimes bubbly veneer, and consistently rough edges, even before any custom beveling. This meant considerable extra work was required to achieve a truly polished finish.
For this extensive remodeling project, which includes the Jack and Jill bathroom and two bedrooms, I’ve upgraded my material choice to 1/4″ Purebond birch plywood. While more expensive than basic underlayment, Purebond remains about half the cost of solid pine planks, striking an excellent balance between budget and quality. The advantages are immediately apparent: Purebond plywood has remarkably few voids, a thicker veneer that resists bubbling, and edges that are impressively smooth both before and after being beveled. This superior quality significantly reduces preparation time and yields a more professional result with less effort.
Preparation is Key: Transforming Plywood Sheets into V-Groove Planks
The secret to creating authentic-looking V-groove plank walls from plywood lies in precise preparation. This involves two main steps: ripping the 4×8 sheets into uniform strips and then beveling the edges to form the characteristic V-groove.
Ripping Plywood into Planks

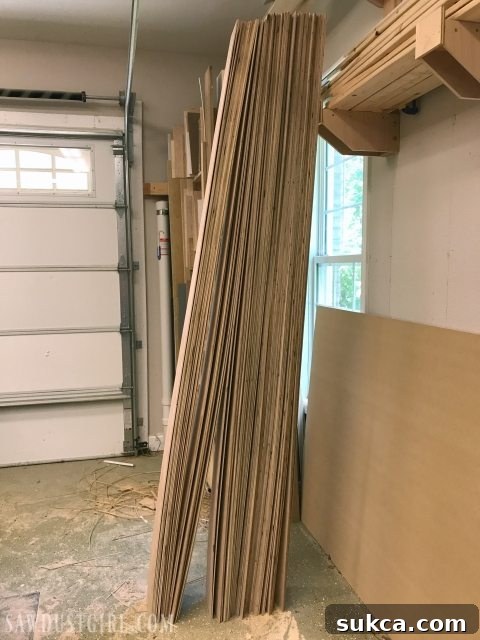

I began by purchasing 4×8 sheets of 1/4″ Purebond birch plywood. To achieve the desired plank width, I used my track saw to rip these large sheets into consistent 6″ wide strips. The track saw is ideal for this task as it provides extremely straight and clean cuts, which are crucial for tightly joined planks. If a track saw isn’t available, a circular saw with a high-quality guide rail or a table saw can also be used, though extra care is needed to maintain accuracy across the entire sheet.
Creating the V-Groove: Beveling the Edges

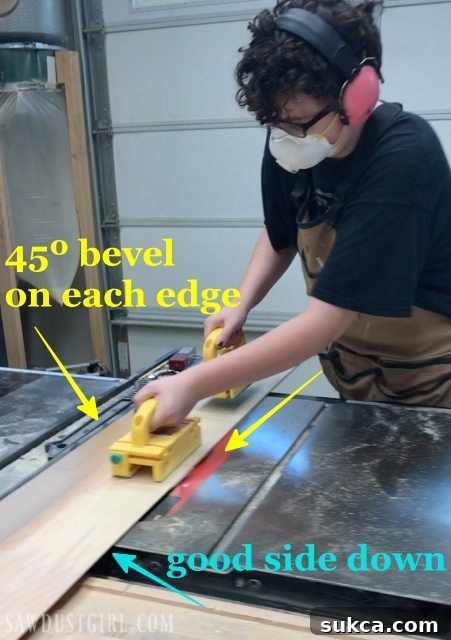

Once the plywood strips were cut, the next critical step was beveling their edges. This process, expertly handled by my assistant Madison, took several hours at the table saw, transforming flat edges into the distinct V-groove profile.
- Optimal Blade Angle: The table saw blade was set to a 45º angle. This specific angle is essential to create the sharp, clean V-groove that mimics traditional tongue and groove planks.
- Preventing Tear-out: To ensure the cleanest cut and prevent any unsightly tear-out on the visible surface, always make sure the best side of the plywood plank is faced down on the table saw. The blade cuts upwards, so any potential chipping will occur on the underside, which will be hidden against the wall.
- Consistent Bevel: Each plank requires both long edges to be beveled. After running one edge through the saw, simply spin the plank around (keeping the good side face down) and run the opposite edge. This creates two opposing 45º angles that, when joined with another plank, form the perfect V.
- Safety First: Working with a table saw requires utmost caution. Always use push blocks to maintain control over the material and keep your hands a safe distance from the spinning blade. Madison found the MicroJig GRR-Rippers to be particularly effective for safely guiding the narrow plywood strips through the saw, offering superior grip and control.
Installing V-Groove Plywood Plank Walls: A Step-by-Step Guide
With the planks meticulously prepared, it’s time for installation. This process combines careful planning, precise measurements, and the right tools to achieve a professional and durable finish.
1. Locating Wall Studs

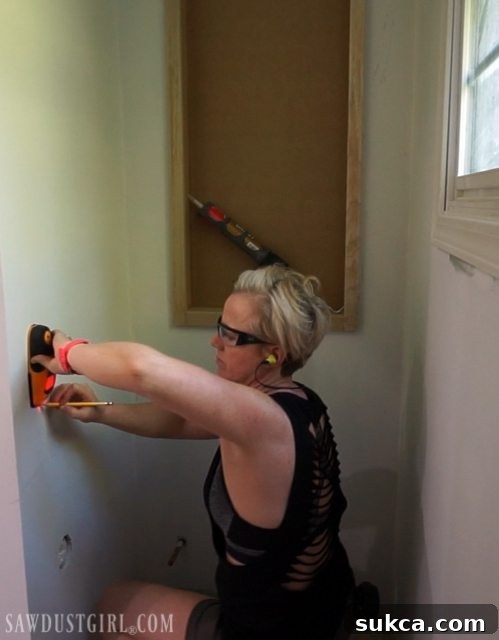

Before any planks go up, accurately locating and marking all wall studs is paramount. These studs provide the solid anchoring points for your planks. I used a reliable stud finder, moving it horizontally across the wall to identify the stud edges, and then marking their centers with a pencil. Clearly marking these stud locations from floor to ceiling ensures that you can consistently secure your planks into structural elements.
2. Establishing a Level Baseline with a Laser Level

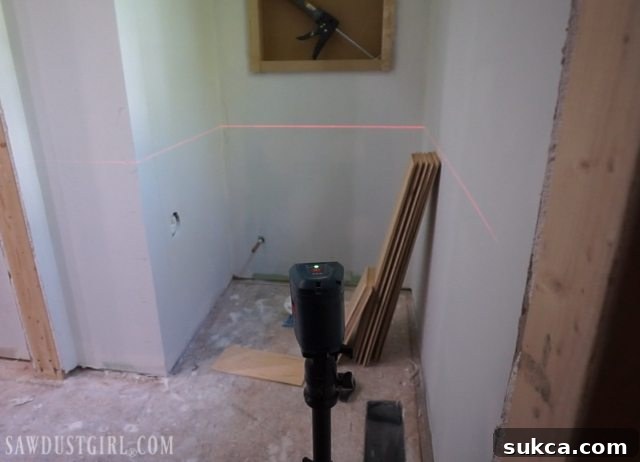

Achieving perfectly level planks is crucial for a professional look. A laser level is an indispensable tool for this task. It projects a perfectly straight, level line across your walls, serving as a reliable guide for your first row of planks and ensuring consistency throughout the entire installation. Setting it up correctly and frequently checking your progress against its beam will save countless hours of frustration and rework.
3. Securing Planks: Adhesive and Pin Nails

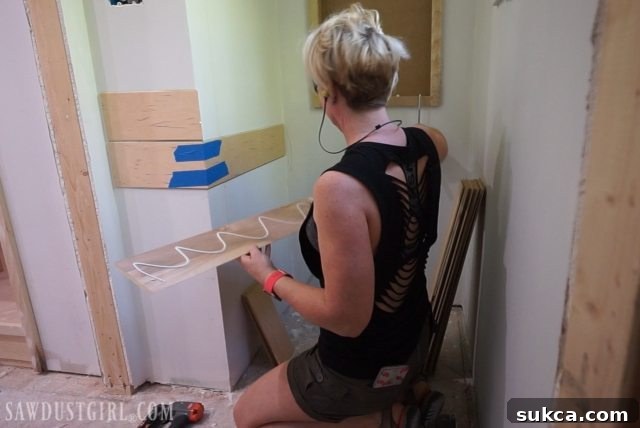

To ensure a strong, long-lasting bond and minimize any future movement, I used a combination of construction adhesive and 23 gauge pin nails. Apply a generous, continuous bead of construction adhesive to the back of each plank. A serpentine pattern or multiple parallel beads work well to ensure good coverage. The adhesive provides the primary bond, while the fine 23 gauge pin nails serve to hold the planks firmly in place against the wall while the adhesive cures. These tiny nails leave almost imperceptible holes, which can be easily filled or painted over, maintaining the pristine look of the V-groove.

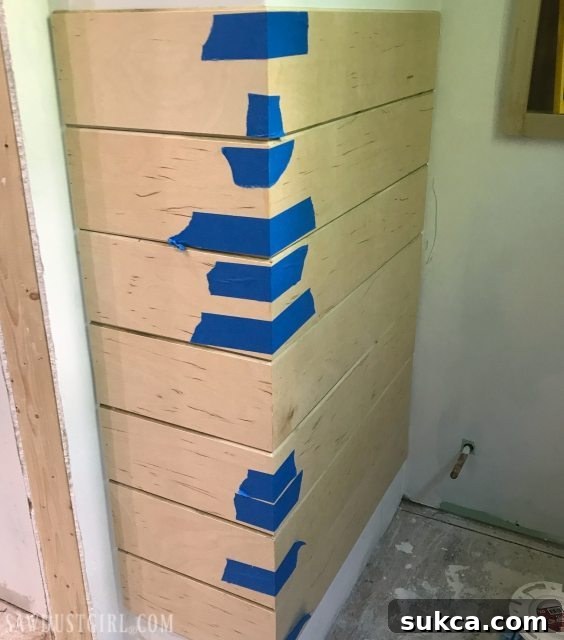

4. Mastering Outside Corners

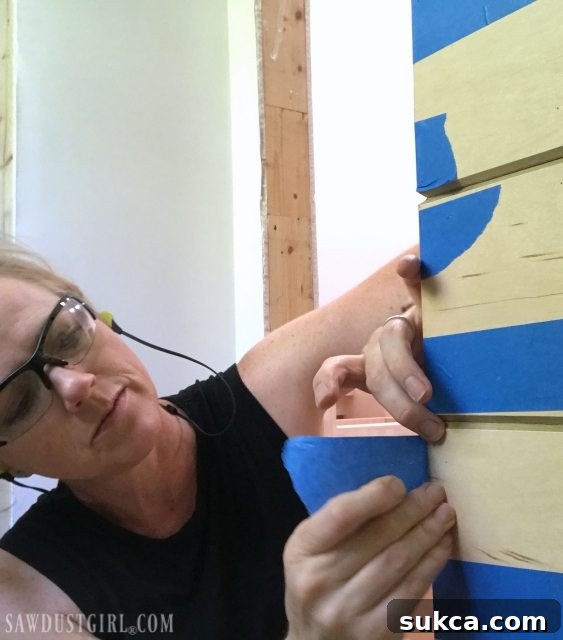

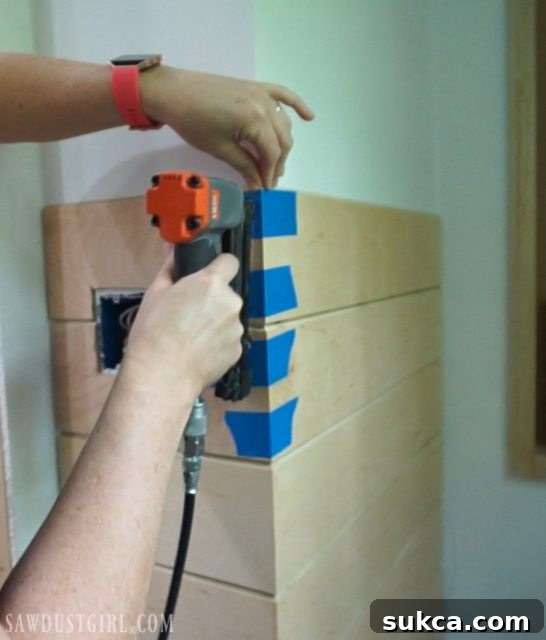

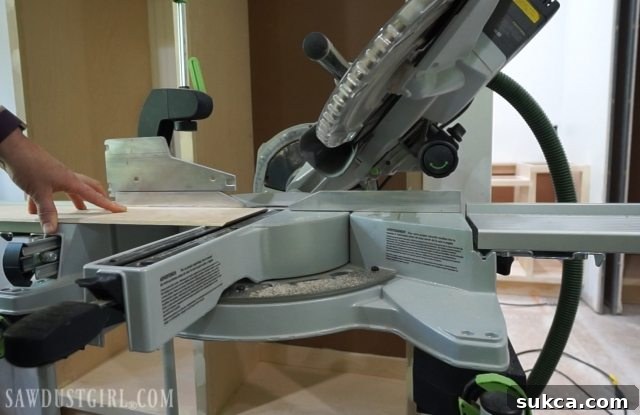

Outside corners require special attention to maintain the continuous V-groove aesthetic. For these, I beveled the ends of the adjoining planks. This creates a clean mitered joint that flows seamlessly around the corner. To strengthen this joint, I applied Titebond Quick and Thick Glue, which offers a fast initial grab. Then, painter’s tape was strategically applied across the joint to pull the planks together, creating a tight, gap-free corner while the glue dried. Finally, each side of the corner was secured with pin nails, carefully angled for maximum hold without splitting the thin plywood.

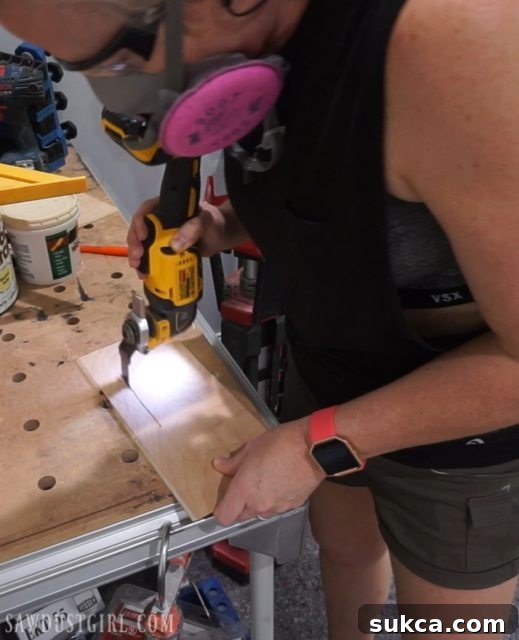

5. Cutting for Obstacles: Junction Boxes
Walls are rarely free of obstructions. For electrical junction boxes and outlets, an oscillating multi-tool proved invaluable. Its precision and versatility allowed me to make clean, accurate cutouts in the plywood planks to accommodate these fixtures. Careful measurement and marking are essential here to ensure the openings align perfectly with the electrical boxes, providing a professional and safe installation.

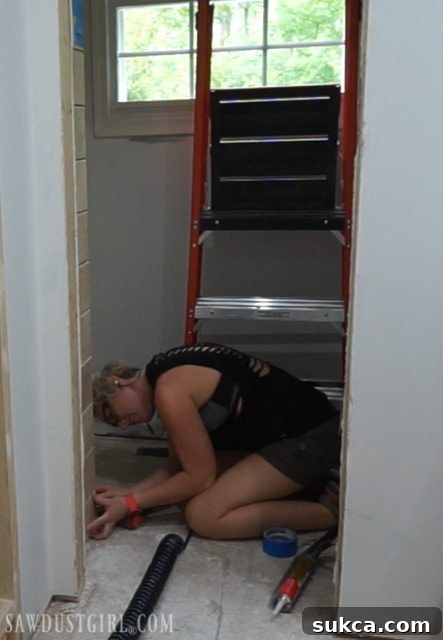

6. The Imperative Baseboard Gap
One crucial detail often overlooked is leaving a small gap at the bottom of the plank walls. I trimmed the bottom row of planks about 1/2″ off the floor. This gap serves as a protective measure: should any water ever get under the baseboards (a particular concern in a bathroom), the plywood planks won’t directly wick up moisture. While baseboards will cover this gap, installing them before painting ensures that this potentially vulnerable portion of the planks remains protected. It also allows for minor expansion and contraction of the building materials.
7. Maintaining Level Across Multiple Walls

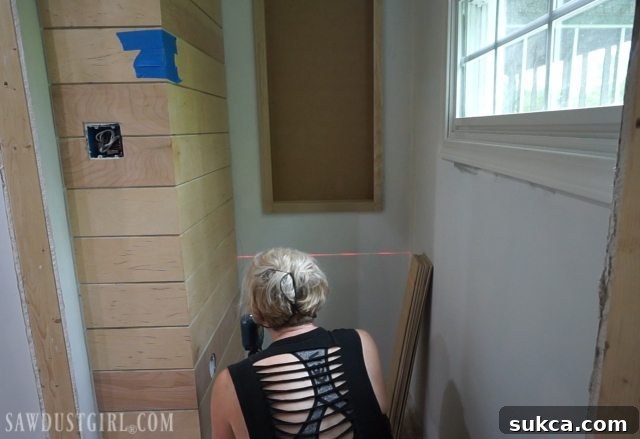

When transitioning from one wall to the next, it’s vital to maintain the level line of your planks for a cohesive look. I achieved this by setting the laser level at the center of a V-groove on the last installed row of planks on the first wall. This established a new, accurate reference point for the starting row on the adjacent wall. This technique ensures that the V-grooves remain consistently aligned throughout the entire room, creating a harmonious visual flow.

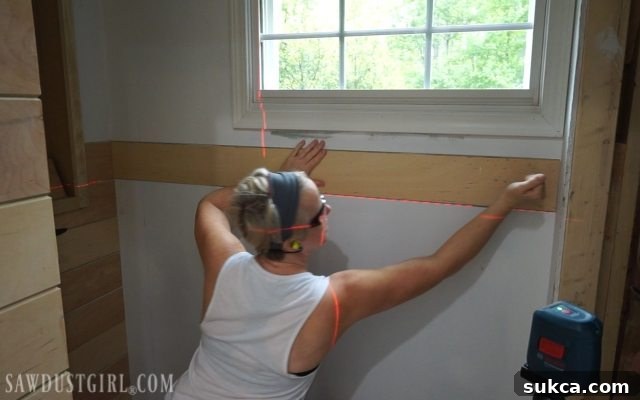

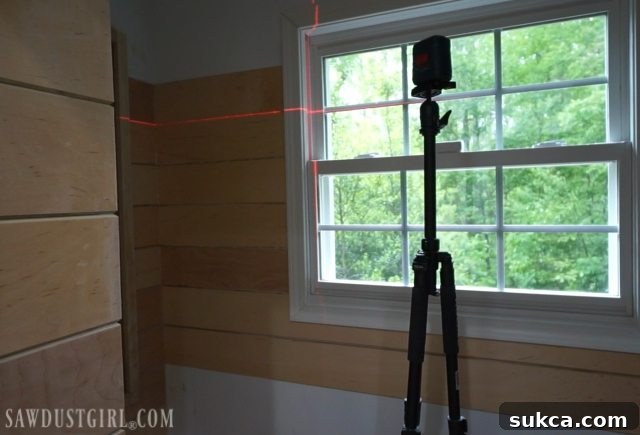

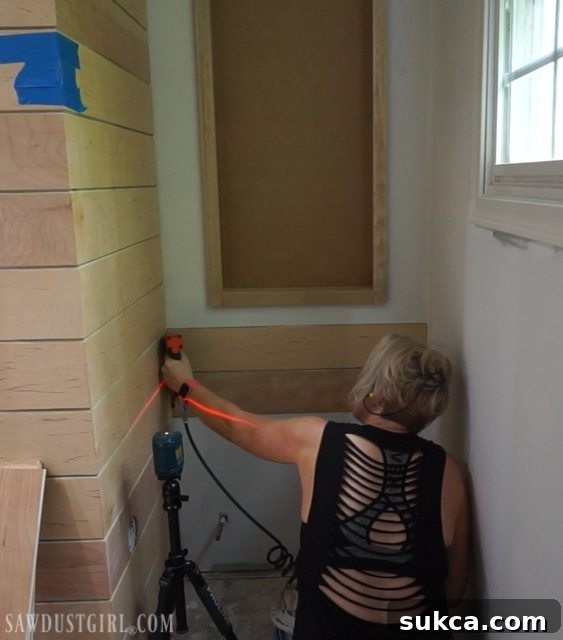

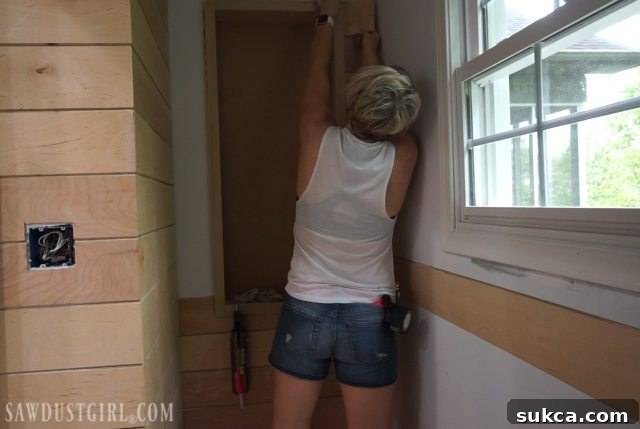

The process continued systematically around the room, always referencing the laser level, applying construction adhesive, and securing the planks with pin nails. To ensure ongoing accuracy, I made it a practice to move and reset the laser level every 5 or 6 planks. This frequent recalibration ensured that the plywood plank walls maintained their perfectly level alignment throughout the installation, preventing any gradual deviation that could become noticeable later.
Finishing Touches and Long-Term Performance
Once the last plank is meticulously installed, the project moves into the finishing phase. This is where personal style truly shines, and where the long-term benefits of plywood become evident.
To Paint or Not to Paint?
While many appreciate the natural beauty of wood, I have a specific vision for my space—one that involves clean, bright white walls. The V-groove plywood provides the perfect textured canvas for this aesthetic. Of course, the beauty of this technique is its versatility; you are absolutely welcome to leave your plywood plank walls unpainted if you prefer a rustic, natural wood look. For those opting to paint, a high-quality primer will ensure excellent adhesion and a smooth, even topcoat. The white paint will brighten the rooms while still allowing the subtle texture of the V-grooves to add architectural interest.
Crown Molding in a Bathroom: A Thoughtful Addition

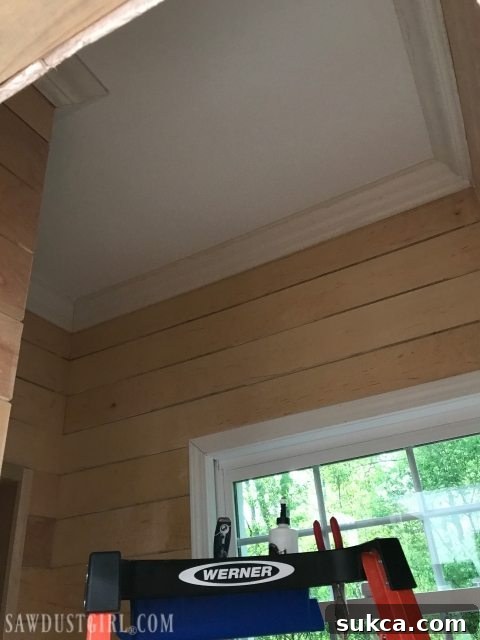

I also proceeded with installing crown molding, a decision that can sometimes be controversial in bathroom renovations. The primary concern usually revolves around humidity and its potential impact on wood molding. However, in this specific bathroom, I’m installing a high-tech ventilation fan designed for superior moisture extraction. This eliminates my concerns about humidity affecting the crown molding’s integrity. For anyone considering crown molding in a high-moisture environment, thorough research into ventilation solutions and material choices is highly recommended to make an informed, personal decision that suits your specific needs and climate.
The Plywood Advantage: Stability and Lasting Beauty
Having previously installed numerous solid pine plank walls and ceilings, I’ve encountered a common issue with painted solid wood: noticeable movement at the V-groove. Solid wood expands and contracts with changes in humidity, leading to caulk being squeezed out when it expands and unsightly gaps appearing when it contracts. This often necessitates repeated scraping and re-caulking.
Plywood, by its very nature, is far more dimensionally stable than solid wood. Its cross-laminated layers minimize expansion and contraction, which means I anticipate virtually no noticeable movement at the V-grooves on these plywood plank walls. This inherent stability is a significant advantage, promising a low-maintenance and consistently beautiful finish for years to come.
Visual Comparison: Plywood vs. Solid Pine

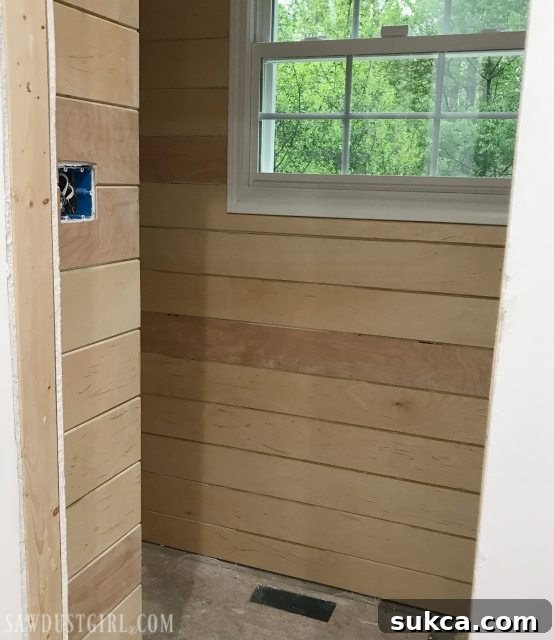

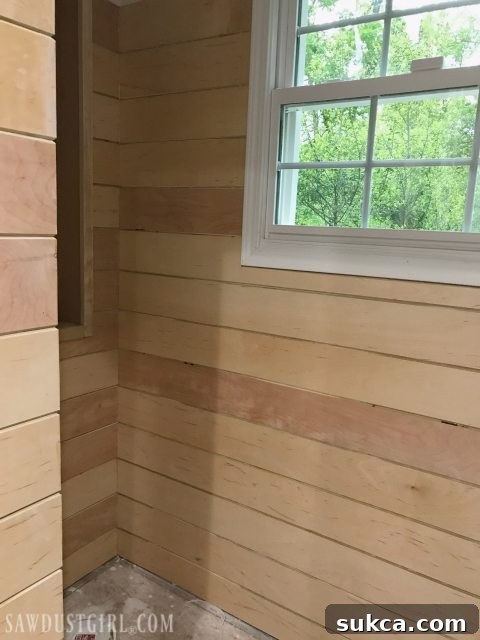

Visually, the installed plywood plank walls are incredibly similar to solid pine planks, a testament to the effectiveness of the ripping and beveling technique. While a traditional pine plank might be 3/4″ thick, only the top 1/4″ or so is actually involved in creating the V-groove. Because the entire side of the 1/4″ plywood is meticulously beveled, the visual depth of the V-groove achieved with plywood is virtually identical to that of genuine pine plank walls. This means you get the same classic architectural element at half the price.
While this method involves more initial work in cutting and beveling the plywood, the benefits of cost savings and, more importantly, the superior stability that prevents unsightly movement, make it a worthwhile endeavor. It’s important to note that due to the use of construction adhesive, these plank walls are designed to be a permanent feature. If ever removed, the drywall would likely require significant refacing. However, given its timeless appeal and durable installation, I have no plans of ever tearing out these V-groove plank walls—they are a classic architectural element destined to enhance my home for decades.
