Every dedicated woodworker knows the struggle: a workshop cluttered with lumber, scraps piled precariously, and valuable wood stock slowly succumbing to warps and bows. This common challenge often leads to wasted materials and inefficient project flow. Today, I’m thrilled to share a comprehensive guide on how I designed and built my ultimate rolling lumber cart, specifically engineered for secure vertical wood storage. This mobile organization solution is a game-changer, not only freeing up precious floor space but also meticulously safeguarding your wood supply from the detrimental effects of improper storage such as warping, bending, bowing, or twisting.

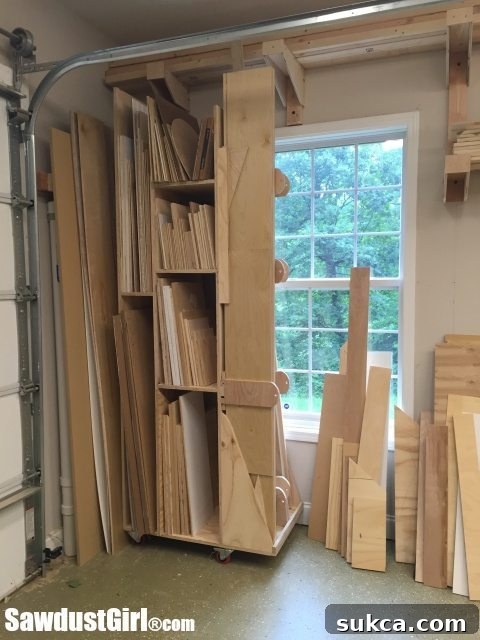

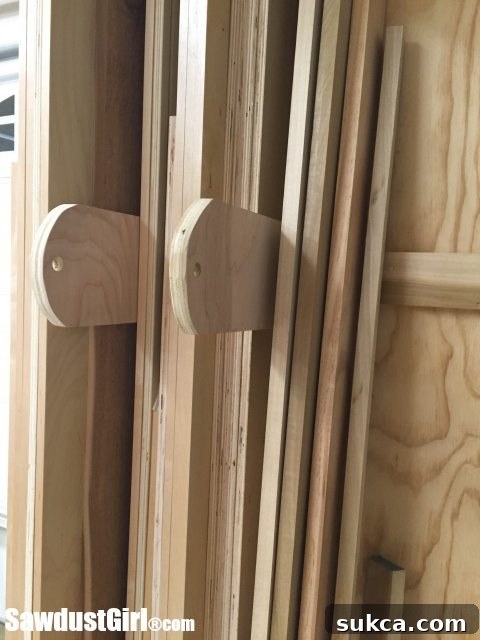

My custom-built lumber cart features robust side support brackets that are the cornerstone of its vertical storage capabilities. These intelligently designed brackets firmly cradle long pieces of wood, ensuring they remain straight and true, ready for your next project. Whether you’re a hobbyist or a professional, maintaining the integrity of your materials is paramount, and this cart provides the perfect solution to keep your timber in pristine condition.

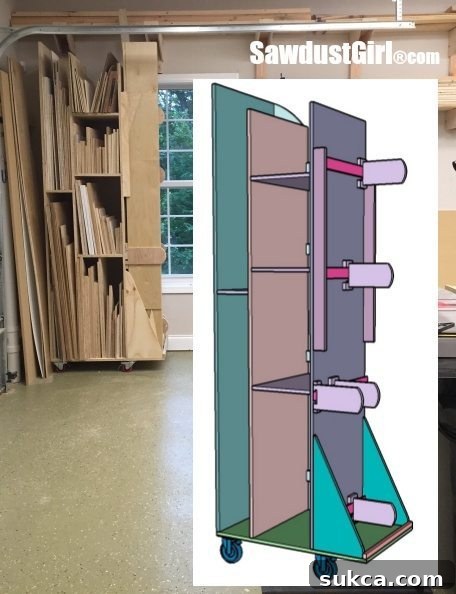

Revolutionize Your Workshop: Building the Ultimate Rolling Lumber Cart for Vertical Wood Storage
The journey to a more organized and efficient workshop often begins with tackling lumber storage. I constructed this versatile plywood cart primarily from high-quality 3/4-inch plywood, held together with sturdy wood screws. Unconventionally, I opted against using wood glue for this build. This decision was intentional, as my long-term workshop plans involve a complete reconfiguration once my main studio project is finalized. Therefore, this cart serves as a robust yet temporary solution, allowing for easy disassembly and repurposing of its materials into future scrap wood as needed. This modular approach highlights the adaptability of DIY projects, especially when anticipating future changes in your workspace.
Essential Materials and Tools for Your DIY Lumber Cart

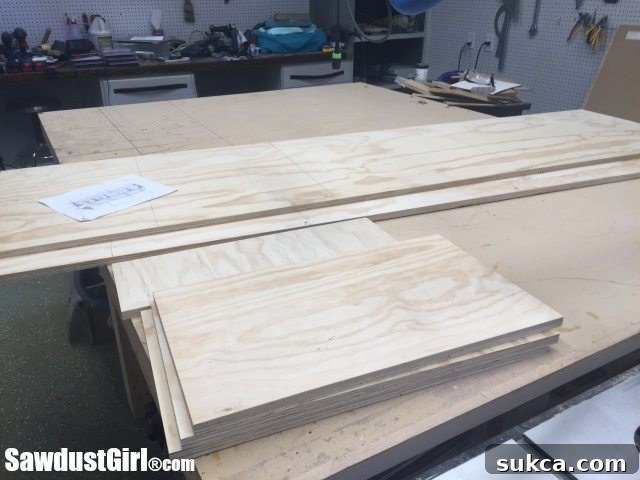

Before diving into the construction, it’s vital to gather all necessary materials and tools. For this project, I utilized two full sheets of sanded plywood, which provide a smooth finish and excellent durability, along with a collection of extra plywood scraps for smaller components. The sanded finish, while not strictly necessary for a utility cart, offers a nicer aesthetic and prevents splinters during handling. Here’s a detailed list to prepare you for success:
- Materials:
- Two full sheets of 3/4-inch sanded plywood (4×8 feet each)
- Assorted plywood scraps (for brackets, cleats, and smaller sections)
- 1 3/4-inch wood screws (for main assembly)
- 1 1/4-inch wood screws (for cleats and secondary brackets)
- Four 4-inch locking swivel casters
- Tools:
- Circular saw or table saw (for cutting plywood sheets)
- Drill/driver
- Tape measure
- Pencil
- Speed square or combination square
- Safety glasses and hearing protection
- Optional: Router with a rabbeting bit (if not using a table saw for rabbets)
- Optional: Clamps (for holding pieces while screwing)
Safety is paramount in any woodworking project. Always wear appropriate personal protective equipment, especially when operating power tools like a table saw or circular saw. Ensure your workspace is clear and well-lit.
Phase 1: Constructing the Core Structure of Your Lumber Cart
Step 1: Attaching the Primary Sides and Shelves

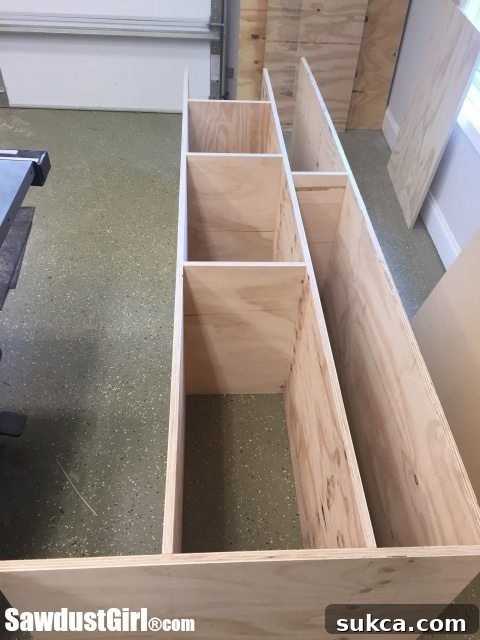

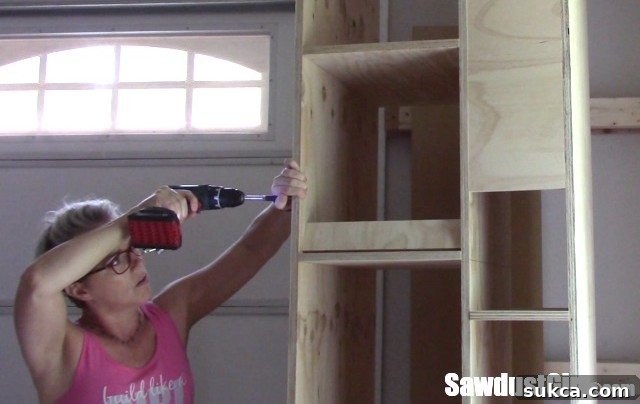

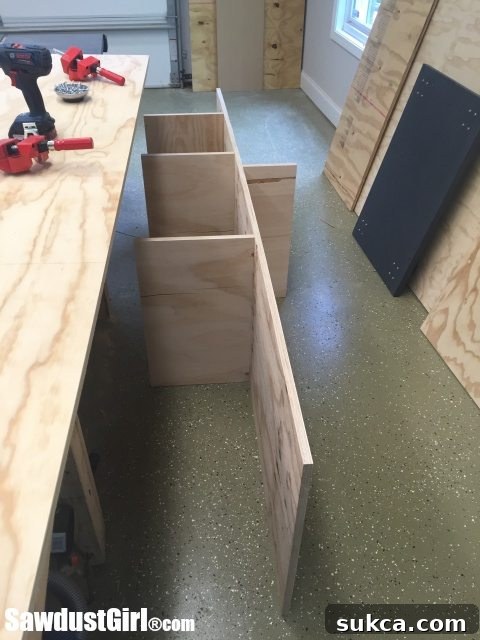

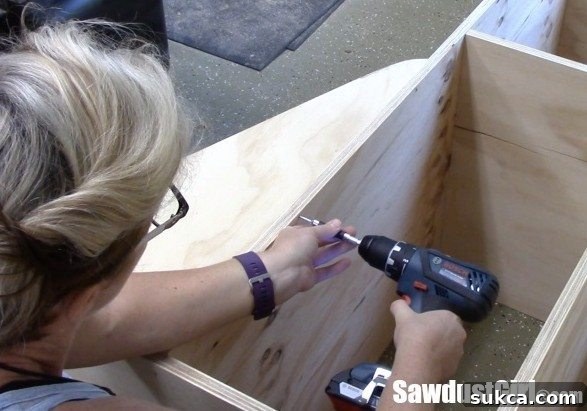

The foundation of this rolling lumber cart begins with assembling the main structural panels. Careful measurement and precise cuts are essential here to ensure a stable and square cart. Begin by attaching the shelves to both sides of ‘Side 1’ – a crucial upright panel of your cart. For this, I used sturdy 1 3/4-inch wood screws, driving them securely into the plywood. Ensure your shelves are perfectly level and square with the side panel to maintain the cart’s structural integrity.

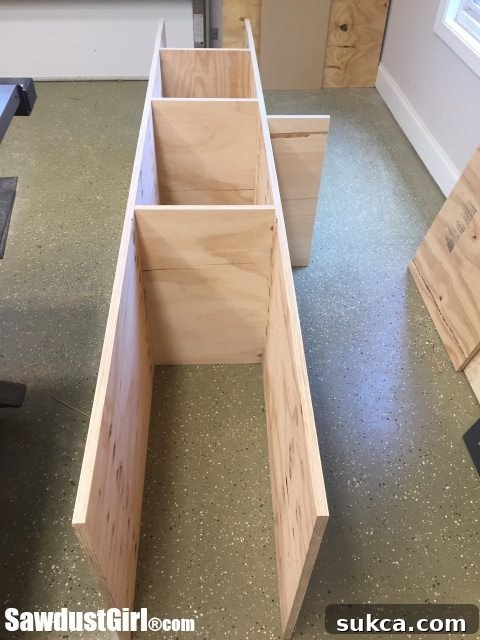

Once ‘Side 1’ is complete with its shelves, proceed to attach ‘Side 2’ in the exact same manner. Consistency in your measurements and screw placement here will ensure that the cart’s vertical compartments are uniform and strong. Always double-check your alignment before fully securing the screws to avoid misalignments that could compromise the cart’s stability and appearance.

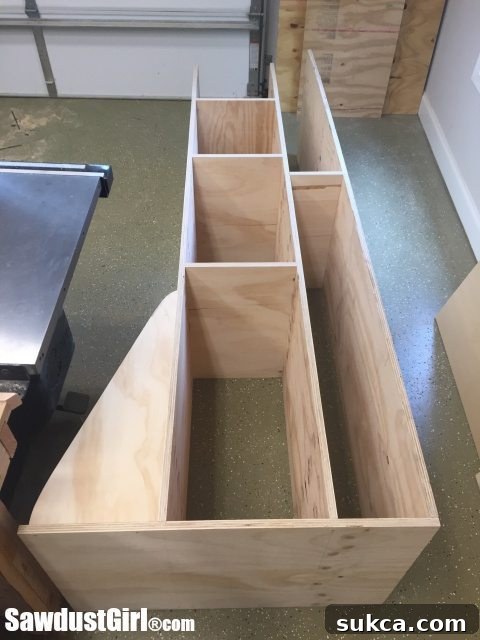

The final upright panel to attach is ‘Side 3’. This side differs from the previous two as it is intentionally longer. This design choice creates a varied storage capacity, allowing for different lengths of wood to be stored efficiently. When marking the shelf locations for ‘Side 3’, it’s critical to measure accurately from the bottom upwards. This ensures that its shelves align correctly with the extended length of the panel. After securing ‘Side 3’, attach the bottom piece of the cart. This bottom panel is designed to extend 12 inches beyond the side, forming a convenient and practical platform. This platform provides additional storage space, ideal for smaller offcuts, tools, or frequently used items, making the cart even more versatile.
Phase 2: Enhancing Functionality with Platform Storage and Stability
Step 2: Creating the Integrated Platform Storage
The extended bottom platform isn’t just a flat surface; it’s designed to house integrated storage compartments. To achieve this, I precisely cut two triangular pieces of plywood. These triangular sections serve as the sides for the platform storage area, providing containment for items placed there. I secured these triangles robustly from both the bottom and the back, ensuring they can withstand the weight of various materials. The beauty of this design is its flexibility; you can easily customize the size or shape of these triangular sides to perfectly accommodate the specific items you plan to store, whether it’s smaller plywood pieces, wood glue, or other workshop essentials.

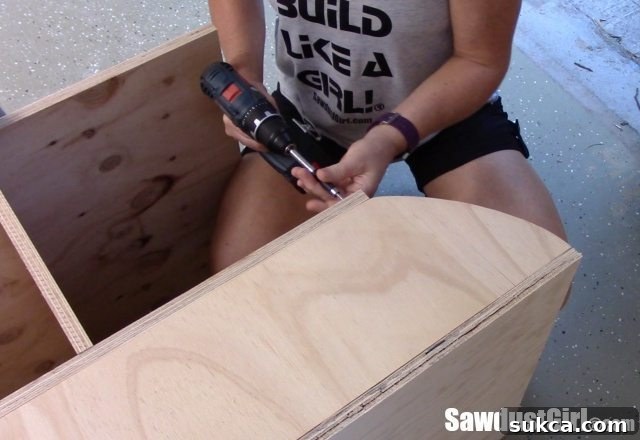

While the main bottom panel plays a crucial role in maintaining the correct distance between the cart’s primary sides, the open top design meant that the smaller internal cavity required additional stabilization. With only a single shelf supporting one side, the top portion needed extra rigidity to prevent racking. To address this, I carefully cut a piece of wood for the back and gave it a gentle arch. This arched piece serves a dual purpose: it significantly enhances the stability of the upper structure and creates a seamless transition from the shorter ‘Side 2’ to the longer ‘Side 3’, providing both structural integrity and aesthetic flow.
Phase 3: Adding Mobility and Final Structural Elements
Step 3: Installing Robust Casters for Easy Movement

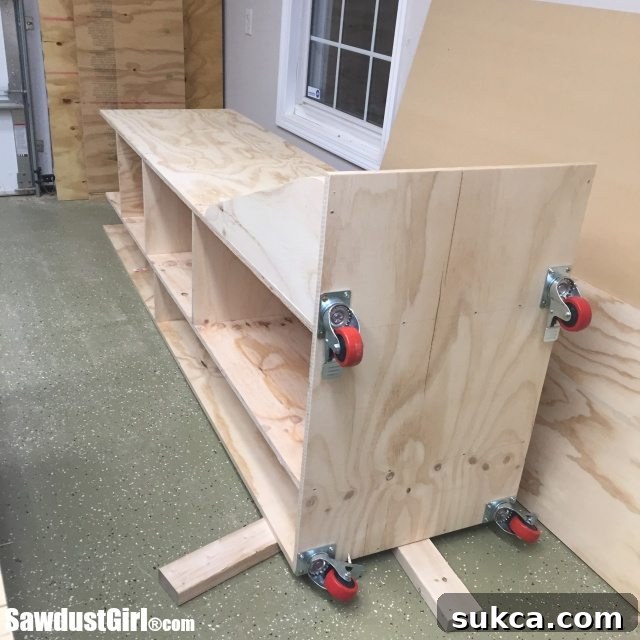

A true “rolling” lumber cart isn’t complete without high-quality casters. I chose 4-inch locking swivel casters for this project, a decision driven by the desire for both effortless maneuverability and steadfast stability. The locking feature is critical; once the cart is positioned, you want it to stay put, preventing any accidental movement while you’re accessing or organizing your lumber. I attached these casters securely to the bottom of the cart, ensuring each one was firmly fastened. The thought of having to lay this heavy cart back down to install casters once it was upright was enough motivation to get them on correctly the first time!
With the casters in place, the cart was ready to be stood upright. This was a two-person job; with Wes’s help, we carefully maneuvered it onto its wheels. Once upright, the next crucial step was to add cleats across the back of each cubby. These cleats are vital for preventing stored wood from being inadvertently pushed out the back of the cart, providing a secure boundary for your lumber. This simple addition saves time and prevents potential messes in your workspace.
At this point, I confess to getting a little ahead of myself in my excitement for organization! I prematurely filled the lumber cart with scrap wood before it was truly finished. While a testament to the cart’s immediate utility, it did make the subsequent steps a bit more challenging. Working around the piles of wood, I proceeded to add two 1 1/2-inch wide strips of plywood to the ends of the side storage areas. These strips provide additional support and refinement to the storage compartments.
Step 4: Preparing for Vertical Storage: Cleats Installation

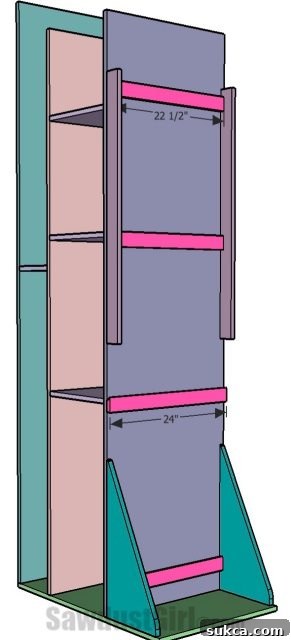

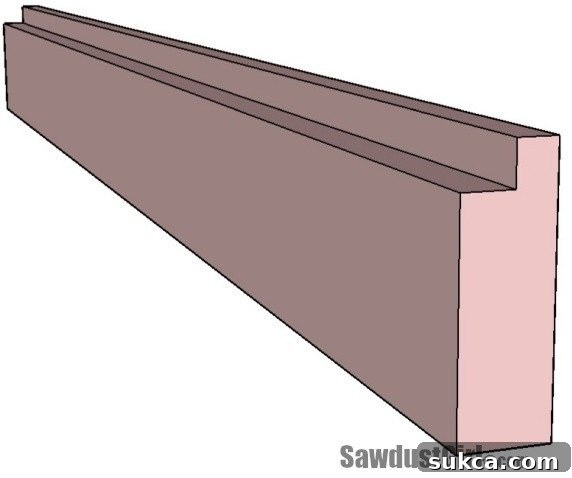

The innovation behind this lumber cart lies in its adjustable vertical storage system, which starts with the cleats. I used my table saw to precisely cut rabbets into four cleats, specifically designed for the sides of the cart. Cutting rabbets requires careful attention to detail and proper table saw safety protocols. A rabbet is a recess or groove cut into the edge of a piece of wood, which in this case, serves as a secure track for the vertical support brackets to hook onto.
Once the rabbets were perfectly cut, I attached these cleats to the side of the cart using 1 1/4-inch wood screws. The orientation is crucial: the rabbets are positioned at the top and back of each cleat, creating a strong, interlocking system. This thoughtful design ensures that the subsequent support brackets will hang securely and distribute the weight of the lumber effectively, preventing any slippage or instability.
Phase 4: Designing and Implementing the Adjustable Vertical Support System
Step 5: Crafting the Innovative Support Brackets

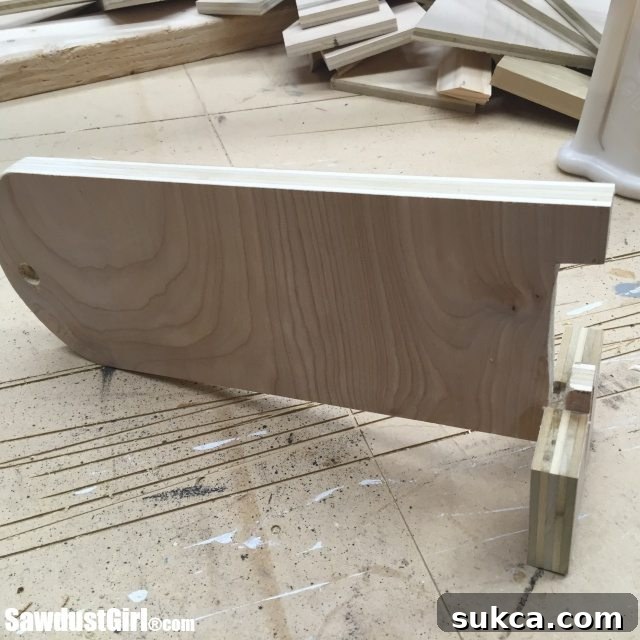

Developing the perfect support bracket for vertical lumber storage was perhaps the most time-consuming yet rewarding part of this project. It involved about 50 hours of meticulous thought, design, and iterative testing to arrive at the most functional and adaptable solution. The goal was to create a bracket that could be easily adjusted to accommodate varying quantities and thicknesses of wood, ensuring maximum security against bowing and warping.

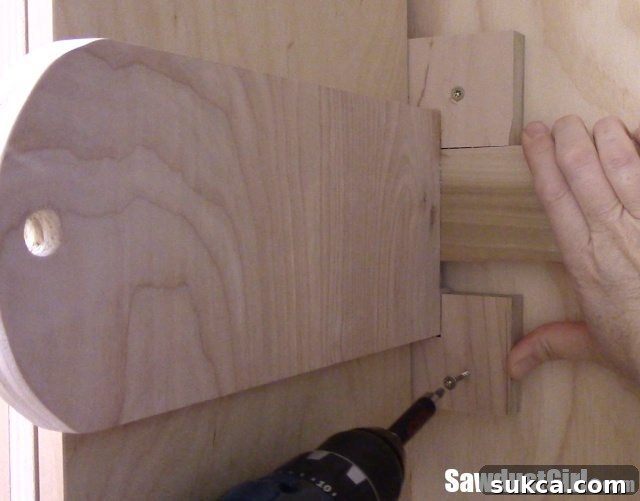

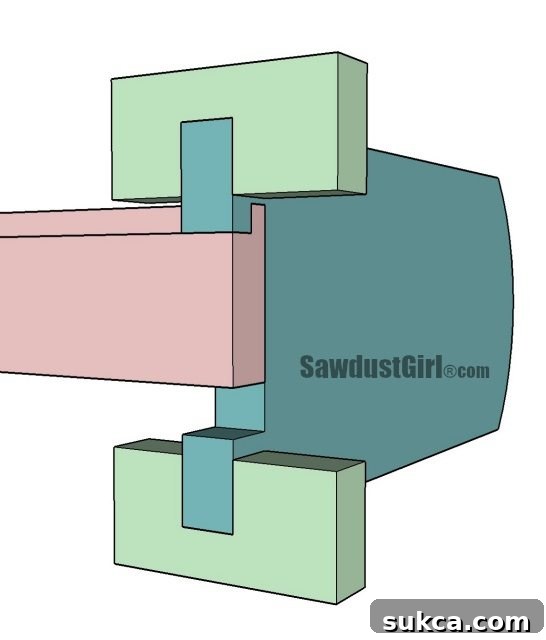

These custom-designed brackets ingeniously fit onto the rabbeted cleats. The process is simple yet effective: you position the bracket assembly, push it tightly against the stack of wood you intend to store, and then drive a screw through the smaller, ‘secondary brackets’ (those little light green blocks visible in the images). This action firmly locks the entire assembly in place, securing your lumber precisely where you want it. It took several test pieces and adjustments to achieve the ideal shape and size of the cutout that perfectly mates with the rabbet. Since the exact dimensions of rabbets can vary slightly depending on your tools and precision, this part will be unique to your build, requiring a personalized fit.

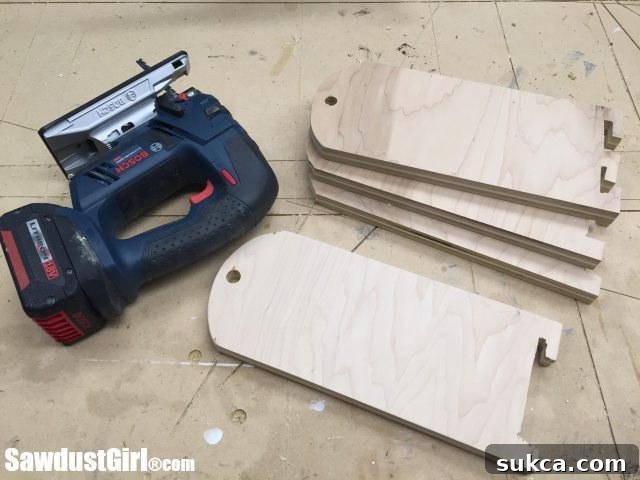

To further enhance functionality, I drilled 1-inch holes into the ends of these brackets. This foresight allows for future flexibility; should I ever feel the need for an additional layer of security, I can easily string a bungee cord or rope across the front of the side storage area. This simple addition would create a barrier, preventing any wood from tipping forward, especially during movement or if the cart is fully loaded with unevenly distributed weight.
The secondary brackets, particularly those on the outermost edges, are designed to be flush on one side. This thoughtful detail provides a direct surface through which to drive a screw into the main cart body without having the bracket protrude beyond the side of the lumber cart. This maintains a clean exterior profile and prevents snagging or obstructions.

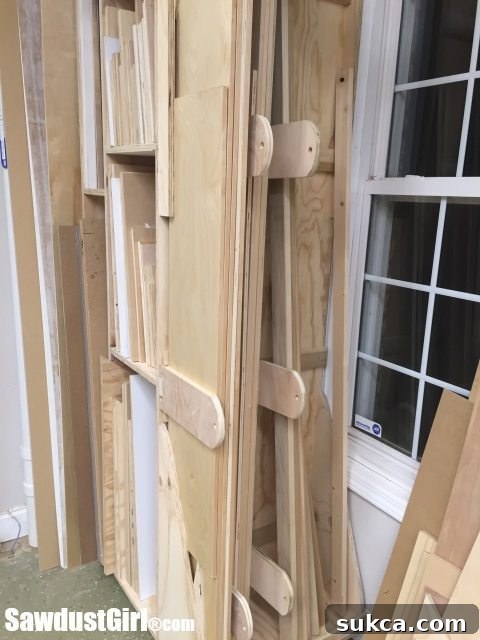

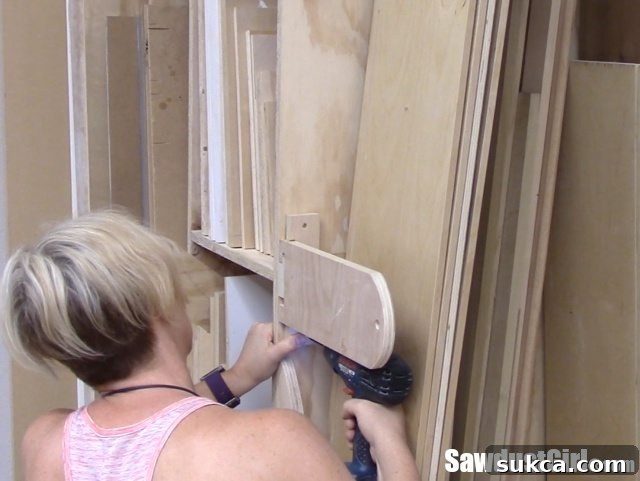

After securing the initial outer bracket, the process for organizing your wood is straightforward. Stack your lumber neatly in place against the secured bracket. Then, position a second bracket onto the cleats on the opposite side. Push the stack of wood together as tightly as possible, ensuring there’s no unnecessary space, which maximizes storage capacity and minimizes movement. Once the wood is snug, drive screws through the secondary brackets and into the lumber cart. It’s crucial here to use shorter screws – 1 1/4 inches should be sufficient – to prevent them from poking through the other side of the plywood, which could create hazards or damage your lumber. These robust, adjustable brackets are specifically designed to hold wood securely, significantly helping to prevent bowing and other forms of material degradation.
Phase 5: Securing Your Lumber and Optimizing Storage
Step 6: Finalizing Vertical Lumber Security

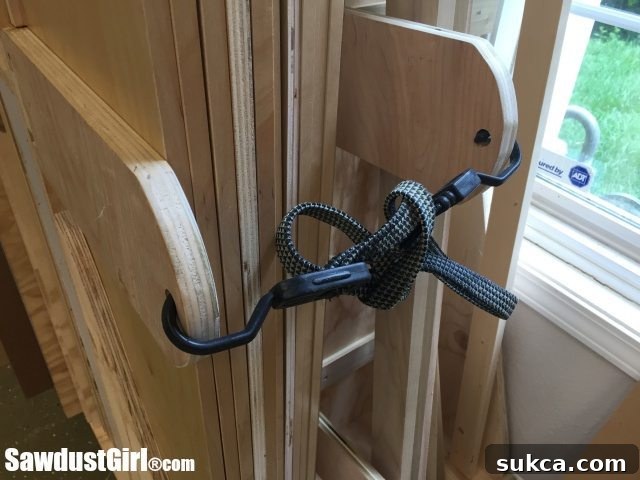

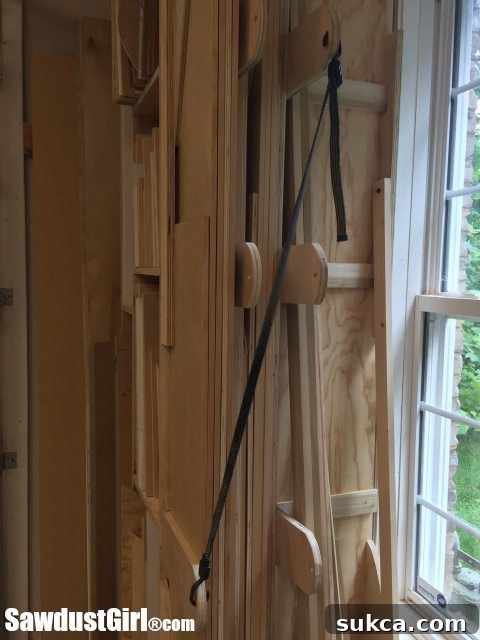

The intelligent design of this rolling lumber cart extends to its final security features. The 1-inch holes meticulously drilled into the ends of each bracket serve a valuable purpose: they are perfectly sized to accommodate a rope or bungee cord, allowing you to string a customizable barrier across the front of your vertically stored lumber. This optional but highly recommended feature provides an extra layer of security, ensuring that your valuable wood stock remains safely within the cart, even when moving it around your workshop or garage. While the snug fit of the adjustable brackets already offers excellent stability, this additional measure virtually eliminates any possibility of wood tipping out, giving you complete peace of mind.
Although the likelihood of wood tipping forward from this well-designed cart is low, having the option for a bungee or rope barrier adds an invaluable layer of protection, particularly for those who frequently move their cart or store very long, heavy pieces of timber. It’s a testament to the thorough planning that went into this design, offering both primary and secondary safety measures for your materials.

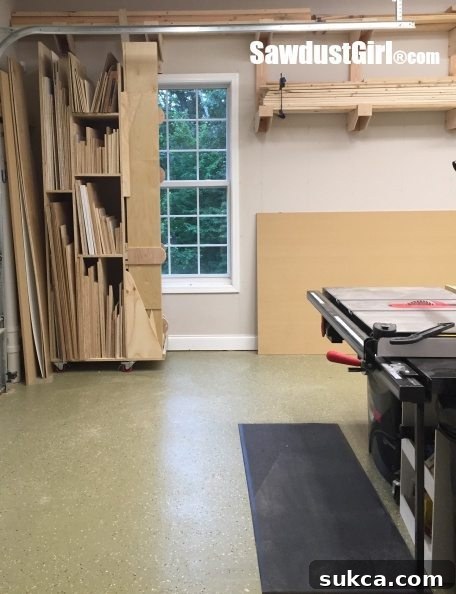

The transformation this rolling lumber cart has brought to my workshop is truly remarkable. It’s a significant improvement over the chaotic mess of scrap wood that once cluttered every available surface. No more digging through unstable piles, no more tripping hazards, and most importantly, no more concerns about valuable lumber becoming unusable due to poor storage. This cart has not only streamlined my workflow but has also elevated the overall organization and safety of my workspace, proving that a well-planned DIY project can make a profound difference.
