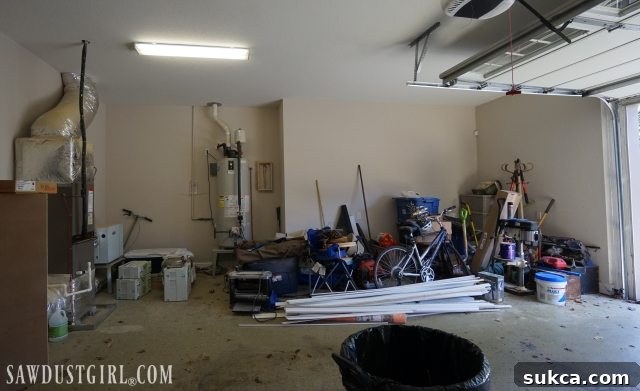

Garages often become unintentional dumping grounds, accumulating clutter over time. Ours was no exception. We had a significant amount of unused space along one wall of the garage that, since moving in, had become a magnet for miscellaneous items. To transform this chaotic area into a highly functional and organized storage solution, I embarked on a multi-day project to construct robust garage shelves. The goal was simple: reclaim the space, organize our belongings, and ensure everything was easily accessible when needed. This comprehensive guide details how I built these incredibly strong cantilevered garage shelves, perfect for maximizing your garage’s storage potential.
Why Choose Cantilevered Garage Shelves?
When planning a garage storage system, there are numerous designs to consider. I specifically opted for a cantilevered shelf design due to its inherent strength, aesthetic appeal, and practical advantages. Unlike traditional shelving units that rely on vertical supports extending from the floor, cantilevered shelves are supported only at the back, appearing to float gracefully from the wall. This design offers an unobstructed floor space below, which is invaluable in a garage. It allows for easy cleaning, the convenient storage of larger items like lawnmowers or bicycles underneath, and provides greater flexibility for placing rolling tool carts or bins. The robust construction I employed ensures these shelves can bear substantial weight, making them ideal for everything from seasonal decor to heavy power tools.
Planning Your DIY Garage Shelving Project
Before diving into any DIY project, thorough planning is key to success. Start by assessing your storage needs and the available space. Measure the length and height of the wall where you intend to build the shelves. Consider what you plan to store on them: lighter items will require less robust construction than heavy tools or boxes. This will influence your material choices and the spacing of your wall cleats and brackets.
For my garage, with its 10-foot ceilings, I knew I could implement three generous rows of shelving, leaving ample room on the floor. I also mapped out the ideal height for each shelf to accommodate various items, such as large plastic storage bins, paint cans, and even my ladders. Planning the layout of your wall cleats to align with wall studs is crucial for maximum stability, ensuring your shelves are anchored securely.
Essential Tools and Materials for Building Your Shelves
One of the beauties of this project is its ability to utilize scrap materials, which can significantly reduce costs. I was fortunate to have many of the necessary wood scraps on hand. However, if you’re starting from scratch, here’s a comprehensive list of what you’ll need, along with the specified dimensions for my project. Remember, you can adjust these dimensions to fit your specific garage layout and storage requirements.
Materials for Shelf Brackets:
- 2×2 Wall Cleat Lumber: The length of this lumber will depend on the total length of your shelving system and the number of shelves you plan to install. My cleats were approximately 36 inches long, designed to provide a strong attachment point for each bracket.
- 3/4″ Plywood: For the angled sides of each bracket. Each bracket requires two identical plywood pieces. An 8×22 inch piece is sufficient for two sides.
- 2×6 Lumber: For the core structural support of each bracket. Each piece should be approximately 26 inches long.
- Wood Glue: A high-quality wood glue is essential for forming strong, lasting bonds between the wood components.
- Fasteners:
- 16 or 18 gauge nails (for initial assembly of brackets, if using a nail gun)
- 2 1/2″ wood screws (for reinforcing bracket assembly and securing plywood to 2×6)
- 3″ lag screws (for securely attaching wall cleats to studs and brackets to cleats)
- 1 1/2″ wood screws (for attaching the shelving material to the brackets)
- Shelving Material: Depending on your budget and preference, you can use 3/4″ plywood or OSB (Oriented Strand Board). I used OSB for cost-effectiveness, though plywood offers a smoother finish and slightly better durability.
Essential Tools for the Project:
- Track Saw or Circular Saw with Guide: Crucial for making precise, straight, and angled cuts, especially on larger sheets of plywood and lumber. A miter saw is also excellent for trimming.
- Drill/Driver: For pre-drilling holes and driving screws.
- Stud Finder: Absolutely necessary for locating wall studs to ensure secure mounting.
- Level: To ensure all wall cleats and shelves are perfectly horizontal.
- Tape Measure and Pencil: For accurate measurements and markings.
- Clamps: Various sizes for holding pieces together while glue sets.
- Jigsaw: Useful for making notched cuts around wall cleats when installing shelves.
- Safety Glasses and Hearing Protection: Always wear appropriate personal protective equipment when working with power tools.
Crafting the Cantilevered Shelf Brackets
The strength of these shelves lies in the robust design of the individual brackets. Each bracket consists of three main pieces: two angled plywood sides and a central 2×6 core. The precise angled cuts are what create the cantilever effect, distributing weight effectively and providing exceptional support.
Preparing the Angled Sections

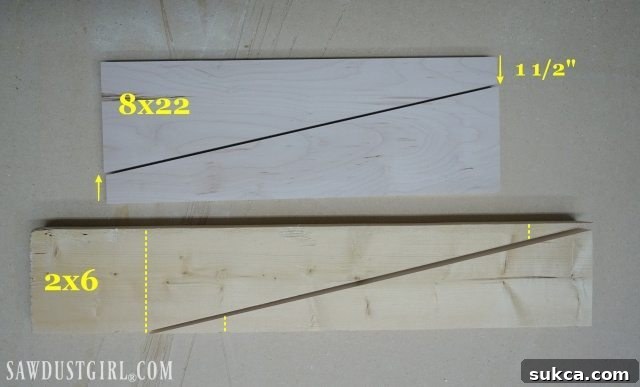

Each 2×6 board and 3/4″ plywood board will be cut into two equal, angled sections that mirror each other. This symmetrical cut is vital for the structural integrity and clean appearance of the brackets. Refer to the photo below for a visual guide on these cuts.
Cutting the Plywood Sides:

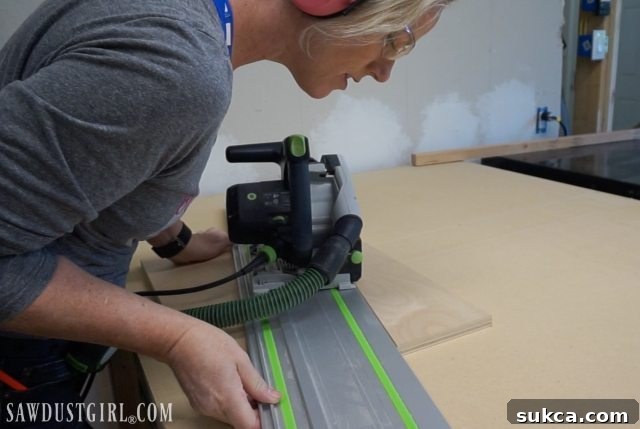

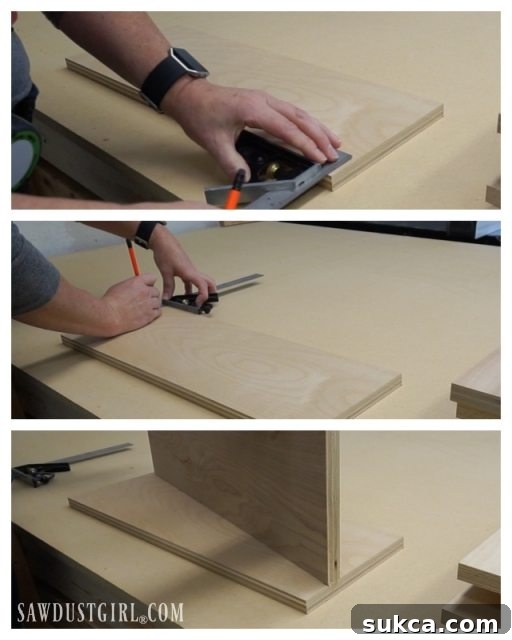

To create two identical angled sides from a single 8×22 inch piece of 3/4″ plywood, precise marking is essential. Begin by measuring 1 1/2 inches up from the bottom right corner of the plywood piece. Mark this point. Next, measure 1 1/2 inches down from the top left corner and mark that point. Connect these two marks with a straight line. This diagonal line will be your cut line. Using a track saw, or a circular saw with a reliable guide, carefully cut along this diagonal. The track saw is particularly excellent for achieving perfectly straight and clean cuts, which are critical for the flush assembly of the brackets.
Cutting the 2×6 Core:

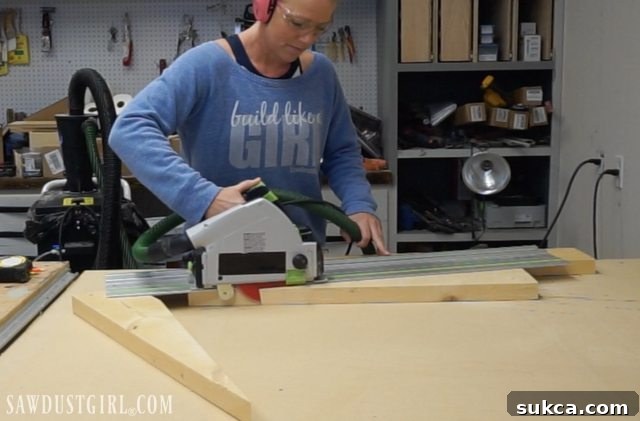

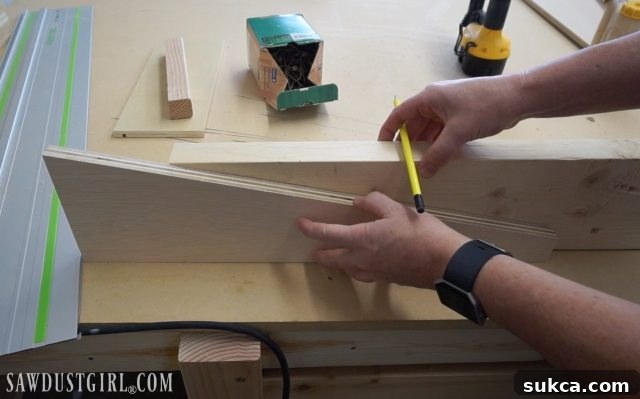

Once your plywood pieces are cut, you’ll use one of them as a template for your 2×6 lumber. Place a plywood side on top of your 2×6 board, aligning the top and one side edge. Trace the diagonal line of the plywood onto the 2×6. Then, use your track saw or miter saw to cut the 2×6 along this traced line. This ensures that the angles of the plywood and the 2×6 match perfectly, allowing for a strong and seamless joint when assembled.
Assembling the Cantilevered Shelf Brackets

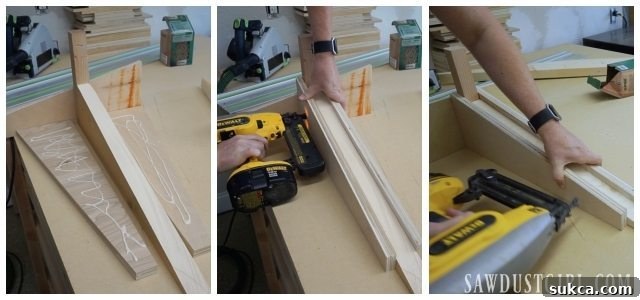

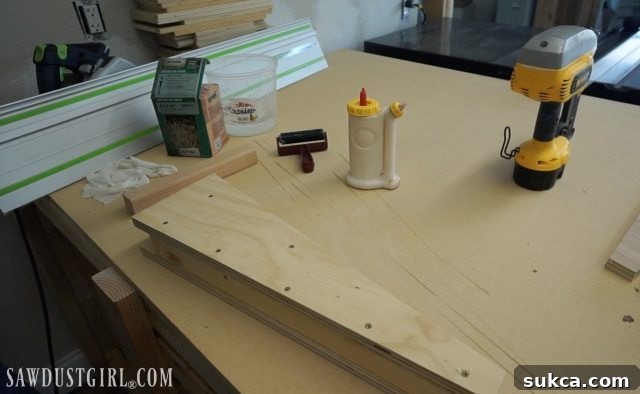

With all your pieces cut, it’s time to assemble the individual brackets. This step requires precision and a strong adhesive bond for maximum durability. To ensure the sides remain even and the center piece is precisely positioned, I used a small scrap of 2×2 lumber as a backer during assembly. This simple trick helps maintain the desired 1 1/2 inch offset for the wall cleat.
- Positioning: Place the 2×6 core piece flat on your work surface. The brackets are built upside down to ensure the top surface (which will support the shelf) is perfectly flat and even across all three components.
- Gluing: Apply a generous, even layer of high-quality wood glue to the long edges of the 2×6 where the plywood sides will attach. Also, apply glue to the mating edges of the plywood pieces.
- Attaching Sides: Carefully position the angled plywood pieces against the glued edges of the 2×6. Ensure that the top edges of all three pieces are perfectly flush. Use the 2×2 scrap as a spacer to maintain the correct gap.
- Securing with Fasteners: While the glue is still wet, use 16 or 18 gauge nails (if using a nail gun) to temporarily hold the components together. For a truly robust assembly, I highly recommend following up with 2 1/2 inch wood screws. Drive several screws through the plywood into the 2×6, ensuring a tight, secure bond. I used plenty of screws, as I didn’t have enough clamps for all 19 brackets I built.
- Curing Time: Allow the glue to set completely according to the manufacturer’s instructions. While nails and screws provide immediate holding power, the glue bond is what truly ensures the long-term strength and stability of the brackets.
The combination of wood glue and screws creates an incredibly strong joint, making these brackets capable of supporting significant weight. It’s always better to over-fasten slightly than to risk a weak point in your shelving system. The image below provides a closer look at the bracket assembly.

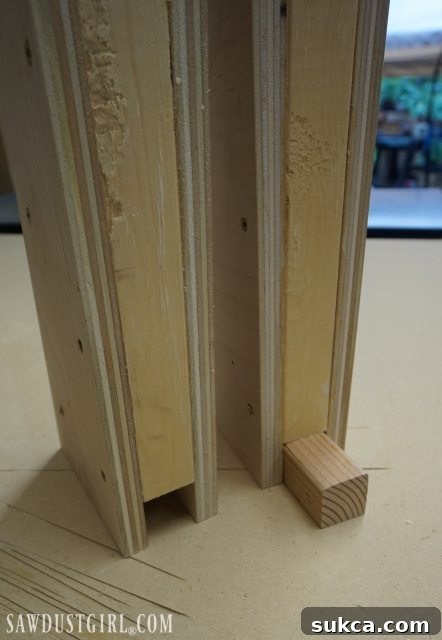

Here is an up-close look at how the bracket is designed to hug the wall cleat when installed, demonstrating the interlocking design that contributes to its strength.

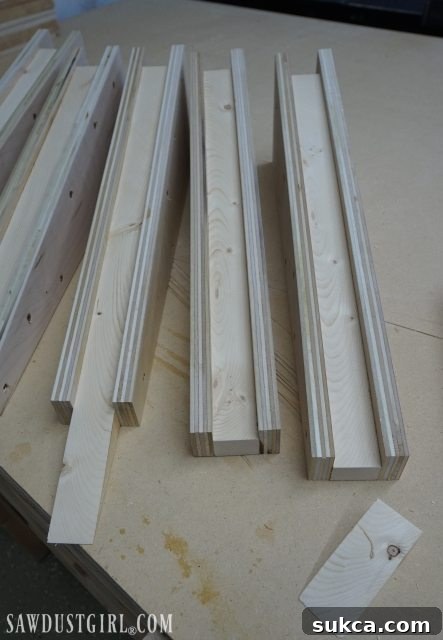

After the glue has fully cured and the brackets are solidly assembled, use a miter saw to trim off any small, pointy ends on the 2×6 core. This step ensures a clean, finished look and prevents any snags or sharp edges.

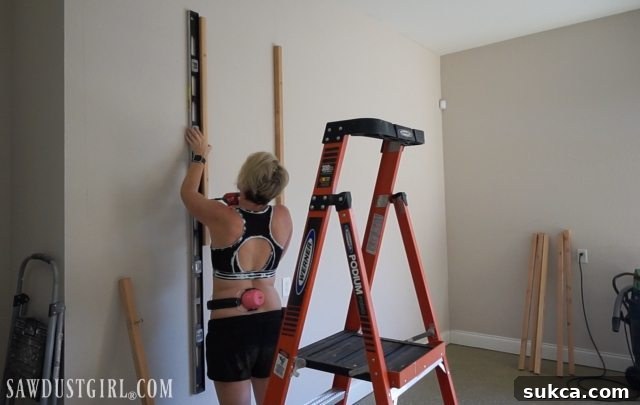

Attaching 2×2 Cleats to the Wall: The Foundation of Strength
The wall cleats are the backbone of your shelving system, providing the primary attachment point for the cantilevered brackets. Their secure installation is paramount for the overall strength and safety of your shelves. I mounted my 2×2 cleats directly into the wall studs using robust lag screws.
Begin by locating all the studs in the wall where you plan to install your shelves using a reliable stud finder. Mark their positions clearly. In my basement, the studs were spaced 24 inches apart, allowing for consistent and strong support for each cleat. I have 10-foot tall ceilings, which offered ample vertical space for three tiers of shelving. I strategically installed the top row of cleats 24 inches down from the ceiling, providing generous clearance above the shelf. Use a long level to ensure your cleats are perfectly horizontal before securing them. Drive at least two 3-inch lag screws through each cleat and into every stud it crosses. Lag screws offer superior holding power compared to standard wood screws, which is essential for heavy-duty garage shelving.
Installing the Cantilevered Shelf Brackets

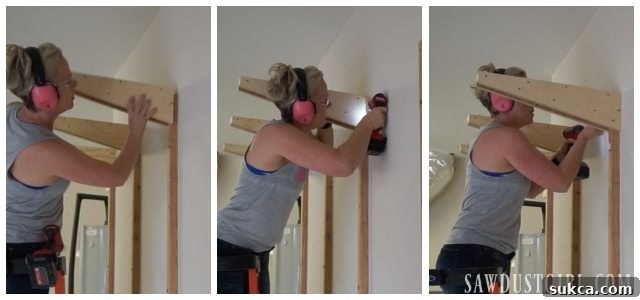

With the wall cleats firmly in place, it’s time to install the individual shelf brackets. This is where the clever design truly comes to life. Carefully slide each bracket over the 2×2 wall cleat. The design allows the bracket to ‘hug’ the cleat, creating a very strong, interlocking connection. Push each bracket firmly against the wall until it is snug and perfectly seated on the cleat.
Once positioned, secure the brackets to the cleat. Drive sturdy 3-inch lag screws through both plywood sides of the bracket, directly into the 2×2 wall cleat. For maximum strength and to prevent any potential twisting, I recommend using at least two, and ideally three, lag screws on both sides of each bracket. This creates a powerful mechanical connection that will withstand significant loads. Ensure the screws penetrate deeply into the cleat for optimal holding power.
Adding the Shelving Material
The final step in constructing your robust garage shelves is to install the actual shelving surfaces. For my project, I utilized three sheets of OSB that were already taking up space in my garage. While 3/4″ plywood is generally preferred for its smoother finish and slightly higher durability, OSB is a perfectly suitable and cost-effective alternative for garage shelving, especially when dealing with rougher items. The wall I was working on was 12 feet long, which meant I needed to have a seam in the shelving material. This is not an issue as long as you plan carefully and ensure that any seams are positioned directly over a supporting bracket, providing continuous support.

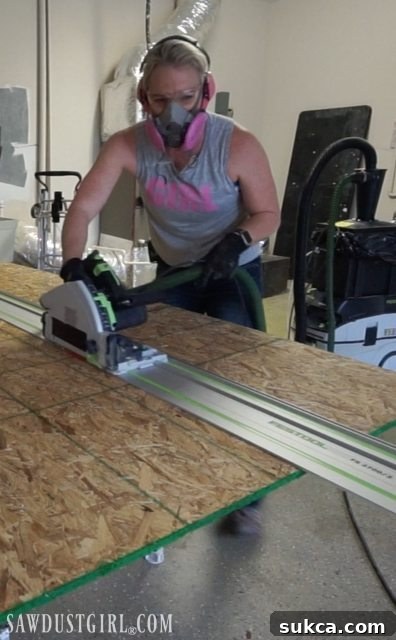

The depth of your shelf pieces should match the depth of your brackets. Measure the exact distance between your wall cleats to determine the precise length needed for each individual shelf segment. This ensures a clean, custom fit. I cut my OSB panels to size, making sure they extended slightly past the front of the brackets for easier access to stored items.

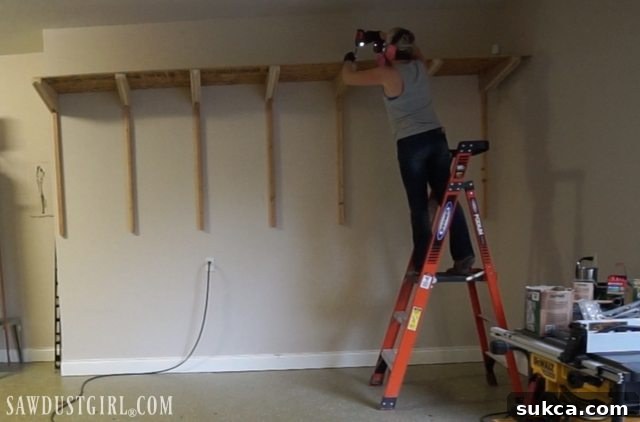

Once cut, place the shelving material on top of the installed brackets. Secure each shelf piece to the brackets using 1 1/2 inch wood screws. Drive screws down through the shelving material into the top of each bracket, ensuring a firm attachment. Work your way down the wall, adding each row of shelving as you go. This systematic approach helps maintain alignment and makes the installation process more manageable.

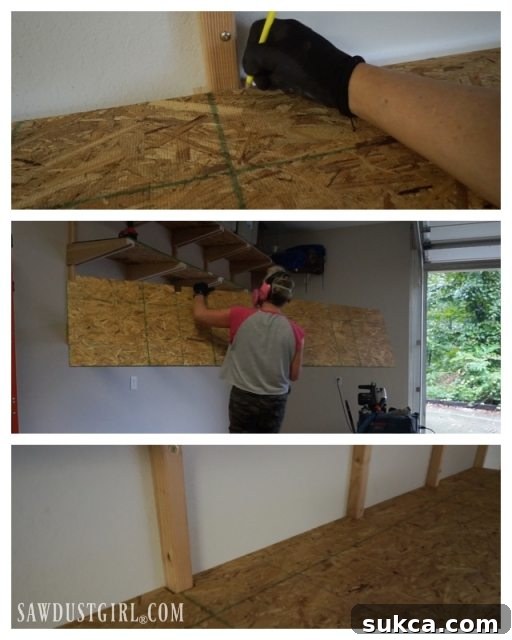

Notching for Wall Cleats:
A crucial detail for subsequent rows of shelves is the need for notching. While the very top shelf can sit flush against the wall, any subsequent rows of shelving below it will encounter the protruding 2×2 wall cleats. To ensure the shelving material sits flat and flush, these cleats must be notched out of the shelf pieces. The image below illustrates this concept.
The process for notching is straightforward:
- Install all your brackets for a given row.
- Place the shelving material on top of the brackets for that row.
- Carefully mark the exact locations where the wall cleats intersect the back edge of your shelving material.
- Remove the shelving material.
- Using a jigsaw, carefully cut out the marked notches. Take your time to ensure clean, precise cuts.
- Once notched, place the shelving material back onto the brackets and secure it with 1 1/2 inch screws.
This method ensures a professional, flush finish for every shelf, maximizing your usable storage space and maintaining the clean lines of the cantilevered design.

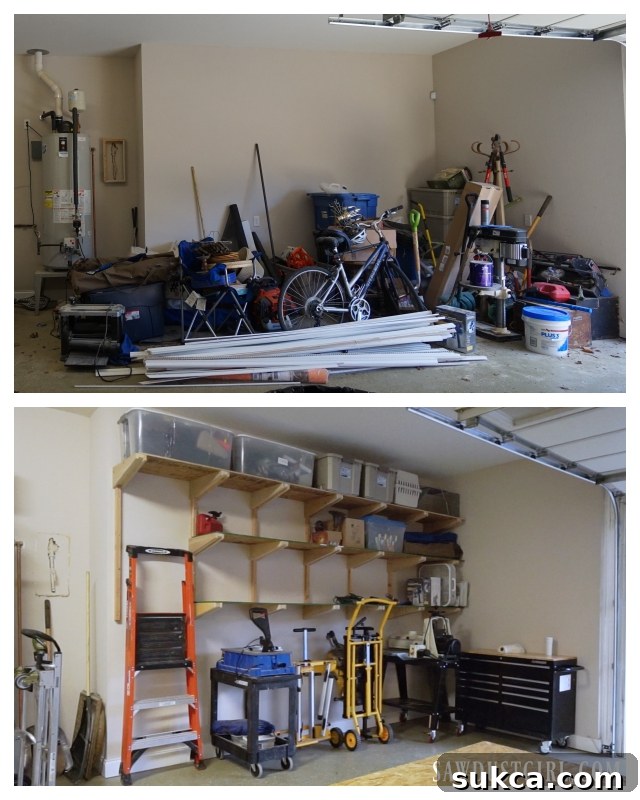

Customize Your Storage and Enjoy the Results

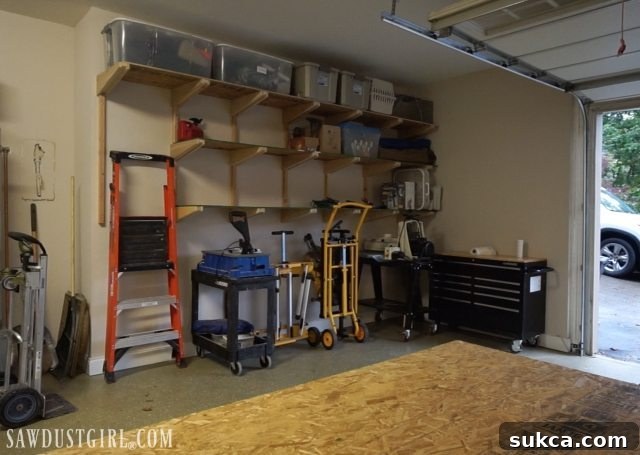

One of the greatest advantages of DIY shelving is the ability to customize your storage to perfectly meet your specific needs. With these sturdy cantilevered shelves, I was able to create dedicated spaces for various items. I left plenty of vertical clearance on the lower shelves to easily store my ladders, and there’s still ample floor space beneath the lowest shelf for tool carts, bicycles, and other bulky equipment that needs to be moved frequently. The beauty of this design is its adaptability; you can adjust the spacing between shelves to accommodate anything from small bins to large containers.
This entire project, from cutting to final installation, took me approximately two days to complete. The transformation in my garage is dramatic, converting a previously neglected and cluttered area into an organized, efficient, and visually appealing storage hub. The only regret I have is not having tackled this project six years ago when we first moved into the house! The satisfaction of having a clean, organized garage where everything has its place is immeasurable. If your garage is struggling with clutter, I highly encourage you to consider building these robust and versatile cantilevered shelves. It’s a rewarding project that will enhance the functionality and aesthetics of your space for years to come.
