Mastering Crown Molding on Angled Ceilings: A DIY Cabinet Renovation Guide

Embarking on a home renovation journey often reveals unexpected challenges, especially when custom elements and pre-existing architectural features intersect. One such common hurdle for many DIY enthusiasts is the installation of crown molding, particularly when dealing with angled ceilings and integrated cabinetry. After successfully adding elegant beadboard paneling to our cabinet sides, the next logical, yet significantly more complex, step was to tackle the crown molding. This wasn’t a simple straight-line job; it involved navigating the intricate dance between structural 1×5 boards descending from an angled ceiling and newly installed cabinets, one of which created a particularly tricky overlap.

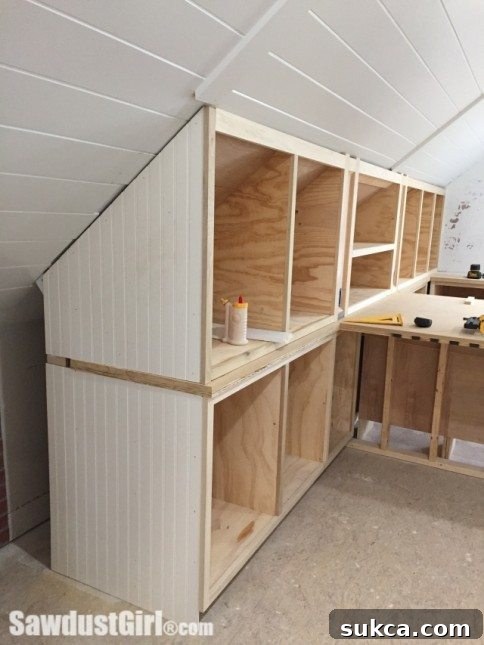

Our kitchen design incorporated angled cabinets, a feature that added character but also introduced unique joinery and finishing demands. During their installation, a crucial 1×5 structural board from the angled ceiling, which originally extended further down, had to be cut back. At the time, the focus was solely on aligning and securing the angled cabinets, leaving the dilemma of how to properly terminate this 1×5 and the subsequent crown molding for a later, more focused, problem-solving session. This “figure it out later” approach is common in DIY, but it invariably means confronting those challenges head-on when the finishing touches are due.

The Angled Ceiling Conundrum: Addressing the 1×5 and Its Implications

The core of our challenge lay with a particular 1×5 board that gracefully descended from the angled ceiling, only to meet our cabinet run in an awkward, halfway-overlapping fashion. This was not merely an aesthetic issue; it created a structural discontinuity that made a clean crown molding installation seem impossible without a creative intervention. The area beneath this intersection was earmarked for a dedicated desk space, with a countertop designed to be lower than the standard 36-inch island countertop height, further complicating the visual lines and potential solutions.

Initial thoughts gravitated towards seemingly straightforward fixes. One idea was to rip a new piece of 1×5 board to size, extending the existing one visually down the ceiling line to the very end of the slanted section. This would, in theory, create a continuous architectural element. While this might have resolved the visual termination of the 1×5 itself, it immediately presented a fresh, equally daunting problem: how to seamlessly end the crown molding. Wrapping crown molding around a cabinet side, particularly one that then needed to angle downwards along the ceiling, was a prospect that filled us with dread. The sheer complexity of compound miter cuts required for such an endeavor, coupled with the inevitable trial-and-error, or “fiddle factor” as we affectionately call it, felt like an unnecessary foray into advanced trigonometry that most DIYers prefer to avoid.

Our goal was a professional, polished finish, but without the headache of complex mathematical calculations and frustrating repetitive cuts. We needed a solution that would simplify the crown molding installation, provide a clean aesthetic, and integrate flawlessly with the planned desk area. This meant rethinking the conventional approach and embracing a more innovative strategy to bypass the inherent difficulties of working with extreme angles and multiple planes.

A Strategic Solution: Building a Custom Wall Extension

The breakthrough came with a decision to construct a small, custom wall extension at the end of the cabinet run. This might sound counter-intuitive – adding more structure to solve a finishing problem – but its brilliance lay in its simplicity. By extending a small wall outward from the cabinet, we created a flat, plumb surface into which the crown molding could simply terminate. This eliminated the need for complex miter returns, intricate wraps, or any of the dreaded “fiddle factor” associated with angled cuts. The wall would act as a natural, clean stopping point, providing a much-desired architectural break.

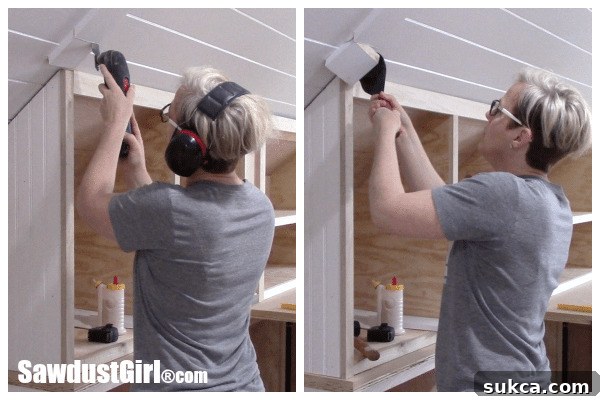

Implementing this solution required a slight modification to the existing structure: a bit more of the problematic 1×5 board had to be cut away. Thankfully, modern DIY tools make such tasks manageable. Our trusty oscillating multi-tool, known for its precision in tight spaces, combined with a robust trim puller, made short work of cleanly removing the necessary section. This small preparatory step was crucial for ensuring a smooth and flush integration of our new wall extension.

Step-by-Step: Constructing the Cabinet End Wall

1. Initial Framing and Angle Adjustment

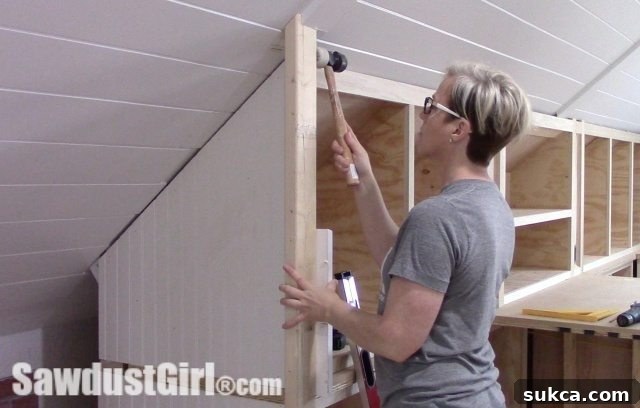

With the 1×5 trimmed back, the next step was to frame out the new wall extension. The existing angled ceiling meant that the point where our new vertical stud would meet the ceiling wasn’t a true 90-degree angle. While it was initially “eyeballed” to appear straight up in relation to the floor, it actually intersected the angled ceiling at approximately a 40-degree angle relative to what a new, perfectly vertical board would experience. This subtle distinction highlights the need for careful positioning and checking.

We cut our initial vertical stud, ensuring it was precisely the right length to extend from the floor (or cabinet base) to the angled ceiling. This piece was then temporarily put in place, and checked meticulously for plumb using a level. Achieving perfect plumb is paramount for any wall, no matter how small, as it ensures stability and a clean surface for finishing materials like drywall and trim. This foundational piece dictated the alignment for the rest of the framing.

2. Building Out the Wall: Integrating Functionality

Once the primary vertical stud was secured and verified, the rest of the wall framing proceeded with careful consideration of its dual purpose: providing a termination point for crown molding and defining the future desk area. The wall’s depth was crucial; it needed to project far enough from the cabinet face to allow the crown molding to sit flush and terminate cleanly without overhanging the edge. This thoughtful design ensures a professional and integrated look for the entire custom space.

A vital element of the framing was the addition of a horizontal brace. This strategically placed support beam would serve as the sturdy attachment point for the future desk countertop. Planning for this in the framing stage is far easier and more robust than trying to add support later. It ensures that the countertop will be securely anchored, providing a stable and durable work surface for the desk.

Another critical consideration was maintaining access behind the cabinets for electrical wiring and future maintenance. Therefore, the wall was intentionally designed to extend only to the end of the cabinet run, leaving a gap behind it. This clever design ensures that while the wall provides a finished look from the front and side, it doesn’t impede necessary access to utilities, a practical detail often overlooked in DIY projects.

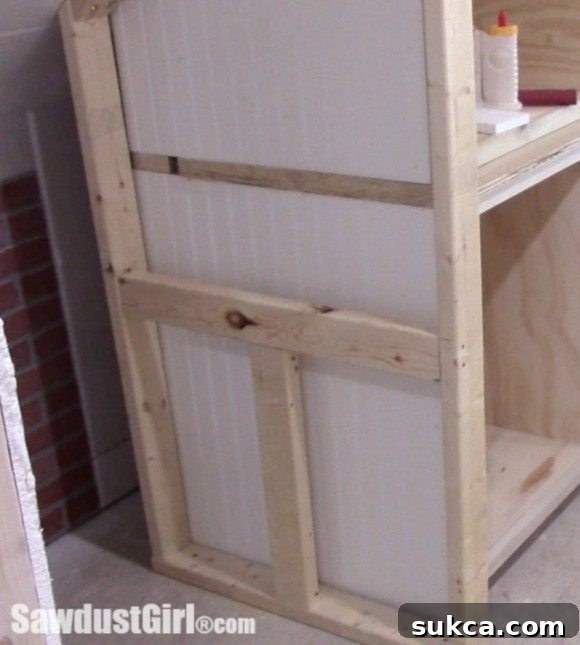

3. Economical Framing with Scrap Materials

To fill in the remaining upper portion of the wall structure, we ingeniously utilized various scraps of 2x4s that were readily available from previous projects. This approach is not only cost-effective but also environmentally friendly, minimizing waste. While the internal structure of the wall didn’t need to be aesthetically perfect, it absolutely needed to provide solid backing for the drywall. These seemingly random pieces, when properly secured, created a robust framework for attaching the drywall panels, ensuring a smooth and even surface for the final finish. This demonstrated a pragmatic DIY principle: sometimes, function triumphs over form in hidden areas.

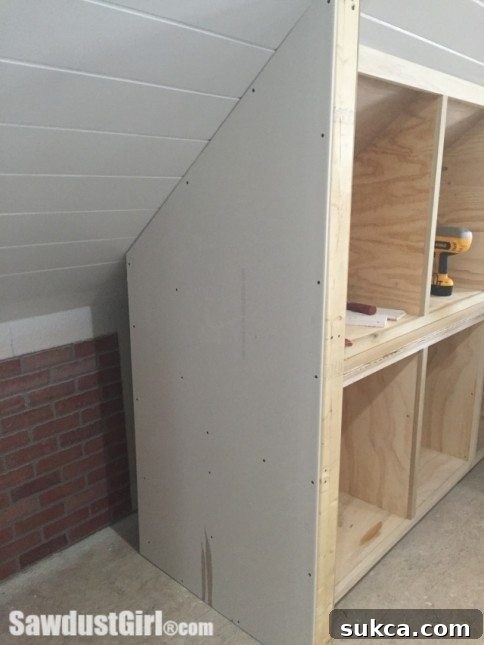

4. Temporary Drywall and Future Plans

With the framing complete, the next step was to put up some drywall. This immediate application of drywall served a dual purpose: it instantly transformed the raw framework into a more finished-looking structure, significantly reducing the visual clutter and mess of an ongoing construction project. Even as a temporary measure, drywall makes a room feel more complete and less like a work-in-progress, which can be a huge morale booster during lengthy renovations.

Looking ahead, this wall may eventually be covered with beadboard paneling, mirroring the treatment on the cabinet sides and creating a cohesive design theme for the desk area. However, for the immediate future, the drywall provides a clean, neutral surface that integrates seamlessly with the surrounding space, ready for painting or further decorative finishes when the desk project moves into its final stages.

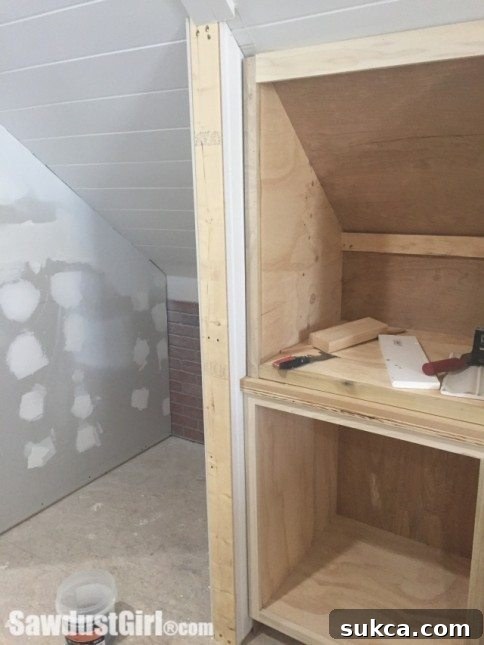

Bringing It All Together: The Island Cabinet Side

While the custom wall extension solved the most complex crown molding challenge, attention was also given to the adjacent island cabinet side. To ensure a completely cohesive and finished look throughout the kitchen, a small, meticulously cut strip of beadboard was carefully snuck into place on this side. This final touch wasn’t just about aesthetics; it was about ensuring that every visible surface reflected the same level of care and detail, tying the entire cabinet system together beautifully. The consistent application of beadboard creates a unified design language that flows from the main cabinet runs to the island, elevating the overall feel of the space.

Ready for Crown Molding: A Seamless Finish Awaits

With all these intricate details addressed – the custom wall extension meticulously framed and drywalled, the tricky 1×5 board cleanly managed, and the beadboard paneling seamlessly applied to all visible cabinet sides, including the island – our cabinets are now, finally, truly ready for the crown molding. What initially seemed like an insurmountable challenge, fraught with complex angles and potential frustrations, was ultimately overcome with a combination of creative problem-solving and careful execution. The decision to build a simple, functional wall rather than attempting to force a conventional crown molding solution onto an unconventional angle proved to be a stroke of DIY genius. It not only simplified the upcoming trim work but also added a custom, integrated feature to the kitchen design, enhancing both its aesthetics and functionality.

This project stands as a testament to the fact that in home improvement, sometimes the most elegant solutions are born from stepping back, assessing the true nature of the problem, and devising a method that works with, rather than against, the existing architecture. For anyone facing similar dilemmas with angled ceilings, challenging cabinet runs, or complex trim work, consider thinking outside the box. A custom architectural element, like our cabinet end wall, can transform a finishing nightmare into a streamlined, satisfying process, leading to a beautifully integrated and professional-looking result. Your dream kitchen, complete with perfectly installed crown molding, is closer than you think!
