A well-organized workshop is the cornerstone of efficient and enjoyable woodworking. For months, the disarray in my own workshop had been a constant source of frustration, driving me to the brink as I juggled ongoing projects like perfecting my Pantry Countertop polyurethane application. With the major construction of the pantry complete and awaiting final finishes, I seized the opportunity to tackle the workshop’s dire need for an overhaul. One of the most critical areas screaming for attention was my router bit collection. These precision tools, essential for countless woodworking tasks, were scattered, misplaced, and frankly, poorly protected. This project chronicles my journey to create a custom, modular router bit storage drawer that not only brings order but also enhances efficiency and preserves the life of these valuable tools. The goal was clear: transform chaos into a system that makes every bit easily accessible and protected, ensuring that future projects run smoothly without the constant hunt for the right tool.
Router Bit Storage Drawer: A Systematic Approach to Organization
The need for a dedicated router bit storage solution became glaringly apparent weeks ago when I started discovering loose, and even rusted, router bits in various obscure corners of my workshop. This haphazard storage not only risked damaging the delicate cutting edges of the bits but also wasted valuable time searching for the specific profile I needed. My initial, half-hearted attempt involved drilling a few randomly spaced holes into a scrap block of wood for a bit I had just used. While it was a temporary fix to avoid putting the bit back into its cracked and impractical plastic packaging, it was far from a permanent or efficient solution. This experience solidified my resolve to undertake a serious, thoughtful approach to router bit organization. I realized that a systematic solution was necessary to protect my investment in these tools and streamline my workflow.
With newfound time on my hands, I committed to designing a storage system that was not only functional but also adaptable. The core idea was to create somewhat modular storage units, allowing for flexibility to change the layout later without having to completely redo the entire system. This led to the decision to construct individual, removable storage “rows.” This design choice proved invaluable, not just for future modifications but also during the initial placement and adjustment within the drawer itself. The ability to remove each row independently made the fitting process significantly easier and more precise, demonstrating the practical benefits of a modular approach even in unforeseen circumstances.
Building the Modular Storage Rows: Step-by-Step Guide

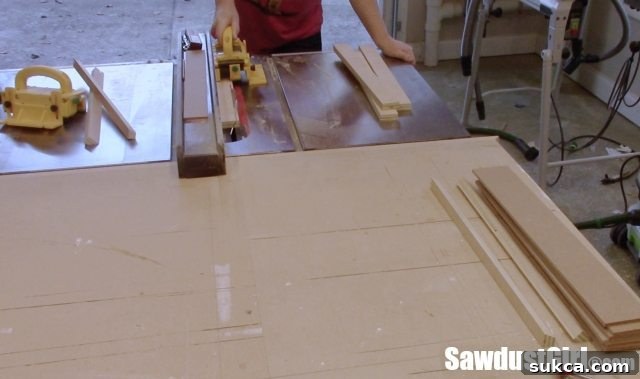

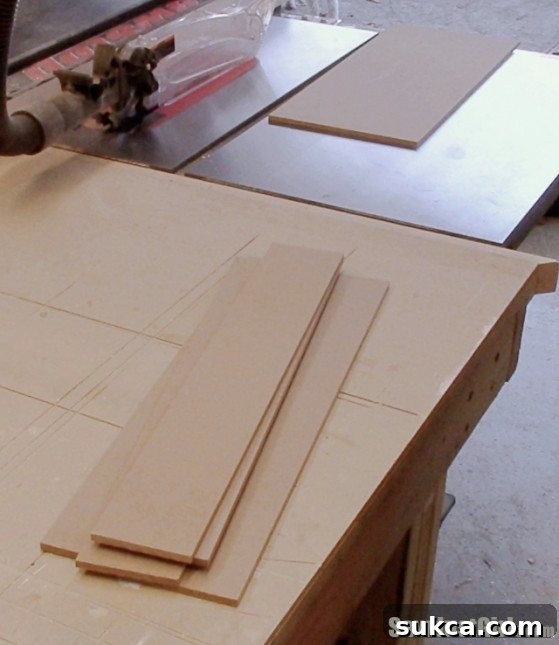

The first step in bringing this vision to life involved preparing the foundational pieces for the storage rows. I began by cutting 3-inch wide strips of 1/4-inch MDF. The choice of 1/4-inch MDF offered a good balance of stability and manageability, while the 3-inch width provided ample space for router bits while keeping the overall profile slim enough for a drawer. These strips were precisely cut to fit the width of my designated router bit drawer, ensuring a snug and custom fit that would maximize the available storage space.

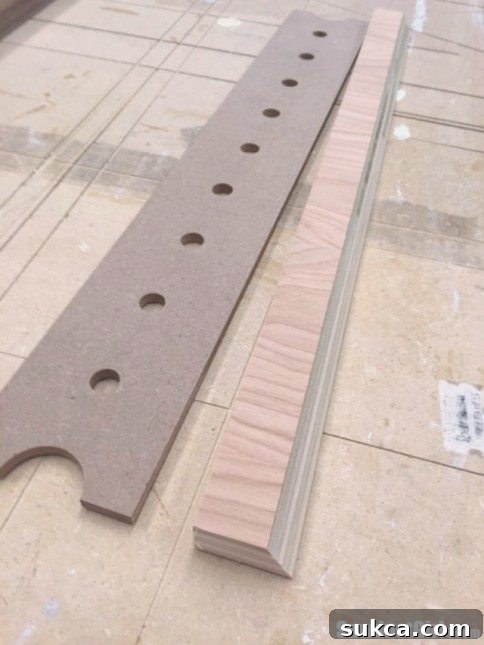

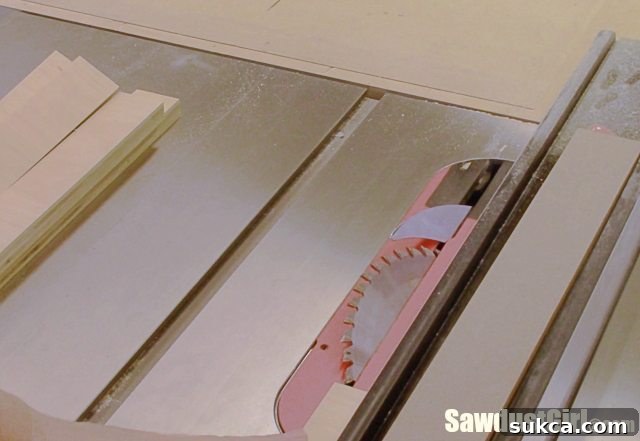

Next, I prepared the angled supports for each row. I cut 1 1/2-inch strips from 3/4-inch plywood. The added thickness of the plywood provides robust support for the MDF top piece. Crucially, one end of each plywood strip was cut at an angle. This angle is not merely aesthetic; it’s functional, providing a slight tilt that makes inserting and retrieving router bits easier. After some experimentation, I found that a 20-degree angle was perfect, offering optimal accessibility without being too steep. For precision and safety during this cut, my MicroJig GRR-Ripper proved to be an indispensable tool, ensuring consistent angles and keeping my hands safely away from the saw blade. This step highlights the importance of precise cuts for a professional-looking and functional outcome.

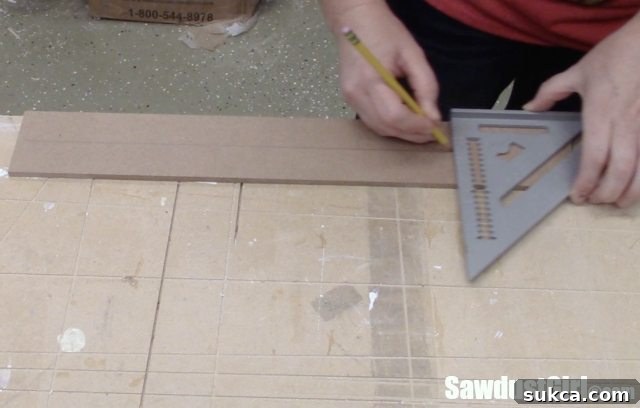

With the strips cut, the next crucial step was marking the drilling locations for the router bits. I marked the precise center of one of the 3-inch MDF boards using a speed square. This centerline would serve as the guide for all subsequent hole placements, ensuring uniformity across the entire storage system. From the centerline, I then used a long T-square to mark points every 2 inches along the strip. This 2-inch spacing was chosen to provide adequate clearance between bits, preventing them from clashing and making them easy to grasp. The meticulous marking process is key to achieving a neat and functional storage solution.
To ensure consistency and save a significant amount of time, I only marked one MDF strip. The secret weapon for replicating these markings across multiple boards was carpet tape – a surprisingly versatile tool for workshop tasks! I stacked all the MDF strips together, aligning them perfectly, and then secured them firmly with the carpet tape. This technique allowed me to drill through all the boards simultaneously, guaranteeing that every hole in every strip was perfectly aligned with its counterparts. This approach is a fantastic time-saver and accuracy booster for repetitive drilling tasks.

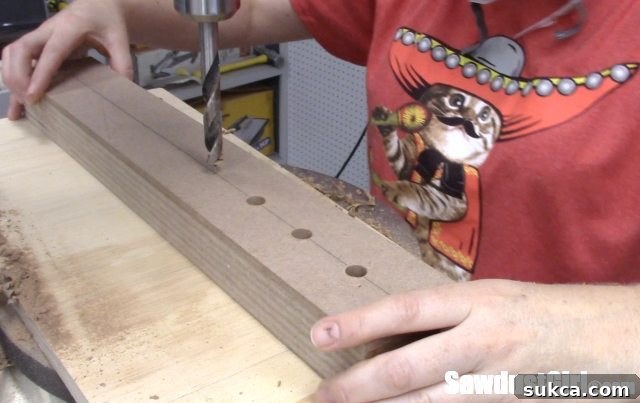

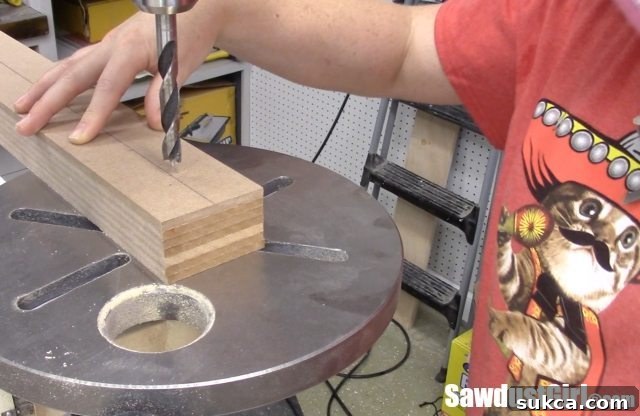

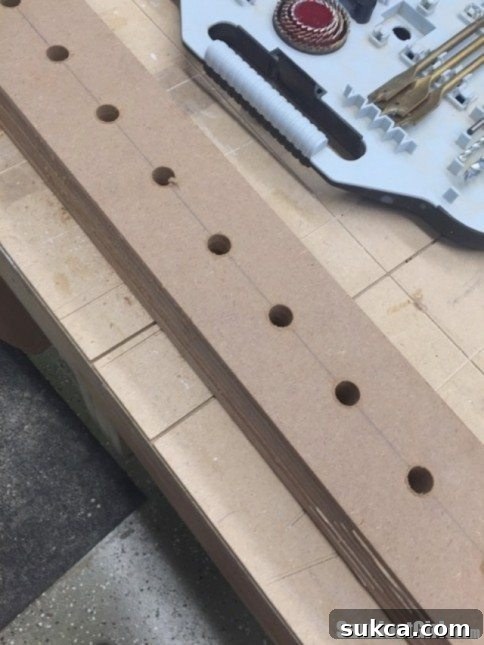

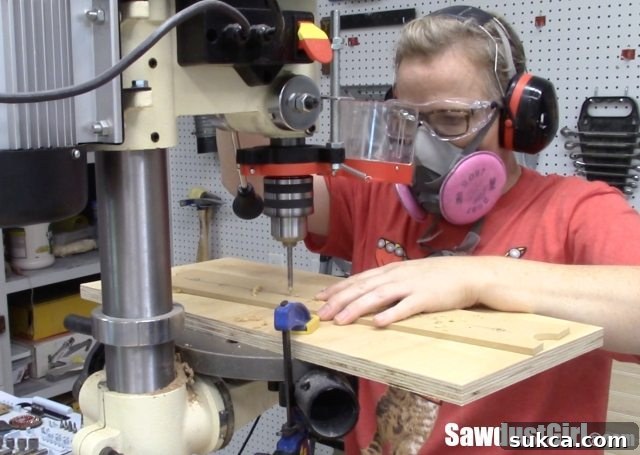

Next, using my drill press and a 1/2-inch bit, I drilled through the entire stack of boards at once. The majority of my router bits have a 1/2-inch shank, so it made sense for most of the storage holes to accommodate this size. While a drill press offers unmatched precision and control, especially when drilling through multiple layers, this task could certainly be accomplished with a manual drill, provided careful attention is paid to keeping the drill perpendicular to the workpiece to ensure straight holes. The key is to take your time and use a steady hand. Achieving clean, uniformly sized holes is crucial for bits to slide in and out smoothly.

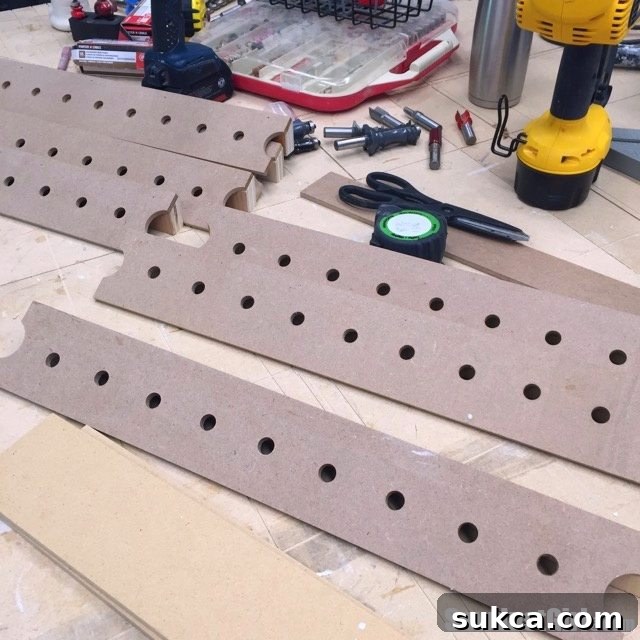

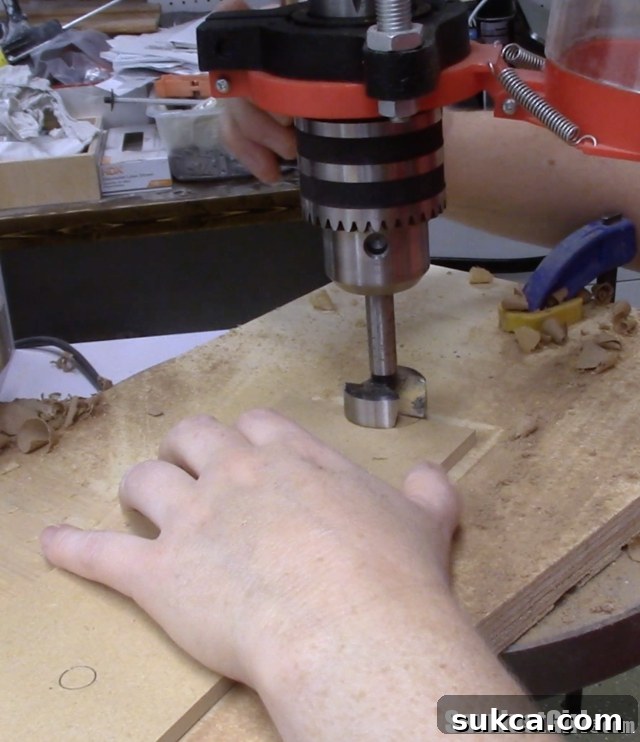

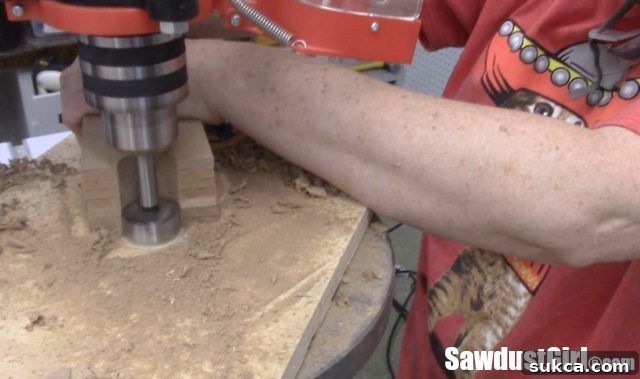

After drilling the main holes, I switched to a forstner bit to create half-holes on each end of the strips. These half-holes serve a very practical purpose: they provide a small recess for fingers, making it easy to lift out individual rows if needed. While I initially thought I might rarely use this feature, it proved incredibly useful during the final installation and adjustment of the rows within the drawer. Being able to easily manipulate each row without struggling was a testament to the benefits of thoughtful design, even for seemingly minor details.

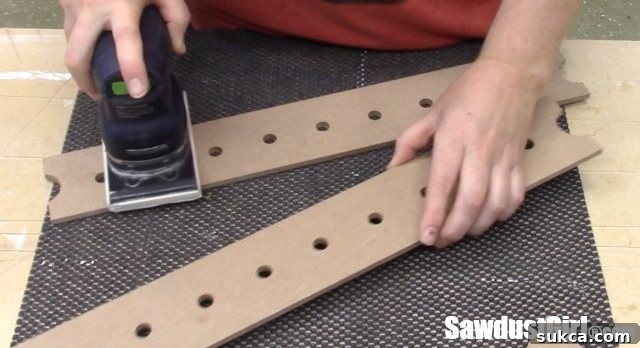

Once all the drilling was complete, the next task was arguably the most challenging: separating the stacked boards. The carpet tape, so effective at holding the boards together for drilling, lived up to its reputation for stickiness! I had to enlist the help of a 5-in-1 painter’s tool to carefully pry each board apart. This step required patience and a gentle touch to avoid damaging the newly drilled MDF. After separation, I thoroughly sanded all the boards. This was essential not only to remove any residual pencil marks but also to smooth out any burrs or rough edges left by the drilling process, particularly common with MDF, which can sometimes tear rather than cut cleanly. A smooth finish is key for bits to slide in and out without snagging.

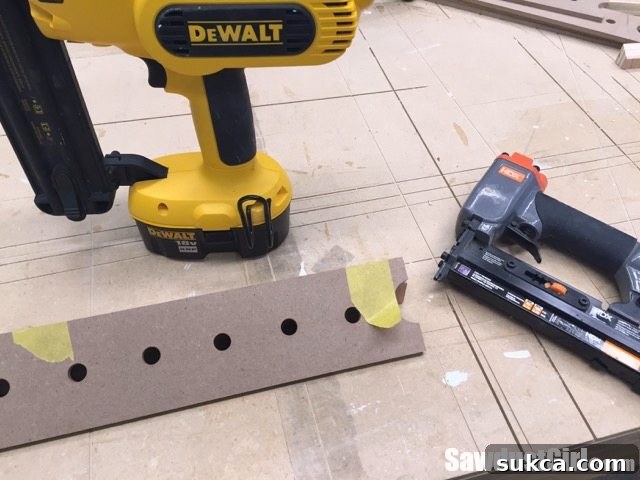

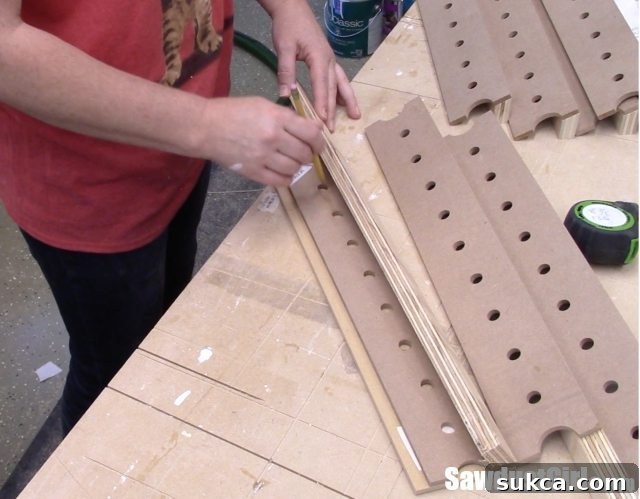

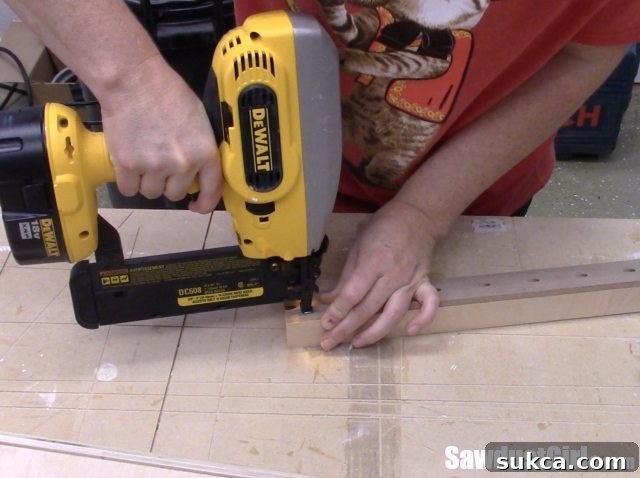

With the individual components ready, it was time for assembly. I secured the MDF strips, with their newly drilled holes, to the angled top of the plywood support strips. For this, I used a combination of wood glue for a strong, lasting bond and nails for immediate clamping pressure. My 18-gauge battery-powered nailer was my first choice, but it proved a bit too bulky for the narrow profile of these pieces. I quickly switched to my 23-gauge pneumatic nailer, which was perfect for this delicate task. Its fine nails provide excellent holding power without splitting the thin MDF or plywood, making it an indispensable tool for many precision woodworking projects.
Adapting for 1/4″ Shank Bits and Drawer Preparation

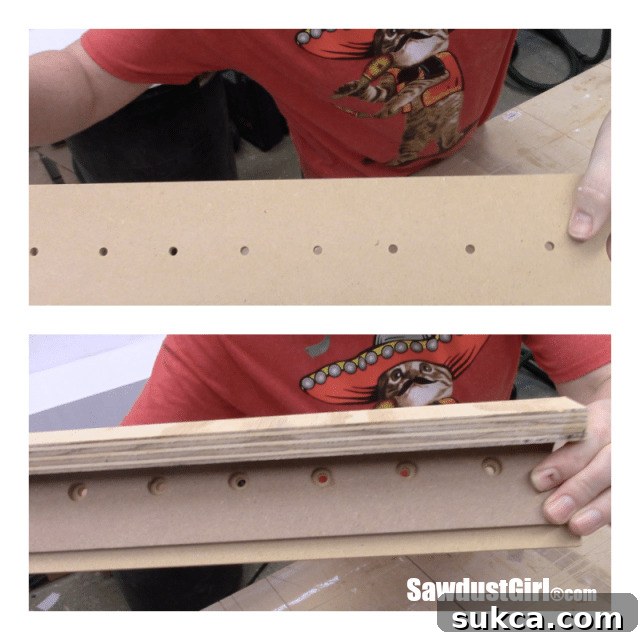

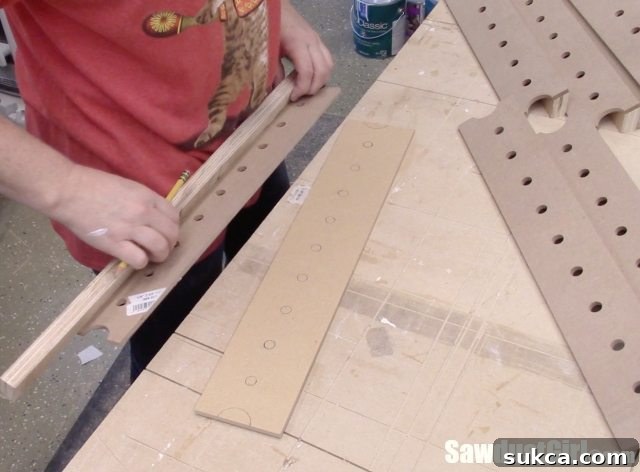

While most of my router bits have 1/2-inch shanks, I also have a collection of 1/4-inch shank bits that needed a home. After creating all the 1/2-inch storage rows, I wanted to incorporate a dedicated section for these smaller bits. This required a slightly different approach. I took a new, wider strip of MDF and used more carpet tape to temporarily adhere one of my completed 1/2-inch rows on top. This allowed me to precisely trace the existing hole locations onto the new MDF strip. The carpet tape ensured that the alignment was perfect, transferring the hole pattern accurately.

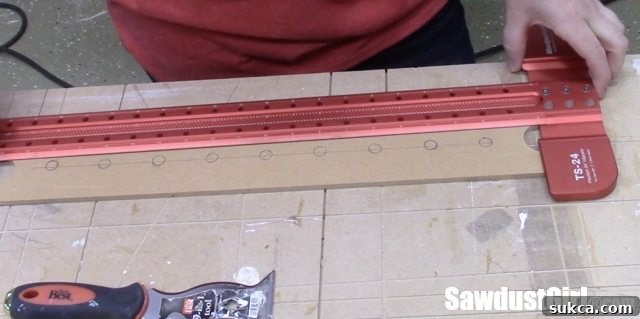

Once the locations were traced, I marked a new centerline through these traced holes. This centerline guided me as I drilled the 1/4-inch holes. With the forstner bit still on the drill press from the previous step, I started by creating the half-holes on the ends of this new strip, just as I did for the 1/2-inch rows. Then, I switched to a 1/4-inch drill bit and carefully drilled all the smaller holes. My initial plan was to cut this piece, perhaps in half, and set it on top of a 1/2-inch strip, allowing me to use just a few of the 1/4-inch holes while still accessing the underlying 1/2-inch holes. However, during fitting, it didn’t sit securely height-wise within the drawer. I ultimately decided against cutting it and instead nailed it directly on top of a “base” 1/2-inch hole row. This adjustment ensured stability and a cleaner look, demonstrating the iterative nature of design and the importance of adapting plans as challenges arise.

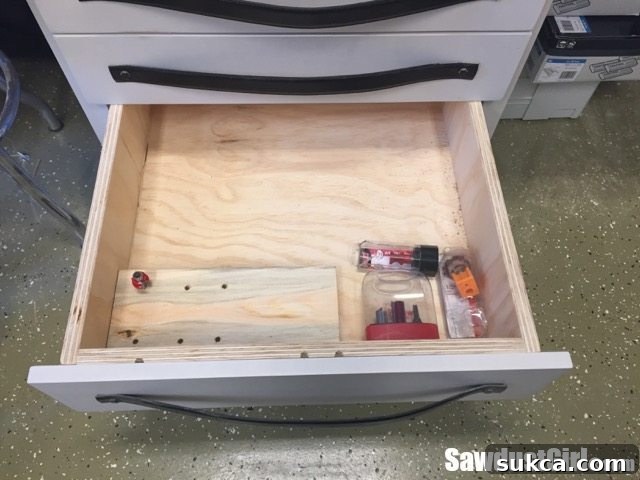

With the storage rows complete, attention turned to the drawer itself. Since I had constructed these drawers using scrap pieces of plywood with various existing holes (salvaged from my Master Closet project), a thorough preparation was essential. This involved a multi-step process: sanding to create a smooth surface, filling any imperfections or existing holes, priming for consistent paint adhesion, another round of light sanding to ensure a flawless finish, and finally, painting the entire drawer. To add an extra layer of protection and a professional look, I then sprayed on a lacquer finish. This step, while not strictly necessary for functionality, significantly enhances the durability and aesthetic appeal of the drawer, making it a more pleasant and robust storage environment for my precision tools.
Final Assembly and Future-Proofing the Storage

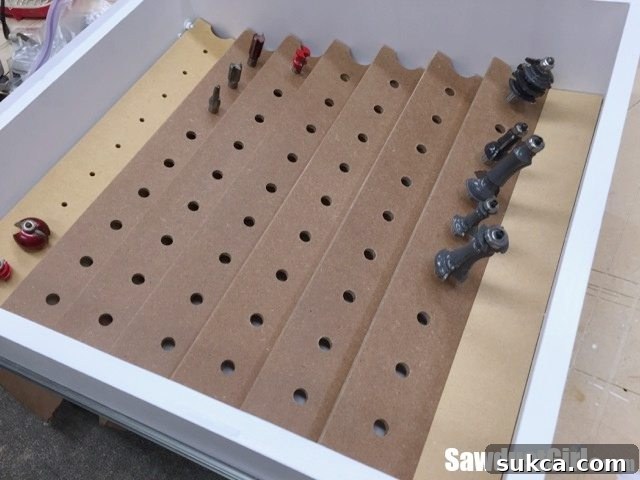

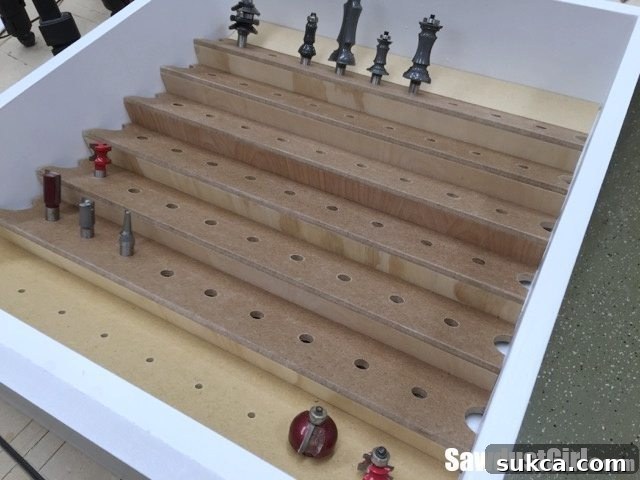

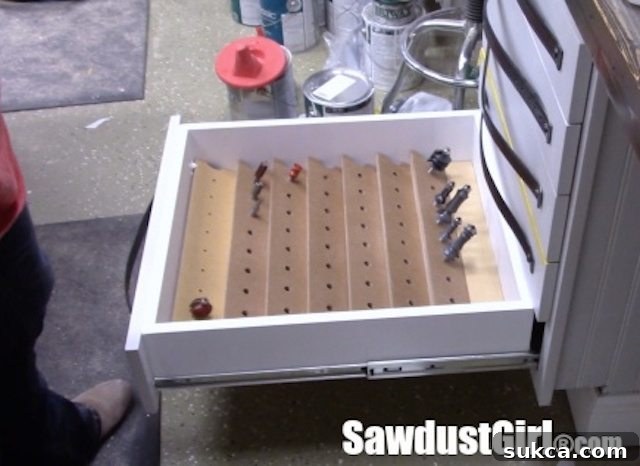

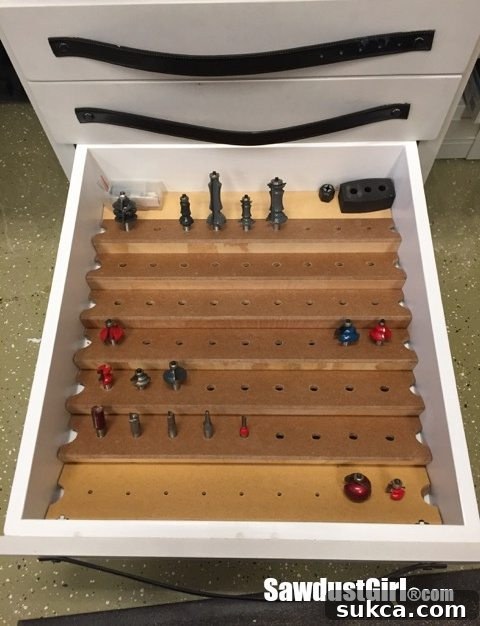

The final step was to install the custom router bit rows into the freshly prepared drawer. I discovered that I needed a bit less router bit storage than initially anticipated, which was a pleasant surprise, leaving ample room for future expansion. The last row of storage was designated for my larger router bits, which required a little extra space. To prevent all the modular rows from shifting and sliding around when the drawer was opened and closed, I cut a piece of MDF to fit snugly in the remaining open space at the back of the drawer. This simple addition worked perfectly, securely holding all the rows in place and maintaining the organized layout. This thoughtful detail ensures that the bits remain precisely where they belong, even with frequent use of the drawer.
As it turned out, dedicating an entire row specifically to 1/4-inch shank bits was “no problemo” at all, leaving me with plenty of room to grow my collection. This adaptable design means I won’t have to redesign the entire system should my tooling needs change in the future. I haven’t yet used some of my longer bits, but when I do, I have a plan for easy identification: I’ll cut a small piece of each bit’s profile and glue it onto an MDF piece that I’ve placed on the drawer bottom, directly behind that last row of storage. This simple yet effective labeling system will ensure that I can quickly identify the exact bit I need without trial and error. This level of organization truly transforms a cluttered workshop into a highly functional and enjoyable space for any woodworking enthusiast.
This systematic approach not only solves the immediate problem of router bit disorganization but also provides a framework for future growth and tool management. The satisfaction of opening a drawer to find every tool neatly arranged and easily accessible is immense, boosting efficiency and making every project more enjoyable. With this custom router bit storage drawer, my workshop is one step closer to being the perfectly organized, highly productive space I’ve always envisioned. It truly makes a significant difference to have all your precision tools protected and ready for action!
