Hey there, fellow makers and DIY enthusiasts! I’m Shara from Woodshop Diaries, and I’m thrilled to be part of a truly inspiring mentorship squad alongside a group of exceptionally talented DIY bloggers. This month, our challenge pushed us to expand our woodworking horizons, venturing into wood joint styles we hadn’t tackled before. Today, I’m excited to share my journey and a practical tutorial with you: mastering mitered edge wood joints, made even easier with ingenious homemade 90-degree clamps.
Unlock Professional Finishes with Mitered Edge Wood Joints

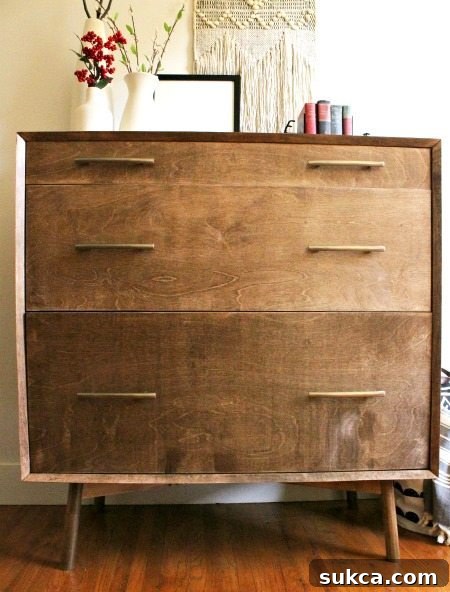

Mitered edge wood joints are a cornerstone of fine woodworking, offering an incredibly clean, seamless look that elevates any project. They can be achieved in various ways and are utilized across countless applications, from elegant picture frames to robust cabinetry and high-end furniture. As a dedicated furniture builder, I frequently incorporate mitered joints to achieve those crisp, modern lines that truly define a piece. A prime example is the Mid-Century Dresser I constructed, where mitered corners played a pivotal role in its distinctive aesthetic.
Enhancing Strength: Beyond Glue Alone
While wood glue provides a remarkably strong bond for mitered joints, particularly when the fit is precise, it’s crucial to consider the long-term durability, especially for larger, weight-bearing furniture pieces. In discussions with fellow woodworkers, it became clear that for substantial items like a dresser, relying solely on glue might not provide the enduring strength needed to prevent joint failure over many years of use. While my cabinet has held up beautifully so far, for projects of similar scale or those expected to bear significant load, I strongly recommend incorporating additional reinforcement.
Techniques like adding splines or dowels to your mitered joints significantly bolster their structural integrity. Splines are thin strips of wood inserted into opposing dados or grooves cut into the mitered faces, offering increased glue surface area and mechanical interlocking. Dowels, on the other hand, are round wooden pins inserted into precisely drilled holes across the joint, acting as internal reinforcements. These methods create a much more robust connection, ensuring your furniture stands the test of time and gracefully withstands daily wear and tear.
Essential Materials for Mitered Joints and DIY Clamps:
- Plywood for Cabinet Sides: The primary material for your project. The specific size will, of course, depend on your cabinet or furniture design. Ensure it’s good quality and flat for best results.
- Scrap 1x Lumber: Ideally 1x6s or wider, roughly 12-18 inches long. These pieces are essential for crafting your custom 90-degree clamping jigs. You’ll need at least four, possibly more depending on the size of your project.
- Drill: A standard cordless or corded drill is perfect for creating the holes in your scrap wood for the clamping jigs.
- 1 1/4″ or Larger Hole Saw: This attachment for your drill will cut the precise circular openings needed for your clamps to pass through the homemade jigs. Ensure the size accommodates the jaws of your specific clamps.
- Clamps (Small and Large): You’ll need a variety. Small bar or F-style clamps will be used with your homemade jigs, while larger pipe clamps or bar clamps are invaluable for correcting any slight bowing or misalignment in the larger panels.
- Speed Square or Digital Miter Gauge: Absolutely crucial for verifying and setting accurate 45-degree angles on your saw blade. Precision here is paramount.
- Quality Wood Glue: The adhesive that forms the initial, strong bond. Choose a reputable brand with appropriate open time.
- Miter Saw or Table Saw: The primary tool for making precise 45-degree angle cuts on your cabinet panels. A sliding miter saw or a table saw with a good miter gauge will offer the best accuracy.
Step 1: Achieving Flawless Mitered Edge Cuts

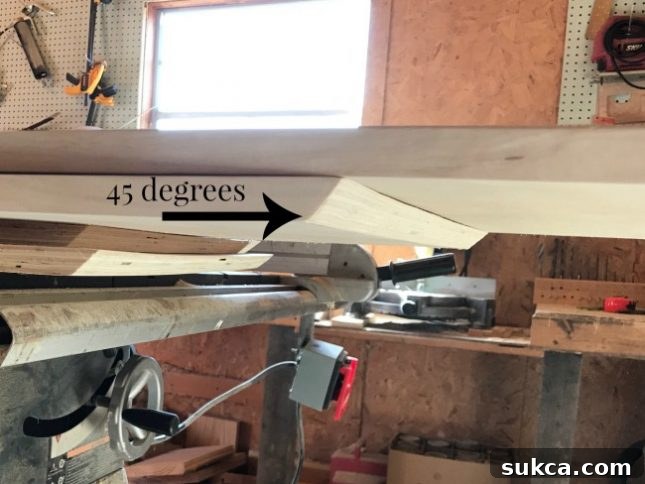

The foundation of a successful mitered joint lies in the accuracy of your cuts. Begin by preparing your cabinet sides. Since you’ll be creating mitered corners, each edge that forms a joint must be cut at a precise 45-degree angle. This requires adjusting your saw blade – whether on a circular saw, miter saw, or table saw – to exactly 45 degrees. Take your time with this crucial setup.
It’s critical that both ends of each cabinet side are mitered at 45 degrees, and importantly, these miters should not be parallel to each other if you’re forming a corner. Imagine a trapezoid: the two mitered ends should converge. Before making any cuts on your project material, always double-check your angle setting with a reliable speed square or a digital miter gauge. Even a slight deviation – a quarter or half a degree – can lead to frustrating gaps and misalignments later on. Small errors compound quickly in mitered joinery, so precision here will save you significant headaches down the line. Use a sacrificial fence on your saw to prevent tear-out on the delicate mitered edges, ensuring clean, crisp lines for optimal glue adhesion.
Step 2: Crafting Your Custom 90-Degree Clamping Jigs
While there are many specialized clamps designed for mitered joints available on the market, they can be quite an investment. If you’re like me and prefer to maximize efficiency with your existing toolset, or simply love a clever DIY solution, these homemade 90-degree clamps are a game-changer. They work incredibly well to hold your mitered corners perfectly square as the glue dries, preventing creep and ensuring a tight joint.

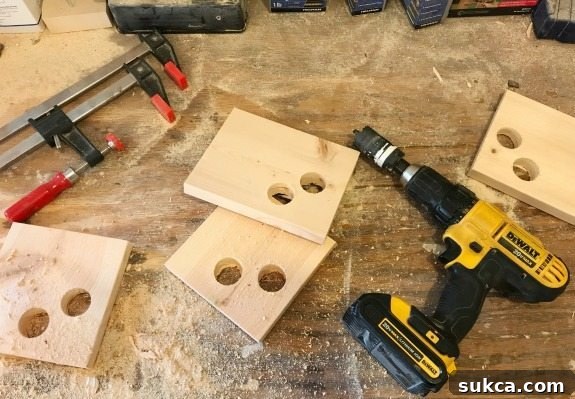

To make these indispensable jigs, gather some scrap 1x material – 1x6s or wider planks work wonderfully as they offer ample surface area for clamping. You’ll need at least four pieces, each about 12-18 inches long. Using a 1 1/4-inch or larger hole saw attached to your drill, carefully drill holes into these scrap pieces, as illustrated in the image. The key is to size the holes so that the jaws of your bar clamps or F-clamps can comfortably pass through and secure against the cabinet sides. Ensure the holes are positioned far enough from the edge to provide a stable clamping surface but close enough to effectively press against the mitered joint. You can make several of these jigs; having a few extra on hand is always a good idea, especially if you’re gluing up multiple cabinet sides simultaneously.
Step 3: Assembling the First Mitered Edge Wood Joint
With your mitered cuts perfected and your homemade clamping jigs ready, it’s time for the first glue-up. Apply a thin, even bead of wood glue along one mitered edge of one of your cabinet sides. Don’t go overboard with the glue; a consistent layer is more effective than excessive squeeze-out. Carefully bring the adjacent cabinet side into position, aligning its mitered edge with the glued edge. Gently press them together to ensure good contact.

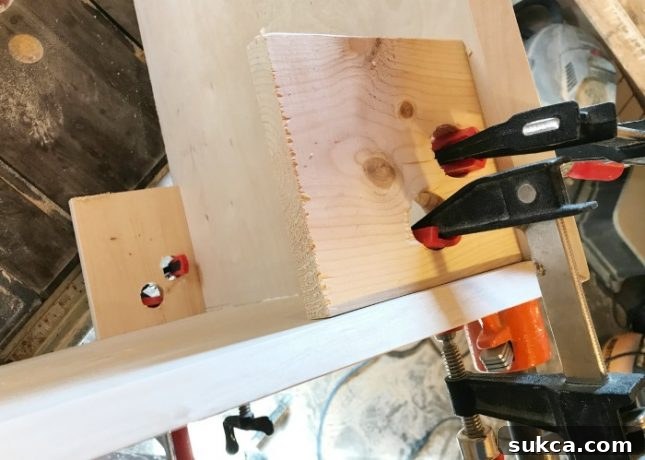

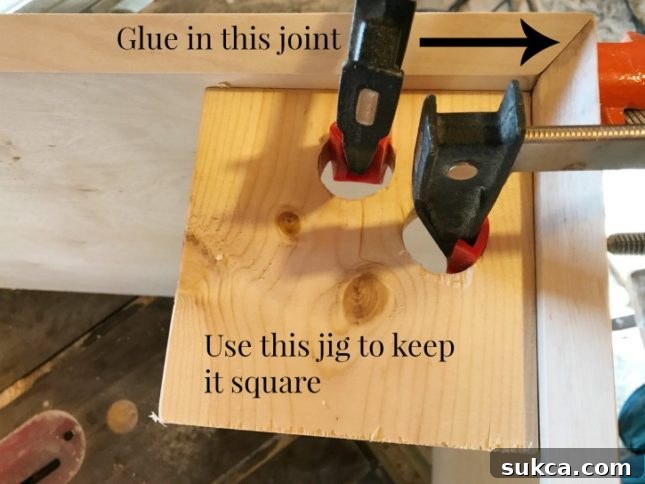

Now, deploy your homemade 90-degree clamps. Position one jig at one end of the joint (e.g., the top) and feed your bar clamp through the hole. Tighten the clamp firmly but not excessively, ensuring the jig holds the two pieces precisely at a 90-degree angle. The jig acts as a solid, square reference point. Once the first jig is in place and the joint looks square, repeat the process with a second jig at the opposite end of the joint (e.g., the bottom or front/back, depending on your perspective). This dual clamping ensures even pressure along the entire joint and prevents any twisting or shifting as the glue cures. Immediately wipe away any glue squeeze-out with a damp cloth before it dries, as dried glue can be difficult to remove and interfere with subsequent finishes.
Step 4: Expanding the Cabinet – Adding the Third Side

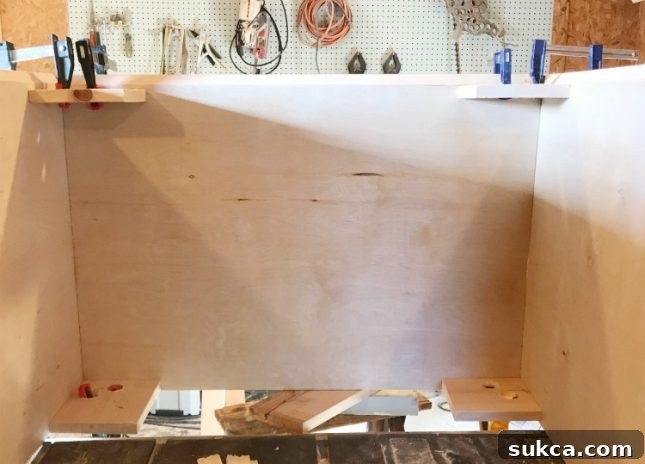

Once your first joint is securely clamped, it’s time to add the third side of your cabinet carcass. This step follows the same careful procedure. Apply a fresh bead of wood glue to the mitered edge of the cabinet side you’re adding. Carefully bring it into position, aligning its mitered edge with the corresponding edge of your partially assembled unit. Ensure a snug fit and proper alignment.
Just as before, grab two more of your homemade 90-degree clamping jigs. Position one at each end of this new joint, feeding your clamps through and tightening them until the joint is held firmly and squarely at 90 degrees. Take a moment to visually inspect the corner and ensure everything is lining up as intended. It’s often helpful to work on a flat, stable surface to prevent any racking or distortion during this stage. Double-check for any glue squeeze-out and clean it promptly.
Step 5: Fine-Tuning and Addressing Imperfections in Corners
Even with the most meticulous cuts, real-world woodworking can present challenges. Sometimes, plywood panels might have a slight warp, or your cuts, despite your best efforts, could be off by a hair. This can lead to small gaps or a slight bow in the middle sections of your panels, even if your corners are perfectly square thanks to the clamping jigs. Don’t fret; this is a common occurrence and easily remedied.

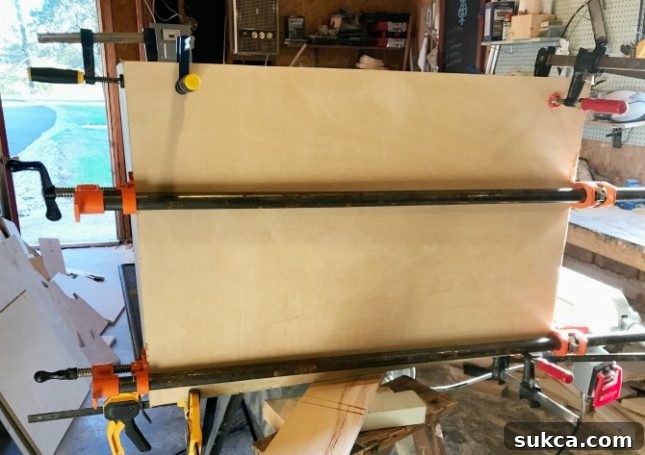

For those instances where the middle sections of your panels might be slightly bowed or refuse to come together perfectly, large clamps are your best friend. Tools like pipe clamps or long bar clamps can be applied across the width or length of the cabinet to gently but firmly pull those stubborn middles into alignment. In my experience, a couple of my plywood sides had a subtle bow, and these larger clamps were instrumental in closing those small gaps. Apply even pressure and watch as the panels gradually come together. You don’t need to over-tighten; just enough pressure to close the gap. It’s important to remember that it’s often more manageable to glue up three sides first, allowing those joints to fully cure and establish a solid, stable base, before adding the fourth and final side. This strategy provides more flexibility for adjusting and correcting any minor misalignments on the last joint.
Don’t be overly concerned if some minuscule gaps persist even after clamping. Wood filler or putty is an excellent solution for these minor imperfections, which you’ll address in a later step. The primary goal of these clamps is to get the panels as close as possible and hold them firmly while the glue dries, ensuring structural integrity and a mostly flush surface.

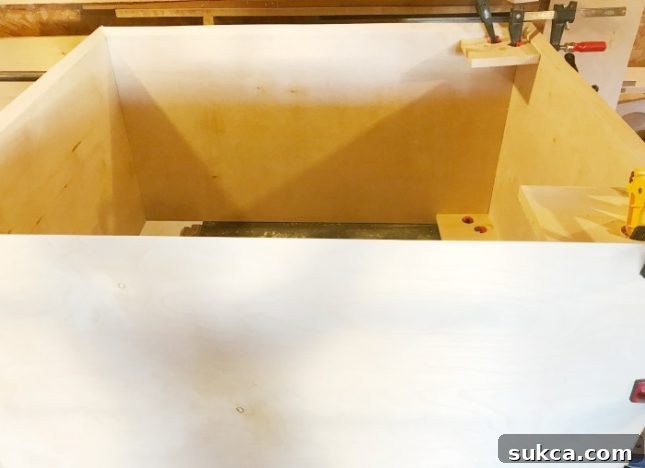

Step 6: The Final Connection – Adding the Last Side
Once the glue on your three-sided assembly has completely dried and cured (check your glue’s recommended drying time, usually 24 hours for full strength), you can proceed to the final step of closing up your cabinet carcass. Carefully remove all the clamps and your homemade clamping jigs from the initial three joints. You should now have a sturdy, U-shaped structure.
Shift your attention to the remaining open side of the cabinet. Apply wood glue generously but evenly to the mitered edges of both the last cabinet side and the corresponding open edges of the assembled dresser sides. Now, carefully position the final side, aligning its mitered edges with the glued surfaces. Just as you did with the previous joints, use your homemade 90-degree clamping jigs to hold everything perfectly square. Place one jig at the top and one at the bottom of the joint, securing them with your small clamps. Again, meticulously wipe away any glue squeeze-out immediately.

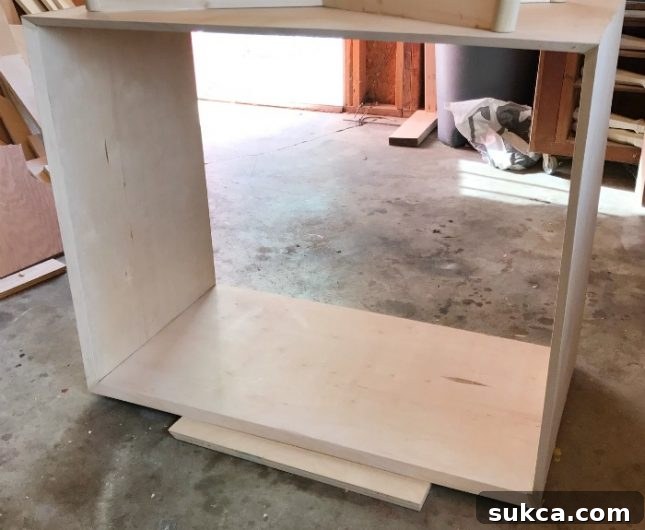

If you encounter any bowing or misalignment in the middle sections of this last joint, don’t hesitate to bring in your larger clamps (like pipe clamps) to apply gentle pressure and pull the surfaces flush. Allow this final joint to dry thoroughly according to the glue manufacturer’s instructions. Once the glue has completely cured, remove all clamps and jigs. Now, you can inspect your corners. If there are any minor gaps or imperfections, apply a quality wood filler or putty, allowing it to dry, and then sand the entire surface smooth. This final touch will create a truly seamless and professional finish.
Your Masterpiece Awaits!
Congratulations! You’ve successfully created a beautifully square, miter-jointed dresser carcass. This robust and aesthetically pleasing foundation is now ready for its next transformation – whether you envision stylish legs, smooth-gliding drawers, elegant doors, or any other custom features you wish to add. The clean lines and continuous grain provided by mitered corners offer a distinct advantage over simpler butt joints, lending an air of sophisticated craftsmanship to your piece.
I have a deep admiration for mid-century modern furniture, a style that frequently employs mitered corners to achieve its signature clean and minimalist aesthetic. While mitered joints might present a slightly greater challenge than basic butt joints, the effort is undeniably worth it for the incredibly refined and fun look they impart. Click over here to discover how I took this simple mitered corner cabinet carcass and transformed it into a stunning, retro Mid-Century Modern dresser with sleek round legs and spacious drawers!
And be sure to stay tuned throughout the month, as the rest of our talented mentorship squad will be sharing their unique wood joining tutorials. There’s so much to learn and create!
