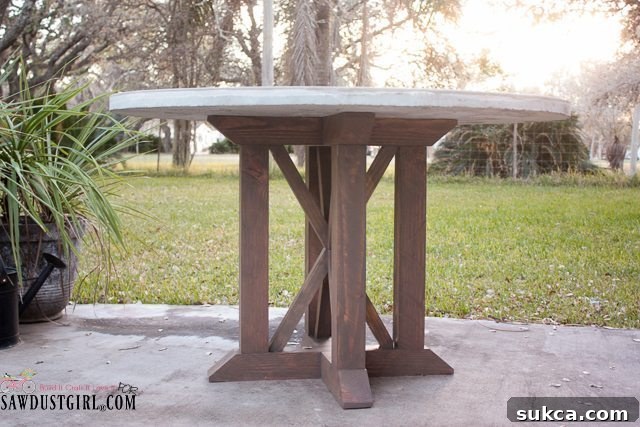

Welcome, fellow woodworking enthusiasts! It feels like an age since I last shared a project with you, and I’m thrilled to be back, bringing insights from a recent challenge that truly expanded my joinery skills. This journey began when I decided to step outside my comfort zone and embrace a more sophisticated woodworking technique for a special project: a beautiful round concrete table.
From the moment I sketched the initial design for this table, two things were clear. First, it absolutely had to feature a striking round concrete top. Second, achieving the necessary strength and stability to properly support such a weighty top demanded a joinery method far beyond my usual repertoire of pocket holes. While pocket holes are incredibly versatile and have a firm place in many of my projects, I knew intuitively they weren’t the right fit here. My mentor often reminds me that while pocket holes are excellent, they aren’t a one-size-fits-all solution for every piece of furniture. This project was a perfect opportunity to tackle something new and challenging, to “rip the band-aid off,” so to speak, and dive into advanced joinery.
My goal was to create robust half-lap joints for the X-base of the table. Although I primarily used a table saw for these cuts, it’s worth noting that half-lap joints are achievable with various tools. For those without a table saw, a router, circular saw, or even a miter saw can be effectively employed to create these strong, elegant joints. The key is understanding the principles of the cut and adapting it to your available equipment.
Mastering the Half-Lap Joint: Precision Measuring and Saw Setup

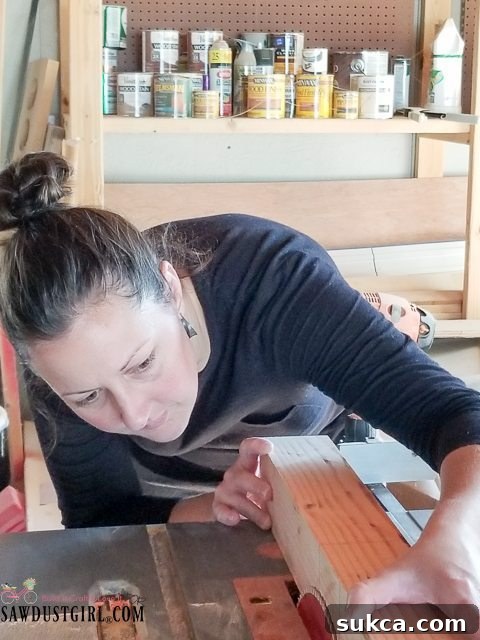

The foundation of any successful woodworking project, especially one involving intricate joinery, lies in meticulous measurement. For half-lap joints, achieving spot-on depth and width is paramount. In this project, I started with 4×4 boards, which I then carefully ripped down to a more manageable 3×3 actual measurement. To determine the precise width for the joint, I simply found the center of one board, laid the second board directly on top, and traced its outline. This provides a clear, accurate visual guide for your cut lines.
For the depth, the objective is to cut exactly halfway through the board. Since my boards were 3 inches thick, I marked a depth of 1 1/2 inches on all sides of the board. Once these critical measurements are marked, you can proceed to set your table saw blade. The blade height should be adjusted to match your marked depth – in this case, 1 1/2 inches. A useful tip I always follow is to set the blade slightly under my measurement marks initially. It’s always easier to make another shallow pass to remove more material than to try and add it back if you’ve cut too deep. This cautious approach ensures greater accuracy and prevents costly mistakes.
Important Safety Note: Always check your blade height and make any adjustments with the saw unplugged from the power source. For these specific cuts, I found it necessary to temporarily remove my riving knife. If you are not comfortable or experienced with removing safety features like the riving knife, or if your saw does not allow for safe removal, I highly recommend exploring alternative methods for creating half-lap joints, such as using a router or circular saw, which might be safer options for your setup.

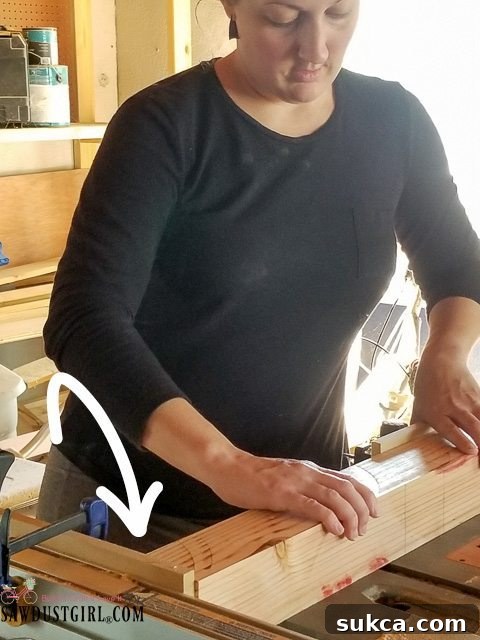

Once the blade height is precisely set and verified, the next crucial step is configuring the table saw fence. To prevent the board from binding during the cut, I secured a small scrap piece of wood to the fence. Position this scrap wood so that as you slide your workpiece, the scrap piece just clears the saw blade before the workpiece makes contact. This technique creates approximately a 3/4-inch gap between the main fence and your board, allowing for smooth, unobstructed cutting. While I didn’t capture a perfect image of this specific setup, I’ve included a photo that visually demonstrates the principle of how the fence and scrap piece work in tandem to guide the cut safely and effectively. This seemingly small detail significantly enhances both safety and the quality of your cuts.

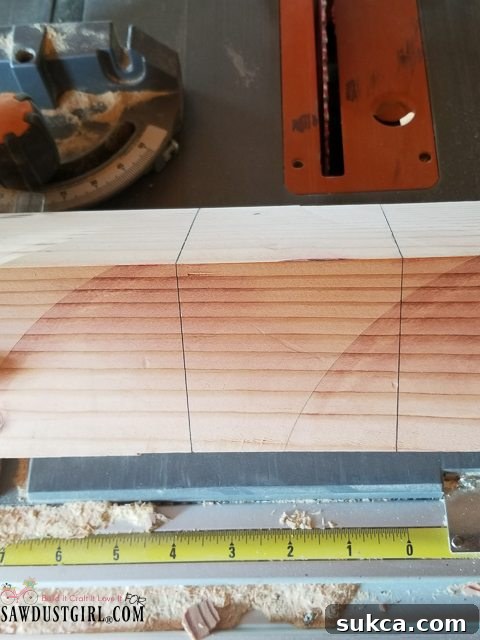

To ensure maximum visibility and accuracy during the cutting process, I meticulously marked all four sides of my board. This simple yet effective step meant that no matter my angle or position at the saw, my reference lines were always clearly visible, minimizing the chance of straying from the intended cut path.
Executing the Cut: Crafting the Half-Lap Joint

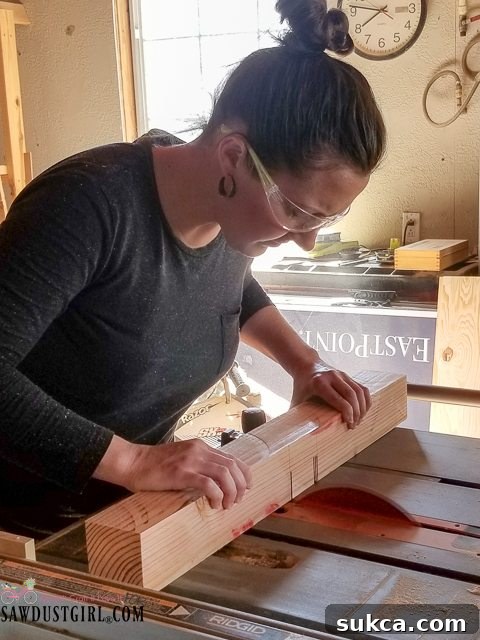

With the table saw meticulously set up and safety precautions in place, it’s time to begin cutting the half-lap joint. The process involves making a series of small, repetitive cuts across the board, starting from one marked line and continuing until you reach the opposing mark. The goal is to gradually remove the material within the marked area to the precise depth you’ve set.
I found it most effective to first cut along both of my marked lines. This established clear boundaries, allowing me to focus on consistently removing material between these two points without concern for overcutting. While a specialized dado blade would undoubtedly make this process much faster and more efficient, I made do with a standard blade. Even a cross-cut blade would have been an improvement over the general-purpose blade I was using at the time, but the important takeaway is that you can still achieve excellent results with what you have on hand, even if it requires a little more patience and care. Often, getting the job done well is more important than having the absolute perfect tool for every single task.

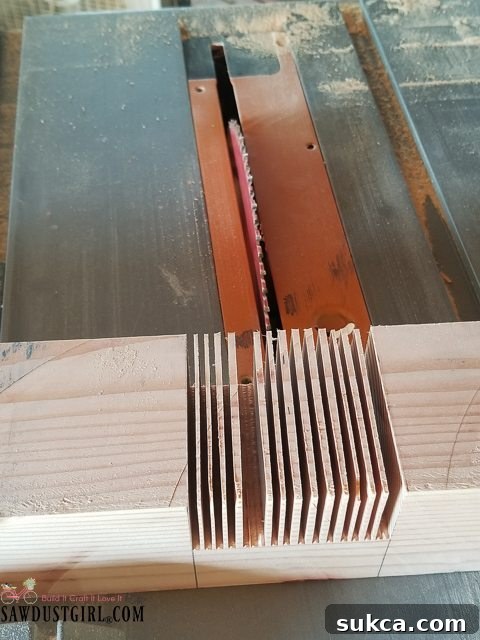

After several passes, progressively removing the wood, your board will begin to show the characteristic groove of a half-lap joint. It’s a satisfying sight to see the joint taking shape!

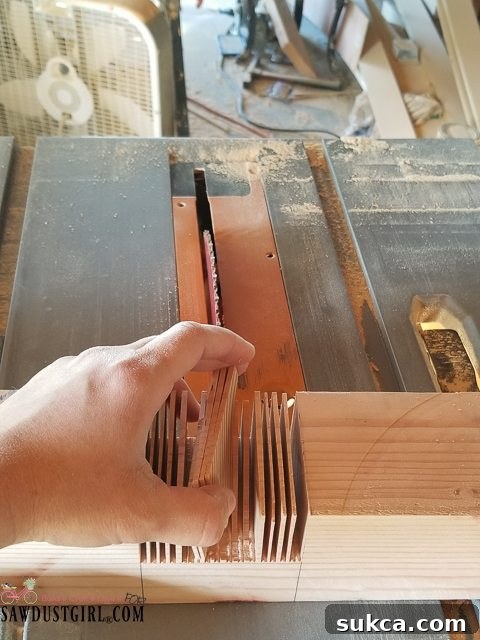

Once the bulk of the material is removed, you’ll likely have some remaining slivers of wood within the joint. These can be easily broken out by hand or with the gentle tap of a hammer. The goal is to create a relatively clean, even surface.

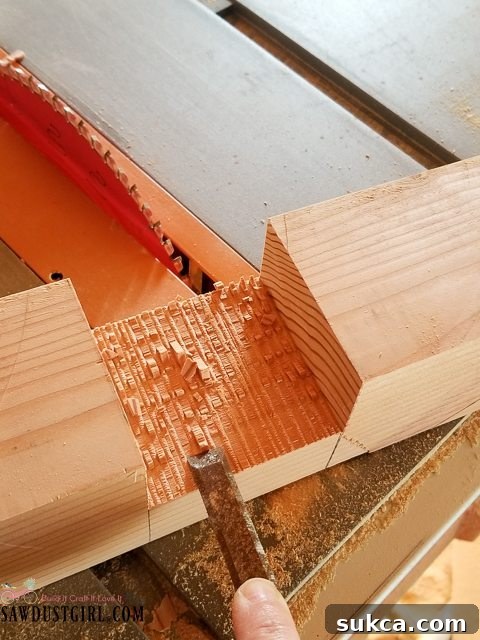

The final step in perfecting the joint involves smoothing the inner surface. For this, a sharp chisel or a flexible hand saw (often called a flush-cut saw) is invaluable. Carefully pare away any remaining high spots or uneven areas until the joint’s surface is perfectly flat and level. Despite its age and rust, my trusty old chisel, with a surprising amount of remaining sharpness, did an excellent job. Let’s just say my kids received a stern lecture about the consequences of leaving woodworking tools out in the rain again – a common challenge for any parent who also loves to build!

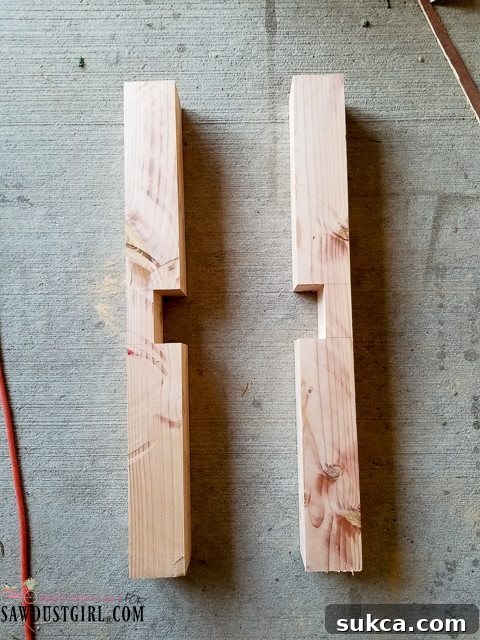

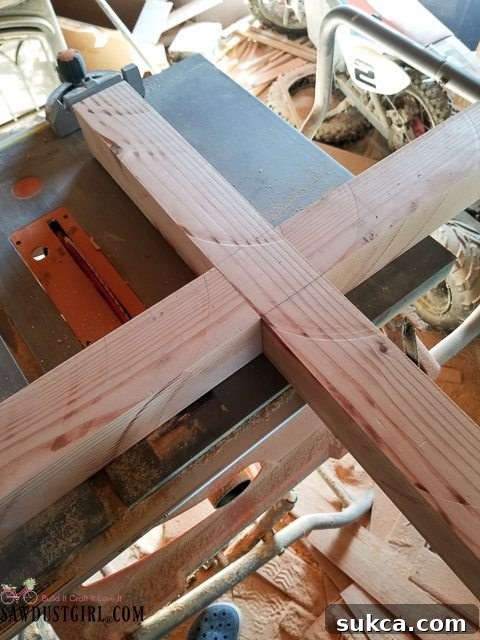

Now, repeat this precise process on a second board to create the corresponding half-lap joint. If your measurements and cuts were accurate, these two pieces should interlock perfectly, forming one of the elegant ‘X’ components of your table base, much like the image below. The satisfaction of seeing a perfectly fitted joint for the very first time is truly a rewarding experience, especially when you might have anticipated gaps or imperfections. Once you’ve achieved this, simply take the pieces apart, and you’ll have your foundational elements ready for assembly.
To construct the full table base, you will need to complete these steps one more time to create a second identical ‘X’ component, forming the top and bottom structural elements of your X-base design.
Crafting the Angled X-Bracing for Enhanced Stability and Style

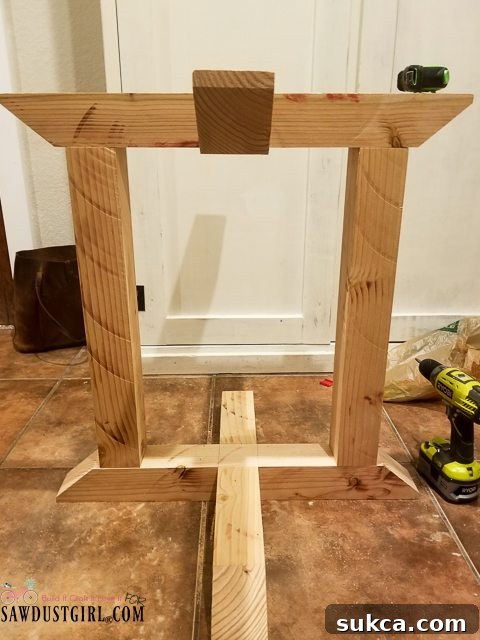

Our work isn’t quite finished yet! Beyond the primary X components, a central angled X-bracing is crucial for both aesthetic appeal and enhanced structural integrity, especially when supporting a heavy concrete top. Angles can seem daunting in woodworking, but with a practical approach, they become much simpler. Instead of complex mathematical calculations right away, I found it easier to build the main table base structure first. This allowed me to obtain accurate, real-world measurements for the boards that would form the angled X.

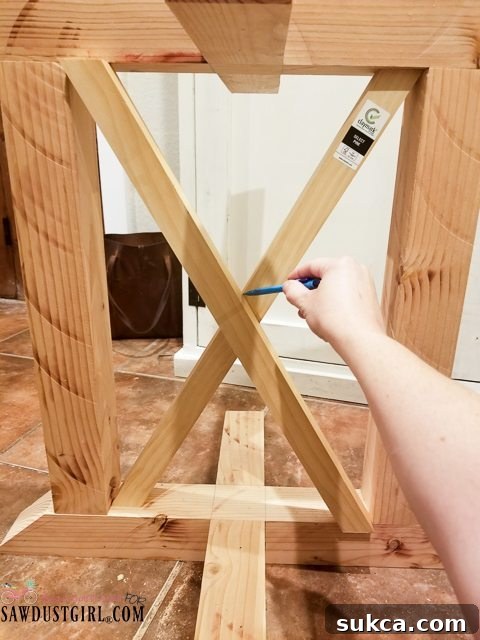

During a particularly cold spell in Texas, my entire building operation temporarily moved indoors, a “temporary” solution that somehow stretched into months. This provided the perfect opportunity to work on the X-bracing. Once the main legs of the table base were in place, I was able to hold the 2×2 boards I intended for the X-bracing directly against the frame. By tracing the lines where they needed to be cut, I could then transfer these angles to the table saw, effectively determining the precise miter angle required. It might seem a bit unconventional or “backwards,” but this practical, hands-on method consistently yields accurate results.

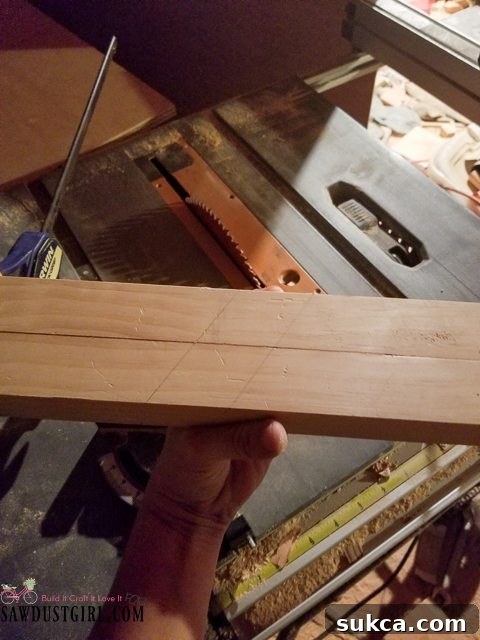

The half-lap joints for the angled X-bracing are cut using the same principles as the previous boards, but with a few key adjustments. Since these boards are smaller (1 1/2 inches thick), the table saw blade needs to be lowered to a depth of 3/4 inch (half of the board’s thickness). Crucially, the miter gauge on the table saw must be set to the specific angle determined from your traced lines. For reference, I found that an angle of 30 degrees off square worked perfectly for the center of my X. Before making any cuts, it is absolutely essential to ensure that the ends of your angled boards are facing the same direction. When held together, the ends should visually align as if they were one continuous, wide board, confirming correct orientation for a symmetrical X.

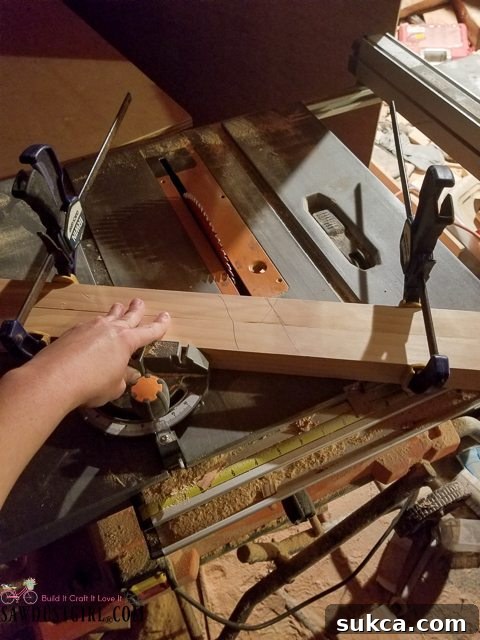

During this stage, I experimented with cutting both pieces for the angled X at the same time, hoping to achieve greater efficiency and precision. While it seemed like a promising method, ultimately, the outcome was not significantly better than if I had cut each piece separately. Sometimes, even with clever shortcuts, the tried-and-true individual approach proves just as effective.

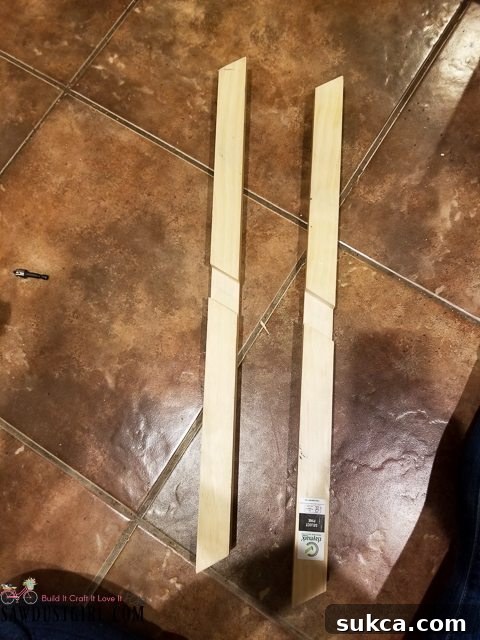

Once both pieces have been carefully run through the table saw, you will have your two boards, perfectly prepared to interlock and form the elegant angled X-bracing.

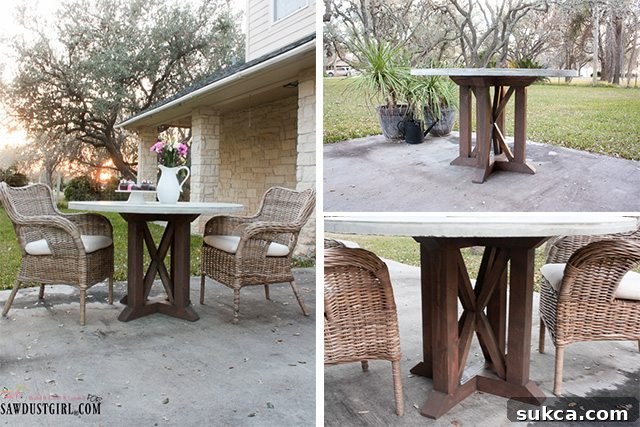

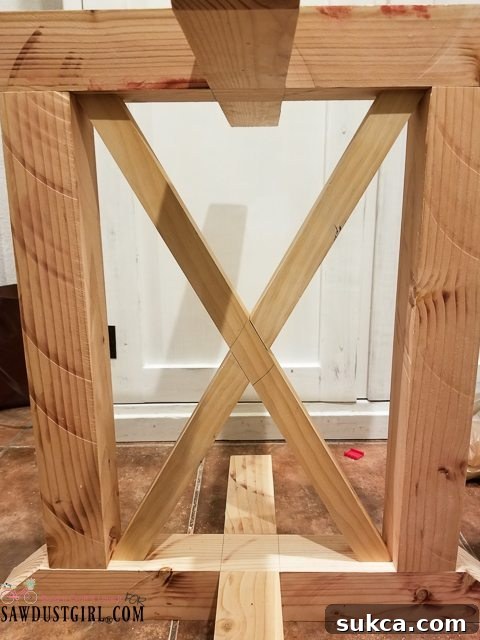

The result is a sturdy and visually appealing angled X. This primary X-joint isn’t just for looks; it significantly enhances the structural strength of the table base, providing crucial support for the heavy concrete top. While I initially aspired to create an even more complex, interlocked second X for maximum strength, my brain hit its limits figuring out the geometry. So, the second X, though beautifully symmetrical, serves primarily an aesthetic purpose, proving that sometimes, visual balance is just as important as structural engineering in design!
Learning and implementing these half-lap joints for the X-base has been an incredibly rewarding experience, demonstrating that with patience and precision, even complex joinery is within reach for the dedicated DIYer. The newfound confidence in tackling such joints opens up a world of possibilities for future furniture projects.
Are you eager to discover how I incorporated the final X into this magnificent table, or perhaps curious about the process of creating that stunning round concrete tabletop? For the complete tutorial, including free printable plans for this Round Pedestal Dining Table, head over to my blog! I can’t wait to share all the details with you there. Thank you so much for joining me on this woodworking adventure.
Have you recently ventured into trying new woodworking joints or techniques? I’d love to hear about your experiences, challenges, and successes in the comments section below! Until next time, keep building and creating!
