The journey to crafting a truly robust and aesthetically pleasing cabinet often leads woodworkers to advanced joinery techniques. Among these, the dado joint stands out as a hallmark of quality construction, offering unparalleled strength and a clean, integrated appearance. This comprehensive guide, part of our series on foundational cabinet building, delves into the meticulous process of constructing a basic cabinet using dado and rabbet joints. While this method requires a greater investment in tools and precision compared to simpler approaches like butt joints with wood screws or pocket hole screws, the enduring results are well worth the effort. If you’re ready to elevate your woodworking skills and build cabinets that will last a lifetime, join us as we explore the precision and artistry of dado joint construction.
Mastering Cabinet Construction: A Comprehensive Guide to Building with Dado Joints
Building custom cabinets can transform any space, offering personalized storage and a touch of bespoke craftsmanship. While various methods exist for joining cabinet components, the dado joint method is revered for its superior strength, exceptional durability, and remarkably clean finish. It creates a robust interlocking system that significantly reduces the chances of structural failure over time, making it an ideal choice for high-use furniture like kitchen cabinets.
This technique is generally considered more advanced, demanding a higher level of precision and specific tooling, primarily a plunge router or a table saw equipped with a dado blade set. If you’re new to cabinet building, we recommend starting with simpler methods that utilize wood screws or pocket hole screws to build confidence. However, if you’re ready to tackle a more rewarding challenge and achieve professional-grade results, building with dado joints is an excellent next step.
Why Choose Dado Joints for Your Cabinets?
The decision to use dado joints often comes down to several key advantages:
- Unrivaled Strength and Durability: A dado joint provides a mechanical interlock that significantly increases the joint’s surface area for glue adhesion. This creates a powerful bond that resists racking and shear forces, leading to a cabinet that is incredibly stable and durable. Unlike fasteners alone, the wood-on-wood contact within the groove creates a structural connection that withstands the test of time and heavy use.
- Superior Aesthetics: When properly executed, dado joints create a seamless appearance. The edges of the joining pieces are concealed within the grooves, resulting in a clean, professional finish with minimal exposed fasteners. This hidden joinery contributes to a high-end look that is often sought after in custom furniture.
- Enhanced Alignment and Stability: The precisely cut groove acts as a perfect guide for the mating piece, ensuring components align perfectly square. This inherent accuracy simplifies assembly and results in a cabinet box that is perfectly plumb and level, critical for proper door and drawer operation.
- Efficient Assembly: Once the dados are cut, assembly becomes a straightforward process of dry fitting, applying glue, and clamping. The dado ensures components fit together correctly, reducing guesswork and speeding up the final construction phase.

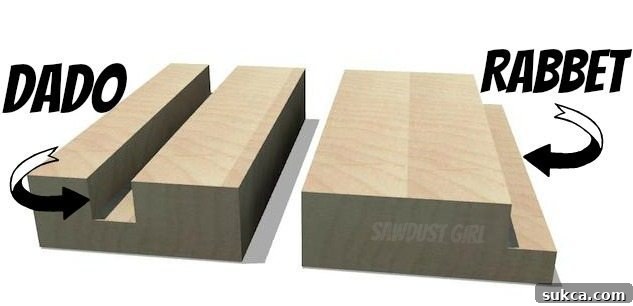

Understanding Dado and Rabbet Joints: Precision Woodworking Explained
In the world of joinery, understanding the subtle differences between similar cuts is crucial. While we often use the term “dados” broadly in cabinet making, this method technically employs both dados and rabbets. The distinction lies in the location and orientation of the groove you’re routing or cutting:
- Dado: A dado is a rectangular groove cut across the grain of a board, designed to receive another piece of wood. Think of the grooves cut into cabinet sides to hold shelves or the cabinet bottom. These are typically “through dados” if they extend across the entire width of the board, or “stop dados” if they end before the edge, creating a cleaner, hidden joint at the front.
- Rabbet: A rabbet is a notch or groove cut along the edge or end of a board. These are commonly used for creating recesses for cabinet backs, drawer bottoms, or for mating two pieces at a corner.
For the purpose of simplicity in this guide, we may refer to all routed grooves as “dados,” but it’s important to recognize their specific applications. While a table saw can be used for cutting through dados, achieving accurate “stop dados” – where the groove doesn’t extend to the front edge – is most safely and effectively done with a plunge router and appropriate guides or jigs.
Essential Materials and Tools for Dado Joint Cabinetry
Before you begin, gathering the right materials and tools is paramount for a successful project. Precision in woodworking starts with quality supplies.
Materials:
- 3/4″ Plywood or MDF: This thickness is ideal for cabinet sides, bottom, and shelves, providing substantial strength and stability. High-grade Baltic Birch plywood or cabinet-grade hardwood plywood is recommended for superior durability and a clean finish.
- 1/4″ Plywood or MDF: Used for the cabinet back panel. This thinner material is sufficient for structural support, helps square the cabinet, and is typically housed within a rabbet or dado.
- High-Quality Wood Glue: A strong adhesive like Titebond III is crucial for creating robust dado joints. Ensure you have enough for all contact surfaces.
- Clamps: Essential for holding components tightly together while the glue dries. Pipe clamps, bar clamps, and parallel jaw clamps are all excellent choices for applying even pressure across the broad surfaces of cabinet panels.
Key Tools:
- Plunge Router: Absolutely indispensable for cutting stop dados and rabbets safely and accurately. Its ability to start and stop cuts mid-board makes it superior for this task compared to a fixed-base router.
- Router Guides/Jigs: A straightedge guide, an edge guide, or a dedicated dado jig is vital for ensuring your dado cuts are perfectly straight and consistent. Precision is key.
- Router Bits: You’ll need straight bits that precisely match the thickness of your material (e.g., 3/4″ straight bit for 3/4″ plywood). Remember that plywood often varies slightly in thickness, so it’s wise to have an adjustable dado router bit or to make test cuts to fine-tune your setup.
- Measuring Tape and Square: For accurate layout and ensuring square cuts and assembly.
- Safety Gear: Eye protection and hearing protection are non-negotiable when operating power tools.
Step-by-Step Guide: Building Your Dado-Joint Cabinet
With your materials and tools at the ready, let’s dive into the construction process. Follow these steps meticulously to build a cabinet that boasts both strength and beauty.
Step 1: Precision Dado Cutting
The foundation of a strong dado-joint cabinet lies in the accuracy of your dado cuts. Take your time with this step, as errors here will compound in later stages.
- Layout and Marking: Carefully measure and mark the exact locations for all your dados on the cabinet side panels. Use a reliable square and pencil for precision. Double-check all measurements against your cabinet plans.
- Utilize a Plunge Router and Guides: For the most precise and safest cuts, particularly for stop dados, a plunge router coupled with a straightedge guide is your best friend. Securely clamp your guide to the workpiece, ensuring it’s perfectly parallel to your intended dado line.
- Select the Correct Bit: Use a straight router bit that matches the actual thickness of your material. Since plywood thicknesses can vary slightly, it’s highly recommended to make test cuts on scrap material and adjust your router setup until your mating piece fits snugly into the dado without forcing it. A fit that is too loose will compromise strength, while a fit that is too tight can cause splitting.

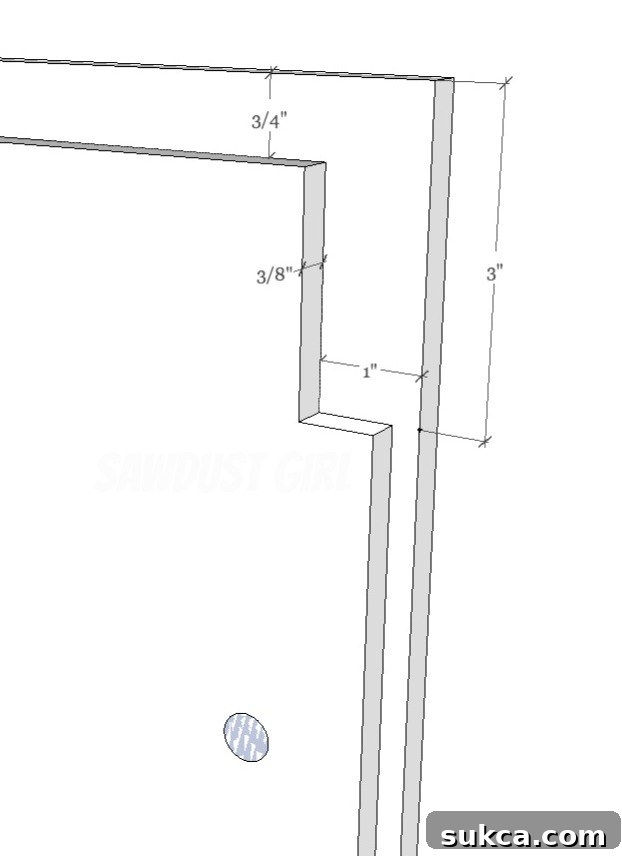

- Follow Diagrams for Placement: Refer closely to your provided diagrams for the precise placement and dimensions of each dado. This includes dados for the bottom shelf, the back panel recess, and the top and back cleats.
- Depth of Cut: Typically, dados are cut to about one-third to one-half the thickness of the material. For 3/4″ material, a 1/4″ to 3/8″ deep dado is common.

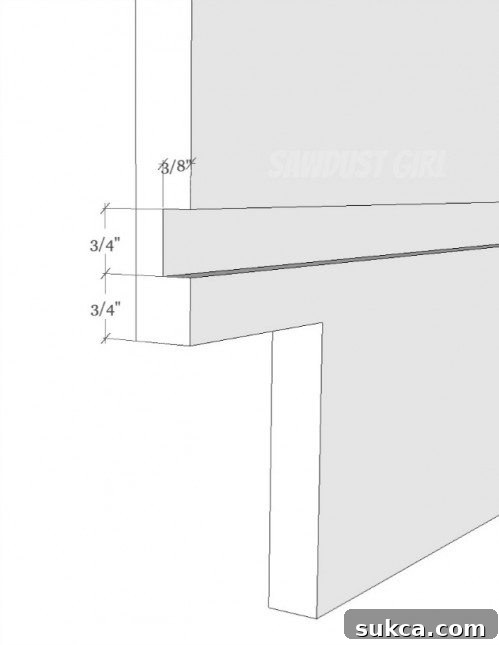

For Bottom Shelf Dados: These are crucial for the primary structural support of the cabinet bottom.

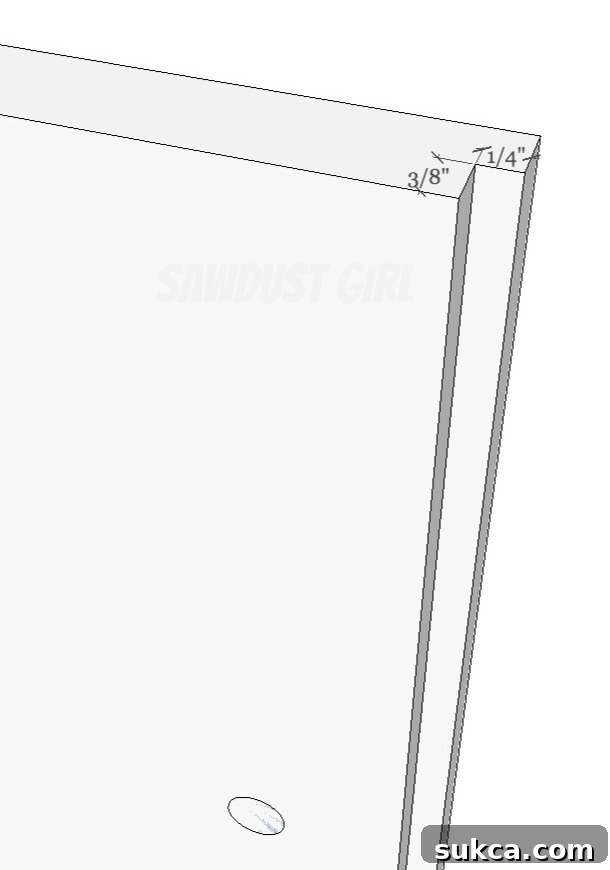

For Back Panel Rabbet (or Dado): This creates a recess for the cabinet back, helping to square the assembly.
For Back and Top Cleats Dados: These provide mounting points and additional structural integrity.

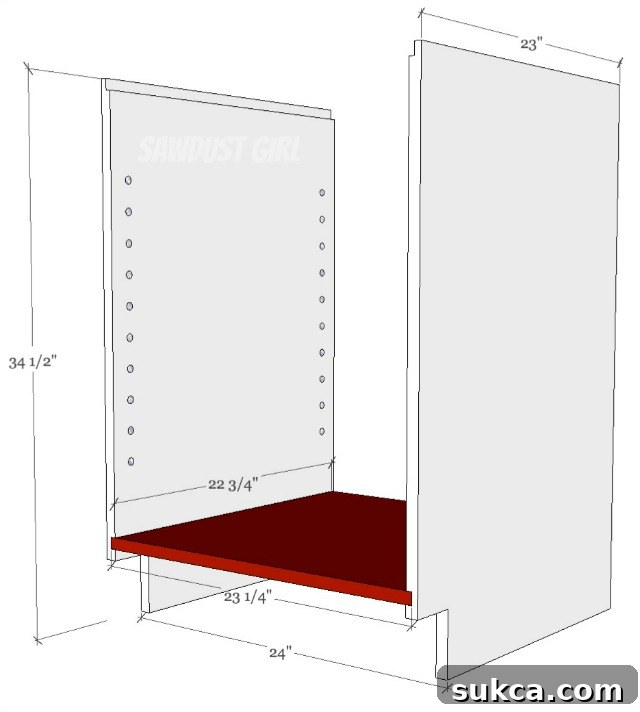

Step 2: Assembling the Cabinet Bottom
With all your dados precisely cut, it’s time to bring the main components together. This step focuses on securing the cabinet bottom.
- Apply Wood Glue: Generously apply a continuous bead of high-quality wood glue to all three surfaces of the dado cutouts on the side panels where the cabinet bottom will be inserted. Ensure good coverage for maximum bond strength.
- Insert and Clamp: Carefully slide the cabinet bottom panel into its corresponding dados. Ensure it is fully seated. Immediately use heavy-duty clamps (pipe clamps or bar clamps work best) to apply firm, even pressure. This squeezes out excess glue and ensures a tight, strong bond. Keep the assembly clamped until the glue is completely dry, typically several hours or overnight, depending on the glue type and environmental conditions.
- Check for Squareness: Before the glue sets, use a large framing square to check the assembly for squareness. Make any necessary adjustments by gently pushing or pulling the corners until everything is perfectly square. This is a critical step for a well-built cabinet.

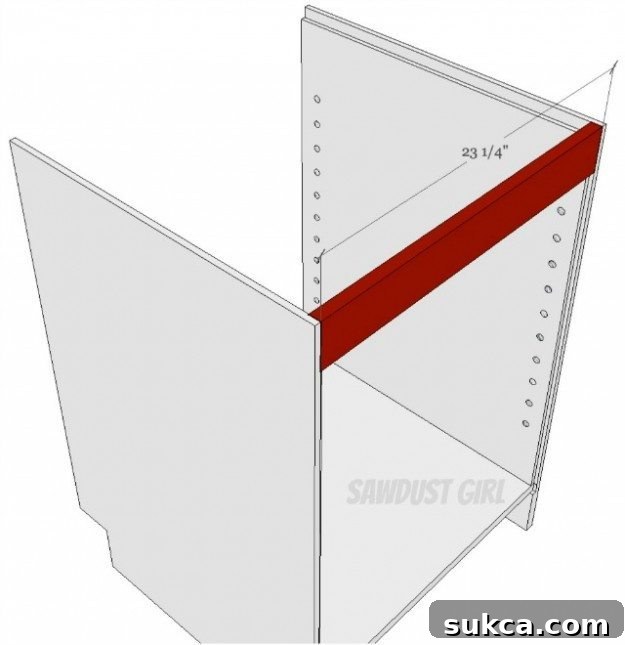

Step 3: Attaching the Back Cleat
Back cleats serve a dual purpose: they add structural rigidity to the cabinet and provide a secure point for mounting the cabinet to a wall or countertop.
- Glue and Position: Apply wood glue to the dado grooves designed for the back cleat. Carefully insert the back cleat into place.
- Ensure Recess for Back Panel: Crucially, make sure the cleat is pushed forward into its dado as far as it will go. This action creates a 1/4″ recess at the back of the cabinet, perfectly sized to accommodate the 1/4″ back panel you’ll install later. This detail ensures a flush back panel installation.
- Secure with Clamps: Use clamps to hold the back cleat firmly in position while the glue dries, ensuring a tight bond within the dado.

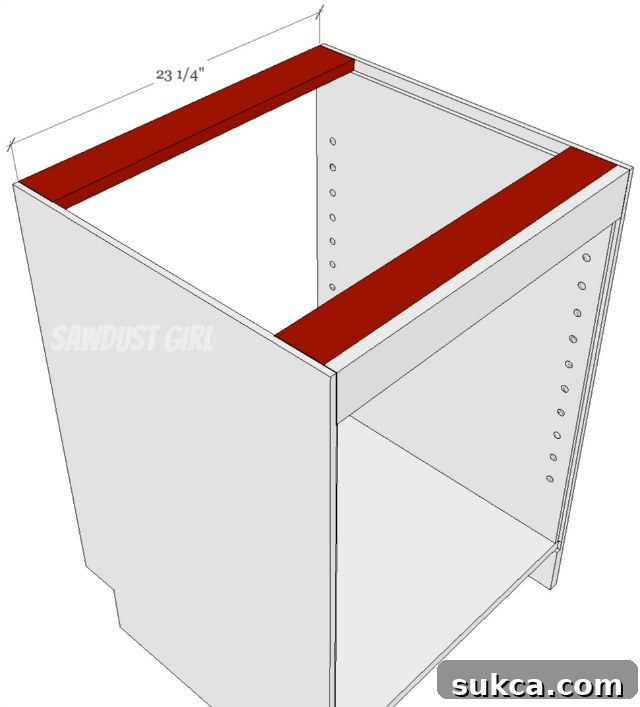

Step 4: Securing the Top Cleats
Similar to the back cleat, top cleats are essential for reinforcing the cabinet’s upper structure and providing strong attachment points.
- Apply Glue and Clamp: Apply wood glue to the dados for the top cleats, then insert the cleats into position. Use clamps to hold them securely until the glue is fully cured.
- Functionality: These cleats not only contribute to the overall rigidity of the cabinet box but also provide a solid surface for attaching the cabinet to other cabinets, countertops, or directly to wall studs.

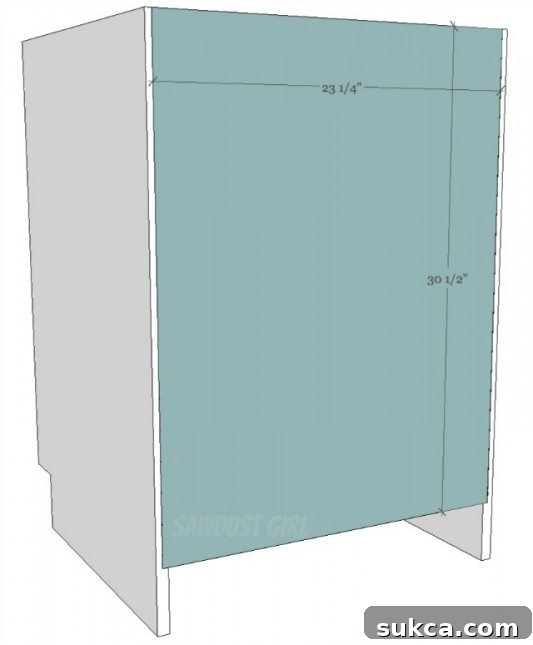

Step 5: Installing the Back Panel
The back panel is typically the last component to be added to the cabinet box. It plays a significant role in squaring the cabinet and providing a finished look.
- Final Squareness Check: Before installing the back panel, perform a final check of the cabinet box for squareness. The back panel, when properly installed, will lock the cabinet into its square position.
- Lay into Recess: Carefully place the 1/4″ back panel into the recess created by the dado joints and the back cleat. Ensure it fits snugly. You can secure it with small brad nails or screws, along with a bead of wood glue around the edges for added strength and to prevent rattles.

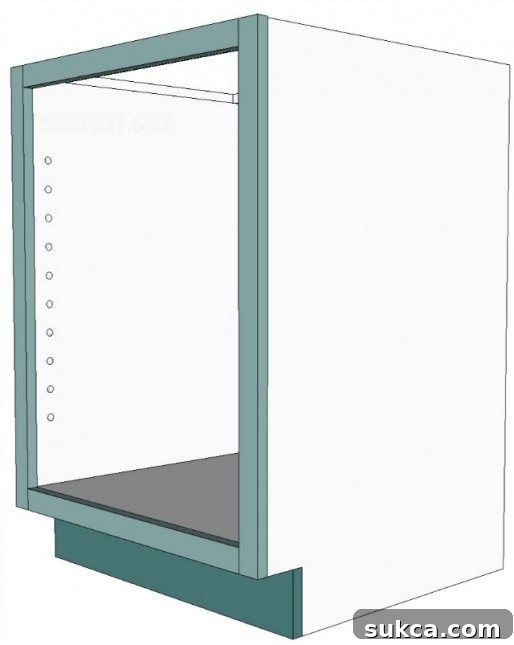

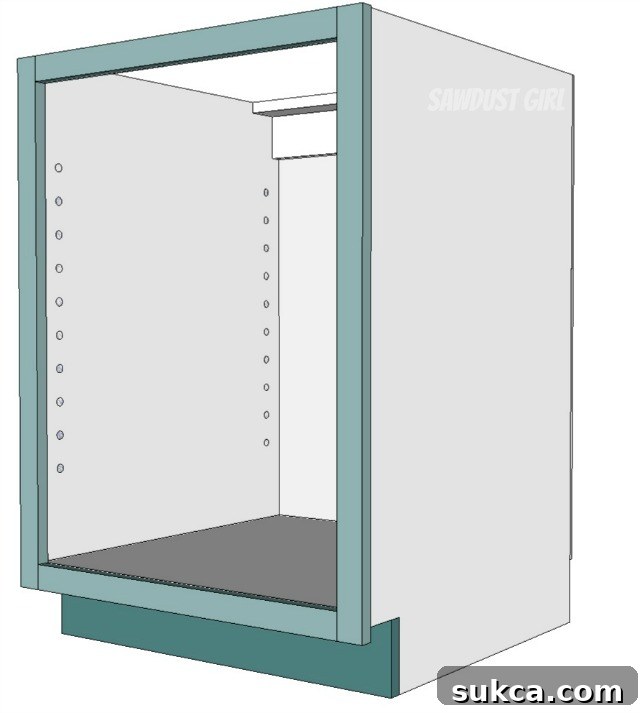

Step 6: Building and Attaching the Faceframe
The faceframe is often considered the “face” of your cabinet. It adds significant structural integrity, conceals the plywood edges, and provides a solid mounting surface for cabinet doors and drawer fronts. Building and attaching a faceframe is a detailed process that warrants its own dedicated tutorial. You can find comprehensive guidance on this crucial step here.
Advanced Tips for Flawless Dado Joints
- Always Make Test Cuts: Plywood is notorious for varying slightly in thickness. Before cutting into your project pieces, always make test cuts on scrap material using your chosen router bit and adjust the bit height or router guide until you achieve a perfect, snug fit.
- Featherboards are Your Friend: When using a table saw for through dados, or even with a router, a featherboard can help keep your workpiece firmly against the fence, ensuring straight, consistent cuts and enhancing safety.
- Dust Collection is Crucial: Routing creates a significant amount of dust. A good dust collection system or shop vacuum attached to your router will not only keep your workspace cleaner but also improve visibility for more accurate cuts.
- Clean Dados Mean Stronger Joints: Ensure your dado grooves are free of sawdust and debris before applying glue. Any particles can compromise the glue bond.
- Don’t Rush the Glue-Up: Wood glue needs time to cure properly. Resist the temptation to unclamp your cabinet prematurely. The longer the clamps are on (within reason), the stronger the bond will be.
Elevate Your Woodworking Skills with Comprehensive Resources
Building with dado joints is a rewarding skill that significantly enhances the quality and durability of your woodworking projects. This guide provides a solid foundation, but mastering cabinet construction often requires a deeper dive into techniques, tips, and problem-solving strategies.
For those eager to expand their knowledge and gain a complete understanding of cabinet building from start to finish, we highly recommend our comprehensive Cabinet Building 101 eBook. This invaluable resource consolidates years of expertise, offering detailed insights, step-by-step instructions for various cabinet types, material selections, and expert tips to help you build beautiful, functional cabinets with confidence. Download it today and keep it handy as your go-to reference!
By investing in your skills and utilizing proven techniques like dado joinery, you’re not just building cabinets; you’re crafting heirloom-quality pieces that will serve your home for generations. Embrace the challenge, enjoy the process, and take pride in the strength and beauty of your custom-built creations.
