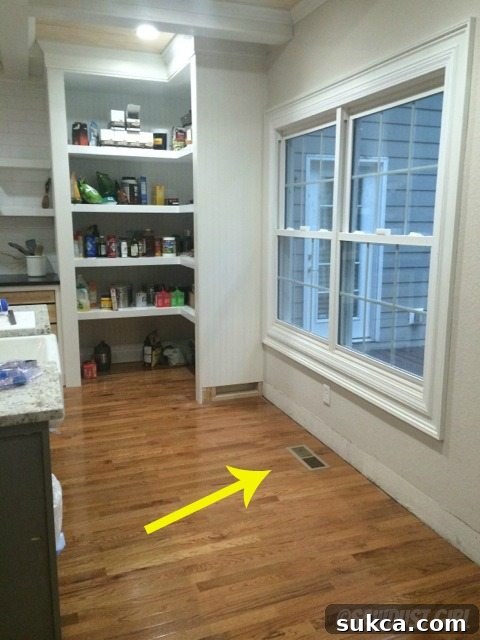

In the world of home improvement and custom woodworking, encountering obstacles is not just common; it’s an expected part of the creative process. Whether you’re building bespoke cabinetry, a practical built-in storage unit, or a charming window seat, you’ll often find yourself facing existing structural elements that demand thoughtful integration rather than mere obstruction. One such prevalent challenge is a floor vent positioned directly in the path of your new construction.
While some obstacles can be easily relocated, others, like a crucial heating or cooling vent, necessitate a more ingenious approach. Rather than covering it up and compromising your home’s airflow, the smart solution is to seamlessly incorporate it into your design. This guide will walk you through the precise steps on how to install a cabinet base with a floor vent, ensuring both optimal HVAC performance and a flawlessly finished aesthetic. This particular example focuses on a window seat project, providing an excellent illustration of how to transform a potential hindrance into a functional and visually appealing feature.
Designing and Building a Cabinet Base for Floor Vent Integration
The foundation of any successful built-in project is a sturdy and well-designed base. When a floor vent is involved, the design must account for efficient air circulation. For this project, we’re focusing on building a stand-alone base that directly manages the vent, rather than simply cutting out a standard toe-kick. Understanding the distinction between these base types is crucial for ensuring the structural integrity and functional success of your project. If you’re seeking more in-depth clarification on various cabinet and built-in base constructions, including traditional cut-out toe-kicks, you might find comprehensive explanations in detailed resources like our Cabinet and Built-in Building Basics post.
Opting for a stand-alone base in this scenario provides superior control over airflow and offers greater flexibility in design, especially when aiming for a custom furniture-style look. This approach allows for the creation of an enclosed air chamber that efficiently directs air from the floor vent into the room, preventing it from getting trapped within the cabinet structure. Let’s delve into the construction details.
Constructing the Base Frame: Precision Around the Vent

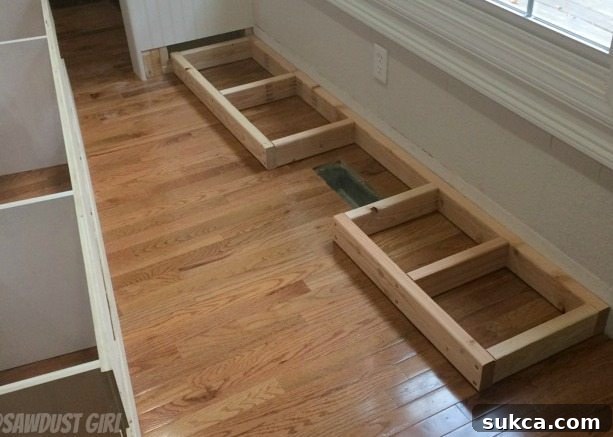

The primary structure of your cabinet base will typically be constructed from robust materials like 2x4s, providing the necessary strength and elevation. The key to successful vent integration lies in building the frame directly around the vent opening. Start by measuring the exact dimensions of your floor vent and its surrounding floor area. This precision is vital for creating a snug and effective enclosure. Cut your 2x4s to create a rectangular or square frame that will outline the perimeter of your cabinet or window seat. Then, cut additional 2×4 pieces to create an inner frame that meticulously surrounds the floor vent opening, leaving a slight clearance for easy placement over the vent.
It’s imperative to construct this internal frame so that it forms an unobstructed pathway for air. Secure all joints with wood screws and wood glue to ensure maximum stability. During this stage, you might find it beneficial to add an additional 2×4 brace directly behind the vent opening, acting as a sturdy back support for the vent and preventing any potential shifting once the base is in place. While this crucial reinforcement might occasionally be missed in photographic documentation, its structural importance cannot be overstated.
Adding a Platform Layer for Height and Airflow Management

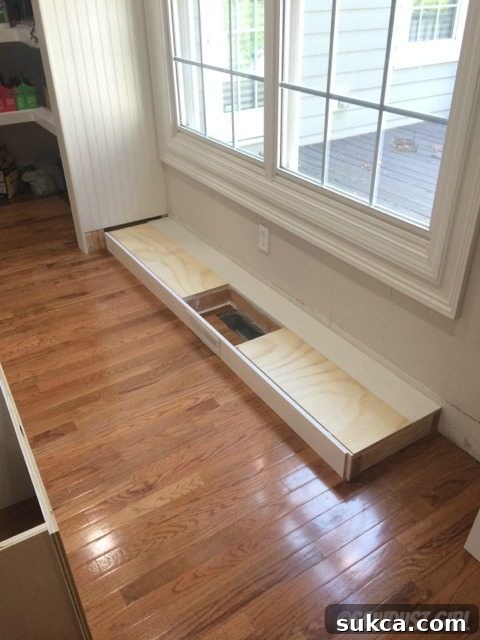

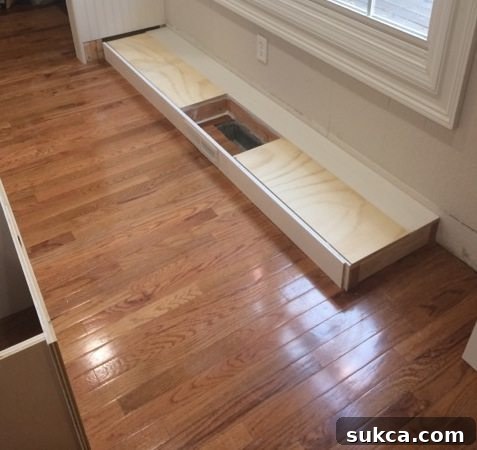

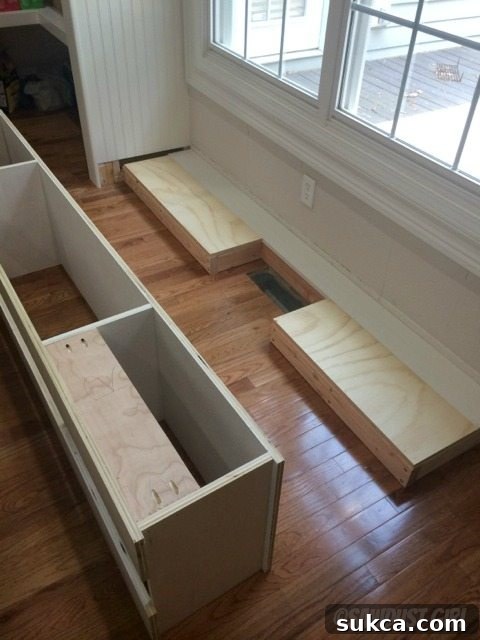

Once your 2×4 frame is built and secured, the next step involves adding a top layer, which serves multiple purposes. In this instance, a layer of 3/4″ plywood and MDF scraps was utilized. This top platform layer is essential for two main reasons: first, to build the base to the appropriate height, often to align perfectly with existing baseboards or other architectural elements in your room. This attention to detail ensures a cohesive and professional finish. Second, and crucially for vent integration, this layer creates a sealed air chamber. When securely attached to the 2×4 frame, it forms an enclosed pathway that effectively traps the air flowing from the floor vent below and forces it to exit through the designated vent opening in your cabinet base.
While this platform layer is highly recommended for creating an efficient air channel, it may not always be strictly necessary if your main cabinet or bench structure already has a full, sealed bottom. In such cases, the cabinet bottom itself would perform the function of trapping and directing the air. However, for a stand-alone base designed to accommodate a vent, this intermediate layer of plywood or MDF is invaluable for guaranteeing optimal airflow and preventing air from escaping into the internal cabinet space, thus maximizing the efficiency of your heating or cooling system.
Strategic Recessing for Decorative Toe-Kicks and Baseboards
A key design consideration, particularly for custom built-ins like a window seat, is the integration of decorative elements such as toe-kicks or baseboards. For this project, the bench base is intentionally built 4 inches narrower than the overall bench depth. This strategic recess is specifically designed to accommodate a decorative toe-kick cover that will be added later. This creates a visually pleasing shadow line and gives the built-in a furniture-like appearance, rather than a purely utilitarian box.
If your design calls for a standard baseboard to be installed directly on your cabinet or bench, the installation sequence would differ. In that scenario, you would typically install the main cabinet first, then carefully cut and fit your standard room baseboard around the cabinet, incorporating the vent opening as needed. However, since we are using a set-back decorative toe-kick cover for this project, it’s far more practical to address the vent and the decorative baseboard integration at this earlier stage. Working on the baseboard when it’s easily accessible, rather than trying to contort yourself on the floor to nail pieces into place later, significantly streamlines the installation process and ensures a much cleaner finish. This forward-thinking approach minimizes frustration and maximizes precision.
Precise Vent Cover and Baseboard Installation

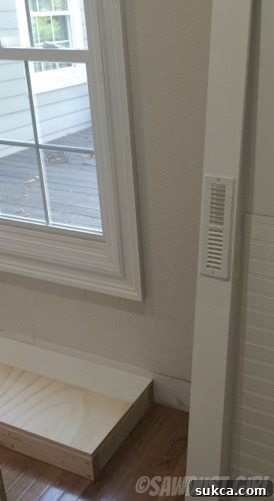

This stage is where your careful planning comes to fruition. With your robust base frame and platform securely assembled, carefully position the entire unit precisely where it will permanently reside. Once perfectly aligned, the next step is to accurately mark the area on your decorative toe-kick or baseboard where the vent cover will be installed. Before making any cuts, it’s crucial to select a vent cover that not only matches your aesthetic preferences but also fits seamlessly within the dimensions of your chosen baseboard or toe-kick material. This might require some careful shopping to find the perfect blend of form and function.

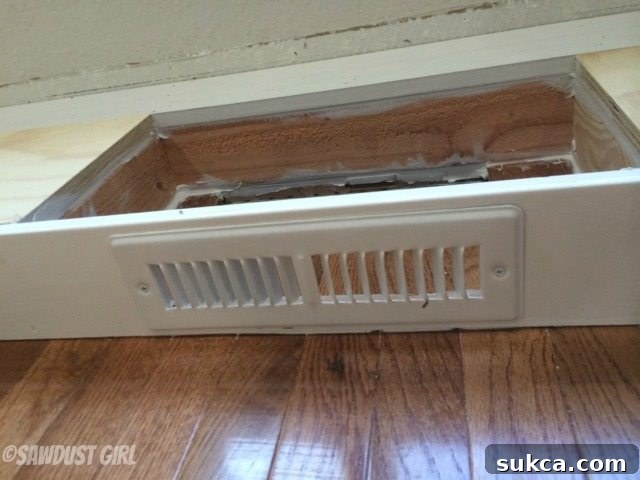

Once you’ve marked the precise location and dimensions for your vent cover, use appropriate tools, such as a jigsaw, to cut out the opening. Ensure the cut is clean and straight for a professional look. After the hole is cut, secure your chosen vent cover into place. Depending on the design of the vent cover, this might involve screwing it directly into the wood or using clips. With the vent cover firmly in position, you can then proceed to install your decorative baseboard or toe-kick onto the recessed base frame. A crucial tip for achieving a pristine finish: it is significantly easier and more effective to paint or pre-finish this decorative baseboard before its final installation. This allows for even coats and minimizes the risk of drips or smudges on adjacent surfaces.

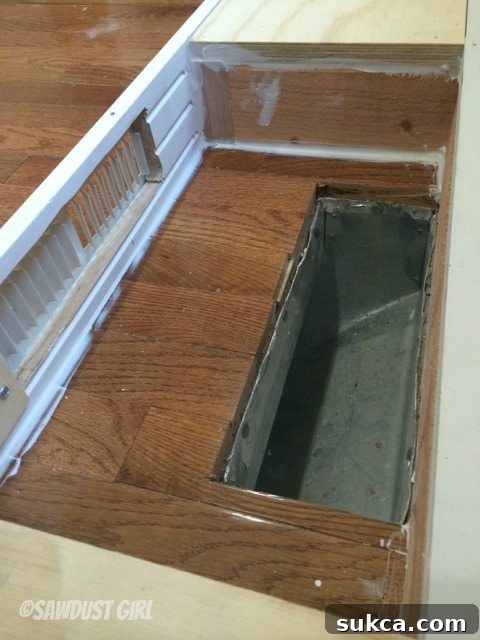

To further enhance the efficiency of your integrated vent, take the time to caulk all around the base of the inside of your newly formed air pocket. This sealing step prevents any air from escaping into the cabinet or through unintended gaps, ensuring that all airflow is directed out through the vent cover. While the principle of “least resistance” suggests air will naturally find its way out, a thorough caulking job guarantees maximum efficiency and prevents even minor air leaks, contributing to better temperature control and energy savings. Utilize a high-quality, paintable caulk for a smooth, finished appearance.
Understanding Airflow: Dispelling Common Misconceptions
A common concern when integrating a floor vent into a cabinet base is whether there’s a need for additional ductwork, such as flex tubes or extenders, to properly direct the air. The good news is, for most typical setups like this, you really don’t need them. This project demonstrates a fundamental principle of physics: air, like any fluid, will always take the path of least resistance. By creating a fully enclosed chamber within your cabinet base – with the floor vent at the bottom and a single, unobstructed opening (your vent cover) at the front – you naturally create the path of least resistance for the air.
The air from your HVAC system, pushed upwards from the floor vent, will fill the sealed chamber. With nowhere else to go, it will efficiently flow directly out through the installed vent cover into your living space. This elegant simplicity means you can achieve effective airflow without the added complexity, cost, or potential for air leaks associated with extra ducting. This intelligent design ensures that your room continues to receive the intended heating or cooling, maintaining comfort and system efficiency without compromise.
Essential Finishing Touches and Maintenance Tips
Once your cabinet base with the integrated floor vent is fully assembled and positioned, it’s time for the final steps to ensure longevity and optimal performance. Before the final installation of your main window seat, cabinet, or built-in structure onto this base, consider applying a coat of paint or sealer to the visible parts of the base and the decorative toe-kick. This not only enhances the aesthetic appeal but also adds a layer of protection against wear and tear.
One critically important, yet often overlooked, tip is to paint the inside walls of your base around the vent opening. This simple step serves a vital preventative function: it helps to prevent the growth of mold and mildew. Floor vents can sometimes introduce moisture into an enclosed space, and painting these internal surfaces with a moisture-resistant primer and paint provides an effective barrier. This ensures a healthier indoor environment and protects the structural integrity of your custom build over time.
After your window seat, cabinet, or built-in is securely installed onto the prepared base, you can finally “get on with life,” enjoying the functionality and beauty of your custom creation. Remember that ongoing maintenance, such as periodically cleaning the vent cover and checking for any obstructions, will help ensure your integrated floor vent continues to operate effectively for years to come. This project not only solves a common design challenge but also adds significant value and custom appeal to your home.
