Introduction to Cabinet Door Joinery with Beadlock

Building sturdy, beautiful cabinet doors is a hallmark of quality woodworking, and achieving strong, durable joints is paramount. Traditionally, this involves complex techniques like cutting mortise and tenon joints with chisels or specialized machinery. However, modern innovations have made this process accessible to more DIY enthusiasts and professional woodworkers alike. This comprehensive guide will walk you through the process of constructing elegant cabinet doors using the Rockler Beadlock Basic Starter Kit, a system renowned for its simplicity, accuracy, and robust joinery.

The Beadlock system offers an ingenious method for creating mortise and tenon joints quickly and accurately without the need for a dedicated mortising machine. It relies on a unique jig and special fluted tenon stock that interlocks within precisely drilled holes, creating an incredibly strong and stable joint. This method is particularly ideal for building cabinet doors, face frames, and other projects where reliable right-angle connections are essential. While a table saw or router table is typically needed to cut the groove for your panel, the Beadlock system streamlines the joinery, allowing you to focus on other aspects of your build.

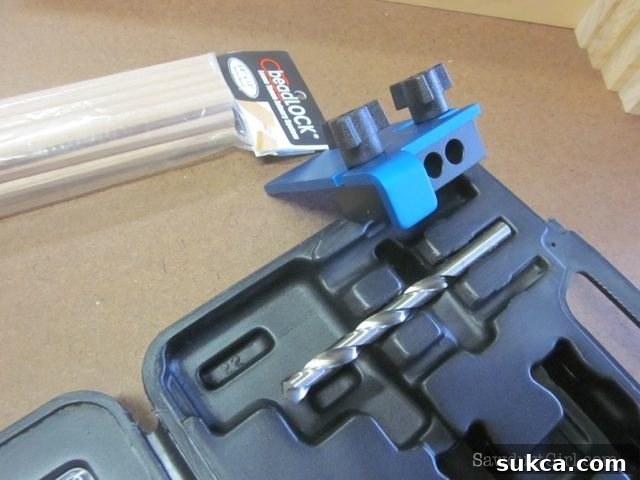

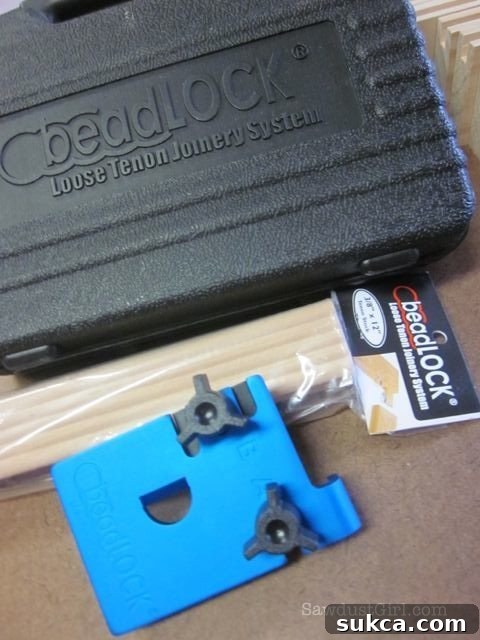

For this tutorial, we will be utilizing the 3/8″ drill bit and drilling jig included in the Beadlock Basic Starter Kit. You will also need to acquire the corresponding 3/8″ tenon stock. The versatility of the Beadlock system is noteworthy, accommodating three different tenon sizes to suit various material thicknesses. The 3/8″ size is perfectly suited for working with 3/4″ thick material, which is the standard thickness I consistently use for cabinet door construction. This ensures a deep, secure connection that will stand the test of time.

Phase 1: Planning and Preparing Your Door Components

Precision in planning is the foundation of any successful woodworking project. Before making a single cut, it’s crucial to accurately measure and conceptualize your cabinet doors.

1. Accurately Determine Door Dimensions

Begin by meticulously measuring your cabinet opening. For single doors, record the exact height and width. If you’re building double doors for a single opening, divide the total width of the opening in half to determine the width for each individual door. This ensures a balanced and aesthetically pleasing result.

A smart strategy for building inset doors is to make them slightly larger than the actual door opening. I recommend adding approximately 1/4″ to both the height and width of your door. This small margin provides a crucial “trim to fit” allowance, enabling you to compensate for any minor imperfections or out-of-square conditions in your cabinet opening. It’s much easier to trim a little off than to add wood back on!

To avoid confusion throughout the building process, let’s clarify the terminology for door parts:

• Rails: These are the horizontal components of your door frame.
• Stiles: These are the vertical components of your door frame.

2. Calculate Individual Door Part Sizes

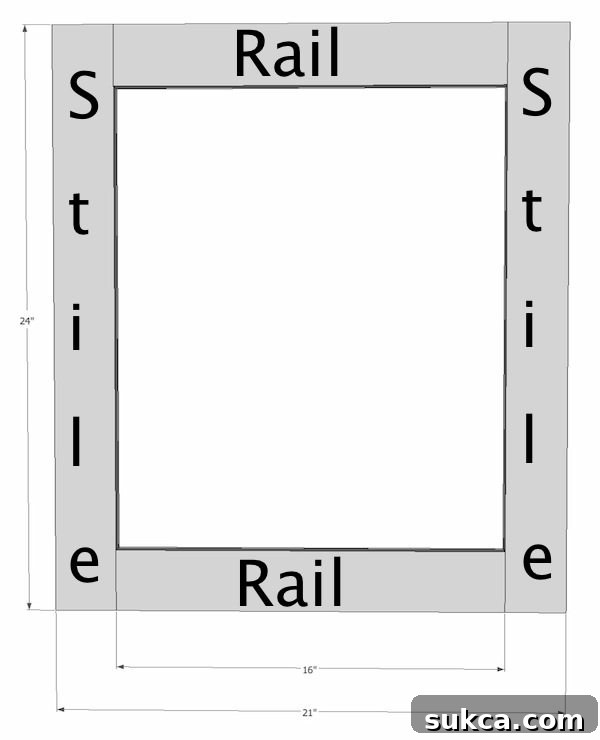

With your overall door dimensions established, the next step is to calculate the precise lengths of your rails and stiles. For the purpose of this tutorial, we will design our doors so that the stiles extend the entire height of the door. However, it’s a flexible design choice; you could alternatively have your rails span the full width of the door if that better suits your aesthetic or structural preferences.

For consistent and professional-looking doors, I consistently use 2 1/2″ wide stock for all my door frame components. This width provides excellent stability and a classic appearance. Since the stiles will run the full height of the door, the rails will fit between them. Therefore, to determine the length of your rails, you must subtract the combined width of the two stiles from the total desired door width. If each stile is 2 1/2″ wide, you will subtract 5″ (2.5″ x 2) from the overall door width.

Example: If your desired final door width is 21″, your rails will need to be 16″ long (21″ – 5″ = 16″).

Careful calculation at this stage prevents costly mistakes later on and ensures all your components fit together perfectly.

3. Selecting and Cutting Your Wood Stock

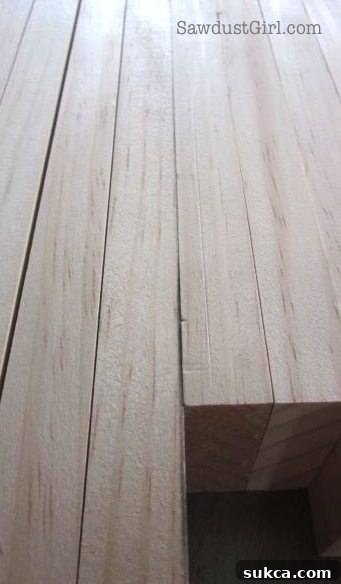

Now that your dimensions are finalized, it’s time to cut your raw material. The choice of wood species is important and largely depends on your desired finish:

• For Painted Doors: I highly recommend using Poplar. It’s a stable hardwood with a tight grain that takes paint exceptionally well, resulting in a smooth, professional finish. (Please note: The wood shown in my instructional photos is pine. This is often used for experimental projects due to its lower cost and softer nature, which puts less strain on tools. However, for a finished product, Poplar is superior for painting.)
• For Stained Doors: You have the freedom to choose any wood species that appeals to you, such as Oak, Maple, Cherry, or Walnut. Each offers unique grain patterns and coloring that will be beautifully highlighted by stain.

Cut all your determined door parts to their exact calculated lengths. Use a miter saw or table saw to ensure square, precise cuts, which are critical for strong joints and a professional appearance.

Phase 2: Milling the Panel Grooves (Dados)

With your door frame components cut to size, the next crucial step is to mill the grooves (dados) that will house your cabinet door panels. This process requires precision and strict adherence to safety protocols.

4. Marking Your Parts for Consistency

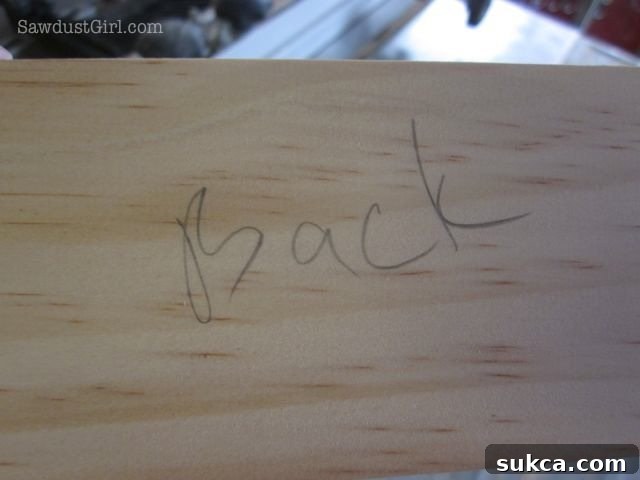

Before proceeding to the dado cutting, it is essential to mark all your door parts clearly. This might seem like a small step, but it’s incredibly important. You will be making multiple passes through your table saw or router table, and you want to ensure that each piece is run through in the exact same orientation every time. This guarantees that all your dados align perfectly and that your door frame comes together without twists or misalignments. Use simple pencil marks or a system of arrows to denote the ‘show’ face and the direction of feed.

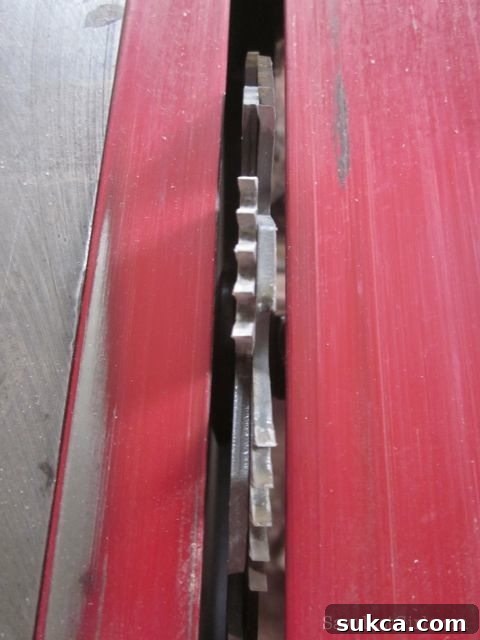

5. Setting Up Your Dado Blade or Router Bit

This step can be performed using either a table saw equipped with a dado blade set or a router table with an appropriate straight bit. For this guide, we’ll focus on using a table saw with a dado stack. Your dado needs to be wide enough to comfortably accommodate the panel material you plan to use. For instance, if you’re using beadboard that is slightly less than 1/4″ thick, a 1/4″ wide dado will provide the perfect snug fit without being too tight.

Regardless of whether you’re using a table saw or a router table, it’s highly recommended to make your cuts in several shallow passes rather than attempting to remove all the material in one deep cut. This approach significantly reduces strain on your tools’ motors, bits, and blades, extending their lifespan and ensuring cleaner, safer cuts. Begin by setting your rip fence to the desired distance from the blade/bit, and once set, do not move it. This ensures all dados will be consistently positioned. Then, gradually adjust the height of the cut with each pass.

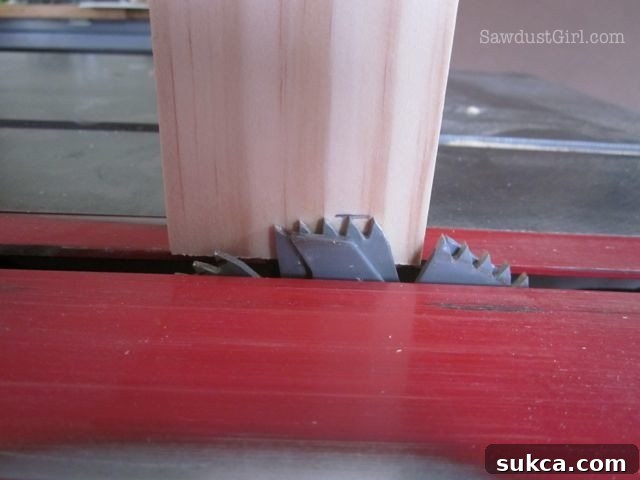

I aim for my dado to be approximately 3/8″ deep. To achieve this, I typically make two passes. For setting the final height, a simple and effective method is to mark a scrap piece of wood at 3/8″ and align it next to your blade, then raise the blade until it matches your mark.

⚠️ CRITICAL SAFETY WARNING: Exercise EXTREME CAUTION when cutting your dados. Always use featherboards or construct a custom jig to securely hold your door parts down against the fence and table. This minimizes the risk of kickback and keeps your hands safely away from the spinning blade or bit. Never freehand these cuts. ⚠️

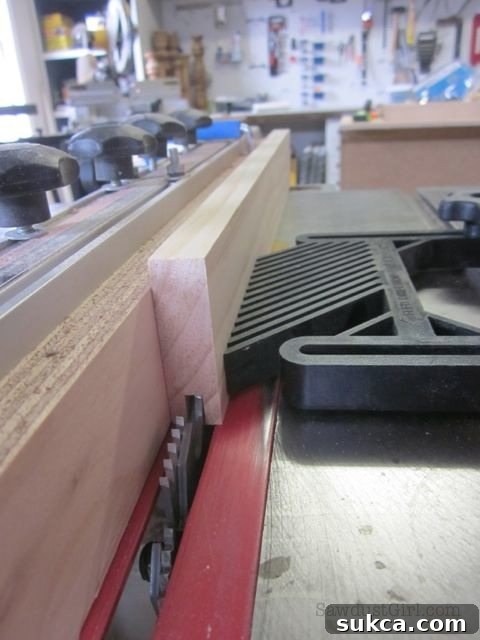

6. Executing the Dado Cuts

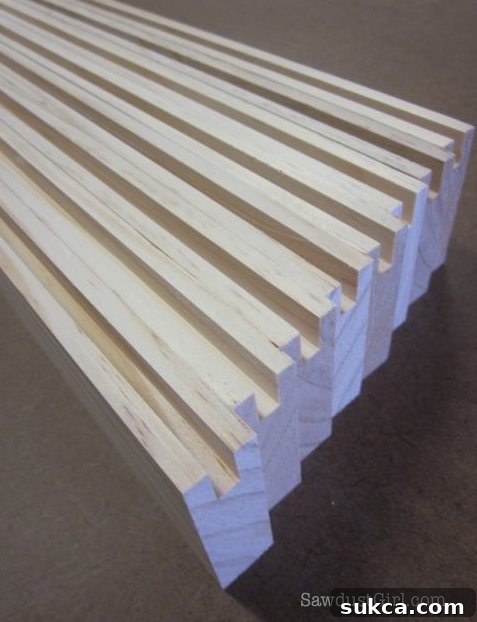

The dado groove needs to run the entire length of your rails. For the stiles, ideally, you want the dado cut to start and stop about 1″ or 2″ from each end. This prevents the dado from being visible on the outside edges of your door frame once assembled, creating a cleaner, more finished look, especially if you are using inset panels or a floating panel design.

However, woodworking often involves learning from mistakes. If you forget to stop your dado cuts short on the stiles, or if your equipment doesn’t allow for a safe plunge/stop cut, don’t worry! This is a common occurrence and easily rectifiable. You can simply cut small plugs (e.g., 1/4″ x 3/4″ pieces of matching wood) and glue them into the exposed dado ends after the door is built. Once sanded flush, these plugs will be virtually invisible, especially if the door is painted. There’s always a solution in woodworking!

Phase 3: Creating Mortise and Tenon Joints with Beadlock

The Rockler Beadlock system truly shines in this phase, making the creation of strong, interlocking mortise and tenon joints remarkably straightforward.

7. Marking Tenon Positions

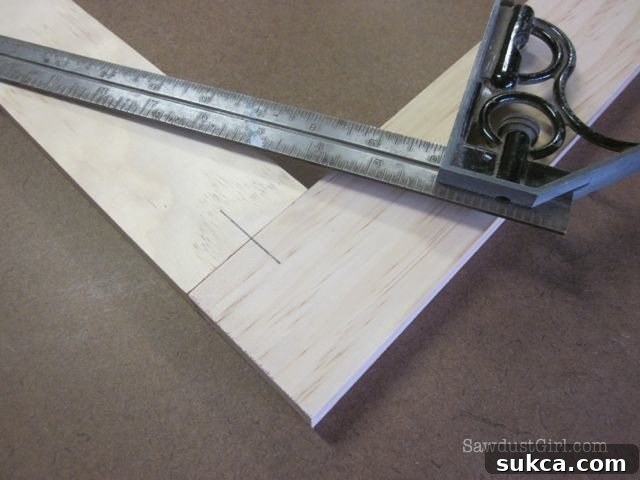

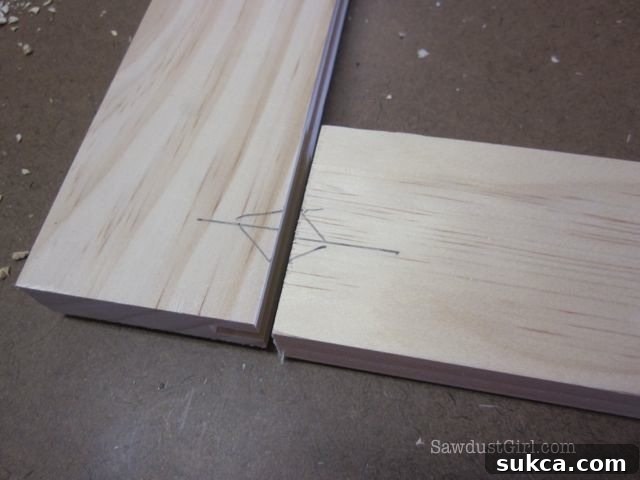

Lay out your door parts in their final assembled configuration on a flat surface. This helps visualize the joints and ensures you’re marking the correct locations. Carefully draw a line across the mating faces of each rail and stile where you intend to position the center of your tenon. This line will serve as the reference point for aligning the Beadlock jig.

To avoid any confusion during assembly, it’s crucial to label the right and left sides of your door frame components differently. For example, use an ‘R’ for right and ‘L’ for left, or an ‘A’ for the top right joint and ‘B’ for the top left, and so on. This system ensures that after drilling all the mortises, you can confidently reassemble the correct parts in their intended positions. Precision in marking now saves headaches later.

With your parts clearly marked, you’re now ready to drill the mortises that will perfectly accept the Beadlock tenon stock.

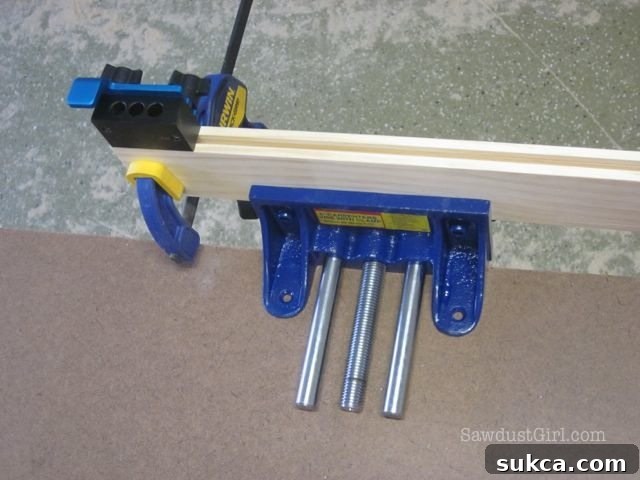

8. Clamping the Beadlock Jig

The Beadlock jig is the heart of this system. Securely clamp the jig onto your door part, carefully aligning your previously drawn mark with the designated alignment indicator on the jig. Ensure the jig is firmly clamped to prevent any movement during drilling, which could compromise the accuracy of your mortises.

A sturdy vise can be an invaluable asset at this stage. I personally found an inexpensive workbench vise (like those available from Harbor Freight Tools) to be an indispensable “extra set of hands,” securely holding the workpiece while I positioned and clamped the jig.

9. Setting Mortise Depth

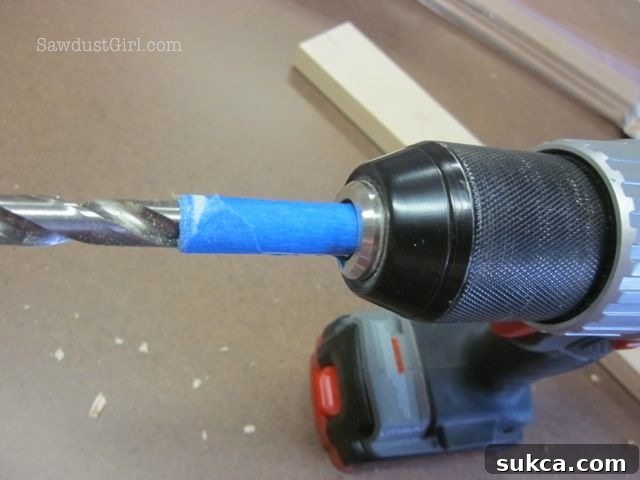

Before drilling, decide on the desired depth for your mortises. A common and robust depth for 3/4″ stock is 1 1/2″ into each mating piece. This means when assembled, your total tenon length will be 3″ (1 1/2″ into the rail + 1 1/2″ into the stile), providing ample surface area for glue adhesion and structural integrity. To set your drill bit depth, a simple and effective method is to use painter’s tape wrapped around the drill bit as a depth stop. Measure 1 1/2″ from the tip of the bit and wrap the tape securely. This visual indicator ensures consistent drilling depths across all your mortises.

10. Drilling the Mortises

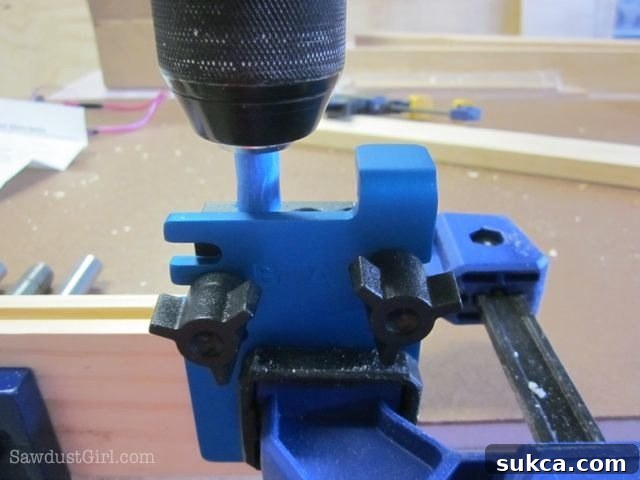

The Beadlock jig features two distinct settings, typically labeled ‘A’ and ‘B’. You will drill holes in each door piece using both settings. This unique two-position drilling creates the fluted, interlocking mortise shape that is characteristic of the Beadlock system.

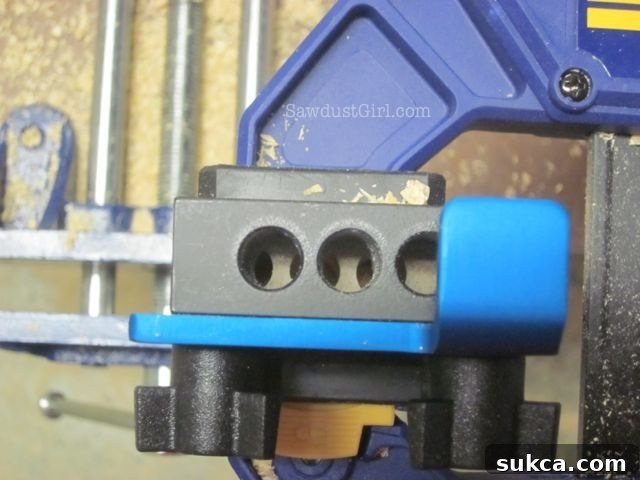

The general instructions advise starting by drilling all the necessary holes in position ‘A’. Once those are complete, loosen the knobs on the jig, slide it to the ‘B’ position (or flip the workpiece if the jig design requires it, always following the manufacturer’s specific instructions), and then drill the corresponding holes for that setting. This sequential drilling creates the characteristic “racetrack” shaped mortise that perfectly accepts the fluted tenon stock.

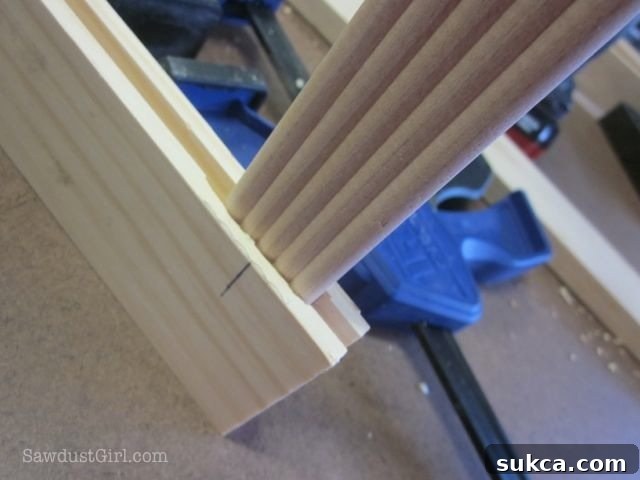

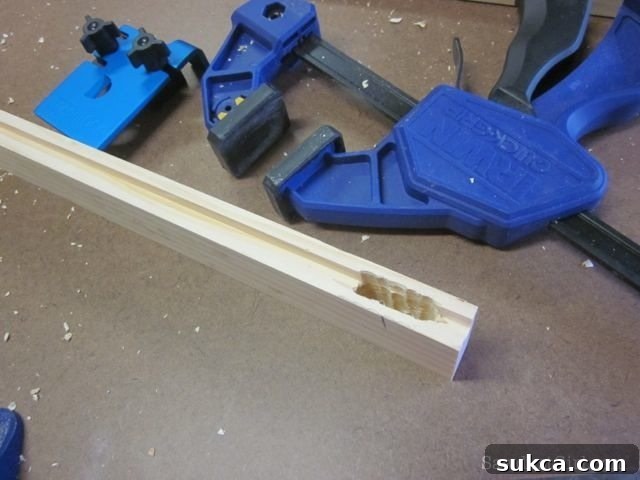

After completing all five holes (typically, though the number can vary slightly based on tenon width and jig design) for both ‘A’ and ‘B’ settings, your mortise will look like the example below. This precisely shaped cavity is ready for the Beadlock tenon.

It’s always a good practice to perform a dry fit with a piece of tenon stock to confirm that the mortise has been drilled correctly and the tenon fits snugly. A proper fit should be tight but not require excessive force. Success!

11. Cutting Tenon Stock and Preparing for Assembly

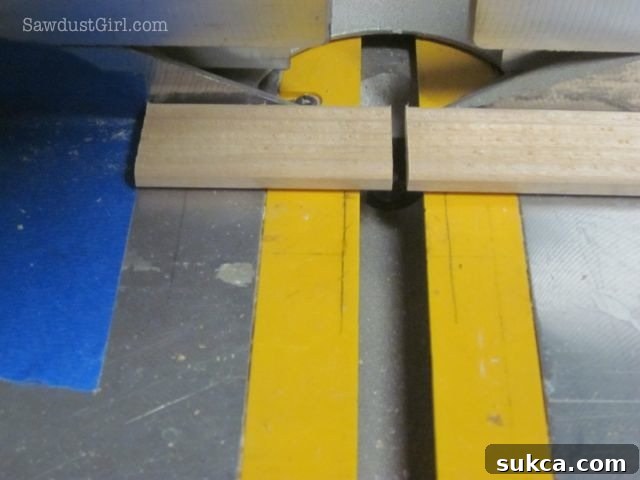

Once your mortises are perfect, it’s time to cut your Beadlock tenon stock to the appropriate lengths. Since you drilled your mortises 1 1/2″ deep into each part, you’ll need tenons that are a total of 3″ long. Using a miter saw, cut multiple pieces of tenon stock to this exact length. A helpful tip for efficiency is to attach a piece of painter’s tape to your miter saw fence as a stop block. This allows you to make repetitive, identical cuts without having to measure and mark each individual tenon piece, saving significant time and ensuring consistency.

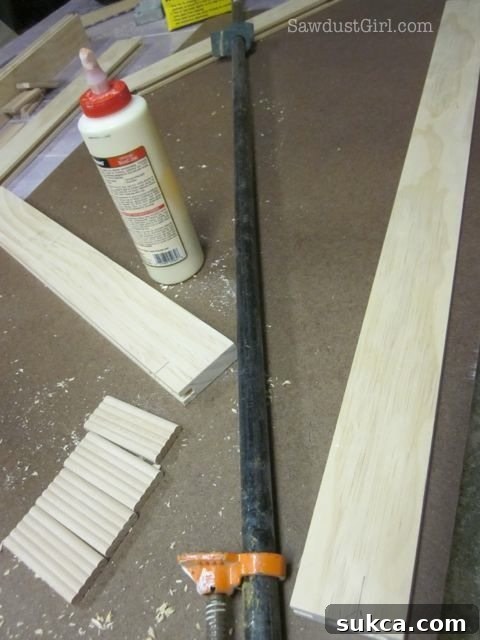

For door assembly, you will need a reliable clamping system. Bar clamps are an excellent and cost-effective solution for woodworking. You can purchase standard plumbing pipes in various lengths from any home improvement store and then buy the dedicated clamp heads (often around $15 each) that fit onto these pipes. This allows you to use the same set of clamp heads on different pipe lengths, eliminating the need to buy an expensive collection of fixed-size clamps for every project. Ensure you have enough clamps and that they are long enough to span the full width or height of your cabinet doors.

Phase 4: Assembly and Finishing Touches

This is where your meticulously prepared components finally come together to form a beautiful cabinet door.

12. Gluing the Tenons

Apply a high-quality wood glue (such as Titebond II or III) to the flutes of your tenon stock and insert them into the mortises of the first set of door parts (either the rails or the stiles, depending on your assembly order). Ensure adequate glue coverage for a strong bond. The fluted design of the Beadlock tenons, combined with the glue, creates an incredibly robust mechanical and adhesive connection.

13. Strategic Door Assembly

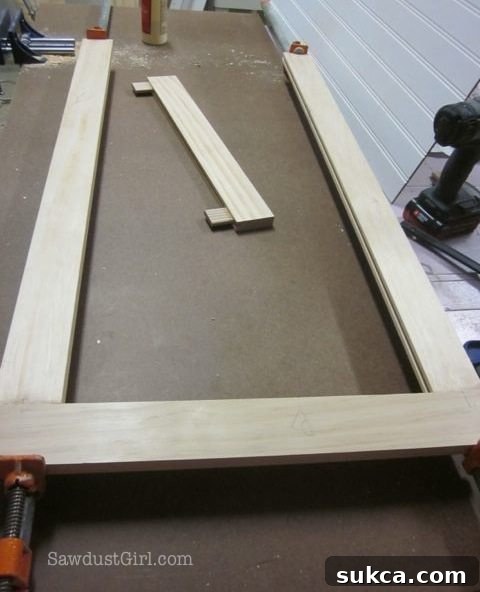

This step is critical for doors with floating panels. You need to assemble three of your door frame parts first, creating a “U” shape. This configuration allows you to easily slide your panel into the dado grooves before adding the final door part. Once the panel is in place, you can then glue and attach the fourth and final door component.

A common pitfall to avoid: If you try to glue all four frame parts together without first inserting the panel (i.e., if you completely close the frame), your tenons will protrude into the door opening where the panel should go. This will make it impossible to insert your panel without disassembling the frame or causing significant stress, potentially breaking your newly glued joints. Always remember the correct sequence for floating panel doors!

In the accompanying picture, the door is shown assembled with the rails extending the full length, and the stiles are sandwiched between them. This is an example of one possible assembly order, aligning with our initial design choice where stiles define the full height.

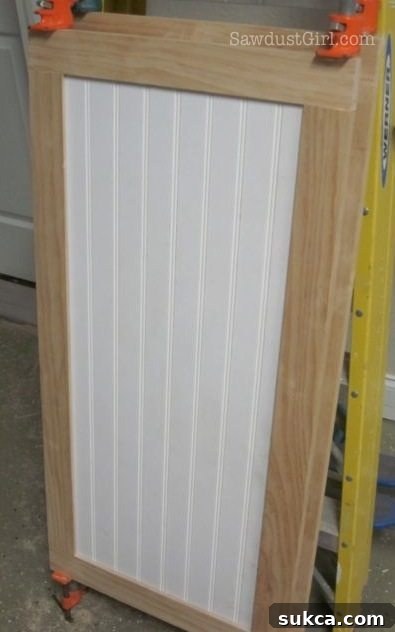

14. Inserting the Panel and Final Clamping

With three sides of your door frame assembled, measure and cut your chosen panel material to size. The exact dimensions of your panel will depend on the depth of your dado grooves and the overall inner dimensions of your frame. Carefully slide the panel into the dado grooves of the assembled “U” shape. Once the panel is properly seated, apply glue to the remaining mortise and tenon joints and attach the final door part. Clamp the entire assembly securely, ensuring all joints are tight and square. Allow the glue to fully cure according to the manufacturer’s recommendations before proceeding to the next steps.

15. Attaching Hinges, Fitting, and Finishing

Once the glue has dried, your cabinet door is ready for hinges and final fitting. If you’ve planned ahead (as detailed in my previous guide on door options and hinge selection), you will have already acquired the appropriate hinges for your inset doors. Attach these hinges to your new door.

Now comes what I call the “fiddle factor” – the process of achieving that perfect fit within your cabinet opening. Because you wisely built your doors slightly oversized, you now have the necessary allowance for trimming. You might use a combination of tools for this: a table saw for straight, precise trims, a hand plane for subtle adjustments and chamfers, or a sander for fine-tuning and smoothing edges. The goal is to trim the door until it fits snugly within the opening while maintaining an even, consistent gap around all sides.

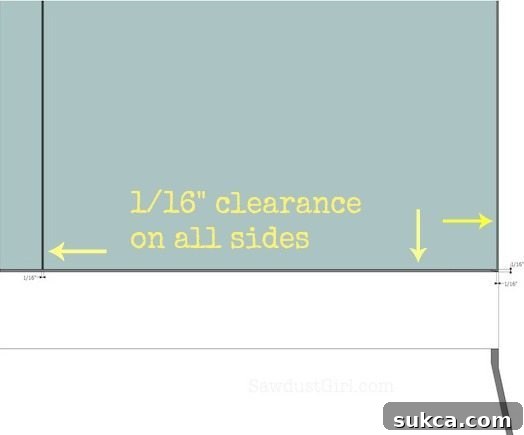

Optimally, you’ll aim for about 1/16″ (approximately 1.5mm) clearance on all sides of your door. However, this can be an ambitious target, especially with older or less-than-perfect cabinet openings. It’s perfectly acceptable if your clearance gap is slightly larger, as long as you strive to make that gap as equal and consistent as possible around the entire perimeter of the door. Consistency is key for a professional appearance.

After the door is perfectly fitted, it’s the ideal time to apply your chosen paint or stain. If you were to finish the door beforehand, you would inevitably have to touch up the edges that were trimmed during the fitting process. By waiting until after fitting, you ensure a continuous, uniform finish on all visible surfaces. That’s my two cents on the matter!
