Seamless Board & Batten Installation: Mastering Electrical Outlets and Light Switches

Wall treatments have a unique ability to transform a room, injecting character, depth, and a touch of bespoke charm. Among my personal favorites, the classic Board & Batten style stands out. Its clean lines and architectural elegance can elevate any space, from a cozy bedroom to a formal dining area. In my own home, I’ve embraced this versatile treatment, featuring three distinct variations across different rooms, each bringing its own unique aesthetic to life.



However, anyone who has embarked on a DIY Board & Batten project knows that even the most meticulously planned layouts can present unexpected challenges. One of the most common hurdles, and frankly, a recurring frustration for many homeowners and DIY enthusiasts, is encountering electrical outlets or light switch plates that inconveniently land halfway on and halfway off a newly installed batten board.

The Common Conundrum: Outlets and Light Switches in Board & Batten

Despite careful measurements and strategic board placement, it seems almost inevitable that at least one electrical box will end up straddling a board. This situation immediately begs the question: What’s the best way to handle it? Do you compromise the integrity of your board layout, or do you find an elegant solution that maintains both function and aesthetics?

I’ve observed various approaches to this particular dilemma. Some individuals opt to meticulously cut the batten board around the outlet, aiming for the electrical plate to sit flush with the wall, creating a recess in the board itself. While this method can work, it often results in a visible seam or an uneven finish around the outlet plate. Personally, I find this approach can detract from the crisp, clean lines that define a well-executed Board & Batten treatment. My preferred method, which I’ve refined over several projects, involves allowing the entire outlet or switch to “pop out” slightly, sitting proud of the batten board. This technique, when done correctly, offers a far more polished and intentional look, making the electrical fixtures feel integrated rather than awkwardly interrupted by the new wall feature.



A Step-by-Step Guide to Handling Outlets with Board & Batten

If you’re looking for a clean, professional finish for your Board & Batten installation, especially around tricky electrical outlets, then my method is for you. It ensures your power sources remain easily accessible and aesthetically pleasing. Here’s exactly how I achieve this seamless integration:

Step 1: Prioritize Safety – Turn Off the Electricity

Before you begin any work involving electrical outlets or wiring, safety is paramount. The very first and most crucial step is to locate your home’s main electrical panel and turn off the power to the specific circuit you’ll be working on. Use a voltage tester to double-check that the outlet is indeed de-energized. This simple precaution protects you from potential electrical shocks and ensures a safe working environment for the duration of your project. Never skip this step!

Once the power is confirmed off, you can safely remove the existing outlet or switch plate and carefully pull the electrical device slightly away from the wall, exposing the electrical box and wires. This gives you clear access to the surrounding area for your cuts.

Step 2: Precisely Cut the Batten Boards Around the Electrical Box

With the electricity off and the electrical device pulled forward, you’ll need to cut out the sections of your batten board that overlap the electrical box. The goal here isn’t to create a perfect recess for the outlet itself, but rather to create a clean opening that allows the *entire* electrical box and its device to pass through the batten board. This means you’ll be cutting a rectangular opening in the batten board(s) that aligns perfectly with the dimensions of the electrical box.

Measure carefully and mark the outline of the electrical box onto your batten board. Use a jigsaw or an oscillating multi-tool for precise cuts. Take your time to ensure clean, straight lines. If multiple batten boards are involved in covering a single box, you will make corresponding cuts in each piece. The objective is to ensure that when the batten boards are installed, there’s an unobstructed path for the electrical box to protrude.

Remember, the inside edges of these cuts don’t need to be absolutely pristine, as they will be mostly hidden by the subsequent steps. However, a clean initial cut certainly makes the following steps easier.



Step 3: Crafting the “C”-Shaped Trim Piece for a Polished Edge

Once your batten boards are securely in place around the exposed electrical box, you’ll notice an exposed gap on the side where the batten meets the electrical box. To bridge this gap and create a finished look, you’ll need to fashion a small “C”-shaped piece of wood. This piece will effectively extend the batten board’s edge, creating a continuous border around the electrical box.

Use a piece of trim material that matches the thickness of your batten boards. Carefully measure the width of the gap and the height of the electrical box. Cut a rectangular piece of wood, then precisely cut out the inner section to create the “C” shape. This “C” piece should snugly fit around the exposed side of the electrical box, effectively filling the space between the electrical box and the batten board.

Don’t be overly concerned with the precision of the *inside* cut of the “C” piece, as this edge will ultimately be concealed by the outlet faceplate. However, pay close attention to the *outside* cuts. These edges will be visible, so strive for clean, straight lines. A great tip is to use your outlet plate as a template to help achieve an even and consistent reveal around all sides of where the outlet will eventually sit. This attention to detail ensures a professional, seamless transition from your batten board to the outlet.

Step 4: Painting and Finishing Your Walls

With all your batten boards and custom “C”-shaped trim pieces installed, sanded, and securely fastened, it’s time to complete the aesthetic transformation. Apply primer and then paint your Board & Batten walls and any trim pieces. Choose a color that complements your room’s decor, ensuring all exposed wood and wall surfaces are uniformly coated. Allow adequate drying time as per the paint manufacturer’s instructions. A smooth, even paint job is essential for the final polished look of your wall treatment.

Step 5: Installing the Essential Outlet Extender

After your paint has fully dried, you’re ready for the next critical step: installing an outlet extender. Because your electrical outlet or switch will now sit proud of the original wall surface due to the added thickness of the batten boards and trim, a standard outlet plate won’t fit correctly. An outlet extender is a simple, inexpensive solution that brings the electrical box forward, flush with your new wall surface.

You can find these handy devices at almost any major home improvement or big box store in the electrical aisle. They are typically plastic spacers that fit behind the outlet, bridging the gap created by your wall treatment.



Step 6: Securing the Outlet and Attaching the Faceplate

Now, carefully guide the outlet or switch and its wires through the opening of the extender as you slide the extender into place, pushing it against the batten board. The extender should sit flush with your new wall surface, providing a stable base for the electrical device.

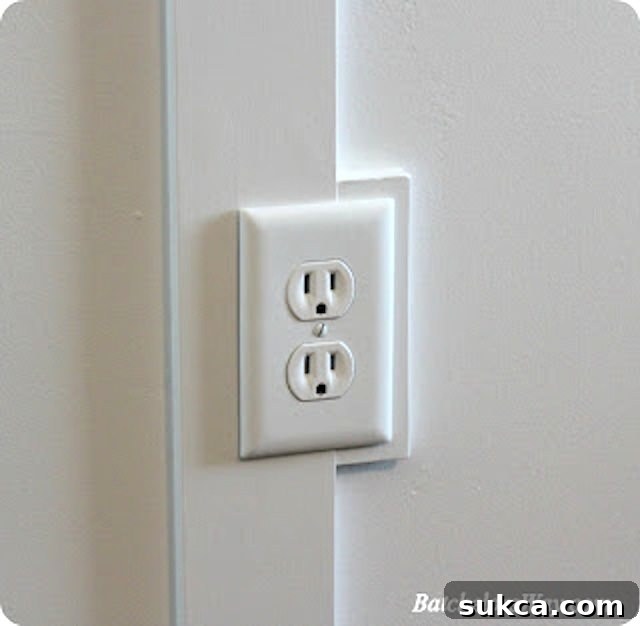

Most outlet extenders come with extra-long screws. Use these longer screws to re-attach the electrical outlet or switch firmly to the now-extended electrical box. The longer screws ensure a secure connection despite the added depth. Once the outlet is tightly secured, you can re-install your standard outlet faceplate. The plate will now sit perfectly flush with the batten board, creating a clean, integrated finish.

Why This Method Is Superior for Your DIY Wall Treatment

Opting to extend your electrical outlets rather than recessing them into your batten boards offers several distinct advantages:

• Aesthetics: This method results in a much cleaner, more intentional look. The outlet plate sits perfectly flush with your new wall surface, maintaining the continuous, elegant lines of your Board & Batten. It avoids the awkward shadows or uneven cuts that can sometimes plague recessed installations.
• Safety: By ensuring the electrical box is brought forward, you maintain proper wiring depth and reduce any strain on the electrical connections. Outlet extenders are designed to meet safety standards and provide a secure mounting for your devices.
• Ease of Installation: While it involves a few extra steps, cutting a precise opening for the entire electrical box and then using an extender is often less frustrating and more forgiving than trying to create a perfect, shallow recess in your batten board.
• Versatility: This technique works equally well for light switches, dimmer controls, and any other wall-mounted electrical fixtures, ensuring a consistent finish throughout your room.
• Professional Finish: The outcome is a high-quality, professional appearance that truly elevates your DIY project. It demonstrates attention to detail and a commitment to excellence.

Essential Tools and Materials for This Project

To successfully execute this outlet handling method, you’ll need a few key tools and materials:

• Safety Gear: Safety glasses, gloves.
• Voltage Tester: Crucial for verifying that the power is off.
• Measuring Tape and Pencil: For accurate marking.
• Jigsaw or Oscillating Multi-tool: For precise cuts in the batten boards.
• Sanding Block or Sandpaper: To smooth cut edges.
• Caulk and Caulk Gun: To fill any small gaps and create seamless transitions.
• Wood Filler: For minor imperfections in the wood.
• Paint and Primer: To finish your Board & Batten.
• Outlet Extenders: One for each outlet/switch requiring extension. Ensure you get the correct depth (e.g., 1/4 inch, 1/2 inch) to match your batten board thickness.
• Longer Screws: Typically included with outlet extenders, but good to have extras.
• Screwdriver: To secure the outlet and faceplate.

Pro Tips for a Flawless Finish

• Measure Twice, Cut Once: This age-old adage is particularly true when dealing with electrical cutouts. Precision here saves headaches later.
• Test Fit Everything: Before final installation and painting, dry-fit your batten boards, “C”-shaped pieces, and even the outlet extender to ensure everything aligns perfectly.
• Caulk for Perfection: Don’t underestimate the power of a good caulk bead. It can hide minor imperfections and create a truly seamless look between your batten boards and the walls, as well as around your “C”-shaped trim piece.
• Patience is Key: Rushing through any DIY project, especially one involving precision and electrical components, can lead to mistakes. Take your time, follow each step carefully, and enjoy the process.
• Consider Different Finishes: While a crisp, painted finish is traditional, explore options like stained wood or even wallpaper within the batten panels for added design flair.



Conclusion: Achieve a Professional Board & Batten Look

Dealing with electrical outlets during a Board & Batten installation doesn’t have to be a daunting task. By following this method of extending the outlet, you can achieve a professional, polished finish that enhances the beauty of your wall treatment without compromising functionality or safety. The result is a seamless integration that truly makes your DIY efforts shine.

Ready to tackle your next home improvement project? Come on over and follow along with my master bedroom remodel, which we’ve just started. There are always new ideas and challenges to explore!
