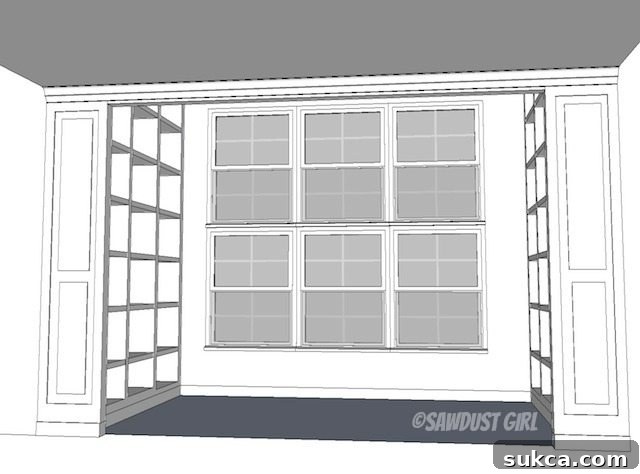

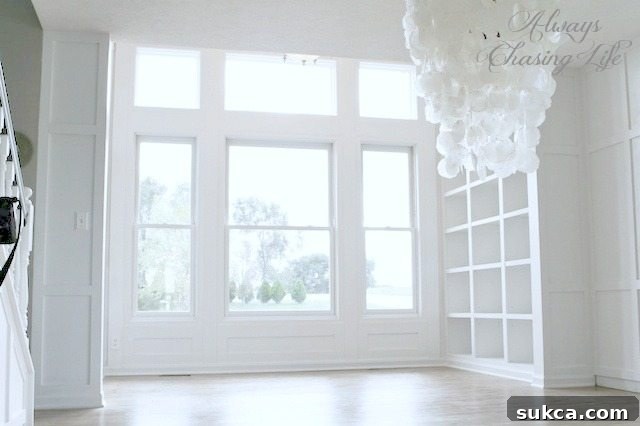

Transforming a space into a personalized sanctuary often begins with intelligent storage solutions, and nothing quite achieves that bespoke look and feel like custom built-in bookshelves. Today, we’re diving deep into the comprehensive plans that brought Fawn’s breathtaking library to life, showcasing how a single, adaptable design can cater to even the most unique architectural nuances. Fawn’s impressive library, a true testament to dedicated craftsmanship, features towering bookshelves reaching approximately 18 feet high on both sides of her room.
What makes this project truly remarkable is its versatility. Despite a slight 1/2-inch variation in room width between the two sides, the core bookshelf plan remained consistent, requiring only minor adjustments to achieve a perfectly tailored fit. Fawn and Jerry meticulously constructed three primary bookshelf units for each side, forming the robust foundation of their expansive library. To maximize every inch of vertical space and complete the grand scale of the design, an additional set of six 18-inch tall boxes were custom-built to sit atop these lower units. These upper sections, while simpler in design, seamlessly integrate, extending the library’s impressive height without compromising aesthetics or structural integrity. This project serves as a fantastic blueprint for anyone looking to create custom, floor-to-ceiling built-in shelving that not only provides ample storage but also elevates the entire ambiance of a room, turning it into a focal point of sophisticated design and literary delight.
Crafting Your Dream Built-in Bookshelves: A Comprehensive Guide

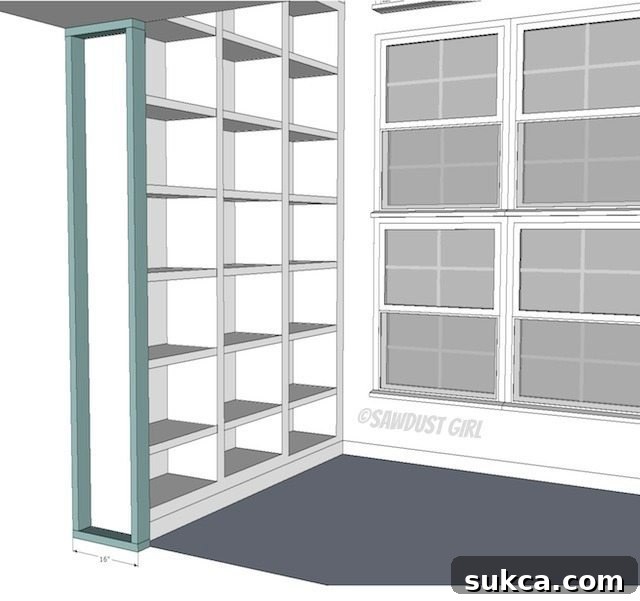

The secret to achieving that coveted “built-in” appearance lies in meticulous planning and construction, especially concerning the structural elements that frame your shelves. For Fawn’s library, the vertical columns that flank and support the bookshelves were ingeniously designed to mimic architectural pillars. This was accomplished by framing out robust 2×4 “walls,” essentially creating mini-stud walls that provide substantial anchoring points. These frames were securely fastened into both the ceiling and floor joists, ensuring unparalleled stability and safety for the exceptionally tall units. Once the basic framework was in place, it was meticulously sheathed with 3/4-inch Medium Density Fiberboard (MDF), chosen for its smooth surface and excellent paintability. The final touch involved trimming these columns with 1×3 lumber, adding a classic, finished edge that truly defines the built-in aesthetic. A fresh coat of paint seamlessly integrated these columns with the room’s decor, making them appear as if they were always part of the house’s original structure. This method not only offers exceptional support but also allows for a highly customized and refined finish, making this an accessible yet professional-grade DIY project.
Building a Solid Foundation: The Bookshelf Base

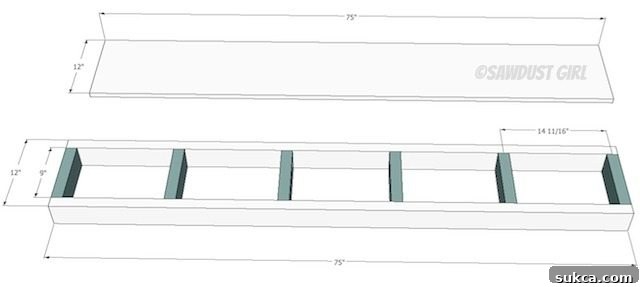

Every great structure begins with a strong foundation, and your built-in bookshelves are no exception. The entire unit will rest upon a sturdy 2×4 base, a critical component for both stability and aesthetic integration. When constructing this base, a key professional tip is to build it slightly narrower than the finished width of your bookcase carcass. This strategic design choice addresses potential imperfections in your walls, as very few walls are perfectly plumb or straight. By making the base slightly recessed, you prevent it from protruding beyond the bookshelf, which would otherwise detract from the seamless “built-in” look.
The height of your base is also a crucial consideration and should be determined by the existing baseboards in your room. The goal is for your room’s baseboard to overlap the bottom faceframe rail of your built-in bookshelf by about 1/4 to 1/2 inch. This intentional overlap is fundamental to the illusion that the bookshelf is an integral part of the wall, rather than a piece of furniture placed against it. Achieving this precise fit involves careful measurement of your baseboards and possibly using shims to ensure the base is perfectly level across its entire length. A level base is paramount for the entire structure to remain plumb and square, preventing any leaning or wobbling. Using a quality level and accurate cutting tools will ensure your base is not just functional but also contributes significantly to the polished, professional finish of your custom built-ins.

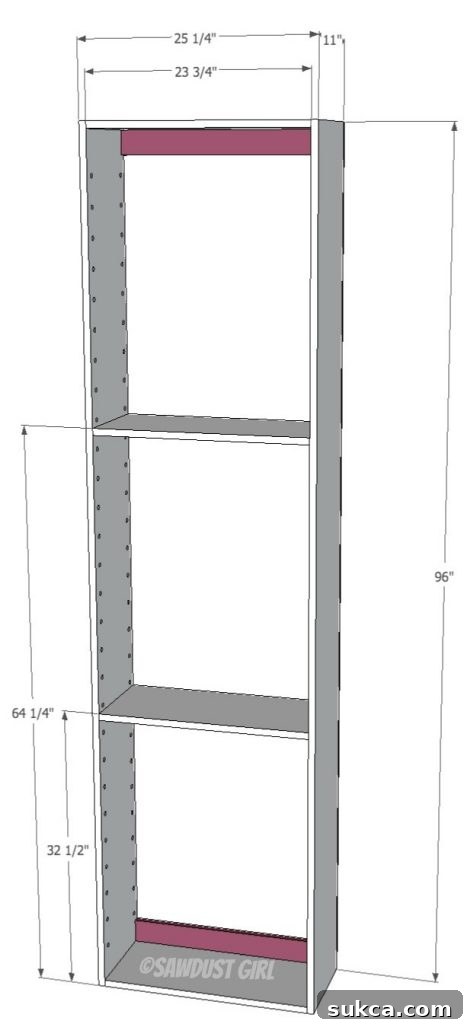

For the main bookshelf carcass, stability is paramount, especially when building tall units. Each primary bookshelf section, designed to be a substantial component of Fawn’s 18-foot library, incorporates a top, a bottom, and at least two fixed shelves. These fixed shelves are not merely for storage; they are integral structural elements that rigidly hold the tall side panels in perfect alignment, preventing any bowing or racking over time. This foundational structure ensures the long-term integrity of your built-ins, especially important when they will be loaded with books and decorative items.
Beyond these essential fixed shelves, the design incorporates the flexibility of adjustable shelving. By carefully drilling shelf pin holes along the interior sides, you gain the freedom to customize shelf height to accommodate everything from oversized art books to small paperbacks, or even display unique collectibles. For precise and consistent shelf pin holes, which are crucial for stable, level adjustable shelves, we highly recommend utilizing a drilling template. This simple tool will save you countless hours and ensure professional results, making future adjustments effortless and precise.
Assembling the Bookcase Carcass: Precision and Stability
The construction of the bookcase carcass requires careful attention to detail to ensure both strength and longevity. Here’s a breakdown of the key steps and considerations:
- Fixed Shelves: The top, bottom, and any designated fixed shelves are the backbone of your bookcase. They should be secured with a combination of high-quality wood glue and 1 3/4-inch #8 wood screws. Applying wood glue to all mating surfaces before driving screws creates an incredibly strong bond that far surpasses what fasteners alone can achieve. Since the sides of these bookshelves will be concealed by the architectural columns or adjacent units, you don’t need to worry about counter-sinking and hiding the fastener heads, which simplifies the assembly process. However, always pre-drill pilot holes to prevent wood splitting, especially in MDF or plywood edges. Clamp the pieces securely while the glue dries for optimal adhesion.
- Wall Attachment Cleats: To permanently secure your towering bookshelves to the wall and prevent any risk of tipping, especially in homes with children or in earthquake-prone areas, 3/4-inch thick cleats are essential. These cleats should be attached to the back top portion of your bookcase unit. You can secure them with wood glue and either pocket hole screws from the back or by screwing directly from the sides using 1 3/4-inch wood screws. Once the bookcase is in position against the wall, these cleats provide the critical attachment points to the wall studs. Use robust 3-inch cabinet screws to drive through the cleats and deep into the wall studs, ensuring a rock-solid, secure installation. It is absolutely crucial that these cleats are made from either solid plywood or hardwood. MDF, while excellent for smooth surfaces, does not possess the necessary strength or screw-holding power for structural components like wall cleats. Plywood or hardwood will reliably withstand the forces exerted by the screws and the weight of the loaded shelves. Always use a stud finder to locate and mark your wall studs accurately before drilling.

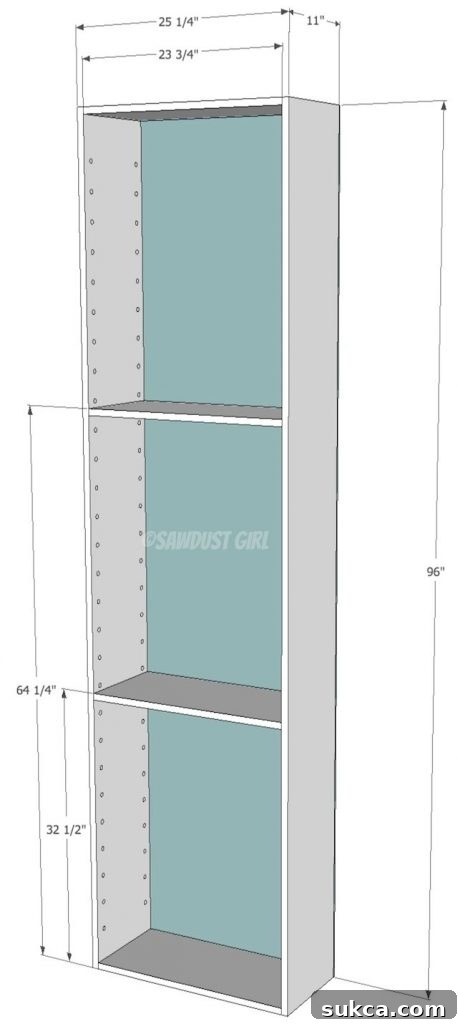

After the main cabinet carcass has been assembled and is perfectly square, the next crucial step is to attach the back panel. This 1/4-inch piece of material—whether hardboard, beadboard, or plywood—serves a vital dual purpose. Firstly, it locks the cabinet into square, preventing it from racking or twisting under load. Secondly, it provides a finished back, preventing items from falling behind the shelves and giving the unit a clean, professional appearance. Before fastening, use a large framing square or measure diagonally from corner to corner to ensure the cabinet is truly square. Once confirmed, you can securely staple, nail, or screw the back panel into place along all edges and into the fixed shelves. If you opt for beadboard or a decorative plywood, ensure the finished side faces inward.

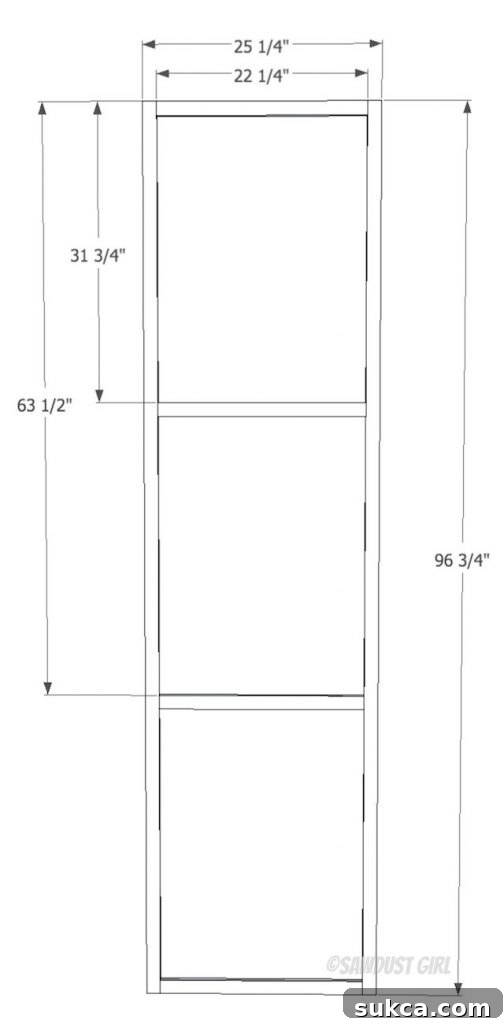

For large, expansive built-in projects like Fawn’s library, integrating the face frame requires a specific installation technique. Due to the immense size of the overall library wall, attempting to assemble one colossal face frame and then attaching it to the bookshelf units would be impractical, if not impossible. Such a large piece would be unwieldy to handle, prone to warping, and incredibly difficult to align perfectly. Instead, Fawn wisely installed her face frame piece by piece, directly onto the assembled bookshelf units. This method involves attaching vertical stiles and horizontal rails sequentially, ensuring each piece is perfectly plumb, level, and flush with its neighbors. This on-site assembly allows for micro-adjustments to compensate for any slight irregularities in the wall or the bookshelf units, ultimately creating a flawlessly integrated, custom look that appears as a singular, monolithic piece of furniture. It’s a technique that requires patience and precision but yields the most professional and seamless results for large-scale built-ins.
Designing and Attaching the Faceframe
While large, integrated built-ins benefit from piece-by-piece face frame application, if you’re constructing individual, standalone bookcases or smaller modular units, you can opt to build the entire face frame as a single assembly first. This approach simplifies the attachment process significantly. The face frame provides crucial aesthetic appeal by covering the exposed plywood or MDF edges of the carcass, giving your shelves a finished, furniture-grade look. It also adds a tremendous amount of rigidity to the entire structure, preventing the front edges from bowing.
To construct a single-unit face frame, you’ll need to carefully cut your stiles (vertical pieces) and rails (horizontal pieces) to precise dimensions. Popular joinery methods include pocket hole screws, biscuits, or dowels, all of which create strong, invisible connections. Once assembled, ensure the face frame is perfectly square and flat before attaching it to the front of your bookcase carcass. This can be done with wood glue and brad nails, or even screws from inside the cabinet, ensuring the front surface remains pristine. The precision of your face frame construction directly impacts the overall quality and professional appearance of your finished bookcase.

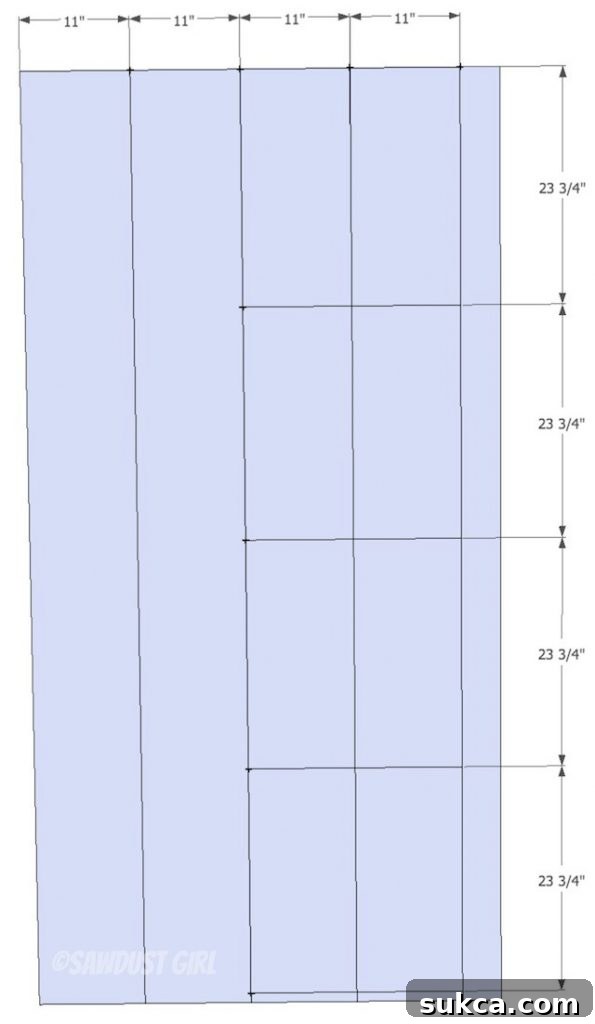

Optimizing your material usage is key to efficient and cost-effective woodworking. For each standard bookshelf unit described here, you’ll find that one sheet of 3/4-inch plywood or MDF is generally sufficient, often leaving you with enough material for a few extra adjustable shelves. When planning your cuts, consider a smart strategy: try to save the last quarter of your sheet in one contiguous piece. This flexibility allows you to decide on the exact number of adjustable shelves you desire for each section later in the project. Should you find that you only need, say, four shelves per bookcase instead of six, you’ll have a larger, more usable remnant for another project down the line, rather than a collection of small, awkward offcuts.
Choosing between 3/4-inch plywood and MDF for your bookshelves involves weighing several factors. Plywood offers superior strength, excellent screw-holding capability (especially important for cleats and fixed shelves), and is generally lighter. However, its edges can be harder to finish smoothly, and it typically costs more. MDF, on the other hand, provides an exceptionally smooth surface perfect for painting, is often more affordable, and is very stable, resisting warping. Its main drawback is its weight and its relatively poor screw-holding power in its edges, which makes pre-drilling and using appropriate fasteners even more critical. Understanding the pros and cons of each material will help you make the best choice for your specific project and budget.
Embarking on a custom built-in project can seem daunting, but with detailed plans and a methodical approach, the results are incredibly rewarding. Fawn’s library stands as a brilliant example of what can be achieved with vision and careful execution. To truly appreciate the journey and witness the transformation from concept to reality, we highly recommend diving into Fawn’s project updates. You can follow her progress and glean invaluable insights from her experience across Part 1, Part 2, Part 3, Part 4, and finally, be absolutely captivated by the stunning transformation in the Fawn’s library reveal post. It is truly a masterclass in custom home renovation and design—a stunning culmination of effort that will undoubtedly inspire your own woodworking endeavors!
