Welcome to Woodshop Diaries! As we kick off a new year, it’s a perfect time to embrace organization, creativity, and smart budgeting in your workshop. Instead of investing in expensive, specialized tools, imagine crafting precise, beautiful projects with simple, homemade jigs. That’s exactly what we’re diving into this month as part of Sandra’s Mentorship Squad – empowering you to build incredible things with ingenuity and a few wood scraps!
Today, I’m thrilled to share a guide for constructing an indispensable shop accessory: a homemade circle jig. This versatile jig is designed primarily for use with a router, allowing you to cut perfectly smooth, precise circles of varying diameters with ease. While my design focuses on a router, experienced woodworkers might adapt it for a jigsaw if their project requires it. Get ready to transform ordinary wood into stunning circular pieces for your next project, all while wearing your coolest safety goggles, of course!
Essential Tools and Materials for Your DIY Circle Jig
Crafting your own router circle jig is an excellent way to utilize existing shop resources and a few inexpensive materials. Here’s a comprehensive list of what you’ll need to gather before you begin. Having everything prepared will ensure a smooth and efficient building process, bringing you closer to cutting perfect circles for all your woodworking endeavors.
- Router: The star of the show! Ensure it’s the specific model you plan to use with the jig, as measurements will be tailored to it. While a jigsaw adaptation is possible, this guide is optimized for routers.
- 1×3 Scraps (or a 1x3x8 board): These common dimensions are ideal for the jig’s sturdy frame. Scraps are perfect for this project, making it cost-effective.
- Wood Glue: Provides a robust, lasting bond for the jig’s components, supplementing the mechanical strength of screws.
- 1 1/4″ Wood Screws: Essential for securely fastening the parts of your jig together. Always pre-drill to prevent wood splitting.
- Nail Gun (optional): Can be used for quick initial fastening or in conjunction with screws for extra strength. Not strictly necessary but can speed up assembly.
- Drill: Critical for pre-drilling screw holes and creating the pivot point for your jig. A good cordless drill will make quick work of these tasks.
- Miter Saw: For precise, clean crosscuts on your 1×3 lumber. Accuracy in your cuts translates directly to a more accurate jig.
- Measuring Tape: An absolute must for taking all the critical dimensions of your router and cutting lumber accurately.
- Pencil or Marker: For marking cut lines, center points, and radius measurements on your jig components.
- Safety Glasses & Hearing Protection: Always prioritize safety in the workshop. These are non-negotiable when operating power tools.
Gathering these items will set you up for success, allowing you to focus on the enjoyable process of building your very own router circle jig.
Step 1: Constructing the Router “Box” – The Foundation of Precision
The first crucial step in building your homemade router circle jig is to create a snug, custom-fitted “box” that will house your router. Precision here is paramount, as the accuracy of your circles will depend heavily on how well this box fits your specific router model. Routers come in various shapes and sizes, so this isn’t a one-size-fits-all component. You’ll need to take careful measurements of your own tool.

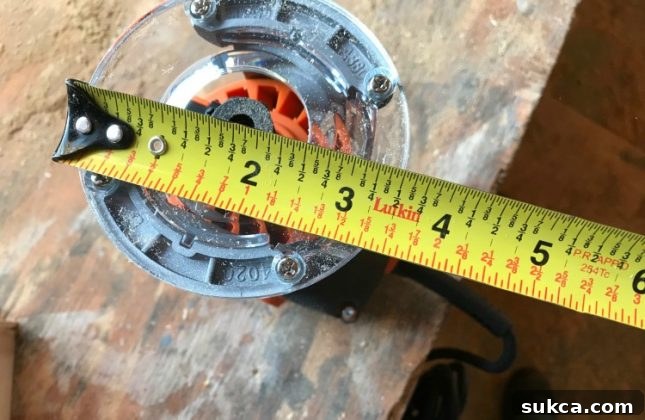

Begin by measuring the precise diameter of the protective plate (or base plate) on your router. This is the flat surface at the bottom of your router that typically rests on your workpiece. It’s important to note that the jig shown in some of the accompanying images was crafted for my previous router, but the principles remain identical for your current tool.
Once you have this diameter, you’ll cut four pieces of 1×3 lumber to form the sides of your router box. Cut two pieces equal to the diameter measurement you just took. For the other two pieces, add 1 1/2 inches to that original diameter measurement. The additional 1 1/2 inches accounts for the thickness of the two 1×3 boards that will cap the ends of your box (since each 1×3 is approximately 3/4″ thick, two pieces add up to 1 1/2″). These four pieces, when assembled, should form a perfect rectangular or square enclosure around your router plate.

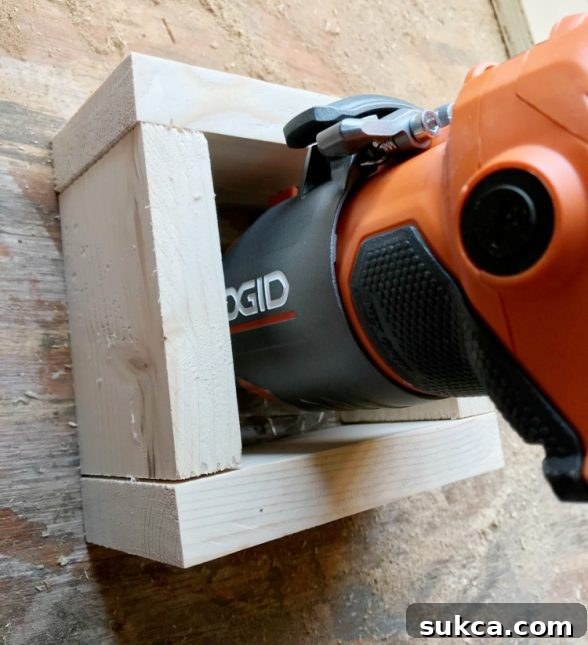

Before any permanent assembly, always perform a dry fit. Carefully arrange the four cut 1×3 pieces around your router’s base plate to ensure a snug, yet not overly tight, fit. The router should slide in and out smoothly but with minimal lateral play. This dry fit allows you to catch any measurement errors or required adjustments before you commit to glue and screws.

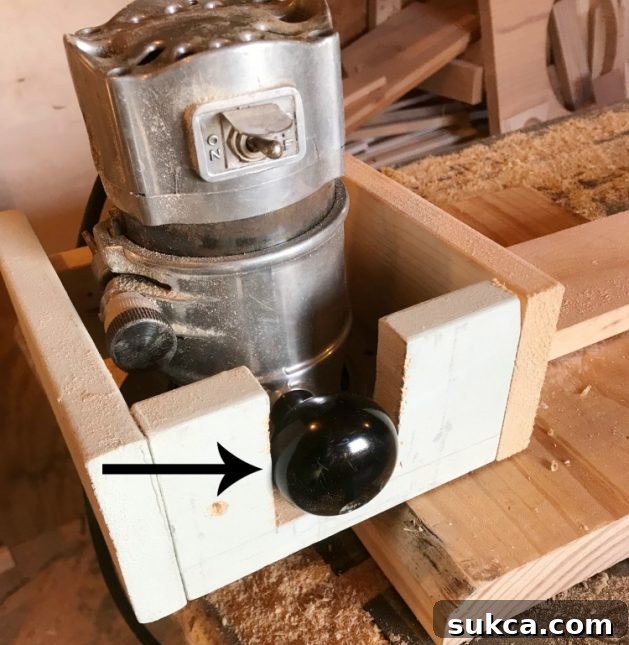

Consider the design of your router. If your router has side-mounted knobs or handles that extend beyond the base plate, you’ll need to account for these. Mark the exact locations where these knobs interfere with the box sides. Then, use a jigsaw to carefully cut notches into the relevant 1×3 boards. This step ensures your router can sit completely flush within the jig, preventing any wobbling or instability during operation. My old router, for example, required such notches for a perfect fit.
By meticulously following these steps, you’ll create a stable and custom-fitted base for your router, which is the cornerstone of an accurate and reliable circle cutting jig.
Step 2: Securing the Router Box to the Jig Arm – The Pivot for Perfect Circles

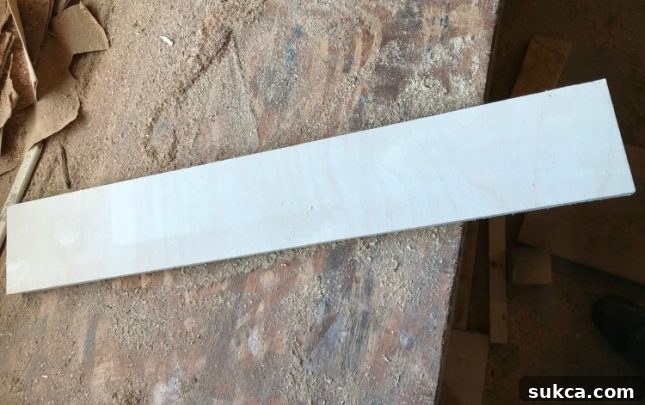

With your router box components ready, the next critical step is to attach them to the “arm” of your jig. This arm is the pivotal element that dictates the radius of your cut circles. For the jig arm, you’ll need a sturdy, flat piece of 1x material. I often use plywood for its stability, but a straight piece of 1×3 or 1×4 lumber would also work perfectly. Choose a material that is relatively rigid and free from warps or significant defects.
Determine the length of your jig arm based on the maximum diameter of circles you anticipate cutting. A good rule of thumb is to make the arm approximately half of your maximum desired circle diameter. For instance, if you envision never needing to cut a circle larger than 36 inches in diameter, then an 18-inch long arm piece would be appropriate. Remember, a longer arm allows for larger circles but can be more cumbersome to store and manage, so find a balance that suits your typical projects.

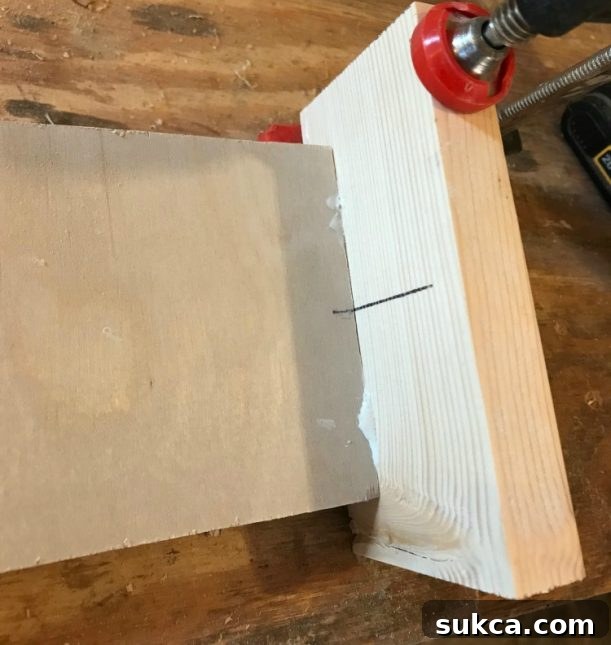

Once your arm is cut to length, mark the precise center of one end of the arm. Next, take one of the longer pieces of your router box (the one that measures router plate diameter + 1 1/2″) and mark its center as well. These center lines are critical for accurate alignment. Apply a bead of strong wood glue along the edge of the router box piece that will meet the arm. Carefully align the marked center lines on both the arm and the box piece, ensuring they are perfectly matched. Secure them together using 1 1/4″ wood screws.

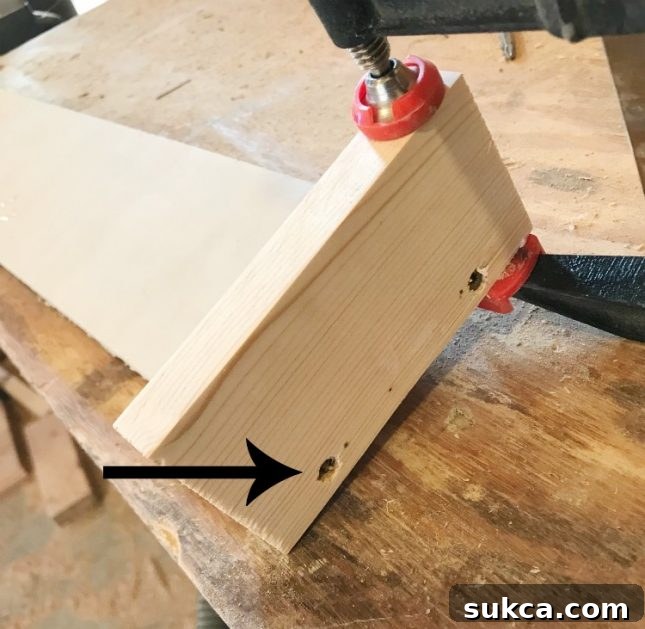

A crucial word of advice here: Always pre-drill your screw holes! Skipping this step, as I regrettably did in the past (leading to a split wood piece that required re-gluing!), can easily cause your wood to split, especially with softer woods or when screwing close to an edge. Pre-drilling not only prevents splitting but also ensures the screws drive in smoothly and create a much stronger joint. Select a drill bit with a diameter slightly smaller than the shank of your wood screws.

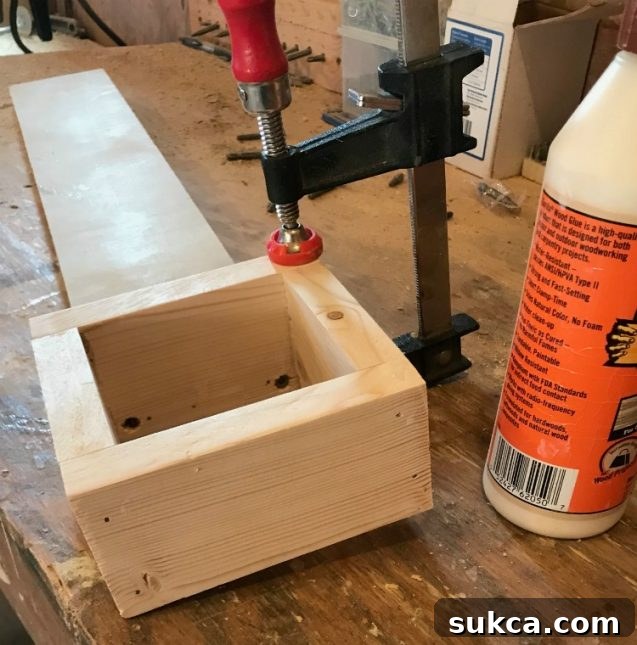

After attaching the first box piece to the arm, proceed to glue and either screw or nail (using a nail gun) the remaining three pieces of the router box together, forming a complete enclosure around where your router will sit. Ensure all joints are tight and square.
Once assembled, perform a final fit test with your router. Slide your router into the newly formed box. It should fit snugly without excessive play. If the fit is too tight or too loose, gently adjust as necessary. Remember, a precise fit here ensures stability and accuracy during your circle cutting operations. This robust assembly forms the backbone of your highly functional, homemade router circle jig.
Step 3: Marking the Jig Arm and Setting Up for Perfect Circles

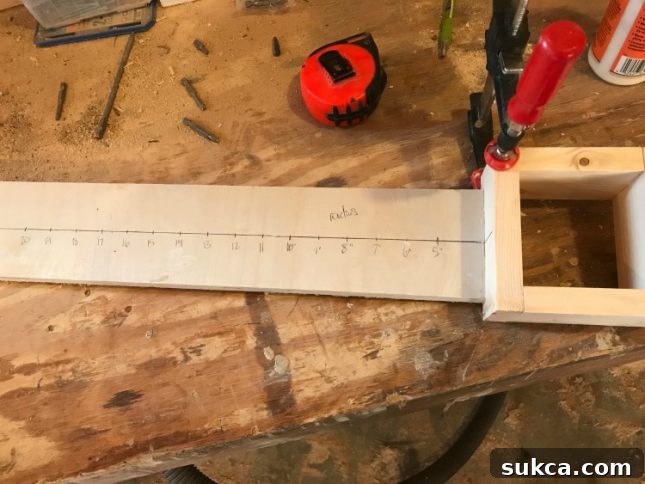

This final step involves marking your jig arm for precise radius measurements and understanding the setup process for cutting. While marking the arm is technically optional, it is incredibly helpful for quickly setting up future cuts without repeated measuring. These marks will correspond to the radius of the circles you intend to cut.

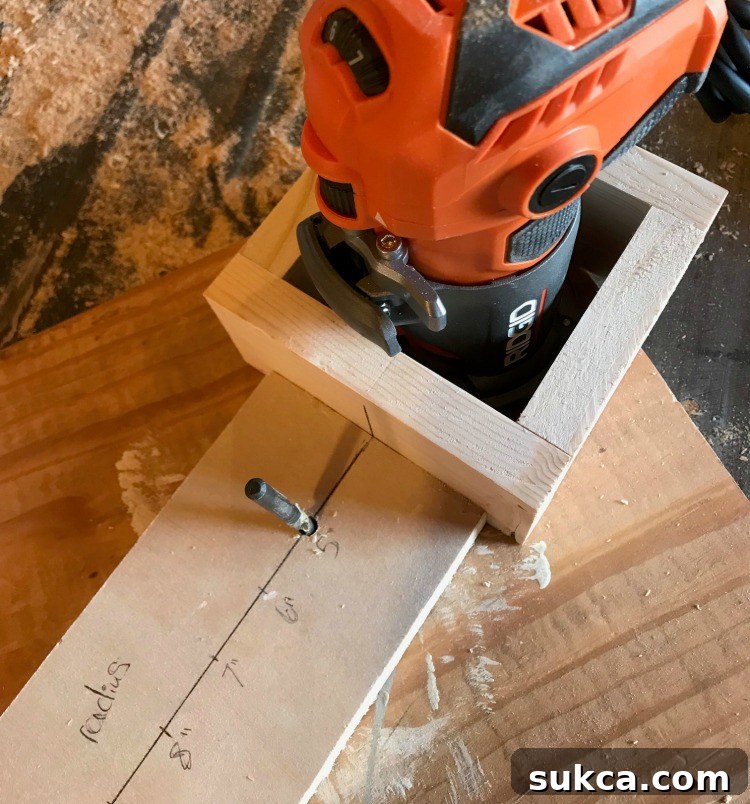

To accurately mark your arm, you’ll need to calculate a base offset. Take half of the diameter of your router’s base plate and add 3/4 inches (which is the thickness of the jig arm material itself). This sum represents the approximate distance from the center of your router bit to the pivot point when the jig is engaged. Now, for every inch you measure from the outside edge of the router box along the jig arm, add this base offset to it. That will give you the approximate radius that the jig will cut at that specific mark. Keep in mind that this measurement determines the center of your router bit’s path; you will still need to account for the actual diameter of the router bit you are using when calculating the final circle diameter. For instance, if you use a 1/4″ straight bit, the actual circle cut will be slightly larger or smaller depending on whether you are cutting inside or outside your marked line.
When you’re ready to use your new router circle jig, the setup is straightforward. First, secure your workpiece firmly to your workbench using clamps; preventing any movement is crucial for a clean cut. Insert a straight router bit into your router – a 1/4″ straight bit is often recommended for its versatility and fine cutting capabilities. Next, decide on the desired radius for your circle. Using a drill bit (the same diameter as your pivot pin or a small finishing nail), drill a hole through the marked point on your jig arm that corresponds to your chosen radius. Then, carefully align this drill bit with the exact center point on your workpiece where you want the circle to originate. Drill down through the jig arm and into, but not completely through, your workpiece. This creates a secure pivot point around which your jig will rotate.

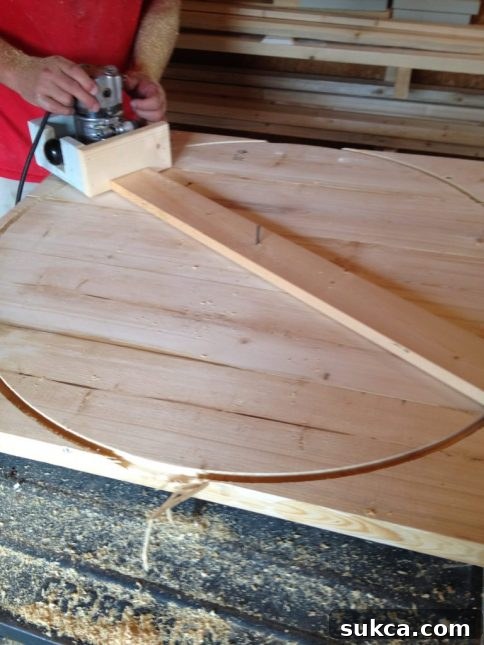

With the router securely in its box and the jig pivoted around the drill bit in your workpiece, you are now ready to cut. Insert your router into the jig, set your desired cutting depth, and switch it on. Gently guide the router in a slow, continuous circular motion around the pivot point. The router will precisely follow the arc dictated by the jig, creating a perfect circle.
For thicker materials, it’s highly recommended to make several shallow passes rather than attempting to cut through the entire thickness in one go. Gradually adjust the router bit depth with each pass, removing a small amount of material at a time. This technique significantly reduces strain on your router and router bit, prevents tear-out, and results in a much cleaner, smoother cut, ultimately prolonging the life of your tools. Always ensure you are cutting in the correct direction (typically climb cutting is avoided with handheld routers unless specifically intended for a delicate finish). Maintain steady pressure and a consistent rotation speed for the best results.
Safety Considerations for Router Jig Use
Working with power tools always requires a strong emphasis on safety. When using your homemade router circle jig:
- Eye and Ear Protection: Always wear safety glasses to protect against flying debris and hearing protection to guard against noise-induced hearing loss.
- Secure Workpiece: Ensure your material is firmly clamped to your workbench. Any movement during routing can lead to inaccurate cuts or kickback.
- Router Bit Selection: Use sharp, appropriate router bits for the material you are cutting. Dull bits increase strain and can cause burn marks.
- Dust Management: Routers generate a significant amount of dust. Use dust collection if possible, or work in a well-ventilated area and wear a dust mask.
- Maintain Control: Keep both hands on the router, maintaining firm control as it rotates around the pivot point. Never force the router.
- Power Off: Always unplug your router when changing bits or making adjustments to the jig or workpiece.
This type of homemade circle jig has proven invaluable in countless projects within my workshop. Its simplicity, combined with its accuracy, makes it a go-to tool for various applications. And the best part? Since it’s crafted from common shop scraps, the cost is virtually zero!
I’ve personally utilized this exact jig design to create beautiful, round elements for projects such as my DIY large personalized wall clock, crafted custom DIY personalized lazy susans, and even shaped the elegant top for my DIY round coffee table. The possibilities are truly endless when you have the power to cut perfect circles with such ease and precision. This jig allows for full customization, from small decorative elements to large table tops, proving that sometimes the best tools are the ones you build yourself.
Embrace the satisfaction of building your own essential woodworking tools. This homemade router circle jig will quickly become one of your most valued shop accessories, opening up a world of new creative possibilities. Until our next woodworking adventure, happy building!
