Conquering the Table Saw: A Beginner’s Guide to Cutting Perfect Dado Joints

Hello, woodworking enthusiasts and fellow DIYers! Mindi here again from MyLove2Create. This month, the challenge of mastering a new joinery method truly pushed me out of my comfort zone, leading me to confront a long-standing fear:

The Table Saw.

Yes, you read that right! For too long, the table saw stood as a formidable, intimidating beast in my workshop. But with a little encouragement and determination, I’m thrilled to share how I learned to navigate this powerful tool and, more specifically, how to cut a dado on a table saw. And believe me, if I, a self-proclaimed table saw phobe, can do it, you absolutely can too!

I cannot overstate how incredibly grateful I am to Sandra from SawdustGirl for her unwavering encouragement, motivation, and persistent push to learn new skills and overcome my woodworking fears. This spirit of growth and camaraderie is at the heart of the SG Squad, and I’m incredibly proud to be a part of it.

Overcoming the Table Saw Fear: My Personal Journey

Before diving into the technical steps of cutting dado joints, I want to briefly share my journey in conquering my fear of the table saw. It’s a common apprehension among many woodworkers, especially beginners, and I hope my experience resonates and empowers you.

When I initially considered making dado cuts, my first thought was to bypass the table saw entirely and buy a router. I confessed my fear to Sandra, expecting understanding, but instead, I received a firm “No!” She was absolutely right; I was attempting to flee from my fear rather than face it head-on. This crucial moment became the turning point.

Sandra challenged me to simply turn on the saw. While it might sound trivial, I had personally set up the saw and installed the blade, and an irrational fear persisted that I might have done it incorrectly, risking the blade flying off. This fear, though completely unfounded, felt incredibly real to me. Eventually, I mustered the courage, flipped the switch, and survived! The relief was immense.

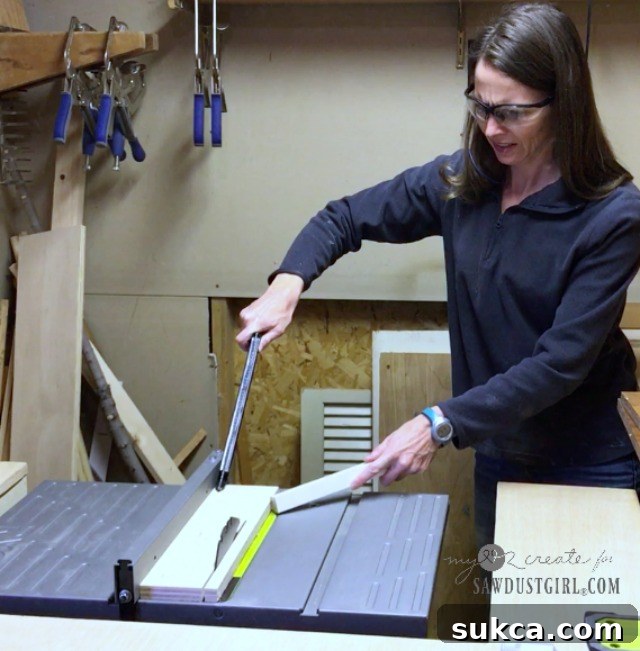

Over the next week, I dedicated myself to watching numerous “how to safely use a table saw” YouTube videos and engaging in serious self-encouragement. Slowly but surely, I gathered the nerve to make my first rip cut on a piece of wood. The terror was palpable, but the conviction that I needed to overcome this mental block was stronger.

I had allowed the fear to escalate in my mind, and the longer I procrastinated, the worse it became. Intellectually, I possessed the knowledge; all I needed was to believe in my ability to execute.

Can you see the mix of fear and intense concentration etched on my face? I maintained my calm, focused intently on the task at hand, and I did it! Phew! The immediate aftermath left me a little emotionally drained, yet overwhelmingly triumphant. It wasn’t nearly as daunting as I had imagined, and I honestly couldn’t believe I had put it off for so long. Sometimes, all it takes is a gentle push and a mentor like Sandra to inspire belief and bravery.

Mastering Dado Cuts on Your Table Saw: A Step-by-Step Guide

Now that we’ve addressed the mental hurdles, let’s get to the practical side of woodworking. Cutting dado joints on a table saw is a fundamental skill that significantly enhances the strength and aesthetics of your projects. This guide will walk you through the process, ensuring you can create precise, reliable dado joints.

What Exactly is a Dado Joint?

First, let’s clarify the term. How do you pronounce “dado”? Sandra taught me the easiest way to remember: Dado rhymes with “Play-dough!” Once you know that, you’ll never forget.

A dado joint is essentially a flat-bottomed groove or trench cut into a piece of wood, designed to receive another piece of wood. This creates a strong, interlocking connection that prevents movement and provides excellent support. Dados are incredibly versatile and frequently used in projects like building bookshelves, cabinets, drawers, and many other furniture applications where shelves or partitions need robust support.

Essential Supplies for Cutting Dado Joints:

• Table Saw: The star of our show, ensuring precision and efficiency.
• Push Sticks: Crucial for safety, keeping your hands away from the blade. Never operate a table saw without them.
• Wood for Your Project: The material you’ll be cutting the dado into, as well as the piece that will fit into the dado (can be any thickness, but consistency is key).
• Tape Measure or Combination Square: For accurate measurements and markings.
• Pencil: For marking your cut lines clearly.
• Safety Gear: Absolutely non-negotiable! Always wear safety glasses, hearing protection, and a dust mask.
• Chisel: Depending on the precision of your cuts and blade width, a sharp chisel can be invaluable for cleaning out any small slivers of wood left in the dado.

Safety First: Important Table Saw Guidelines

Before you even think about plugging in your saw, always prioritize safety. This includes:

• Read Your Manual: Understand your specific table saw’s features and safety instructions.
• Wear PPE: Safety glasses, hearing protection, and a dust mask are mandatory.
• Unplug Before Adjusting: Always unplug the saw before making any blade height, fence, or other adjustments.
• Use Push Sticks/Blocks: Never use your hands to push wood past the blade, especially for narrow cuts.
• Maintain a Clear Work Area: Keep your table saw surface and surrounding area free of clutter.
• Proper Stance: Stand to the side of the blade, not directly behind it, to avoid kickback.
• Check for Obstructions: Ensure the wood is free of knots, nails, or other defects that could cause kickback.

Step-by-Step: Cutting Your Dado Joints

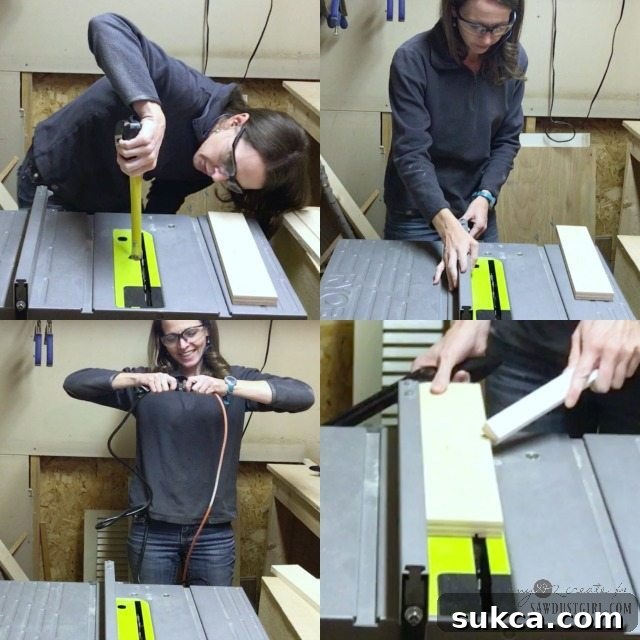

Step 1: Determine Blade Height.

With your table saw UNPLUGGED, adjust the blade to the correct height. The depth of your dado cut should ideally not exceed half the thickness of the board you’re cutting into for structural integrity. For my project, I was using 1/4” plywood for the piece that would fit into the dado, so I set my saw blade height to 1/4”. A good rule of thumb is to set the blade slightly lower than your desired depth and test on a scrap piece, making minor adjustments until perfect.

Step 2: Set the Rip Fence for the First Pass.

Accurately measure and set your rip fence to the desired distance from the blade. This will determine the placement of the first edge of your dado. For optimal accuracy, always use a combination square or a precise tape measure. Double-check your measurement.

Step 3: Make Your First Cut (First Pass).

Plug in your saw. Ensure your safety gear is on. With the blade spinning, use push sticks to safely guide your board through the table saw. Maintain a steady, consistent feed rate. This first pass creates one edge of your dado trench.

Step 4: Adjust the Rip Fence for Subsequent Passes.

UNPLUG your saw. For the second pass, you’ll need to move the rip fence to widen the dado. For my 1/4” dado, I moved the rip fence over approximately 1/4” from my first cut. The goal is to remove the material between your first cut and where your second cut will be. For wider dados, you might make several incremental passes.

Step 5: Test the Fence Position.

Before making a live cut, you can gently place your board against the rip fence and align it with the blade (with the saw UNPLUGGED) to visually confirm the second cut will align properly. A better method is to make a test cut on scrap wood. Adjust the fence as needed using your first dado cut as a guide.

Step 6: Complete the Dado Joint.

Plug in your saw, engage your safety gear, and make your second pass (or subsequent passes if your dado is wider). Once finished, take a scrap piece of the wood you intend to fit into the dado (e.g., my 1/4” plywood) and test the fit. To my delightful surprise, it fit perfectly!

Sometimes, beginner’s luck strikes, and I was happy to take it! However, it quickly became apparent that not all wood, even of the same nominal thickness, is created equal.

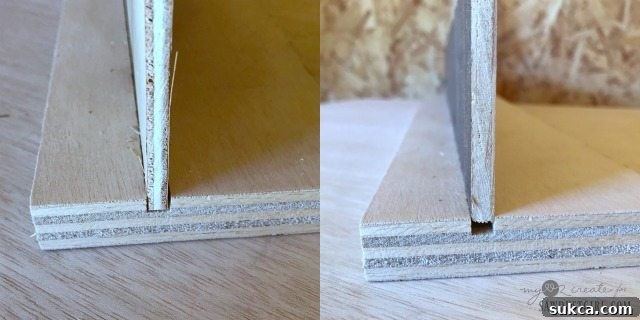

In the photo above, you can observe how one piece of 1/4” plywood (left) was slightly thinner than my dado, resulting in a loose fit. The piece on the right was slightly thicker, providing a snug fit. The ideal dado joint should provide a nice, snug fit without being overly tight, which can split the wood.

Pro Tip: Always use the actual piece of wood that will fit into your dado to measure, mark, and test your dado cuts. This is the best way to ensure a perfectly tight-fitting joint.

For my project, I was repurposing various scraps of 1/4” plywood, and I discovered they varied slightly in width. While I cut all my dados to the same size, this resulted in some of my plywood pieces fitting a bit loosely. For my specific project, this wasn’t a major issue. However, if your dado joints will bear a significant load, a snug fit is absolutely critical for structural integrity and strength.

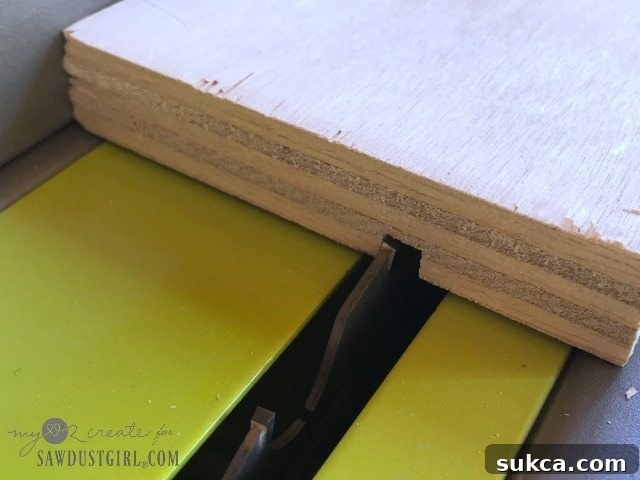

Here’s a close-up illustrating how my second pass through the saw interacts with the initial cut to form the dado. Since I needed a 1/4” thick dado, and my saw blade is very close to 1/8” thick (just a hair smaller), I only needed two passes to create the desired width. For thicker wood, or if your blade is thinner, you may need to make more passes, incrementally moving the rip fence, until you achieve the exact thickness required for the mating wood piece.

Achieving Perfectly Symmetrical Dado Joints Across Multiple Boards

When constructing projects like bookcases or cabinets where shelves need to line up perfectly on opposing side panels, you need symmetrical dado joints. Here’s a technique to ensure precise alignment:

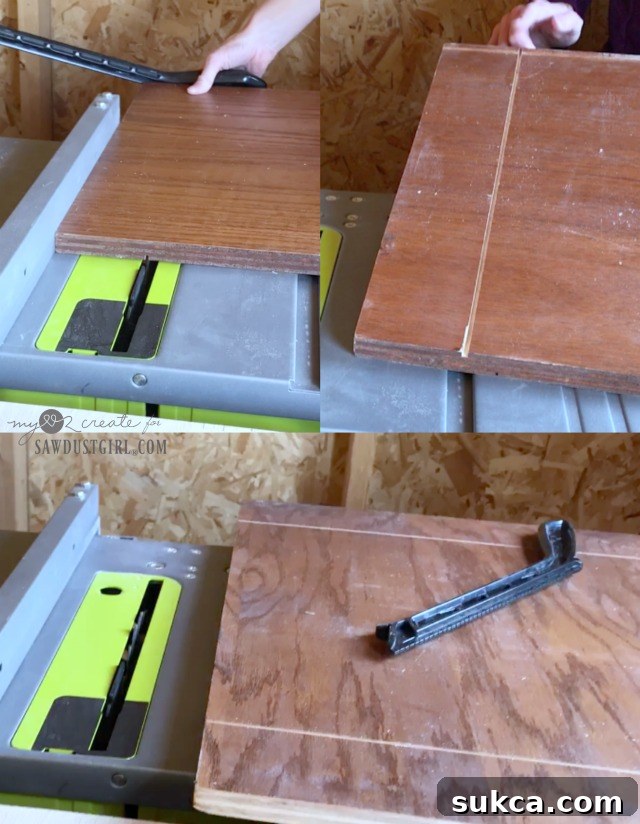

Step 1: Set Up for Outside Dados.

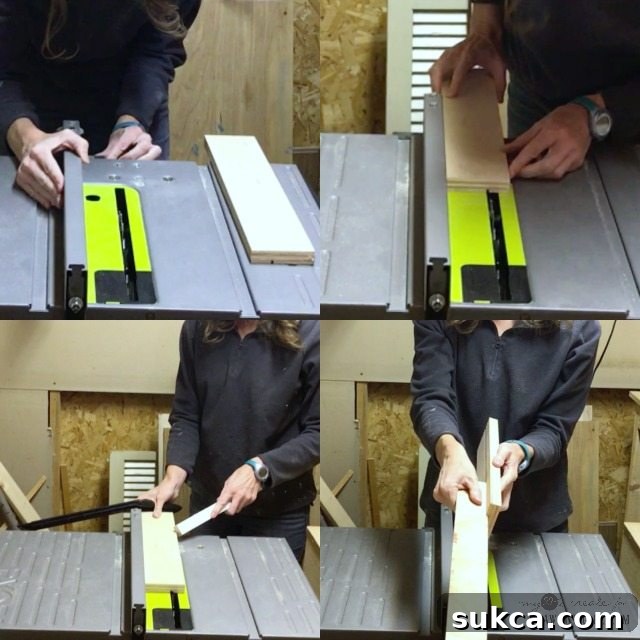

Begin by measuring and marking the position of your outermost dado on both boards. Once your first dado is measured, marked, and your rip fence is precisely set, make a single pass on both sides of each board. This means you will make a total of four identical cuts (one on each end of both boards) before moving your rip fence. The photo above shows one pass on both sides of a single board; ensure both of your side panels look like this.

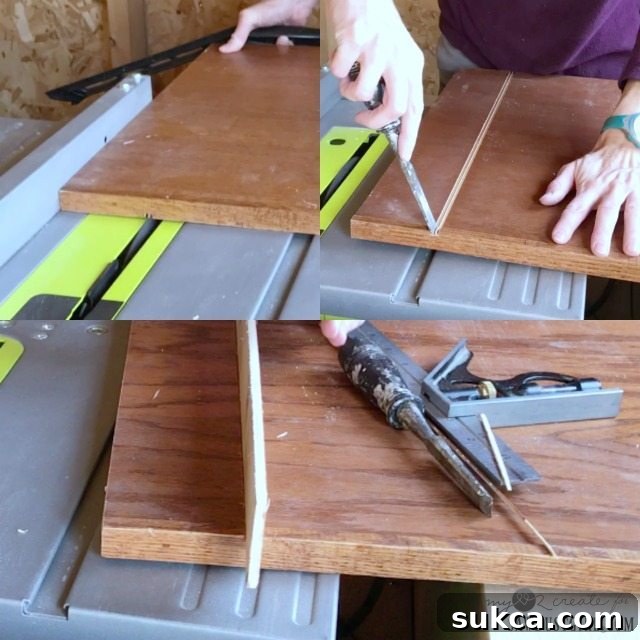

Step 2: Complete the Dado with a Second Pass.

To finish the dado, you’ll need to make another pass. UNPLUG the saw, then adjust the rip fence again, moving it over to create the full 1/4” dado width. Once set, plug the saw back in and repeat the four passes, cutting on each side of both boards. By working from the outside edges of your boards towards the center, you ensure that the corresponding dadoes on each board remain perfectly aligned.

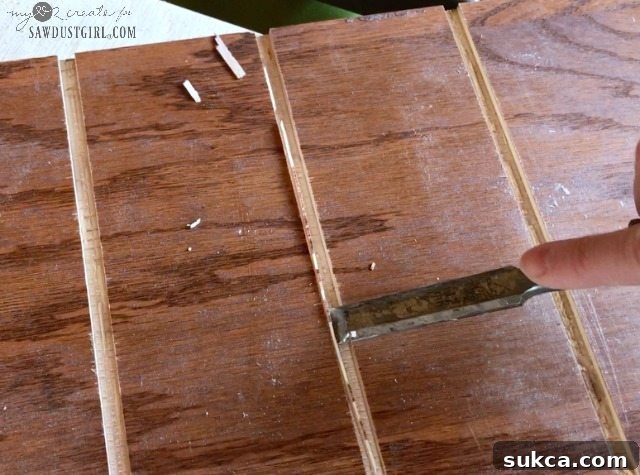

As mentioned, the 1/4” plywood I was using was slightly thicker than my approximately 1/8” saw blade width, which meant my two passes left a small sliver of wood remaining in the center of the dado cut.

For joints that need to bear significant weight, I would typically recommend making three passes (two passes defining the edges, and a third pass to clear the middle, adjusting the fence incrementally). However, for my project, I opted for two passes and simply used a sharp chisel to chip out the small extra sliver of wood. It was surprisingly easy and quick to do. After chiseling, I again tested the fit with my 1/4” plywood to confirm it was snug.

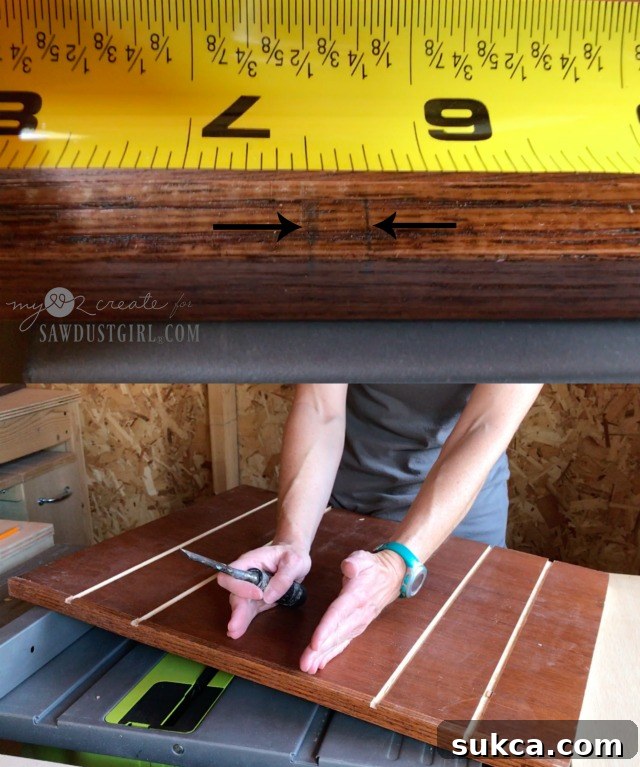

With my outside dado cuts complete and perfectly symmetrical, I was ready to measure and mark for my center dado cuts. As you can see in the top photo, I had already meticulously marked where each dado needed to be cut on my boards.

These clear markings are incredibly helpful when setting your rip fence for each individual dado. They allow you to accurately line up your blade with your reference marks, ensuring consistent and precise cuts throughout your project.

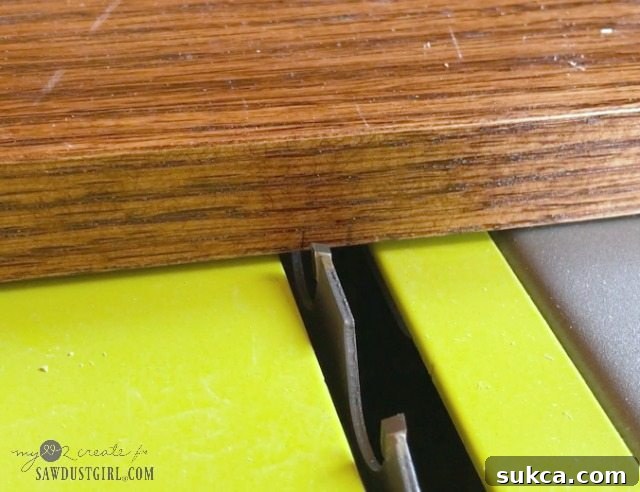

Notice how my saw blade is perfectly lined up with the mark on my board? This precise alignment is crucial for the first pass of each dado. After making this initial cut, I would then UNPLUG the saw, reset the rip fence, and align my blade with the other line for the second pass, ensuring the dado reaches its full intended width and position.

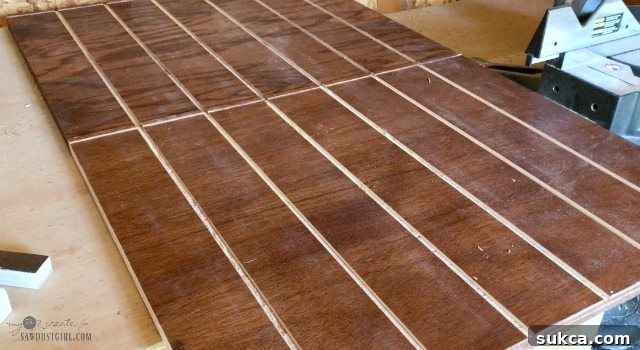

Upon completing all the cuts, my two boards were perfectly symmetrical – a truly satisfying sight for any woodworker!

And I was genuinely, incredibly happy! This experience has seriously ignited my excitement for tackling more projects with my table saw. I’m already looking forward to experimenting with thicker dado joints in the future and exploring more advanced joinery techniques.

Conclusion: Believe in Your Woodworking Potential

I sincerely hope this detailed guide has been helpful and empowering for you. My journey from table saw fear to confident dado-cutter is a testament that you can conquer any woodworking challenge if you truly set your mind to it. We all need a push sometimes, and if you’re looking for that motivation to get started or to face a new skill, remember that mentors like Sandra and a supportive community are invaluable resources.

Don’t let fear hold you back from expanding your woodworking repertoire. Take that first step, learn the safety protocols, practice on scrap wood, and you’ll soon be amazed at what you can achieve.

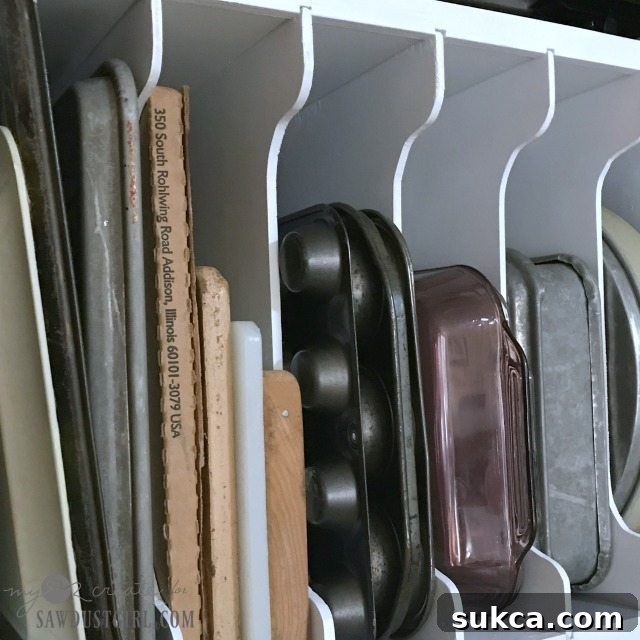

If you’re curious to see the final project I created with these dado joints – and the incredible transformation it brought to my cupboard organization – you can check out my post on How to Make a Tray Divider Using Dado Joints on my blog! I truly wish I had made this years ago; I absolutely love it!

Happy building, and remember to always prioritize safety!
