How to Wire an Electrical Outlet: A Comprehensive DIY Guide for Homeowners

Embarking on a home improvement project, even something as seemingly simple as installing a new electrical outlet, can be incredibly rewarding. Whether you’re upgrading an outdated, discolored receptacle, adding a new outlet to accommodate modern appliances, or even relocating one as part of a larger renovation – like integrating an outlet into a custom china cabinet for a toaster – knowing how to properly wire an electrical outlet is a fundamental skill for any DIY enthusiast. This detailed guide will walk you through each step, ensuring you understand the process, prioritize safety, and achieve a functional, aesthetic, and reliable power source in your home.

Many homeowners face the issue of old, unsightly, or even faulty outlets that detract from their home’s aesthetic or pose a potential safety hazard. Replacing an old rose-colored outlet with a crisp, new white one can instantly refresh a space. Or, perhaps, you’re building new cabinetry and realize the need for a conveniently placed outlet that wasn’t part of the original plan. Whatever your motivation, this guide aims to demystify the process of electrical outlet wiring, making it accessible even for those new to home electrical projects. We’ll cover everything from crucial safety precautions to connecting the wires and final testing, ensuring you’re confident and competent throughout the task.

Essential Safety Precautions Before You Begin

Before touching any electrical wires, circuits, or components, absolute safety is paramount. Working with electricity carries inherent risks, including electric shock, burns, and even fire if not handled correctly. This isn’t a step to rush or overlook. Always approach electrical projects with caution and respect for the power you’re dealing with. If at any point you feel unsure or uncomfortable, do not hesitate to consult a qualified electrician. Your safety, and the safety of your home, is not worth compromising.

Step 1: Prioritize Safety – Disconnect the Power Supply!

This is the most critical step in any electrical project. You must completely shut off the power to the specific area where you’ll be working. Do not rely solely on light switches, as they only control one part of the circuit. Proceed directly to your home’s main electrical panel, also known as the breaker box. Locate the circuit breaker that controls the outlet you intend to work on. Often, breakers are labeled, but if yours aren’t, you may need a methodical approach.

Flip the designated circuit breaker to the “OFF” position. It’s highly recommended to use a reliable circuit breaker finder or a non-contact voltage tester to confirm that the power is indeed cut. After flipping the breaker, go back to the outlet location and try plugging in a small appliance, like a lamp or a radio, or use your voltage tester directly on the outlet slots. If there’s no power, you’re safe to proceed. If you find power still present, re-evaluate your breaker box and ensure you’ve flipped the correct breaker. Double-checking at this stage can prevent serious injury.

Gathering Your Tools and Materials

Having the right tools at hand will make this job much smoother and safer. Here’s a list of what you’ll typically need to wire an electrical outlet:

New Electrical Outlet: Choose a standard 15-amp or 20-amp duplex receptacle, or a specialized one like a GFCI, AFCI, or USB outlet, depending on your needs and local codes.
New Faceplate: To cover and protect the installed outlet.
Flathead Screwdriver: For tightening terminal screws and prying.
Phillips Head Screwdriver: For securing the outlet and faceplate.
Wire Strippers/Electrician’s Multitool: Essential for safely removing insulation from wires.
Lineman’s Pliers or Needle-Nose Pliers: For gripping, bending, and cutting wires.
Non-Contact Voltage Tester: For verifying power is off (crucial for safety).
Electrical Tape: For added insulation and protection.
New Junction Box (if new installation): The box that houses the outlet and wires.
Utility Knife or Cable Ripper: To safely cut the outer sheath of electrical cable (if pulling new cable).
Flashlight or Headlamp: Good lighting is key when working in dark spaces.
Outlet Tester: To confirm correct wiring after installation.

Preparing for Outlet Installation or Replacement

Step 2: Accessing and Preparing the Wiring in the Junction Box

The next step depends on whether you are replacing an existing outlet or installing a new one in a previously empty location. If you are replacing an old receptacle, carefully remove the faceplate and then unscrew the old outlet from the junction box. Gently pull the old outlet out to expose the wires. You will then need to carefully unhook or unscrew the wires from the old receptacle to free it.

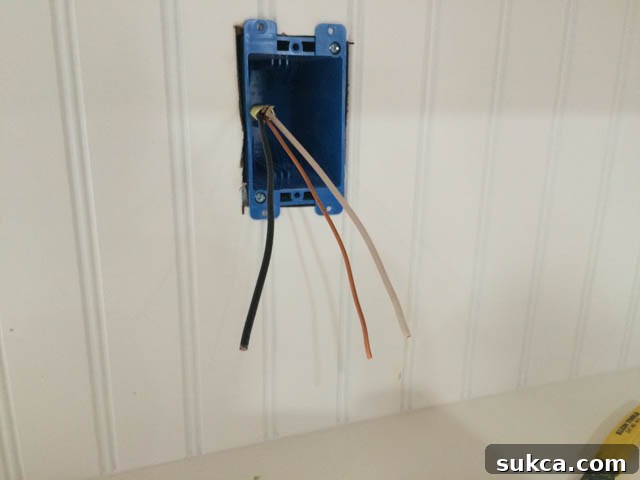

If you’re installing a new outlet in a new location, you’ll first need to cut out an opening for a new junction box and then pull the electrical cable into this new box. Ensure that you leave enough wire slack (typically 6-8 inches) inside the box for easy manipulation. Secure the junction box firmly within the wall opening. Once the cable is in place, you’ll likely find the wires bundled together within a protective sheath. Using a utility knife or cable ripper, carefully score and remove the outer insulation, being extremely careful not to nick the individual wires inside. Inside, you will typically find three wires: a black wire (hot), a white wire (neutral), and a bare copper wire (ground), sometimes wrapped in paper insulation. Gently separate these three wires, removing any paper or additional wrapping around the bare copper wire.

Mastering Wire Preparation

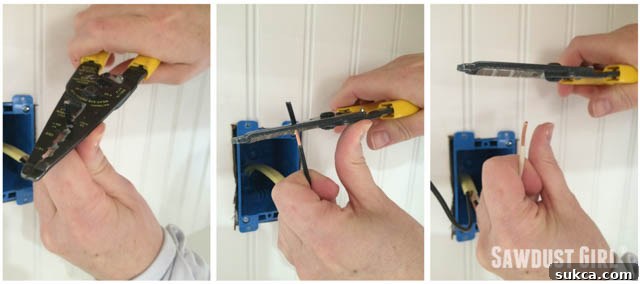

Step 3: Precisely Strip the Wires to Expose the Ends

With the individual wires separated, you now need to strip a small portion of insulation from the ends of the black and white wires. Using your electrician’s multitool or wire strippers, measure about ½ to ¾ of an inch down from the end of the wire. Gently squeeze the stripper handles, severing only the plastic sheath, and then pull upwards to slide the insulation off, exposing the bare copper conductor. It’s crucial not to nick or cut any of the copper strands themselves, as this can weaken the wire and create a potential fire hazard. Repeat this process for both the black and white insulated wires. The bare copper ground wire typically doesn’t need to be stripped, as it’s already exposed.

Step 4: Form Perfect Wire Hooks

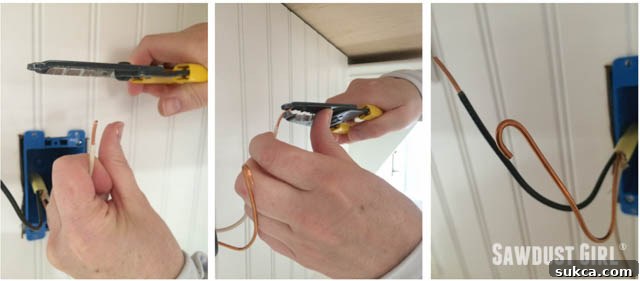

Once the ends of your wires are stripped, use your needle-nose pliers or the curved section of your wire strippers to create a small hook formation at the end of each exposed wire. This hook should be shaped so that it can securely wrap around the terminal screws on the new electrical outlet. The key here is to make the hook tight enough to grip the screw and oriented in the correct direction. For standard outlets, you will typically wrap the wire clockwise around the screw. This ensures that as you tighten the screw, it pulls the wire further into contact rather than pushing it away. Do this for all three wires: the black, white, and bare copper (ground) wires.

Connecting Your New Electrical Outlet

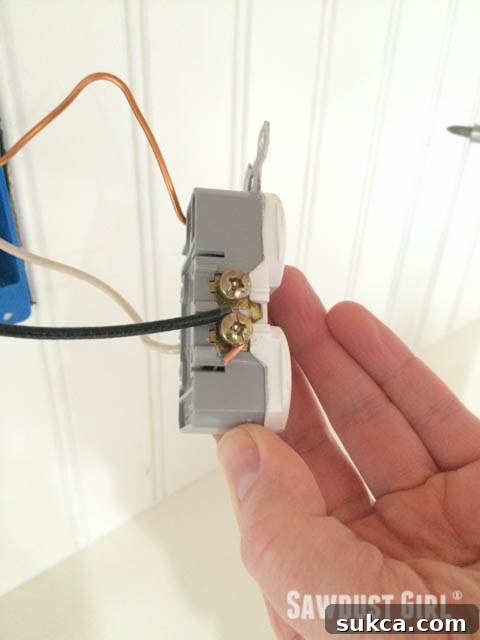

Step 5: Securely Connect Wires to the Outlet

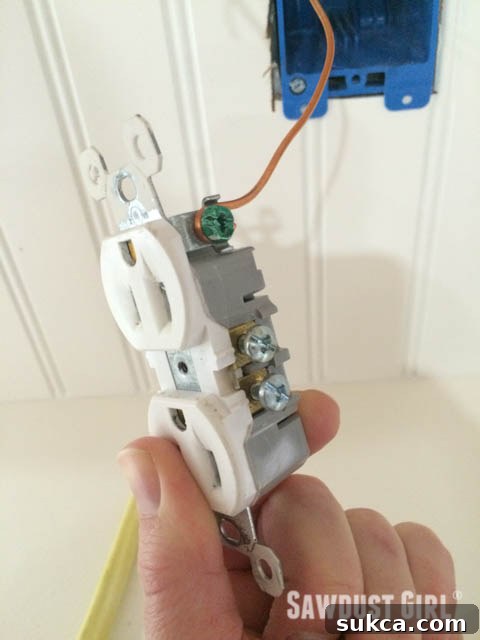

Your new electrical outlet will have a series of color-coded screws, each designed for a specific wire type. Understanding this color coding is vital for proper and safe wiring:

Green Screw: This is always for the bare copper or green-insulated ground wire. The ground wire provides a safe path for electricity to escape in case of a fault, preventing shocks.
Silver Screws: These are designated for the white (neutral) wire. The neutral wire carries electricity back to the circuit panel.
Gold (Brass) Screws: These are for the black (hot) wire. The hot wire carries the electrical current from the circuit panel to the outlet.

Carefully hook each prepared wire end around its assigned screw. Ensure the hook completely encircles the screw and that the bare copper portion of the wire makes firm contact with the screw. Gently pinch the loop closed with your pliers to ensure it won’t slip off when you tighten the screw. Make sure no stray strands of copper wire are sticking out that could potentially touch another terminal or the metal box, which could cause a short circuit.

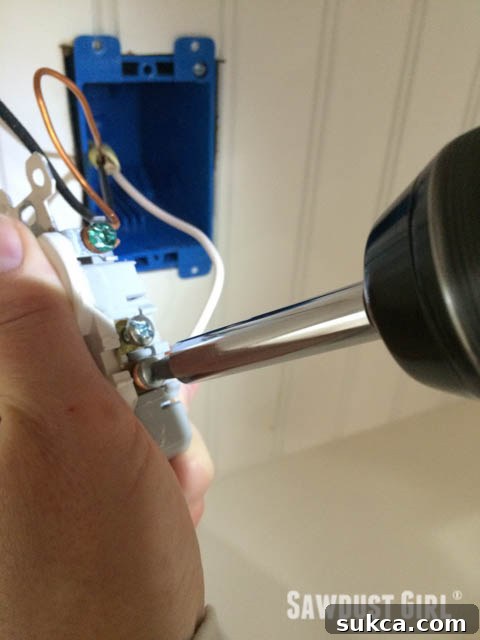

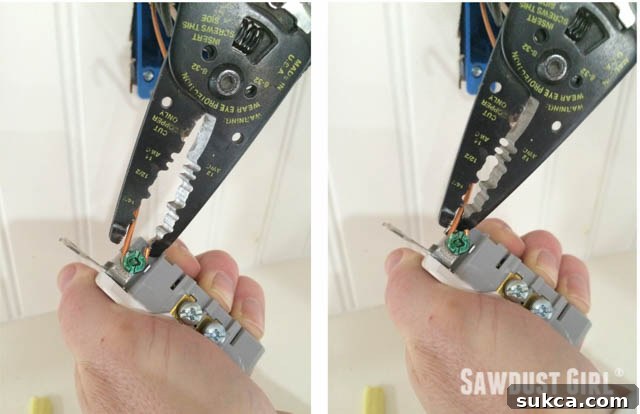

Using your screwdriver, tighten all three screws until they are snug. You want a firm connection, but do not overtighten, as this can strip the screw threads or damage the outlet. The goal is to ensure absolutely no loose wires, which can lead to arcing, overheating, and potential fire hazards. Give each wire a gentle tug after tightening to verify it’s securely fastened.

Always double-check your connections against the color code. Incorrect wiring, particularly reversing hot and neutral wires, can be dangerous and prevent appliances from functioning correctly or safely. The ground wire must always be connected for safety, even if the appliance plugged into the outlet doesn’t use it. This protective measure can save lives in the event of an electrical fault.

Step 6: Enhance Safety with Electrical Tape

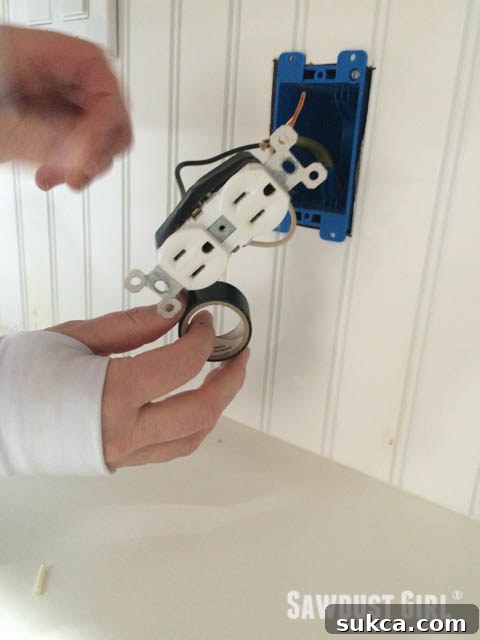

While not universally mandated by all electrical codes, applying electrical tape around the outlet’s terminals is a highly recommended best practice for added safety, especially when working with metal junction boxes. Wrap electrical tape around the entire body of the outlet, ensuring it covers all the terminal screws and exposed wire connections. This creates an additional layer of insulation and protection.

The primary benefit of this step is to prevent accidental contact between a live terminal and the metal junction box or any other conductive surface. If a “hot” screw were to touch a metal box, it could cause a short circuit, creating sparks, tripping the breaker, or potentially energizing the metal box itself. Furthermore, if you ever need to remove the outlet in the future for maintenance or replacement, the electrical tape reduces the risk of accidentally touching a live wire and receiving an electric shock. It’s a simple, inexpensive precaution that significantly enhances the safety of your electrical installation.

Finalizing the Installation

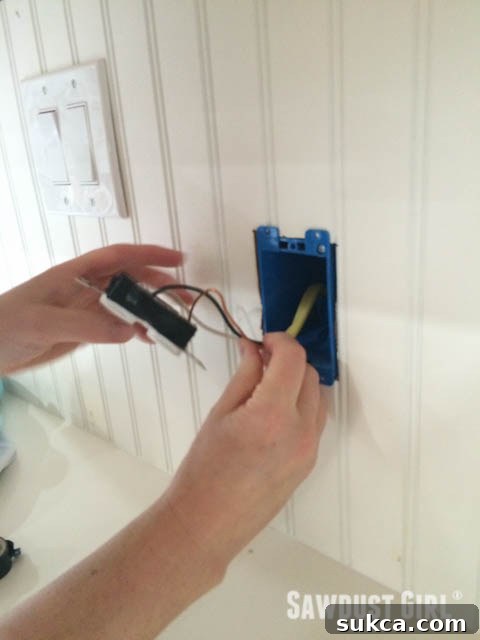

Step 7: Carefully Position the Outlet in the Junction Box

Now comes the often-tricky part: gently pushing all the wires and the newly wired outlet back into the junction box. This step requires patience and care. The goal is to fold the wires neatly and carefully into the box without kinking them sharply or bending them back and forth excessively, especially the stiffer copper ground wire, which can easily break if stressed. You want to avoid any abrupt angles or unnecessary strain on the connections you just made.

Start by folding the ground wire and then the neutral and hot wires into the back of the box, creating a gentle “S” shape if possible. This leaves enough room for the outlet itself to fit flush with the wall. Take your time to carefully tuck all the excess wire out of the way. Do not force the outlet into the box; if it’s too tight, gently adjust the wire positions until it slides in smoothly. Ensure that no bare wire is exposed outside the box once the outlet is seated.

Step 8: Secure the Outlet into Place

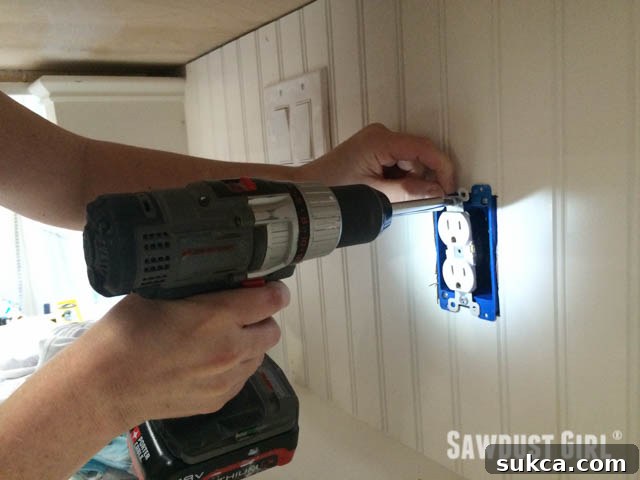

Once the outlet is properly seated in the junction box, you can secure it. Use the screws provided with the new outlet (or the screws from the old outlet if they are compatible and in good condition) to fasten the outlet to the top and bottom mounting tabs of the junction box. Tighten these screws until the outlet is firmly held in place and flush with the wall surface. Ensure it is level before fully tightening the screws to give your installation a professional appearance.

Step 9: Install the Faceplate and Test the New Outlet

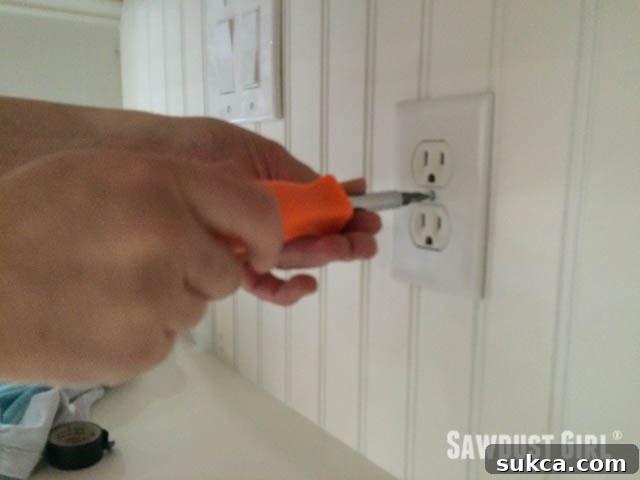

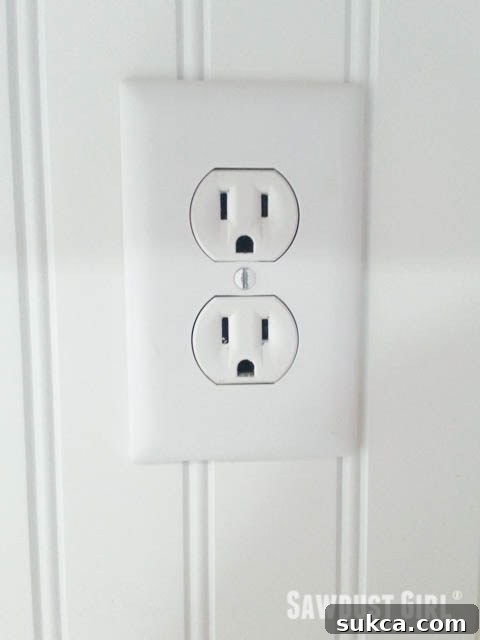

With the outlet securely mounted, the final aesthetic touch is to attach the faceplate. Simply align the faceplate over the outlet and secure it with the small screw typically located in the center. Do not overtighten this screw, as it can crack the faceplate.

After the faceplate is installed, return to your electrical panel and flip the circuit breaker back to the “ON” position. Now, it’s time to test your work. Plug in a simple appliance like a lamp to verify that the outlet is receiving power. For enhanced assurance and to check for correct wiring (especially useful for GFCI or AFCI outlets), use an outlet tester. This handy device will quickly indicate if the outlet is wired correctly or if there are any faults, such as open ground, open neutral, or reversed polarity. If the tester indicates a problem, immediately shut off the power and retrace your steps to identify and correct the error before using the outlet.

Troubleshooting Common Issues and Advanced Tips

Even with careful execution, sometimes issues can arise. Here are a few common problems and tips:

No Power After Installation: Double-check the circuit breaker to ensure it’s fully “ON.” Re-verify all wire connections at the outlet and in the junction box. A loose connection is a common culprit.
Outlet Tester Indicates a Fault: Refer to your outlet tester’s guide. Common faults like “open ground” mean the ground wire isn’t connected or making contact. “Reversed polarity” means the hot and neutral wires are swapped – immediately turn off power and correct this.
GFCI Outlet Trips Frequently: This often indicates a ground fault somewhere on the circuit that the GFCI is protecting. It’s doing its job, but the underlying issue needs to be found. If it trips immediately upon reset, there’s likely a persistent fault.
When to Call a Professional: If you’re dealing with old knob-and-tube wiring, aluminum wiring, consistent tripping of breakers, or if you simply feel overwhelmed, it’s always best to consult a licensed electrician. Electrical work can be complex, and safety should never be compromised.
Understanding Local Codes: Always be aware of your local electrical codes (NEC in the US). Some areas might require permits for new electrical work or specify certain types of outlets (like GFCIs in bathrooms, kitchens, and outdoor locations).

Conclusion

Congratulations! You’ve successfully learned how to wire an electrical outlet, transforming an old fixture or adding a convenient new power source to your home. This DIY project is not only satisfying but also equips you with valuable knowledge about your home’s electrical system. Remember, patience, precision, and an unwavering commitment to safety are the cornerstones of any successful electrical endeavor. With your new outlet fully functional and safely installed, you can now enjoy your perfectly toasted breakfast, power up your devices, or simply appreciate a job well done. Keep these steps in mind for future projects, and always prioritize safety.

Recommended Tools and Products

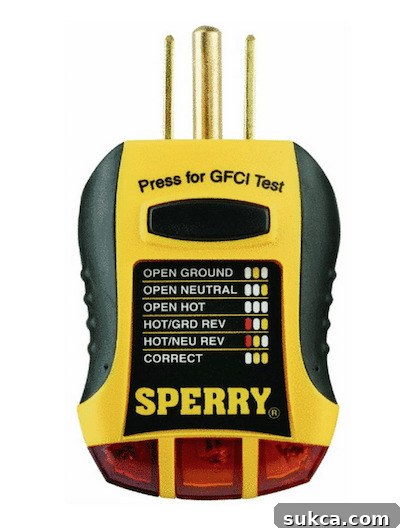

Sperry Instruments GFI6302 GFCI Outlet Tester
