Every dedicated woodworker or DIY enthusiast eventually faces the same formidable challenge: managing the ever-growing collection of lumber, especially those invaluable scraps that are “too good to throw away.” For far too long, my own workshop struggled with this exact predicament. What started as neatly stacked piles of various wood pieces invariably devolved into a chaotic jumble – my personal “Hall of Shame.” The frustration of digging through a mountain of wood just to find a specific offcut not only wasted precious time but also dampened the creative spirit. It was clear a radical change was needed, a systematic approach to reclaim order and efficiency. This realization spurred me to action, leading to the creation of bespoke organizational storage units designed to corral all my cherished wood scraps and larger stock alike, transforming my workshop from a scene of disarray into a haven of productivity.

Maximizing every inch of available space is a golden rule in any workshop, particularly when dealing with smaller or more confined areas. My workshop presented a classic challenge: a narrow wall section housing the breaker box. This often-overlooked area, while essential, typically remains underutilized due to the need for unobstructed access. Instead of letting this space go to waste, I envisioned a custom-designed lumber storage unit that would seamlessly fit this exact dimension. The critical innovation was mounting the entire unit on four robust swivel casters. This simple yet profound addition grants unparalleled mobility, allowing the storage unit to be effortlessly rolled out of the way whenever access to the breaker box is required. This thoughtful design ensures both optimal storage capacity and practical workshop functionality, proving that even the most awkward spaces can be transformed into highly efficient storage solutions.

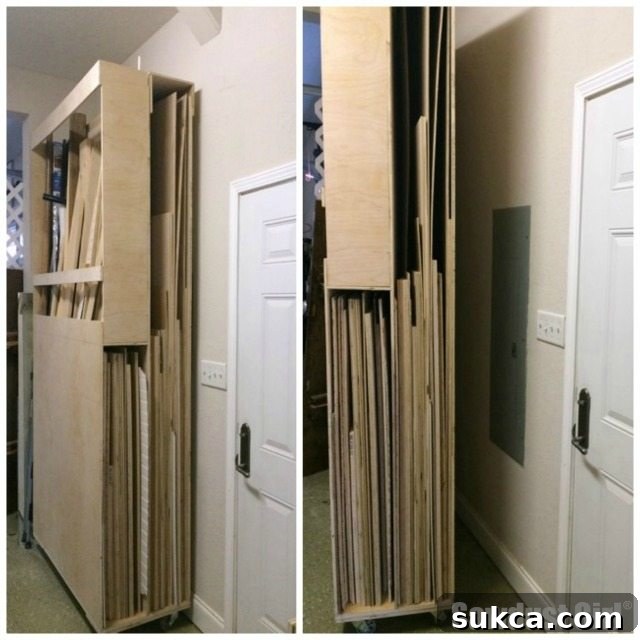

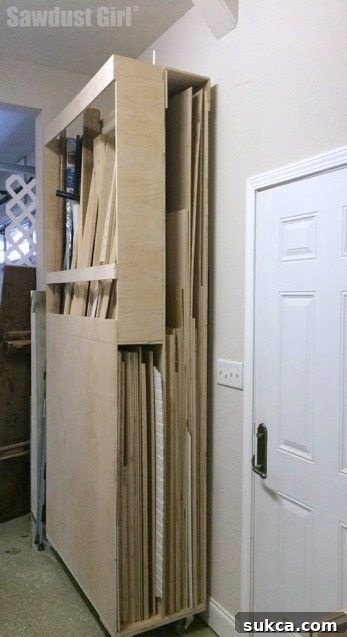

Revolutionize Your Workshop: Build a Mobile Lumber Storage Cart on Wheels

The construction of this highly functional mobile lumber storage unit does require a significant investment in lumber itself, but the long-term benefits far outweigh the initial cost. For any serious woodworker, having a dedicated system to organize and store various sheet goods like plywood, beadboard, MDF, and an assortment of scrap sticks and moldings is invaluable. Gone are the days of precariously stacked materials, where finding the right piece meant a disruptive and often dangerous excavation. This custom-designed cart provides individual slots and compartments, allowing each type of material to be neatly slid into place. This method ensures that every piece of lumber, from large sheets to small offcuts, is visible and easily accessible. The ability to quickly identify and retrieve exactly what’s needed not only saves considerable time and effort but also minimizes waste, making your woodworking projects more efficient and enjoyable.

Why a Mobile Lumber Storage Cart is a Game-Changer for Your Workshop

A well-organized workshop is the foundation of efficient and enjoyable woodworking. The mobile lumber storage cart addresses several common pain points faced by hobbyists and professionals alike:

Optimized Space Utilization: This unit is specifically designed to fit into narrow, often unused spaces, transforming dead zones into productive storage areas. Its vertical design maximizes capacity without consuming valuable floor space.
Unparalleled Accessibility: With dedicated compartments, every piece of wood is visible and easily reachable. No more rummaging through piles or moving heavy stacks just to find one board.
Enhanced Mobility: Mounted on swivel casters, the entire unit can be moved wherever it’s needed – next to your saw for cutting, closer to your assembly area, or simply out of the way when you need to access other parts of your workshop.
Improved Safety: Storing lumber upright and neatly compartmentalized reduces tripping hazards and the risk of heavy boards falling. This creates a safer working environment.
Material Protection: Keeping wood elevated and separated protects it from moisture damage, warping, and dings that can occur when stored in haphazard piles on the floor or against walls.
Boosted Efficiency: Less time spent searching for materials means more time spent creating. A streamlined workflow directly translates to increased productivity and a more satisfying building experience.
Versatility for All Wood Types: From full sheets of plywood to long moldings and small scrap pieces, this cart offers diverse storage options to accommodate a wide range of lumber dimensions and types.

Essential Materials and Tools for Your DIY Lumber Cart

Materials:

1/2″ Plywood: This will form the bulk of your unit, including the side panels, dividers, and various internal supports. Its balance of strength and manageability makes it ideal for the structure.
3/4″ Plywood: Specifically used for the bottom piece, providing a sturdy foundation capable of bearing the considerable weight of stored lumber. You may also consider 3/4″ for the back if you have scraps or desire extra rigidity, though 1/2″ is sufficient.
Wood Glue: A high-quality wood glue is crucial for strengthening all joints, creating a bond that is often stronger than the wood itself.
Wood Screws: For robust assembly, I highly recommend using 1 3/4″ SPAX screws. These self-tapping screws are designed to bite quickly into wood, often eliminating the need for pre-drilling, which saves significant time and effort. If using other screw types, always pre-drill pilot holes to prevent splitting.
4 Swivel Casters: Choose heavy-duty casters with a good weight rating to ensure your loaded cart moves smoothly and safely. Locking casters are an excellent addition for stability when the cart is stationary.

Tools You’ll Need:

Circular Saw or Table Saw: For making accurate and straight cuts in your plywood. A track saw is also an excellent option for breaking down full sheets.
Drill/Driver: Essential for pre-drilling (if not using self-tapping screws) and driving screws.
Tape Measure: For precise measurements of all components.
Speed Square or Combination Square: To ensure all cuts and assemblies are perfectly square.
Clamps: F-clamps or parallel clamps will hold pieces together securely while glue dries and screws are driven.
Pencil: For marking cut lines and screw locations.
Safety Glasses and Hearing Protection: Always prioritize personal safety when working with power tools.
Sandpaper or Sander: To smooth any rough edges after cutting.

Step-by-Step Construction Guide: Build Your Mobile Lumber Cart

Follow these detailed steps carefully to construct your durable and efficient mobile lumber storage unit. Precision in cutting and assembly will ensure a sturdy and long-lasting cart.

Step 1: Assemble the Core Structure

Begin by attaching the main middle divider to one of the full sheets of 1/2″ plywood, which will serve as one of the outer side panels.
Apply a generous bead of wood glue along the edge where the divider meets the side panel.
Secure the joint using wood screws. As previously mentioned, 1 3/4″ SPAX screws are highly recommended for their self-drilling capabilities, which can significantly speed up the assembly process. Ensure the pieces are flush and square before fully tightening the screws.

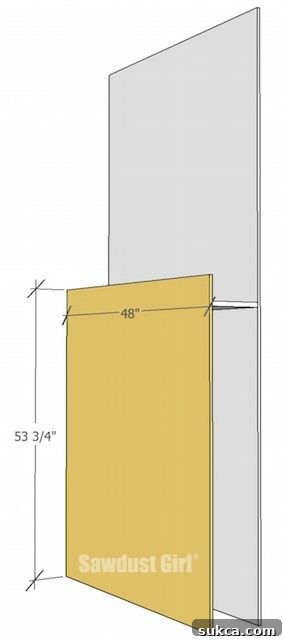

Step 2: Integrate the Short Side Panel

Next, attach the shorter side piece (a 53 3/4″ piece of 1/2″ plywood) to the middle divider you just installed. This piece will form part of the front section of the cart.
It’s critical to ensure that the bottoms of these two pieces are perfectly flush. Use a straight edge or a large square to verify alignment.
Note that the top of this short front piece will naturally extend several inches above the top edge of the center divider. This intentional design creates a specific compartment for shorter materials.

Step 3: Install the Robust Bottom Piece

Now, attach the 3/4″ thick bottom piece. This thicker plywood provides the necessary strength and stability to support the entire load of your lumber.
The bottom piece is designed to extend beyond the assembled side and divider by 1/2″. This extension will accommodate the thickness of the back panel.
*Important Note: If you opt to use 3/4″ plywood for the back piece instead of 1/2″, adjust the length of the bottom piece to 48 3/4″. This will ensure it extends by 3/4″, maintaining the correct overall dimensions and flush fit for the thicker back panel.

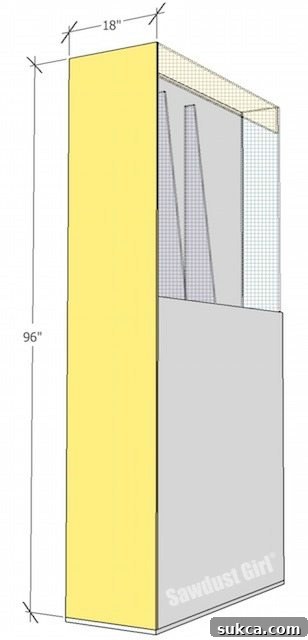

Step 4: Secure the Back Panel

With the bottom piece in place, it’s time to attach the back panel of the unit.
The back panel should sit directly on top of the bottom piece you just installed.
Ensure that the back panel is perfectly flush with the front piece of the structure. Use clamps to hold it firmly in place while you apply glue and drive screws, ensuring a strong and square assembly.

Step 5: Incorporate Internal Dividers for Smaller Stock

To create specialized compartments for smaller pieces of lumber, moldings, or scrap sticks, add the short dividers to the upper portion of the central divider. These will help prevent materials from mixing and provide dedicated slots.
Apply wood glue to both the bottom and back edges of these short dividers where they will contact the main divider and the back panel.
Secure them firmly by driving screws from the back panel into the dividers, ensuring a robust connection. This creates easily accessible slots for organizing your smaller, yet equally important, wood inventory.

You can efficiently cut two of these short dividers from a single piece of plywood, as illustrated in the provided diagram, maximizing material usage.

Step 6: Construct the Front and Top Face for Small Piece Storage

This section is specifically designed for sorting and storing small pieces of wood, ensuring they are kept secure and easily retrievable.
Attach the front piece (indicated in blue in the diagram) to prevent items from falling out the side.
Then, attach the top face piece (indicated in yellow). This component is crucial for preventing smaller, longer pieces from tipping over and falling out of their compartments.
Crucially, the top of this section remains open. This thoughtful design allows you to easily slide longer, slender pieces of wood vertically through the top opening, then guide them down into their designated slots behind the protective “lip” created by the top face. This ensures that even awkward lengths of trim or dowels are stored securely.

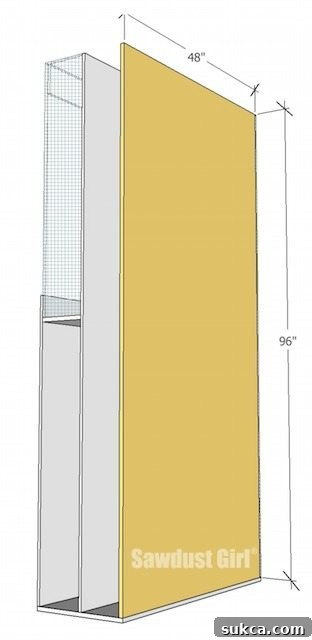

Step 7: Complete the Side Structure

Now, attach the final side panel of the unit. This piece will mirror the first side panel you installed in Step 1.
Ensure this side panel sits directly on top of the bottom piece, aligning perfectly.
Verify that it is flush with the back panel, creating a complete and enclosed structure for your lumber. Use glue and screws for a strong bond.

Step 8: Add the “Top Hat” Reinforcement

Install a “top hat” component to reinforce and hold both the side and middle dividers firmly in place. This additional structural element is vital, as it counters the outward pressure exerted by the weight of lumber that will be stored within the unit.
This “top hat” also acts as a height extension, providing the necessary clearance and smooth transition point to allow full sheets of lumber to be easily slid into their vertical compartments. It prevents binding and ensures effortless loading and unloading.

Step 9: Install Mobility – The Casters

The final step in constructing your mobile lumber cart is installing the casters of your choice. Ensure they are robust enough to handle the total weight of your unit plus a full load of lumber.
Position one caster at each corner of the bottom panel for maximum stability and easy maneuverability. Secure them firmly with appropriate screws, ensuring they are well-fastened to the thick 3/4″ plywood base.
For maximum utility, consider casters that include locking mechanisms. These will prevent the cart from rolling unintentionally while you’re accessing or loading lumber, adding an extra layer of safety and convenience. I recently ordered these casters from Amazon for another project, and they performed wonderfully.

Customization and Finishing Touches

Once your mobile lumber storage cart is built, consider personalizing it to further enhance its functionality and integrate it seamlessly into your workshop. You might choose to paint or seal the plywood to protect it from moisture and wear, extending the lifespan of your unit. Adding a coat of paint can also brighten your workshop and make the cart easier to keep clean. For even greater organization, consider labeling each compartment for different types of wood, such as “Plywood Scraps,” “Hardwood Offcuts,” or “Molding Stock.” You could also attach hooks to the sides for hanging measuring tapes, squares, or even small clamps, keeping essential tools close at hand. The beauty of a DIY project like this is its adaptability – feel free to modify the internal dividers or add additional features to perfectly suit your specific needs and the types of materials you typically work with.

Download and Print Your Free Plans: You can access the detailed plans and cutting diagrams to guide you through this project. Simply click the link below to download your comprehensive guide.

Narrow Lumber Storage Cart on Wheels.pdf

Transform Your Workshop Today!

Building this mobile lumber storage cart is more than just a woodworking project; it’s an investment in your workshop’s efficiency, safety, and overall enjoyment. Say goodbye to the frustrations of a cluttered workspace and the endless search for that perfect piece of wood. With this organized, accessible, and movable storage solution, you’ll find yourself spending less time wrestling with lumber and more time doing what you love – creating beautiful things. Embrace the transformation from chaos to organized productivity, and experience the profound impact a well-structured workshop can have on your woodworking journey.
