Welcome to the journey of transforming a cluttered workshop into a beacon of efficiency! As I continue the satisfying process of organizing my workspace, one of the most impactful additions has been a custom-built, sliding bit storage tray. The sheer joy of having a dedicated, easily accessible spot for every single drill and driver bit is truly transformative. Gone are the days of rummaging through chaotic drawers; now, locating the exact bit needed—whether it’s a specific size, style, or type—is a swift, seamless operation. This system doesn’t just save time; it elevates the entire workflow, allowing for quicker project starts and uninterrupted progress. This article details the creation of this indispensable workshop accessory, designed to bring order and speed to your projects.
Crafting the Ultimate Sliding Bit Storage Tray: A DIY Guide
The persistent frustration of dealing with loose drill and driver bits rolling around haphazardly in drawers became an undeniable call to action. Previous attempts at organization, such as using various plastic containers, proved futile; these containers would inevitably slide around within the drawer, creating a new form of disarray. This chaos often invited more clutter, transforming the drawer into an ‘odds and ends’ graveyard for miscellaneous tools and hardware. To reclaim this valuable storage space and restore order, I embarked on a mission to design a permanent, secure, and highly functional solution.

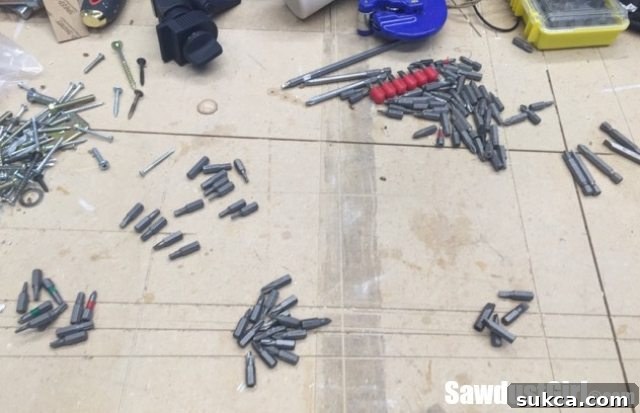

My first step was to completely empty the notorious “odds and ends” drawer onto my assembly table. This allowed for a comprehensive assessment of its contents. All the loose bits were meticulously sorted into a dedicated pile, while everything else was temporarily set aside for future organization. This initial clean-out provided a clear canvas, laying the groundwork for designing a storage system that would not only contain but also elegantly organize every single bit.
Selecting the Right Base Material for Your Bit Organizer

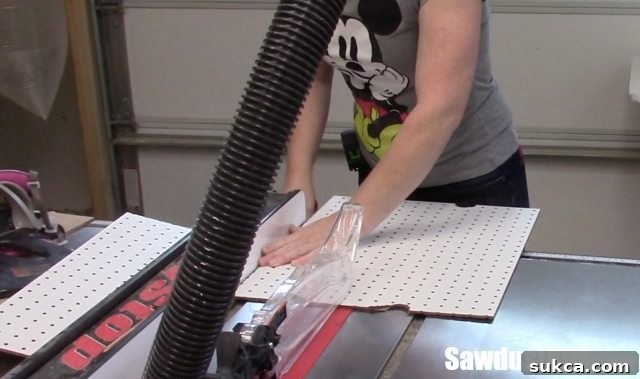

Initially, I chose a piece of pegboard to serve as the base for the sliding tray, envisioning its pre-drilled holes as a head start. However, in retrospect, this decision added more complexity to the project than anticipated. If I were to undertake this build again, I would unequivocally opt for a 1/4-inch MDF (Medium-Density Fiberboard) sheet from the outset. MDF offers a consistently smooth surface and uniform density, making it an ideal choice for drilling precise holes without the issues encountered with pegboard.
Creating a Dense Grid of Storage Holes

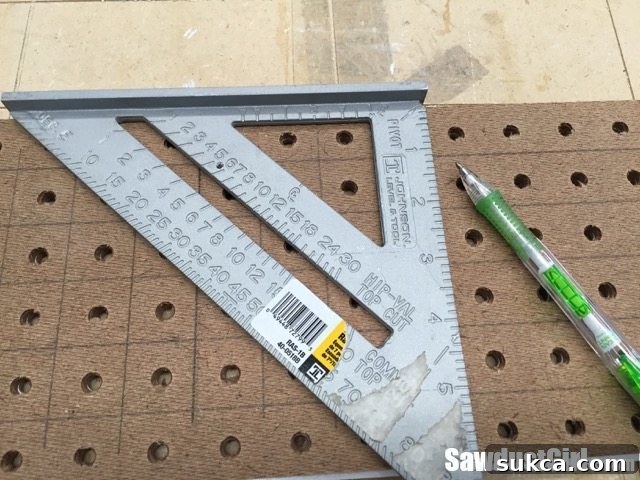

To maximize the storage capacity of the tray, it was essential to create a denser pattern of holes than the standard pegboard layout. Using a speed square, I carefully marked a new grid directly onto the pegboard. The existing holes served as a guide, allowing me to precisely offset the new drill points, effectively doubling the number of available storage slots. This method ensures that every square inch of the tray is utilized efficiently, accommodating a vast collection of bits.

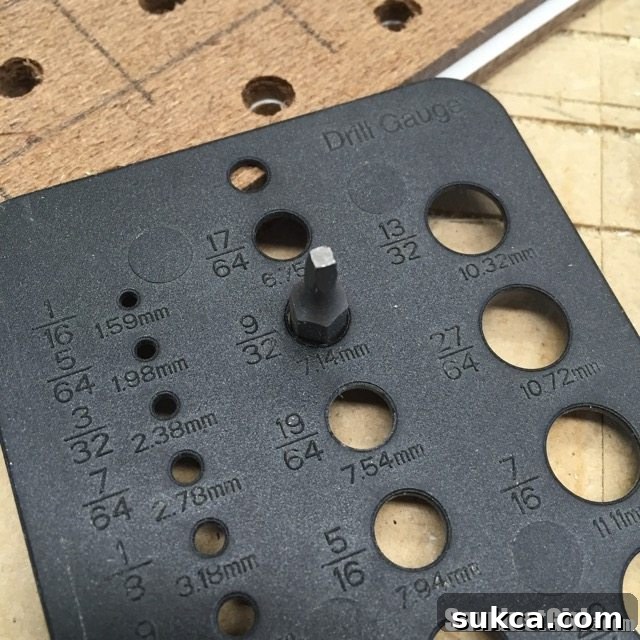

Before drilling, it’s crucial to determine the appropriate hole sizes for your bits. I utilized a drill gauge to accurately measure the shafts of all my driver bits. This indispensable tool helps in selecting the correct drill bit size, ensuring a snug fit that securely holds each bit without allowing it to wobble or fall through. Precision at this stage is key to the functionality and stability of the entire storage system.
Overcoming Challenges with Pegboard: Drilling and Finishing

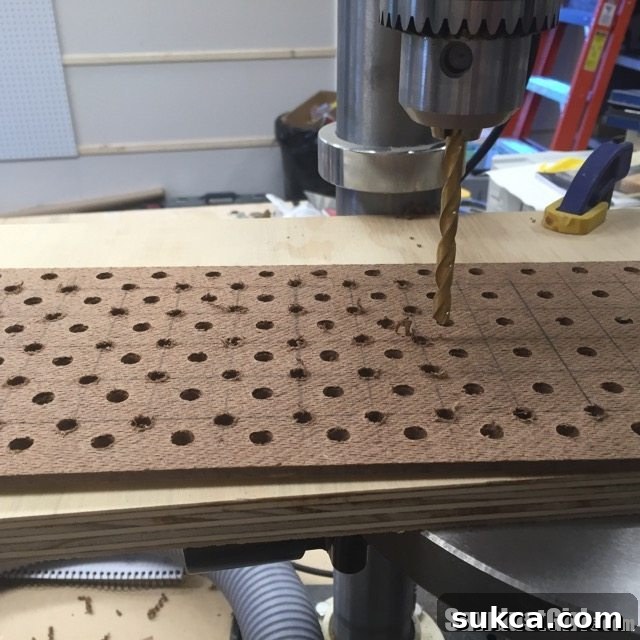

While the initial concept of using pegboard offered a perceived shortcut, it soon became evident that the existing holes were not adequately sized to accommodate standard driver bits. This necessitated drilling every single hole to the correct diameter, negating the anticipated time-saving benefit. Furthermore, the melamine coating on the pegboard surface presented a challenge: it tended to tear out around the edges of the newly drilled holes, creating an unsightly and uneven finish.

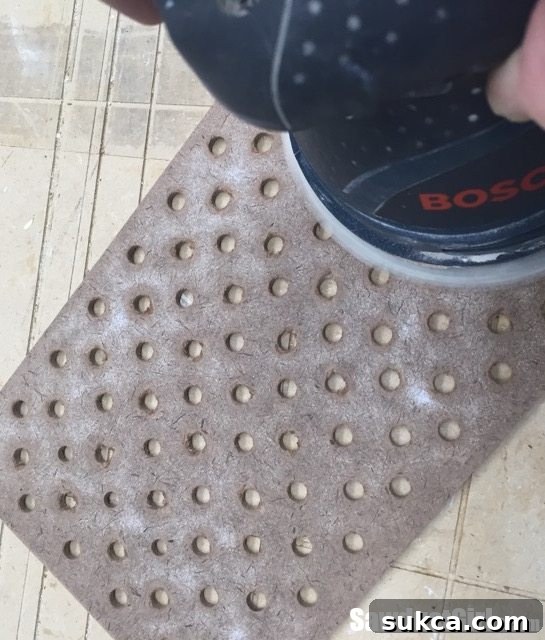

To achieve a smooth and consistent surface, I had to sand down the areas where the melamine had torn. This process proved surprisingly easy, but to ensure a perfectly uniform appearance and consistent color across the entire tray, I ultimately decided to sand off the entirety of the melamine coating. This extra step, though initially unexpected, resulted in a much cleaner and more professional finish, essential for a premium workshop accessory.
Assembling the Tray Body: Adding Depth and Stability

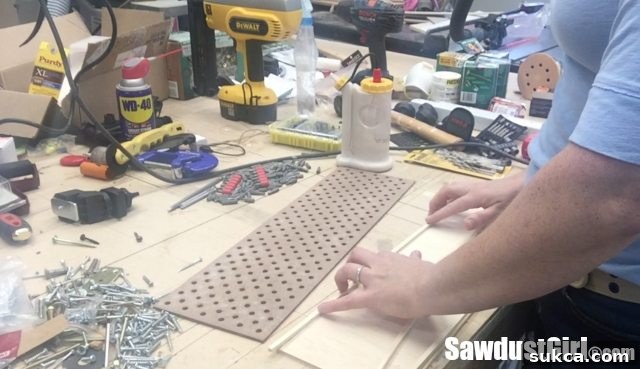

After preparing the top surface, the next crucial step was to construct the main body of the storage tray. This involved cutting a bottom piece and several thin strips from 1/4-inch plywood. These thin strips are strategically sandwiched between the newly drilled top piece (which was originally pegboard) and the solid plywood bottom. This “sandwich” construction creates additional space and depth beneath the top layer, allowing the driver bits to seat much deeper and more securely than if they were held only by the thickness of the top panel. The extra depth significantly improves the stability of the bits, preventing them from wobbling or easily falling out when the tray is moved.
For robust assembly, I employed a combination of woodworking glue, painter’s tape, and readily available heavy objects to hold all the pieces firmly in place while the glue cured. Ensuring a strong bond at this stage is vital for the long-term durability and structural integrity of the sliding bit storage tray. Adequate clamping and drying time contribute significantly to a resilient final product.
Adding Aesthetic and Ergonomic Elements: Front and Back Supports

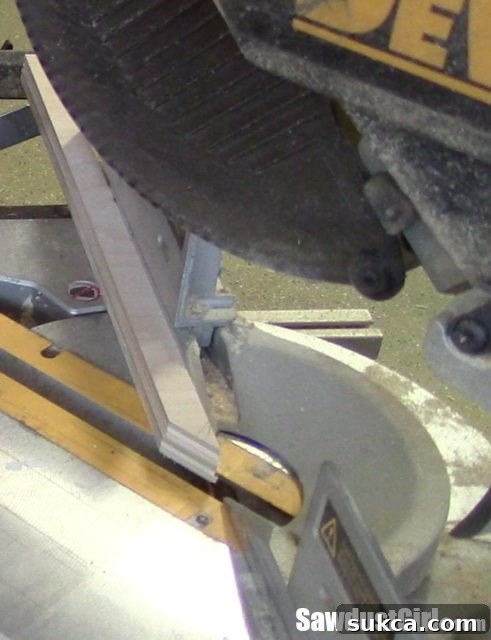

To enhance both the aesthetics and functionality of the tray, I designed taller pieces for the front and back sections. These pieces provide a subtle barrier, preventing bits from sliding out during movement and offering a more finished look. I used my miter saw to angle the ends of these pieces, adding a touch of design flair. Following the cuts, an orbital sander was used to meticulously round over any sharp edges, ensuring safe handling and a smooth, professional feel to the finished organizer.

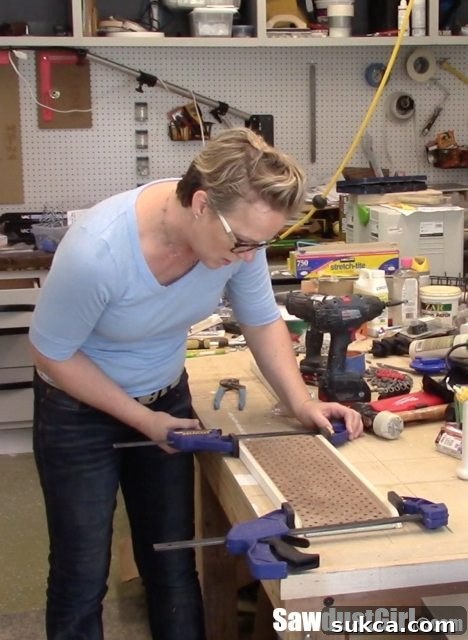

These front and back pieces were then securely attached to the main tray body using a combination of strong woodworking glue and brad nails. This dual fastening method ensures a permanent and sturdy connection, capable of withstanding the rigors of regular workshop use. The combination of glue for adhesion and nails for immediate holding power creates a reliable and durable assembly.
Preparing the Drawer for Seamless Operation

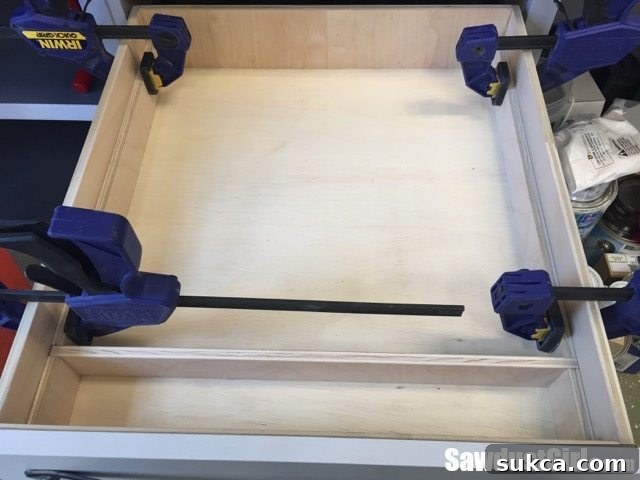

The success of a “sliding” storage tray hinges on meticulous drawer preparation. I cut strips of plywood precisely sized to fit snugly within my workshop drawer, creating a stable track for the tray. An additional cross strip was strategically added near the front of the drawer, forming a separate compartment. This front section is ideal for housing larger or frequently used accessories that don’t fit into the main bit storage, or for interchangeable bit screwdrivers.

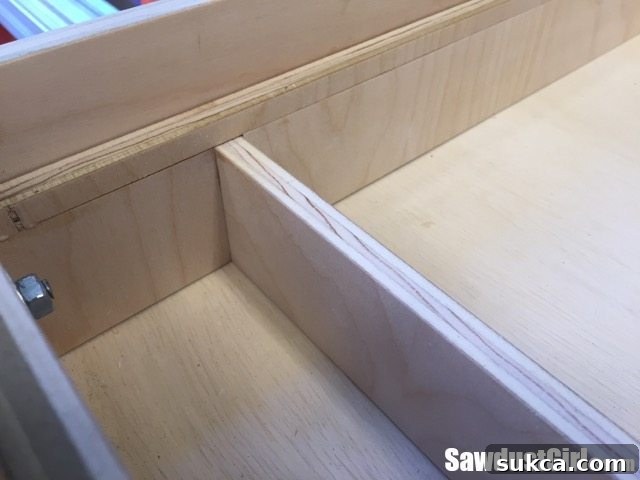

To ensure the sliding bit storage tray glides effortlessly without snagging on any edges, I covered the seams and exposed edges of the plywood strips with a full-length piece of plywood. This creates a completely smooth and uninterrupted surface across the entire length of the drawer, essential for optimal functionality. A perfectly smooth track guarantees that the tray will operate flawlessly every time.
Ensuring Ultra-Smooth Gliding Action

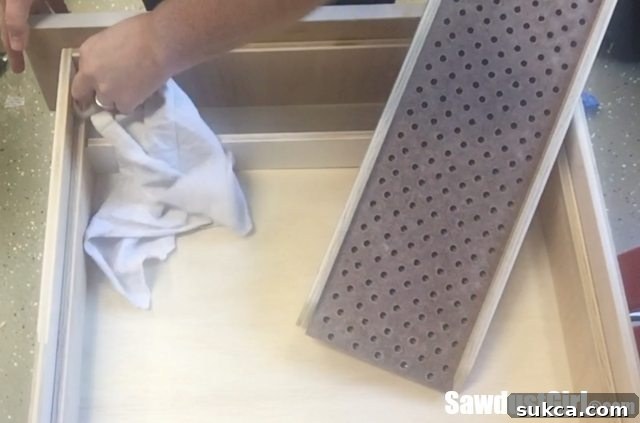

To guarantee the tray slides with absolute minimal friction, I meticulously sanded all contact surfaces within the drawer to an exceptionally smooth finish. Going a step further, I applied a generous coating of wax to these surfaces. This combination of fine sanding and waxing significantly reduces resistance, allowing the heavy, fully loaded bit tray to glide back and forth with incredible ease. This attention to detail ensures a truly premium user experience, making bit retrieval a pleasure.
The Grand Finale: Sorting, Storing, and Enjoying the Organization

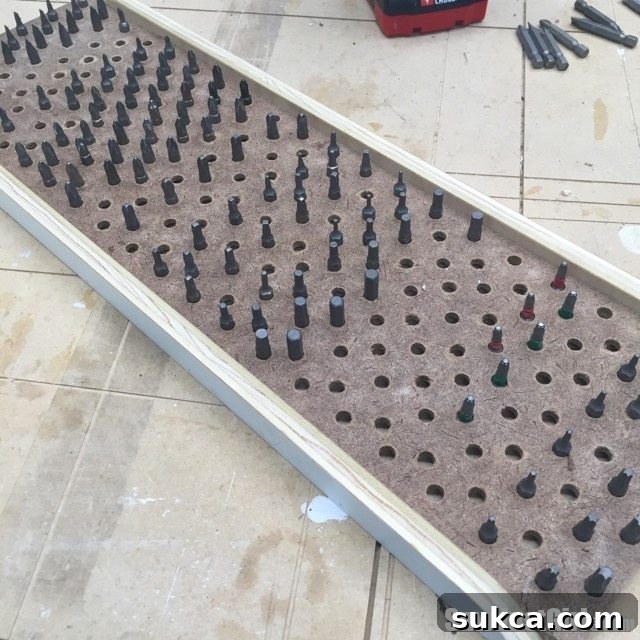

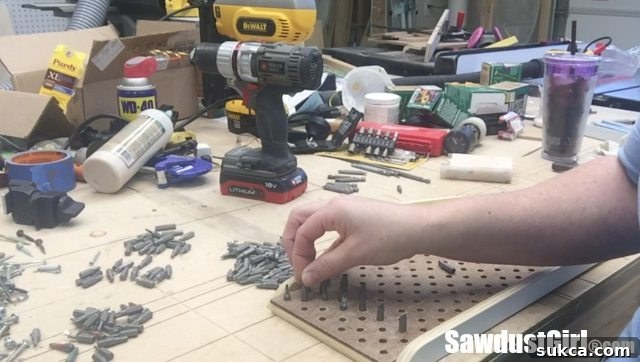

With the sliding tray meticulously constructed and the drawer perfectly prepared, it was time for the immensely satisfying task of organizing the bits. I sorted them systematically by type, then arranged them from smallest to largest within each category. Crucially, I left strategic gaps between different bit types to accommodate future additions, ensuring the system remains adaptable as my tool collection grows. This thoughtful arrangement allows for quick visual identification and effortless access to any bit.
The result is not merely a storage solution; it’s a testament to efficient workshop design. The fully loaded tray, with every bit in its designated place, is a genuine marvel of organization.

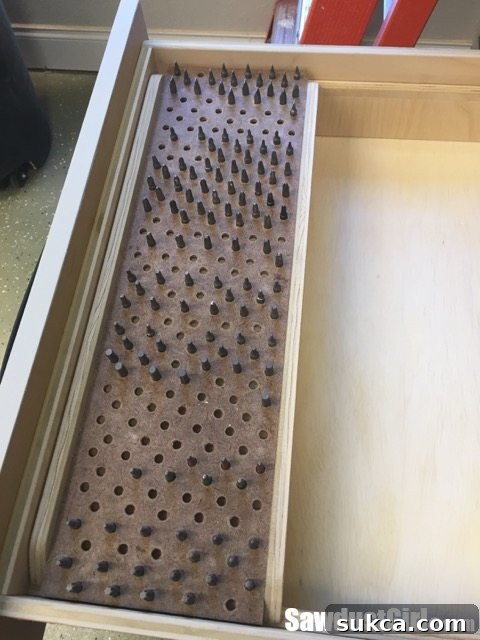

Upon its final installation, the tray lived up to every expectation, gliding into place with effortless grace. It truly slides as if on air, demonstrating the success of the careful preparation and waxing.

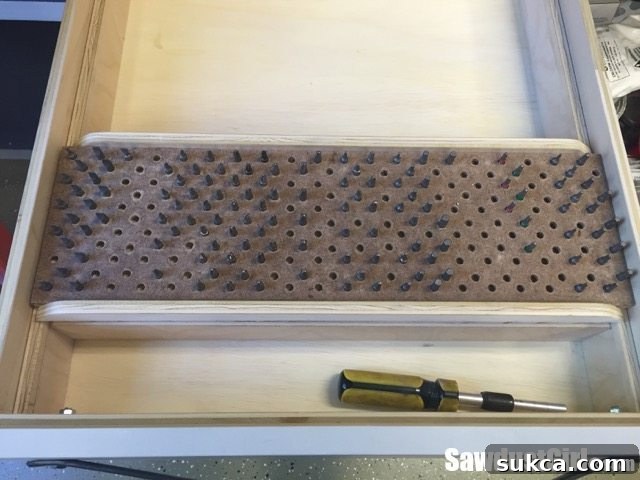

The thoughtfully designed front compartment now neatly houses a pair of my frequently used interchangeable bit screwdrivers. Recognizing the ample space available, I even added another plywood divider, effectively creating two distinct compartments within this front section. The left side now perfectly accommodates my longer pocket screw bits, keeping them easily accessible. This particular drawer proved to have so much organizational potential that I’ve since expanded its capabilities with a few more custom storage sections to maximize its utility. Explore more of my workshop organization projects, including dedicated Drill Bit Storage Trays, efficient Two-Tier Drawer Storage, and versatile Adjustable Drawer Divider Organizers.
Building this sliding bit storage tray is more than just a woodworking project; it’s an investment in your workshop’s efficiency and your own peace of mind. By tackling the persistent problem of disorganization head-on, you create a system that not only saves time but also enhances the overall enjoyment of your crafting and building endeavors. Embrace the satisfaction of a perfectly organized drawer and the confidence of knowing every tool has its proper place.
