In the dynamic world of woodworking, efficiency and precision are paramount. As someone constantly engaged in various projects, from intricate furniture pieces to robust cabinet installations, the quest for tools that streamline the process while enhancing accuracy is never-ending. This pursuit has led me to explore a multitude of pocket hole jigs, each offering unique advantages tailored to specific tasks. The choice of jig often depends on factors like the number of holes required, the complexity of the setup, the work environment, and the material at hand.
My journey began with a compact and incredibly handy tool, the Kreg R3 Jr. Pocket Hole Jig. This little powerhouse is exceptional for attaching face frames to large, pre-installed built-ins or for making quick repairs. While the R3 is perfectly capable of drilling any pocket hole, its two fixed-space holes are optimally designed for narrower stock, like 1×2 face frames. For wider materials, its usage requires repositioning the jig multiple times to drill additional holes, which can be less efficient for larger projects. Recognizing the need for a more comprehensive solution to complement my R3, I decided to invest in a larger, more versatile pocket hole jig.
Initially, I acquired the Kreg K5, a popular choice among woodworkers. I utilized it extensively for several months, gaining valuable experience and understanding its capabilities and limitations. While the K5 proved to be a significant upgrade, my continuous search for tools that offered even greater efficiency and user-friendliness led me to research further. After delving into numerous reviews and comparisons, I ultimately decided to purchase the Porter-Cable 560 Quick Jig, a decision that has profoundly impacted my workflow and the quality of my woodworking projects. This review aims to provide an in-depth look at the Porter-Cable 560, highlighting its features, benefits, and why it has become an indispensable tool in my workshop.
Please note: Links in this post are affiliate links, which means I may earn a small commission if you make a purchase through them, at no extra cost to you.

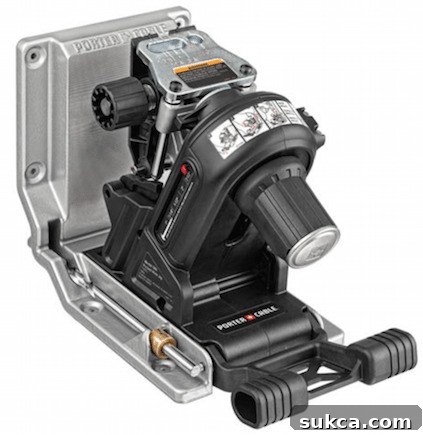

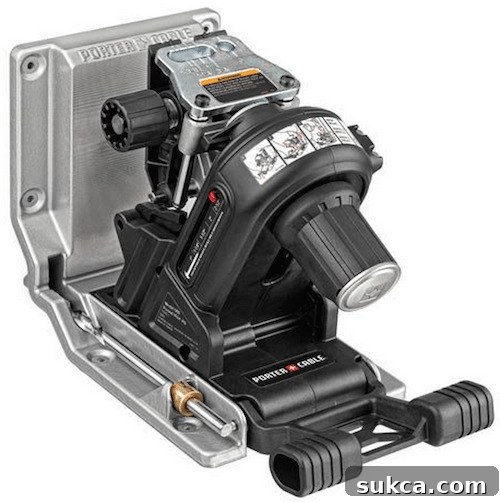

Porter-Cable 560 Quick Jig: An In-Depth Review for Woodworking Enthusiasts

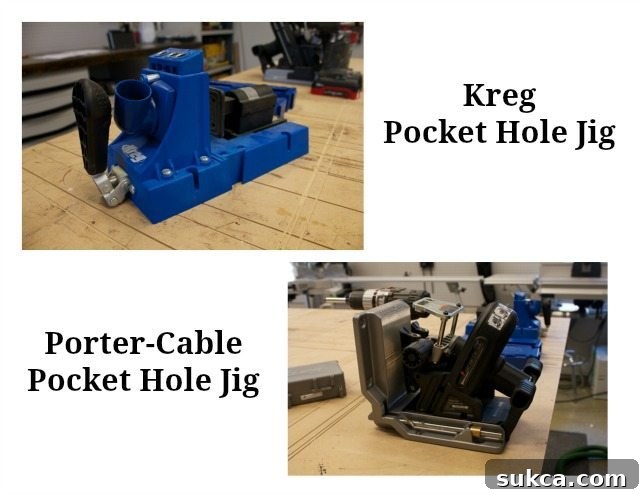

The Porter-Cable 560 Quick Jig stands out in the crowded market of pocket hole jigs, offering a blend of robust construction, intelligent design, and user-centric features. Weighing in at approximately 3 lbs more than its counterpart, the Kreg K5, this seemingly small difference in weight translates into a significant advantage. This added heft provides superior stability, allowing the jig to remain firmly planted on the workbench during operation without the constant need for clamping. This enhanced stability is crucial for achieving precise, consistent pocket holes, especially when working on a rapid succession of pieces.
While the Porter-Cable 560 comes at a slightly higher price point, approximately $40 more than the Kreg K5, this investment is thoroughly justified by its superior performance and thoughtful design elements. Many of the minor inconveniences or limitations I encountered with the K5 are expertly addressed and overcome by the Porter-Cable 560. From its sturdy build to its innovative operational features, every aspect of this jig contributes to a smoother, more efficient, and ultimately more enjoyable woodworking experience. For those serious about their craft, the long-term benefits of precision, speed, and durability far outweigh the initial cost difference, making it a truly worthwhile upgrade for any woodworking shop.
At the heart of the Porter-Cable 560’s appeal is its construction. Crafted predominantly from metal, this jig exudes durability and a professional-grade feel. This solid construction not only contributes to its stability but also promises longevity, ensuring it will withstand the rigors of frequent use in a busy workshop. The robust build means less flexing and more consistent results, allowing you to focus on your project rather than struggling with tool stability. This heavy-duty design distinguishes it from more plastic-intensive alternatives, establishing it as a reliable workhorse for a wide range of pocket hole joinery applications.
Efficient Dust Collection for a Cleaner Workshop

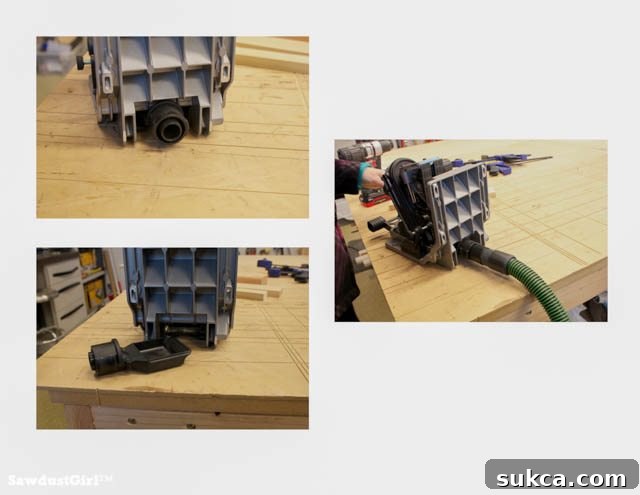

Maintaining a clean workspace is not just about aesthetics; it’s vital for safety, visibility, and the quality of your work. The Porter-Cable 560 Quick Jig incorporates a well-designed dust collection system strategically located on the backside of the jig. This clever placement ensures that the dust port and collection mechanism do not obstruct your drilling path or interfere with material placement, allowing for unhindered operation. The system features a small, sliding dust collection tray positioned directly beneath the drilling location. By connecting your shop vacuum to the integrated dust port, the jig effectively removes a significant portion of the sawdust generated during drilling.
While the Porter-Cable’s dust collection might not capture every single particle with the same intensity as some other systems, such as the Kreg K5’s more direct port, it nonetheless performs commendably, capturing *most* of the sawdust. This means less airborne dust, a cleaner drilling surface, and ultimately, a healthier working environment. Reduced dust also leads to clearer visibility of your workpiece, allowing for more accurate hole placement and a better overall finish. This feature, though perhaps not the absolute best on the market, is a substantial improvement over jigs with no dust collection at all, providing a practical and effective solution for managing wood dust in your shop.
Unmatched Versatility: Drilling into Materials of Any Length and Width
One of the most innovative and practical features of the Porter-Cable 560 Quick Jig is its remarkable adaptability for handling materials of virtually any length and width. This is a game-changer for woodworkers who frequently tackle projects involving large panels, long boards, or irregularly sized components that often pose challenges for standard, fixed-base jigs. The ingenious design allows for a simple transformation: when working with larger pieces, you can easily remove the dust collection tray and then flip the entire Porter-Cable jig onto its back.

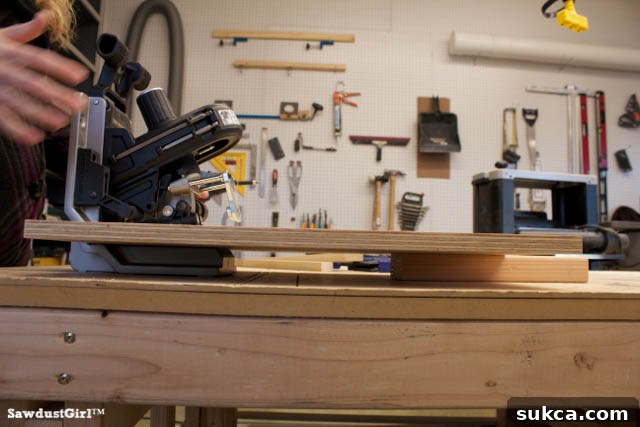

The true brilliance lies in the jig’s back structure, which is engineered to match the exact thickness of a standard 2×4 lumber. This thoughtful design enables you to use a scrap 2×4 as a perfectly aligned and stable support for the long end of your material. Whether you’re drilling pocket holes into a lengthy cabinet side, a wide tabletop, or an extended shelf, this setup ensures consistent support and prevents sagging or misalignment. This eliminates the need for complex clamping arrangements or makeshift supports, significantly speeding up the setup process and ensuring accurate results even with unwieldy stock. This unparalleled versatility liberates you from the constraints of jig size, allowing you to confidently undertake a broader range of woodworking projects with ease and precision.
Precision and Simplicity: Adjustable Hole Spacing and Automatic Depth Setting

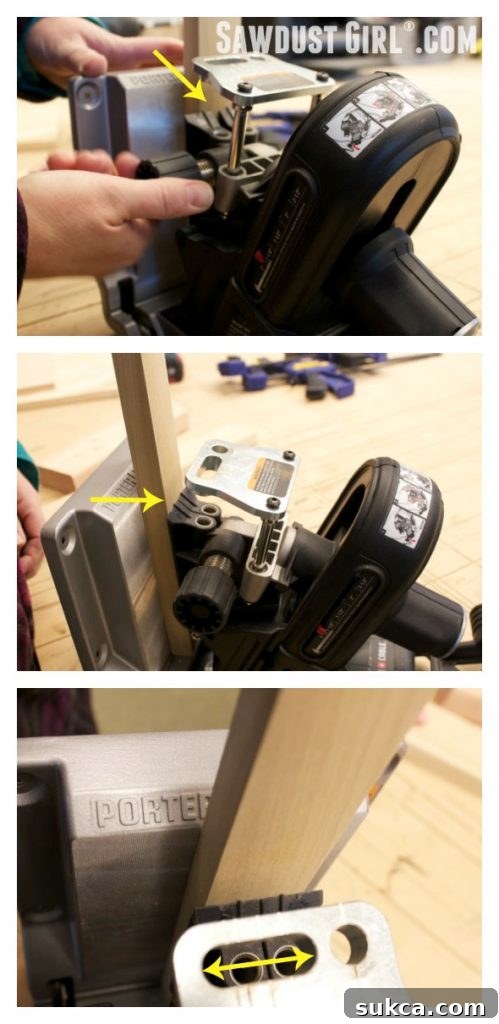

The Porter-Cable 560 Quick Jig truly excels in its precision and ease of adjustment, setting it apart from many competitors. A standout feature is its system of variable-spaced bushings, which grants you the flexibility to precisely adjust the pocket hole location to suit different material widths and project requirements. This adjustability is critical for optimizing joint strength and aesthetics, allowing you to place screws strategically without being limited by fixed spacing. The adjustment process itself is remarkably straightforward: a simple turn of a knob allows you to effortlessly space your pocket holes exactly where they need to be.
But the innovation doesn’t stop there. One of the most significant time-saving and accuracy-boosting features of this jig is its automatic stop collar adjustment. Unlike many other pocket hole jigs that require you to manually measure and adjust the stop collar on your drill bit for each change in wood thickness, the Porter-Cable 560 handles this automatically. Once you lock your workpiece securely into place, the jig intuitively calibrates the drill bit’s depth to match the thickness of your material. This ingenious mechanism eliminates guesswork, reduces the potential for errors, and dramatically speeds up your workflow. You simply set your wood, lock it down, and you are ready to drill perfectly sized and positioned pocket holes every single time, ensuring optimal joint integrity without the tedious manual setup.
Effortless Material Thickness Adjustment for Seamless Workflow
Another “cool feature” that underscores the user-centric design of the Porter-Cable 560 Quick Jig is its incredibly simple and rapid material thickness adjustment. In woodworking, projects often involve materials of varying thicknesses, and the ability to quickly adapt your tools without significant downtime is invaluable. This jig addresses that need with an intuitive, one-step adjustment process that makes transitioning between different wood dimensions exceptionally smooth.

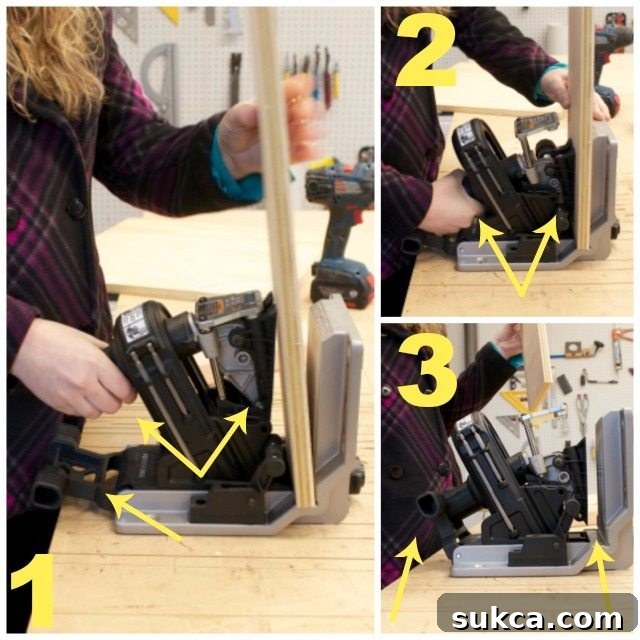

The mechanism is elegant in its simplicity: First, you engage the “quick release” clamp, which prepares the jig for receiving your material. Next, you position your wood securely in place within the jig. Finally, a single turn of a convenient handle allows you to effortlessly close the jig onto the wood, clamping it firmly and precisely. Once your drilling is complete, you simply open the quick release to remove the drilled piece and swiftly insert the next. This fluid, almost instantaneous adjustment for material thickness ensures consistent, strong joints regardless of the wood’s dimension, dramatically enhancing efficiency and reducing setup time compared to jigs that require fiddly manual measurements or shims. This feature alone significantly streamlines the workflow, especially when undertaking projects that involve multiple component sizes.
Integrated Drill Bit System and Smart Screw Length Indicator

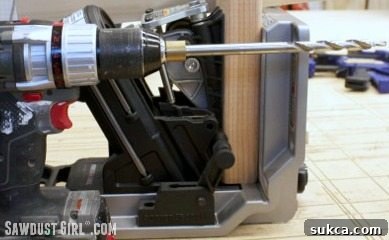

The Porter-Cable 560 Quick Jig truly redefines ease of use with its integrated drill bit system. As highlighted earlier, the need to manually adjust the stop collar on your drill bit becomes a thing of the past with this jig. This is a monumental advantage, as inconsistent stop collar settings are a common cause of improperly drilled pocket holes. The jig’s intelligent design ensures that the drill depth automatically adapts and changes in conjunction with the material thickness you are working with. The included custom drill bit is engineered to work in perfect harmony with this system, guaranteeing that it drills to the correct, optimal depth every single time, without any user intervention or measurement. This integrated approach not only saves considerable time but also significantly improves the consistency and strength of your pocket hole joints.

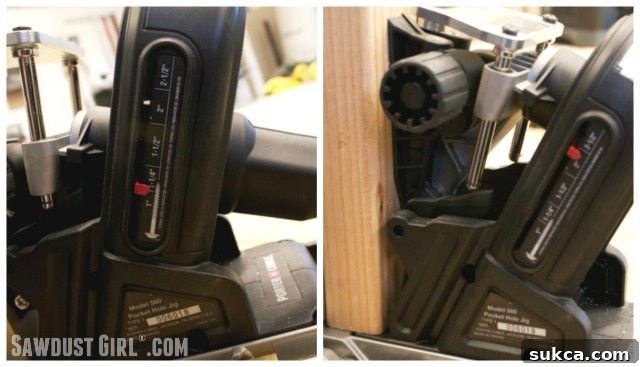

Adding another layer of intelligence and efficiency, the Porter-Cable 560 features a convenient screw length indicator prominently displayed on the side of the jig. This ingenious indicator eliminates guesswork by visually guiding you to select the correct screw length based on the specific material thickness you are utilizing. Using the appropriate screw length is crucial for achieving strong, durable joints and preventing issues like screws breaking through the surface of thinner materials or failing to properly engage with thicker ones. This dual integration—automatic drill depth and visual screw length guidance—empowers woodworkers to produce high-quality, reliable pocket hole joints with confidence and unparalleled ease.
Convenient Onboard Bit Storage and Time-Saving Stop Block

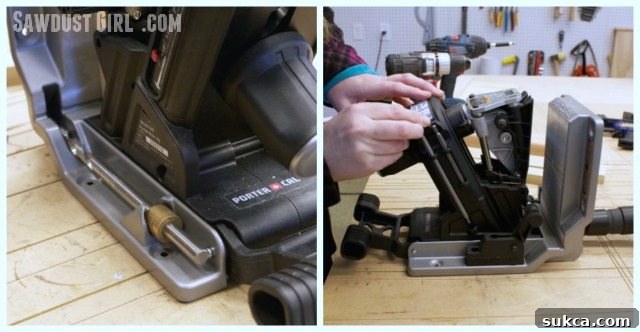

Thoughtful design extends to the smallest details of the Porter-Cable 560 Pocket Hole Jig, enhancing its overall user experience and practicality. One such convenience is the integrated bit storage, cunningly placed directly on the jig itself. This feature ensures that your essential tools are always within arm’s reach, eliminating the frustrating search for misplaced bits in a cluttered workshop. The jig comes equipped with, and provides dedicated storage for, two driver bits and one drill bit—the fundamental components needed for immediate pocket hole operations. This ready accessibility contributes to a smoother workflow, reducing interruptions and keeping your focus on the task at hand.

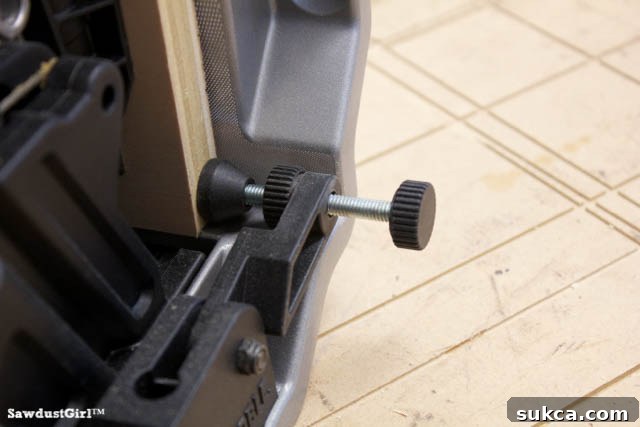

Further bolstering its efficiency, the Porter-Cable 560 includes a built-in stop block. This seemingly simple addition is a true time-saver, particularly when you’re engaged in batch processing materials of the same width, such as when constructing multiple face frames or identical cabinet components. The stop block allows for consistent and rapid positioning: simply place your workpiece into the jig so that its right side butts firmly against the stop block, and you’re perfectly set to drill. This eliminates the need for repeated measurements and ensures uniform hole placement across all your pieces, leading to more professional and consistent results.
The versatility of the stop block is also noteworthy. It can be easily adjusted to accommodate different material widths, or, for extra-wide stock, it can be quickly flipped up and out of the way entirely. This flexibility ensures that the stop block is a valuable asset in various scenarios, optimizing both speed and accuracy in your pocket hole joinery. These integrated features—onboard bit storage and the adjustable stop block—collectively elevate the Porter-Cable 560 from a mere tool to a highly efficient and well-considered woodworking companion.
Conclusion: The Porter-Cable 560 Quick Jig – A Woodworker’s Essential Upgrade
In summary, the Porter-Cable 560 Quick Jig has proven itself to be an exceptionally well-designed and highly efficient tool for pocket hole joinery. Its robust, primarily metal construction provides a reassuring heft that allows for stable, clamp-free operation on a workbench, yet it remains maneuverable enough for easy repositioning when needed. The jig’s intelligent design truly shines in its versatility; the ability to easily drill holes into materials of virtually any width and length by simply flipping the jig onto its back and utilizing a simple 2×4 for support is a standout feature that dramatically expands its utility for large-scale projects.
The quick and intuitive one-step material thickness adjustment, coupled with the automatic stop collar calibration for the drill bit, eliminates guesswork and significantly speeds up the workflow, ensuring clean, perfectly drilled pocket holes every time. While the dust collection system may not be its most revolutionary attribute, capturing “most” of the sawdust is a functional benefit that contributes to a cleaner and safer workspace, a small trade-off for the multitude of other advanced features it offers. Furthermore, the integrated screw length indicator, onboard bit storage, and the adjustable stop block all contribute to a seamless and highly productive woodworking experience.
For me, the Porter-Cable 560 has become my primary, go-to pocket hole jig for stationary workshop use, especially for projects requiring precision and efficiency in high-volume drilling. However, it’s important to acknowledge that no single tool is perfect for every scenario. I still find immense value in keeping my compact Kreg R3 for on-site repairs, attaching face frames to installed cabinetry, or for tasks that demand ultimate portability. Having both tools in my “tool arsenal” provides a comprehensive solution for virtually any pocket hole challenge I encounter, offering unparalleled convenience and adaptability. Investing in the Porter-Cable 560 Quick Jig is a decision that any serious woodworker, whether a dedicated hobbyist or a professional, will find pays dividends in terms of improved project quality, efficiency, and overall satisfaction.
