Transforming My Studio: The Journey of Building and Installing Custom Cabinet Drawers

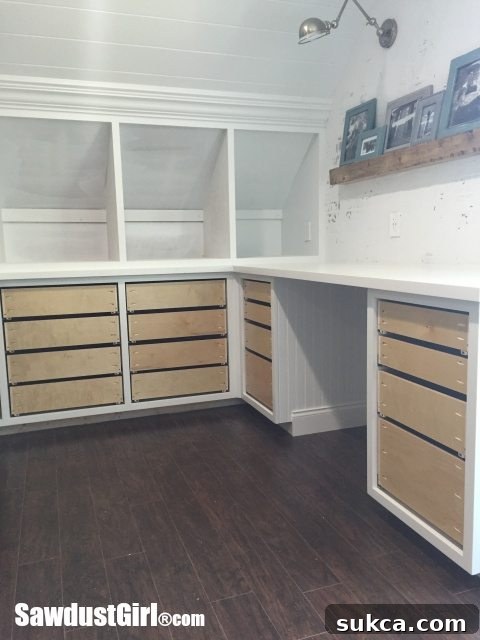

Welcome back to the latest studio update! If you’ve been following along, you know this space is undergoing a significant transformation. For what feels like countless weeks now, I’ve been immersed in the meticulous process of building and installing drawers – a crucial step towards achieving the ultimate organized and functional creative workspace. While I’ve previously shared numerous drawer building tutorials, this post serves as a dedicated update on the sheer volume of progress within my studio. It’s truly incredible how many drawers this space now boasts!
Just recently, I showcased the initial batch of eight drawers, along with some invaluable drawer material and hardware tips. Little did I know that installing just eight more would prove to be an equally time-consuming endeavor. The journey of custom cabinetry, especially when aiming for precision and functionality, is always a testament to patience and persistence. But the vision of a perfectly organized studio, where every tool and material has its designated place, keeps me motivated through every cut, screw, and adjustment.
Mastering Efficiency: My Assembly Line Approach to Drawer Construction

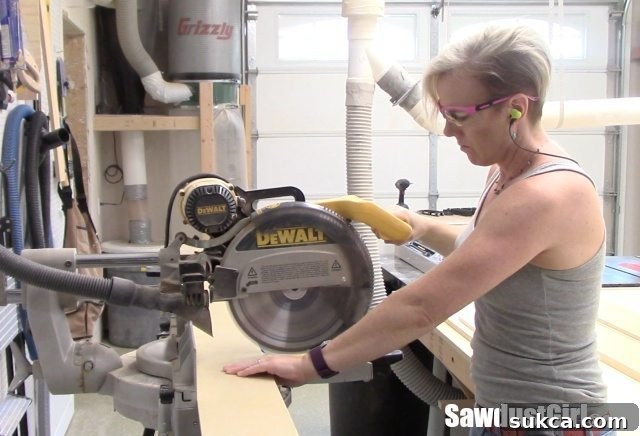

After the initial eight drawers were complete, a significant shift occurred in my workflow. I finally hit my stride, transitioning from building one drawer at a time to an efficient, assembly-line style production. This method is a game-changer when you’re faced with fabricating a large quantity of identical or similar components. It allows for optimized tool setup, minimized material waste, and a rhythmic, almost meditative building experience that significantly speeds up the overall process while maintaining consistent quality across all units.

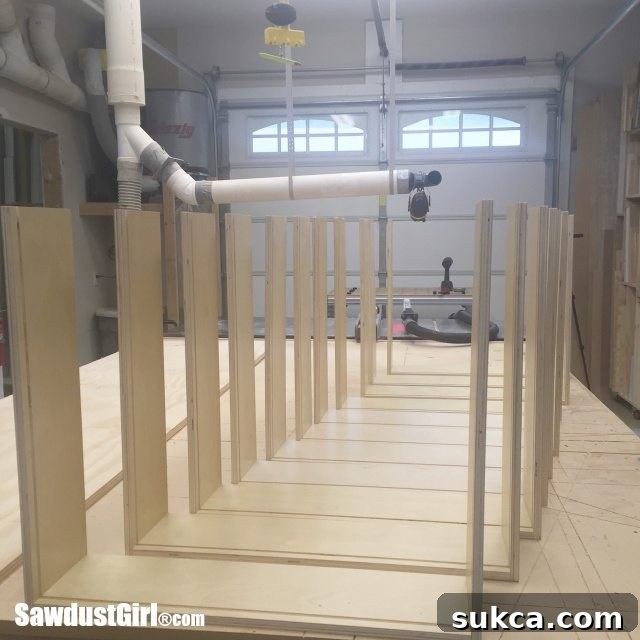

My first step in this streamlined approach was to precision-cut all the necessary drawer side material in one go. Using a table saw with a stop block ensures that every piece is identical, which is paramount for drawers that need to fit perfectly within their respective openings. Once all the sides were cut, I moved on to assembling three sides of each drawer. This meant repetitive dado cuts for the bottom panel, careful application of wood glue, and secure fastening with screws or specialized joinery techniques like pocket holes, creating a sturdy U-shaped structure for a multitude of drawer boxes.

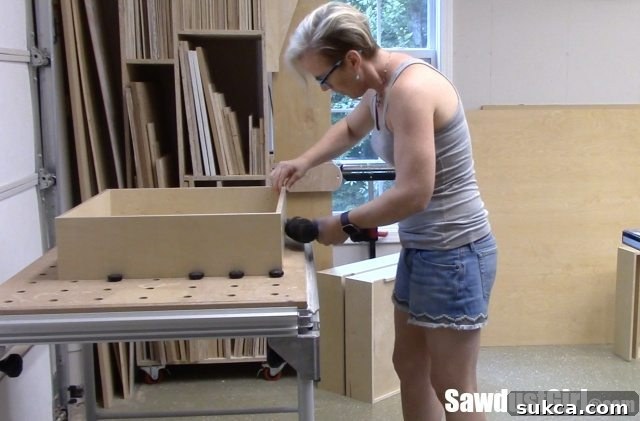

With the three-sided structures ready, the next phase involved cutting all the bottom pieces. Typically, I use 1/4-inch or 1/2-inch plywood for drawer bottoms, depending on the anticipated load. Again, mass cutting these pieces using a repetitive setup saved immense time and ensured accuracy. Once cut, each bottom panel was fitted into its respective dado groove and secured, completing the robust drawer box. This method dramatically increased my output, transforming what could have been a lengthy, fragmented task into a smooth, continuous flow of production. Seeing a stack of perfectly formed drawer boxes waiting for installation is incredibly satisfying.
Precision and Persistence: The Art of Drawer Glide Installation

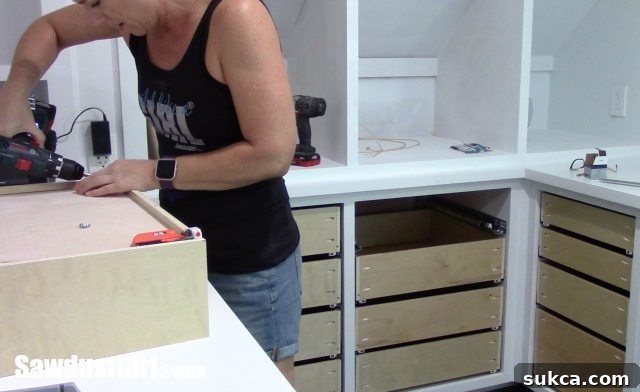

Having successfully built a substantial number of drawer boxes, the next monumental task was the installation of the drawer glides into the cabinets. This phase, while seemingly straightforward, demands meticulous precision and can be incredibly repetitive. Fortunately, I have four cabinets that are precisely identical, each designed to house four drawers. This uniformity greatly simplified the glide installation process, allowing for a highly repeatable and efficient approach.

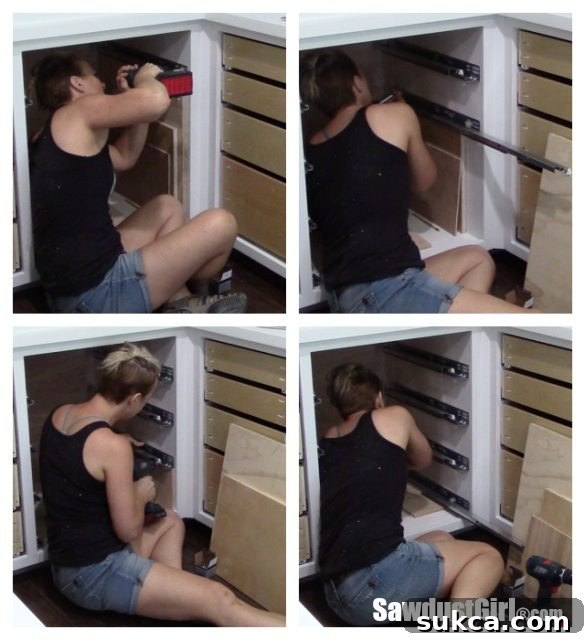

My strategy for consistent glide placement involves cutting custom spacers from wood scraps. These spacers are key to ensuring that each drawer glide is installed at the exact same height and distance from the cabinet bottom, both within a single cabinet and across all identical units. I start by installing the top glide, using a spacer to position it perfectly. Then, I work my way down, using the same set of spacers for each subsequent glide. This method eliminates the need for repeated measuring and marking for every single glide and cabinet, which is a significant time-saver. The consistency provided by these simple wooden jigs is invaluable for achieving a professional finish and perfectly operating drawers.
Despite the efficiencies gained from using spacers, the installation process itself remains undeniably tedious and physically demanding. Leaning into the depths of a cabinet to secure the back end of the glides with screws is an uncomfortable and often awkward maneuver. It requires a good deal of flexibility, proper lighting, and a steady hand. My arms often feel the strain after several hours of this repetitive motion. However, this focused effort now ensures that every drawer will operate smoothly for years to come, which makes the temporary discomfort worth it in the long run.

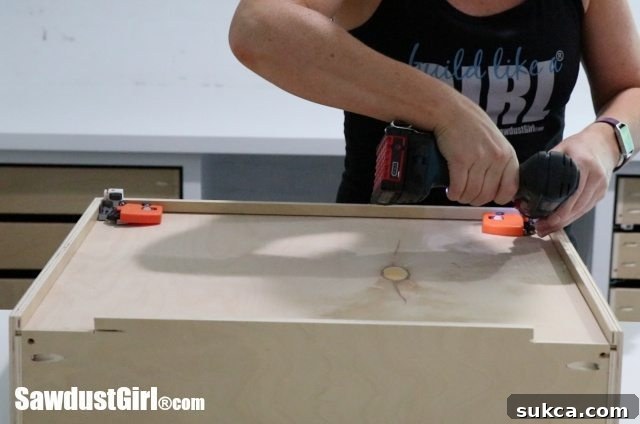

Once the glides are securely fastened within the cabinet, the next step is to attach the complementary locking mechanisms to the drawer boxes themselves. I’m utilizing high-quality Blum hardware, which I discussed in detail in my last post on drawer material and hardware tips. These mechanisms clip directly onto the drawer box, designed to perfectly interface with the glides inside the cabinet. With the locking mechanisms in place, the drawer simply slides into position, engaging with the glides and locking securely into place. This system, especially with soft-close features, provides a smooth, silent, and satisfying user experience.

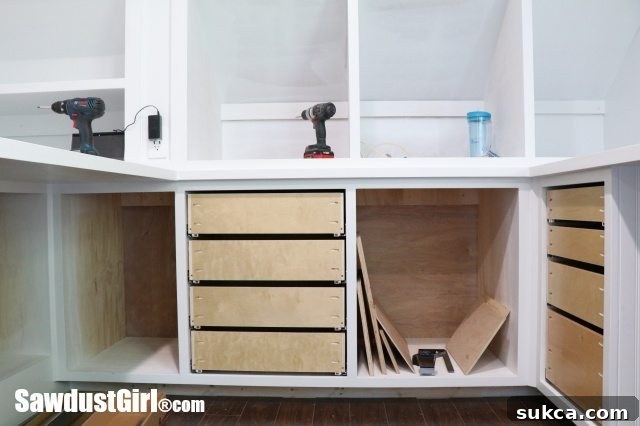

The rhythm of installation then becomes a cycle: finish one cabinet, test its drawers, and then move on to the next. This systematic approach, while repetitive, helps maintain focus and ensures that no steps are missed. It also allows for troubleshooting any minor issues as they arise, preventing a build-up of problems that could be more difficult to resolve later. It’s truly a marathon, not a sprint, when it comes to custom cabinet installation, especially for a demanding space like a creative studio.

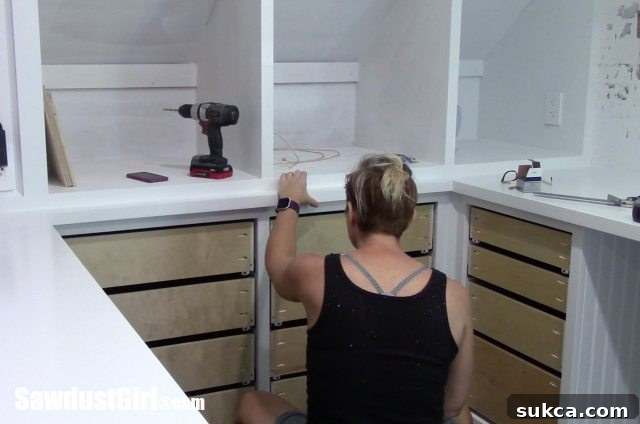

It’s incredibly satisfying when every component aligns perfectly, and the drawers slide in and out with buttery smoothness. However, the nature of DIY and woodworking means that not everything always goes according to plan. Periodically, I encounter a drawer where one of the locking mechanisms stubbornly refuses to catch or align properly. This is where the troubleshooting skills come into play. Common culprits include minor misalignments of the glides, a slightly warped drawer box, or sometimes, a small manufacturing defect in the hardware itself. Each time this happens, I have to pause, carefully examine the situation, and determine the root cause before implementing a fix, whether it’s adjusting a screw, shimming a glide, or re-seating a locking clip. This diagnostic process adds small, unplanned detours to the journey, but it’s an essential part of achieving a flawless final product.
The Path Ahead: Drawer Fronts, Finishes, and the Inset Dilemma

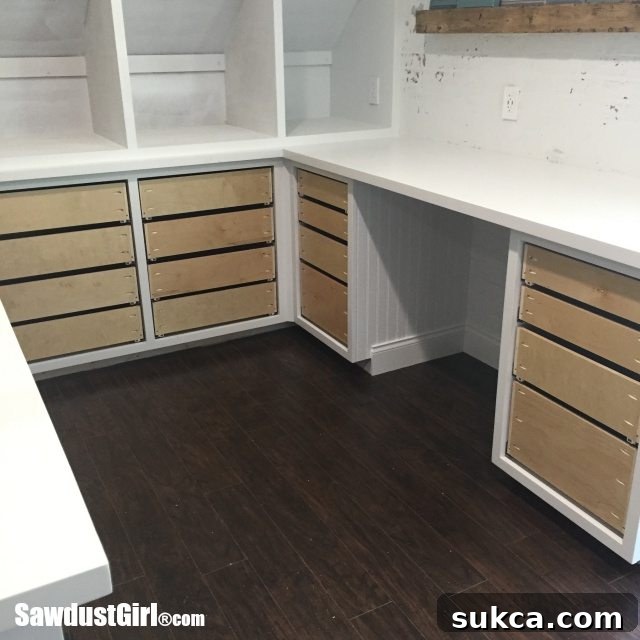

Even with all the drawer boxes meticulously built and installed, the sense of accomplishment isn’t quite at its peak. Why? Because I know there are still two major and equally critical steps before these drawers are truly complete and ready for action. These final stages demand an even higher level of precision and patience, especially when working with inset drawers:
- Building and Painting the Drawer Fronts: This involves crafting the visible faces of each drawer. For inset drawers, the fit must be absolutely perfect, with consistent, hairline gaps around all edges to achieve that classic, high-end look. This requires extremely accurate cuts, meticulous sanding, and a flawless paint finish to match the rest of the studio cabinetry.
- Installing Drawer Fronts and Hardware: Attaching these finished fronts to the drawer boxes, followed by the installation of drawer pulls or knobs, is perhaps the most nerve-wracking part. The alignment must be impeccable, both individually and in relation to adjacent drawer fronts and cabinet doors. Any slight miscalculation will be glaringly obvious, demanding careful adjustment and a steady hand.
These two steps are notoriously time-consuming and tedious. The precision required for perfectly flush and evenly gapped inset drawers can be mentally exhausting. The margin for error is incredibly slim, and even a millimeter off can compromise the entire aesthetic.
The Inset vs. Overlay Debate: Design Vision vs. Practicality
Throughout this project, I’ve had a recurring internal debate about the style of my drawer fronts. I almost decided to opt for overlay drawers in my studio. My rationale was simple: it’s a workshop, a functional space, not a kitchen that would be constantly scrutinized by guests. And honestly, overlay construction would be so much easier! Overlay drawers are much more forgiving when it comes to alignment and gaps, saving a significant amount of time and effort during installation.
As both the designer and the builder of this studio, I constantly find myself weighing the desired aesthetic and functionality against the time and labor required to bring that design to life. There are moments when the “I don’t want to work that hard” side of my brain shouts so loudly that it completely drowns out the voice of the designer, the one who envisions the clean lines and timeless elegance of inset cabinetry. At such junctures, I’ve learned it’s crucial to step away from the project. I’ll take a break, work on something completely different, or simply walk away until that negative emotional connection to the demanding task has faded. This allows me to return with a fresh perspective, renewed energy, and a clearer commitment to the original design vision.
Ultimately, I’m deeply committed to incorporating cabinets with inset drawers and doors throughout this entire house. It’s a design element that truly elevates the craftsmanship and aesthetic. Therefore, I’m not going to “wimp out” on my studio. It deserves the same level of care and precision as any other part of my home. This means I still have a considerable amount of work ahead of me, but the end result – a beautifully functional and meticulously crafted studio – will undoubtedly be worth every extra hour and every challenging adjustment.
