In the world of woodworking, precision is paramount. Every millimeter, every fraction of an inch, can be the difference between a project that fits together flawlessly and one that frustrates with unsightly gaps or misalignments. For years, woodworkers have wrestled with traditional measuring tools – rulers, tape measures, and even makeshift scrap wood gauges – to set saw blade heights, router bit depths, or determine the exact depth of a groove or dado. This pursuit of accuracy often feels like a constant battle, time-consuming and rarely yielding the “perfect” measurement.
Imagine a tool that could eliminate this guesswork, providing instant, highly accurate digital readings for all your height and depth measurements. This is where the Digital Height Gauge steps in, transforming your workshop precision from a struggle into a simple, reliable process. This invaluable device offers extreme accuracy, making those fiddly measurements not just possible, but effortlessly precise. It’s a game-changer for anyone serious about achieving professional-grade results in their woodworking projects.
The Undeniable Need for Precision in Woodworking
Woodworking, at its heart, is about crafting objects that are not only beautiful but also functional and robust. The foundation of this craft lies in precise measurements and accurate cuts. Whether you’re building a intricate cabinet, a sturdy table, or a simple shelf, the dimensions of each component must align perfectly. A saw blade set just a hair too high can ruin a crucial joint, while a router bit depth that’s off by a fraction can lead to wobbly dados or uneven edges. Traditional methods, while historically used, often introduce cumulative errors that can compromise the structural integrity and aesthetic appeal of your finished piece.
Consider the common scenario: you need to cut a series of dados for a shelf. Using a standard ruler, you might mark a piece of scrap, then transfer that mark to your machine. This method involves multiple steps, each introducing a potential for error – the thickness of the pencil line, parallax error when reading the ruler, or simply human inconsistency. The result? Dados that are slightly too shallow or too deep, leading to shelves that don’t sit flush or require excessive sanding and shimming. This is precisely where a digital height gauge becomes an indispensable asset, providing clarity and confidence in every setup.
Introducing the Digital Height Gauge: Your Precision Partner

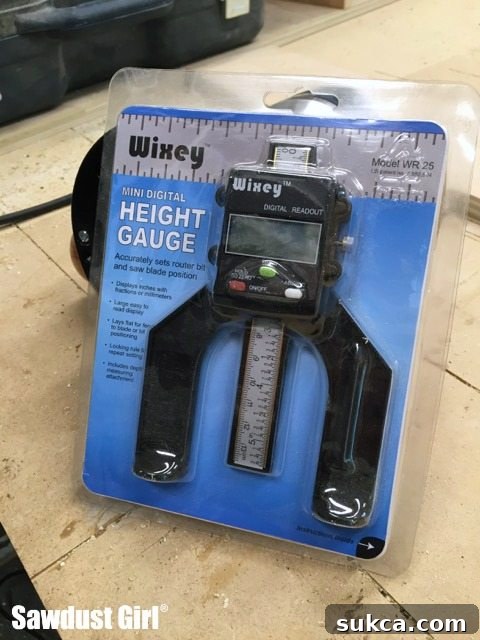

Embracing the pursuit of perfection doesn’t require decades of experience or an encyclopedic knowledge of trigonometry. Sometimes, it simply requires the right tool. For woodworkers, the digital height gauge is that tool. I recently made the decision to elevate my precision game, and investing in a digital height gauge was a pivotal step. Available for around $25-$50 on platforms like Amazon, it’s an incredibly affordable upgrade for the level of accuracy it brings to your shop.

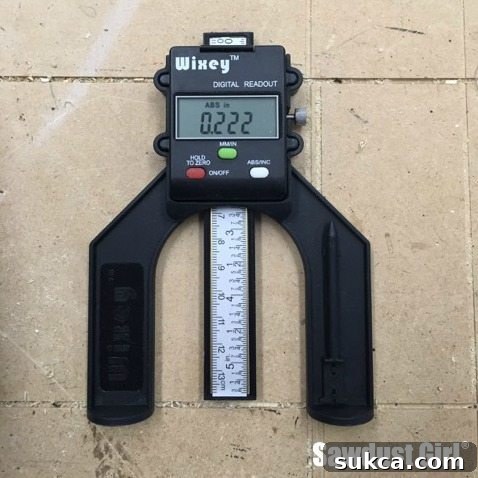

This compact device offers dual functionality, allowing you to measure both the height of a blade or bit above a surface and the depth of a cut or recess. Many models feature magnetic bases, which are incredibly convenient. For instance, when setting the height of your table saw blade, the magnetic base allows the gauge to stick firmly to the cast iron table, providing a stable platform for an accurate reading. I found this particularly useful when setting router bit heights for the dados on my wine storage cabinet, ensuring consistent and perfectly aligned shelf supports.
Key Features and Advantages of Digital Height Gauges
- Unmatched Accuracy: Digital readouts eliminate human error associated with reading analog scales, providing measurements to thousandths of an inch or hundredths of a millimeter.
- Versatile Applications: Ideal for setting table saw blade height, router bit height, planer/jointer knife projection, and accurately measuring the depth of dados, grooves, rabbets, and mortises.
- Ease of Use: Simple one-button calibration (zeroing) and quick, clear digital displays make it straightforward for beginners and seasoned professionals alike.
- Magnetic Base: Many models feature a strong magnetic base, ensuring stability on cast iron tables or other ferrous surfaces during measurement, preventing accidental shifts.
- Metric and Imperial Conversion: Effortlessly switch between units with the press of a button, accommodating different project plans and preferences.
- Compact and Portable: Its small size makes it easy to store in a tool drawer or carry to different workstations.
- Durable Construction: Often made with robust plastic or metal, designed to withstand the typical workshop environment.
A Step-by-Step Guide to Using Your Digital Height Gauge
The beauty of a digital height gauge lies in its simplicity. Mastering its use takes mere minutes, but the benefits it provides will last for years of precise woodworking.

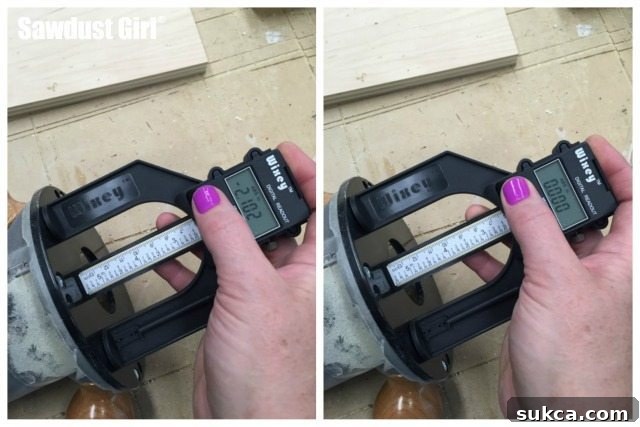

Step 1: Calibration (Zeroing the Gauge)
Before taking any measurement, it’s crucial to calibrate, or “zero out,” your digital height gauge. This step ensures that all subsequent measurements are relative to the surface you are working on, guaranteeing absolute accuracy.

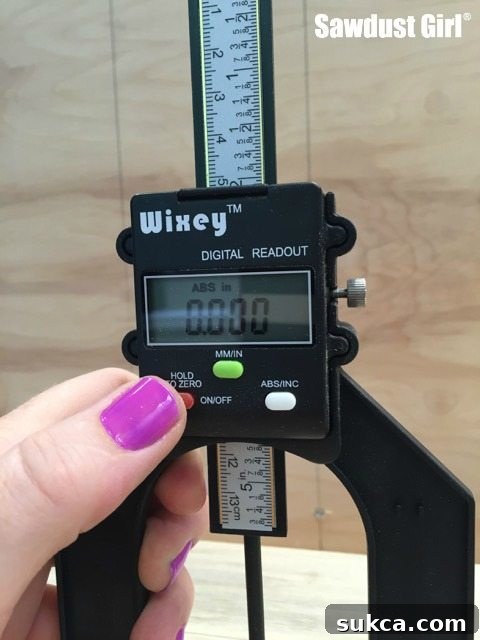

To do this, place the base of the gauge firmly on the flat surface from which you intend to measure. This could be your router table plate, the table saw top, or any other reference surface. Once positioned, press and hold the ‘On/Off/Zero’ button (the exact button may vary by model, but it’s usually the main power button) until the digital display reads 0.000 (or 0.00 in metric). This tells the gauge that its current position on that flat surface is the starting point, and all future readings will be calculated from this zero reference. This simple act of calibration is fundamental to achieving reliable measurements every single time.

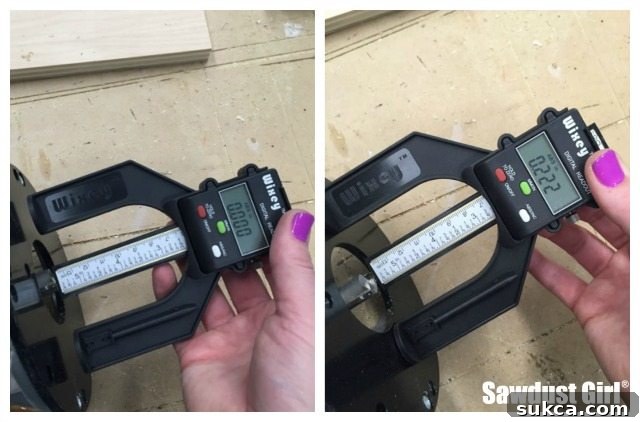

Step 2: Measuring Bit or Blade Height
Once calibrated, measuring the height of a router bit or saw blade is incredibly straightforward. This is one of the most common applications where the digital height gauge truly shines, making precise setup a breeze.
Carefully align the gauge so that its measuring leg (the part with the ruler-like extension) is positioned directly over the highest point of your router bit or saw blade. Gently lower the gauge until its outer legs (the feet of the base) make firm contact with the reference surface (your router plate or table saw top). As you do this, the router bit or saw blade will push the internal plastic ruler of the gauge upwards. The digital display will immediately show you the precise height of the bit or blade above your reference surface. This eliminates the need to squint at ruler markings or fumble with setup blocks, giving you an exact measurement for critical cuts like dados, rabbets, or tenons.
Step 3: Measuring Depth of Cut (Dados, Grooves, etc.)
Measuring the depth of a cut, such as a dado, groove, or mortise, is equally simple with a digital height gauge, especially with the addition of its specialized spindle attachment.

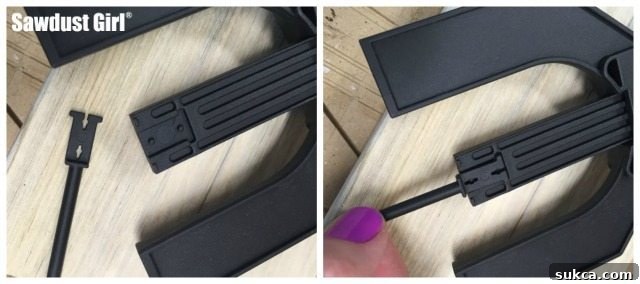

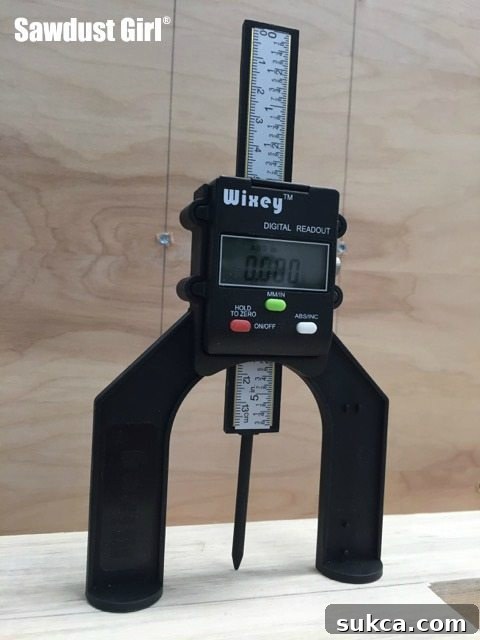

Many digital height gauges come with a small, narrow spindle that attaches to the end of the ruler extension. This spindle allows the gauge to reach into narrow cuts. First, ensure the spindle is securely attached. Then, place the gauge on the flat surface adjacent to the cut you wish to measure and zero it out, just as you did for blade height measurements. This establishes your reference point.
Zero it out on the flat surface adjacent to the cut.

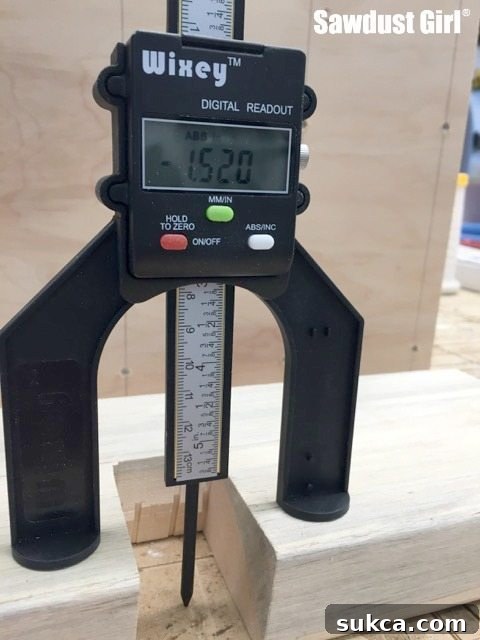

Next, carefully depress the spindle into the cut (whether it’s a dado, groove, or any other depression). Ensure the base of the gauge remains flat on your reference surface. The spindle will extend into the depth of the cut, and the digital display will instantly provide an accurate measurement of how deep that cut is. This method is incredibly precise for ensuring uniform dado depths across multiple workpieces or verifying the accuracy of a mortise.

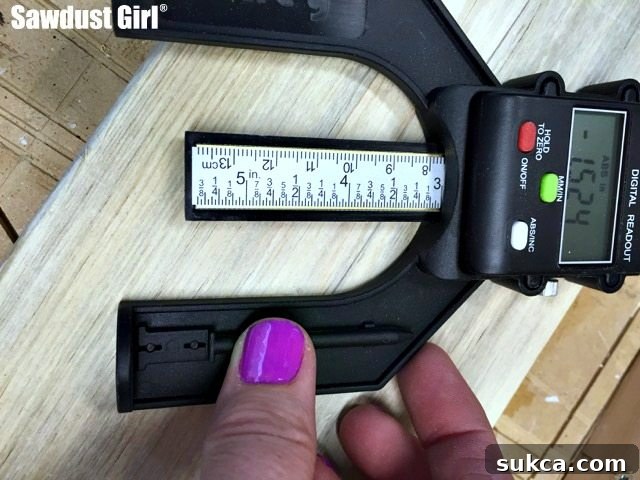

Spindle Storage: Keeping Your Tools Organized
Practical design extends to even the smallest details. Most digital height gauges incorporate a clever storage solution for the depth spindle. Typically, the spindle neatly clips onto one of the legs of the device, ensuring it’s always at hand when you need it and safely stowed away when you don’t. This thoughtful design prevents loss and keeps your workshop organized.
Beyond the Basics: Maximizing Your Digital Height Gauge
While commonly used for saw blade and router bit settings, the utility of a digital height gauge extends to various other workshop tasks:
- Setting Fence Heights: Achieve consistent fence heights for various operations on your router table or table saw.
- Drill Press Depth Stops: Precisely set the depth of holes on your drill press for repeatable results.
- Planer/Jointer Setup: Though more specialized gauges exist, a digital height gauge can assist in checking the projection of planer or jointer knives, ensuring even stock removal.
- General Measurement: Use it as a mini-caliper for quick measurements of small components or stock thickness.
Choosing the Right Digital Height Gauge for Your Workshop
With several models available, selecting the right digital height gauge can seem daunting, but focusing on a few key aspects will guide your choice:
- Measurement Range: Ensure the gauge can measure heights and depths relevant to your typical projects. Most standard gauges offer sufficient range for common woodworking tasks.
- Base Type: A magnetic base is highly recommended for stability, especially when working on metal machine tables.
- Material Quality: Look for sturdy construction (ABS plastic or aluminum) that can withstand workshop conditions.
- Display Quality: A clear, large LCD display is crucial for easy reading in varying light conditions.
- Unit Conversion: Confirm it offers both metric and imperial units with easy switching.
- Battery Type and Life: Most use common button-cell batteries (e.g., CR2032). Consider models with auto-shutoff features to conserve battery life.
- Price vs. Features: While premium models offer additional features like Bluetooth connectivity, a basic model around $25-$50 provides excellent value and performance for most hobbyist and semi-professional woodworkers.
Final Thoughts: An Investment in Precision and Confidence
Voila! The digital height gauge is a remarkably handy tool. While it might not be a daily grab, I find myself reaching for it every couple of weeks, proving its worth as an excellent investment for my shop. It’s for those times when I genuinely want to achieve super-duper precise results, and it consistently delivers.
The transition from traditional, often approximate, measuring methods to the precise, digital world of a height gauge is a significant upgrade for any woodworker. It saves time, reduces material waste due to inaccurate cuts, and most importantly, boosts your confidence in tackling complex projects. By providing instant, clear, and highly accurate readings, a digital height gauge empowers you to work smarter, achieve cleaner joints, and ultimately, produce higher quality finished pieces. If you’re looking to elevate your woodworking accuracy and efficiency, adding a digital height gauge to your tool arsenal is a decision you won’t regret.
