Building custom drawers is a rewarding woodworking project that significantly enhances the functionality and aesthetics of any cabinet or furniture piece. Among the various drawer joint methods, the **Locking Rabbet Drawer Joint** stands out for its remarkable strength, ease of construction (especially with the right tools), and clean finish when paired with false drawer fronts. This comprehensive guide will walk you through the process of constructing a durable drawer using this robust joint, ideal for both novice and experienced woodworkers.
This method primarily utilizes a table saw with a dado stack or a router table with a slot cutting bit. If these specialized tools are not available, alternative drawer construction methods, such as using pocket hole screws or loose tenons with pre-finished drawer material, can also yield satisfactory results. However, for a truly integrated and strong joint, the locking rabbet is highly recommended.
For this tutorial, we will primarily refer to using a table saw equipped with a dado stack and a rip fence, as it offers precision and efficiency for cutting the necessary 1/4-inch grooves. A 1/4-inch slot cutting bit on a router table can achieve similar results, so feel free to adapt the instructions to your preferred machinery.
Table of Contents
How to Build a Drawer with a Locking Rabbet Drawer Joint
Before diving into the steps, it’s important to clarify a couple of assumptions for this tutorial:
- You will be applying separate false drawer fronts. This allows the locking rabbet joint to be subtly hidden, providing a clean, professional appearance.
- You will be utilizing 1/2-inch drawer material for the drawer box construction. This thickness is common and provides excellent stability for most drawer applications.
Understanding the Locking Rabbet Joint

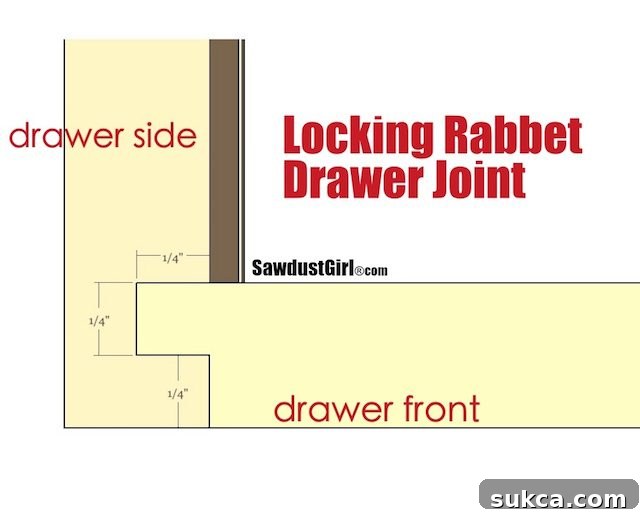

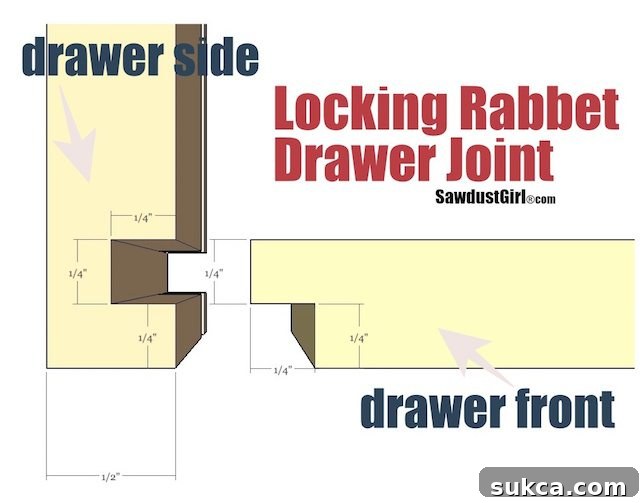

The locking rabbet joint is a robust and aesthetically pleasing method for drawer construction. It involves cutting a series of interlocking grooves and rabbets into the ends of your drawer components. Specifically, the drawer sides feature a dado (a groove cut across the grain) that accepts a rabbet (a step-shaped cut along the edge) from the drawer front and back pieces. This interlocking mechanism creates a mechanically strong joint that resists racking and provides ample surface area for glue adhesion, resulting in a very durable drawer box.
One of the key advantages of this joint, especially for drawers that will have false fronts, is that the joinery is designed to be largely concealed. The 1/4-inch deep grooves used in the joint will be exposed on the outer surface of the drawer box, but these are intended to be hidden by the applied false drawer front. This ensures a flawless exterior appearance once the cabinet is complete.
1. Sizing and Preparing Your Drawer Components

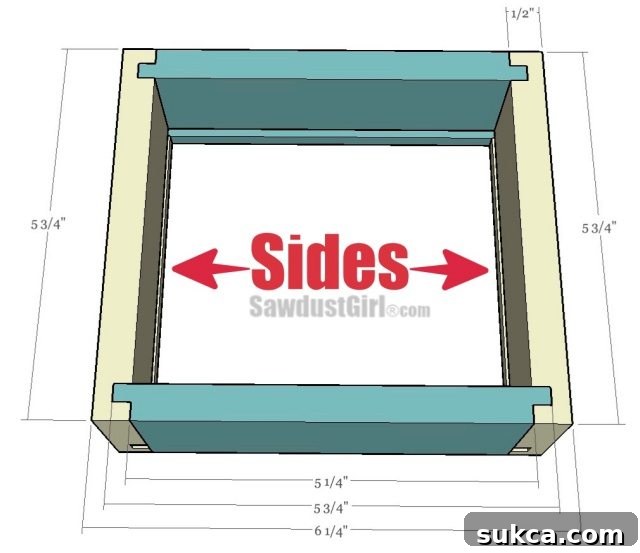

Accurate sizing is paramount for well-fitting and smoothly operating drawers. Take the time to measure your cabinet openings precisely. Remember, the front and back pieces of your drawer box are considered the “captive” pieces, meaning they will be locked into the sides. This distinction is crucial for dimensioning.
For drawers constructed with **1/2-inch drawer material** and using this locking rabbet method, the width calculation is straightforward: you simply **subtract 1/2 inch from your desired total drawer width**. This accounts for the thickness of the two drawer sides and the interlocking joint. For example, if your cabinet opening requires a drawer that is 10 inches wide, your drawer box’s exterior width will be 9.5 inches.
It’s important to be aware of the actual thickness of your 1/2-inch drawer material. Sometimes, nominally 1/2-inch plywood or other materials can be slightly undersized. While this might not be critical for some undermount drawer slides like the Blum Tandem slides (which are more forgiving of slight variations), traditional side-mount hardware is often less tolerant. Always measure your material with calipers for true dimensions and adjust calculations if necessary.
When determining the height of your drawer components, aim for a height that allows sufficient clearance for your chosen drawer slides at the top and bottom. A common practice is to make the drawer box height 1/2 to 1 inch shorter than the actual cabinet opening height. For depth, subtract the necessary clearance for your drawer slides and any back panel from the interior depth of your cabinet.
Once you have meticulously determined the precise dimensions for your two drawer sides and two front/back pieces, carefully cut all four components from your chosen 1/2-inch drawer material. Precision in these initial cuts will save significant headaches later in the assembly process.
2. Setting Up Your 1/4″ Dado Stack for Precision
The success of the locking rabbet joint hinges on accurate dado cuts. Before making any cuts, ensure your table saw is unplugged and the blade guard is in place. Install your 1/4-inch dado stack onto your table saw arbor. A typical dado stack consists of two outer blades and several chippers in between, allowing you to achieve various widths. For this joint, you’ll need to configure it for an exact 1/4-inch width.

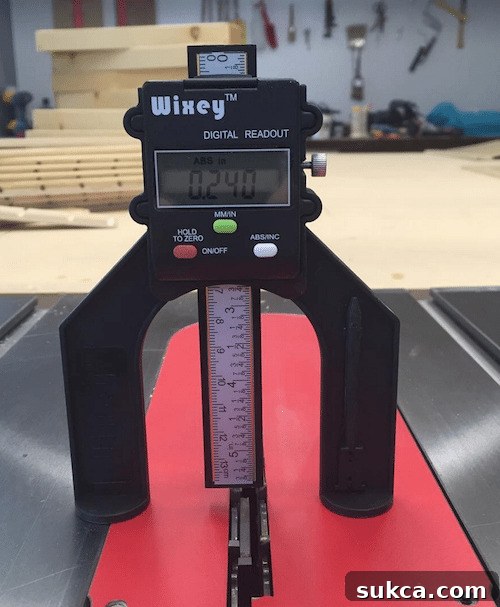

Raise the dado stack to cut precisely 1/4-inch deep grooves. This depth is critical for the interlocking mechanism to function correctly and for the joint to be strong. A digital height gauge is an invaluable tool here, allowing for precise and repeatable depth settings. Alternatively, you can make test cuts on scrap material and adjust the blade height until you achieve an exact 1/4-inch depth.
Once the depth is set, position your rip fence. For the first series of cuts, the rip fence should be set 1/4 inch away from the dado stack. This will create a groove that perfectly accommodates the 1/4-inch thick drawer bottom and the rabbet on the drawer fronts/backs. Always perform a test cut on a piece of scrap wood to verify both the depth and the fence distance before cutting your actual drawer components.

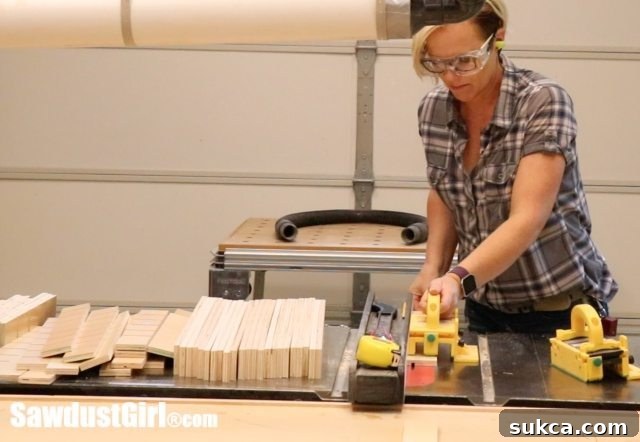

When working with small pieces on the table saw, safety is paramount. Utilizing dedicated push blocks, such as Micro Jig push blocks, is highly recommended. These provide superior grip and control, allowing you to safely hold down and push small drawer components through the dado stack, keeping your hands well clear of the blade.
3. Cutting the Essential Dados and Rabbets
With your dado stack precisely set up, it’s time to make the cuts that form the locking rabbet joint. This process involves three distinct types of cuts for different parts of the drawer box.
Groove for the Drawer Bottom

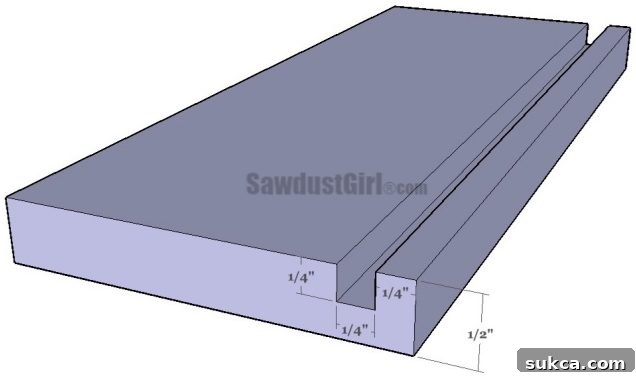

The first cut is for the drawer bottom. This groove will be present on all four drawer components (two sides, two front, two back). With the rip fence still set 1/4 inch from the dado stack and the blade height at 1/4 inch, run all four drawer pieces through the table saw lengthwise. Ensure you maintain consistent pressure against the fence and the table to create a uniform, straight groove along the bottom edge of each piece. This groove will house the 1/4-inch plywood drawer bottom, which is typically cut slightly undersized for easy assembly.
Dados on the Drawer Sides

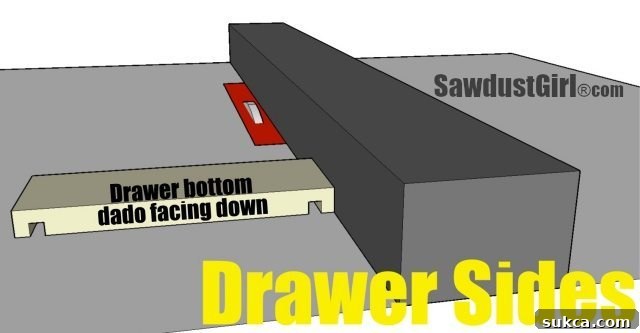

Next, focus on the drawer sides. The rip fence should remain in the same 1/4-inch position from the dado stack. For the drawer sides, you will cut dados on the ends of these pieces. Crucially, position the drawer sides so that the previously cut drawer bottom dado is facing *down* towards the table saw surface. This means all the grooves (the bottom groove and the end dados) will be cut on the *same side* of the drawer side pieces.

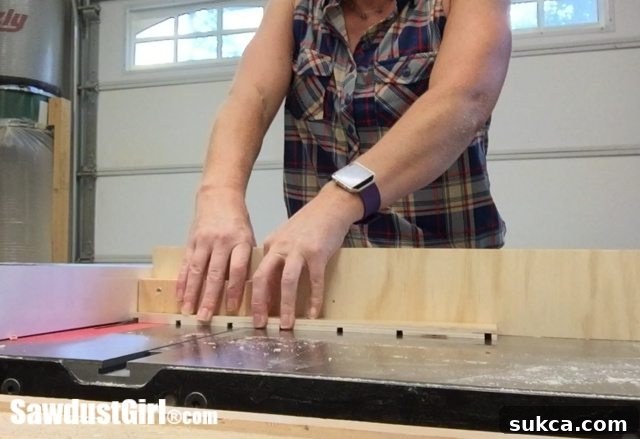

To safely and securely push these relatively small pieces through the cut, it’s highly recommended to use a miter gauge equipped with a sacrificial fence or a dedicated jig. This setup allows you to hold the drawer side perpendicular to the blade, ensuring straight and repeatable cuts while keeping your hands away from the dado stack. Cut a dado on both ends of each drawer side piece.
Rabbets on the Drawer Fronts and Backs

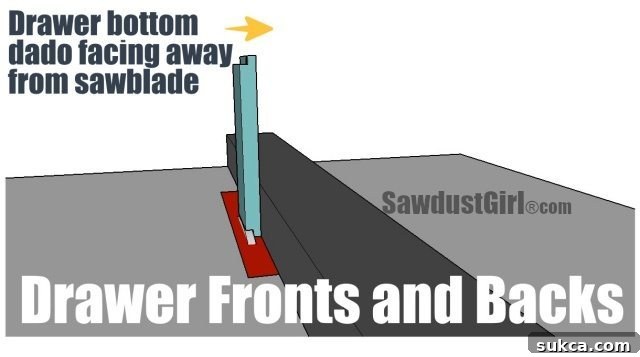

Finally, it’s time to cut the rabbets on the drawer fronts and backs. This is where the interlocking mechanism really takes shape. For these cuts, the drawer bottom dado should be facing *away* from the saw blade, towards the top. This ensures that the side rabbets and the bottom groove are on opposite faces of the drawer piece, allowing them to engage correctly with the drawer sides.
There are two primary methods for making these rabbet cuts:
1. Cutting with the Drawer Pieces Standing on End:

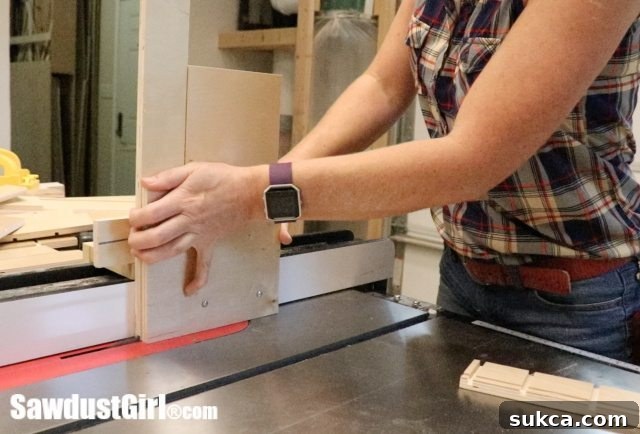

This method involves standing the drawer front/back pieces on their end and pushing them through the dado stack. To do this safely and accurately, it is paramount to build a dedicated jig that securely holds these pieces upright and keeps your hands at a safe distance from the spinning blades. The jig should be designed to maintain the piece perpendicular to the table saw fence, ensuring a clean, square rabbet. A stop block can be integrated into the jig for repeatable cuts.

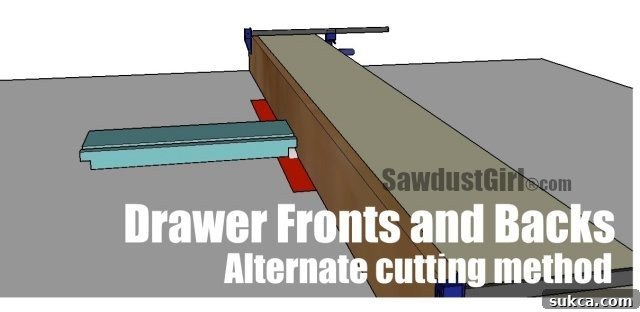

2. Cutting with a Sacrificial Fence:
An alternative, often safer, method involves attaching a sacrificial piece of 1/4-inch wood to your rip fence. This sacrificial fence should be positioned so that it covers the dado stack, effectively taking up the space that was previously between the blade and the fence. With this setup, you can then run the drawer fronts and backs flat on the table saw surface. When using this method, ensure the drawer bottom dado is facing *up*. The dado stack will cut into the sacrificial fence and create the rabbet on your drawer piece.
Regardless of the method chosen, it’s crucial to use your miter gauge along with the sacrificial wood scrap (if applicable) to ensure the material remains perfectly square to the fence as you push it through the cut. This prevents any binding or angled cuts that would compromise the joint. Always make test cuts on scrap material to verify the accuracy of your setup before cutting your final drawer components.
4. Assembling Your Drawer with Strength and Accuracy

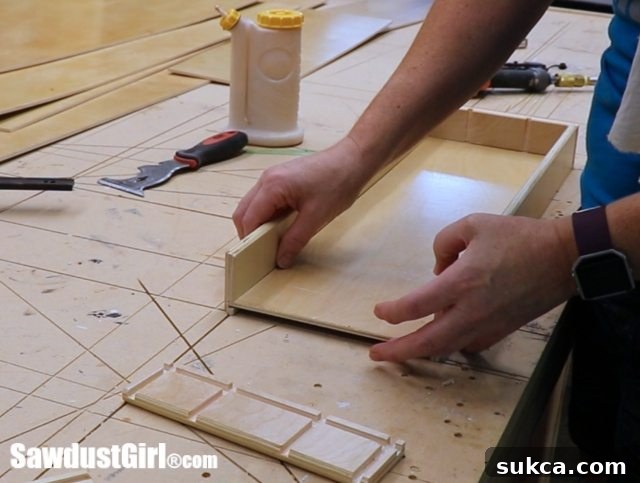

With all your components precisely cut, it’s time for assembly. Before applying any glue, always perform a dry fit. This allows you to identify any discrepancies, ensure all joints fit snugly, and confirm the correct orientation of each piece. The rabbets on the drawer fronts and backs should slide smoothly into the dados on the drawer sides, forming a tight, interlocking connection.
During the dry fit and final assembly, pay close attention to the orientation of the drawer bottom dado. This groove must consistently face *inward* on all four drawer parts, ready to accept the drawer bottom.

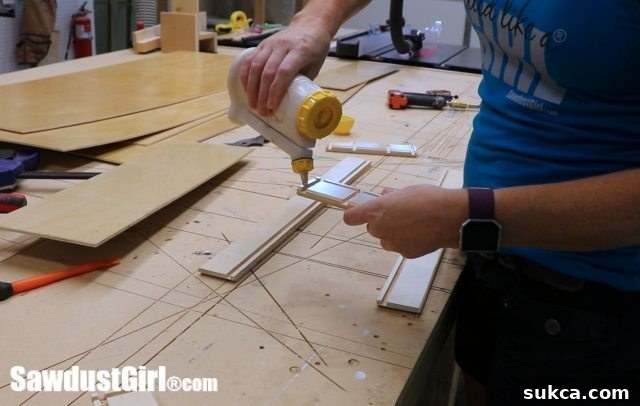

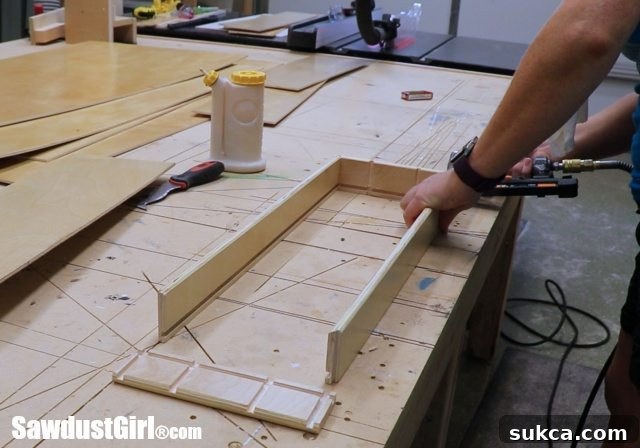

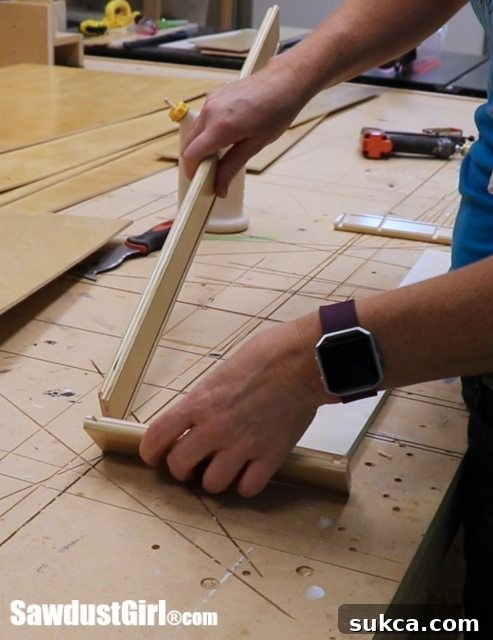

Once you’re satisfied with the dry fit, apply a thin, even layer of quality wood glue to all mating joint surfaces. Ensure complete coverage for maximum strength. Start by attaching the drawer front and back pieces to one of the drawer sides. The glue will provide the ultimate bond, while temporary fasteners can help hold everything in place while the glue sets.
For immediate securing, a small 23-gauge pin nailer is an excellent tool. It allows you to quickly fasten the pieces together, holding them in position while you continue assembling the rest of the drawer. The small nail holes are nearly invisible and easily filled later.

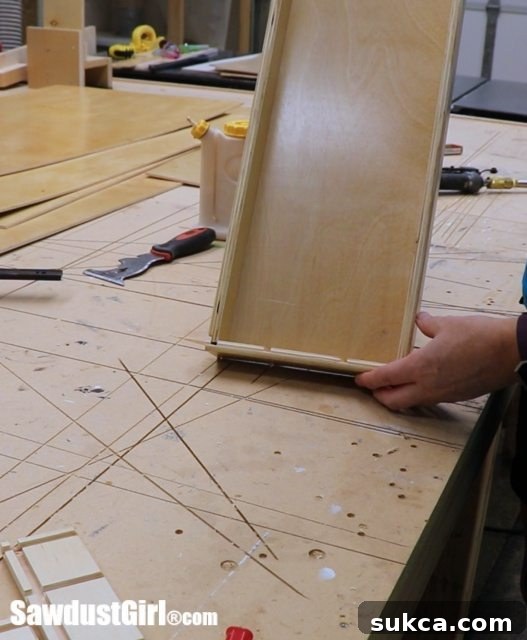

After joining the front, back, and first side, slide the drawer bottom into its designated grooves. Ensure it seats fully and freely. It’s often best to cut your drawer bottoms slightly undersized (e.g., 1/8 inch less in both length and width) to allow for seasonal wood movement and easier installation. I usually cut my drawer bottoms during assembly, as paper measurements rarely account for the minute variables that occur during the cutting process. This often involves a “cut-test fit-cut again” iterative approach until a perfect fit is achieved.
Finally, attach the second drawer side, interlocking its dados with the rabbets on the front and back pieces. Apply glue to these joints as well.

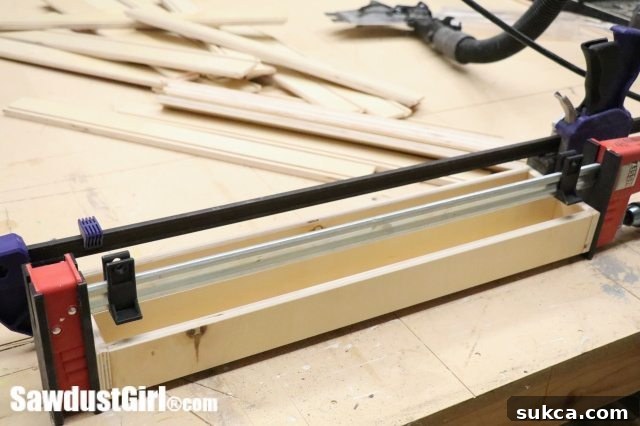

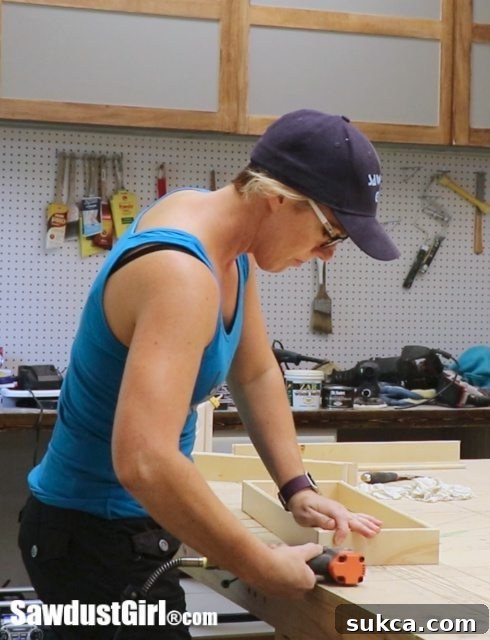

Use additional nails or clamps to secure this final side while the glue dries. For the strongest possible joint with no visible fasteners, use several clamps to apply even pressure across all joints. If you opt for nails, place them strategically where they will be concealed by the false front or least noticeable. Always use a framing square to check the drawer for squareness immediately after assembly and before the glue fully cures. Adjust as needed with clamps or gentle persuasion.

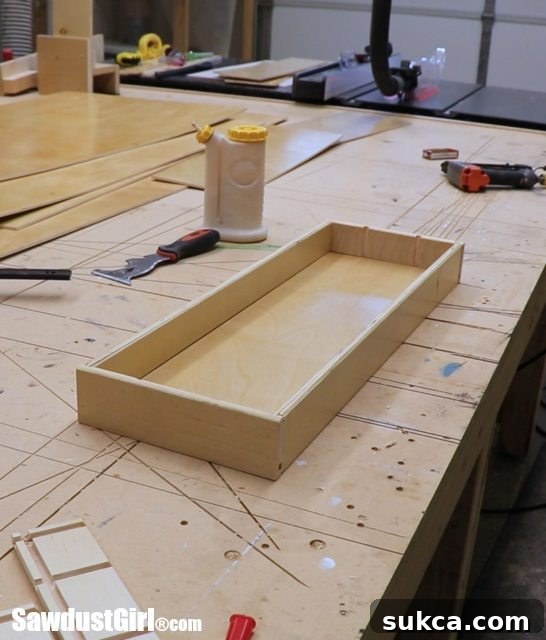

Wipe away any glue squeeze-out with a damp cloth immediately, as dried glue can interfere with finishing. Allow the glue to cure completely according to the manufacturer’s instructions before handling or installing the drawer.
A personal note on drawer construction: The drawers featured in these examples may sometimes appear to have additional grooves for internal dividers or unusual dimensions. This is often due to them being custom-built for specific projects, such as shallow or angled cabinets. Don’t be deterred if your project requires unique sizes; the core principles of the locking rabbet joint remain the same.
Building drawers with a locking rabbet joint is a highly satisfying process, yielding sturdy and professional-looking results. While it requires careful setup and precision cuts, the method itself is quite straightforward, especially with a table saw or router table. If you find yourself frequently building drawers, consider the convenience of having a dedicated second table saw permanently set up with a dado stack. This eliminates the constant blade changes and streamlines your workflow significantly. Embrace the journey of woodworking, knowing that each project builds your skill and confidence.
We hope this detailed guide has provided you with the knowledge and confidence to tackle your next drawer building project with a locking rabbet joint. Happy woodworking!
