After what felt like an eternity, the moment finally arrived: barn door installation! This wasn’t just any door; it was a labor of love, meticulously crafted over several months. I began by gluing together ten individual planks, section by section. The process was leisurely, punctuated by other DIY projects and the delightful chaos of welcoming a new puppy into our home, which extended the glue-up phase considerably. Once the structure was solid, I dedicated time to finishing each side, allowing ample curing time between coats – a crucial step for durability and a professional look. Finally, with both sides waxed and gleaming, the last piece of the puzzle, the installation of this magnificent sliding barn door, was completed this past weekend. The journey was long, but the reward of seeing it in place is immeasurable, transforming the space with its rustic charm and modern functionality.
Mastering the Art of Barn Door Installation: A Comprehensive Guide

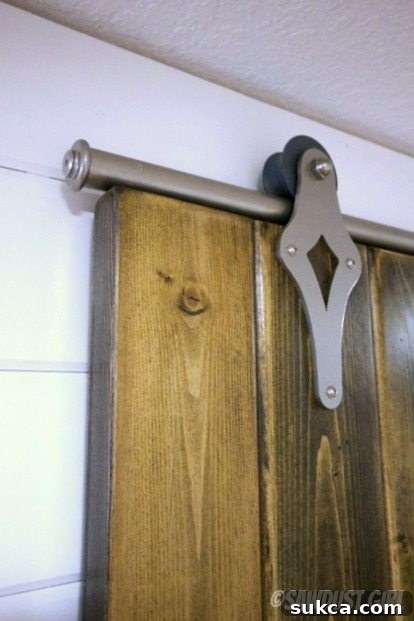

Embarking on a DIY barn door project is incredibly rewarding, but the installation phase is where precision and patience truly come into play. For this particular project, I opted for robust and stylish sliding door hardware provided by CSHardware.com. Specifically, I chose the elegant Palm-Leis style roller straps, which perfectly complement the aesthetic of my custom-built door. Selecting the right barn door hardware kit is paramount, as it not only dictates the door’s functionality but also contributes significantly to its overall visual appeal. CSHardware.com offers a wide range of options, ensuring that you can find a style that harmonizes with your home’s interior design, whether you prefer a classic farmhouse look or something more contemporary. The quality of the components, from the rollers to the track, directly impacts the smoothness and longevity of your sliding door system. This choice of hardware laid the foundation for a successful and durable installation.
Overcoming Installation Hurdles: The Challenge of an Uneven Wall
While I anticipated certain challenges in this DIY barn door installation, the actual process proved to be more intricate than expected. A significant portion of this difficulty stemmed from the unique topography of my wall – it’s shaped like an “S”! I had previously undertaken a renovation project to raise the doorway, ensuring that section was perfectly plumb. However, the adjacent wall section, where the barn door rail needed to be installed, was far from flat and even across its entire span. This wavy, “S”-shaped wall presented a formidable obstacle, as the sliding barn door track demands a perfectly level and straight surface for smooth, uninterrupted operation. Any deviation can lead to the door sticking, rattling, or even derailing, compromising both functionality and safety. This experience underscored the importance of thoroughly assessing your installation site and preparing for potential irregularities, especially in older homes or custom renovation projects.

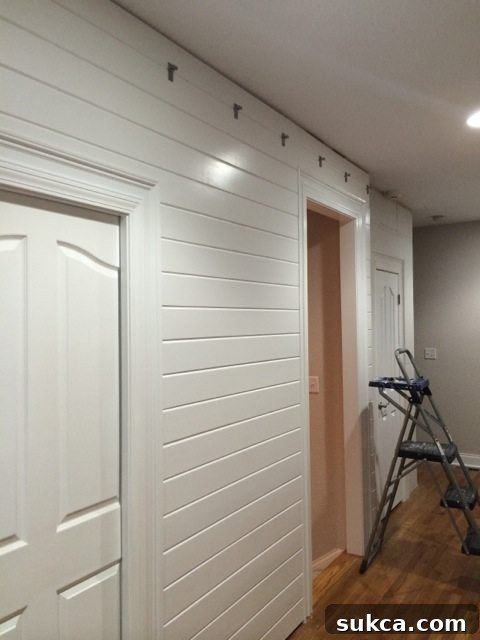

The initial phase of installing the rail brackets on this non-cooperative, curvy wall was particularly vexing. Each bracket features a T-shaped end designed to slide into a corresponding T-shaped slot in the rail. This ingenious design means that all brackets must be positioned perfectly level and in a precise straight row to allow the rail to seat correctly. Trying to achieve this exact alignment on a wall that refused to cooperate felt like a constant battle against physics. My frustration mounted as the brackets simply would not “play nice.”
Precision and Problem-Solving: My Installation Breakthrough

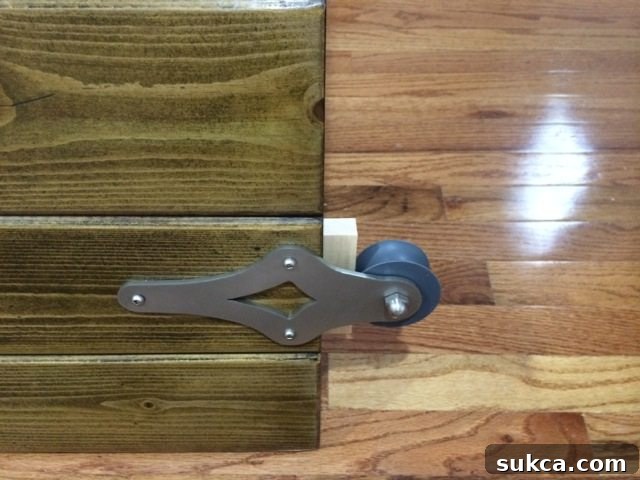

Before diving into the bracket installation, I diligently used a simple yet effective technique for accurate placement. Following the hardware instructions, I cut a block of wood to the exact required spacing – from the top edge of the door to the bottom of the wheel, ensuring it would precisely clear the barn door rail once mounted. This custom spacer block worked like a charm, providing a consistent reference point and saving me from tedious, repetitive measurements. It’s these small, thoughtful steps that can make a world of difference in a DIY home improvement project.
My initial attempts at installing the brackets involved a lot of trial and error. I experimented with various solutions, including strategically placed shims behind the brackets to compensate for the wall’s irregularities. I even considered installing a long wooden cleat that I could shim out, thereby creating a perfectly flat and level surface onto which the barn door track brackets could be mounted. This process involved installing, uninstalling, and relocating the brackets multiple times, each attempt a lesson in patience and perseverance.

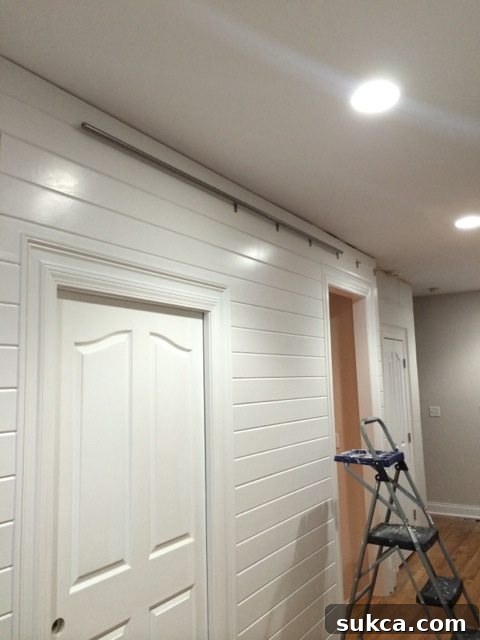

The breakthrough came with a revised strategy that transformed a frustrating task into a manageable one. Here’s the streamlined approach that ultimately led to success, a valuable tip for anyone tackling barn door track installation:
- First, I removed all but one bracket from the wall. This left me with a clear starting point.
- Next, I slid all the remaining brackets onto the barn door rail itself. This ensured that the brackets were properly seated within the rail’s T-slots from the start.
- Then, I installed the bracket at the opposite end of the rail. Crucially, I employed a laser level to ensure that these two end brackets were perfectly aligned and level across the entire span. This established a precise baseline for the entire track.
- With the end brackets securely in place, I then slid the intermediate brackets along the rail, positioning them evenly between the two fixed points.
- Once spaced, I secured the bottom screw in each of these intermediate brackets, allowing for minor adjustments if necessary.
- Finally, I slid the rail back just enough to access and secure the top screws for all brackets.
This method proved far more efficient and accurate, making perfect sense in retrospect. If only I had stumbled upon such a helpful guide before I began! This systematic approach is invaluable for achieving a perfectly level and stable barn door track system, even on challenging walls.
Understanding Your Setup: Dimensions and Capacity

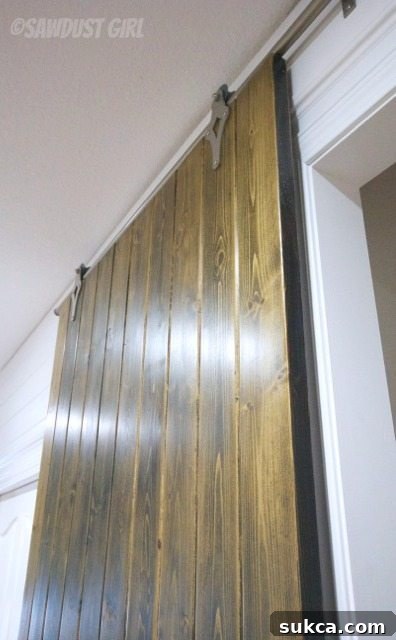

For those considering a similar DIY barn door project, here are the specifications for my setup. My custom-built door measures 50 inches wide, providing ample coverage for the doorway. It slides along an 8-foot rail, supported by a total of six robust brackets. This configuration is designed to safely hold a door weighing up to 250 pounds. While my door is undeniably substantial and boasts a considerable weight, it falls comfortably within this hardware’s impressive capacity. When selecting your sliding barn door hardware, it is crucial to consider the dimensions and weight of your door to ensure that the chosen track and brackets can safely and smoothly support it. Overlooking these details can lead to operational issues or, worse, safety hazards. Always check the manufacturer’s specifications for weight limits and recommended door sizes when planning your home improvement project.
Ensuring Safety and Seamless Operation: Floor Stops and Center Guides

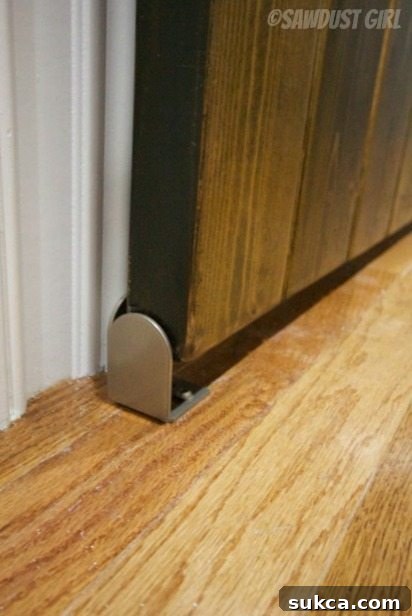

Beyond the rail and door itself, several crucial components are essential for the safe, smooth, and long-lasting operation of any barn door system. Firstly, I installed two robust end stops on the floor. These aren’t merely decorative; they serve a vital safety function by preventing the door from rolling completely off the track at its fully open or fully closed positions. Without them, there’s a risk of the door derailing, potentially causing damage or injury. The placement of these barn door floor stops must be precise, aligning with the desired limits of the door’s travel.
Secondly, I integrated two center guides, strategically positioned to keep the door perfectly aligned and stable throughout its movement. These barn door floor guides are critical for preventing the door from hitting the adjacent wall or swinging out into the hallway, which could happen if someone were to pull it in an unintended direction or push it from the other side of the doorway. The clever placement of these guides ensures that they effectively cradle and direct the door, whether it is fully open, fully closed, or anywhere in between. They contribute significantly to the door’s stability and overall user experience, ensuring that the sliding barn door mechanism remains smooth and controlled at all times. Investing time in correctly installing these seemingly minor components elevates the safety and functionality of your entire DIY home renovation.
The Grand Reveal: A Triumphant Conclusion to a DIY Journey

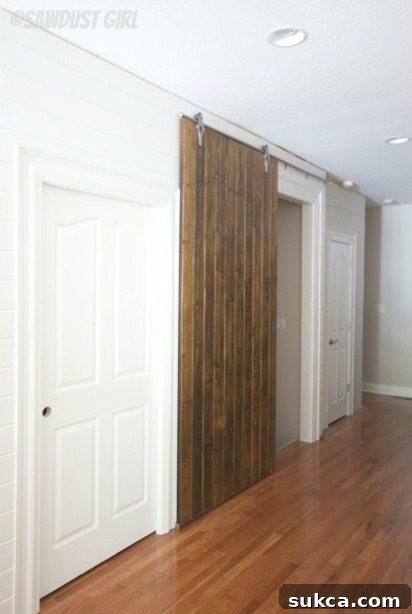

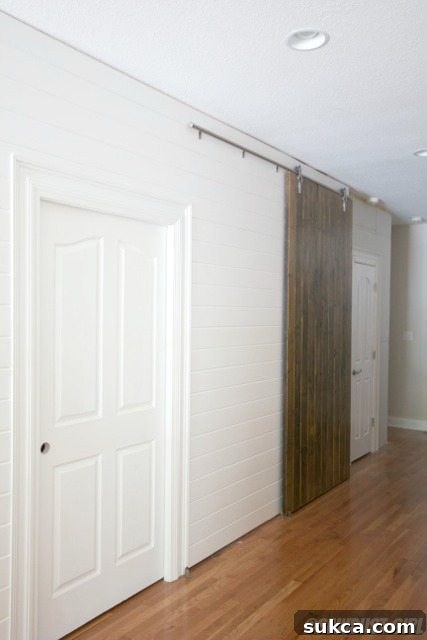

Now that the barn door installation is complete, the overwhelming feeling is one of immense satisfaction and joy. The long months of crafting the door, battling the “S”-shaped wall, and meticulously aligning the hardware have all culminated in a truly stunning and functional addition to my home. I absolutely love it! The door not only enhances the aesthetic appeal of the space with its warm, rustic-modern charm but also operates like a dream. The sliding mechanism is incredibly smooth, quiet, and effortless, providing a seamless transition between rooms. This project serves as a powerful reminder of the rewards of DIY home improvement and the satisfaction that comes from bringing a vision to life with your own hands. It’s more than just a door; it’s a statement piece, a functional work of art, and a testament to perseverance in the face of renovation challenges.
A Note on Collaboration and Further Inspiration
I extend my gratitude to CSHardware.com for generously providing the exceptional barn door hardware used in this project. While they supplied the materials, I want to emphasize that I received no additional compensation for this post, and all stated opinions and the execution of the project are entirely my own. This collaboration allowed me to use high-quality components and share my genuine experience with you.
If this barn door installation guide has sparked your creativity, you might also find inspiration in our other resources. Dive deeper into the world of custom sliding doors with our comprehensive post featuring an abundance of cool DIY barn door ideas! Discover various styles, finishes, and design concepts to help you envision and plan your next home transformation project. Happy building!
