Transform Your Pantry Door: A Step-by-Step Guide to DIY Craftsman Style Trim with a Decorative Header

Embarking on a home improvement project, especially in a high-traffic area like a pantry, can significantly elevate the aesthetic and functionality of your space. Completing numerous intricate details, both major and minor, within the pantry has truly transformed it. Among these, the craftsman style trim around the doorway, featuring all its delicate return pieces, presented a considerable challenge, yet the stunning visual outcome undeniably justifies every effort.

Craftsman style trim is renowned for its timeless elegance, clean lines, and architectural depth, making it a popular choice for homeowners seeking to add character and value to their interiors. This comprehensive guide will walk you through the process of creating and installing your own decorative door trim, turning a simple doorway into a captivating focal point.

Planning Your Craftsman Trim: Initial Thoughts and Crucial Adjustments

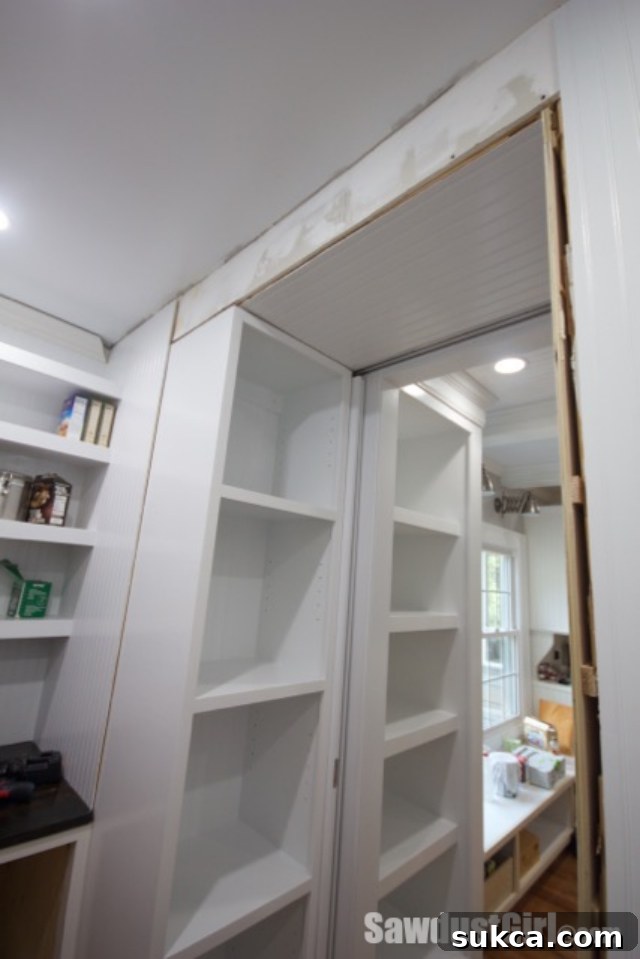

Every successful DIY project begins with thorough planning, but it’s equally important to remain flexible. Initially, my vision for this pantry doorway included extending the cabinet right into the doorway, allowing the decorative header to seamlessly continue to the cabinet’s backside, with a vertical trim piece descending behind it. This approach aimed for a deeply integrated look, almost as if the cabinet and trim were a single, monolithic unit. However, as I approached the actual execution of the door trim, a crucial shift in perspective occurred.

Upon closer inspection and considering the practicalities of installation and the desired finished aesthetic, I realized that the door trim needed to sit directly on the cabinet. This revised approach meant that the side of the cabinet had to visually merge with the wall, creating the illusion that it was an integral part of the wall structure itself. This subtle but significant change in design direction would dramatically impact the final look and feel of the pantry entrance, providing a more robust and intentional trim presence.

Integrating the Cabinet: The Beadboard Solution

To achieve the desired seamless integration where the door trim would appear to be part of the wall, I decided to apply beadboard to the side of the cabinet facing the doorway. Beadboard offers a classic, textural element that can effectively disguise a cabinet side, making it look like a finished wall surface. This was a critical step in ensuring the trim would sit correctly and enhance the overall craftsman aesthetic.

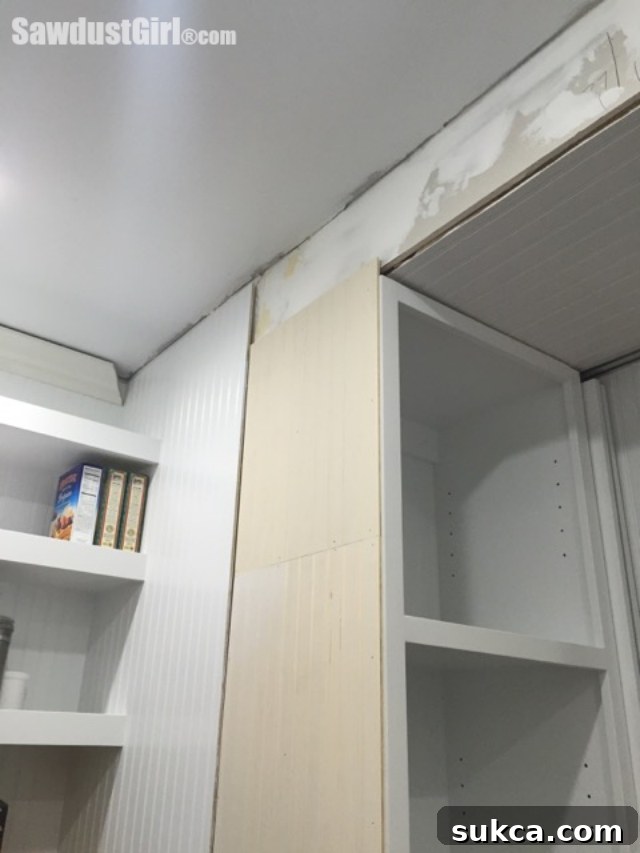

The timing, however, presented a minor hurdle: my truck was in the shop for six days, preventing me from acquiring a fresh sheet of beadboard. Resourcefulness is key in DIY, so I turned to my collection of scraps. This meant meticulously piecing together smaller sections of beadboard, which, while effective, added a significant amount of puttying and sanding to my to-do list. The effort was well worth it, as hiding those seams flawlessly is paramount for a professional finish. For those tackling similar challenges, I highly recommend checking out my detailed tutorial on how to hide seams in beadboard – it’s a game-changer!

Building the Craftsman Framework: Vertical and Horizontal Components

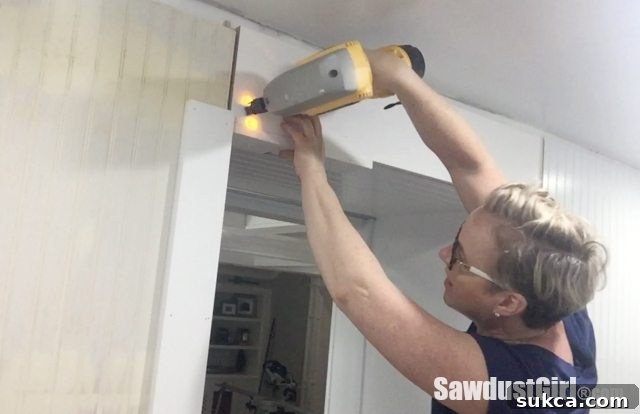

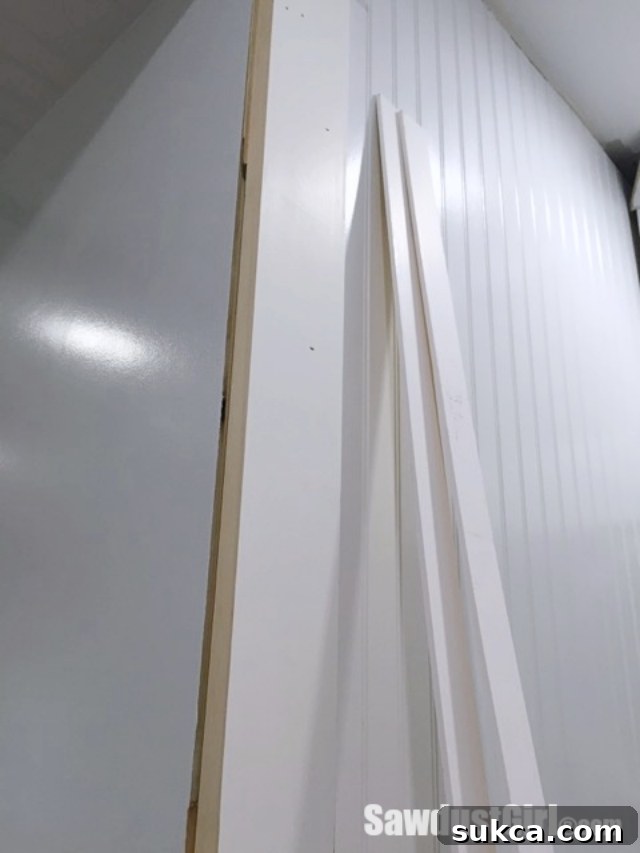

For the core craftsman style trim, I opted for primed 1×3 pine boards. Primed lumber saves a significant amount of time during the painting stage and ensures better paint adhesion. The vertical pieces, which define the sides of the doorway, were only 8 feet tall. When working with standard lumber lengths, it’s crucial to strategically plan your cuts to minimize visible seams. I ensured that any necessary seam on the verticals would be neatly concealed underneath the horizontal header trim, maintaining a clean and continuous look.

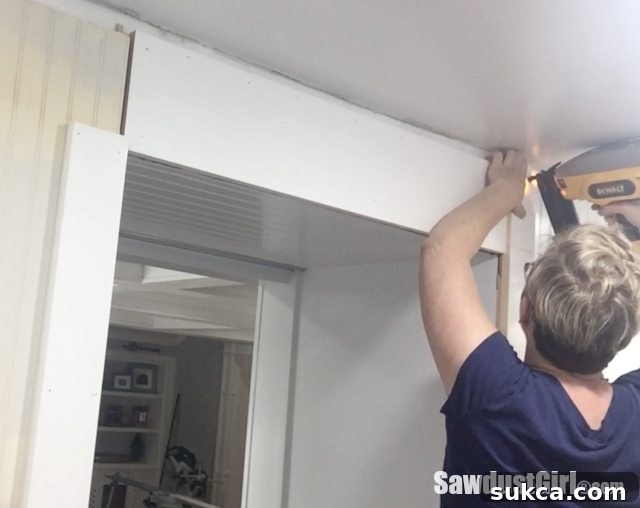

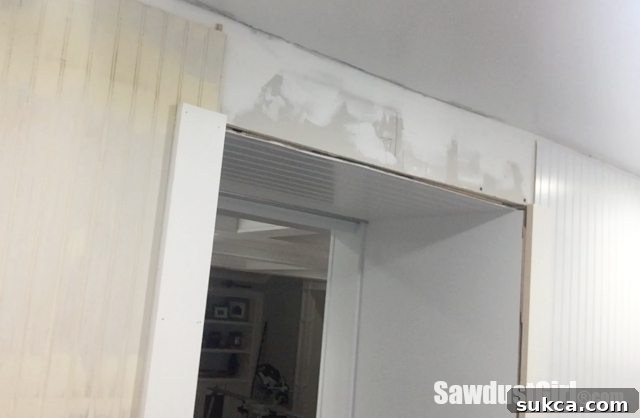

Once the vertical elements were securely in place, the next step involved adding the horizontal piece that forms the decorative header. This crucial component spans across the top of the doorway, extending almost all the way to the ceiling. It not only provides structural integrity to the trim but also serves as the base for the more intricate decorative moldings that will be added later.

A key characteristic of authentic craftsman trim is the subtle layering and dimension it provides. To achieve this, the vertical pieces should protrude slightly, typically by about 1/4 inch to 1/2 inch, beyond the face of the horizontal header piece. This creates a visually appealing shadow line and adds a sense of depth that is hallmark of the craftsman aesthetic, making the trim feel substantial and custom-built.

With the main framework established, the process moved to finishing off the vertical trim sections. This involved ensuring all cuts were precise, edges were flush, and the entire structure was plumb and level. Attention to detail at this stage prevents problems down the line and ensures a professional-looking finish for the entire door trim assembly.

Adding the Decorative Moulding and Iconic “Bump-Outs”

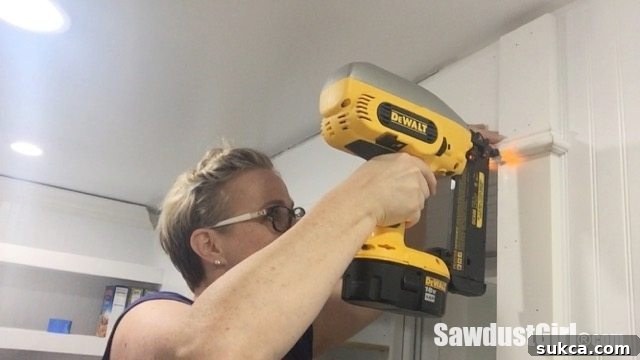

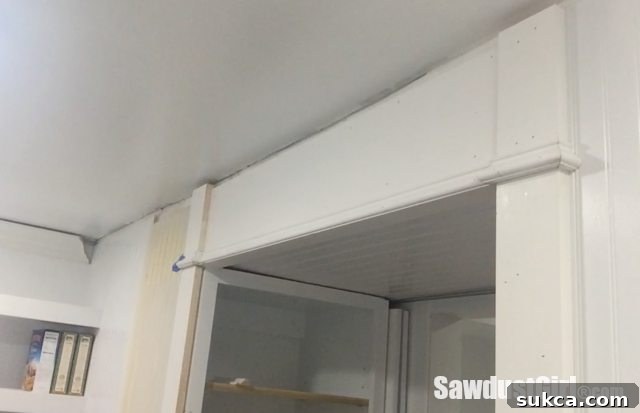

The true charm and complexity of craftsman style trim often lie in its decorative moldings and the distinctive “bump-outs” they create. After the main framework is in place, the decorative molding gets added. I start by installing a small moulding piece across the bottom edge of the horizontal “header,” ensuring it seamlessly carries over across the seam in the vertical pieces. This small detail ties the entire header assembly together.

When it comes to securing these decorative elements, especially the larger pieces, nailing them into place is standard practice. However, for the smaller, more delicate “return” pieces that create the signature craftsman bump-outs, I employ a different technique. These tiny pieces are secured primarily with wood glue and then held firmly in place with painter’s tape while the glue sets. This method is crucial because those small pieces are notoriously prone to shifting out of alignment or even breaking when direct nailing is attempted. The combination of glue and tape ensures a precise, sturdy, and clean installation, preventing frustration and rework.

Enhancing the Casing and Integrating Crown Moulding

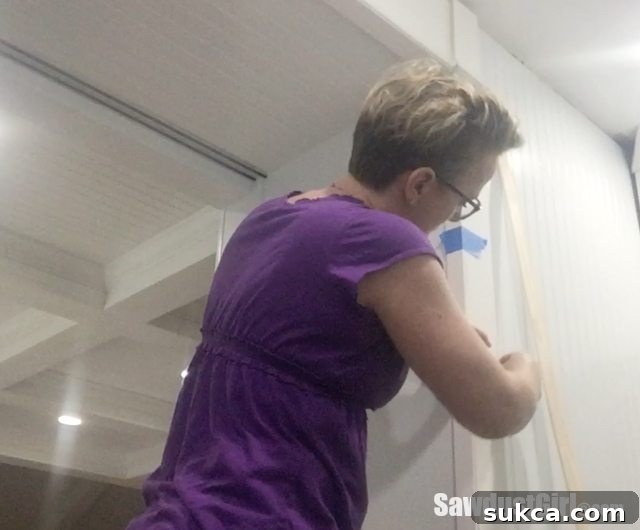

Beyond the decorative header, I wanted to give the main door casing a more substantial and robust appearance, a characteristic often seen in craftsman designs. To achieve this, I used my table saw to rip a couple of 1/4-inch thick strips of wood. These thin strips were then carefully applied behind the main casing, effectively hiding any minor cracks or inconsistencies between the casing and the wall. More importantly, this subtle addition instantly made the casing appear much chunkier and more pronounced, which is an aesthetic I particularly appreciate. It adds a custom, built-in feel that standard trim often lacks.

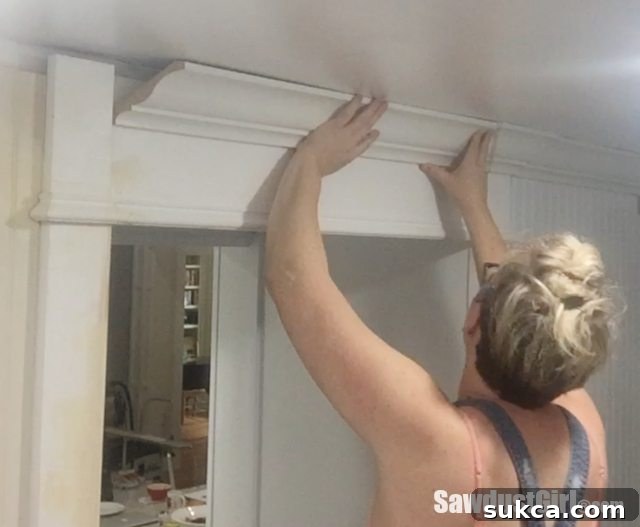

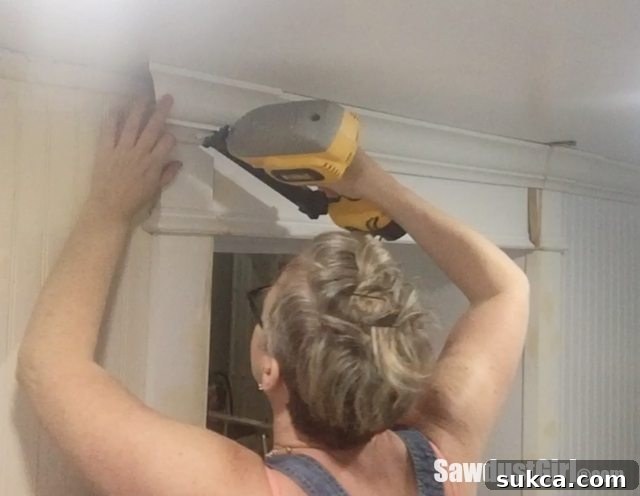

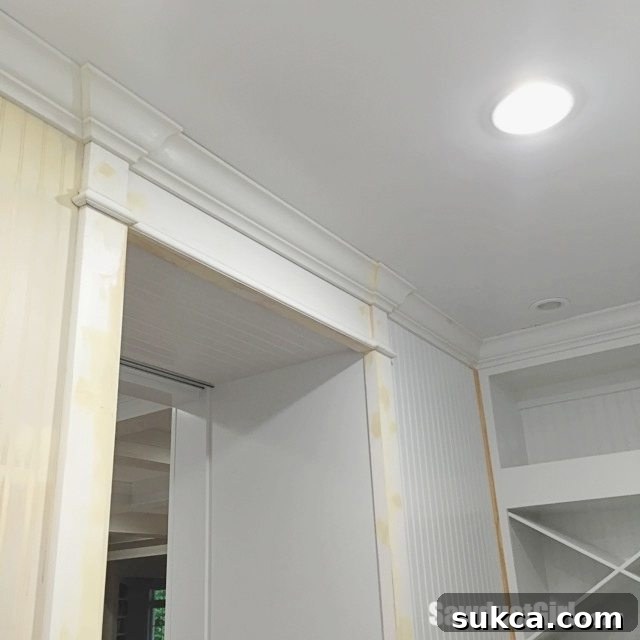

The final carpentry piece of this project involved seamlessly integrating the newly installed door trim with the existing crown moulding that runs around the perimeter of the pantry. Achieving a clean, tight joint where different trim elements meet is crucial for a polished look. This step requires careful measuring and precise cuts to ensure the crown moulding flows uninterruptedly from the wall onto the door trim, creating a unified and cohesive architectural statement throughout the room.

The “bump-outs” created by the layering of trim pieces are what truly make craftsman style trim exceptionally cool and visually dynamic! While they can be a bit tedious to execute with precision due to the small, intricate cuts and careful alignment required, the architectural depth and character they add are absolutely worth every minute of effort. These details are the hallmarks of quality craftsmanship and elevate a simple doorway into a piece of art.

The Art of Finishing: Filling, Sanding, Priming, and Painting

After all the woodworking is complete, the crucial finishing stages begin. This is where meticulous attention to detail truly pays off. I dedicate a significant amount of time to ensuring that all nail holes, minor cracks, and any other imperfections are thoroughly filled with high-quality wood filler and completely gone before even thinking about paint. This involves multiple applications and careful sanding to achieve a perfectly smooth surface.

The finishing process is not a one-and-done affair. After the initial filling and sanding, I apply a coat of primer. Priming is essential not only for better paint adhesion and durability but also because it acts as a revealing layer, highlighting any remaining imperfections that might have been missed. Once the primer is dry, I meticulously inspect the entire trim again, filling any newly visible flaws, sanding them smooth, and then reapplying primer where necessary. Only after achieving a flawless, uniformly smooth, and primed surface is the trim ready for its final coats of paint. This multi-step process guarantees a durable, professional-grade finish that will stand the test of time.

Visualizing the Process: A Helpful Video Tutorial

For those who prefer a visual guide or need additional clarification on specific techniques, I’ve put together a video tutorial. It includes several practical tips, especially for cutting and adding those challenging small return pieces. Watching the process in action can often simplify complex steps and provide confidence to tackle the project yourself.

The Grand Reveal: A Transformed Pantry Doorway

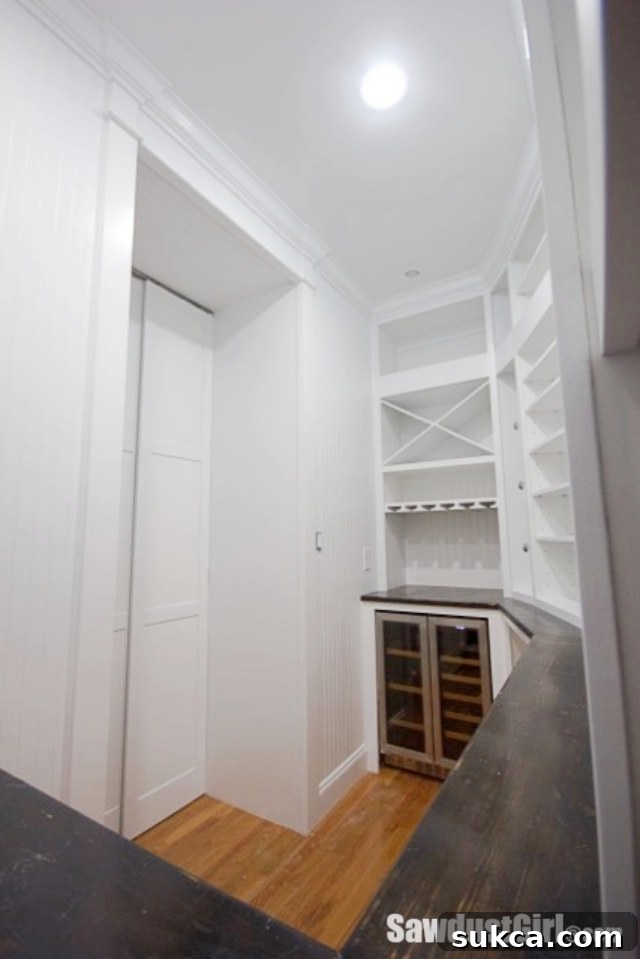

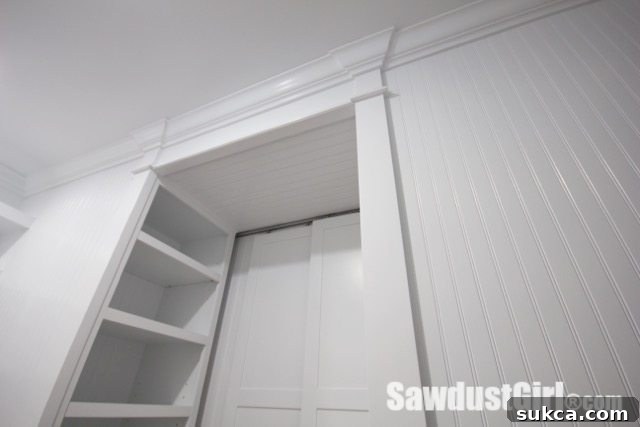

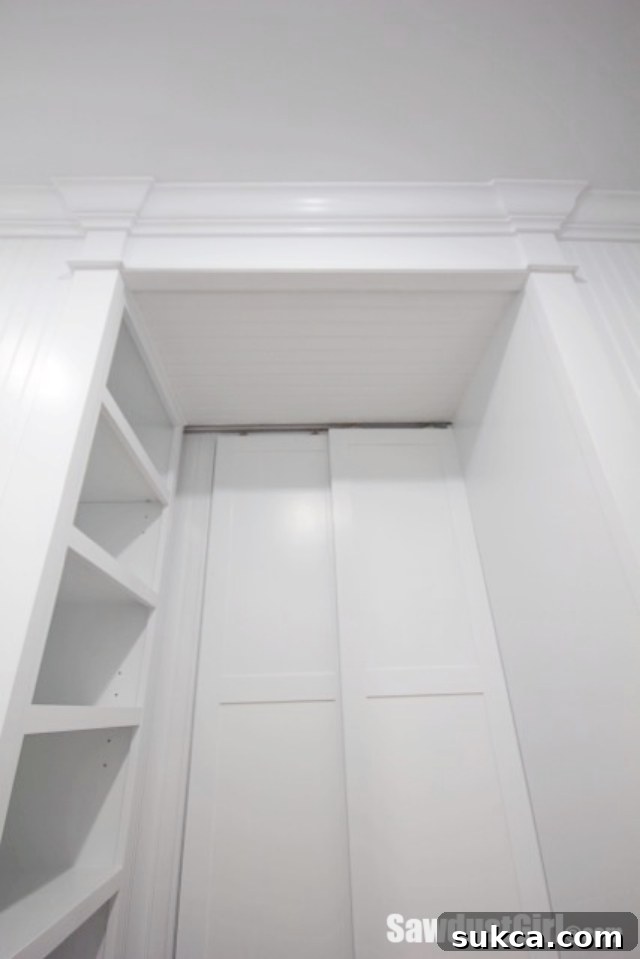

And here it is – the completed craftsman style door trim, complete with its elegant decorative header! The transformation is truly remarkable. What was once a simple, unassuming doorway has been elevated into a significant architectural feature, adding substantial character and a custom feel to the entire pantry area.

Currently, the pantry is awash in white, which provides a fresh and clean canvas. However, this minimalist look is merely temporary. Soon, the shelves will be brimming with a vibrant assortment of food, various pots and pans, and other kitchen essentials. These items will naturally break up the expanse of white, adding life, color, and functionality back into the space. The beauty of a well-executed trim project like this is that it provides a sophisticated backdrop, ready to complement whatever fills the room. SOON, this pantry will not only be beautiful but also incredibly functional!

Conclusion: Embrace the Beauty of DIY Craftsman Trim

Creating your own craftsman style door trim with a decorative header is a rewarding home improvement project that significantly enhances the aesthetic appeal and architectural integrity of any room. While it requires patience and attention to detail, especially with the intricate return pieces and the extensive finishing work, the end result is a truly custom, high-end look that adds lasting value and character to your home. Don’t shy away from these detailed projects; they offer immense satisfaction and a beautiful return on your investment of time and effort. Give your doorways the attention they deserve and transform your living space with the timeless elegance of craftsman trim.
