How to Build Custom Cabinet Doors: A Comprehensive Dado Joint Guide

Creating custom cabinet doors can transform the look and feel of your kitchen, bathroom, or any other space in your home. While the idea of building your own might seem daunting, this detailed guide simplifies the process, focusing on a robust and straightforward method: cutting a dado into your door material to perfectly house a 1/4-inch panel. This technique is not only efficient but also produces professional-looking results that are built to last. Whether you’re a seasoned woodworker or a passionate DIY enthusiast, mastering this method will equip you with the skills to craft beautiful, durable cabinet doors tailored to your exact specifications.

Many woodworking plans require building cabinet doors, and understanding this fundamental construction method will save you countless hours. The dado joint provides excellent stability and a clean aesthetic, making it a go-to technique for custom cabinetry. You have the flexibility to choose any 1/4-inch material for your door panels, from classic beadboard to versatile MDF, or even a thin sheet of plywood or solid wood, allowing you to achieve a wide array of styles and finishes.

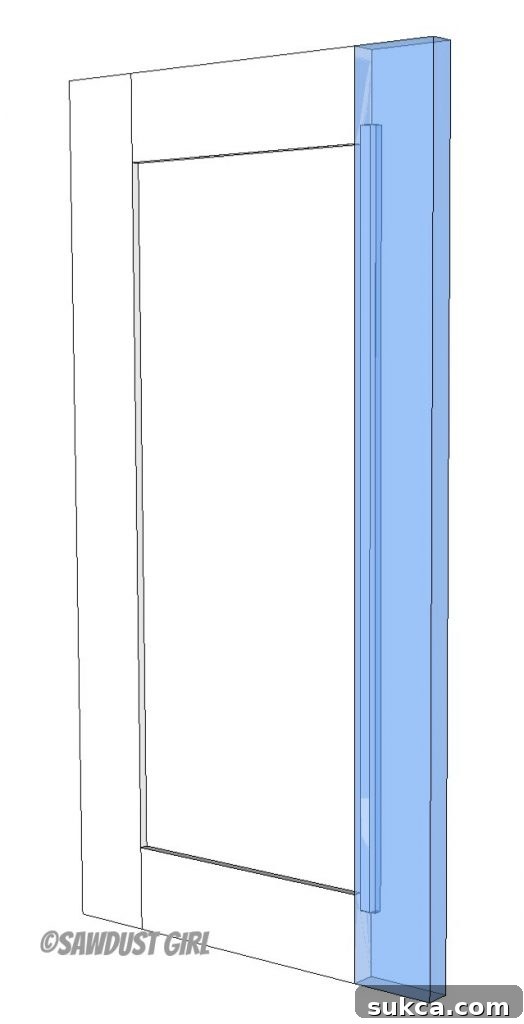

Understanding the Frame and Panel Design for Cabinet Doors

Before diving into the construction, it’s essential to understand the components of a frame and panel door. These doors consist of two vertical pieces (stiles) and two horizontal pieces (rails) that form the outer frame, with a thinner panel floating within. This design is highly effective because it allows the central panel to expand and contract with changes in humidity without putting stress on the frame, preventing warping and cracking. The dado joint is a channel cut into the stiles and rails, perfectly sized to receive and secure the panel.

Essential Tools and Materials for Your DIY Cabinet Doors

Success in woodworking starts with having the right tools and materials. For building cabinet doors with a dado joint, you’ll need the following:

Table Saw: Ideally equipped with a dado blade set, which allows you to cut the dado channel in a single pass.
Router Table: An excellent alternative if you don’t have a dado blade, using a straight bit for multiple passes. Essential for stop-and-start dado cuts.
Measuring Tape and Combination Square: For precise measurements and ensuring square cuts.
Clamps: Bar clamps or pipe clamps are crucial for holding your door components together during assembly and glue-up.
Safety Glasses and Hearing Protection: Always prioritize personal safety in the workshop.
Pencil and Marking Gauge: For accurate layout and marking.
Wood Glue: High-quality wood glue for strong, lasting joints.
Wood for Frame: Choose stable, straight-grained lumber. Hardwoods like maple, oak, or cherry are popular for their durability and aesthetic appeal. Softwoods like pine can also be used for painted doors.
1/4-inch Panel Material:
- MDF (Medium-Density Fiberboard): Affordable, stable, and takes paint beautifully.
- Beadboard: Offers a classic, cottage-style look, often made from MDF or thin plywood.
- Plywood: Cost-effective, stable, and available in various wood veneers.
- Solid Wood: Can be used, but requires careful consideration for expansion/contraction, usually thinner or veneered to prevent warping.

Precise Measurements: Planning Your Cabinet Door Dimensions

Accuracy in measurement is paramount when building cabinet doors. An incorrectly sized door can throw off the entire cabinet’s aesthetic and functionality. Before cutting any wood, meticulously measure your cabinet openings. Decide whether you want an “overlay” door (where the door sits on top of the cabinet face frame, slightly larger than the opening) or an “inset” door (where the door fits flush within the cabinet opening, slightly smaller than the opening). This guide focuses on the general dado construction, adaptable to either style based on your initial measurements.

Once you know your desired finished door dimensions, you can easily calculate the sizes for your panel and frame pieces (stiles and rails). If you cut your dado 1/2 inch deep into each frame piece, the math for your panel dimensions becomes simple: just add 1 inch to the desired width and length of your panel. This accounts for 1/2 inch of the panel sliding into the dado on all four sides of the frame. For example, if your finished door is 15 inches wide and 20 inches tall, and your stiles and rails are 2 inches wide, your panel would be 11 inches wide (15 – (2*2) + 1 inch = 11 inches) and 16 inches tall. Always double-check your calculations before making any cuts.

Cutting the Dado Joints: The Heart of Your Cabinet Door

The dado joint is what securely holds your panel within the door frame. Precision is key in this step. You’ll be cutting a channel into the inside edge of your stiles and rails.

Mark the Back of Each Board: To ensure your dado lines up perfectly during assembly, make a clear mark on the back or inside face of each stile and rail. This helps maintain consistency in orientation for all your cuts.
Total Cut Depth: Your dado should be 1/2 inch deep. This depth provides ample material engagement for the 1/4-inch panel, ensuring a strong and stable joint without weakening the frame significantly.
Method 1: Using a Table Saw with a Dado Blade:
If you have a dado blade set for your table saw, this is often the fastest and most efficient method. Install the 1/4-inch dado blade (or a stack of chippers and spacers to achieve a 1/4-inch width), adjust the fence, and set the blade height to 1/2 inch. Always perform a test cut on a scrap piece of wood to verify the depth and width before cutting your actual door components. Use a featherboard and push stick for safety and consistent pressure.
Method 2: Using a Router Table:
A router table is a versatile alternative. Install a 1/4-inch straight bit. Since routers remove material more aggressively, it’s safer and more precise to make the 1/2-inch deep cut in several shallow passes (e.g., four 1/8-inch passes). Adjust the fence for the desired position of your dado, ensuring it’s centered on the thickness of your frame material or positioned according to your design. Again, test cuts are essential.
The Crucial Stop-and-Start Dado Cuts:

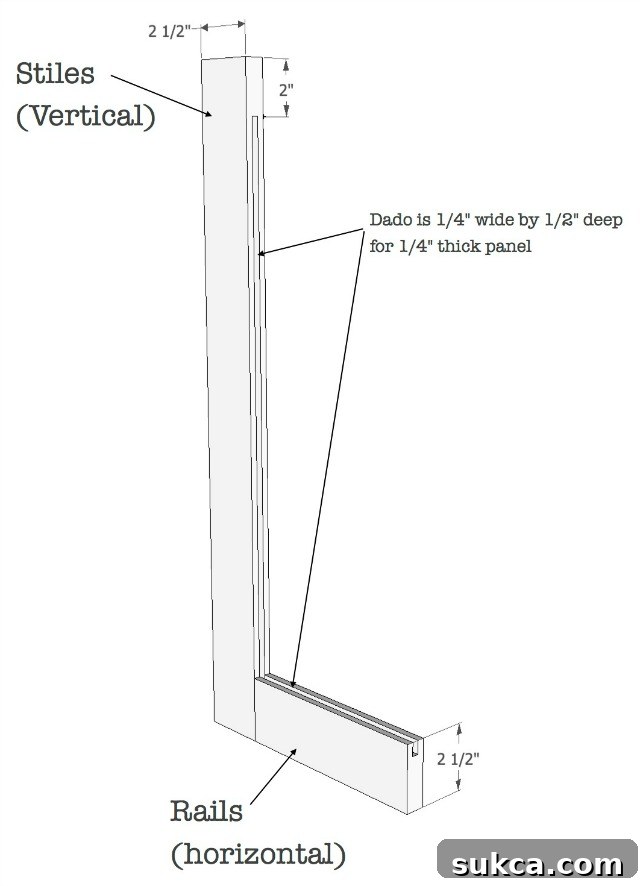

This is a critical technique that ensures the dado cuts are only visible on the inside edges of the frame, giving your door a clean, professional appearance from the outside. You will start and stop your dado cuts approximately 2 inches from the end of each board. This means the dado channel will not extend all the way to the ends of the rails or stiles, creating a hidden joint when the door is assembled.

This operation is easiest and safest to perform on a router table. You can use a marking gauge or simply painter’s tape to clearly mark where to start and end your cut on each piece. Carefully plunge the workpiece onto the spinning router bit at your start mark and lift it off at your end mark. When using a table saw, this technique requires extreme caution and a sled or jig for safety and accuracy. Be exceedingly deliberate and careful when making these cuts, as improper technique can lead to kickback or injury.

Assembling Your Cabinet Door Frame

With your dado cuts complete, it’s time to bring your cabinet door to life. This stage involves joining the frame components and inserting the panel.

Choose Your Joinery Method: While the dado secures the panel, the frame itself needs strong joints. There are several popular options for connecting the stiles and rails:
- Pocket Hole Screws: A fast and popular method for DIYers. Requires a pocket hole jig. While quick, remember that the holes will need to be plugged or hidden if they are visible on the finished side.
- Dowels: A traditional method providing good alignment and strength. Requires a doweling jig for precise hole placement.
- Biscuits: Uses small, compressed wood biscuits inserted into slots cut by a biscuit joiner. Excellent for alignment and adds strength.
- Loose Tenons (e.g., Beadlock Pro system): Offers exceptional strength and alignment, creating mortise and tenon joints with specialized jigs. This method, often seen in professional shops, creates a very durable and aesthetically pleasing joint. If you are interested in this advanced technique, you can see this tutorial for the Beadlock Pro system.
Secure Three Sides of the Door: Begin by assembling three sides of your door frame. You can either attach both stiles to one rail or both rails to one stile. Apply a thin, even coat of wood glue to the joinery surfaces (e.g., within the pocket holes, around the dowels, or in the tenon slots). Clamp these three pieces together, ensuring they are square and flush. Allow the glue to set slightly, but not fully cure, before the next step.

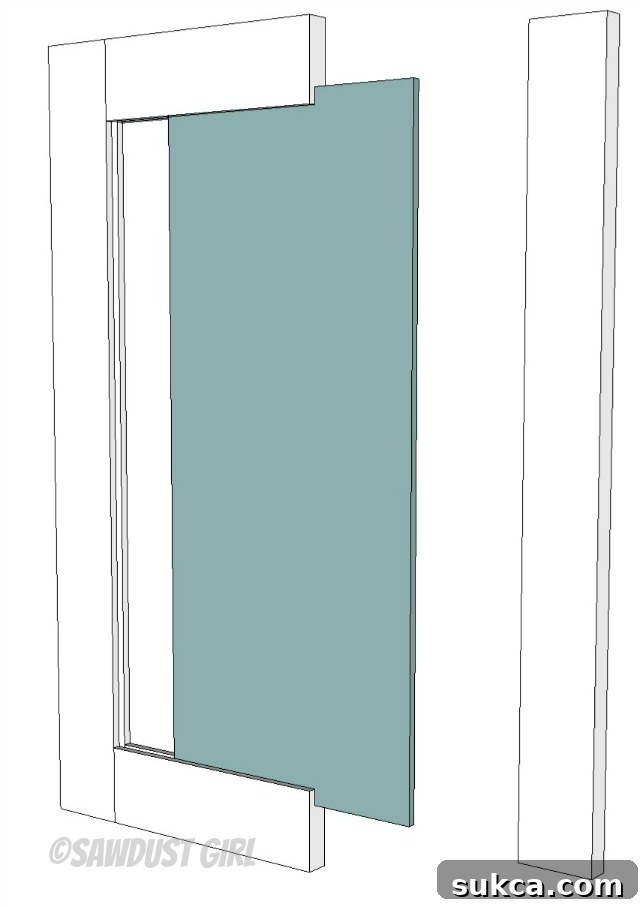

Slide the Panel In: Once three sides are secured, carefully slide your pre-cut 1/4-inch panel into the dado grooves. Ensure the panel is oriented correctly if it has a specific front/back or grain direction. It’s crucial that the panel is allowed to “float” within the dado; do not glue the panel into the dados. Wood expands and contracts with changes in humidity, and if the panel is rigidly glued, it can crack the frame or the panel itself.
Dry Fit the Last Piece: Before applying glue, always dry fit the last rail or stile. This allows you to check for any misalignments or issues before committing to glue.

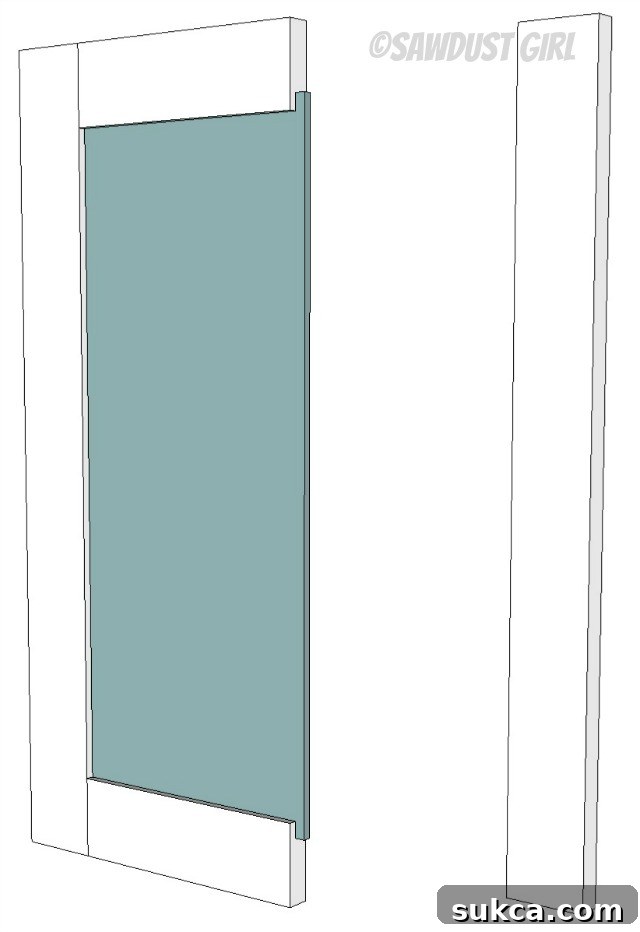

Attach the Last Door Piece: Once you’re satisfied with the dry fit, apply glue to the final joint surfaces and carefully attach the last rail or stile. Clamp the entire door assembly firmly, ensuring all joints are tight and the door remains square. Use a large, flat surface to assemble and clamp your doors to prevent any twists or bows from being introduced.

Mastering Clamping and Preventing Warping

Even with precise cuts, the assembly and clamping phase can make or break your cabinet doors. Wood is a natural material with a mind of its own, prone to warping, expanding, contracting, and splitting due to changes in moisture and temperature. While you can’t entirely eliminate wood movement, you can control several factors to minimize problems and ensure your doors remain flat and true.

Assemble Doors on a Flat Surface: This cannot be stressed enough. Always assemble and clamp your doors on a workbench or assembly table that you know is perfectly flat. Any unevenness in your assembly surface will transfer to the door, resulting in a twisted or bowed panel that won’t lay flat when attached to the cabinet.
Don’t Apply Too Much Clamping Pressure: It’s tempting to overtighten clamps, thinking it will create a stronger joint. However, excessive clamping pressure can cause the wood to bow inward or outward, especially along the length of the stiles and rails. Apply just enough pressure to ensure both sides of the joint are making full contact and that excess glue is squeezed out. A good rule of thumb is to tighten until you see a consistent bead of glue along the joint line. If the wood starts to visibly bow, you’ve applied too much pressure. Consider using cauls (flat boards placed between the clamp and the workpiece) to distribute clamping pressure more evenly and prevent marring the wood.
Understanding Wood Movement: Wood is hygroscopic, meaning it absorbs and releases moisture from the air, causing it to swell and shrink. This is why the panel must be allowed to “float” within the dado. If the panel is glued rigidly to the frame, its natural movement can cause it to buckle or even split the frame as it tries to expand or contract. By allowing it to float, the panel can move independently within the dados without stressing the frame.
Acclimating Your Wood: Before starting your project, allow your lumber to acclimate to the environment of your workshop or home for several days or even weeks. This helps stabilize the wood’s moisture content, reducing the likelihood of significant movement after assembly.

Finishing Your Cabinet Doors

Once your door frames are assembled and the glue has fully cured, it’s time for the finishing touches that will bring your custom cabinet doors to life.

Sanding: Begin with a coarser grit sandpaper (e.g., 80 or 100) to remove any glue squeeze-out, machine marks, or imperfections. Gradually work your way up through finer grits (e.g., 120, 180, 220) for a smooth, ready-to-finish surface. Always sand with the grain to avoid visible scratches.
Dust Removal: After sanding, thoroughly clean all surfaces to remove dust. A vacuum, compressed air, and a tack cloth are excellent tools for this. Dust left on the surface can interfere with paint or stain adhesion and create a bumpy finish.
Priming and Painting/Staining:
- Painting: Apply a high-quality primer designed for wood, followed by two or more coats of your chosen cabinet paint. Lightly sand between coats for a silky-smooth finish.
- Staining: Apply a pre-stain conditioner if working with woods prone to blotching (like pine or maple). Then, apply your wood stain, wiping off the excess according to the manufacturer’s instructions. Finish with several coats of a clear topcoat (polyurethane, lacquer, or varnish) for protection and durability.
Hardware Installation: Once your finish has fully cured, the final step is to install your chosen hinges and pulls. The type of hinge you select will depend on your cabinet style (overlay, inset, partial overlay). This can be a complex decision with many options available, so for detailed guidance on this important step, be sure to select your hinges with care.

Good luck with your project, be safe, and enjoy the satisfaction of building beautiful, functional cabinet doors!
