Transforming a room can be an exciting journey, especially when it involves creating a personal haven for a growing child. Recently, we embarked on such a project for Madison, moving her into the spacious guest bedroom in the basement. To truly make the new space her own, I envisioned a DIY industrial platform bed, and I’m thrilled to share the detailed woodworking plans for this unique build. This project delivers not just a bed, but a statement piece that perfectly blends rugged charm with practical functionality.
The industrial aesthetic, characterized by its raw materials and functional design, has a timeless appeal. We absolutely adore the look, especially with the addition of sturdy metal casters that give the bed a distinct, workshop-inspired flair. Beyond its striking appearance, the mobility offered by these casters is a game-changer. It means Madison can effortlessly reconfigure her room layout whenever inspiration strikes – a common occurrence with teens exploring their personal style. I’m always keen to encourage her creativity and self-expression, and this bed provides the perfect flexible foundation without creating excessive work for me down the line. It’s truly a win-win!
Build Your Own Industrial Platform Bed: Free Woodworking Plans

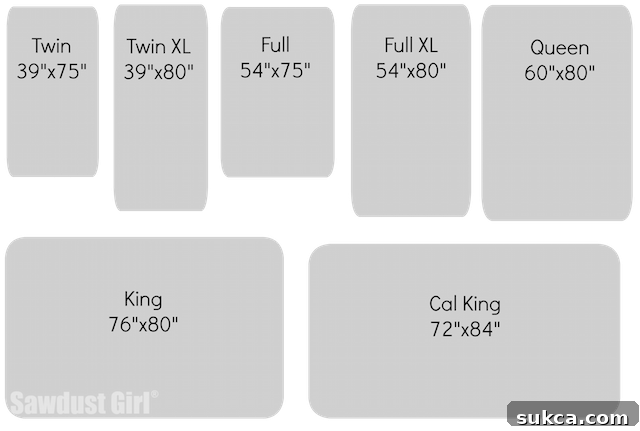

This comprehensive guide provides detailed, free woodworking plans to construct your very own industrial platform bed. The design we’ll be following is specifically tailored for a Cal King mattress, with the mattress designed to sit snugly within the platform frame. This recessed design not only looks clean and modern but also keeps the mattress securely in place. However, the beauty of DIY is customization! It’s crucial that you carefully measure your specific mattress and adjust the dimensions in the plans accordingly. Whether you have a Twin, Full, Queen, King, or another size, a few simple modifications will ensure a perfect fit for your custom platform bed.
Why Choose an Industrial Platform Bed?
An industrial platform bed offers a multitude of benefits, making it an excellent choice for any bedroom, especially a teenager’s space. Firstly, the industrial aesthetic provides a contemporary edge, easily complementing various decor styles from minimalist to rustic. Secondly, the platform design eliminates the need for a box spring, offering firm mattress support and often a lower profile, which can make a room feel more open. Lastly, the inclusion of casters not only enhances the industrial look but also adds unparalleled flexibility. Moving furniture can be a chore, but with a rolling bed, reorganizing a room for a new look or simply for cleaning becomes a breeze. This blend of style, stability, and mobility truly sets this DIY bed project apart.
Essential Tools and Materials List
Before you dive into building your industrial platform bed, ensure you have all the necessary tools and materials on hand. Having everything ready will streamline your workflow and make the building process much more enjoyable. Basic woodworking tools like a tape measure, pencil, circular saw or miter saw, drill, and clamps will be essential. Safety gear, including eye protection and hearing protection, is also paramount.
Here’s what you’ll need for a Cal King size industrial platform bed:
- Wood Stock:
- Three – 8′ 2×12 boards (cut to: 82″, 82″, and 91″)
- Three – 8′ 2×10 boards (cut one of these down to 72″)
- One – 82″ 2×6 board
- One – 91″ 2×3 board (you may need to cut down a 2×4 to achieve this dimension)
- One – 72″ 2×3 board
- One – 82″ 1×2 board
- Slats:
- 26 – 3/4″ slats, each sized at 3 1/2″ x 35 1/4″
- Hardware:
- Four – 8″ Heavy-Duty Metal Casters (ensure they have a sufficient weight rating)
- Fasteners: Choose your preferred method for securing wood joints. Options include:
- 2 1/2″ pocket screws (requires a pocket hole jig)
- Mortise and tenons (using loose tenons for strength)
- Dowels (for precise alignment and strong joints)
- Wood glue (essential for all joints, regardless of fastener type)
- Nails or brad nails (for securing thinner pieces like slat dividers)

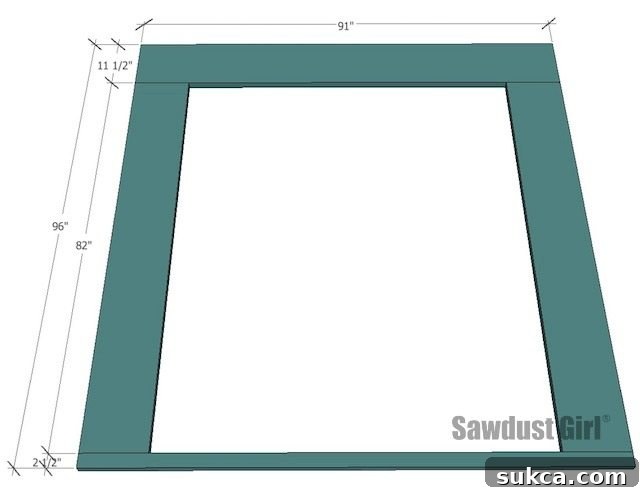

Step 1 – Constructing the Base and Slat Supports
The foundation of your industrial platform bed begins with the base and internal slat supports. Precision here is key for a stable and durable bed. Using your pre-cut 2×12 and 2×10 lumber, begin assembling the perimeter frame and the central support beams. This step requires careful joining, so select your preferred fastening method – whether it’s sturdy pocket holes, traditional mortise and tenon joints, or reliable dowels. Each method offers distinct advantages in terms of strength and aesthetics. Remember, as highlighted in the plans diagram, these dimensions are tailored for a Cal King. Double-check your mattress dimensions and adjust the length and width of your frame pieces before making any cuts to ensure your mattress fits perfectly within the platform.

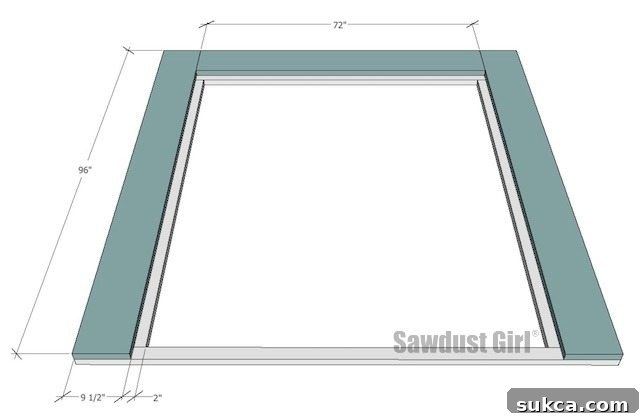

Step 2 – Assembling the Platform Layers
With the base structure complete, it’s time to add the primary platform layer. Carefully attach the 2×10 stock on top of your previously assembled 2×12 base. The goal here is to ensure the outside edges of these two layers are perfectly flush, creating a clean, unified profile for your industrial bed frame. For this critical lamination, a combination of strong wood glue and mechanical fasteners is highly recommended. Apply a generous, even layer of wood glue between the surfaces, then clamp the pieces together firmly. Alternatively, if you lack sufficient clamps, heavy weights can be used to apply pressure while the glue dries. This two-layer construction adds significant strength and rigidity to the entire bed frame, providing a robust edge that will eventually support your mattress slats.

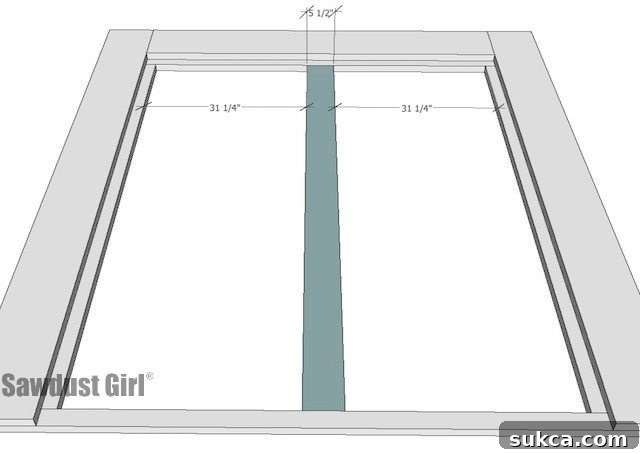

Step 3 – Installing the Center Slat Support
To provide adequate support for your mattress and prevent sagging over time, a robust central support beam is essential. Now, attach your 2×6 center support beam within the frame. This piece runs lengthwise down the middle of the bed, significantly increasing the structural integrity of the platform. Ensure it is securely fastened to the head and foot components of the frame, using screws or lag bolts for maximum strength. This central spine will bear a significant portion of the mattress’s weight, making its secure installation paramount for the longevity and comfort of your DIY industrial platform bed.

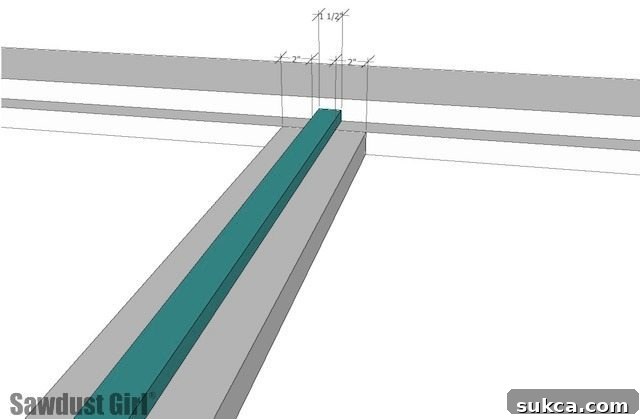

Step 4 – Adding the Slat Divider
To further enhance mattress support and organize your slats effectively, especially for larger beds, a slat divider is a beneficial addition. Attach the 3/4″ slat divider in the precise center of your newly installed 2×6 center slat support. This divider creates two distinct channels for your slats, ensuring they remain evenly spaced and distributed across the bed’s width. Use wood glue along with brad nails or small screws to firmly secure this piece. While seemingly small, this detail contributes significantly to the overall stability and evenness of your mattress support system.

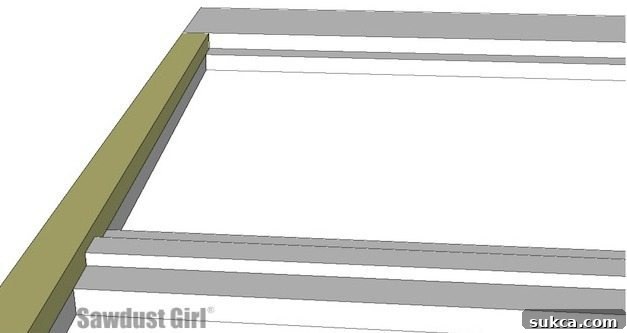

Step 5 – Attaching the “Bedhead” Support
The “bedhead” support piece serves to contain the mattress at the head of the bed and provides a finished look. Secure your 72″ 2×3 board to the base layer at the very head of the bed frame. This piece will effectively create a short retaining wall, preventing the mattress from shifting upwards and maintaining its alignment within the platform. Use robust fasteners like screws along with wood glue to ensure a strong, immovable connection. This detail not only adds to the bed’s structural integrity but also contributes to the clean, integrated appearance of the finished industrial platform bed.

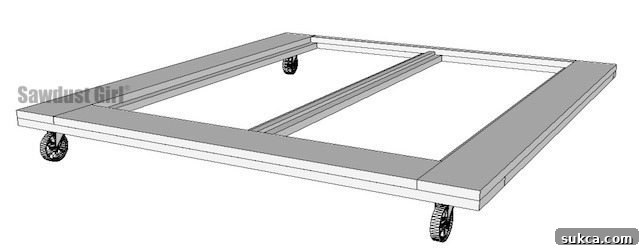

Step 6 – Installing the Industrial Casters
Now for one of the most distinctive features of this industrial platform bed: the casters! These heavy-duty metal wheels not only contribute significantly to the aesthetic but also provide the incredible mobility that makes this bed so versatile. Carefully install the four 8″ casters to the underside corners of your bed frame. Be sure to use appropriate hardware, such as lag screws, to ensure they are securely anchored and can handle the full weight of the bed, mattress, and occupant. A word of caution: high-quality industrial casters can be surprisingly expensive, so it pays to shop around! I personally spent considerable time researching to find the best value without compromising on quality.
For two different projects, I sourced two brands of 8″ metal casters. This option was priced at $31.25 plus $10 for shipping and was immediately available. Another choice cost $28.40 with free shipping, though it initially indicated a lengthy 1-3 month shipping window. Fortunately, I received mine within a few weeks. You might find similar options at local hardware stores or industrial suppliers, but be prepared for potential waiting times if ordering online. When planning a woodworking project, especially one intended as a gift, it’s always wise to factor in extra time for material procurement and shipping delays – much like show business, if something can go wrong, it often will, and our job is to find a creative solution!

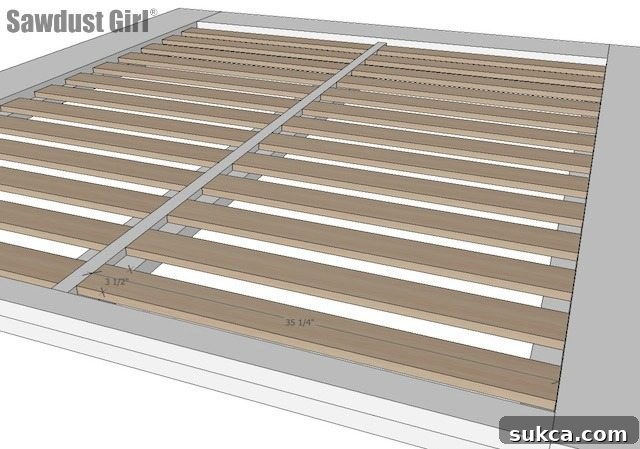

Step 7 – Placing and Securing the Slats
The final structural component of your industrial platform bed is the mattress slats. Carefully set your 26 pre-cut 3/4″ slats into place, ensuring they are evenly spaced across the entire bed frame. The slat divider you installed in Step 4 will help guide this spacing. Once each slat is positioned, secure it firmly with a screw at each end, driving it into the side rails and the central support beam. This crucial step prevents the slats from shifting or squeaking and provides a stable, breathable foundation for your mattress.
As someone who has wrestled with countless flat-pack furniture assemblies, particularly the notoriously finicky slats of an Ikea bed, I can confidently say that building these custom slats from scratch felt surprisingly straightforward. While generic store-bought beds often involve frustratingly complex systems, the simplicity of cutting and screwing these slats into place was a welcome change. It’s truly a testament to the satisfaction and ease that can come with well-designed DIY woodworking projects, making the entire process far less hair-pulling than my usual experiences!

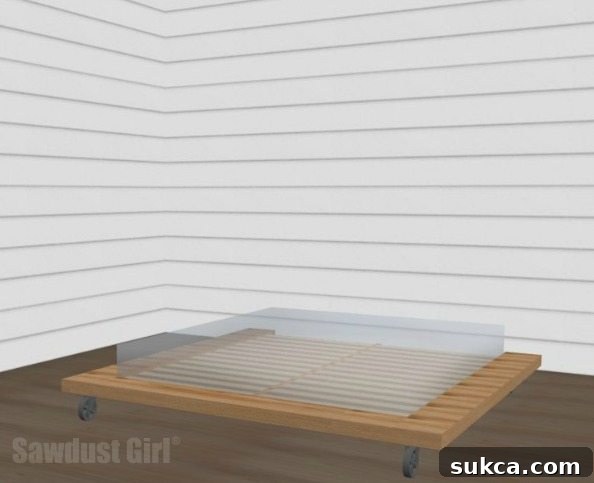

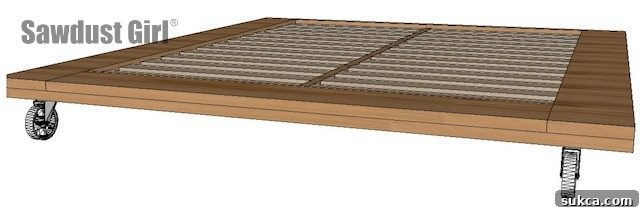

Finishing Touches and Enjoying Your New Bed
With all the structural components in place, your industrial platform bed is essentially complete! The last step, of course, is to carefully place your mattress onto the sturdy new frame. I am incredibly pleased with how this bed turned out, and I’m eager to see Madison’s reaction. She’s definitely excited about her move into the basement, and while I’ll miss having our storage room, I’m thrilled that she now has a larger space where she can truly spread out and express her individuality. This DIY project has not only delivered a functional piece of furniture but also a sense of accomplishment and a personalized touch to her new room.
