Transform your dining area with a custom-built bench that perfectly blends style and functionality. Whether you envision a sleek, modern piece for contemporary dining, a charming rustic addition for a farmhouse aesthetic, or something in between, this DIY dining bench project offers incredible versatility. With its clean lines and distinctive X-brace design, you can achieve a sophisticated, “posh” look with a meticulous finish or embrace a raw, “rustic” charm by highlighting the natural wood grain. Building your own furniture is not only cost-effective, typically costing around $30 for lumber for this project, but it also provides immense satisfaction and a unique piece tailored to your home.
This comprehensive guide offers free, easy-to-follow plans to construct a sturdy and stylish dining room bench. We’ll walk you through each step, from selecting your materials to applying the final finish, ensuring even novice woodworkers can successfully complete this rewarding project. Get ready to enhance your dining space, add extra seating, and showcase your DIY prowess with a beautiful bench built right in your workshop.

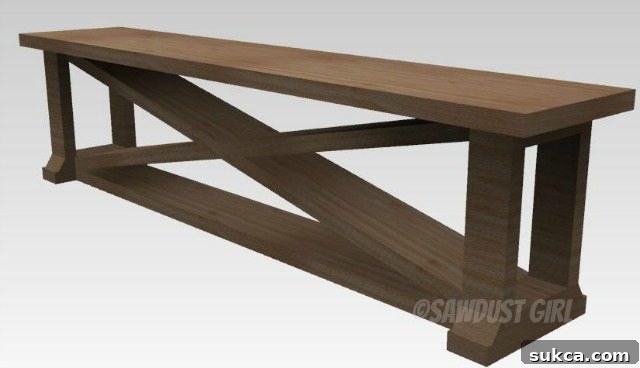

DIY X-Leg Dining Room Bench Plans: Craft Your Perfect Seating Solution
Embark on this woodworking adventure and create a durable, attractive dining bench. This design features robust X-legs for excellent stability and a visually appealing structure, perfect for any dining room or entryway. Below, you’ll find a detailed list of materials and step-by-step instructions to guide you through the construction process.
Materials You’ll Need:
- Two (2) 10-foot 2x4s: These will form the structural components of your bench legs and support frames. When selecting lumber, look for straight boards without significant bows, twists, or large knots, as these can compromise strength and make assembly more challenging.
- Five (5) 8-foot 2x8s: These larger boards are essential for creating the wide, comfortable bench top and additional leg bracing. Again, prioritize straight, knot-free pieces for a smooth, attractive finish and easy glue-up.
- 2 1/2-inch Pocket Screws: Ideal for creating strong, concealed joints, particularly for attaching the bottom brace and X-braces. A Kreg Jig or similar pocket hole system is highly recommended for professional results.
- 2 1/2-inch to 3-inch Wood Screws: Versatile fasteners for general assembly, ensuring robust connections between various wooden components.
- Wood Glue: An absolute necessity for reinforcing all wood-to-wood joints, dramatically increasing the strength and longevity of your bench. Don’t skimp on quality wood glue.
- Sandpaper: Various grits (e.g., 80, 120, 180, 220) for preparing surfaces for finishing.
- Wood Filler (optional): For filling any small gaps, nail holes, or imperfections before finishing.
- Finish of Choice: Paint, wood stain, clear polyurethane, natural oil, or wax – whatever suits your desired aesthetic.
Recommended Tools:
- Circular Saw or Table Saw: Crucial for making precise, straight cuts and accurate angle cuts for the X-braces. A miter saw can also be incredibly useful for angle cuts.
- Drill/Driver: For pre-drilling holes and driving screws.
- Pocket Hole Jig (e.g., Kreg Jig): Essential for creating strong, hidden pocket screw joints.
- Tape Measure and Pencil: For accurate measurements and marking cuts.
- Speed Square or Combination Square: To ensure all cuts and assemblies are perfectly square.
- Clamps: Bar clamps or pipe clamps are indispensable for gluing up the benchtop and holding pieces securely during assembly. At least 3-4 clamps are recommended.
- Safety Glasses and Hearing Protection: Always prioritize personal safety when operating power tools.
- Orbital Sander: For efficient and smooth sanding of all surfaces.

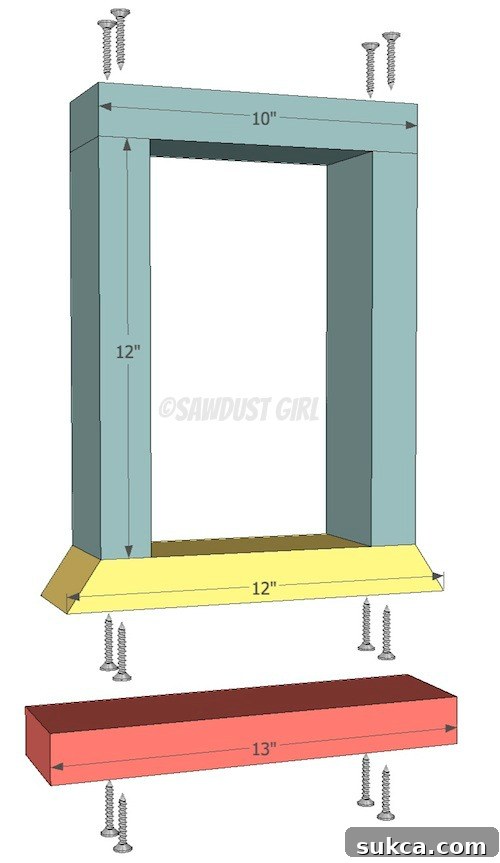

Step 1: Assemble the Bench Legs
The foundation of your bench starts with the sturdy leg assemblies. Begin by cutting your 2x4s to the required lengths for the vertical uprights and horizontal cross-members of each leg frame. Measure carefully and make clean, square cuts. For the initial leg structure (before the X-braces), you’ll typically have two vertical posts and one or two horizontal pieces per leg. Apply a generous amount of wood glue to all mating surfaces before bringing the pieces together. Use 2 1/2 to 3-inch wood screws to firmly secure these components, ensuring that each joint is square and tight. It’s often helpful to pre-drill pilot holes to prevent wood splitting, especially near the ends of boards. Assemble both leg structures identically, making sure they are mirror images if necessary, or simply identical depending on your design. Use clamps to hold the pieces in place while you drive the screws, ensuring everything remains flush and square.

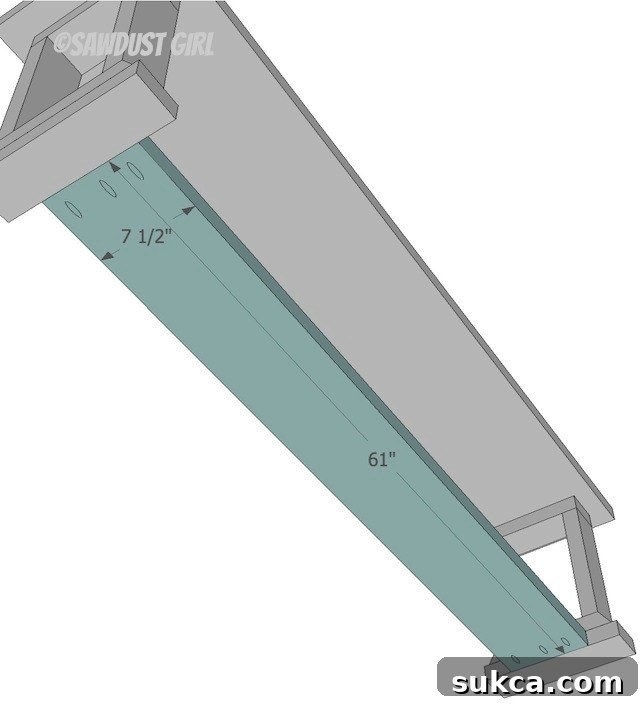

Step 2: Attach the Bottom Brace for Enhanced Stability
Once your individual leg assemblies are complete, the next crucial step is to connect them with a strong bottom brace. This brace not only provides structural integrity to the entire bench base but also prevents wobbling and sagging over time. Cut your 2×4 material to the desired length for the bottom brace, ensuring it spans the distance between your two leg assemblies. Using a pocket hole jig, drill pocket holes on the inside faces of the bottom brace. These concealed holes will allow you to create strong, invisible joints. Apply wood glue to the ends of the brace where it will meet the vertical posts of the leg assemblies. Position the brace, ensuring it is perfectly level and square with both leg frames, then secure it firmly using 2 1/2-inch pocket screws. It is advisable to use clamps to hold the brace in place while driving the screws, preventing any movement that could compromise the joint’s strength or alignment. Double-check all measurements and angles to ensure a stable and aesthetically pleasing base.

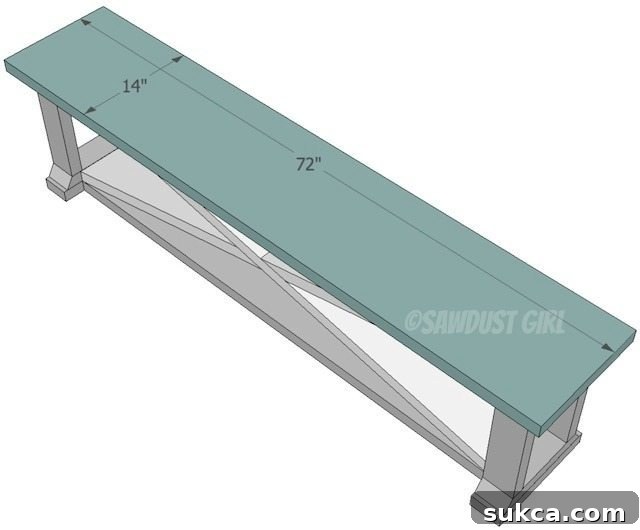

Step 3: Craft and Secure the Solid Bench Top
The bench top is where comfort meets aesthetics, and careful attention here will yield a beautiful, durable surface. You will be gluing up two of your 2x8s side-by-side to create a wider bench top. If you desire a slightly narrower top (e.g., 15 inches instead of 14.5 inches if using nominal 2x8s which are actually 1.5×7.25 inches), or if you want to eliminate the slight “groove” or rounded edge that naturally occurs where two standard 2x8s meet, you’ll need to “rip” a small amount (e.g., 1/2 inch) off one side of each 2×8 using a table saw. This creates perfectly square edges that, when glued together, will form an almost seamless, flat surface. For a truly professional finish, consider ripping the rounded edge off where the planks will join. This small step makes a significant difference in the final look and feel of your bench top.
To perform the glue-up, apply a generous, even layer of wood glue along the ripped edges of both 2x8s. Bring the edges together and clamp them firmly using several bar or pipe clamps. Apply enough pressure to create a small bead of glue squeezing out along the entire joint – this indicates full coverage. Wipe away excess glue with a damp cloth before it dries. For best results, use “cauls” (straight pieces of wood clamped perpendicular across the top and bottom of the bench top) to keep the surface perfectly flat during the drying process. Allow the glue to cure completely according to the manufacturer’s instructions, typically 24 hours. After the glue has dried, remove the clamps and sand the top thoroughly, starting with a coarser grit (like 80 or 120) to level the joint, then progressing to finer grits (180, 220) for a silky-smooth finish. Once the top is prepared, center it on your leg assemblies and attach it from underneath using either screws driven up through the leg frame or L-brackets, ensuring the screws are not so long they penetrate the top surface of the bench. Refer to detailed techniques for successful wood panel glue-ups, such as those found in this countertop tutorial for comprehensive guidance.

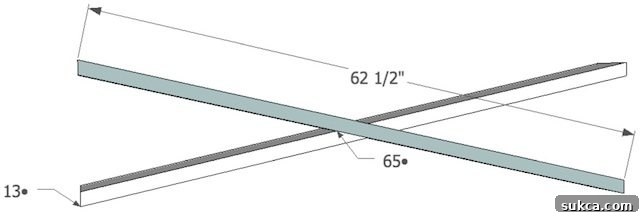

Step 4: Incorporate the Signature X-Braces into the Legs
The X-braces are the defining feature of this bench, adding both aesthetic appeal and crucial structural support to the leg assemblies. This step requires careful measurement and precise angle cuts. First, cut the “full length brace” piece for each leg. This will be the main diagonal piece of your ‘X’. Hold a piece of scrap wood in place on your leg assembly where the X-brace will go. Mark the exact angles where it meets the horizontal and vertical members of the leg frame. Transfer these marks to your actual 2×4 material for the brace. Use a miter saw or a circular saw with a reliable guide to make these angled cuts accurately. Precision here is key for a tight, professional-looking joint.
Once the main diagonal is cut and fitted, you’ll need to cut the two “half brace pieces” that complete the ‘X’ shape. These pieces will fit into the remaining triangular spaces. Again, measure and mark the angles directly on the wood for the best fit. These pieces often meet in the center of the main diagonal brace, or they might simply fill the corners. The goal is to create a complete ‘X’ within the rectangular frame of the leg. Apply wood glue to all mating surfaces of the X-braces. Secure them firmly using 2 1/2-inch pocket screws, drilling pocket holes strategically on the back or less visible sides of the braces. This ensures a strong, clean finish. Ensure all pieces fit snugly before driving screws. For detailed visual guidance on marking and cutting these complex angles with a circular saw or table saw, we highly recommend consulting my X leg bench tutorial, which provides invaluable tips and techniques for achieving perfect X-brace joints.

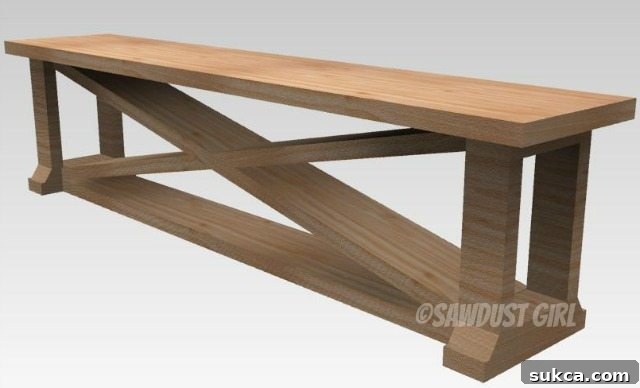

Step 5: Finish Your Masterpiece and Enjoy
With the construction complete, it’s time to bring your bench to life with the perfect finish. This step is where your personal style truly shines through. Before applying any finish, perform a final, thorough sanding of the entire bench. Start with 120-grit sandpaper to remove any remaining imperfections or glue squeeze-out, then move to 180-grit, and finally 220-grit for a super smooth surface. Wipe down the bench with a tack cloth or a damp cloth to remove all dust particles.
- Paint: For a crisp, modern, or colorful look, paint is an excellent choice. Apply a good quality primer first, especially if you’re painting over knots that might bleed through. Follow with two or three thin coats of your chosen paint (latex, oil-based, or chalk paint), lightly sanding with fine-grit sandpaper (e.g., 320-grit) between coats for a flawless finish.
- Stain: To enhance the natural wood grain, choose a wood stain. Test the stain on a scrap piece of the same wood to ensure you like the color. Apply pre-stain conditioner to soft woods (like pine) for a more even absorption. Apply the stain evenly, wiping off excess. Once dry, protect the stained surface with several coats of clear polyurethane, lacquer, or varnish. Lightly sand with very fine grit (400-grit) between clear coats.
- Natural Oil or Wax: For a truly organic, touchable finish that highlights the wood’s inherent beauty, consider natural oils like tung oil or linseed oil, or apply a furniture wax. These penetrate the wood, offering protection while maintaining a matte or satin appearance. Multiple coats are usually required, with light sanding or buffing between applications.
Allow your chosen finish to cure completely according to the manufacturer’s instructions before placing the bench in use. Proper curing ensures durability and prevents damage. Once fully dry, your custom-built dining bench is ready to be admired and enjoyed. Pair it with your dining table for communal seating, place it in an entryway for a welcoming touch, or even use it at the foot of a bed. The possibilities are endless!
Congratulations on completing your DIY dining room bench! You’ve not only saved money but also created a custom piece of furniture that reflects your style and craftsmanship. This project is a testament to the fact that beautiful, functional furniture doesn’t have to come with a hefty price tag or be limited to store-bought options. Each time you gather around your dining table, you’ll have the satisfaction of knowing you built a key piece of your home’s décor with your own hands. Don’t hesitate to share your finished project and inspire others to take on their own woodworking challenges!
