Embarking on a custom woodworking project like building a dedicated wine storage cabinet is often a journey filled with unexpected turns, creative problem-solving, and immense satisfaction upon completion. What begins as a simple idea on paper can quickly evolve into a complex endeavor, pushing the limits of skill and patience. This particular wine storage cabinet, designed not just for practical utility but also to be a stylish centerpiece within a pantry, proved to be one such project. It demanded meticulous attention to detail, especially concerning its dual functionality: gracefully holding delicate stemware and securely cradling various wine bottles. The initial vision included intricate decorative elements and precise joinery, setting the stage for a rewarding yet challenging build.
One of the project’s early lessons involved the critical importance of design refinement. After the initial assembly of the cabinet’s foundational structure, a crucial realization struck: the proportions weren’t quite right for the intended space and aesthetic. This led to the courageous decision to disassemble the freshly built framework and start anew. While this might seem like a setback, it underscored a fundamental principle of custom DIY projects: flexibility and a willingness to iterate are key. Redesigning and rebuilding with improved dimensions ensured the finished custom wine rack would seamlessly integrate into its designated pantry location, achieving both optimal storage capacity and visual harmony. This foundational phase set the tone for the intricate steps that followed, emphasizing precision from the ground up.
Building Your Custom Wine Storage Cabinet: A Detailed DIY Journey
The journey to crafting a truly bespoke wine storage cabinet began, as many ambitious DIY projects do, with a clear vision and a series of hands-on steps. From the foundational framework to the specialized compartments for stemware and bottles, each stage presented unique challenges and opportunities for creative problem-solving. This detailed account offers insights into the construction process, highlighting key decisions, woodworking techniques, and the occasional pivot that transformed initial ideas into a functional and aesthetically pleasing custom wine storage solution.
Designing and Constructing the Cabinet Frame

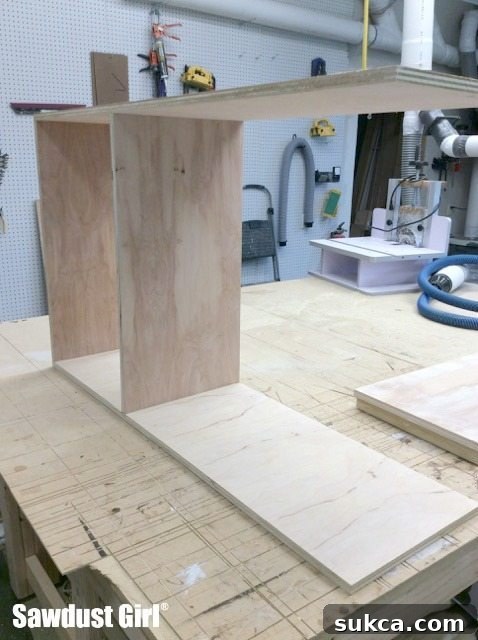

The very first iteration of the cabinet frame came together with enthusiasm, but sometimes a step back provides the clearest view. Upon assembling the initial structure, it became clear that the proportions, while functional, didn’t quite meet the desired aesthetic or spatial requirements for its pantry location. Rather than settle, the decision was made to dismantle the frame and re-engineer it. This wasn’t merely starting over; it was an opportunity to apply learned insights, refine the dimensions, and ensure the final product would perfectly complement its surroundings. The second build, armed with precise measurements and a clearer vision, progressed much more smoothly, laying a solid, well-proportioned foundation for the entire DIY wine cabinet.

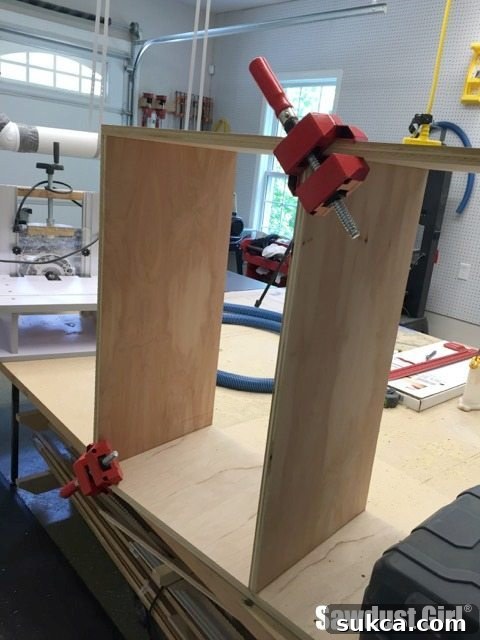

With the new, refined dimensions in hand, the construction of the main cabinet body commenced once more. This time, every cut and joint felt more deliberate, informed by the earlier experience. The frame took shape, robust and perfectly proportioned, ready to house the specialized components that would transform it into a sophisticated home wine storage unit. This stage focused on creating a sturdy, square structure that would reliably support the weight of both wine bottles and delicate stemware, ensuring long-term durability and stability.
Crafting the Elegant Stemware Dividers

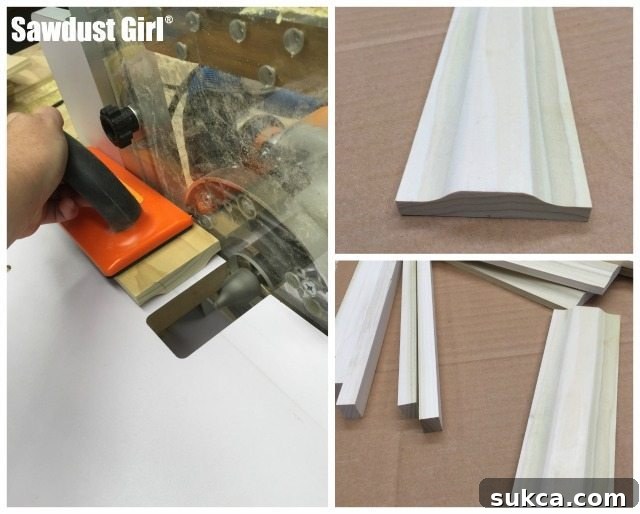

One of the cabinet’s distinctive features was its dedicated stemware storage, designed to securely hold wine glasses by their bases. To elevate this component beyond mere utility, a decorative profile was meticulously routed onto the edges of each divider. This step, while adding complexity, contributed significantly to the cabinet’s bespoke charm and luxurious feel. Utilizing a router table, precise cuts were made to create a consistent, elegant edge that caught the light beautifully. This small detail transformed simple wooden dividers into sophisticated elements, making the stemware storage truly special and unique to this custom wine storage solution.

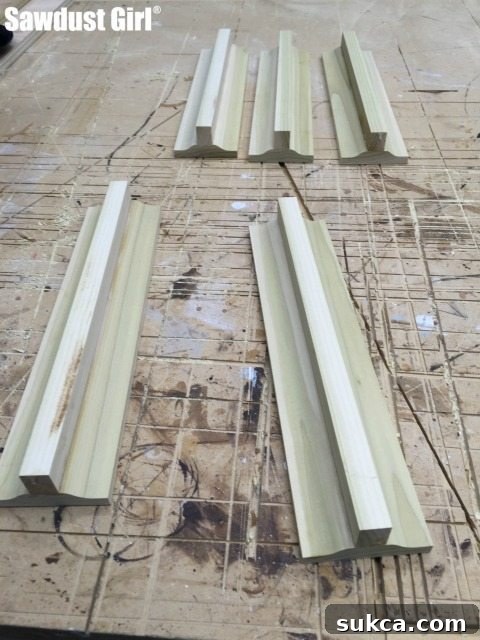

For added strength and to facilitate secure attachment, a central spine was meticulously glued and nailed into the center of each stemware divider. This spine served as the primary attachment point to the main shelf, providing critical stability and ensuring the dividers could withstand the gentle weight of hanging glasses over time. Precision in this step was paramount to ensure all dividers would align perfectly and offer robust support for the stemware, making it a reliable and attractive feature of the wine cabinet design.
Pre-Painting for Flawless Finish and Assembly Efficiency

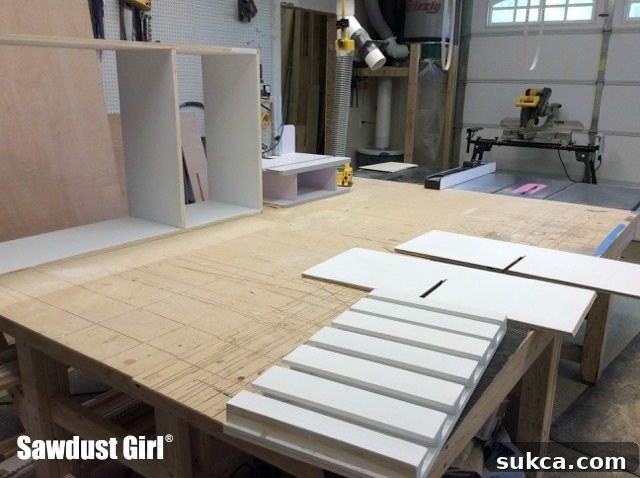

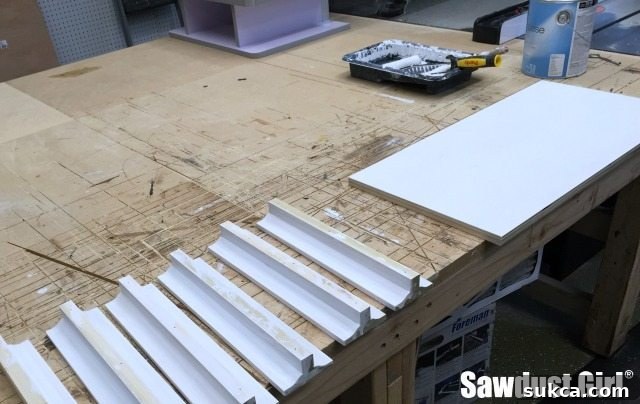

With the individual components of the stemware storage section fabricated, a strategic decision was made to prime and paint them before final assembly. This foresight proved invaluable, as painting intricate, assembled structures with numerous nooks and crannies would have been exceptionally difficult and time-consuming. By painting the dividers and their corresponding shelf while they were still separate pieces, a uniform, smooth finish could be achieved with ease, ensuring every surface was perfectly coated. This approach not only saved considerable effort but also guaranteed a superior aesthetic result for the custom wine rack’s interior.
Solving the Assembly Conundrum with Dados

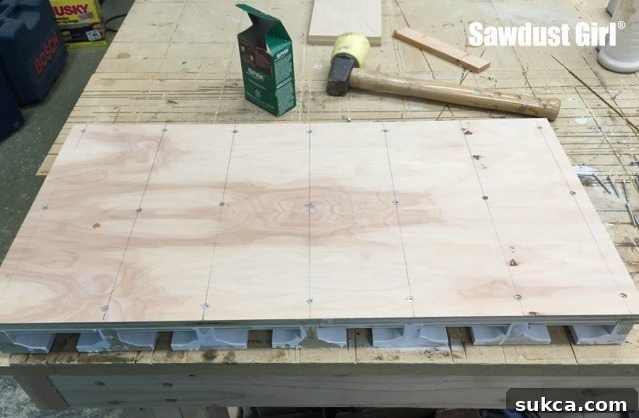

A critical challenge arose when it came time to attach the prepared stemware dividers to their shelf. The initial plan of simply nailing or screwing the spines to the underside of the shelf presented a practical dilemma: how to keep each delicate divider perfectly aligned while flipping the shelf over to secure them? The risk of misalignment or, worse, accidental damage to the painted components was too high. The solution lay in routing dados – precise grooves – into the shelf where each divider’s spine would snugly fit. While routing into a recently painted (though dry) surface proved less than ideal, causing some minor chipping due to the paint not being fully cured, the dados ultimately provided the necessary stability and alignment. Each divider was glued into its dado, and then the entire assembly was flipped, allowing for screws to be driven from the underside, creating an incredibly secure and stable connection. This innovative approach eliminated any fear of the dividers shifting or failing, ensuring the stemware storage was robust enough for years of use.
Designing and Building the Wine Bottle Storage

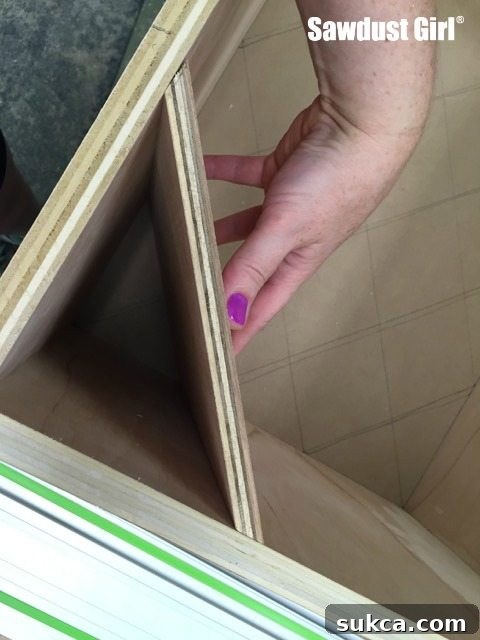

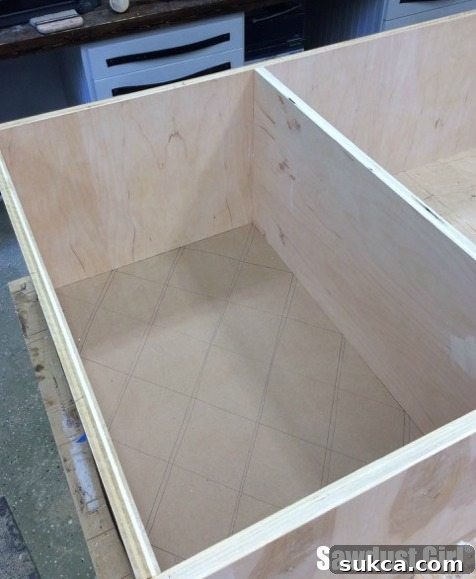

With the stemware shelf successfully completed and set aside, focus shifted to the core functionality of the cabinet: the wine bottle storage. The initial design concept for the bottle section was ambitious – an intricate grid system where each bottle would reside in its own individual cubby. This approach, while offering maximum organization and protection, inherently introduced significant complexity into the cutting and assembly process, adhering to the project’s informal motto of “making everything as complicated as imaginably possible.”
However, the complexity of the individual cubby design quickly became apparent. It required cutting each board with two distinct and challenging angles: one at 40 degrees and another at 60 degrees. Attempts to achieve this precision with a track saw felt unreliable for such critical angles, and the table saw’s maximum tilt angle of 48 degrees proved insufficient for the demanding 60-degree cut. Various methods were explored, including attempting to push boards vertically through the saw set at 40 degrees. While theoretically possible with a dedicated jig for safety and accuracy, the prospect of dedicating an entire day to build a jig just to facilitate these cuts seemed counterproductive to the overall project timeline. This moment highlighted a common dilemma in DIY: knowing when to simplify a design to maintain momentum and achieve a quality result without excessive, project-specific tooling. The pursuit of perfect angles for individual cubbies proved to be an insurmountable hurdle with the available tools and time, prompting a necessary and pragmatic redesign of the wine bottle storage solution.

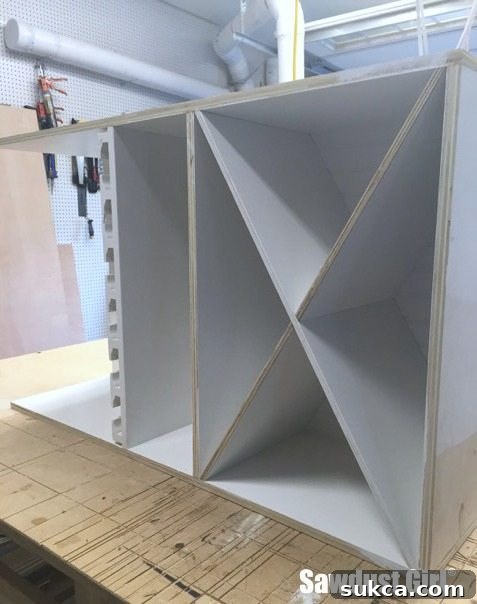

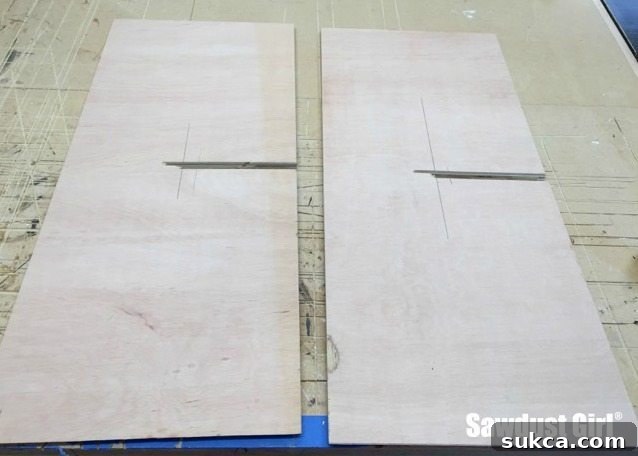

Embracing a more practical approach, the intricate individual cubby design for wine bottles was gracefully abandoned in favor of a robust and classic “X” divider system. This solution dramatically simplified the cutting process while still providing excellent stability and capacity for multiple bottles. The large X-shaped dividers not only made construction considerably easier but also offered a visually appealing and highly functional way to organize wine bottles within the cabinet. This pivot to a simpler yet equally effective design was a testament to adaptable problem-solving, allowing the project to progress efficiently without compromising the core purpose of secure wine rack storage.
Finishing Touches: Priming, Painting, and Final Assembly
With all the structural components of both the stemware and wine bottle storage now crafted, the next crucial step was to prepare them for their final finish. Every piece underwent a thorough priming and painting process. This careful attention to detail ensures a durable, aesthetically pleasing surface that will stand the test of time and complement the overall pantry design. The chosen paint provided a smooth, clean look, enhancing the cabinet’s presence as a sophisticated piece of pantry organization. Once the paint was fully cured, the moment of truth arrived: the final assembly. Each component, from the decorative stemware dividers to the robust X-shaped bottle racks, was meticulously screwed together, transforming a collection of painted wooden pieces into a cohesive, functional, and beautiful custom wine storage cabinet. The satisfaction of seeing the entire unit come together, precisely as envisioned, was immense.

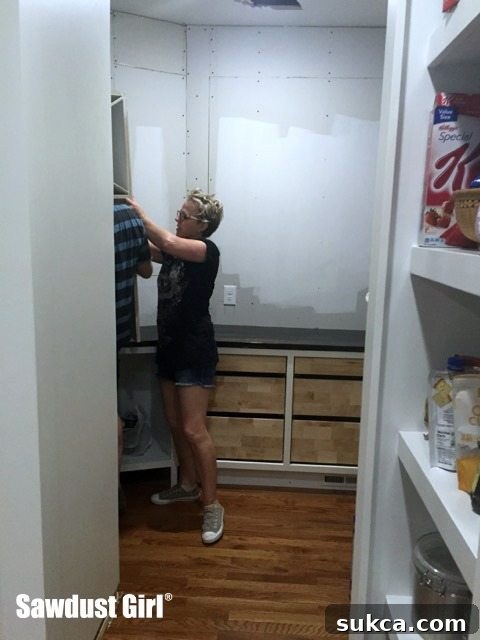

The completed wine storage cabinet, a testament to careful planning and persistent effort, stood ready for its final placement. With the help of Wes, the substantial unit was carefully maneuvered into its designated spot within the pantry. As often happens with large-scale installations, a minor mishap occurred during the process – a slight scuff on the newly installed countertop. However, in the grand scheme of a distressed countertop and a handmade cabinet, such imperfections are often embraced as part of the unique character and story of a DIY home project. The wine cabinet now stood proudly, fully integrated into its environment, ready to serve its purpose.
The Magic Eraser: A DIYer’s Best Friend
The small scuff on the countertop, a minor casualty of installation, was quickly remedied with the miraculous power of a Magic Eraser. This humble cleaning tool proved its worth once again, effortlessly removing the paint transfer and restoring the countertop to its intended finish. It’s a small detail, but one that highlights the practical solutions often found in a DIY toolkit, making little imperfections disappear as if by magic.
Looking Ahead: Completing the Pantry Transformation
With the most intricate and challenging component of the pantry cabinetry now complete, the path forward for the rest of the pantry transformation feels significantly clearer. The plan includes constructing one more, smaller cabinet to sit atop this newly installed wine storage unit. Following that, a unifying faceframe will be added, tying all the individual cabinets together into a cohesive, built-in look. The expectation is that these subsequent stages will proceed much more quickly, as the complexities of specialized storage for wine and stemware have already been mastered. However, as any seasoned DIYer knows, the final steps of a large project can sometimes present their own unforeseen twists. While the overall vision for the pantry is taking shape, the exact details of the remaining build are still fluid, promising more creative challenges and rewarding achievements in this ongoing home improvement journey. This successful completion of the custom wine storage cabinet marks a significant milestone in the larger endeavor of creating a perfectly organized and beautiful pantry.
