Welcome to the second installment of our comprehensive cabinet building series! In this detailed guide, we delve into the world of pocket hole joinery – a revolutionary method that allows you to construct sturdy, beautiful cabinets with seamlessly hidden fasteners. This technique is a game-changer for DIY enthusiasts and seasoned woodworkers alike, enabling you to attach cabinet bottoms, fixed shelves, and cleats without a single visible screw from the exterior.
While pocket holes offer an incredibly clean finish for most of your cabinet joints, it’s worth noting that the cabinet back will still be visible from the sides unless specifically recessed, a technique we will cover. For those eager to master every aspect of cabinet construction, including building doors, drawers, face frames, and installation techniques, be sure to explore our extensive Cabinet Building Tutorial Library. Let’s embark on this journey to create professional-grade cabinets with the elegant simplicity of pocket hole screws.
Table of Contents
Mastering Cabinet Building with Pocket Hole Screws
Building your own cabinets not only saves money but also allows for complete customization to fit your space and style preferences. With pocket hole joinery, the process becomes incredibly efficient and yields a professional-looking result. This particular tutorial focuses on constructing a standard base cabinet, perfect for kitchens or bathrooms, with a final depth of 24 inches (including the back and face frame) and a height of 34 1/2 inches. These dimensions are industry standards, making this a versatile project you can adapt for various applications.
Essential Tools and Materials
Before you begin, gathering the right tools and materials is crucial for a smooth and successful project. Investing in quality tools will not only make the job easier but also ensure accuracy and safety.
- Pocket Hole Jig: An absolute must-have for this method. Brands like Kreg offer excellent jigs for all skill levels.
- Drill/Driver: For drilling pilot holes and driving pocket hole screws.
- Measuring Tape & Pencil: For precise marking and measurement. Accuracy is paramount in cabinet making.
- Square: A framing square or speed square will help ensure all your cuts and assemblies are perfectly square.
- Clamps: Essential for holding your pieces in alignment during assembly. 90-degree corner clamps and face clamps are particularly useful.
- Saws: A table saw or circular saw with a straight edge guide for making accurate, clean cuts on your plywood panels. A miter saw can be useful for face frame parts.
- Jigsaw: Specifically for cutting out the toe-kick notch in the cabinet sides.
- Staple Gun or Small Screws: For quickly and securely attaching the cabinet back panel.
- Plywood: Typically 3/4-inch thick for the cabinet carcass (sides, bottom, shelves, stretchers) and 1/4-inch thick for the back panel. Choose cabinet-grade plywood for durability and a smooth finish.
- Pocket Hole Screws: For 3/4-inch material, 1 1/4-inch coarse-thread pocket hole screws are the standard. Ensure you use the correct screw type for your wood species and thickness.
- Wood Glue (Optional): While not strictly necessary with pocket holes, wood glue can significantly strengthen joints, especially in high-stress areas or with unfinished plywood.
- Face Frame Material: 3/4-inch thick hardwood or plywood strips, depending on your desired finish and style.
- Safety Gear: Always wear safety glasses, hearing protection, and gloves when operating power tools.

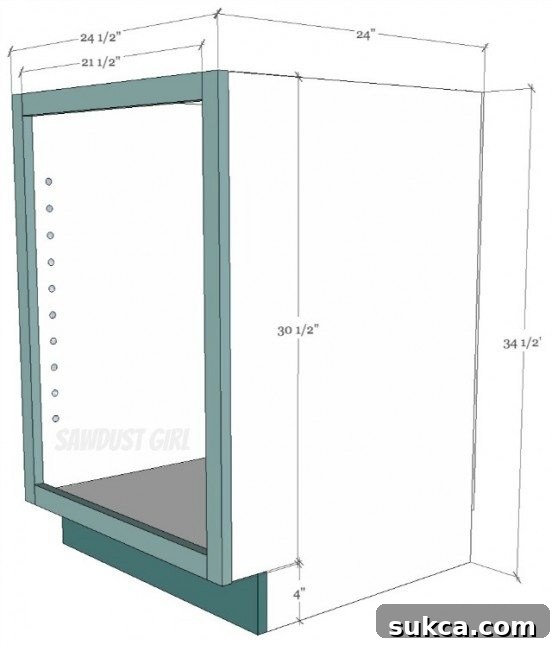

Understanding Cabinet Dimensions and Components
Our example cabinet adheres to common base cabinet specifications. Understanding these standard measurements and how they relate to each component is key to successful construction:
- Overall Dimensions: The finished cabinet will be 24 inches deep and 34 1/2 inches tall. These are standard measurements for kitchen and bathroom base cabinets, allowing for a countertop installation that results in a comfortable working height.
- Carcass Material Thickness: Both the cabinet and face frame components are made from 3/4-inch thick material, providing robust construction.
- Cabinet Back Thickness: A 1/4-inch thick panel is used for the back, which is sufficient for stability and to keep contents contained.
- Sides, Bottom, and Shelves: These structural components will be 23 inches wide. This measurement accounts for the 1/4-inch back panel and the 3/4-inch face frame, resulting in a total 24-inch depth once all elements are attached.
- Toe-Kick: A 3-inch deep by 4-inch tall notch cut out of the bottom front of the side panels. This recessed area provides ergonomic comfort, allowing you to stand closer to the countertop.
Cutting Your Cabinet Parts
Precision in cutting is the foundation of a well-built cabinet. Take your time with this step, double-checking all measurements before making cuts. For the best results, use a table saw or a circular saw with a guided track to ensure straight and square edges.
- Sides: Cut two pieces to the exact height and depth (e.g., 34 1/2″ H x 23″ W for our example).
- Bottom and Shelves: Cut these to the required width and depth. Remember, the width will be the internal cabinet width (e.g., 23″ D x [Desired Internal Width]).
- Stretchers/Top: If using stretchers, cut two pieces for the front and back. If opting for a full top, cut one piece to the appropriate dimensions.
- Nailers: Cut two pieces for the top and bottom nailers, typically the same length as your stretchers.
- Back Panel: Cut one piece of 1/4-inch plywood to the overall external width and height of your cabinet carcass.
- Toe-Kick Notch: Carefully measure and mark the 3-inch deep by 4-inch tall toe-kick on the bottom front corner of each side panel. Use a jigsaw to make these cuts smoothly.
Drilling Precise Pocket Holes
The magic of pocket hole joinery lies in the accurately drilled holes that hide your fasteners. Proper jig setup and hole placement are crucial for strength and aesthetics. Always ensure your pocket hole jig is set for 3/4-inch material thickness.
- Stretchers and Nailers: For these narrower pieces, two screws on each side are typically sufficient. Drill one pocket hole near each end, ensuring they are centered across the width for maximum holding power when attaching them to the side panels.

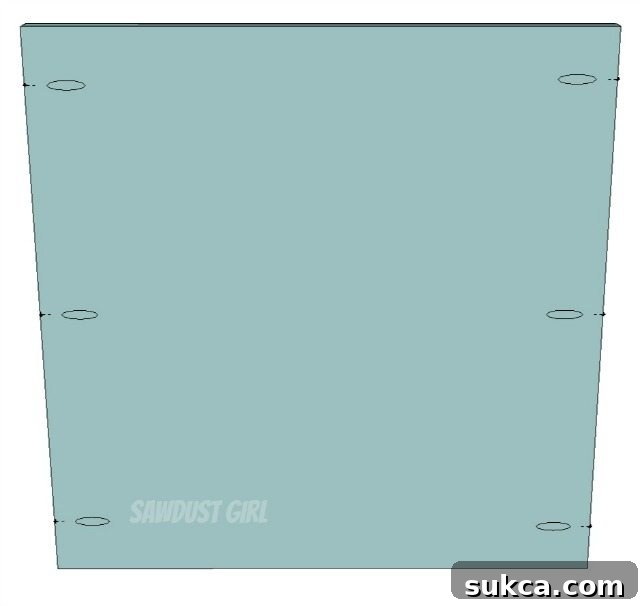

- Cabinet Bottom and Fixed Shelves: These larger panels require a more strategic placement of pocket holes to distribute stress evenly and prevent sagging.
- Begin by drilling the first pocket hole no closer than 1 inch from the front edge of the panel. This ensures the screw is deeply embedded and provides strong support where the panel meets the front face frame.
- Subsequently, space the remaining pocket holes approximately 6-8 inches apart along the edges that will attach to the cabinet sides. Consistent spacing helps create a robust, evenly secured joint.
Assembling the Cabinet Carcass: Step-by-Step
With all your parts cut and pocket holes drilled, it’s time for assembly. For 3/4-inch thick material, use 1 1/4-inch coarse-thread pocket hole screws. If you’re working with unfinished plywood, you might consider adding a bead of wood glue to the edges before fastening for extra joint strength, though pocket holes alone provide excellent rigidity. While I often omit glue in cabinet construction for easier disassembly or modification, there are instances where its added strength is beneficial – the decision is yours. Utilize manufactured or shop-made 90° corner clamping blocks to hold your cabinet parts precisely aligned and square during assembly.

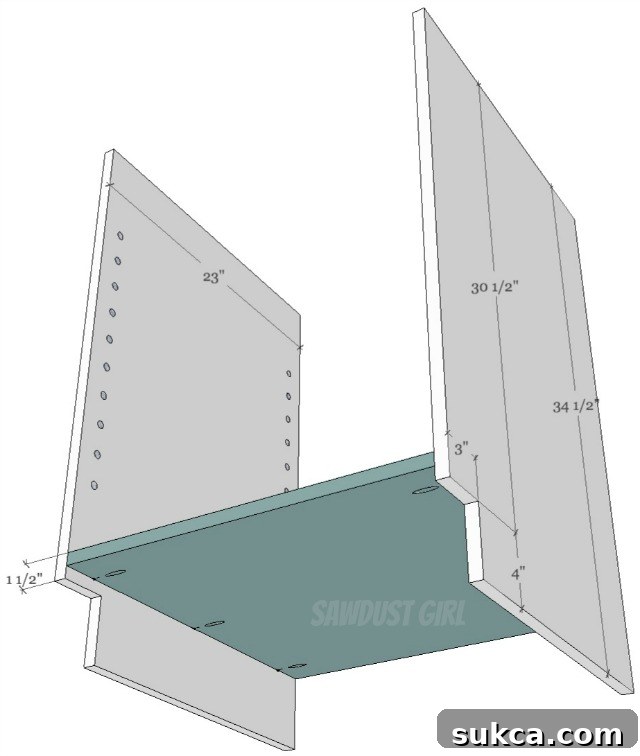

Attaching the Cabinet Bottom
This is a critical step that sets the foundation for your cabinet’s structure and aesthetic.
- Precision Placement: Pay very close attention to the positioning of the cabinet bottom. The top edge of the cabinet bottom should be exactly 1 1/2 inches from the bottom of the toe-kick notch on the side panels.
- This specific measurement assumes you are using 1 1/2-inch wide material for your face frame rails.
- This alignment ensures that when your face frame is attached, the top of the face frame rail will be perfectly flush with the top surface of your cabinet bottom, creating a clean, seamless transition.
- Secure the cabinet bottom to the side panels using your 1 1/4-inch pocket hole screws, ensuring the joints are tight and square.

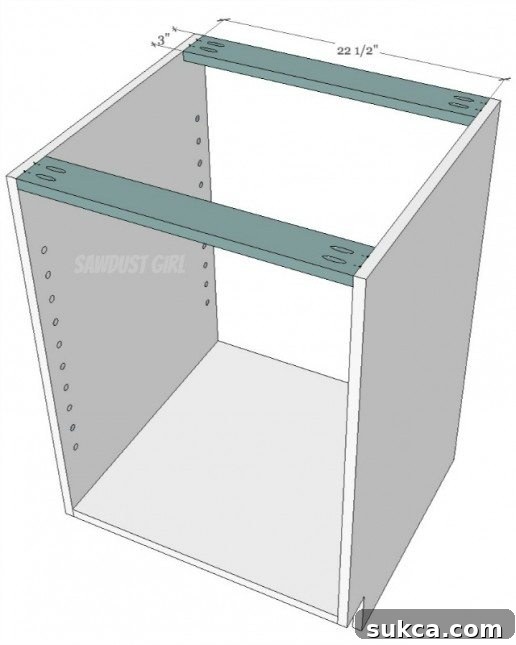

Installing Stretchers or a Full Top
The choice between stretchers and a full top depends on the cabinet’s intended use and whether a countertop will be installed.
- Stretchers: If your cabinet will be covered by a countertop (as is typical for kitchen and bathroom base cabinets), there’s generally no need to use extra material for a full top. Instead, install narrow stretchers at the front and back of the cabinet. These provide structural rigidity, a solid point for attaching the face frame, and support for the countertop. Align the top edge of the front stretcher flush with the top edge of the side panels. The back stretcher can be flush or recessed, depending on your back panel plan.
- Full Top: If your cabinet will be a standalone piece, or if the top surface will be visible and potentially bear heavy loads, a full top panel might be preferred. Attach it flush with the top edges of the side panels using pocket hole screws.

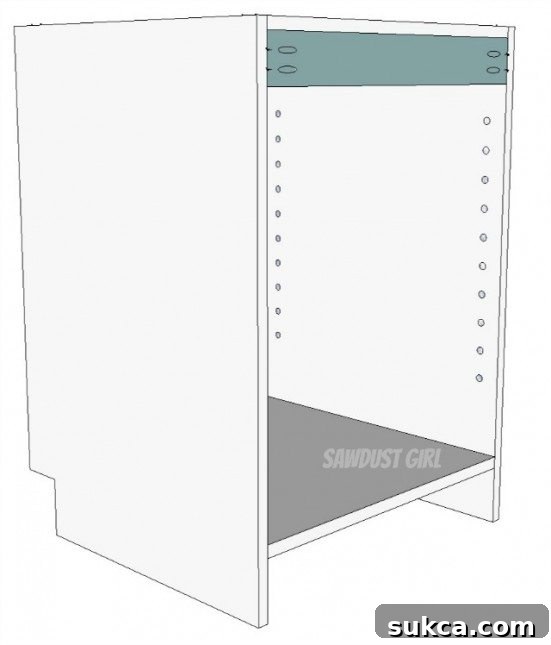

Securing the Nailers
Nailers are crucial components for securely fastening your finished cabinet to the wall. They provide solid attachment points to wall studs, ensuring stability and preventing movement.
- Top and Bottom Nailers: I highly recommend installing both a top and a bottom nailer. This dual attachment point system offers superior stability, especially when shims are needed to achieve a perfectly level and plumb installation. The bottom nailer helps prevent the cabinet from bowing or pulling away from the wall at the bottom.
- Placement: Position the nailers flush with the top and bottom back edges of the cabinet sides (unless you plan to recess the back panel, as detailed next). Secure them firmly with pocket hole screws.

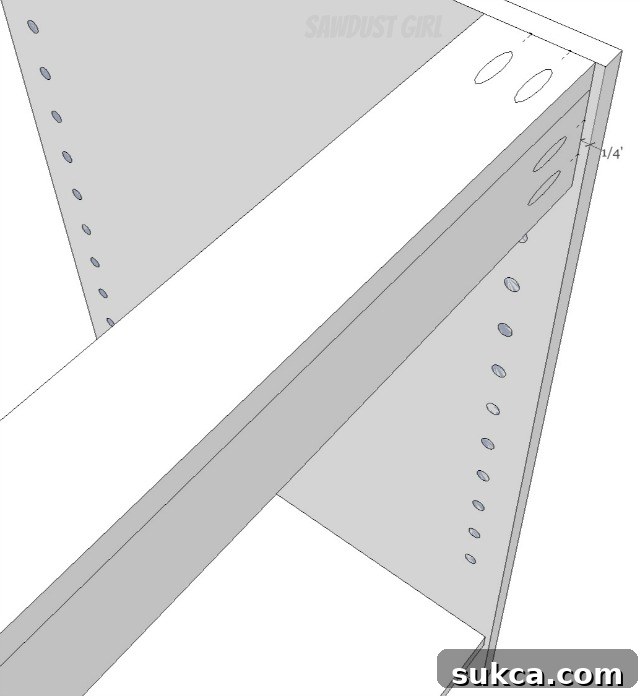

Recessing the Back Panel for a Clean Finish
If you desire a cabinet where the back panel is completely hidden from the sides – creating a truly finished look from every angle – you’ll need to slightly modify the placement of certain components. This technique creates a small rabbet for the back panel to sit within.
- Recess Top Nailer and Back Stretcher: Instead of installing them flush with the back edge of the side panels, install the top nailer and the back stretcher (if applicable) 1/4 inch in from the cabinet back. This creates a recess for your 1/4-inch back panel.
- Shorten the Cabinet Bottom: To accommodate the recessed back panel, you will also need to shorten the cabinet bottom by 1/4 inch. This allows the back panel to fit snugly behind the bottom panel, maintaining the recessed aesthetic.
- This method provides a more refined, flush appearance when looking at the cabinet from the side, as the back panel will not protrude.

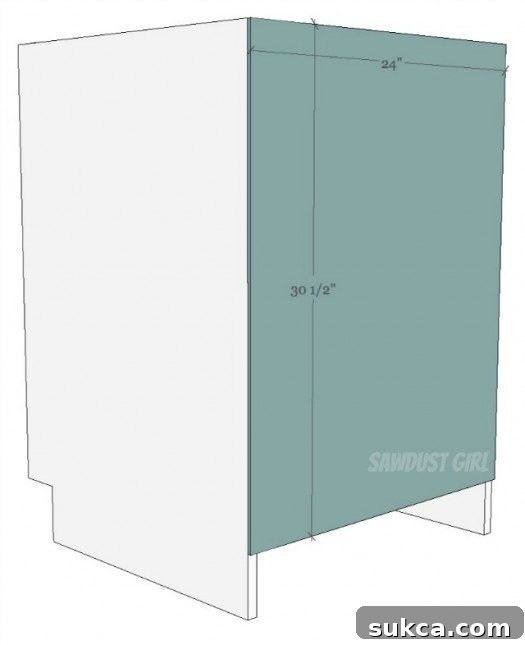

Attaching the Cabinet Back and Squaring Up
Before permanently attaching the back, it’s absolutely crucial to square up your cabinet. A square cabinet ensures that doors and drawers will fit correctly and operate smoothly, preventing frustration later on.
- Squaring the Cabinet: To square up a cabinet, use your tape measure to check the diagonal measurements from opposite corners. For instance, measure from the top-left front corner to the bottom-right back corner, and then from the top-right front corner to the bottom-left back corner. If these two diagonal measurements are equal, your cabinet is perfectly square. If they are not, gently push or pull on the longer diagonal until the measurements match.
- Securing the Back: Once the cabinet is perfectly square, carefully position your 1/4-inch back panel onto the rear of the cabinet. Use small screws or a staple gun (which is much faster for this task) to secure the back panel in place. Drive fasteners all the way around the perimeter of the cabinet, ensuring a secure attachment to the sides, top stretcher/nailer, bottom stretcher/nailer, and any fixed shelves. This not only keeps the back panel firmly in place but also adds significant rigidity and strength to the entire cabinet structure.

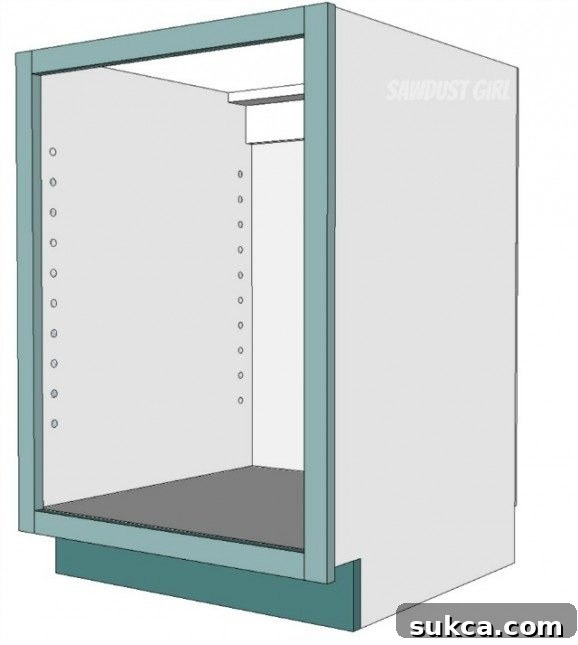

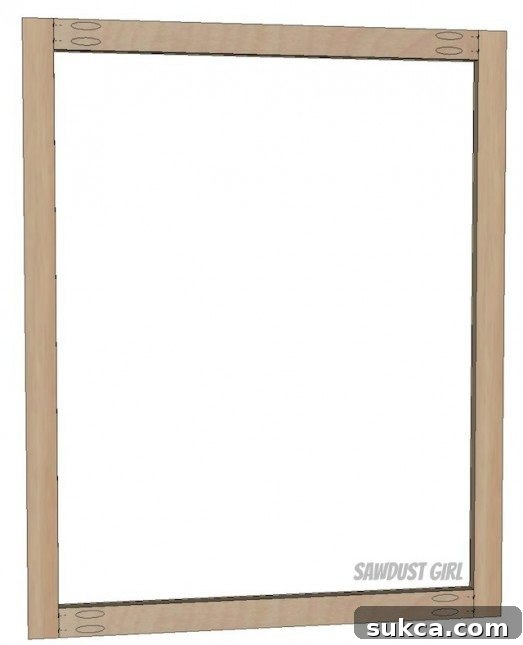

Building and Attaching the Face Frame
The face frame is the finishing touch that transforms a raw plywood box into a beautiful, functional cabinet. It covers the exposed plywood edges, provides a solid mounting surface for doors and drawers, and adds significant structural integrity. If you’re building a framed cabinet, the face frame is an integral part of its design and function.
While pocket holes are excellent for constructing the face frame itself (creating strong, hidden joints between the stiles and rails), attaching the completed face frame to the cabinet carcass requires careful consideration. For a comprehensive guide on various attachment methods, including pros and cons for each, please refer to our dedicated tutorial on how to build and attach a cabinet face frame. This resource details six different techniques to ensure a seamless and durable connection.
Installing the Kickplate/Toe-kick
The toe-kick (the recessed area at the bottom of the cabinet) is designed for comfort, allowing you to stand closer to the counter without bumping your toes. The kickplate is the finished trim piece that covers this recessed area, giving your cabinet a polished look.
For single cabinets, you might install the kickplate immediately. However, if you are installing a run of multiple cabinets, it’s usually best to add a continuous kickplate across the entire run after all cabinets have been leveled, aligned, and securely installed. This approach ensures a perfectly uniform and unbroken aesthetic along the base of your cabinetry. The kickplate can be attached using finishing nails, screws, or specialized clips for easy removal if needed.
Congratulations! You’ve successfully learned how incredibly easy it is to build a robust and aesthetically pleasing cabinet using a pocket hole jig. The beauty of this method lies in its ability to create strong joints with fasteners that are completely invisible from the cabinet’s exterior sides, resulting in a professional, clean finish.
If you don’t yet own a pocket hole jig, don’t fret! You can still achieve similar results. Explore our alternative tutorial on how to build this same cabinet using traditional wood screws, offering another reliable construction method.
Continue to expand your woodworking skills by checking out our extensive library of cabinet building tutorials for more step-by-step guides, tips, and inspiration for all your custom cabinetry projects. Happy building!
