Transforming My Workshop: A Deep Dive into My New Trane HVAC System Installation
For far too long, my workshop has been a battleground against the elements, particularly during those scorching summer months. I vividly recall last summer, a relentless season where temperatures hovered around a sweltering 100 degrees Fahrenheit for what felt like an eternity. The heat and humidity made my workshop an unbearable space, forcing me to abandon projects and retreat indoors. This year, however, things are dramatically different! I am absolutely thrilled to announce the installation of a brand-new, state-of-the-art HVAC system in my workshop – just in the nick of time for the heat to return! A monumental thank you is due to Trane for their incredible sponsorship of The Lodge, making this essential upgrade possible and ensuring a comfortable, productive environment for all my creative endeavors.
Expert HVAC System Installation for Optimal Workshop Comfort
My workshop occupies the front two bays of the building, a substantial area that desperately needed a dedicated climate control solution. While some of the back rooms were equipped with older HVAC units, my personal workspace was a blank slate, requiring a complete, end-to-end system. Trane generously provided their top-of-the-line, most energy-efficient equipment, a decision I couldn’t be more excited about. Given the considerable size of this space, controlling energy costs is a top priority, and Trane’s commitment to efficiency directly addresses this concern. To ensure a flawless installation, I utilized Trane’s intuitive website to locate Melton Heating and Air, a highly reputable local Trane Comfort Specialist. Their expertise and adherence to Trane’s rigorous standards gave me immense confidence in the project.

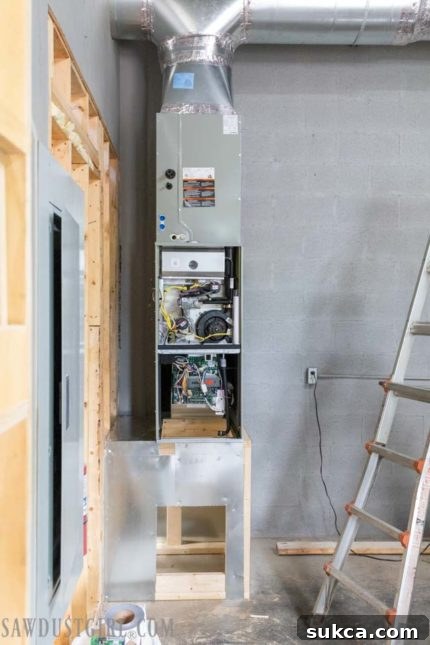

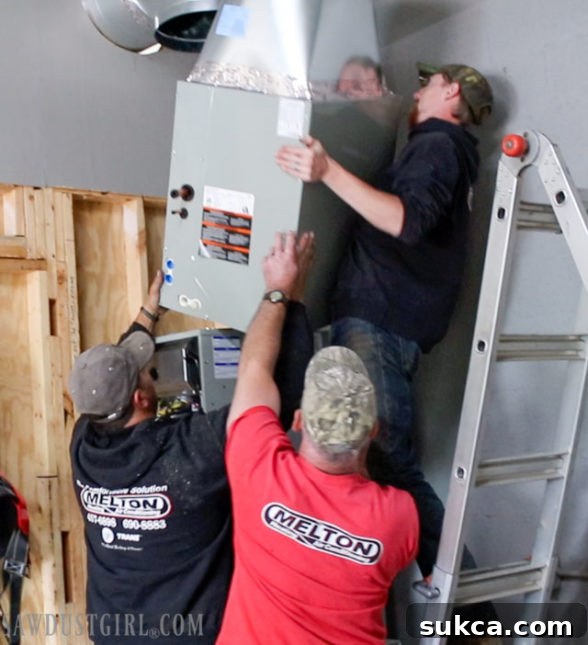

The heart of the indoor system comprises two critical components: a high-performance XC95m Furnace and a perfectly matched evaporator coil. This combination is engineered to deliver exceptional climate control and energy savings. The XC95m stands as Trane’s most energy-efficient furnace, boasting a revolutionary variable-speed blower motor. This advanced technology continuously adjusts its speed to maintain a consistently comfortable flow of warm air, eliminating the temperature fluctuations often associated with single-speed systems. Furthermore, its operation is remarkably quiet, a significant advantage in any workspace where concentration is key. The indoor evaporator coil, on the other hand, is specifically designed to work in seamless harmony with the outdoor condensing unit. This synergistic relationship is crucial for achieving optimal comfort, maximizing energy efficiency, and providing superior humidity control, which is incredibly important for preserving wood and tools in a workshop environment.
The Intricate Mechanicals Behind the Comfort

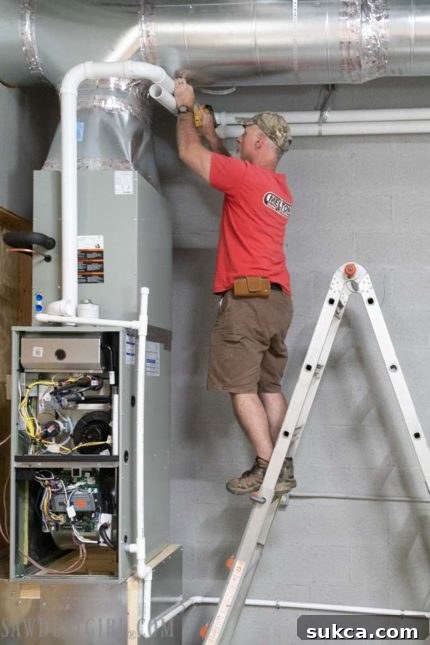

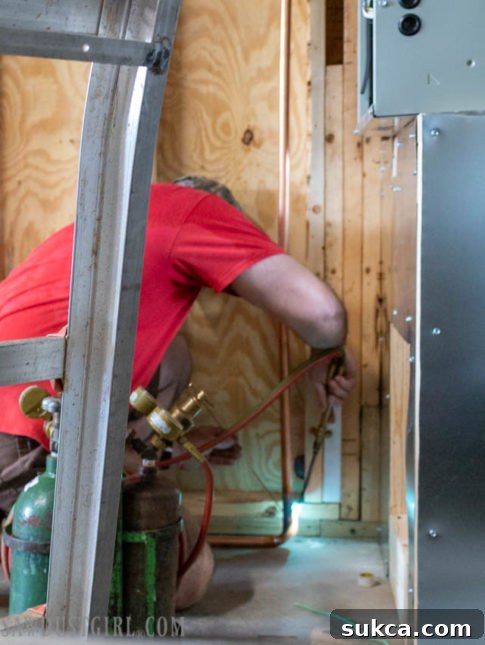

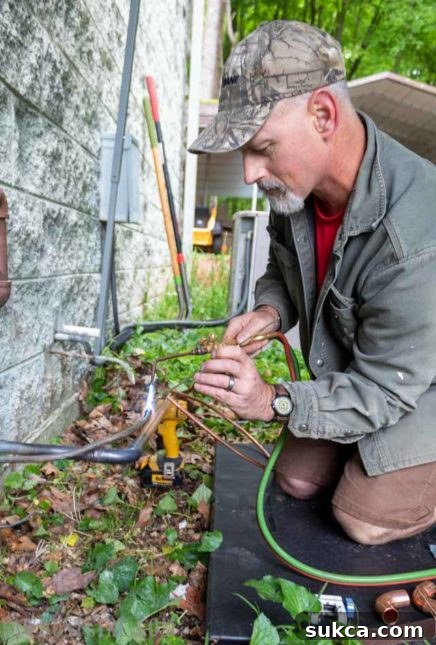

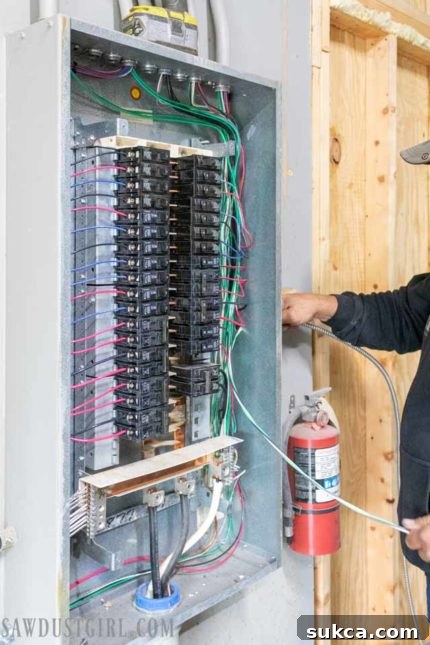

Installing a complete HVAC system is far from a simple task; it involves a complex array of mechanical, electrical, and plumbing work. The installation in my workshop was no exception, requiring significant electrical upgrades and the careful routing of various pipes and lines. My indoor system now features dedicated lines for intake and exhaust, a gas supply for the furnace, and robust electrical connections, all meticulously planned and executed. It’s truly eye-opening to witness the level of engineering and precision that goes into setting up such a system. This intricate process is precisely why I emphatically dismissed Julie’s suggestion of a “DIY HVAC installation” with a sarcastic “HA!” and a definite eye-roll. While my exact words might have been less blunt, the underlying message was clear: this is a job for certified professionals. The expertise required for proper sizing, duct design, refrigerant handling, and electrical safety is paramount, ensuring both optimal performance and the longevity of the system. Attempting such a complex installation without specialized knowledge and tools would not only be dangerous but would also likely void warranties and result in an inefficient, costly system.
Strategically Placed Air Returns for Enhanced Air Quality

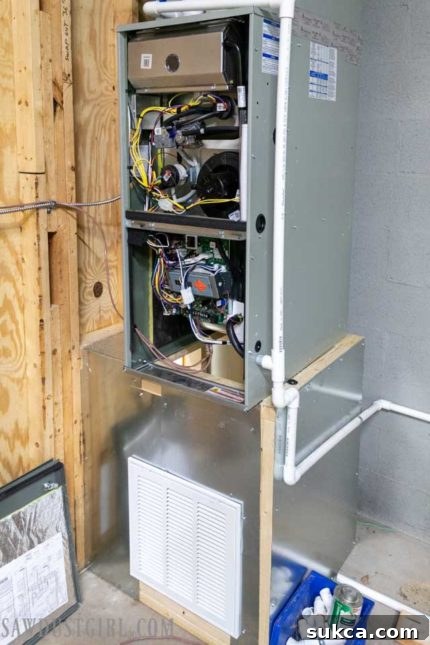

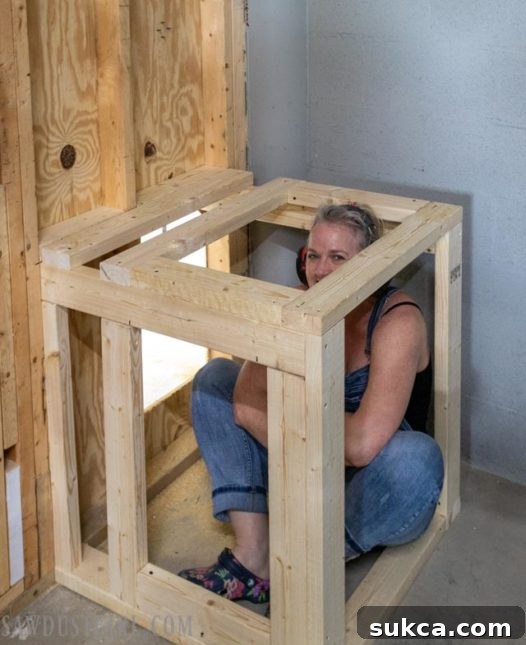

A crucial part of any efficient HVAC system is the proper design and installation of air returns. The skilled technicians had to construct a sturdy “return” box to house the main return, which I, of course, couldn’t resist testing for stability by crawling inside – rest assured, it’s incredibly sturdy! These returns are vital for drawing air back into the system for conditioning, and their strategic placement significantly impacts overall airflow and system performance. My workshop features two primary air returns, one on each side of the dividing wall between the two bays. The first return is neatly integrated into the front of the custom-built box. This return system also holds a critical air filter, which I’ll need to monitor and change frequently, given the substantial amount of sawdust generated in my woodworking projects. Regular filter maintenance is absolutely essential, especially in a dusty environment, to protect the HVAC system, maintain air quality, and ensure efficient operation.

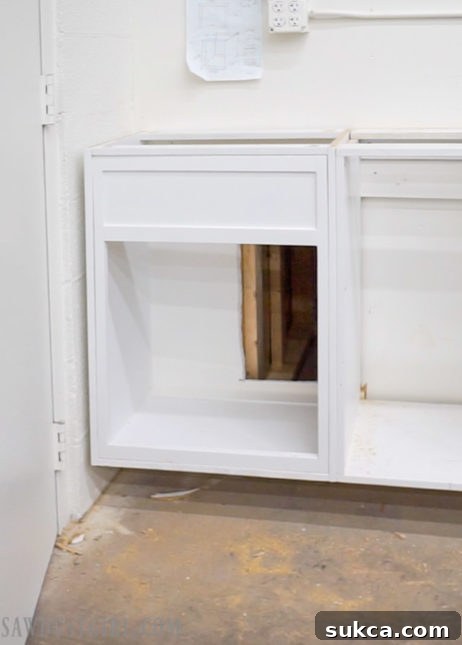

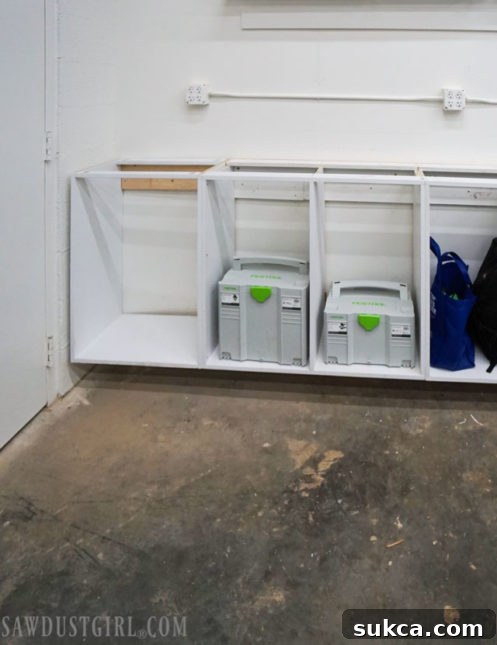

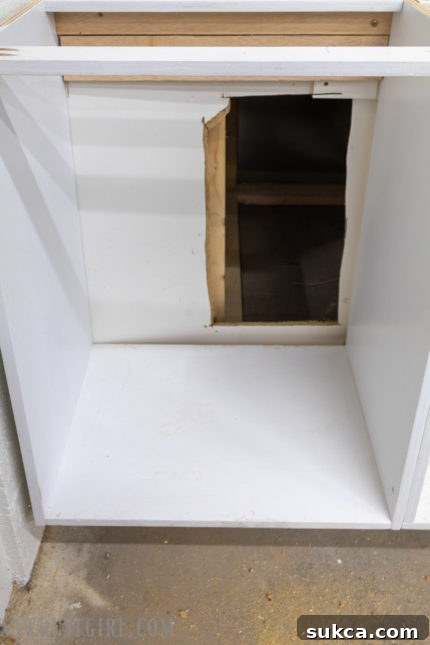

The second air return presented a unique design challenge. It was carefully cut through the wall and cleverly positioned inside a cabinet I had previously built and installed. To ensure an airtight seal and maximize efficiency, I scribed a few scraps of 1/4-inch hardboard and meticulously glued them in place with caulk, effectively sealing the gap between the wall and the back of the cabinet. This custom approach ensures that all air being returned to the system is properly filtered and conditioned.

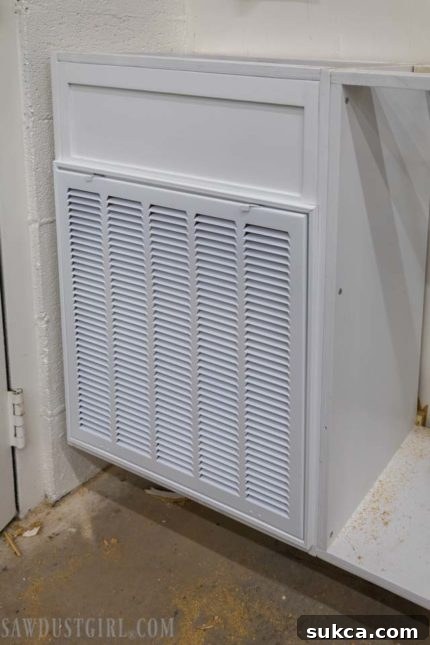

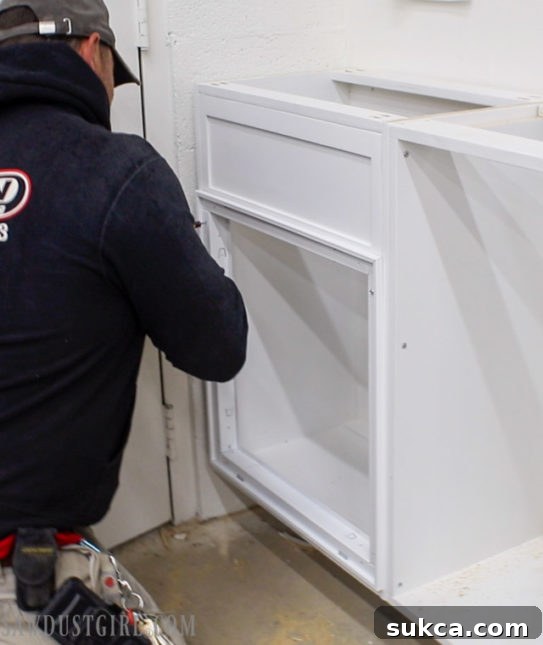

To further integrate this return seamlessly, I built a false front for the cabinet, designed to hold the grille and filter. My initial vision was to create a sophisticated look, making it appear as if there was a decorative drawer positioned directly above the grille. However, a slight miscalculation occurred because I didn’t have the actual grille in hand during the construction of this front; I only had the dimensions for the required opening. Upon the grille’s installation, I was a little disheartened to discover that it covered most of the bottom portion of my intended “fake drawer.” Consequently, it doesn’t quite achieve the desired illusion. While this minor detail only truly bothers me when I scrutinize photographs, and it’s certainly not a major issue in the grand scheme of things, it serves as a humorous reminder of the challenges of precise custom work. Life in the workshop often involves adapting on the fly! The functionality, however, remains perfectly intact, providing excellent airflow.
The Powerhouse Outside: Trane XV201 Condenser

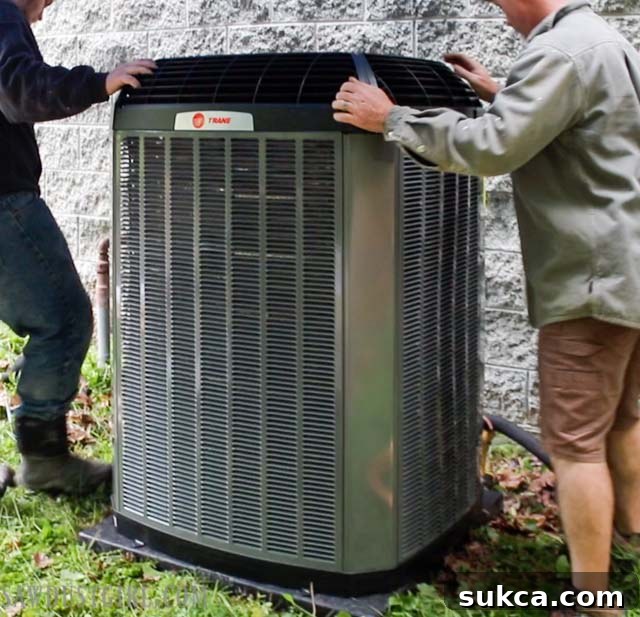

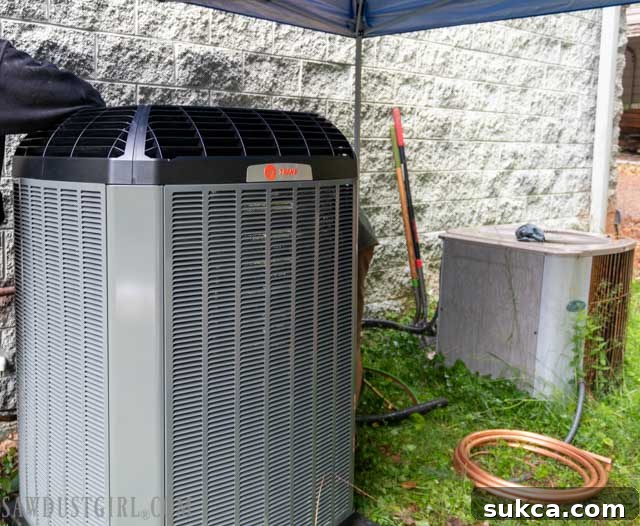

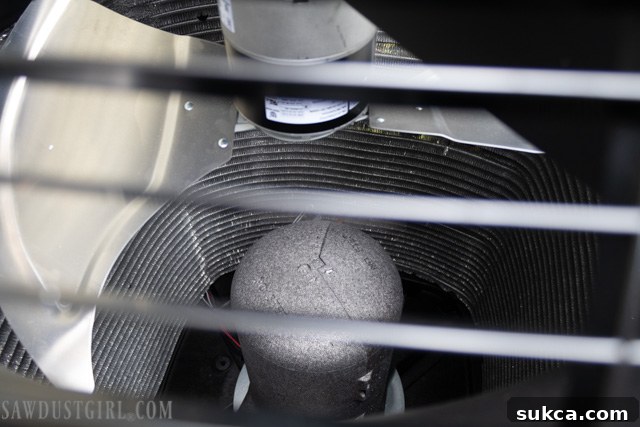

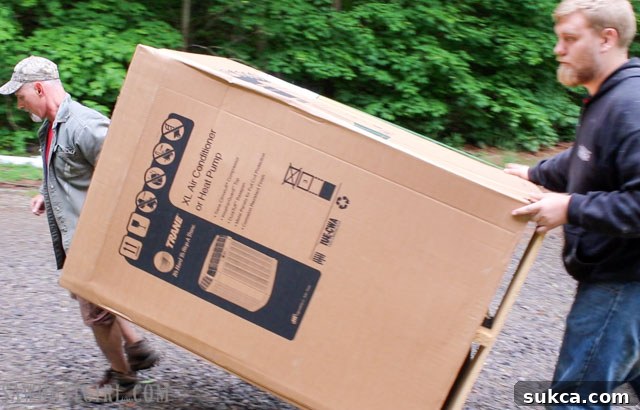

The outdoor component of my new HVAC system is the impressive XV201 Condenser, Trane’s advanced air conditioner. Placed alongside one of the older, less efficient units serving the back rooms, the XV201 immediately stands out. Beyond its sleek, modern design and robust build, a particularly noteworthy feature is the innovative WeatherGuard™ Top. This ingenious design element provides superior protection, significantly reducing the accumulation of leaves, debris, rain, and snow from entering the unit. This not only keeps the condenser cleaner but also helps to maintain peak performance, reduce maintenance needs, and extend the lifespan of the unit, even in adverse weather conditions.
The XV201 Condenser is equipped with Trane’s groundbreaking TruComfort™ technology. This intelligent system automatically adjusts its operating speed in incredibly precise increments, effectively eliminating uncomfortable temperature swings. Instead of cycling on and off, it maintains a consistent, desired temperature with unparalleled accuracy, providing a truly superior level of comfort. This precision not only enhances the user experience but also contributes significantly to energy efficiency. With an impressive rating of up to 22 SEER (Seasonal Energy Efficiency Ratio), the XV201 represents the pinnacle of energy efficiency in residential and light commercial air conditioning. Its ability to provide up to 750 stages of comfort means that it can fine-tune its output to an extraordinary degree, offering ultimate climate control and maximizing efficiency, translating into substantial savings on my electricity bill. Even when running at full capacity, I’m consistently amazed by how quiet it is. While I’m typically engrossed in my work inside the shop and wouldn’t necessarily notice, the fact that such a powerful unit operates with minimal noise is truly a testament to Trane’s engineering excellence.
Precision Ductwork Installation for Optimal Airflow

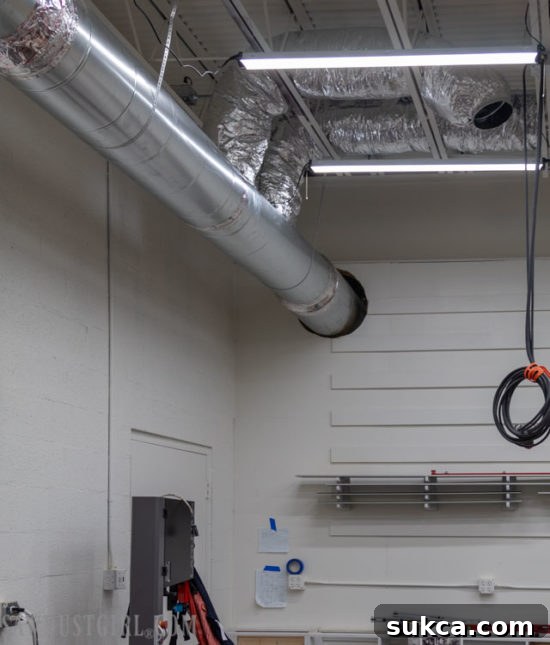

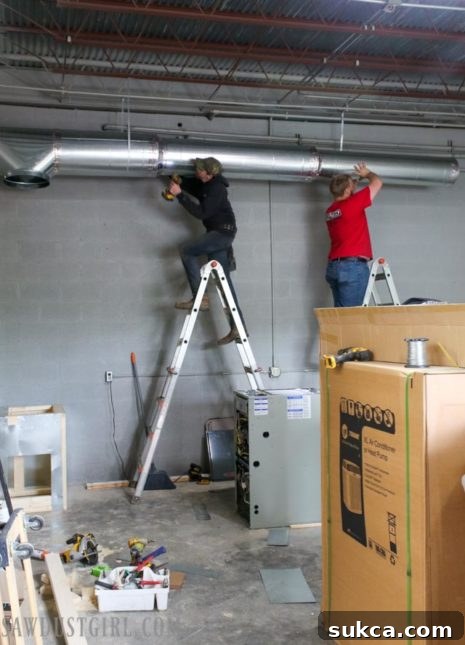

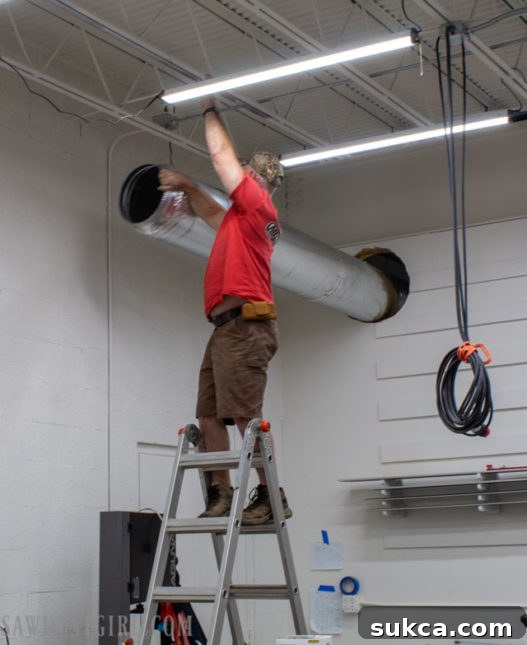

The efficient distribution of conditioned air throughout my spacious workshop hinges on a meticulously designed and installed ductwork system. The process began with the main trunkline, a robust conduit that connects directly to the indoor unit and extends along the back wall of the workshop. The installation team had to skillfully cut a substantial opening in the wall to allow for the passage of this crucial trunkline. These French cleats, currently adorning the wall near the opening, are actually slated for removal anyway, as I’ve since reconsidered their optimal placement (a common occurrence in any evolving workshop!). The main trunkline is strategically designed to start large at the point of connection to the unit and gradually reduce in size as it extends further away. This tapering design is not arbitrary; it’s a carefully calculated engineering decision based on the specific system’s capacity and the volume of the space it needs to condition. Achieving optimal airflow and consistent conditioning across such a large area requires precise calculations and expert installation, reinforcing the importance of relying on professionals.

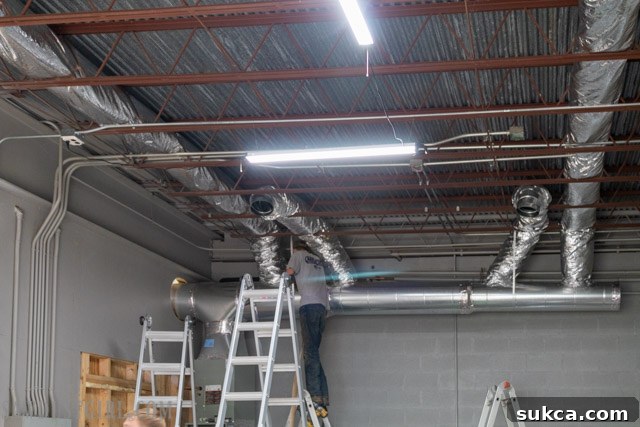

From the main trunkline, flexible ducts were then meticulously run to the various vent locations throughout the workshop. While I would have ideally loved to install rigid ductwork for its superior longevity and slightly better efficiency, the added expense for a workshop space simply wasn’t justifiable at this time. However, I am definitely planning to splurge on rigid ductwork for the upstairs kitchen and gathering room in the future, where aesthetics and ultimate performance will be even more critical. The choice of flexible ductwork for the workshop offers a practical and cost-effective solution without significantly compromising comfort. Each connection point and bend was handled with care to minimize air leakage and maintain static pressure.

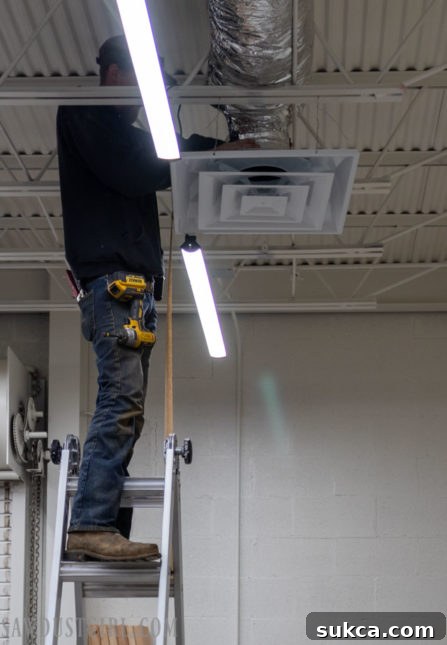

For the vents themselves, I selected 4-way diffusers, which are designed for use in a 2×2 suspended ceiling grid. However, my team ingeniously suspended them directly without a full grid system. I am incredibly pleased with their appearance, and more importantly, the functionality of the 4-way diffusers ensures that conditioned air is effectively directed in all directions, providing consistent and uniform temperature control throughout my entire workspace. This uniform distribution is crucial for comfort and efficiency, preventing hot or cold spots.

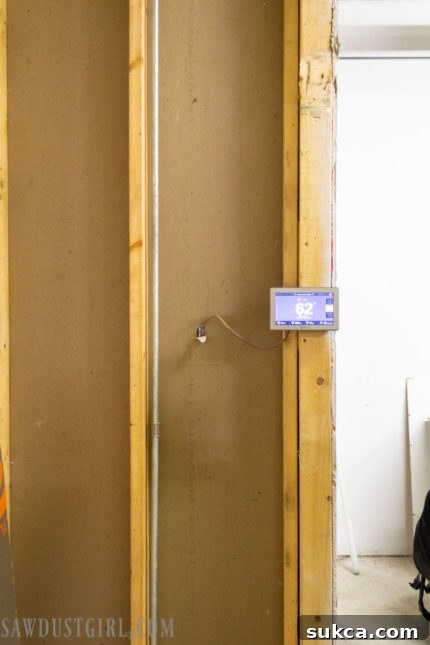

At the heart of this integrated system lies Trane’s advanced ComfortLink™ II communicating technology. This sophisticated platform connects all the key components of the HVAC system – the furnace, condenser, and thermostat – allowing them to communicate seamlessly with each other. The system automatically configures and calibrates itself, continuously optimizing for peak performance and unparalleled energy efficiency. As soon as I establish internet and Wi-Fi connectivity in the workshop, I’ll be able to unlock the full potential of this technology, controlling the thermostat settings directly from my smartphone, even when I’m away from the property. For now, I’m using the dedicated ComfortLink thermostat, which is currently temporarily installed on an exposed stud. Once I’m ready for drywall installation, it will be a straightforward process to disconnect and then neatly re-install it in its permanent location. (I’ll certainly remember to turn off the power first to avoid blowing a fuse, a lesson learned the hard way in a previous home!) The installers thoughtfully left me plenty of extra wire, just in case I decide to change the thermostat’s location down the line – a flexibility I deeply appreciate, given my tendency to refine layouts over time.
After all, we’re talking about conditioning a substantial 3000 sq ft space. It’s incredibly challenging to plan every single detail with absolute perfection and precision from the outset. Thankfully, I was not left to my own devices to figure out the complexities of providing optimal air conditioning for such a large area. Trane and Melton Heating and Air truly handled all the heavy lifting in that department, from system design and selection to the intricate installation. Now, I have the immense pleasure of enjoying a consistently comfortable environment, which will undoubtedly boost my productivity and creativity. This investment in a superior climate control system is not just for me; I absolutely cannot wait until I get to open up the B&B, so you too can experience and enjoy the comfort and quality that Trane and Melton Heating and Air have brought to The Lodge!
