Welcome to a journey of transforming ordinary spaces into extraordinary ones. Today, we’re diving deep into an exciting DIY flooring project: creating a stunning wood floor with tile inlay in the vanity area of a Jack and Jill bathroom. If you’ve ever yearned for a flooring solution that marries the warmth of wood with the durability and unique aesthetic of tile, all while achieving a seamless transition, you’re in the right place. This guide will walk you through the process, leveraging techniques that ensure your tile sits perfectly flush with your hardwood, as detailed in my previous posts on installing tile flush with hardwood floors.
For those who have followed my home renovation adventures, you know my complicated relationship with red oak floors. While they cover a substantial portion of this house, I’m constantly seeking ways to enhance their appeal and integrate them with other materials gracefully. My personal preference leans strongly against harsh, abrupt flooring transitions. Instead, I advocate for beautifully blended shifts between different flooring types, creating a harmonious flow throughout the home. Given that both bedrooms connected to this bathroom feature hardwood, incorporating a sophisticated wood floor with tile inlay in the shared vanity area was a natural and elegant choice. This project truly kicked off last month during Julie’s visit, where we meticulously explored various designs to find the perfect fit for our vision.
Designing Your Unique Wood and Tile Inlay

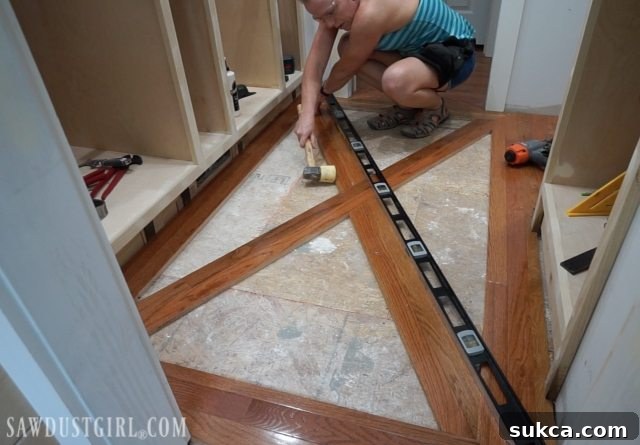

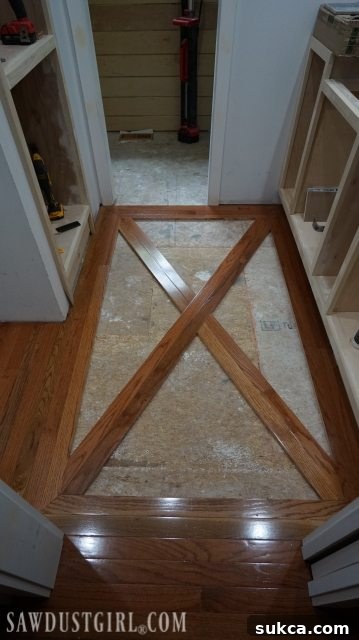

The beauty of a wood and tile inlay lies in its versatility. After much deliberation and creative brainstorming, we settled on a striking picture frame rectangle design with an elegant interior ‘X’ pattern. This choice perfectly complemented the existing aesthetics of the bathroom and the adjacent hardwood floors. However, the techniques we’ll explore today are incredibly adaptable. Imagine the possibilities: a classic diamond pattern, a modern grid, a herringbone tile insert, or perhaps a more abstract, custom design. The only limit is your imagination and the unique characteristics of your space. This approach empowers you to create a truly personalized focal point that elevates your home’s interior design.
Careful planning is paramount when embarking on such a project. Before making any cuts or applying adhesives, it’s crucial to lay out your chosen design. This dry-fit stage allows you to visualize the finished product, make necessary adjustments to tile cuts, and ensure that the overall proportion and symmetry are pleasing to the eye. For our chosen picture frame and ‘X’ pattern, we experimented with the dimensions of both the wood border and the tile sections to achieve a balanced and harmonious look. This step, while seemingly simple, can save a tremendous amount of time and effort in the long run, preventing costly mistakes and ensuring a result you’ll adore for years to come.
Executing the Wood Floor with Tile Inlay
For this particular project, I opted to use the same STRATA_MAT XT uncoupling membrane and rustic brick tile that I previously installed in the water closet. This consistency not only ensures a cohesive look throughout the bathroom but also leverages the proven performance of these materials. STRATA_MAT XT is a fantastic product, offering uncoupling, waterproofing, and vapor management benefits, all critical for a durable tile installation, especially when integrating with wood flooring.
Preparing and Dry Fitting the Uncoupling Membrane

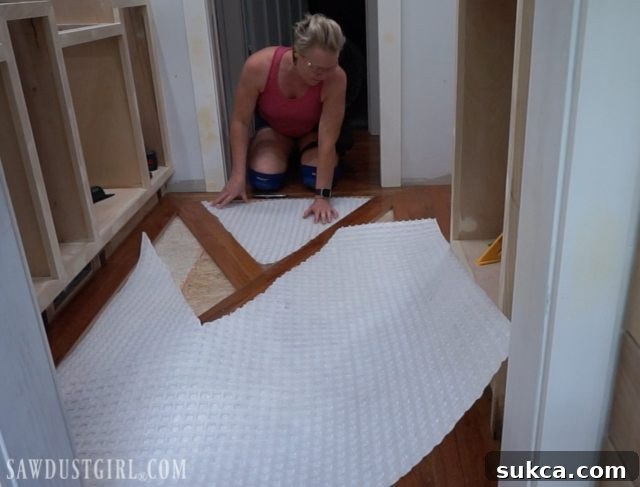

The first practical step involves precisely cutting and dry fitting the STRATA_MAT XT into your designated inlay areas. This material is remarkably easy to work with; a basic utility knife or a sturdy pair of heavy-duty scissors is all you need for clean, accurate cuts. Take your time during this stage to ensure each piece fits snugly within the perimeter of your planned tile inlay, accounting for any necessary expansion gaps or transitions with the existing hardwood.

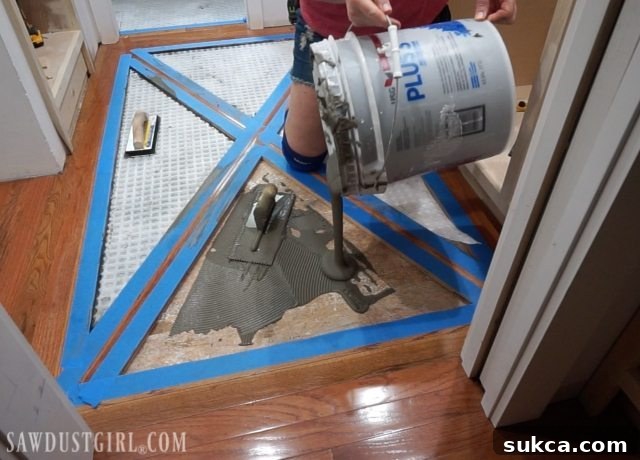

Before permanently installing the STRATA_MAT XT and the tile, I took a crucial, albeit sometimes messy, step: taping off the surrounding hardwood. The goal was to protect the wood from mortar and grout spills. While I’ll admit I didn’t achieve a completely pristine outcome (some mortar inevitably finds its way!), this preparatory measure significantly minimized cleanup efforts. It’s a small step that can save you a lot of headache later on, even if it’s not foolproof.
Laying the Tile with Precision

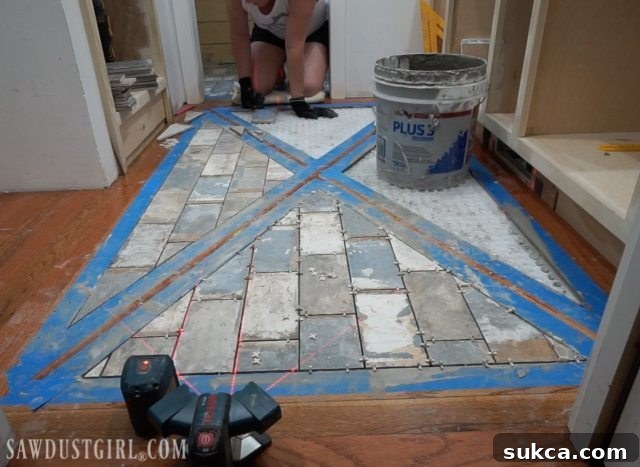

With the STRATA_MAT XT firmly in place (secured with a suitable thin-set mortar, applied according to manufacturer instructions for proper bond to the subfloor), it was time to lay the brick tiles. Achieving perfectly straight lines and consistent spacing is essential for a professional-looking inlay. This is where a laser level becomes an invaluable tool. Projecting a crisp, straight line across your workspace allows you to meticulously align each brick tile, ensuring uniformity throughout every section of your intricate design.

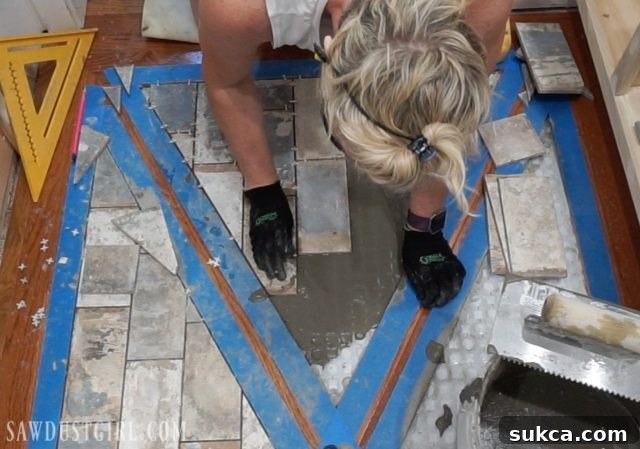

Apply your thin-set mortar evenly using the recommended trowel size, ensuring full coverage on the back of each tile and within the STRATA_MAT XT cavities. Press each tile firmly into place, wiggling slightly to ensure good adhesion. Use tile spacers to maintain consistent grout lines, which are critical for the aesthetic appeal of your inlay. Regularly check for levelness using a small level, making any necessary adjustments as you go. Patience and attention to detail during this phase will undoubtedly pay off in the final outcome. Allow the mortar to cure completely, typically overnight or as recommended by the manufacturer, before proceeding to the grouting stage.
The Grouting Process: Achieving a Flawless Finish

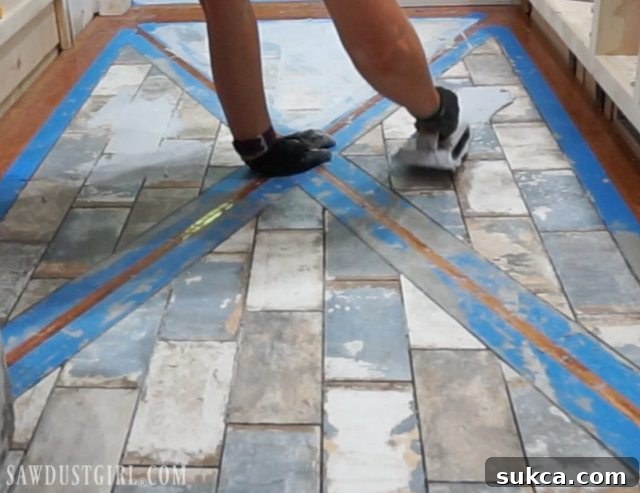

Once the mortar has fully set, it’s time for grouting. As anticipated, despite my best efforts with taping, some mortar managed to find its way onto the surrounding wood. However, there’s no need to panic; it cleaned up quite easily. This is a common occurrence in tiling projects, and knowing how to handle it effectively is part of the DIY process.

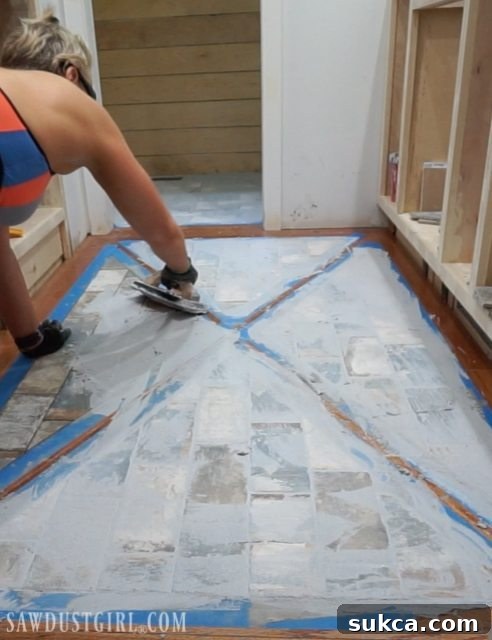

Using a grout float, spread the grout diagonally across the tile surfaces, pressing firmly to ensure it completely fills all the grout lines. Work in small sections to prevent the grout from drying too quickly. Once a section is covered, use the edge of the float at a 45-degree angle to scrape off as much excess grout as possible from the tile faces, working diagonally across the grout lines to avoid pulling grout out of the joints. This initial wipe is crucial for a cleaner finish.

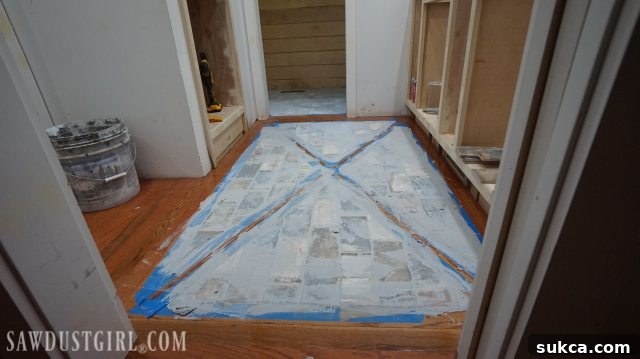

Allow the grout to set for approximately 10 to 15 minutes, or until it starts to stiffen slightly (it should feel firm to the touch but still be pliable enough to clean). This waiting period is critical; cleaning too soon can pull grout out of the lines, while waiting too long makes cleanup incredibly difficult.

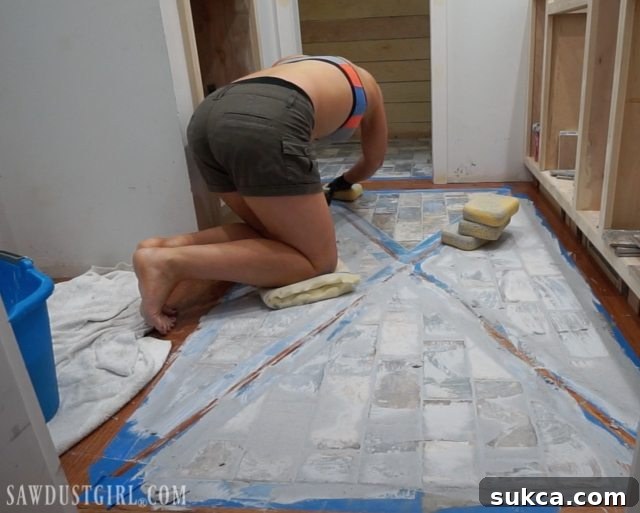

Once the grout has set, it’s time for the meticulous cleanup. With a bucket of clean water close by, use a damp (not soaking wet) sponge to gently wipe the tile surfaces. Work in circular motions, rinsing your sponge frequently in the bucket of water. It’s imperative to rinse thoroughly after every few wipes to avoid simply spreading grout haze around. The key is to remove all grout residue from the tile faces without disturbing the grout lines themselves. For larger areas or more intensive cleaning, I highly recommend having multiple sponges on hand.

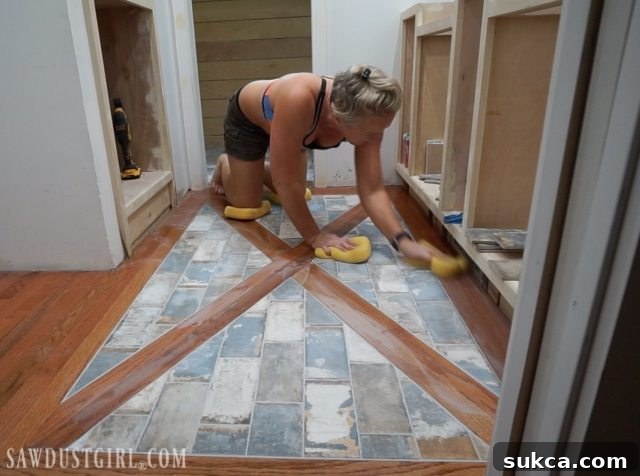

My personal strategy involves using four sponges: one for each hand and one for each knee! This allows for continuous cleaning without constantly stopping to rinse, significantly speeding up the process and improving efficiency. Keep rotating your sponges and rinsing them frequently until the water runs clear. This iterative process of “wipe, rinse, wipe, rinse” is the secret to a sparkling finish.
Wipe, rinse, wipe and rinse… the mantra of perfect grouting cleanup.
Dealing with Grout Haze

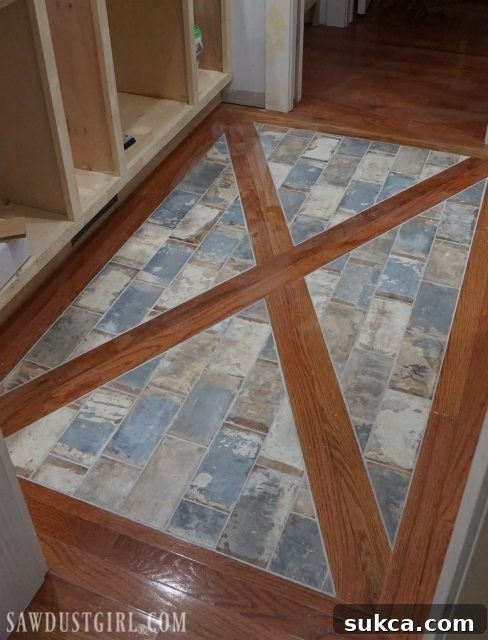

Even after the most thorough initial cleanup, it’s common to wake up the next morning to discover a faint, dusty film on your tiles – this is known as grout haze. It’s a normal part of the process and easily remedied.

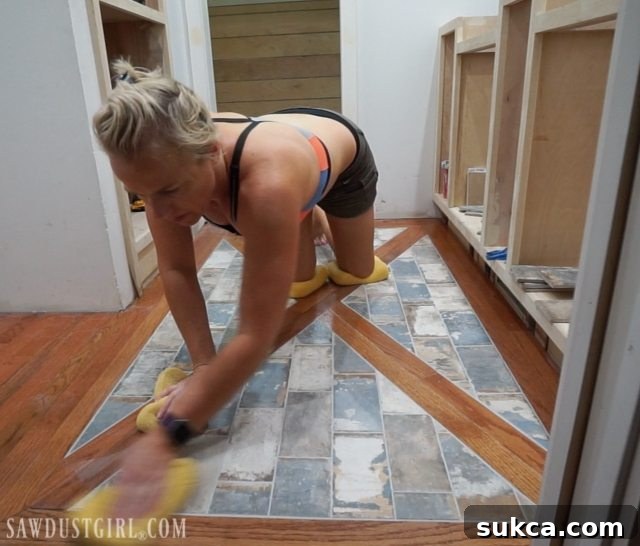

To remove grout haze, simply give your floor one more comprehensive wipe-down. Use a fresh, clean, damp sponge or a microfiber cloth. For stubborn haze, you might consider a specialized grout haze remover, but for most projects, a good wipe with water and a little elbow grease is sufficient. Once this final cleanup is complete, your beautiful wood floor with tile inlay will be ready to admire and enjoy!

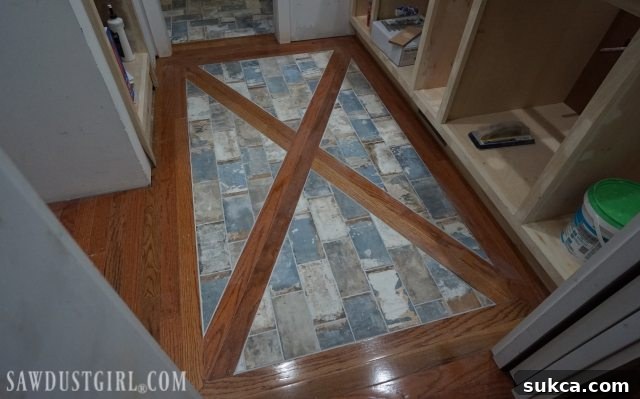

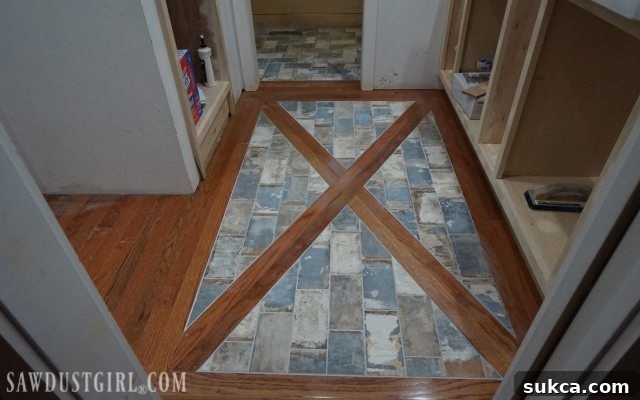

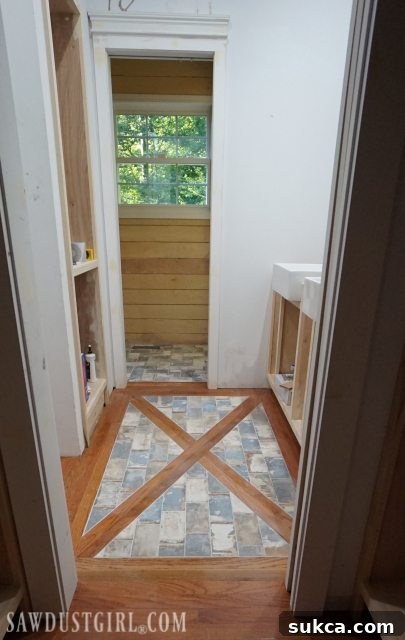

The End Result: A Beautifully Blended Floor

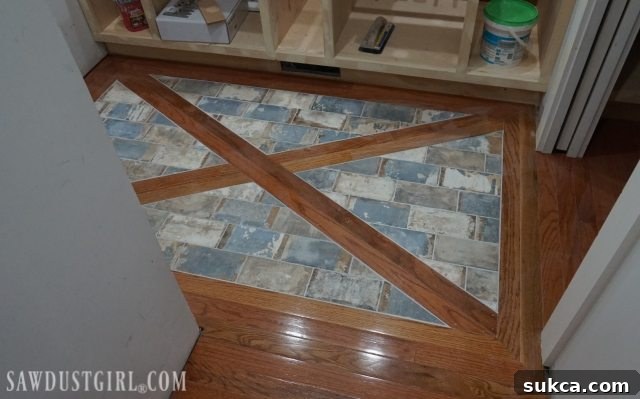

Stepping back, the effort invested in this project is truly evident. The integration of the warm red oak with the distinctive brick tile creates a floor that is not only visually appealing but also highly functional for a bathroom vanity area. The flush transition ensures a smooth, trip-hazard-free surface, while the uncoupling membrane provides critical protection against moisture and substrate movement. This blended flooring solution addresses the aesthetic challenge of my red oak floors and introduces a durable, easy-to-clean surface in a high-traffic, water-prone zone, all while maintaining a sophisticated, custom look.
The picture frame rectangle with the interior ‘X’ pattern provides a captivating focal point, transforming what could have been a mundane floor into a true design feature. This project stands as a testament to the power of thoughtful design and DIY determination in creating a home that truly reflects personal style and meets practical needs. Whether you’re considering a similar project for your Jack and Jill bathroom, a mudroom, or any area where you desire a striking yet seamless transition between different flooring materials, remember that with careful planning and the right techniques, a stunning outcome is well within reach.
I hope this detailed walkthrough inspires you to embark on your own custom flooring projects. The satisfaction of seeing your vision come to life, especially in such a central and frequently used space, is incredibly rewarding. Feel free to explore different tile shapes, colors, and wood finishes to create an inlay that perfectly complements your home’s unique character. Happy renovating!
A special thank you to LATICRETE for providing the STRATA_MAT XT for this project, enabling a durable and high-quality installation.
