Mastering Pocket Hole Joinery: The Ultimate Guide to Strong, Seamless Wood Joints

In the world of woodworking, creating strong and aesthetically pleasing joints is paramount. Among the myriad of techniques available, pocket hole joinery stands out as an incredibly popular and efficient method, especially for those seeking fast, robust, and often hidden connections. Whether you’re a seasoned carpenter or a weekend DIY enthusiast, understanding and mastering the pocket hole jig can revolutionize your projects, from building cabinets and frames to assembling furniture with professional precision.

The allure of pocket holes lies in their simplicity and effectiveness. Unlike traditional joinery methods that often require intricate cuts, complex clamping setups, and lengthy drying times for glue, pocket hole joints are remarkably quick to create. They allow you to join pieces of wood securely and rapidly, often eliminating the need for extensive clamping and significantly reducing project timelines. This speed and ease make them a go-to choice for a wide array of woodworking applications, particularly for constructing robust frameworks and attaching components where the screws will be out of sight.

What is Pocket Hole Joinery and Why Is It So Popular?

Pocket hole joinery involves drilling a pilot hole at an angle into one workpiece, then driving a self-tapping screw through that hole and into an adjoining piece of wood. The “pocket” refers to the angled recess created by the specialized drill bit, which allows the screw head to sit flush or slightly below the surface, creating a strong mechanical connection. This method forms an incredibly sturdy joint, capable of withstanding significant stress, and can be used on a variety of wood types and thicknesses.

The Unbeatable Advantages of Using a Pocket Hole Jig:

Speed and Efficiency: One of the primary benefits is how quickly you can assemble projects. Without the need to wait for glue to dry or for intricate setups, you can move from drilling to assembly in minutes.
Simplicity: Pocket hole jigs are incredibly user-friendly, making them accessible even for beginners. The setup is straightforward, and the drilling process is intuitive.
Strength: When properly executed, pocket hole joints are remarkably strong and durable, perfect for structural components in furniture, cabinets, and other constructions.
Versatility: They can be used for a vast range of applications, including face frames, cabinet construction, attaching tabletops, building drawers, and creating strong butt joints.
Hidden Joints: Often, pocket holes are positioned on the underside or backside of a project, rendering the screws invisible once the piece is complete. For visible areas, wooden plugs can be used to conceal the holes seamlessly.
Reduced Clamping Needs: While clamping is always recommended for optimal alignment, the nature of pocket hole screws means they pull the joint tightly together, reducing the reliance on extensive clamping setups and waiting times.

Essential Tools for Flawless Pocket Hole Joinery

To embark on your pocket hole journey, you’ll need a few key tools:

Pocket Hole Jig: This is the core tool, guiding your drill bit at the precise angle required. Brands like Kreg and Milescraft offer excellent options for various budgets and project scales.
Drill/Driver: A standard cordless or corded drill is essential for drilling the pilot holes and driving the screws.
Specialized Step Drill Bit: Your pocket hole jig will come with a unique stepped drill bit designed to drill both the pilot hole and the shoulder for the screw head simultaneously.
Depth Collar: This small collar, which fits over the drill bit, ensures you drill to the correct depth every time, preventing over-drilling or under-drilling.
Square-Drive (Robertson) Bit: Pocket hole screws typically feature a square-drive head, requiring a matching driver bit for secure fastening.
Pocket Hole Screws: These specialized screws come in various lengths, thread types (coarse for softwoods/plywood, fine for hardwoods), and head types (washer head, pan head) to suit different material thicknesses and applications.

A Step-by-Step Guide to Using Your Pocket Hole Jig (and a Crucial Tip!)

Using a pocket hole jig effectively is straightforward, but there’s one common issue that can hinder your progress and potentially damage your tools. Let’s walk through the process, paying special attention to how to overcome this challenge.

1. Setting Up Your Jig

Begin by setting up your pocket hole jig according to the thickness of your material. Most jigs feature easy-to-use guides or scales that allow you to adjust the drilling depth and the position of the jig to match your wood. Ensure the depth collar on your drill bit is also set correctly by sliding it over the drill bit and aligning it with the marked settings for your material thickness. This critical step prevents drilling too deep or not deep enough.

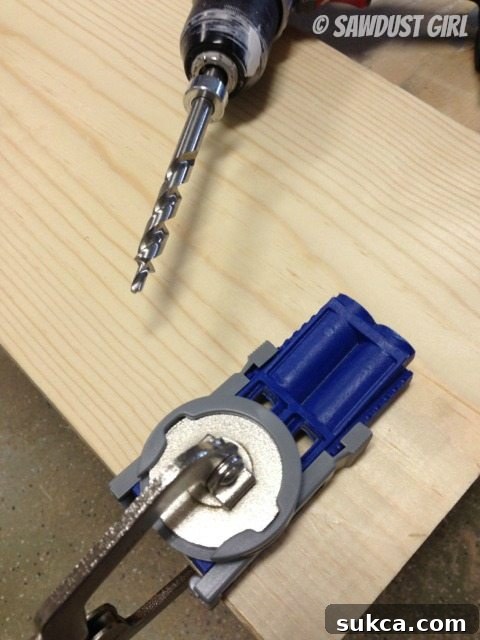

2. Drilling the Pocket Holes

Once your jig is set, secure your workpiece firmly in the jig’s clamp. Ensure the wood is flush against the stops and won’t shift during drilling. Insert your specialized step drill bit into your drill, making sure the depth collar is properly positioned. Then, begin drilling through the guide holes provided by the jig. As you apply pressure and the drill bit plunges into the wood, you’ll notice an immediate challenge.

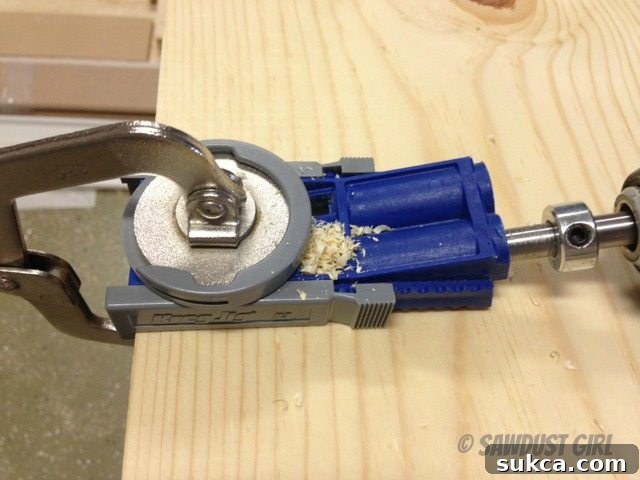

As you drill your pocket holes, especially in deeper settings or with softer woods, sawdust quickly accumulates within the drill bit’s flutes and the barrel of the jig. This buildup isn’t just a minor annoyance; it significantly impedes your drilling progress, generates excessive heat, and accelerates the wear and tear on your valuable drill bit. A dull or clogged bit not only makes drilling harder but can also lead to tear-out, splintering, and less precise pocket holes.

3. The Secret to Smooth, Efficient Drilling: Clearing Sawdust

Fortunately, there’s an incredibly simple yet effective fix to this common problem. This tip will not only make your drilling faster and smoother but also prolong the life of your drill bits and result in cleaner, more precise pocket holes every time. The technique is as follows: while drilling your pocket hole, keep the drill spinning but periodically pull the drill bit out of the hole to clear the sawdust.

Here’s how to execute this critical step and why it works so well:

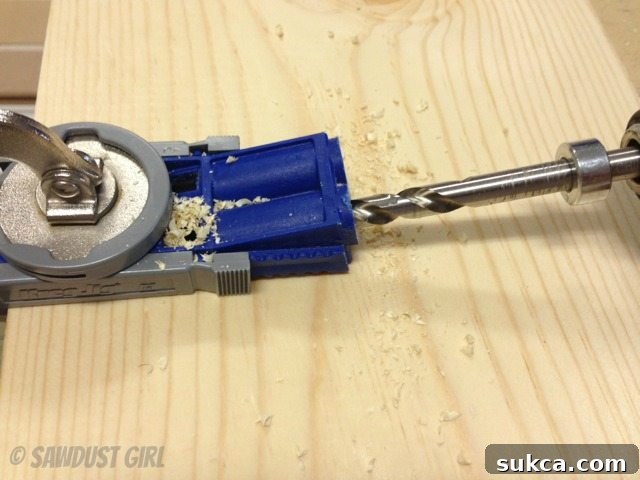

The “Pecking” Technique: Instead of drilling the entire pocket hole in one continuous plunge, adopt a “pecking” motion. Drill approximately halfway or two-thirds of the way into the wood.
Withdraw While Spinning: Crucially, while the drill bit is still spinning at full speed, pull it completely out of the hole. The centrifugal force generated by the spinning motion will effectively eject the accumulated sawdust from the flutes of the bit and the drill guide.
Re-enter and Finish: Once the sawdust has cleared, re-enter the hole with the spinning drill bit and continue drilling until you reach the desired depth, indicated by the depth collar contacting the jig. You may need to repeat this “pecking” motion once or twice for deeper pocket holes or particularly fibrous woods.

This simple maneuver provides several significant benefits:

Faster Drilling: A clear drill bit cuts more efficiently, allowing you to complete each pocket hole much faster.
Reduced Heat Buildup: Less friction from sawdust means less heat, which is vital for maintaining the sharpness of your drill bit and preventing burning of the wood.
Extended Bit Life: By keeping the bit clean and cool, you dramatically reduce wear, meaning your specialized drill bits will last much longer.
Cleaner Holes: Sawdust extraction results in cleaner, more precise pocket holes, which are essential for strong and visually appealing joints.
Less Strain on Your Drill: Your drill won’t have to work as hard, preserving its motor and battery life.

4. Assembling Your Joint

Once all your pocket holes are drilled, it’s time to assemble your pieces. Position the two workpieces together, ensuring they are perfectly aligned. While pocket hole screws pull joints tight, using clamps to hold the pieces in place during assembly is highly recommended to prevent shifting and ensure a flush fit. Drive the appropriate pocket hole screws through the drilled holes and into the mating workpiece. You can opt to add a bead of wood glue to the joint face before assembly for maximum strength and rigidity, though it’s often not strictly necessary for many applications.

Troubleshooting Common Pocket Hole Issues

Even with the best techniques, minor issues can arise:

Stripped Screws: This often occurs if the clutch on your drill/driver is set too high or if you’re using the wrong screw type for the wood. Ensure your clutch is set appropriately for driving screws, and select the correct screw (coarse thread for softwoods/plywood, fine for hardwoods).
Tear-out: Splintering around the pocket hole can be minimized by using a sharp drill bit and placing a scrap piece of wood behind the workpiece where the bit exits.
Misaligned Joints: Clamping is your best friend here. Always clamp both workpieces securely together before driving screws to prevent them from shifting. Specialized pocket hole clamps can be very effective.

Advanced Tips for Pocket Hole Enthusiasts

Use the Right Screws: Pocket hole screws come in various lengths and thread types. Match the screw length to the thickness of your material to ensure adequate hold without protruding. Use coarse thread for softwoods and plywood, and fine thread for hardwoods.
Consider Glue: While pocket holes create strong mechanical joints, adding wood glue to the mating surfaces will create an even stronger, more permanent bond.
Pocket Hole Plugs: For visible joints, you can purchase decorative pocket hole plugs made from various wood species to match your project, or even make your own.
Work with Templates: For repetitive tasks, consider making templates or setting up stop blocks to speed up your workflow and ensure consistent hole placement.

Conclusion: Unlock Your Woodworking Potential

Pocket hole joinery is an invaluable skill for any woodworker, offering a fast, strong, and versatile method for constructing a wide range of projects. By understanding the basics, choosing the right tools, and implementing crucial techniques like regularly clearing sawdust from your drill bit, you can achieve professional-quality results with ease. This simple habit will not only enhance your efficiency but also safeguard your tools and elevate the quality of your finished products. Embrace the power of the pocket hole jig, and watch your woodworking projects come together with newfound speed and precision!
