How to make a Blum drilling jig for Blum Tandem plus Blumotion drawer glide locking mechanisms.
Are you a dedicated woodworker or DIY enthusiast who finds yourself building multiple drawers for cabinets, furniture, or custom storage solutions? If so, you’re likely familiar with the precise requirements of modern drawer hardware, especially premium systems like Blum Tandem plus Blumotion. While these glides offer unparalleled smoothness and soft-close functionality, their installation demands meticulous accuracy, particularly when it comes to drilling the holes for the drawer glide locking mechanisms. The tedious task of measuring each side of every drawer back can be time-consuming, prone to error, and frankly, quite frustrating.
Many attempts at speeding up this process, such as using flimsy paper templates, often fall short, failing to provide the consistency and durability needed for repeated use. What if there was a simple, custom-built solution that could eliminate these headaches, save you countless hours, and guarantee professional-grade results every single time? Investing just a short amount of time – perhaps even less than an hour – to construct a dedicated Blum drilling jig can transform your entire drawer-making workflow. This robust, reusable tool will ensure that all your drawer glide locking mechanism holes are drilled quickly, accurately, and consistently, making your projects smoother and more enjoyable. Say goodbye to guesswork and hello to precision with your very own DIY Blum drilling jig!
Unlock Precision and Efficiency: The Ultimate Blum Drilling Jig for Drawer Glide Locking Mechanisms
Blum Tandem plus Blumotion drawer glides are a top choice for discerning woodworkers and homeowners due to their superior quality, effortless operation, and integrated soft-close feature. To fully capitalize on these advanced functionalities, precise installation is absolutely crucial. A key step in preparing your drawer boxes for these glides involves accurately notching and drilling specific holes into the rear panels. These holes are designed to perfectly accommodate the specialized locking mechanisms, which securely connect the drawer box to the glides. This secure connection ensures smooth movement, prevents wobbling, and allows for easy removal and re-insertion of drawers for cleaning or access. Any slight deviation in hole placement can lead to misalignment, hindered operation, or even damage to your expensive hardware, compromising the smooth, silent action that Blum is known for.
For a complete, in-depth understanding of the broader process of constructing and installing drawers with these premium glides, we highly recommend consulting these valuable, related tutorials:
- How to Build a Drawer for Blum Drawer Glides: A Comprehensive Guide
- Installing Drawers using Blum Drawer Glides: Achieving Flawless Operation
While using a ruler and a marking pencil might be acceptable for a single, isolated drawer, the method quickly becomes inefficient and prone to cumulative errors when dealing with multiple units. A custom-built drilling jig, however, revolutionizes this task. It transforms a slow, meticulous measurement process into a rapid, repeatable, and extraordinarily accurate operation, making the drilling phase of your drawer construction significantly faster – potentially hundreds of times faster – and far more consistent. The precise dimensions of the jig itself are not rigidly fixed, but rather designed to provide a stable, reliable platform. A base roughly 6×6 inches or larger generally offers sufficient stability and ease of use. A particularly advantageous design feature for this jig is its open top, which allows it to seamlessly accommodate drawer backs of varying heights without requiring any modifications. This versatility ensures your jig remains a valuable tool across a wide range of cabinetry and furniture projects.
Constructing the Foundation: Your Blum Drilling Jig Base
The integrity and accuracy of your Blum drilling jig begin with a solid and stable base. For this critical component, we highly recommend using 1/2-inch plywood. This material choice is not arbitrary; it’s often the same thickness as the plywood or solid wood used for constructing most drawer boxes. By matching the jig’s material thickness to your drawer material, you ensure consistent registration and minimize any potential discrepancies during the drilling process. Plywood also offers excellent dimensional stability, resisting warping and ensuring your jig remains true and accurate over many years of use.

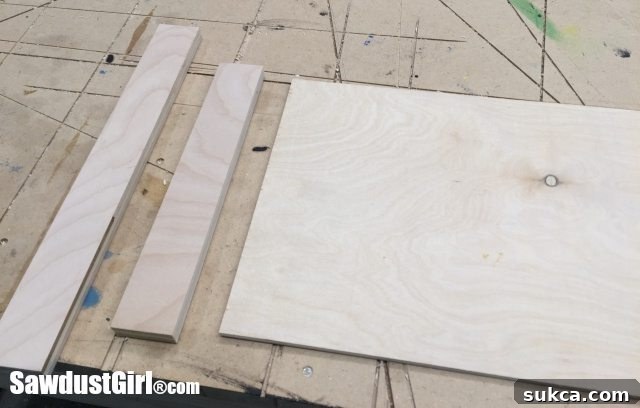

Gathering Your Essential Materials:
- Main Base Piece: Acquire one piece of 1/2-inch plywood, cut to approximately 10 inches by 20 inches. This generous size provides ample surface area for stability and comfortable handling, though you can slightly adjust these dimensions based on the plywood scraps you have available, as long as the base is robust enough to securely hold your drawer back sections.
- Reference Strips (Fences): You will need two strips of 1/2-inch plywood, each precisely 1 1/2 inches wide and at least 10 inches long. These strips are fundamental to the jig’s function, acting as the fixed fences against which your drawer parts will consistently register for accurate drilling.
Assembling the Base and Precision Reference Fences:

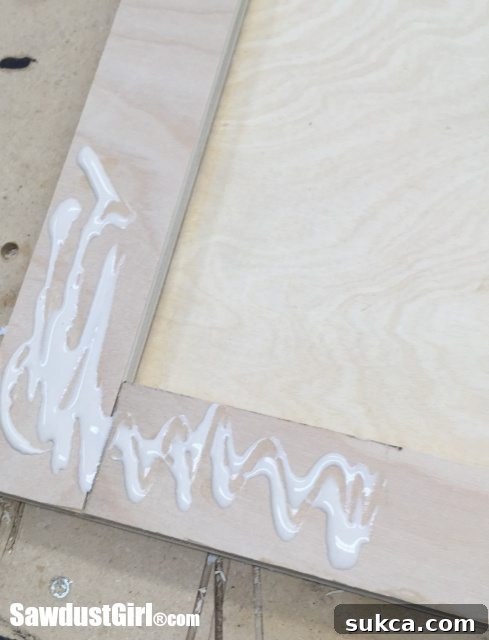

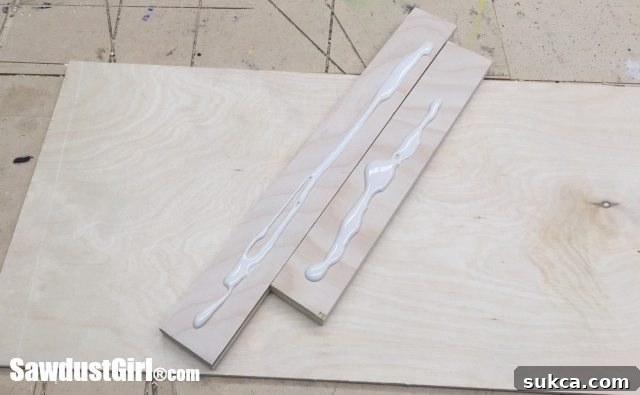

Begin the assembly process by securely attaching your two reference strips to the main plywood base. These strips are paramount as they establish the precisely square 90-degree corner that your drawer back will register against. Position one strip meticulously along the left edge of the base, and the second strip along the bottom left edge, ensuring they meet at a right angle. Apply a high-quality wood glue generously to the mating surfaces of both the strips and the base. For enhanced structural integrity and immediate holding power while the glue dries, consider using a few brad nails or small screws in addition to the adhesive. This combination creates a remarkably strong and resilient connection, capable of withstanding the rigors of repeated workshop use.

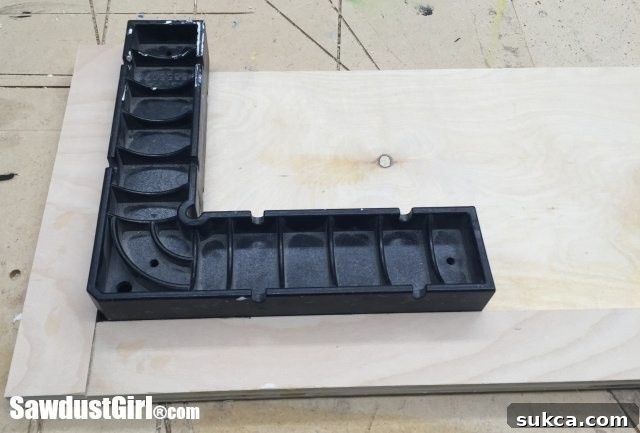

This next step is absolutely critical: Before the glue begins to set, meticulously verify that these two reference strips form a perfectly square 90-degree corner. Utilize a reliable and accurate square, such as a machinist square, a combination square, or a high-quality framing square, to check the angle with precision. Clamp the strips firmly in place, applying even pressure, until the wood glue has fully dried and cured according to the manufacturer’s instructions. It’s important to note that the overall squareness of your main base piece is of secondary importance to the precise squareness of this corner. This corner is the primary registration point for your drawer parts, and any deviation here will directly translate into misaligned holes. Taking your time and exercising utmost care during this foundational step is essential for constructing an accurate and effective drilling jig.
Integrating the Drill Plate:

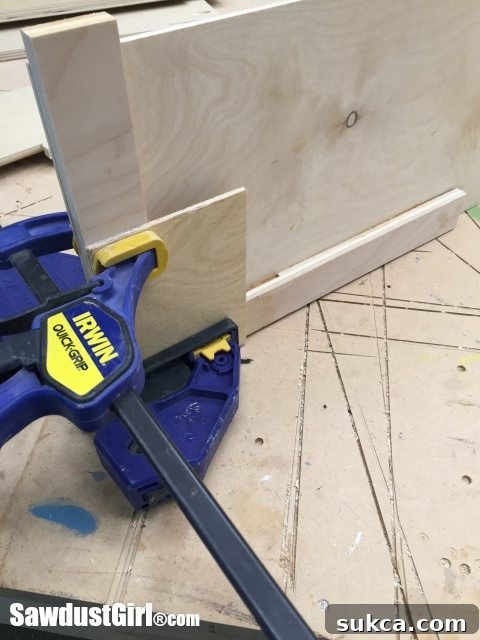

Once your base strips are immovably set, the subsequent step involves attaching a smaller, sacrificial piece of wood onto the bottom left corner of the jig. This piece should be positioned directly above the intersection of your two established reference strips. This component will function as your drill plate, the surface through which your drill bit will pass to create the guide hole. For this purpose, a 4×6-inch piece of 1/4-inch plywood is an excellent and practical choice. The thinner material of the drill plate offers several advantages: it’s easier to drill through cleanly and repeatedly without causing excessive wear on the jig itself, while still providing sufficient stability for accurate drilling. Ensure this drill plate is also securely glued and, for added reinforcement, optionally screwed to the base, aligning its edges precisely with the inner faces of your two main reference strips.

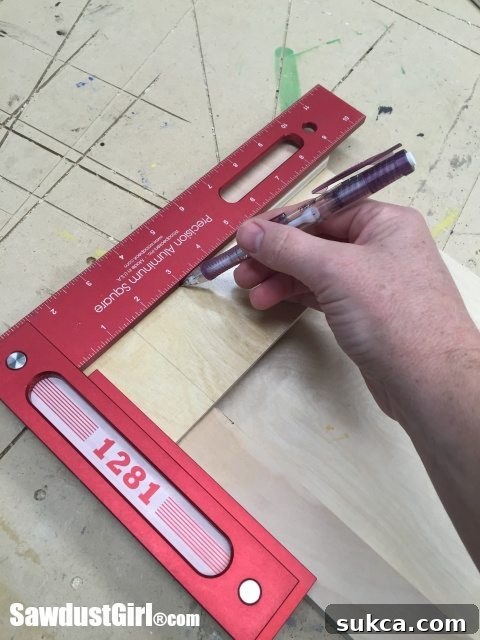

With the drill plate firmly in place, carefully draw precise reference lines on its surface. These lines should correspond exactly to the *inner* edges of the 1 1/2-inch reference strips you previously installed. These drawn lines are paramount because they represent the exact location where the *inside* faces of your drawer back will sit when placed within the jig. To clarify, when you slide a drawer component into the jig, it will stop and register firmly against the inner face of the left strip and the inner face of the bottom strip. These newly drawn lines on the drill plate then become your unequivocal foundational reference points for accurately measuring the precise location of the drilling hole, rather than attempting to measure from the external edges of the jig itself. This crucial distinction ensures that your measurements are consistently and directly related to the actual drawer part, guaranteeing repeatable accuracy.
Precision is Key: Determining the Blum Drilling Jig Hole Location
The ultimate accuracy and effectiveness of your Blum drilling jig are entirely dependent on the precise placement of its guide hole. This step is arguably the most critical aspect of the entire jig construction, as any error in measurement here will compromise the functionality of your jig and, subsequently, your drawer installations. It is vital to recognize that Blum hardware, particularly their advanced drawer glides and accompanying locking mechanisms, are engineered to extremely stringent tolerances. Consequently, the exact drilling location for these components will vary based on several specific factors. These include the particular Blum glide series you are utilizing and, crucially, the thickness of the material from which your drawer box is constructed (e.g., whether it’s designed for 3/4-inch material versus 1/2-inch to 5/8-inch material).
CRITICAL NOTE FOR BLUM USERS: Always, without exception, consult the official Blum technical documentation or the specific installation instructions provided with your purchased drawer glides and locking mechanisms. It is imperative that you do NOT assume the measurements detailed in this tutorial will be universally applicable to every single Blum product. Customizing your jig’s template based on the precise Blum glides and material thickness you are working with is an absolute prerequisite for successful installation, optimal drawer function, and long-term durability.

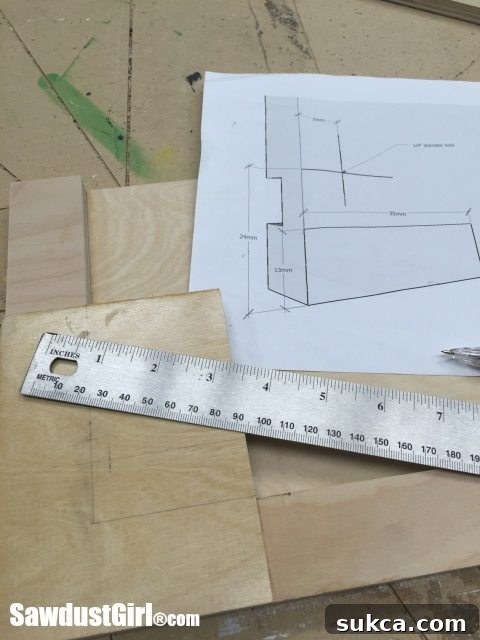

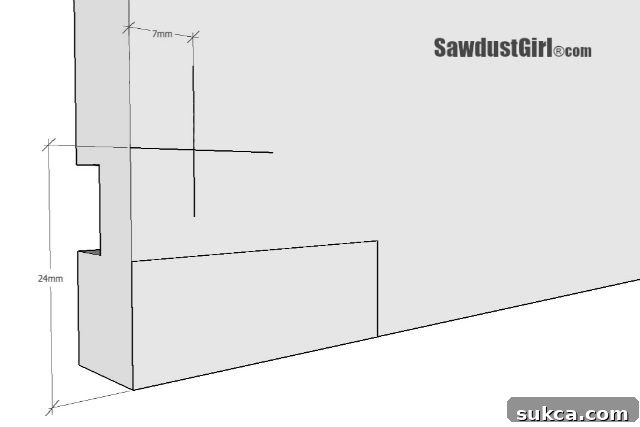

For the specific context of this tutorial, and based on the widely used Blum Tandem plus Blumotion glides (such as the 563 series) typically designed for 1/2-inch to 5/8-inch drawer box material, the precise drilling location for the locking mechanism attachment hole is as follows:
- 7mm Over: From the inner edge of your left reference line on the drill plate (which represents the front face of your drawer back), measure 7 millimeters horizontally inwards.
- 24mm Up: From the inner edge of your bottom reference line on the drill plate (which corresponds to the bottom edge of your drawer back), measure 24 millimeters vertically upwards.
Employing a metric ruler for these measurements is highly advisable. Blum specifications are almost universally provided in millimeters, eliminating the need for complex and potentially error-prone imperial conversions. Mark this precise intersection point with a sharp pencil or an awl clearly on your drill plate. This mark denotes the exact center for your initial pilot hole, which will become the permanent guide hole for your jig.
Executing the Drill: Crafting the Guide Hole in Your Jig
With your precisely marked center point now established on the drill plate, the next step is to accurately create the permanent guide hole in your jig. This hole will serve as your unwavering, accurate template for drilling all subsequent drawer back holes.
Recommended Tools and Best Practices for Drilling:

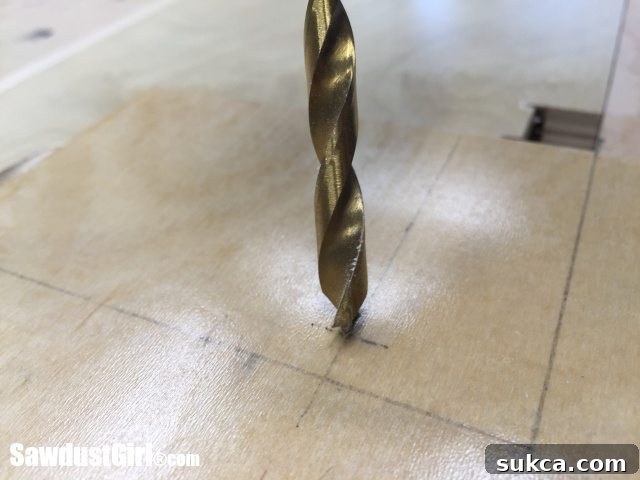

- Brad Point Drill Bit: To ensure your drill bit initiates exactly on your marked center without any “walking” or drifting across the surface, it is essential to use a brad point drill bit. The distinctive sharp point at the center of a brad point bit precisely engages and centers the drill, preventing any initial movement that could compromise the accuracy of your guide hole.
- Appropriate Drill Bit Diameter: The standard diameter required for the locking mechanism attachment hole for Blum glides is 1/4 inch. Make certain that you select and use a sharp, high-quality 1/4-inch drill bit for this critical step.
- Sacrificial Backer Board Technique: Before you commence drilling through your jig’s 1/4-inch drill plate, an indispensable step is to slide a piece of 1/2-inch plywood (or a piece of material matching the exact thickness of your actual drawer components) into the jig. Position this sacrificial piece so that it rests snugly against the reference strips and directly underneath the spot where you intend to drill. This piece functions as a sacrificial backer board. Its primary purpose is to provide firm support to the wood fibers on the exit side of your drill bit, thereby effectively preventing tear-out and ensuring a flawlessly clean, precise hole in your jig’s drill plate, and subsequently, in your actual drawer parts.

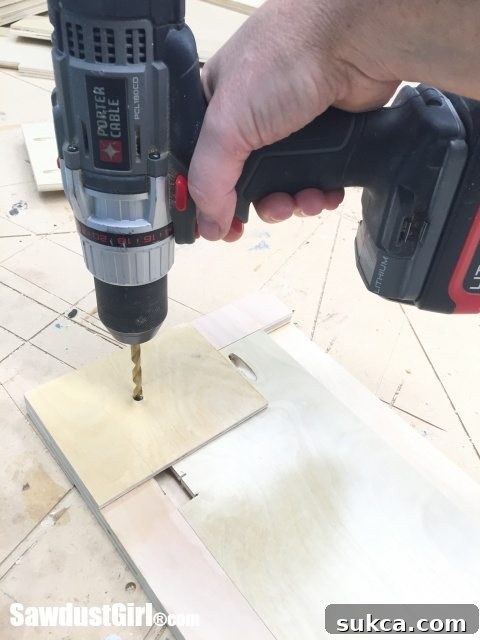

Carefully align the sharp brad point bit with your meticulously marked center. Hold your drill firmly and ensure it is perfectly perpendicular to the surface of the jig. Apply steady, consistent pressure as you drill straight through both the 1/4-inch drill plate and the sacrificial backer board beneath it. Maintain a controlled pace to achieve a clean, crisp cut without splintering.
Streamlining Your Workflow: Using Your New Blum Drilling Jig
Congratulations! Your custom Blum drilling jig is now fully assembled and ready to dramatically enhance your drawer construction process. The true brilliance of this specialized tool lies in its unparalleled repeatability and the remarkable speed it introduces to what was once a painstaking and time-consuming task. Here’s a comprehensive guide on how to effectively integrate your new jig into your woodworking workflow, especially when undertaking projects that involve building multiple drawers:

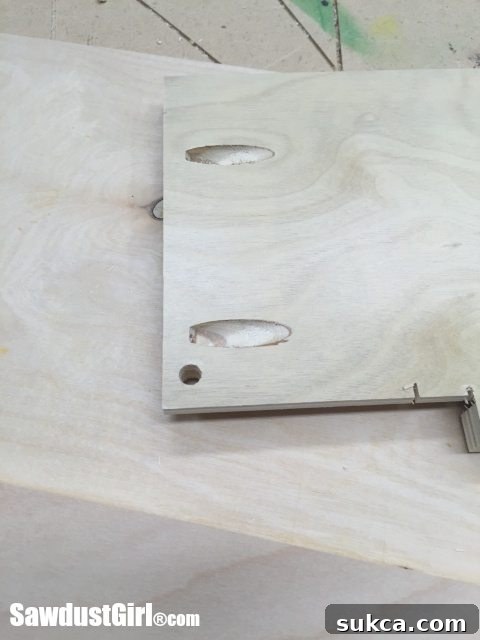

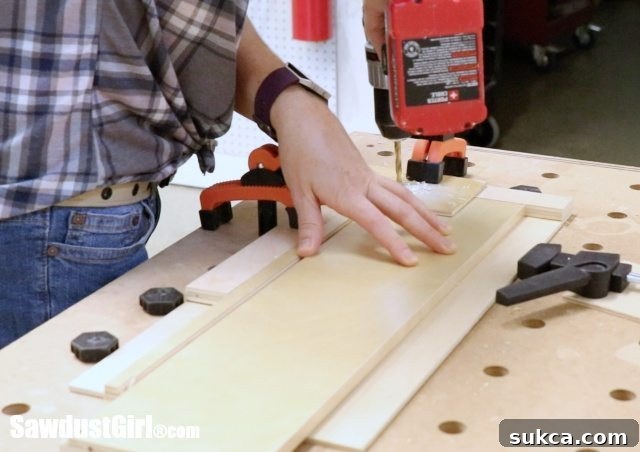

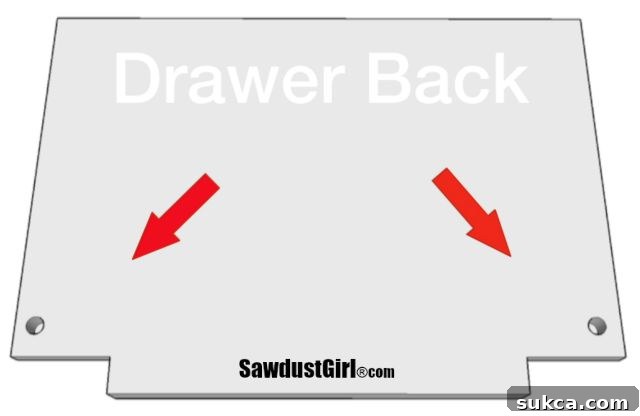

For each individual drawer back piece, you will need to drill two distinct holes: one strategically placed for the left-side locking mechanism and another for the right-side locking mechanism. Your new jig simplifies this requirement significantly. Begin by carefully placing your first drawer back piece into the jig, ensuring it registers firmly and squarely against both the left and bottom reference strips. Once secured, proceed to drill the first hole through the jig’s guide. After the first hole is drilled, simply remove the drawer back, flip it over 180 degrees, and re-register it against the exact same left and bottom strips within the jig. Now, drill the second hole. This methodical approach guarantees that both holes are perfectly mirrored and precisely positioned relative to the corresponding edges of your drawer piece, irrespective of which side you are currently drilling.
When you embark on building a batch of drawers, the efficiency gains afforded by this jig become truly extraordinary and immediately evident. To maximize both safety and accuracy, begin by securely clamping your Blum drilling jig to a sturdy workbench. A firmly clamped jig will prevent any undesirable movement during drilling, ensuring consistent results across all your drawer parts. With the jig steadfastly secured, you can then seamlessly slide in one drawer piece after another, rapidly drill the necessary holes, flip the piece, drill the second hole, and then swiftly move on to the next component. This production-line methodology significantly accelerates the entire drawer construction process, drastically reducing both operator fatigue and the overall project completion time. It transforms a formerly arduous task into a smooth, efficient, and enjoyable phase of your woodworking.
With this elegantly simple yet profoundly effective custom jig, you are guaranteed to achieve perfectly placed holes for your Blum locking mechanisms on every single drawer back. This unwavering level of precision not only saves you invaluable time and prevents frustration but, more importantly, ensures that your premium Blum drawer glides perform precisely as engineered, delivering smooth, reliable, and silent operation for countless years to come. Your investment in building this jig will undoubtedly pay dividends in the quality and efficiency of your woodworking projects.
Beyond the Jig: Mastering Blum Drawer Systems
While the creation of this specialized Blum drilling jig represents a significant leap towards achieving professional-grade drawer construction, it is important to recognize that it is just one crucial component within the broader process of integrating advanced drawer systems like Blum Tandem plus Blumotion. The ultimate success and long-term performance of your drawers are contingent upon a holistic approach, encompassing everything from accurate drawer box construction to the meticulous and precise installation of the glides themselves. By ensuring the correct and consistent placement of the locking mechanism holes with your new jig, you are laying a fundamental groundwork for seamless function, unparalleled durability, and the exceptional user experience that premium Blum hardware is designed to deliver.
To further enhance your skills, deepen your understanding, and broaden your expertise in working with Blum hardware, we wholeheartedly recommend exploring these additional, comprehensive tutorials. These guides delve into essential aspects of drawer building and installation, providing you with the knowledge and techniques necessary to achieve truly exceptional results on all your cabinetry and furniture projects:
- How to Build a Drawer for Blum Drawer Glides: A Step-by-Step Guide to Perfection
- Installing Drawers using Blum Drawer Glides: Expert Tips for Flawless Operation
Conclusion: Elevate Your Woodworking with a Custom Blum Drilling Jig
The era of laborious measurements, inconsistent drilling results, and the inherent frustration that often accompanies the manual installation of Blum drawer glide locking mechanisms is now officially behind you. By dedicating a relatively small amount of time and effort to construct this deceptively simple yet incredibly effective Blum drilling jig, you unlock an entirely new level of precision, remarkable speed, and unwavering consistency in all your woodworking and cabinet-making projects. This custom-engineered tool is far more than just a time-saver; it is a profound quality enhancer, guaranteeing that every single hole is perfectly placed, every drawer operates flawlessly, and every completed project meets or even exceeds rigorous professional standards.
Embrace the unparalleled efficiency and pinpoint accuracy that a dedicated, purpose-built jig provides. This invaluable addition to your workshop arsenal will undoubtedly pay substantial dividends in significantly reduced errors, dramatically increased productivity, and the profound satisfaction that comes from crafting perfectly functioning drawers equipped with premium hardware. Do not delay! Begin the journey of building your own Blum drilling jig today, and prepare to experience the truly transformative difference it will make in the quality, speed, and enjoyment of your cabinetry and furniture endeavors!
