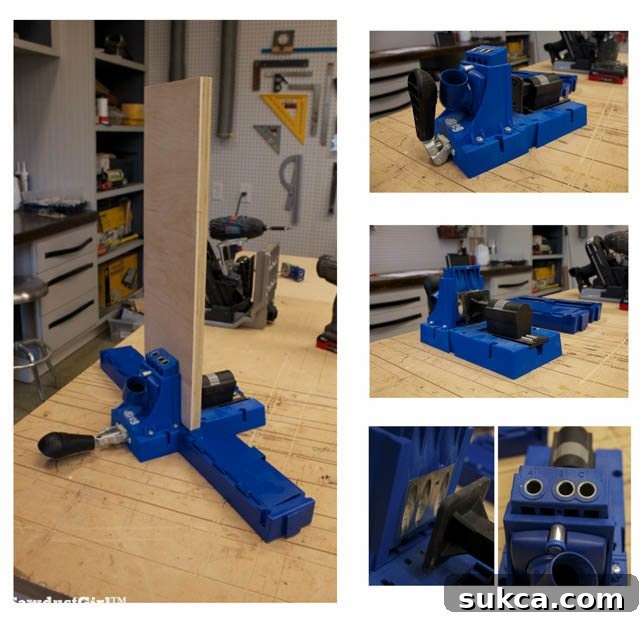

Comprehensive Kreg K5 Pocket Hole Jig Review
The Kreg K5 is designed to streamline the process of creating strong, invisible pocket hole joints, a fundamental technique in modern woodworking. Its design prioritizes stability and efficiency for repetitive tasks, making it a powerful addition to any workshop. However, like any tool, it comes with its own set of advantages and specific limitations that prospective buyers should be aware of. Let’s dive deeper into the key aspects of the Kreg K5.
Fixed Drilling Locations: Precision for Common Stock Sizes
The Kreg K5 features three distinct, pre-set drilling locations. This fixed spacing is meticulously engineered to provide optimal hole placement for commonly used material thicknesses, specifically 1×2 and 1×3 lumber, without requiring the user to reposition the workpiece once it’s securely clamped. This design choice aims to enhance efficiency and consistency for standard projects. While this fixed spacing is highly convenient for specific board dimensions, it’s important to note that it lacks adjustability. For drilling holes in larger pieces of wood, the jig accommodates by allowing the user to reposition the wood itself within the clamp, rather than altering the jig’s hole spacing. This means for custom spacing or unusual dimensions, a degree of manual alignment is necessary, which might introduce slight variations if not performed carefully.
Workpiece Support and Stability: The Role of the “Support Wings”
Integral to the Kreg K5’s design are two “support wings” that attach to either side of the main jig body. These wings serve a dual purpose: they are intended to provide additional support to the workpiece, helping to keep it steady during the drilling process, and they also offer convenient onboard storage for drill bits, screws, and other small accessories, keeping essential components within arm’s reach. This concept is excellent in theory, aiming to create a more stable and organized workstation.
However, in practical application, my experience has shown that these lightweight plastic “support wings” don’t always deliver the substantial support or stability one might expect. While they are level with the main jig and certainly help to cradle the sides of larger workpieces, thereby preventing the jig from tipping under the weight of the wood, their plastic construction and minimal weight limit their effectiveness as true stabilizing elements. The Kreg K5 itself is predominantly constructed from plastic, contributing to its overall light weight. This characteristic means that for truly secure and stable operation, especially with heavier or longer workpieces, the jig almost invariably requires additional clamping to a workbench or the construction of a dedicated mounting base. Relying solely on the support wings for stability, particularly when working with larger or unwieldy pieces of lumber, often leads to undesirable movement or instability. In my view, this necessity to externally clamp the jig down somewhat diminishes the perceived convenience of a self-contained system and goes against the expectation of robust, standalone operation for a jig in this price range.
Exceptional Dust Collection, Despite Minor Flaws

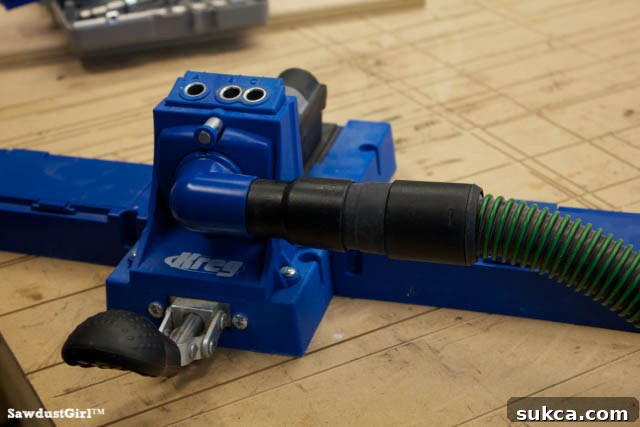

One area where the Kreg K5 truly shines is its integrated dust collection system. When properly connected to a shop vacuum, this feature performs admirably, capturing the vast majority of sawdust generated during drilling. The efficiency is remarkable; after drilling numerous pocket holes, you’ll find barely a speck of dust left behind on your workpiece or workbench. This not only keeps your workspace cleaner but also contributes to better drilling visibility and potentially prolongs the life of your drill bits by keeping them clear of debris.
However, this highly effective dust collection comes with a couple of minor, yet noticeable, design quirks:

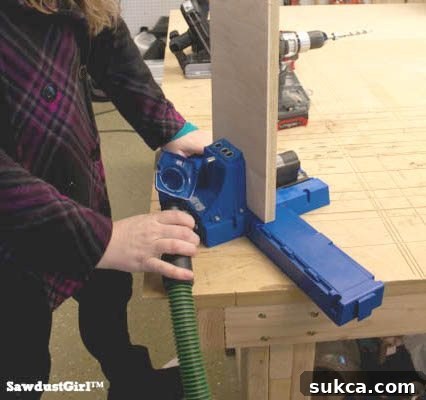

- Positioning Interference: The dust collection port and its attached hose are situated towards the front of the jig, directly between the quick-release clamp lever and the drilling area. While the port is designed to swivel, a thoughtful addition, its placement can still frequently obstruct your access or get in the way as you maneuver your workpiece and operate the jig. This requires constant minor adjustments to the hose or your body position, which can disrupt workflow.
- Port Detachment: A more persistent issue is the tendency for the entire dust collection port assembly to pop off the jig with relative ease. Even a slight bump or pull on the hose during operation can dislodge it, interrupting your work and necessitating reattachment. While not a deal-breaker, this frequent detachment can be a source of minor frustration during extended use.
Mastering Material Thickness Adjustments for Flawless Joints
Achieving strong and flush pocket hole joints requires precise adjustments tailored to the thickness of your material. The Kreg K5 demands a three-step adjustment process whenever you switch between different material thicknesses. While this might seem intricate at first, understanding each step ensures optimal results and prevents common issues like screw tear-out or improperly aligned joints.
1. Adjusting the Thickness Clamp:

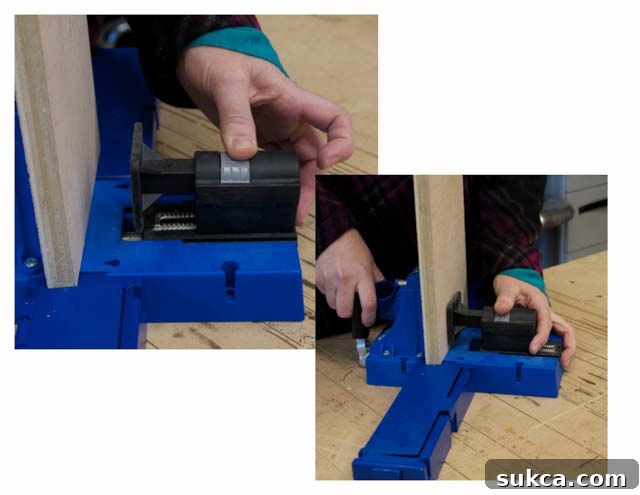

The first critical step involves setting the jig’s thickness clamp. This clamp secures your workpiece firmly against the drilling guide. To adjust it, first engage the quick-release clamp lever located at the front. Then, press the silver button situated at the rear of the thickness clamp and slide the entire assembly forward until it makes snug contact with the wood. Once positioned, release the quick-release clamp. This unique design allows for rapid clamping and unclamping of multiple boards of the same thickness without needing to reset the clamp each time, significantly speeding up repetitive tasks.
2. Setting the Drilling Depth Block: Precision in Every Hole

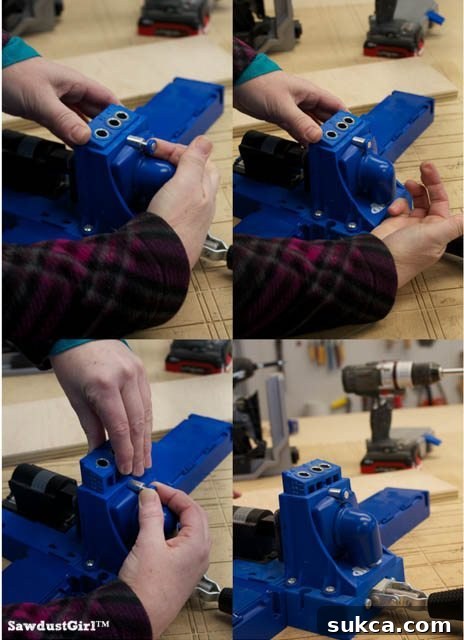

Once the material is clamped, the next step is to adjust the drilling depth block. This block guides the drill bit and ensures that your pocket holes are drilled to the correct depth, preventing breakthrough or insufficient depth. The adjustment mechanism is straightforward: pull out the spring-pin, slide the drill block to the desired position, and then release the pin back into one of the pre-set notches. Clear markings on the side of the depth block correspond to various material thicknesses, providing a visual guide for accurate setting. While the markings are present, some users might find them a bit challenging to read quickly. For tips on improving visibility and making this adjustment even smoother, refer to this helpful guide on modifying your Kreg Jig for easier use.
3. Adjusting the Stop Collar on the Drill Bit: The Final Critical Step

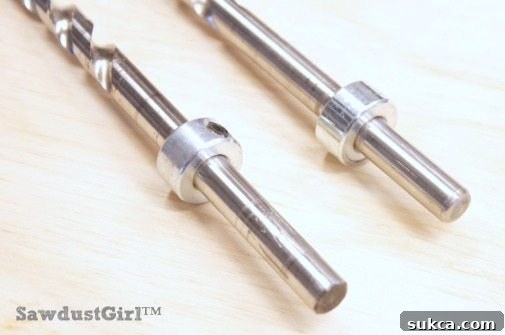

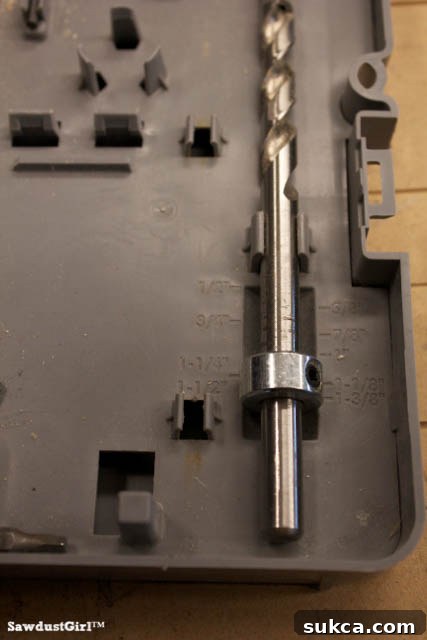

The final adjustment, and arguably one of the most crucial for ensuring consistent pocket hole depth, is repositioning the stop collar on the Kreg step drill bit. This collar physically limits how deep the drill bit can penetrate, working in conjunction with the drilling depth block. This adjustment requires the use of a small hex key, conveniently storable in one of the K5’s support wings, ensuring it’s always close at hand. While the K5 kit thoughtfully includes a small plastic “doodad” designed to assist in setting the stop collar by providing a visual reference against the drilling block, I personally have never found myself utilizing it. I often prefer alternative methods for setting the stop collar, which I find more intuitive and efficient in my workflow.

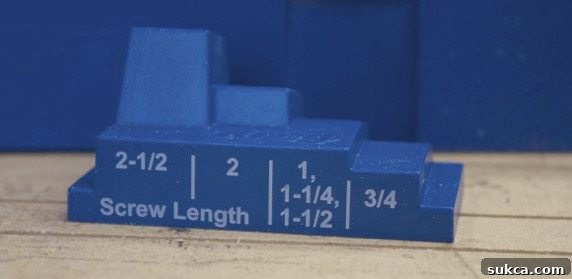

My preferred approach stems from experience with other Kreg accessories. I typically store my Kreg drill bits in my Kreg R3 case, which incorporates a much more user-friendly and reliable system for quickly and accurately setting the stop collar. Furthermore, to maximize efficiency and minimize setup time when tackling projects with varying material thicknesses, I maintain several dedicated Kreg drill bits. Each bit is pre-set with its stop collar adjusted for a specific common material thickness (e.g., 3/4″, 1 1/2″), eliminating the need for frequent, time-consuming stop collar adjustments with the hex key. This strategy significantly streamlines my workflow, allowing for seamless transitions between different stock sizes without interrupting the creative process.
Enhancing Efficiency with the Alignment Block for Repetitive Drilling

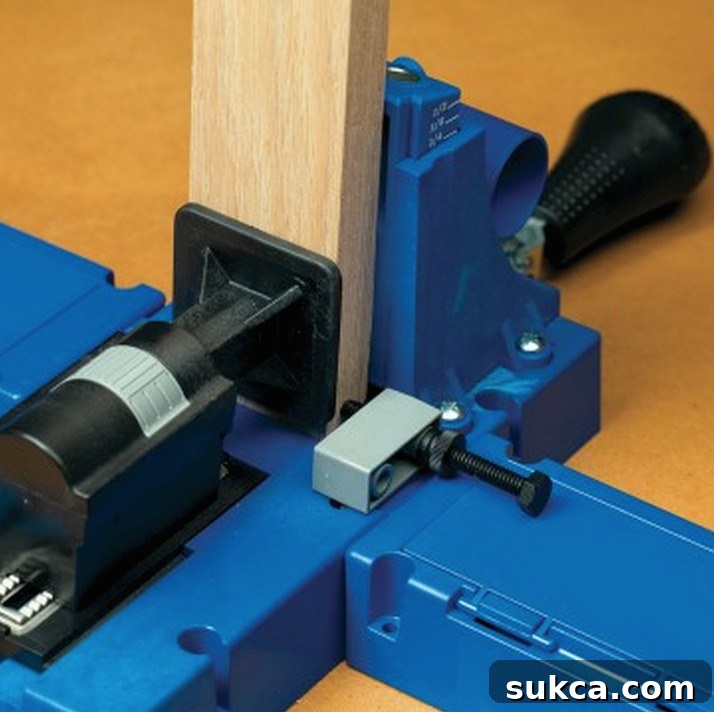

For woodworkers engaged in batch production or projects requiring numerous identical components, the Kreg K5 offers a clever solution for ensuring consistent hole placement. It includes a small, yet incredibly useful, alignment block. This accessory can be precisely set in place on the jig, allowing you to drill pocket holes in the exact same location on multiple boards without needing to measure or re-mark each piece. This feature is particularly valuable when constructing cabinet frames, face frames, or any assembly where uniformity and speed are paramount. By eliminating the need for individual alignment checks, the alignment block significantly boosts productivity and reduces the margin for error, contributing to professional-looking results even in high-volume tasks.
Remote Use Capability: Added Versatility, If You Choose It

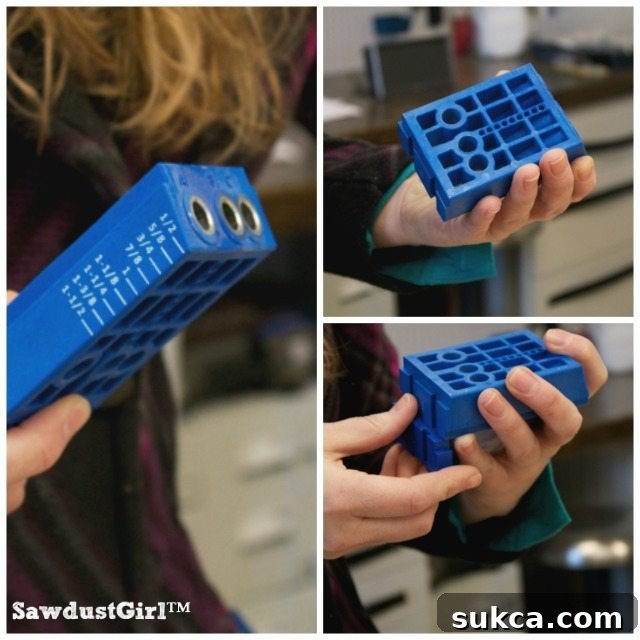

One of the notable design elements of the Kreg K5 is its modularity, which allows the drill block to be completely removed from the main base. By adding a spacer block and clamping this detached drill block directly to your workpiece, you transform the stationary jig into a remote drilling unit. This offers a degree of flexibility, enabling you to bring the drilling action to your project rather than the other way around. This feature can be particularly useful for drilling pocket holes into large, unwieldy pieces that are impractical to mount on the main jig, or for making repairs on existing furniture without disassembly.
While the Kreg K5 offers this remote drilling capability, I personally tend not to utilize it for such tasks. My workflow typically involves using dedicated tools for specific functions to maximize efficiency and minimize setup/takedown time. For remote drilling needs, I find the Kreg Jr. (Kreg R3) to be a far more convenient and specialized solution. Its compact size and inherent portability make it ideal for on-the-go applications, allowing me to reserve the “big jig” (Kreg K5) for its primary role as a stationary workhorse for repetitive and precise operations at my workbench. Nonetheless, the option to use the K5 remotely is a definite plus for users who prefer a single, multi-functional tool or have occasional remote drilling requirements.
Challenges with Drilling in Extra Large Wood Pieces

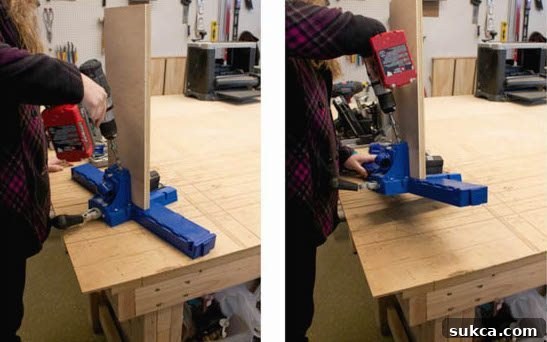

A significant limitation of the Kreg K5, particularly for those working with oversized lumber or project components, stems from its clamping mechanism. The jig is designed to clamp the material in such a way that the workpiece protrudes straight up into the air. While this orientation is perfectly manageable and effective for smaller to medium-sized boards like 1x2s, 2x4s, or small panels, it becomes increasingly awkward and difficult to handle when dealing with very large or heavy pieces of wood. The sheer weight and dimensions of bigger workpieces create an imbalance that makes it challenging to position them securely and maintain stability during the drilling process. The vertical presentation can lead to instability, requiring extra effort to support the workpiece and prevent tipping, which can compromise accuracy and safety. For such large-scale applications, woodworkers might find it more practical to opt for alternative jigs or methods that allow for horizontal clamping or greater flexibility in workpiece orientation.
Kreg K5 Pocket Hole Jig Summary: Strengths and Considerations
The Kreg K5 pocket hole jig is undeniably a capable tool, delivering strong and reliable pocket hole joints for a variety of woodworking tasks. It excels in several areas, yet it also presents certain characteristics that potential users should weigh against their specific project needs and workflow preferences. Here’s a concise summary of its key attributes and points of consideration:
- Fixed Hole Spacing: While excellent for standard 1×2 and 1×3 material, the lack of adjustable hole spacing can be a limitation for custom applications requiring different center-to-center distances between pocket holes. Users will need to manually reposition wood for wider spacing.
- Stability and Lightweight Design: Despite the inclusion of “support wings,” the Kreg K5’s largely plastic, lightweight construction often necessitates clamping it down to a workbench for optimal stability and precision, especially with larger workpieces. The wings are better suited for storage and minor support against tipping.
- Efficient Dust Collection with Design Quirks: The dust collection system is highly effective at keeping the workspace clean and clear. However, the front-mounted port can occasionally obstruct operations, and its tendency to detach easily from the jig can be a minor source of interruption during use.
- Multi-Step Material Thickness Adjustment: Changing material thickness requires a methodical three-step adjustment process involving the thickness clamp, drilling depth block, and stop collar on the drill bit. While ensuring accuracy, this sequence can be more time-consuming compared to jigs with quicker, consolidated adjustment mechanisms.
- Awkwardness with Large Workpieces: The jig’s design, which requires clamping material vertically, makes it cumbersome and challenging to work with very large or heavy pieces of wood. This orientation can lead to instability and difficulty in maneuvering the workpiece.
- Repetitive Drilling Efficiency: The integrated alignment block is a significant advantage for batch processing, allowing for consistent hole placement across multiple identical components, thereby boosting productivity.
- Remote Drilling Flexibility: The detachable drill block offers the versatility to perform remote drilling, a useful feature for oversized projects or repairs, though dedicated portable jigs might offer more convenience for frequent remote use.
In conclusion, the Kreg K5 is an excellent tool primarily suited for drilling pocket holes in standard dimension lumber such as 1x2s, 1x3s, 2x4s, and smaller pieces of plywood. Its strengths lie in its robust clamping mechanism for these sizes, highly effective dust collection, and features designed for repetitive accuracy. However, if this is to be your sole pocket hole jig, its limitations regarding adjustable hole spacing and handling very large workpieces might become apparent. It truly shines when used in conjunction with a more portable solution like the Kreg R3 Jr., creating a versatile duo capable of tackling a broader spectrum of woodworking projects, from small crafts to larger furniture construction. For those looking to optimize their Kreg jig experience, you might also find this tip invaluable: how to make your Kreg Jig easier to use!
