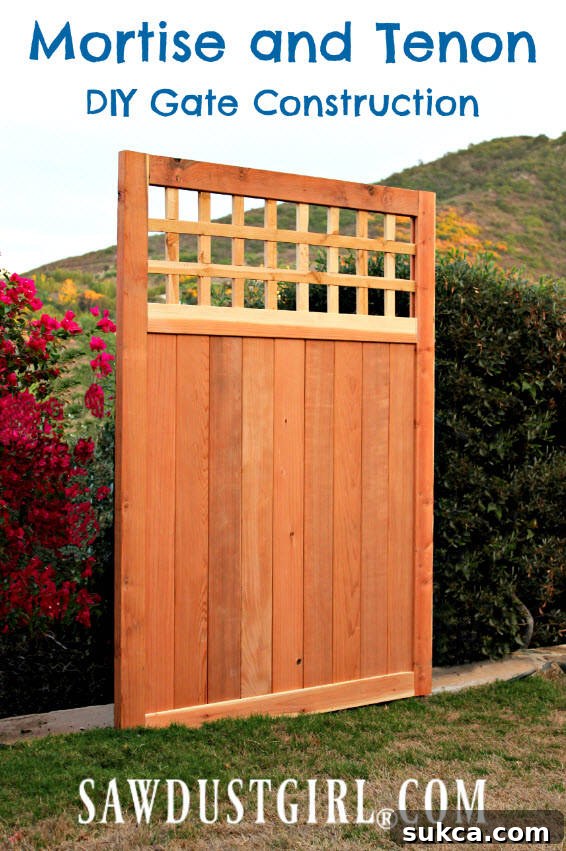

A gate isn’t just an entry point; it’s a statement of craftsmanship, a barrier against the elements, and a symbol of security for your property. But how many times have you encountered a beautiful gate that sags, drags, or simply refuses to close properly? This common frustration often stems from inadequate joinery, unable to withstand the forces of gravity, weather, and repeated use. Enter the **haunched mortise and tenon joint** – a time-tested, exceptionally strong carpentry technique that promises to build gates that stand tall and true for years to come. This detailed guide will walk you through crafting such a joint, specifically tailored for robust gate construction, ensuring your next outdoor project is not only beautiful but also built to last.
Hello! I’m Julie, Sandra’s sister, and you might have spotted me contributing to the transformation of Calderwood Cottage. While I cherish those exciting flip house adventures in Tennessee, my home base is a quaint ranch in sunny San Diego. Here, I live with my wonderful husband, who admirably tolerates my sawdust-laden hobbies, and our delightful, animal-loving teenage daughter. I truly feel incredibly fortunate, embracing the fun, the challenges, and yes, even the messy bits of life. And honestly, who wouldn’t jump at the chance to collaborate with Sandra every other month?
One particular annoyance that consistently bugs me here on the ranch is the sight of broken, sagging gates that struggle to open or close. It’s a constant battle against gravity and wear. Determined to put an end to this cycle, I’ve embarked on a mission to build and rebuild several gates, with a firm commitment to strength, durability, and a completely sag-proof design. For my inaugural gate project, I envisioned a classic aesthetic: a sturdy tongue and groove lower panel seamlessly integrated with an elegant lattice top. This combination offers both privacy and a touch of open charm, perfect for defining spaces without completely isolating them.
Building a Robust Gate with Haunched Mortise and Tenon Joinery
When it comes to building gates that defy gravity and resist the elements, selecting the right joinery method is paramount. For this project, I made the conscious decision to employ the **haunched mortise and tenon joint**. This choice wasn’t arbitrary; it’s rooted in centuries of woodworking wisdom. The mortise and tenon is universally recognized as one of the oldest and strongest carpentry joints, celebrated for its interlocking design that creates an incredibly robust connection between two pieces of wood. What truly elevates this joint, making it ideal for the demanding application of gate construction, is the addition of a ‘haunch’ or ‘hip’ to the tenon.
A standard mortise and tenon joint is strong on its own, but the haunch adds an extra layer of structural integrity. This small, un-shouldered portion of the tenon extends into the dado or groove of the mating stile, providing multiple benefits. Firstly, it significantly increases the gluing surface area, leading to a stronger bond. Secondly, the haunch enhances the joint’s resistance to racking – the parallelogram distortion that can cause gates to sag over time. It effectively stiffens the frame, distributing stress more evenly. Thirdly, when your gate design incorporates panels (like my tongue and groove panels), the haunch neatly fills the end of the groove in the stile, preventing the stile from splitting and offering a clean, finished appearance. This thoughtful addition transforms an already excellent joint into an unbeatable one for enduring outdoor structures.
Materials You’ll Need for Your DIY Gate Project
Choosing the right materials is as crucial as selecting the right joinery. For this gate, I opted for redwood, renowned for its natural resistance to rot, insects, and decay, making it an excellent choice for outdoor applications where durability is key. Its stability also minimizes warping and twisting, which is vital for a gate that needs to remain true.
- 5 Redwood 2x4s (For the gate frame: stiles and rails)
- 9 Redwood 6′ tongue and groove 1/2″ panels (For the lower gate infill)
- 6 Cedar lattice strips (For the upper decorative panel)
- Rapid Fuse Wood Glue (A fast-curing, strong adhesive to bind your joints)
- Scrap wood (Essential for crafting custom router jigs, a cornerstone of this project)
- Plunge router (The primary tool for cutting precise dadoes and mortises)
- 1/2″ x 1/2″ router bit (For cutting the dadoes that house the panels)
- 2″ x 1/2″ router bit (For creating the mortises that accept the tenons)
- Lots of clamps (Indispensable for holding pieces securely during routing and assembly)
Step 1: Precision Cuts – Mortises and Dadoes with a Plunge Router
My biggest hurdle for this gate project was the unfortunate fact that my trusty table saw – which also doubles as my router table – was tucked away in storage. This meant I had to get creative and rely solely on my plunge router to execute the precise joinery required for a strong gate. Working with dimensional lumber like 2x4s presents its own set of challenges, particularly when using a router. The narrow surface area, combined with rounded edges, makes it difficult to keep the router flat and stable, leading to inconsistent or imprecise cuts. Furthermore, the dadoes (grooves for the panels) and mortises (recesses for the tenons) need to be perfectly centered and precisely placed for the tenons and panels to fit snugly, forming a structurally sound gate frame.

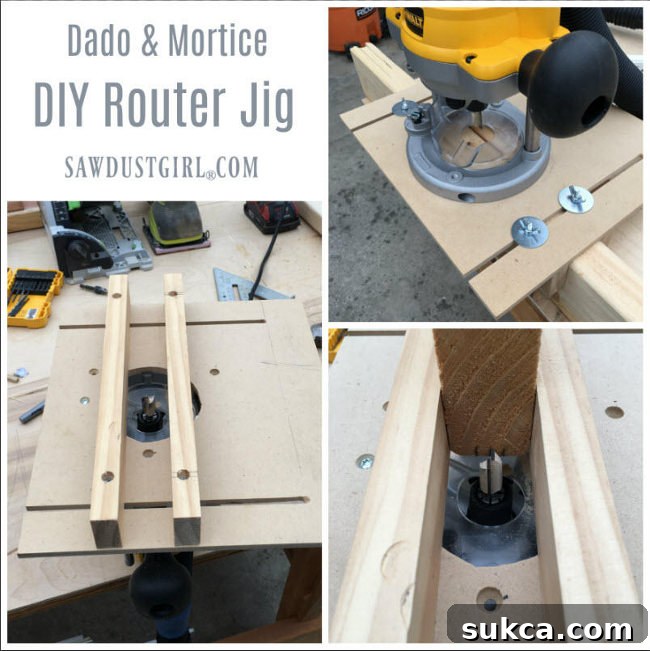

My solution was to design and build an edge guide jig. This simple yet ingenious contraption securely held the plunge router, ensuring it remained perfectly centered over the 2×4 and provided crucial stability as I guided it along the length of the lumber. While similar jigs are available for purchase, there’s an immense satisfaction and educational value in crafting your own tools to overcome project-specific challenges.

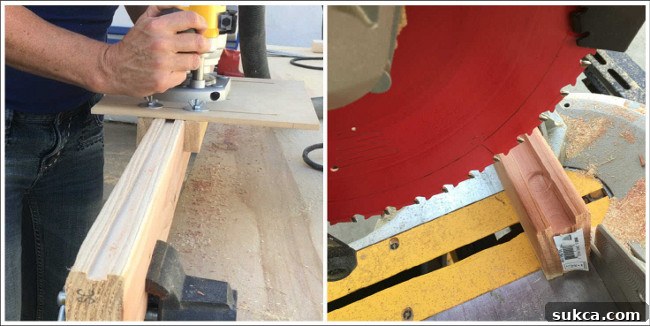

Once my custom jig was ready, I performed a critical test run on a scrap piece of redwood. This allowed me to fine-tune my technique, ensure the dado was precisely centered, and confirm the depth settings before committing to the actual gate components. After achieving the perfect dado on the scrap, I proceeded to cut the dadoes into all the rails (horizontal members) and stiles (vertical members) of the gate frame. Following the dado cuts, I carefully cut the rails and stiles to their final lengths. A key trick here was to router the dadoes first, then cut the pieces to length, allowing me to trim away any slight imperfections or tear-out at the ends of the routed grooves, resulting in cleaner, crisper joints.

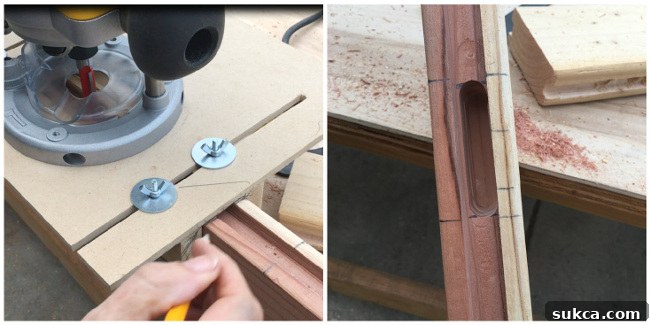

Next up were the mortises, the receiving slots for the tenons. Precision here is paramount for a strong and tight joint. I meticulously marked the exact locations for each mortise on the stiles. Using the plunge router with the appropriate bit, I carefully located the beginning and end points of each mortise, marking where my edge guide sat at these extremes. Then, with controlled passes, I routed out each mortise to a consistent depth of 1/2 inch by 2 inches deep. This methodical approach, guided by the jig, ensured perfectly centered and accurately sized mortises, laying the groundwork for impeccable joinery.
Step 2: Crafting Tenons and Haunches for Ultimate Strength
With the dadoes and mortises cut, the next critical step for these robust wood joints was to accurately cut the tenons. This was the point in the project where I truly missed having my table saw or a dedicated router table – the precision and ease they offer for tenon cutting are hard to beat. However, true to the DIY spirit, I improvised! I devised yet another specialized jig to facilitate routing the tenons. While it wasn’t absolutely perfect, it provided enough stability and guidance to create tenons that resulted in wonderfully tight-fitting joints.

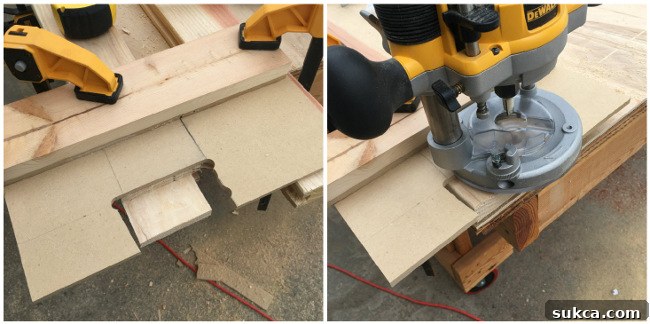

This tenon-cutting jig involved securing a piece of scrap wood with a perfectly straight edge onto a 1/4-inch MDF base. I then used my router, guided by its edge guide, to cut a perfectly straight channel slightly wider than my 2×4 stock. This channel effectively guided the router, allowing me to consistently remove 1/2 inch of wood from both sides of the rail ends, thereby forming the 2-inch long tenons. Initially, I attempted to cut the tenons using just a simple straight edge guide, but it proved challenging to keep the router perfectly flat and stable, especially at the top edge of the tenon. The addition of the side supports on my jig was a game-changer; they provided much-needed lateral stability, ensuring a more uniform and consistent tenon shoulder. I did notice that the 1/4-inch MDF had a slight tendency to flex, which sometimes resulted in a subtle taper at the very start of the tenon. For future projects requiring even greater precision, I would definitely opt for a thicker, more rigid material like 1/2-inch MDF or plywood for the jig. And yes, my jig took quite a beating, acquiring numerous nicks and looking rather ‘ugly’ by the end, but its appearance didn’t detract from its effectiveness as the sides primarily serve as support, not precision guides.

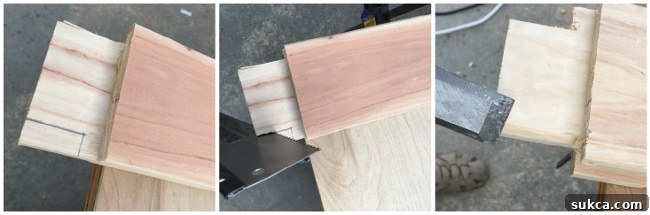

After successfully cutting the primary tenons, the next step was to define and cut the critical haunches into them. The haunch, as previously discussed, is what transforms a standard mortise and tenon into an exceptionally strong and sag-resistant joint, especially beneficial when working with grooved panels. I carefully marked out the haunches on each tenon and removed the excess material. Since the mortises were cut with a router, they inherently have rounded internal corners. To ensure a perfect fit, I used a sharp chisel to carefully round the corners of the tenons, allowing them to seat seamlessly into their corresponding mortises. This hand-tool work, though meticulous, is incredibly satisfying and contributes significantly to the integrity of the finished joint. Taking the time to slowly remove material and frequently test-fit each tenon into its mortise is paramount. Each carpentry joint should feel incredibly snug – a testament to precision and the foundation of a truly durable gate.

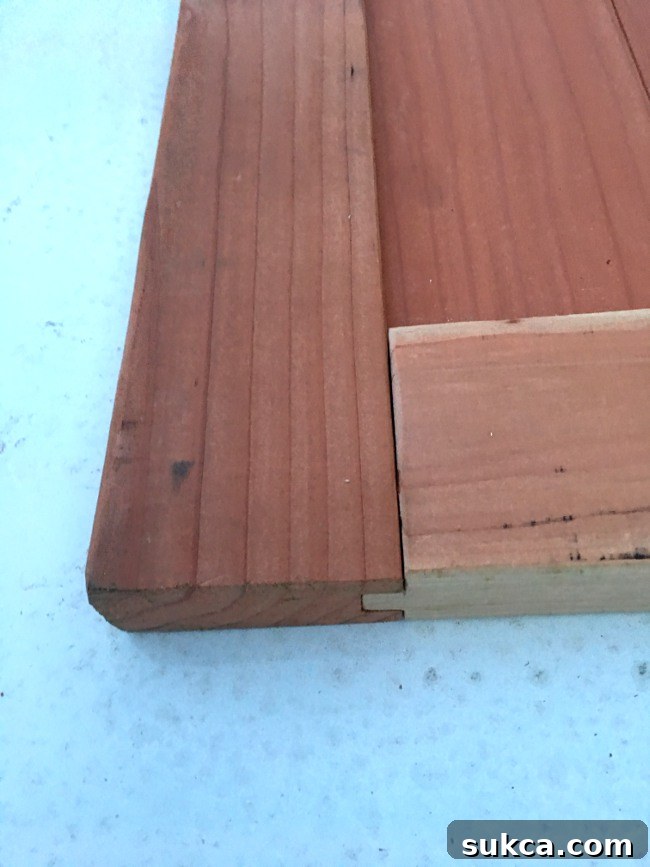

A final, yet important, detail involved the aesthetic and functional alignment of the gate frame. I rounded the edges of the rails to perfectly match the rounded profile of the stiles. Without this step, the blunt edge of the rail would awkwardly butt against the rounded edge of the stile, creating an unsightly gap. By matching the profiles, both edges flow together seamlessly, not only improving the visual appeal but also creating a more decorative and refined groove along the frame. This attention to detail elevates the overall craftsmanship of the gate, transforming it from merely functional to truly beautiful.
Step 3: Assembly – Bringing Your Strong Gate to Life

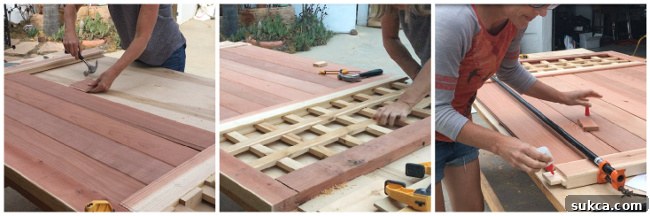

Wahoo! With all the precise cuts made, it was time for the satisfying stage of assembly, where the individual pieces transform into a cohesive and strong gate frame. I began by gluing all three rails into one of the stiles, taking meticulous care to ensure everything remained perfectly square and plumb throughout the process. For this critical step, I opted for Dap’s Rapid Fuse Wood Glue, and it performed absolutely awesomely! One of its standout features is a generous repositioning time, which is invaluable when you’re dealing with multiple joints and need to make minor adjustments to ensure perfect alignment. Yet, despite this flexibility, it boasts an impressively fast 30-minute cure time. This efficiency meant I could glue and clamp the initial frame sections, then productively spend those 30 minutes prepping my lattice components while the glue set. This allowed me to install the tongue and groove panels within just half an hour, rather than having to wait overnight, which would typically be the case with traditional wood glues. This accelerated workflow is a huge advantage for any DIY project!
With the initial frame set, I carefully slid the redwood tongue and groove panels into their dadoes. The fit was quite snug, which is ideal for a strong, rattle-free gate, so I used a scrap piece of T&G lumber to gently tap them into place when necessary. To maintain the frame’s squareness during this process, I found it helpful to apply a clamp across the two rails. Next, I turned my attention to the lattice top. To create a clean and sturdy lattice structure, I routered half-lap wood joints into the cedar lattice strips. This interlocking joint provides a much stronger and more aesthetically pleasing connection than simply butt-joining and screwing the strips together. After assembling the lattice, I performed a final dry fit of the last stile. I almost had a moment of panic when it appeared my center rail was slightly proud, suggesting an alignment issue. A quick check revealed it was simply the lattice needing a gentle tap to settle into its perfect position – whew! With everything perfectly aligned, I applied glue to the remaining joints and clamped the entire gate together. Another 30 minutes for the Rapid Fuse to cure, and just like that, boom – a beautifully crafted, strong, and sag-proof gate was complete!

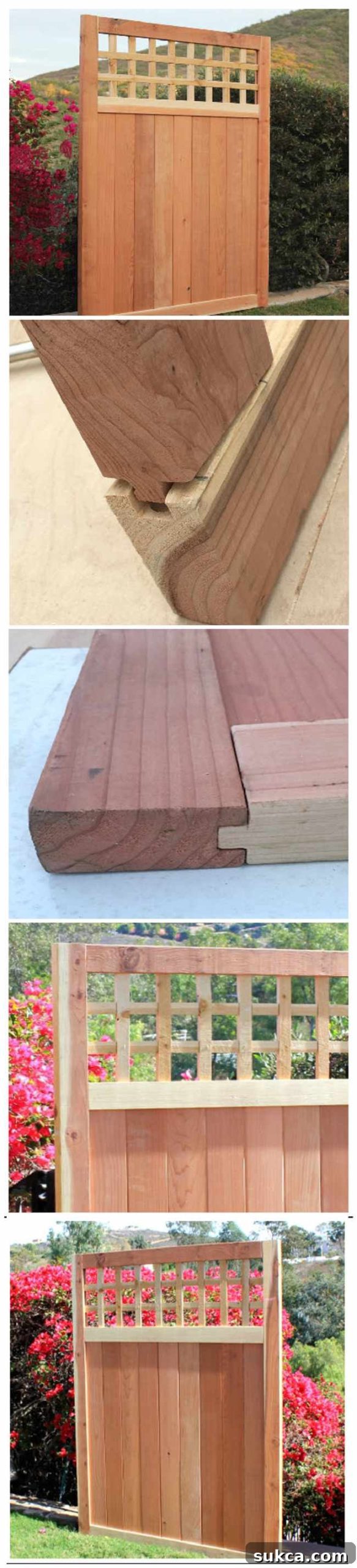

The End Result: A Gate Built to Endure

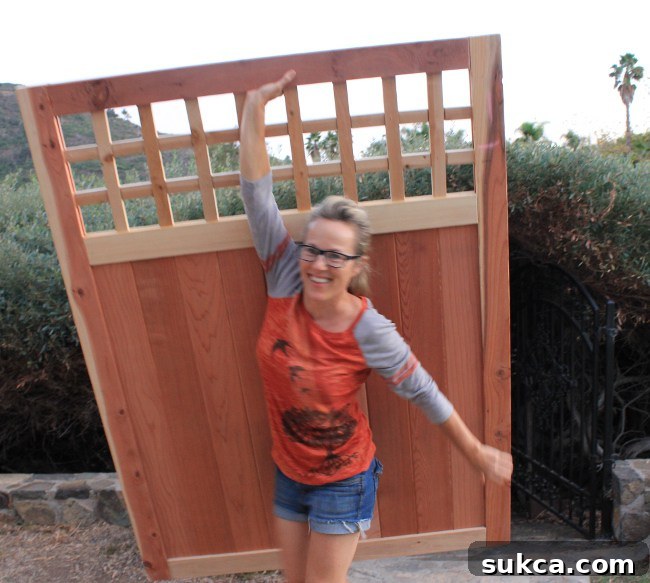

So, how strong is this gate, you ask? Only the passage of time will provide the ultimate testament, but early indications are incredibly promising. I confidently hauled it around the property by merely gripping the top rail, and it showed no signs of strain or flex. This initial real-world test suggests it’s off to a very good start, living up to its promise of being robust and sag-proof. The haunched mortise and tenon joint, combined with careful craftsmanship and the right materials, has clearly delivered a superior level of structural integrity.
Standing back and admiring the completed gate fills me with immense satisfaction. It’s not just a functional barrier; it’s a beautiful piece of woodworking, a testament to overcoming challenges with creativity and precision. The visual appeal of the redwood, the clean lines of the tongue and groove panels, and the delicate pattern of the cedar lattice come together harmoniously. This gate is a far cry from the flimsy, failing structures I aimed to replace. This project, while demanding, reinforced my belief in the power of quality joinery and the enduring strength of traditional techniques adapted for modern DIY. Now, with one gate successfully completed, the ranch’s never-ending to-do list beckons. I still have three more gates to build, 18 more panels to prepare, a grain feeder, an animal shelter, a chicken coop, automatic waterers, and compost bins on the horizon. But before I dive into the next challenging (and inevitably fun) project, I’m going to savor this moment, grab a well-deserved cup of coffee, and simply stare at my pretty, resilient gate for a few minutes. It’s a small victory, but a significant step towards creating a more functional and beautiful ranch, one strong wood joint at a time.
