Transforming a dull and uninspired basement bathroom into a beautifully inviting space doesn’t always require a complete overhaul. Sometimes, a strategic visual upgrade can make all the difference. This project focuses on dramatically enhancing a basement bathroom through the installation of elegant board and batten wainscoting, a classic design element that adds architectural interest and character to any room. This detailed guide will walk you through every step, from initial planning to the final coat of paint, ensuring you can achieve a professional-looking finish. We extend a big thank you to Arrow Fasteners, creators of the robust heavy-duty T50 stapler, for their support in making this renovation possible.

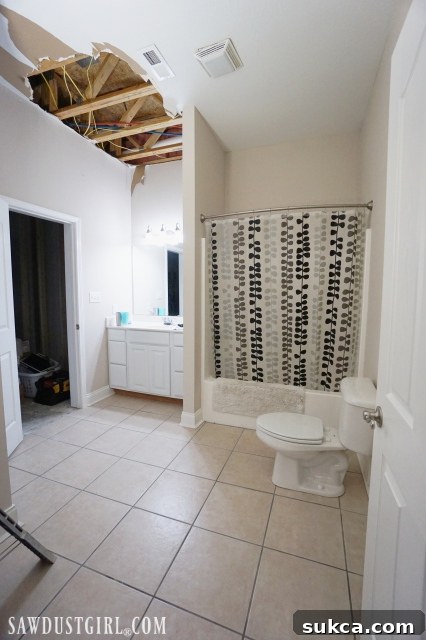

Before the Board and Batten Transformation
Before embarking on this exciting renovation, the basement bathroom was, to put it mildly, lacking in charm and appeal. With exposed ceiling elements and an overall bland aesthetic, it was a space that felt purely functional rather than welcoming. My initial thoughts often gravitated towards a full-scale demolition – envisioning jackhammering the concrete and completely reconfiguring the layout. However, after careful consideration, I opted for a more practical and visually impactful approach: enhancing the existing footprint. The goal was to dramatically improve the bathroom’s look and feel without the extensive work of structural changes. This decision not only saved time and resources but also proved that significant improvements are achievable within current constraints. The objective was clear: transform this lackluster space into a stylish and inviting haven using the timeless appeal of board and batten wainscoting.

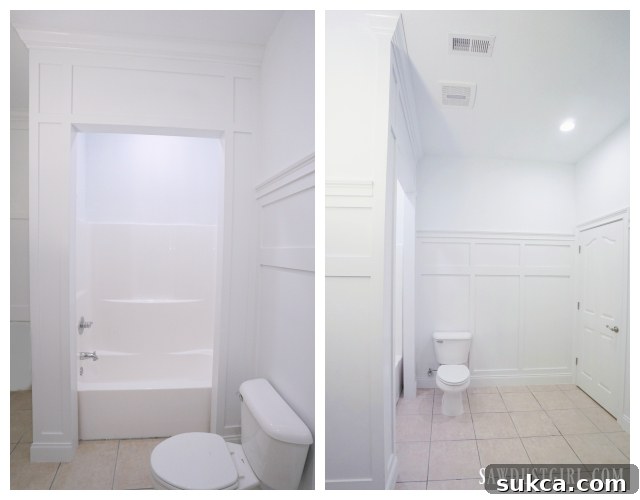

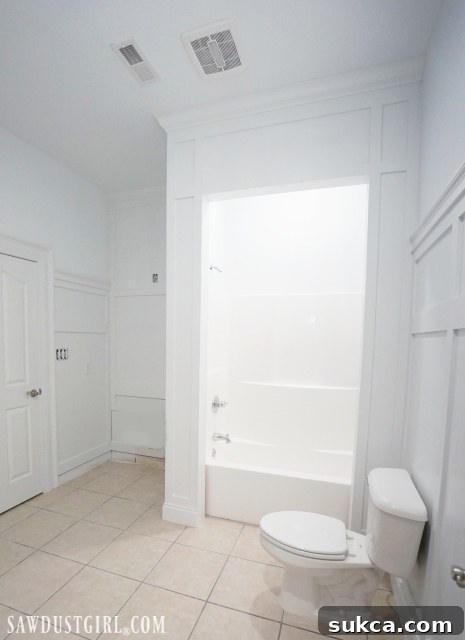

After: A Dramatic Improvement with Board and Batten
The transformation is truly remarkable. The introduction of board and batten wainscoting has elevated the entire ambiance of the bathroom, taking it from utterly forgettable to elegantly sophisticated. The clean lines and classic structure of the wainscoting instantly add depth, texture, and a touch of bespoke craftsmanship that was entirely absent before. The previously stark walls now boast a refined character, making the space feel more finished and thoughtfully designed. This visual upgrade not only enhances the room’s aesthetic appeal but also creates a more cohesive and welcoming atmosphere. The “after” state undeniably showcases a huge improvement, proving the power of well-executed decorative millwork in home renovation projects.

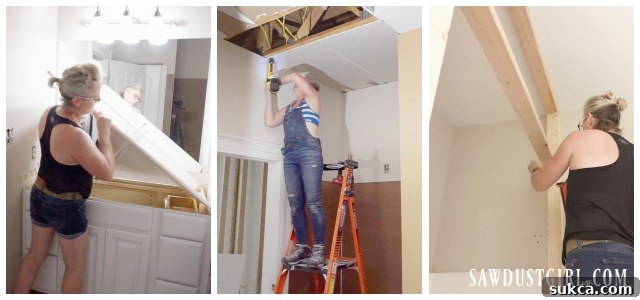

In preparation for this wainscoting project, several foundational steps were completed, as highlighted in my October Update. These initial tasks were crucial for creating a clean slate and a solid foundation for the upcoming decorative work. First, the old vanity, mirror, and light fixture were carefully removed to clear the walls and provide unobstructed access. Next, a hole in the ceiling was meticulously covered with new drywall, ensuring a smooth, continuous surface overhead. Finally, an “entrance wall” was constructed in front of the shower/tub area, a strategic addition that helps define the space and provides an ideal surface for the wainscoting. Once these initial preparations were complete, I stepped aside, allowing my capable assistant, Bucket, to meticulously handle all the necessary drywall repair throughout the rest of the basement, ensuring every surface was flawless before the trim work began.
Essential Tools and Materials for Board and Batten Wainscoting
Successful installation of board and batten wainscoting hinges on having the right tools and quality materials. Here’s a comprehensive list of what you’ll need, along with a brief explanation of why each item is crucial for achieving a durable and aesthetically pleasing finish:
- 1/8″ Tempered Hardboard: This thin, smooth material provides an excellent, seamless base for your wainscoting, effectively covering textured walls and creating a clean foundation for the battens.
- 1/2″ MDF (Medium-Density Fiberboard): Ideal for crafting the battens (rails and stiles). MDF is stable, smooth, and takes paint beautifully, ensuring a crisp, uniform look for your wainscoting frame.
- RB03 Casing: This specific type of molding is excellent for bulking out door casings and serving as the top rail or “topper” for your wainscoting, providing a cohesive and professional finish.

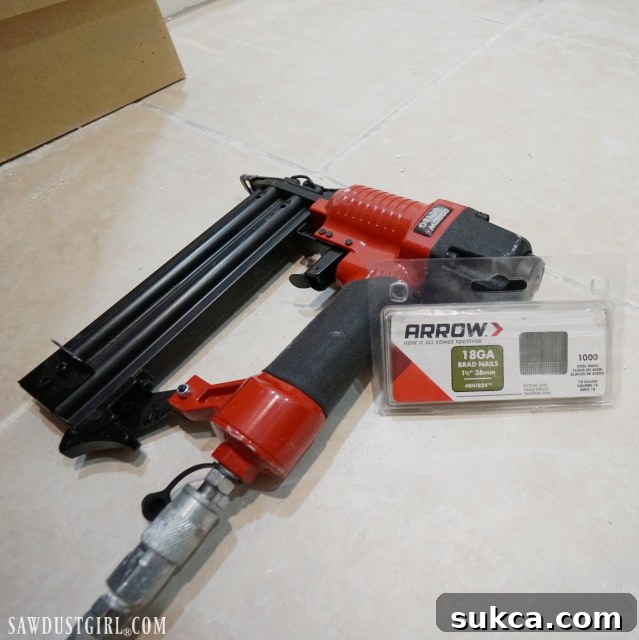

- Arrow Fastener 18 Gauge Nailer: An indispensable tool for quickly and securely attaching the battens and molding. An 18-gauge nailer leaves small holes, minimizing the need for extensive wood putty.
- 1 1/2″ Brad Nails: Perfectly sized for fastening the MDF battens and hardboard without splitting the material, providing strong hold for your wainscoting components.
- Baseboard: The finishing trim at the very bottom of the wall, providing a clean transition from the wainscoting to the floor and protecting the wall from scuffs.
- Crown Moulding: Used to add a decorative finish where the wainscoting extends to the ceiling, enhancing the architectural elegance of the room.
- Construction Adhesive: Essential for a robust installation, especially for the hardboard panels, ensuring they remain firmly in place on the walls.
- Wood Filler: For meticulously filling all nail holes and minor imperfections, creating a smooth, flawless surface ready for paint.
- Caulk: Critical for sealing gaps between molding pieces and walls, providing a seamless finish and protecting against moisture intrusion.
- Laser Level: A game-changer for ensuring perfectly straight and level lines when installing rails and stiles, crucial for professional results.
- Paint Sprayer (optional, but highly recommended): For applying primer and paint quickly and evenly, achieving a factory-like finish with minimal brush strokes.
- Sanding Sponges & Power Sander: For smoothing surfaces and softening edges, vital for a polished final appearance.
Detailed Installation Guide: Board and Batten Wainscoting
Embarking on the installation of board and batten wainscoting is a rewarding project that significantly elevates the aesthetics of any room. Follow these steps carefully to achieve a flawless, custom look.
1. Bulking Out Door Casings

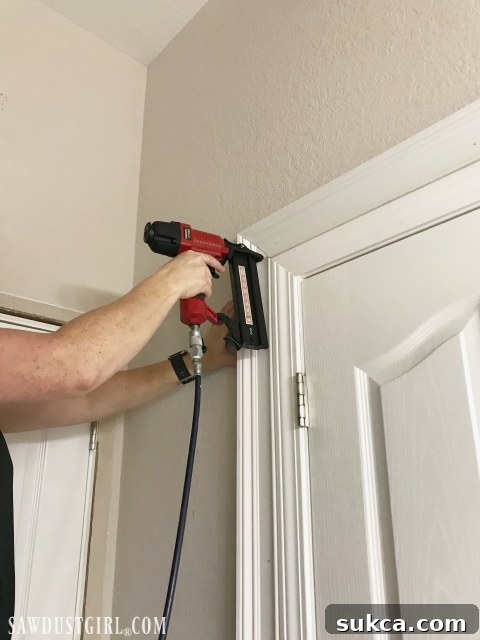

The very first step was to bulk out the existing door casings. This crucial preparation ensures that the new wainscoting, which has a certain thickness, does not protrude beyond the door or window trim. Personally, I prefer a flush finish where the wainscoting appears to integrate seamlessly with the existing architectural elements. Using the RB03 casing, which is 1 inch wide at its outer edge, allowed me to extend the door trim outwards, creating a robust framework. This meticulous detail prevents the wainscoting from looking like an afterthought and instead gives it a custom, built-in appearance that complements the rest of the home’s trim.
2. Preparing Walls with Hardboard Panels

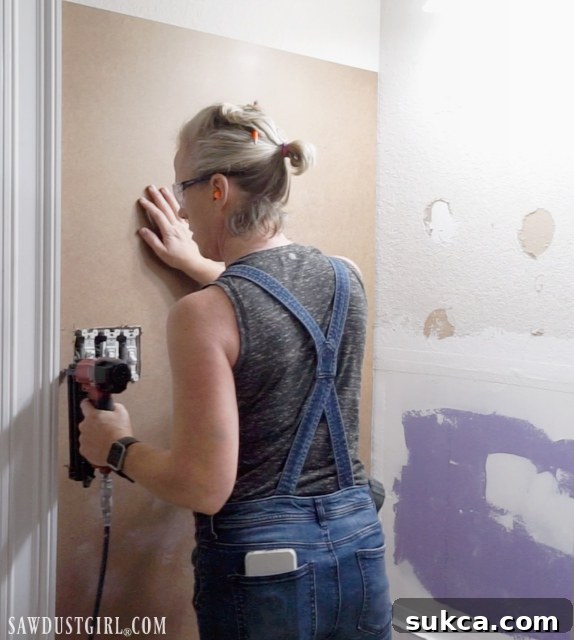

To achieve a perfectly smooth and uniform surface, I covered the walls with 1/8″ tempered hardboard. This step is a significant time-saver compared to skim coating heavily textured walls, as it instantly provides a pristine base for the wainscoting. After installing the hardboard, I carefully determined the desired height for the wainscoting. There was no complex mathematical formula involved; instead, I relied on visual balance and personal preference, adjusting the height until it simply “felt right” and pleased the eye. This intuitive approach allows for a design that truly suits the specific room and its proportions.

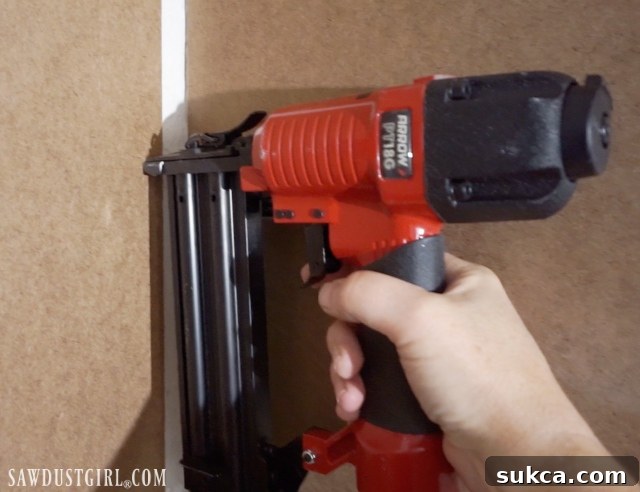

Given the thin and flexible nature of the hardboard, a combination of construction adhesive and brad nails into the wall studs was used to secure it firmly. The adhesive provides long-term bond strength, while the nails hold the panels in place until the adhesive cures. The hardboard sheets typically come in 4×8 foot dimensions. For walls wider than a single sheet, a seam might be unavoidable. In my case, some walls were wider, resulting in minor gaps on the sides that I knew would eventually be concealed by the 2 1/2″ MDF frame of the wainscoting itself.

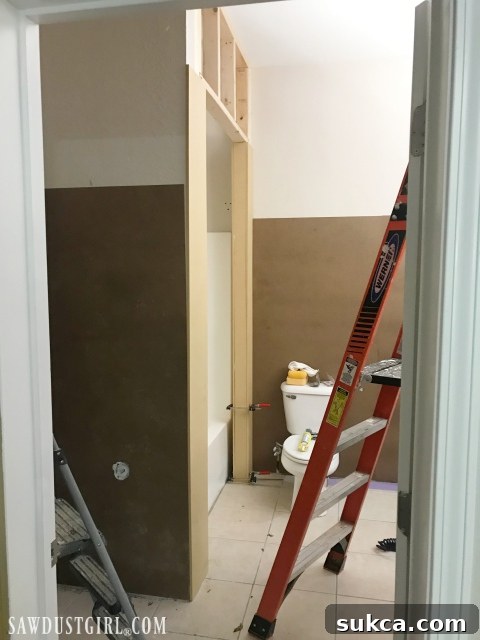

Despite careful planning, one unavoidable seam presented itself on a longer wall. A crucial tip for future projects is to determine the exact placement of your vertical battens (stiles) *before* installing the hardboard. This foresight allows you to strategically place any hardboard seams where they will be completely hidden beneath the stiles, saving significant effort in patching and sanding. Because I didn’t take this proactive step, I later had to meticulously hide the seam with wood putty, adding extra work to the finishing stages. Learn from my experience: a little planning goes a long way!

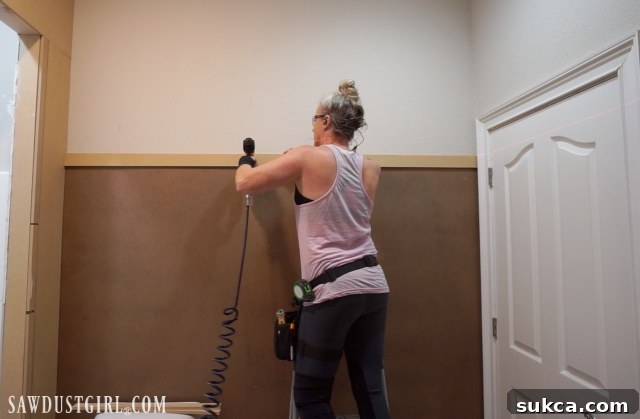

3. Installing MDF Rails and Stiles

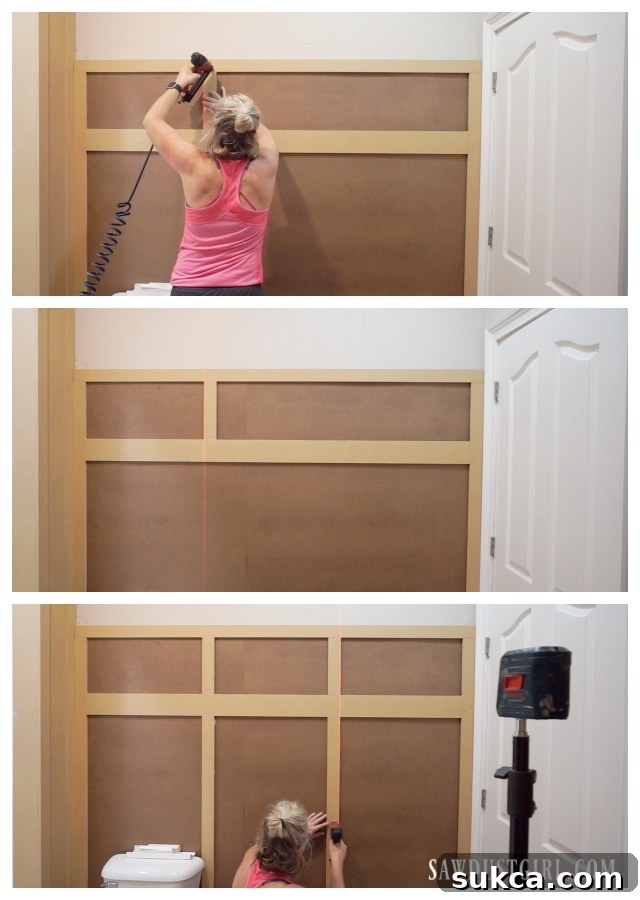

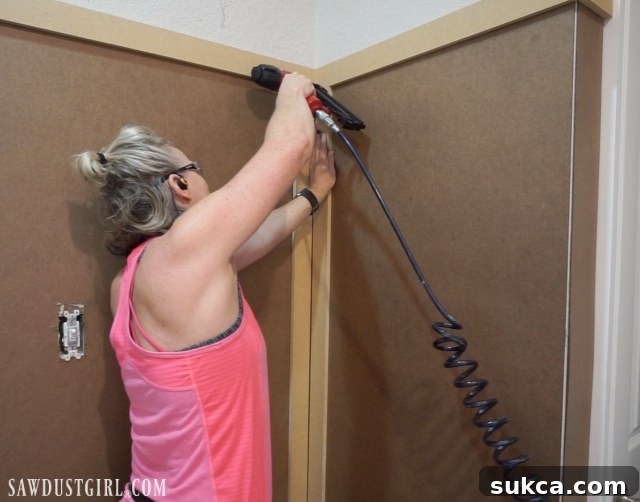

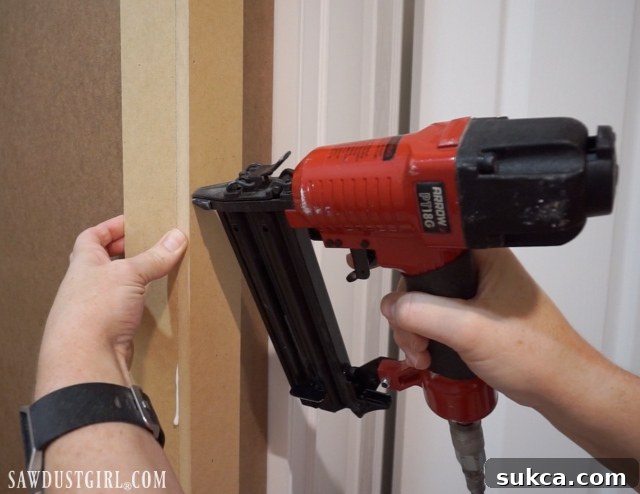

With the hardboard base complete, the next exciting phase involved creating the distinctive “frame” of the board and batten. I precision-cut numerous 2 1/2″ strips from a sheet of 1/2″ MDF. These strips serve as the horizontal rails and vertical stiles that form the visual pattern. To ensure impeccable accuracy, I utilized a laser level, projecting a perfectly straight line around the room as I attached each piece. The inherent rigidity of MDF allowed me to rely solely on nails to secure these strips, as their structural integrity is excellent. After the entire framework is in place and primed, every joint and seam will be meticulously caulked, which not only provides additional adhesive strength but also seals the MDF, protecting it from moisture in a bathroom environment.

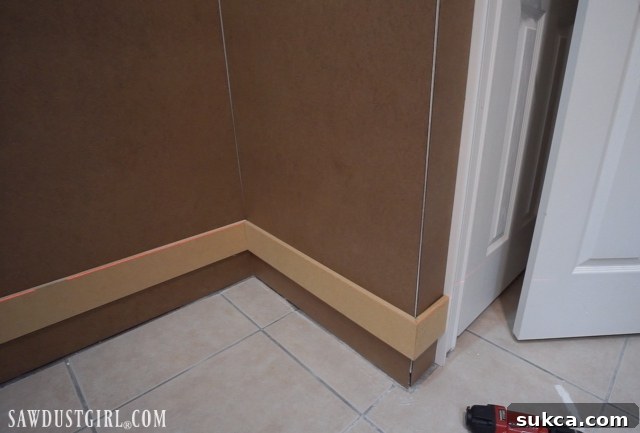

The design incorporated a wider bottom rail, strategically installed at 8″ off the floor. This specific height ensures that once the 5 1/2″ baseboard is attached, a proportionate 2 1/2″ section of the bottom rail will remain visible, creating a balanced aesthetic. This wider material also provides a substantial surface for nailing the baseboard securely. Later, I will add small scrap pieces of MDF at the very bottom, behind the baseboard, to provide full support and prevent any potential flexing or gaps. After the top and bottom rails were firmly in place, I proceeded to add the 2 1/2″ vertical stiles, completing the fundamental framework of the wainscoting. For inside corners, a deliberate 1/2″ gap was left, allowing both stiles to be fully visible and creating a crisp, defined corner. In contrast, for outside corners, one stile was butted directly over the other, with construction adhesive applied at the joint for strength and then nailed securely into place.

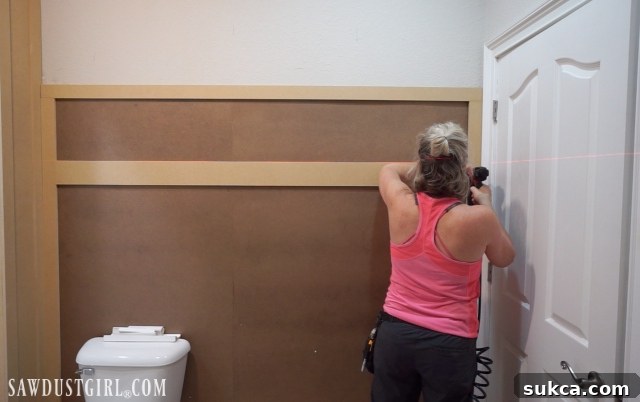

Next, a central horizontal rail, measuring 4 1/2″ wide, was installed. This wider dimension provides a pleasing visual break between the upper and lower vertical stiles, adding a subtle design element. Functionally, this wider rail offers the perfect support should I decide to install towel hooks in the future, providing a robust anchor point for hardware. Following this, the wall was divided into thirds, and additional stiles were added both above and below this central rail. Again, the laser level proved invaluable in ensuring every stile was in perfect vertical alignment, contributing to the overall precision and professional finish of the wainscoting.
At this stage, the wainscoting framework already looks impressive, and one could certainly proceed to paint and consider the project complete. However, when it comes to molding, my philosophy is that you can never have too much architectural detail. Therefore, I decided to cap off the wainscoting with a decorative molding piece. The selection process involved cutting samples of eight different moldings before finally discovering the perfect profile. This chosen molding was already primed, a convenient feature that meant it wouldn’t be added until all other components were sanded, primed, and fully prepared for the final coats of paint.
Finishing Touches: Priming, Filling, Sanding, and Painting
The quality of your finish largely depends on meticulous preparation. These steps, while often perceived as tedious, are absolutely critical for achieving a professional, long-lasting result.

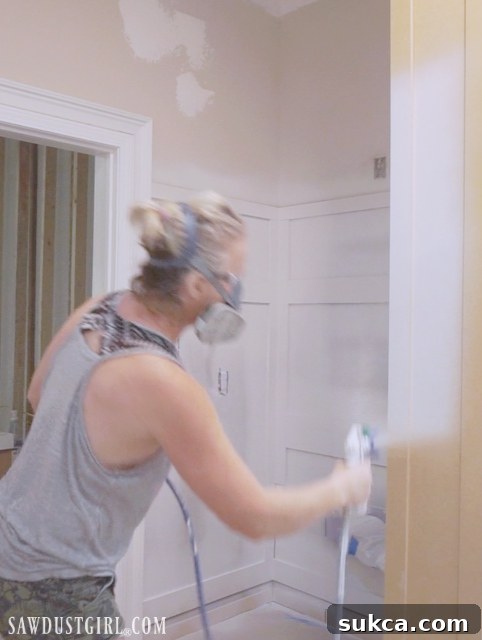

1. Priming the Wainscoting

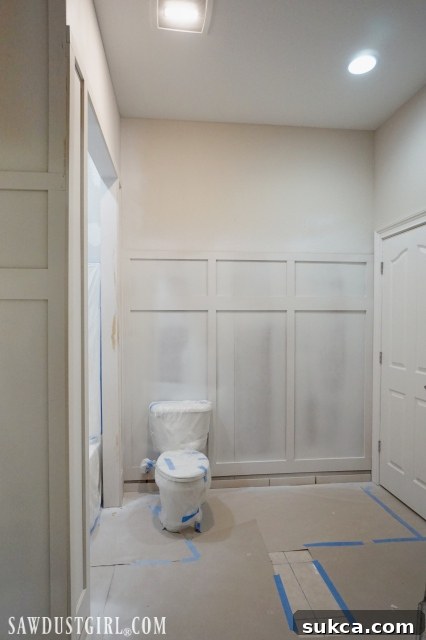

Applying a high-quality primer is a non-negotiable step. It ensures superior adhesion for your topcoat, provides a uniform base color, and helps seal the MDF and hardboard, preventing absorption and promoting a smoother finish. For this project, an airless sprayer was utilized to apply an even and efficient coat of primer across all the newly installed wainscoting components. This method delivers a factory-smooth finish, significantly reducing brush marks and ensuring optimal coverage.
2. Filling, Sanding, and Caulking for Perfection
Taking the time for thorough preparation before painting truly makes all the difference in the final finish. Any blemishes or imperfections will be accentuated by the paint, so addressing them meticulously at this stage is paramount.

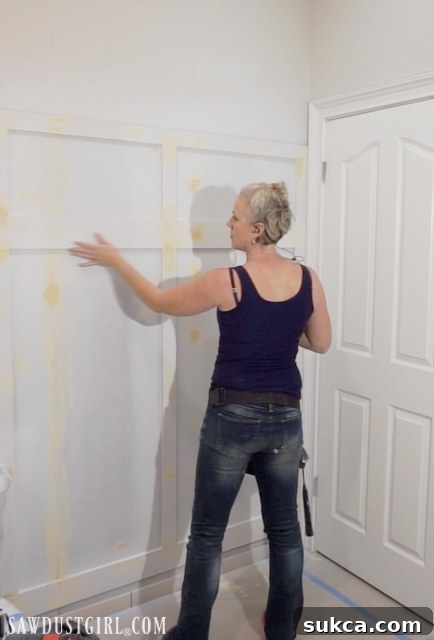

I began by using a high-quality wood filler to meticulously fill all nail holes, minor cracks, and any small gaps where the MDF pieces joined. Apply the filler slightly proud of the surface, as it will shrink slightly when dry.

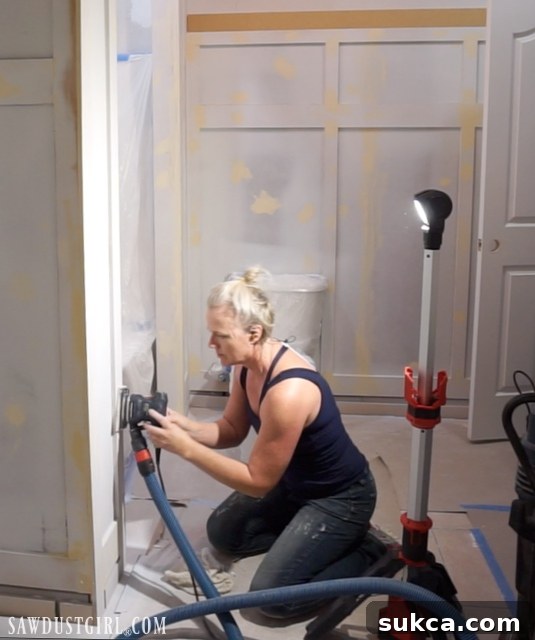

Once the wood filler was completely dry, I employed a power sander (connected to a dust collection vacuum for a cleaner workspace) to carefully sand away any excess filler, blemishes, or imperfections I could find. The goal is a perfectly smooth, uniform surface.

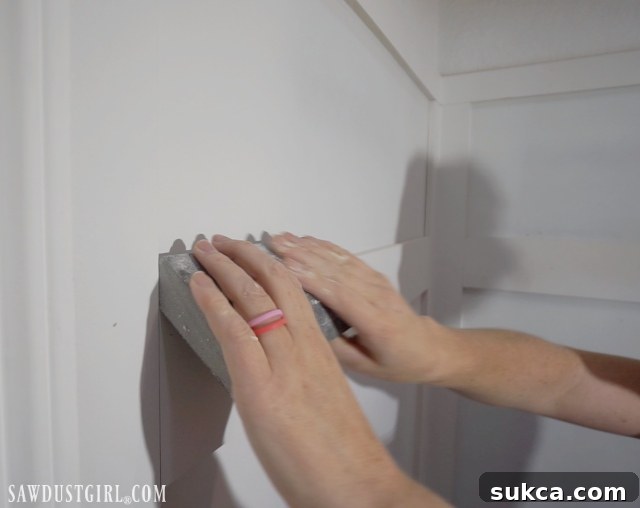

To further refine the feel and appearance, I used a hand sanding sponge to gently knock down all sharp edges on the MDF. This subtle step doesn’t necessarily “show” visually, but it creates a much softer, more comfortable tactile experience, truly elevating the perceived quality of the finished trim work.
3. Installing the Topper Molding

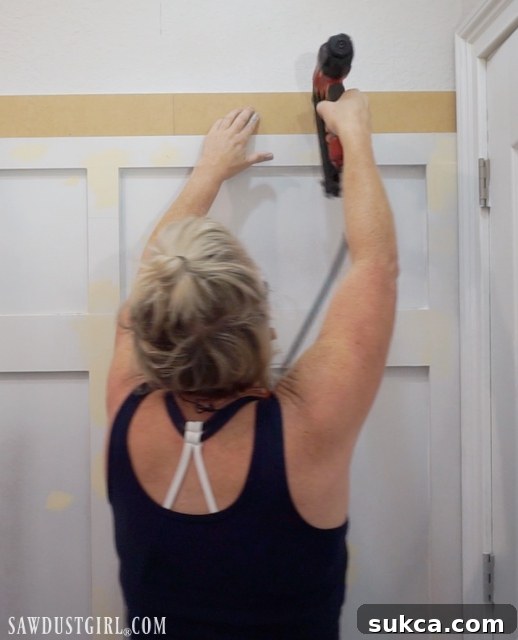

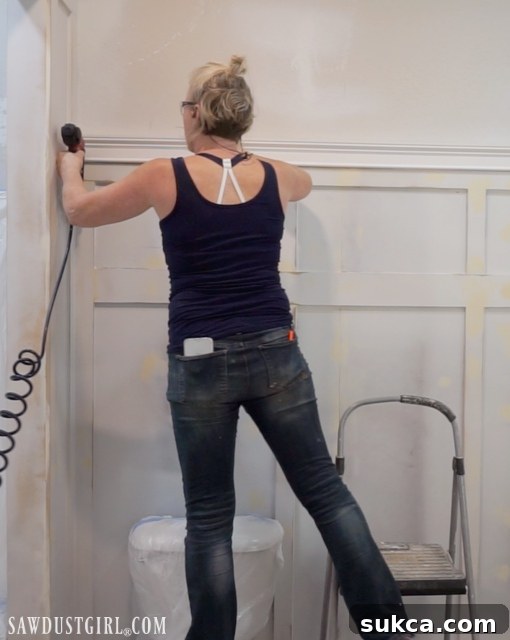

Finally, it was time to install the carefully selected topper molding. To give the molding a more substantial and luxurious appearance, I strategically added a thin scrap piece of MDF behind it. This trick pushes the molding forward slightly, making it appear thicker and more robust than its actual dimensions. It’s a simple yet effective way to add perceived value and depth to your trim work.

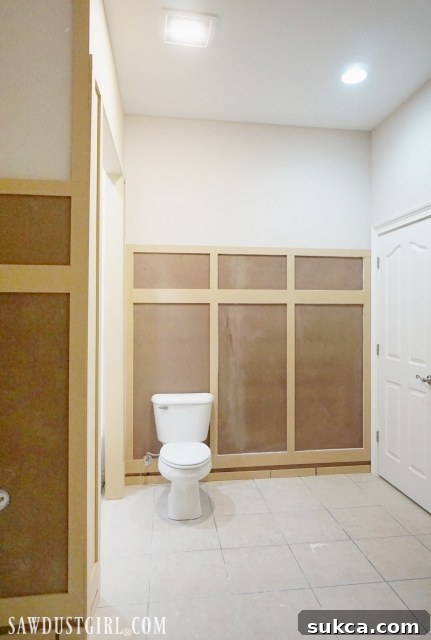

After trying eight different molding profiles, the ideal choice for the wainscoting topper turned out to be the very same casing used earlier to bulk out the door trim. This continuity creates a cohesive and harmonious design throughout the bathroom, demonstrating how a single molding profile can be versatile in different applications.

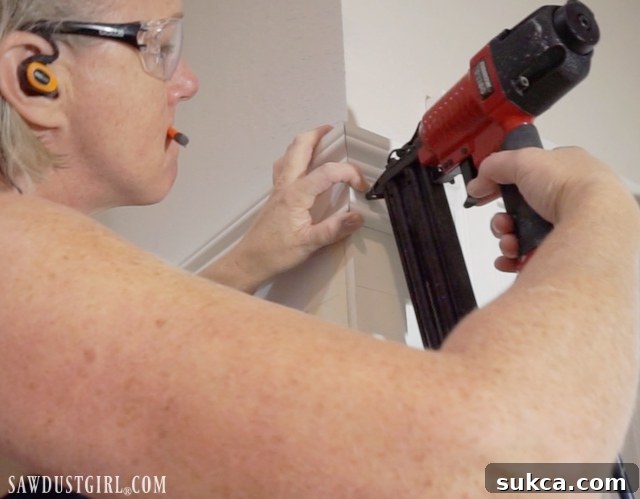

For the corners where the trim wrapped around multiple walls, I meticulously mitered the inside and outside corners, ensuring tight, clean joints that speak to quality craftsmanship. For pieces that butted up against the existing door trim, I slightly rounded the edges with a sanding sponge. This prevents a blunt, abrupt transition and instead creates a softer, more integrated look, making the new trim blend seamlessly with the existing elements.
4. Painting for the Final Finish

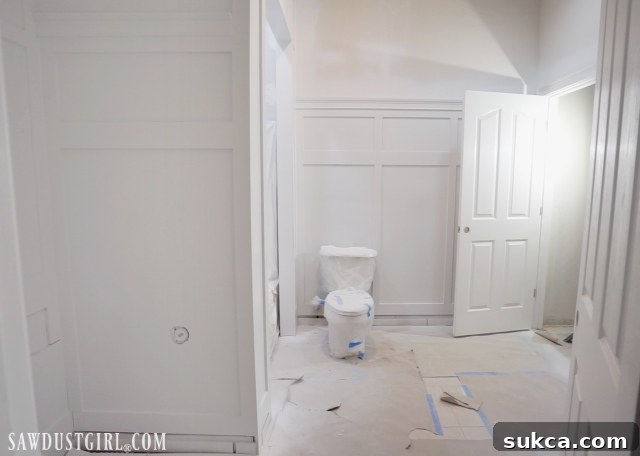

With all the trim work meticulously installed and prepped, it was time for the final coat of paint. Everything was sprayed with a durable semi-gloss paint. The semi-gloss finish is an excellent choice for bathrooms as it’s highly resistant to moisture, easy to clean, and provides a subtle sheen that enhances the architectural details of the wainscoting. Crucially, I set up sawhorses in another room to spray the baseboards separately. This technique prevents any dust or debris from the floor from embedding into the wet paint, which can lead to a rough, messy finish. Painting baseboards off-site ensures a pristine, smooth surface that contributes significantly to the overall high-end look of the bathroom.
5. Installing Base and Crown Moulding
The final pieces of the trim puzzle involve the baseboards and crown molding, which truly complete the polished look of the wainscoting.

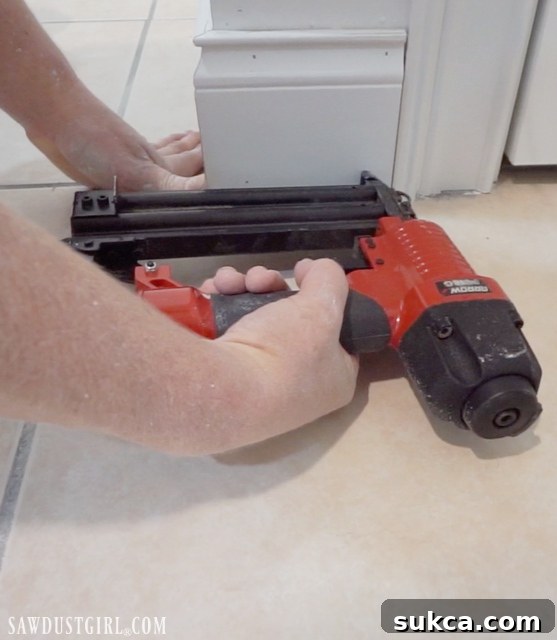

After carefully nailing the pre-painted baseboards into place along the bottom of the wainscoting, I returned to meticulously fill all the remaining nail holes with wood filler. Once dry, these spots were lightly sanded and then touched up with the semi-gloss paint, ensuring an unbroken, flawless finish from top to bottom.

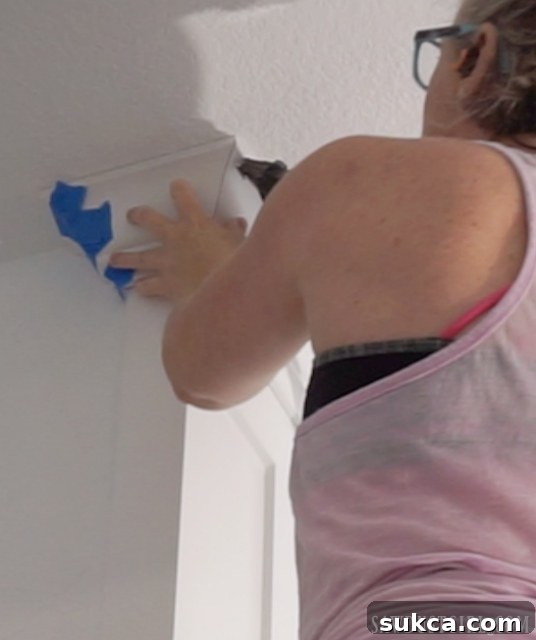

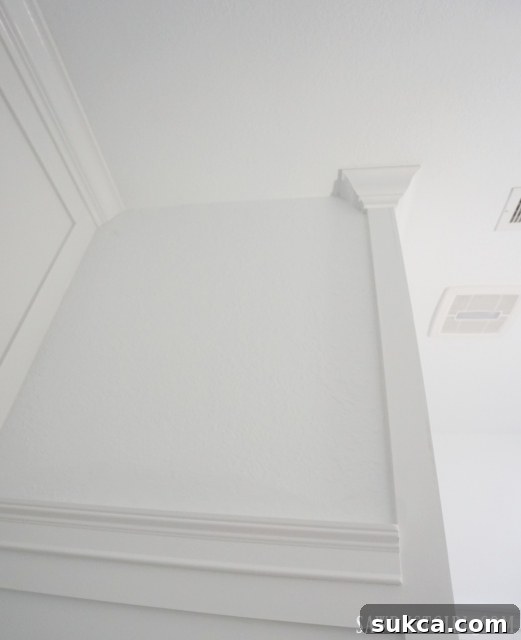

Crown molding was then added in the two specific areas where the wainscoting extended all the way up to the ceiling: the tub wall enclosure and the vanity wall. This elegant addition provides a sophisticated transition between the wainscoting and the ceiling, further enhancing the architectural grandeur of these sections. The crown molding was seamlessly wrapped around the side of the tub surround wall, concluding with a precise, clean return. A “return” is a small piece of molding mitered back into the wall, creating a neat, finished edge rather than an abrupt cut, showcasing attention to detail and a professional touch.

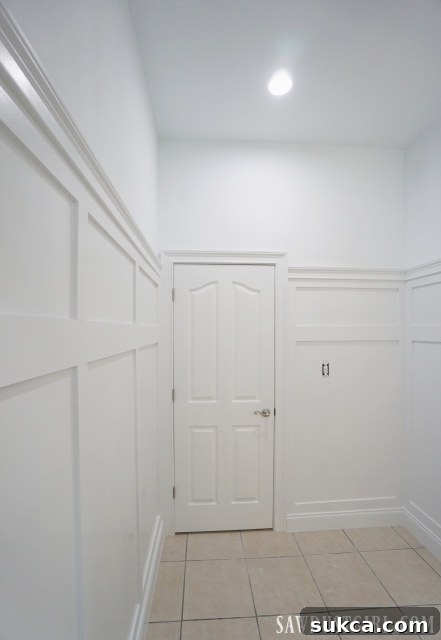

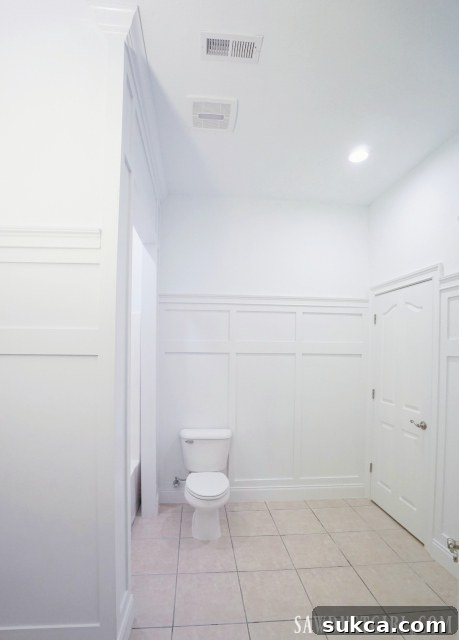

The Grand Reveal: A Stunning Bathroom Makeover

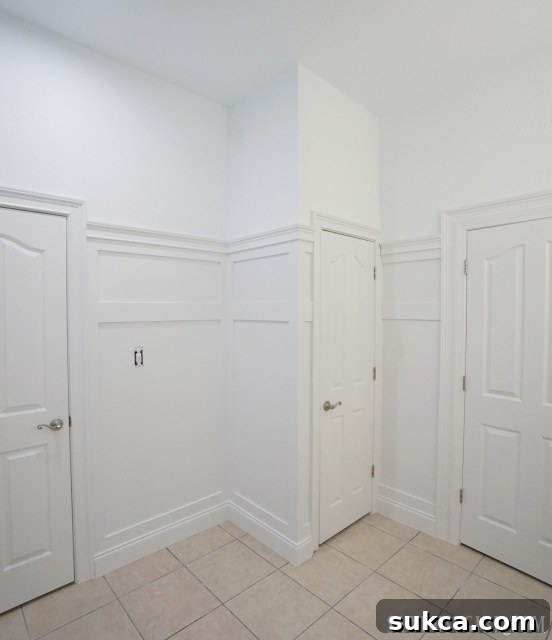

The final applications of caulk, meticulously sealing all remaining gaps and seams, along with a few strategic touch-up paint applications where needed, marked the official completion of this ambitious board and batten wainscoting project! The immediate impression is one of crisp, clean, all-white elegance. For now, the room remains a pristine canvas; the towel hooks haven’t been installed, and there are literally no accent pieces to break the monochromatic scheme. Even without these final decorative touches, I believe the transformation is undeniably beautiful and utterly refreshing.

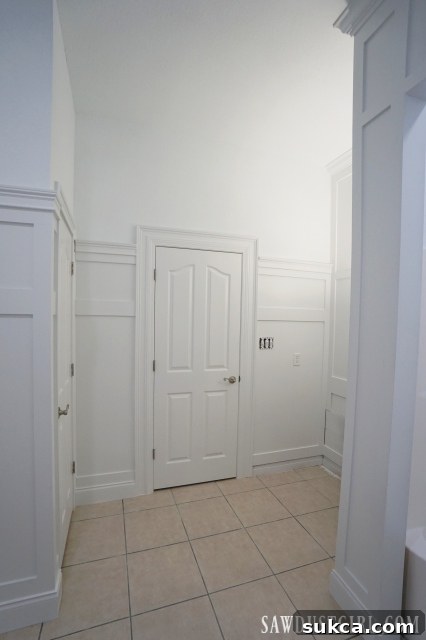

The only lingering detail is the existing floor tile. In hindsight, I wish I had taken the opportunity to chip it out and replace it before embarking on the wainscoting installation. To address this, my plan is to paint the grout lines, hoping this simple update will make my eyes a little happier with the floor’s appearance. Regardless, at this point, changing the tile is simply not an option. It is what it is! Despite this minor imperfection, the rest of the bathroom has been transformed into a truly lovely space, or at least, it soon will be once the final fixtures and accents are in place.
The next exciting project on the horizon for this beautifully refreshed bathroom is to build a custom vanity. I’m genuinely looking forward to tackling that creative challenge. However, that small project will have to wait until I’ve completed the larger task of installing all the kitchen cabinet doors. Stay tuned for more DIY adventures and transformations!
