Transform your living space with custom-built elegance! This comprehensive guide provides detailed plans for constructing a stunning built-in bookshelf, designed to perfectly complement your base cabinets. Part of the acclaimed Cara Collection, these bookshelves offer unparalleled versatility and a sophisticated touch to any room. Whether you envision a compact single-wide unit, a spacious double-wide display, or even an impressive wall-to-wall library, these flexible plans empower you to create the storage solution of your dreams. Embrace the satisfaction of DIY and elevate your home’s aesthetic with bespoke carpentry.
Ready to embark on your woodworking journey? Let’s gather the necessary materials and tools.
Crafting Your Dream Bookshelf: Essential Materials

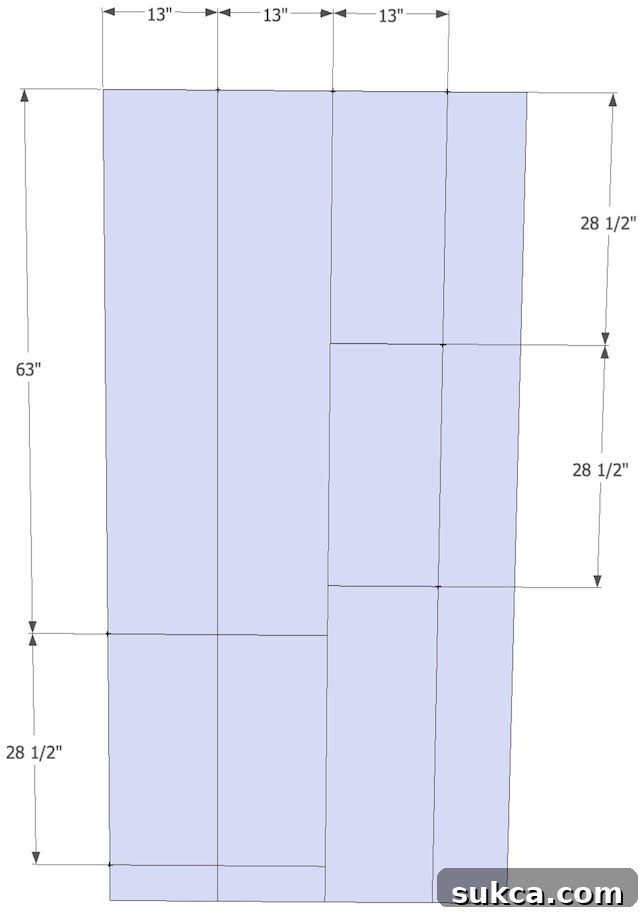

Building a sturdy and visually appealing built-in bookshelf starts with selecting the right materials. This list ensures durability, ease of construction, and a beautiful finish that will last for years. Investing in quality plywood and lumber will significantly impact the final look and longevity of your project.
Materials List:
- 2 sheets of 3/4″ cabinet grade plywood: Opt for cabinet-grade plywood for its smooth, stable surface, ideal for painting or staining. This will be used for the main structural components like sides, tops, and shelves. Ensure it’s cut according to the detailed cut-list diagram provided below for optimal material usage.
- 2 sheets of 1/4″ plywood, hardboard, or beadboard: These materials are designated for the back panels and optional side panels, adding rigidity and a finished look. Beadboard offers a classic, textured aesthetic, while plain plywood or hardboard provides a clean, modern finish.
- 1×2 and 1×3 Poplar for faceframe: Poplar is an excellent choice for faceframes due to its smooth grain, stability, and ease of painting. The faceframe will conceal the plywood edges and provide a refined, professional appearance.
- 1 3/4″ wood screws: Essential for joining the main plywood components, offering strong, reliable connections throughout the bookshelf structure.
- 1 1/4″ cabinet screws (washer-head): These screws are crucial for securing individual bookshelf units together, creating a seamless, robust structure when building a double-wide or larger unit. The washer head prevents pull-through.
- 3″ cabinet screws (washer-head): Used for securely attaching the completed bookshelf unit to wall studs, ensuring stability and safety. The large washer head provides maximum holding power without countersinking too deeply.
- 3/4″-1 1/4″ staples or #6 wood screws: For attaching the back panels, providing a quick yet secure fastening method.
- Wood glue: An indispensable component for any woodworking project, wood glue dramatically increases the strength and durability of screw joints, creating bonds stronger than the wood itself.
- Caulk or construction adhesive: Used for attaching decorative side panels, and can also be used to fill any small gaps for a flawless finish. Construction adhesive offers a strong, permanent bond.
In addition to these materials, ensure you have standard woodworking tools such as a drill/driver, tape measure, level, clamps (especially corner clamps or assembly squares), a miter saw or circular saw for precise cuts, and essential safety gear like eye protection and hearing protection. Careful preparation and a well-organized workspace will make the construction process smoother and more enjoyable.
With your materials and tools ready, let’s begin the assembly process!
Step 1: Assembling the Core Structure – Attaching Top and Shelves to Sides
This initial step forms the basic framework of your bookshelf. Accuracy here is paramount for a professional-looking and structurally sound unit. You’ll be creating strong butt joints by securing the shelves directly into the side panels.
- Prepare Your Components: Lay out your pre-cut plywood pieces. Identify the two side panels, the top panel, and all the shelf pieces. Mark the precise locations for each shelf on the interior of the side panels according to your design or the provided plans.
- Secure Shelves with Glue and Screws: Apply a generous bead of high-quality wood glue along the ends of each shelf where it will meet the side panel. Position the shelf precisely against the marked line on the side panel.
- Ensure Squareness: This is a critical point. Utilize an assembly square, corner clamps, or even large bar clamps to hold the shelf perfectly square (at a 90-degree angle) to the side panel while you secure it. This prevents any leaning or twisting in the final structure, ensuring your books sit straight. For visual guidance on useful tools, refer to Handy Gadgets for the New Carpenter.
- Drive the Screws: While the shelf is held square, drive 1 3/4″ wood screws directly through the side panel into the end grain of the shelf. For a cleaner look and to prevent splitting, predrill pilot holes and countersink slightly so the screw heads sit just below the surface of the plywood. Don’t worry about these screws being visible; they will be completely hidden later by the faceframe and side panels, contributing to the “built-in” aesthetic. Continue this process for all shelves and the top panel, working methodically to maintain squareness with each joint.
Once all shelves and the top are securely fastened to both side panels, you’ll have the primary skeletal structure of your bookshelf. Take a moment to double-check all connections and ensure stability before moving on.

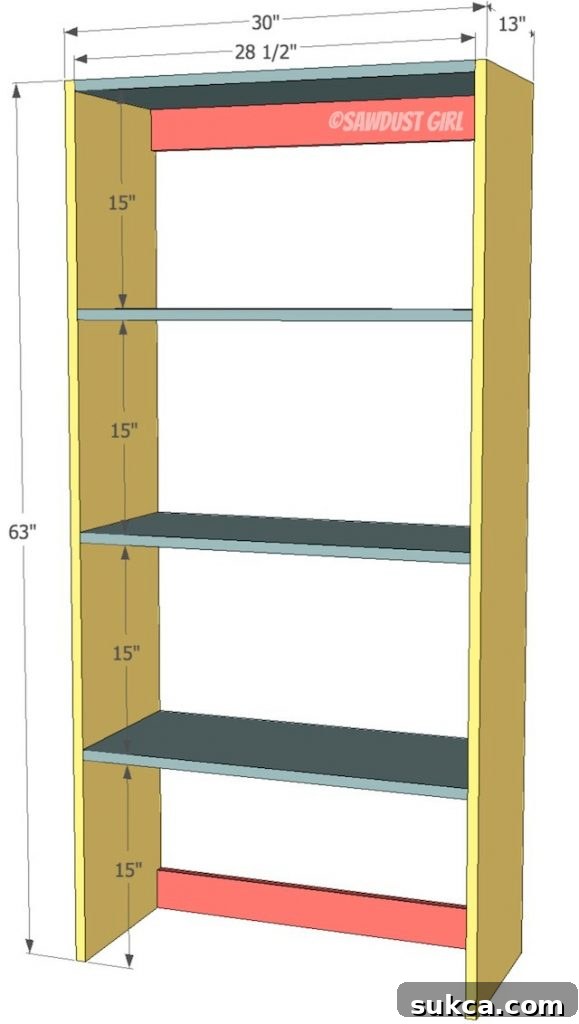

Step 2: Reinforcing the Structure – Attaching Cleats
Cleats serve a dual purpose: they add significant structural integrity to the bookshelf and provide crucial mounting points for securing the unit to your wall. This step ensures your built-in bookshelf is not only beautiful but also incredibly stable and safe.
- Cut Cleats from Leftover Plywood: Utilize any remaining 3/4″ cabinet-grade plywood from your initial cuts. Precision isn’t as critical here as with the main structural components, but aim for clean cuts.
- Cleat Dimensions: Each cleat should measure approximately 3″ in height by 28 1/2″ in length. You will need at least two cleats per bookshelf unit (one for the top, one for the bottom).
- Attach Cleats with Glue and Screws: Apply wood glue to one side of a cleat. Position the cleat flush with the back edge of your bookshelf structure. Drive two 1 3/4″ wood screws through the cleat into each side panel. Ensure the screws are long enough to penetrate the side panel and provide a strong hold.
- Strategic Cleat Placement:
- The top cleat should be positioned directly underneath the bookshelf’s top panel, providing support and a strong anchoring point.
- The bottom cleat should be flush with the bottom edge of the side panels. This cleat will also contribute to the overall rigidity and provide another anchoring point.
By adding these cleats, you’re significantly enhancing the robustness of your bookshelf, preparing it for the next stages of assembly and eventual installation. These hidden reinforcements are key to a lasting built-in unit.
Now, let’s make sure everything is perfectly aligned and true.
Step 3: Achieving Perfection – Squaring Up Your Bookshelf
A square cabinet is a happy cabinet, and a square bookshelf is a foundational element for a professional finish. This step is crucial for ensuring that your unit sits flush against walls, accepts faceframes properly, and doesn’t look “off” once installed. Don’t skip this!
- The Diagonal Measurement Test: The most reliable way to check for squareness is to measure the diagonals. Use a tape measure to measure from the top-right corner to the bottom-left corner, and then from the top-left corner to the bottom-right corner.
- The Golden Rule: For a perfectly square cabinet, these two diagonal measurements MUST be exactly the same. If they differ, even by a small amount, your cabinet is out of square.
- Manipulating for Squareness: If your measurements aren’t identical, it’s time to gently persuade your cabinet into shape. This usually involves carefully pushing or pulling opposite corners to adjust the frame. Sometimes, a gentle kick (with caution!) can help shift the structure. The goal is to get those diagonal measurements to match. Continue adjusting and remeasuring until perfect squareness is achieved. This minor effort now saves major headaches later with faceframes, back panels, and installation.
Once your bookshelf is square, it’s ready for the back panel, which will lock it into its true shape, preventing any future shifting.

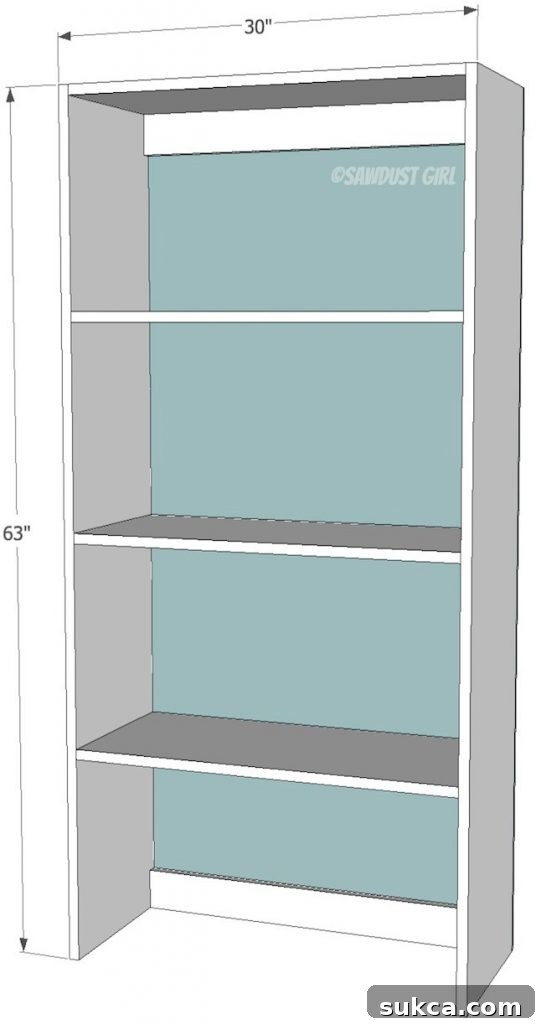

Step 4: Enhancing Stability and Aesthetics – Attaching the Back Panel
The back panel is more than just a decorative element; it significantly increases the structural rigidity of your bookshelf, prevents items from falling out the back, and creates a clean, finished appearance.
- Cut Your Back Panels: From your 1/4″ material (plywood, hardboard, or beadboard), cut two back panels. Each panel should measure 30″ x 63″. Double-check these measurements against your assembled unit for the best fit, as slight variations can occur during assembly. A precise fit minimizes gaps and enhances the finished look.
- Positioning the Back: Place the cut back panels onto the rear of your squared bookshelf unit. Ensure that the edges of the back panel are flush with the exterior edges of the bookshelf’s side panels, top, and bottom cleats.
- Secure the Back Panel: Using either 3/4″ to 1 1/4″ staples or #6 wood screws, securely attach the back panel to the bookshelf structure. Drive fasteners along all four edges of the back panel, spacing them approximately 4-6 inches apart. Also, add fasteners along the lines where the back panel meets each horizontal shelf and the top and bottom cleats. This creates a strong, stiff box, locking in the squareness you achieved in the previous step. If using screws, predrill pilot holes to prevent splitting the thin material.
With the back panel in place, your bookshelf now has a fully enclosed and robust structure, ready for the next phase of assembly if you’re building a wider unit.
For wider units, it’s time to merge your individual bookshelf cabinets into one cohesive piece.
Step 5: Creating a Unified Look – Attaching Two Bookshelves Together
If your design calls for a double-wide bookshelf or an even larger continuous unit, this step is essential for creating a seamless, robust structure that appears as a single piece of furniture. Proper alignment and secure fastening are key.
- Position and Align: Carefully set two completed bookshelf units side-by-side. The most critical aspect here is ensuring that the front edges of both units are perfectly flush with each other. Any misalignment will be noticeable once the faceframe is attached. Use a straightedge or a long level to confirm perfect alignment across the front.
- Secure with Clamps: Once the units are perfectly aligned, use strong woodworking clamps to tightly hold the adjacent sides together. Place clamps at the top, middle, and bottom of the shared side to prevent any movement during fastening.
- Drive Cabinet Screws: While the units are clamped, use 1 1/4″ cabinet screws (washer-head screws are ideal here) to permanently join them. Drive screws through the side of one cabinet into the side of the adjacent cabinet. Place screws strategically:
- One screw near the front, approximately 1-2 inches from the front edge, where it will eventually be hidden by the faceframe.
- Another screw near the back, roughly 1-2 inches from the back edge, ensuring it penetrates both panels securely.
- Add additional screws evenly spaced between the front and back screws, ensuring they pass through both side panels. For taller units, place screws at each shelf level.
This process transforms multiple individual cabinets into one solid, integrated unit, ready for the faceframe. Take your time with the alignment to achieve a truly professional built-in appearance.

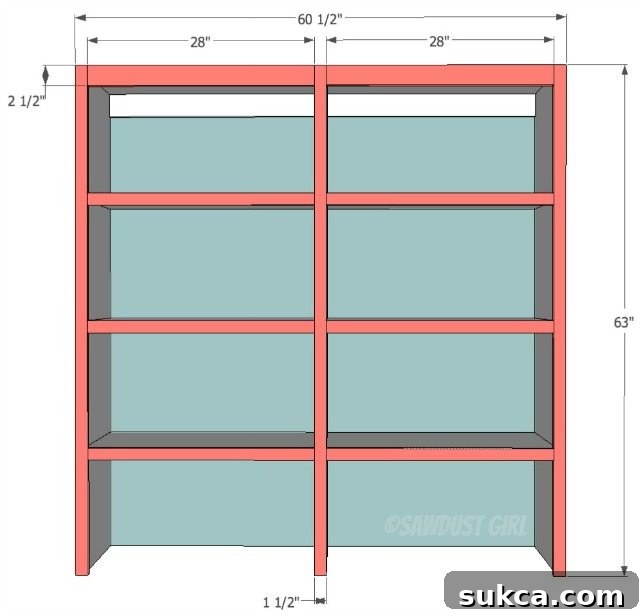

Step 6: The Finishing Touch – Building the Faceframe
The faceframe is arguably the most important element for achieving that coveted built-in look. It covers the exposed plywood edges, adds significant rigidity to the front of the cabinet, and provides a surface for attaching doors (if applicable) and decorative trim.
- Select Your Poplar: Use 1×2 and 1×3 poplar lumber for your faceframe. Poplar is excellent for painting due to its fine, consistent grain.
- Understand Dimensions: Remember that “1×2” and “1×3” are nominal sizes. The actual dimensions are 3/4″ x 1 1/2″ for 1×2 and 3/4″ x 2 1/2″ for 1×3. Plan your cuts based on these actual measurements.
- Design the Faceframe: Build the faceframe as a separate unit, mimicking the opening of your bookshelf. The vertical stiles will be 1x2s, while the horizontal rails will mostly be 1x2s. Crucially, the top rail should be a 1×3. This wider top rail provides a more substantial look and often aligns with crown molding or other architectural elements.
- Join with Pocket Holes: Use pocket hole joinery for constructing the faceframe. This method creates strong, hidden joints, perfect for a clean, professional appearance. Drill pocket holes on the back side of the frame components where they won’t be visible once assembled.
- Accommodate Side Panels: The faceframe should be designed to be 1/2″ wider than your assembled double built-in bookshelf. This slight overhang on each side is intentional; it provides the necessary lip to conceal the decorative side panels that will be added later, creating a flush, finished edge.
A precisely built faceframe is the secret to a high-end, custom-built look, transforming simple plywood boxes into elegant furniture.
Step 7: Integrating the Faceframe – Attaching It to the Bookshelf
With your faceframe meticulously constructed, it’s time to unite it with the bookshelf body. This step requires careful alignment and secure fastening to ensure a flawless front appearance.
- Align with Precision: Carefully position the completed faceframe onto the front of your bookshelf unit. Ensure that the top edge of the faceframe is perfectly flush with the top of the bookshelf. The side edges should overhang equally on both sides (typically 1/4″ per side to accommodate the side panels, as discussed in Step 6). Take your time to achieve perfect alignment.
- Secure with Wood Glue: Apply a continuous bead of wood glue along the contact points where the back of the faceframe meets the front edges of the plywood bookshelf structure. Glue provides a strong, permanent bond that will significantly enhance the rigidity of the entire unit.
- Choose Your Fastening Method: You have a couple of excellent options for securing the faceframe:
- Finish Nails: For a quick and nearly invisible method, use small gauge finish nails (e.g., 18-gauge brad nails) to secure the faceframe to the plywood edges. Drive nails every 6-8 inches along all contact points. Use a nail gun for efficiency and consistency. The small holes can be easily filled with wood putty and sanded smooth before finishing.
- Pocket Hole Screws (Alternative): If you drilled pocket holes on the *outside* faces of the bookshelf sides (where the decorative side panels will eventually hide them), you can use pocket hole screws to attach the faceframe from the side. This provides an extremely strong, invisible connection from the front. Ensure these pocket holes are indeed hidden by the side panels.
- Clamp and Cure: After fastening, use clamps to hold the faceframe tightly against the bookshelf while the glue dries. This ensures maximum adhesion and a tight joint. Wipe away any excess glue squeeze-out immediately with a damp cloth.
Once the glue has dried and the fasteners are in place, your bookshelf will begin to truly take on the appearance of a custom-built piece, with a strong, finished front.
Almost there! The final decorative touches will truly make these bookshelves shine.
Step 8: The Polished Look – Attaching Side Panels
The side panels are the finishing touch that transforms a functional bookshelf into a seamless, custom-built feature. They serve to hide the raw edges of the plywood, any visible screws from assembly, and the back panel’s raw edge, creating a truly integrated look.

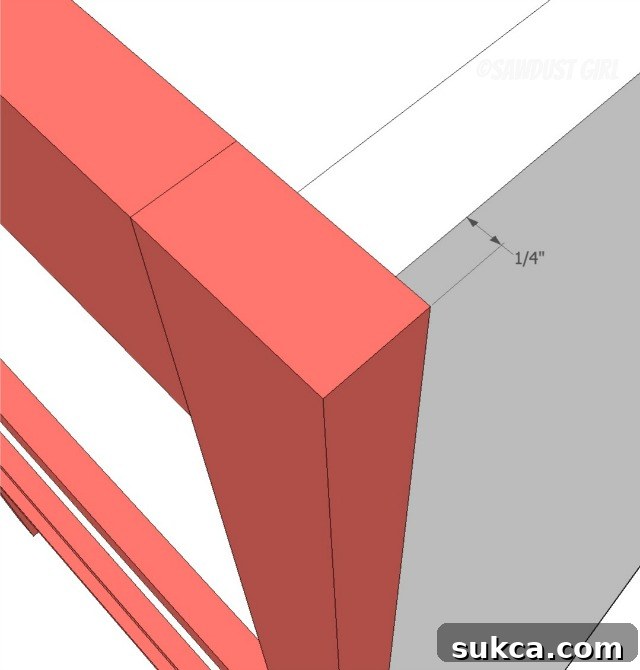

- Understanding Faceframe Overhang: Recall that your faceframe was designed to extend approximately 1/4″ beyond the side edges of the bookshelf box. This creates a small recess for the side panel to sit flush with the faceframe, concealing the plywood side of the bookshelf.
- Cut Your Side Panels: From your 1/4″ beadboard, plywood, or hardboard, cut the side panels. While a suggested size is 63″ x 13 1/4″, it is absolutely crucial to measure your specific bookshelf sides exactly. Cut the panels to precisely fit the space behind the faceframe and extend all the way to the back of your back panel. This ensures that the raw edge of the back panel is also completely hidden, creating a clean, professional finish from all angles.
- Choose Your Panel Material:
- Beadboard: Offers a charming, cottage-style aesthetic with its distinctive vertical grooves.
- Plywood or Hardboard: Provides a smooth, contemporary surface that can be painted to match your decor, or stained if using a decorative plywood.
- Attach with Adhesive: The preferred method for attaching side panels is with caulk or construction adhesive. Apply a generous, wavy bead of adhesive to the back of the side panel. Position the panel precisely, aligning it flush with the faceframe on the front and extending to the back of the unit. Apply firm, even pressure across the entire panel for several minutes to ensure good adhesion. For detailed guidance on applying beadboard, see How to Apply Beadboard to Cabinets.
- Optional Finish Nails: For added security or if you prefer mechanical fasteners, you can use small gauge finish nails (e.g., 23-gauge pin nails or 18-gauge brad nails). Ensure the nails are short enough (e.g., 3/4″ to 1″) so they do not puncture through the main bookshelf side panels, which would create unsightly holes. Drive them discreetly along the edges or in the grooves of beadboard.
Once the adhesive has cured, your built-in bookshelf will possess a truly finished, furniture-grade appearance.
Now for the final, and most crucial, step: securely installing your magnificent new built-in bookshelves.
Installation: Securing Your Built-in Bookshelf
With your custom bookshelf fully assembled and aesthetically complete, the final step is to securely install it onto your base cabinets and to the wall. This ensures stability, safety, and permanence, truly integrating the unit into your home.
- Positioning on Base Cabinets: Carefully lift and set the assembled bookshelf unit directly on top of your existing bookcase base cabinets. Ensure it is centered and aligned perfectly with the base units. Use a level to check that the bookshelf is plumb (vertically straight) and level (horizontally flat). Use shims if necessary between the bookshelf and the base cabinets, or between the bookshelf and the wall, to correct any slight unevenness.
- Locate Wall Studs: Before fastening, use a stud finder to precisely locate the wall studs behind where your bookshelf will be installed. Mark their locations clearly. Attaching directly into studs provides the strongest and safest mounting.
- Secure to the Wall: Through the pre-installed cleats inside your bookshelf (from Step 2), drive 3″ cabinet screws (washer-head screws are highly recommended for their superior holding power and resistance to pull-through) directly into the wall studs. Aim for at least two screws per cleat into different studs if possible. The washer-head design ensures that the screw bites firmly into the cleat without sinking too deeply, maintaining maximum strength. These screws will be hidden within the bookshelf, contributing to its seamless built-in appearance.
- Optional: Secure to Base Cabinets: For added stability, you can also drive screws from inside the bottom of your new bookshelf unit down into the top of your existing base cabinets, if applicable. Use appropriate length screws that won’t penetrate through the top of your base cabinets.
- Finishing Touches: Once securely fastened, you can apply caulk around any small gaps where the bookshelf meets the wall or ceiling for a truly custom, seamless finish. Then, it’s ready for painting or staining to match your desired aesthetic.

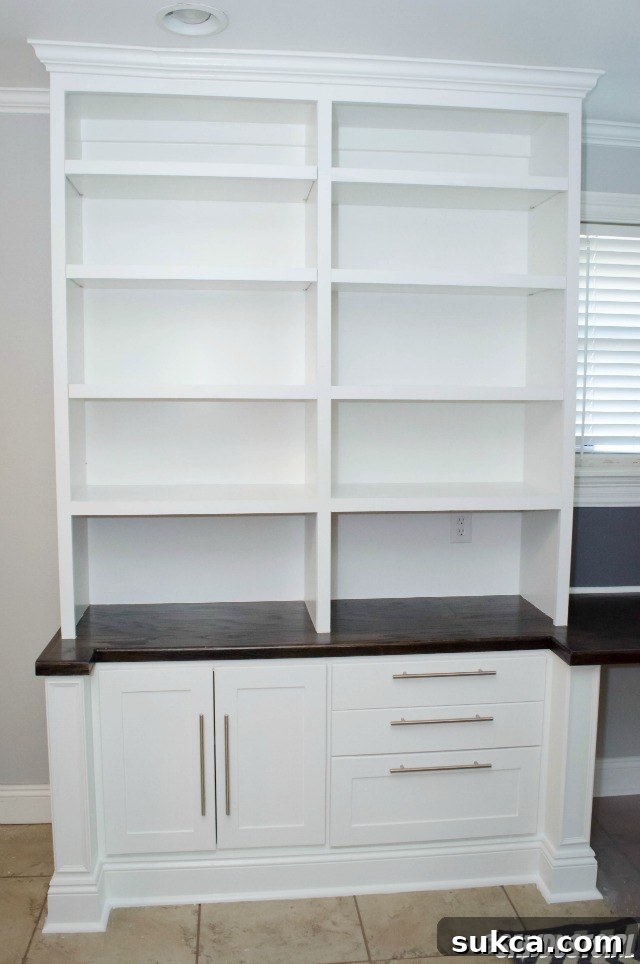

Congratulations! You’ve successfully built and installed a beautiful, functional built-in bookshelf that will enhance your home for years to come. Enjoy the satisfaction of having created a custom piece that perfectly suits your space and storage needs.
