The Ultimate Guide to Installing Inset Drawers on Face-Frame Cabinets

Installing inset drawers on face-frame cabinets is a rewarding woodworking project that significantly enhances the aesthetic and functionality of your cabinetry. Unlike overlay drawers that sit over the cabinet opening, inset drawers fit precisely within the opening, creating a clean, seamless, and traditional look that homeowners and designers cherish. While they demand a higher degree of precision and careful planning, the process itself is straightforward once you understand the core principles. This comprehensive guide will walk you through every essential step, from preparing your cabinet interior to achieving that perfectly flush, smooth-operating drawer.

The primary challenge with inset drawers in face-frame cabinets lies in accommodating the drawer glides. Face-frame cabinets have a solid wood frame on the front, which creates a recessed interior space. To properly mount drawer glides, you need to create a flat, flush mounting surface that extends from the back of the face frame into the cabinet interior. This process, often referred to as “blocking out” or “furring out,” is critical for achieving the desired inset appearance and ensuring the glides operate correctly.

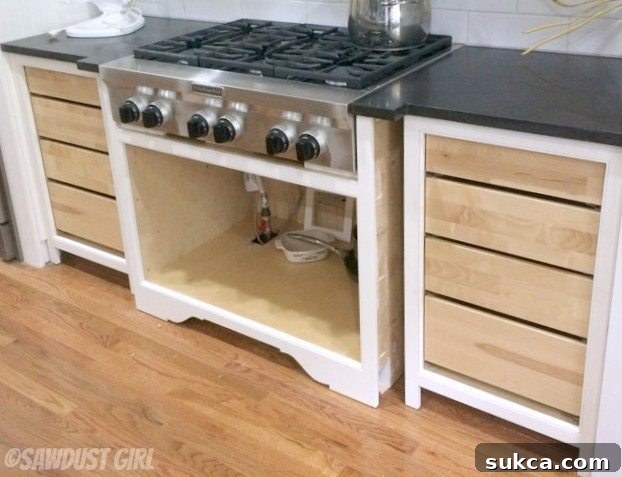

Understanding the Face-Frame and the Need for Blocking Out

A face-frame cabinet features a frame of solid wood that surrounds the cabinet opening. This frame provides structural integrity and a finished look. For inset drawers, the drawer front will sit flush with this face frame. This means the drawer box itself, and crucially, the drawer glides, must be mounted further back into the cabinet interior. The depth difference between the front of the face frame and the inside of the cabinet box needs to be filled or “blocked out” to provide a continuous, stable mounting surface for your drawer glides.

There are several effective ways to achieve this blocking out, each with its own advantages, depending on your cabinet structure, material availability, and desired rigidity. Common methods include:

• Installing a False Side: This involves cutting a full panel of wood (plywood or solid wood) to fit the entire depth of the cabinet on each side, effectively creating a new, flush interior wall. While it can be seen as a “waste of wood” due to the material volume, it offers maximum rigidity and a completely finished interior aesthetic. This method is often preferred for high-end cabinetry or when you want to ensure absolute stability over the entire depth.
• Utilizing Horizontal Cleats: This method involves installing horizontal wood strips (cleats) specifically where each drawer glide will be mounted. These cleats are secured to the cabinet sides at the exact height of each glide. This approach conserves material but requires precise placement of each cleat to ensure proper alignment for the glides.
• Employing Vertical Cleats: A very common and highly effective method is to install two vertical cleats on each side of the cabinet opening – one secured towards the front, directly behind the face frame, and another towards the back. These cleats should be of a thickness that, when installed, their outer edges are perfectly flush with the inside edge of the face frame. This creates a robust and continuous mounting surface along the entire depth of the cabinet, offering excellent support for your drawer glides. This is often a good balance between material usage and structural integrity.

The goal, regardless of the method chosen, is to create a perfectly flat and plumb surface that is exactly flush with the inside surface of your cabinet’s face frame. This precision is paramount for the successful operation and aesthetics of your inset drawers.

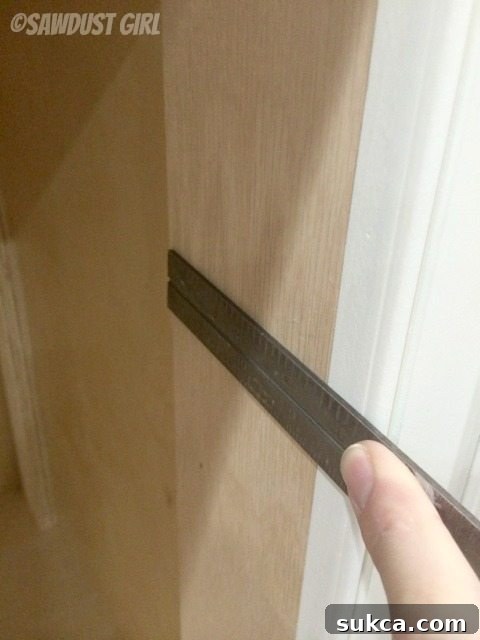

Achieving a Perfectly Flush Surface with Filler Blocks

Once you’ve decided on your blocking out method, the next critical step is ensuring the filler blocks or cleats you install are perfectly flush with the face frame. This isn’t just about aesthetics; it’s fundamental to the smooth operation of your drawer glides and the snug fit of your inset drawer fronts.

Depending on the thickness of your face frame and the existing cabinet material, you might need to use a combination of wood thicknesses to achieve the ideal flush surface. For instance, if your face frame is 3/4 inch thick, and your cabinet sides are 1/2 inch plywood, you’ll need to add a 1/4 inch thick filler block to bring the surface forward. Always measure the exact distance from the inside of your cabinet side to the inside of your face frame to determine the required thickness of your filler blocks. Using a straightedge placed across the face frame opening and extending into the cabinet will help you identify any discrepancies and ensure your filler blocks are perfectly aligned.

Secure these filler blocks firmly using both wood glue and screws. Ensure the screws are long enough to hold securely but not so long they penetrate through the outer cabinet wall. Countersink the screw heads for a smooth finish, especially if you plan to paint or finish the inside of your cabinets later. Take your time with this step, as any deviation here will directly impact the performance and appearance of your drawers.

Precise Drawer Glide Installation: Setting the Setback

With your cabinet interior properly blocked out and flush, you’re ready for the most critical step: installing the drawer glides. Achieving the perfect setback – the distance the glide is recessed from the front of the face frame – is paramount for inset drawers. This measurement dictates how far back your drawer box sits, ensuring the drawer front is perfectly flush with the face frame when closed. The exact setback requirement will vary depending on the specific type and brand of drawer glides you are using (e.g., side-mount vs. under-mount). Always consult your manufacturer’s instructions for the precise setback measurement.

For unparalleled accuracy, your combination square will be an invaluable tool. Here’s how to use it:

1. Identify the Setback: Locate the required setback measurement in your drawer glide’s instruction manual. This might be a specific dimension (e.g., 1/8 inch or 3mm) or a recommendation for a slight recess to account for paint/finish thickness.
2. Set Your Combination Square: Adjust the blade of your combination square to this exact setback measurement. Lock it securely.
3. Position the Glide: Place the front edge of your drawer glide against the blade of your combination square. Then, position the entire assembly against the inside edge of your cabinet’s face frame. This ensures the glide is perfectly recessed to the required depth.
4. Secure Loosely: Most drawer glides feature horizontal slotted holes at the front. Use one of these slots to loosely secure the glide to the cabinet’s filler block or cleat with a single screw. The slotted hole allows for minor adjustments before final tightening.
5. Verify and Tighten: With the screw loosely in place, double-check that the glide is exactly where you want it using your combination square. Ensure it’s level. Once satisfied, fully tighten the screw in the slotted hole.
6. Add Remaining Screws: After securing the first screw firmly, insert the remaining screws along the length of the glide. For stability and durability, it’s recommended to use a minimum of four screws per side – typically two towards the front and two towards the back of the glide. This distribution ensures the glide is firmly attached and can handle the weight and repeated motion of the drawer without sagging or detaching. Always pre-drill pilot holes to prevent wood splitting, especially in hardwood cleats or face frames.

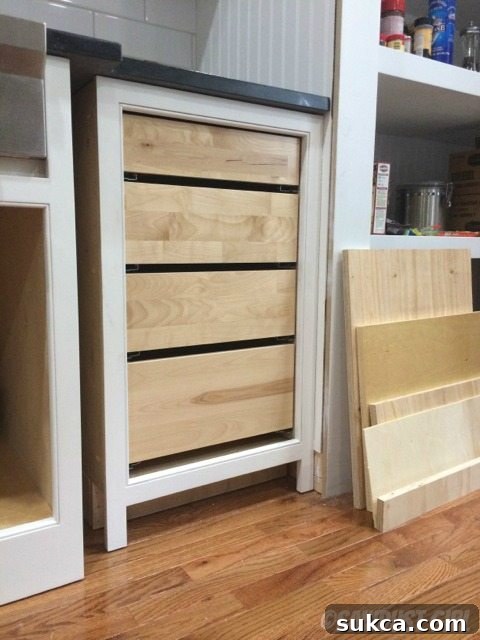

Achieving Consistent Drawer Height with Spacer Boards

Once you’ve mastered the setback, the next challenge is ensuring consistent height and spacing between your drawers. This is crucial for a professional look and smooth operation. The best method for achieving this consistency is by using custom-made spacer boards.

Begin installing your glides from the top drawer opening. Determine the desired clearance above and below your drawer front (again, consult your glide manufacturer’s instructions for minimum clearances, as these vary by glide type and brand). Cut spacer boards to this precise height. For example, if you need a 1/8 inch gap between drawer fronts, and your drawer fronts are 6 inches tall, your first spacer might be 6 inches plus 1/8 inch. However, most commonly, you’ll use spacers to support the glides themselves, ensuring a consistent distance from the top of the opening down.

Here’s the recommended process:

1. Determine Glide Height: Based on your drawer box dimensions and desired reveals, mark the exact bottom line for your first (top) drawer glide.
2. Create Spacer Board: Cut a piece of scrap wood to the exact thickness required to support the bottom of the drawer glide at your marked line. This spacer board will act as a temporary platform.
3. Install First Glide: Place the spacer board on the bottom of the drawer opening, or on a previous drawer’s installed glide. Rest the first drawer glide directly on this spacer board. Secure the glide following the setback steps outlined above (loose screw in slotted hole, check, tighten, then add remaining screws).
4. Install Mating Glide: Move the same spacer board to the opposite side of the cabinet opening. Install the corresponding drawer glide for that side, resting it on the spacer board. This ensures both glides are at precisely the same height, critical for smooth drawer operation.
5. Proceed to Next Drawer: For the next drawer down, you will use a new spacer board. This spacer board will account for the thickness of the drawer front above it, plus the desired reveal (gap) between the drawer fronts. For example, if your top drawer front is 7 inches tall and you want a 1/8 inch gap, your next spacer board would be placed 7 and 1/8 inches below the bottom of the previous drawer glide. Or, more simply, cut a spacer that spans from the top of the opening down to the correct height for the next glide, taking into account all previous elements.
6. Repeat: Continue this process for all subsequent drawer glides, moving your spacer board from side to side for each pair of glides, and creating new spacers for each subsequent drawer level. This systematic approach guarantees consistent spacing and perfectly aligned drawers throughout your cabinet.

Remember, always refer to your specific drawer glide installation instructions for exact clearance requirements above and below the glide itself. These clearances are crucial for ensuring the drawer operates without binding and has enough room for any necessary adjustments or future swelling/shrinking of wood.

Essential Tips for a Flawless Inset Drawer Installation

• Double-Check Everything: Measure twice, cut once is an old adage for a reason. With inset drawers, measure three or four times! Precision is your greatest ally.
• Use Quality Tools: A reliable tape measure, a true square (combination or framing), a good level, and a sharp drill will make a significant difference in your results.
• Pre-Drill Pilot Holes: Always pre-drill holes for screws, especially when working with hardwoods or near edges, to prevent splitting the wood.
• Test Fit Components: Before making anything permanent, dry-fit your filler blocks, cleats, and even the drawer box (if available) to ensure everything aligns perfectly.
• Consider a Jig: For multiple drawers, consider building a simple jig for consistent setback and height. This can save immense time and ensure uniformity.
• Cleanliness is Key: Keep your workspace clean. Sawdust or debris can throw off measurements and affect glide operation.
• Patience Pays Off: Inset drawers are a detail-oriented project. Don’t rush. Taking your time at each step will prevent costly mistakes and lead to a superior finished product.
• Consult Manufacturer Instructions: Every drawer glide is slightly different. Always read and follow the specific installation instructions provided by the glide manufacturer.

Troubleshooting Common Inset Drawer Issues

Even with careful planning, you might encounter minor issues. Here’s how to address some common problems:

• Drawer Sticking or Not Closing Smoothly: This often indicates misalignment of the glides. Check if both glides are perfectly parallel and level. The slotted holes on most glides allow for slight horizontal or vertical adjustments.
• Uneven Gaps Around Drawer Fronts: This is usually a sign of inconsistent height or setback of the glides. Re-evaluate your spacer board measurements and setback. Shims can sometimes be used discreetly behind glides for micro-adjustments.
• Drawer Sagging or Feeling Loose: This points to insufficient support for the glides or loose screws. Ensure your filler blocks are robustly secured and all glide screws are tightened properly.
• Drawer Front Rubbing Against Face Frame: Your setback might be slightly off, or the drawer box itself might be too wide. Small adjustments to the glide’s position using the slotted holes can often resolve minor rubbing.

Conclusion: The Reward of Precision Cabinetry

Installing inset drawers on face-frame cabinets is a testament to precision and craftsmanship. While the steps require attention to detail, the result is a beautifully integrated, high-quality cabinet that stands out. By meticulously blocking out your cabinet interior, achieving a perfectly flush mounting surface, setting your drawer glides with a combination square, and utilizing spacer boards for consistent height, you will unlock the secret to flawless inset drawer installation. The satisfaction of seeing your perfectly aligned, smoothly operating inset drawers will be well worth the effort.
